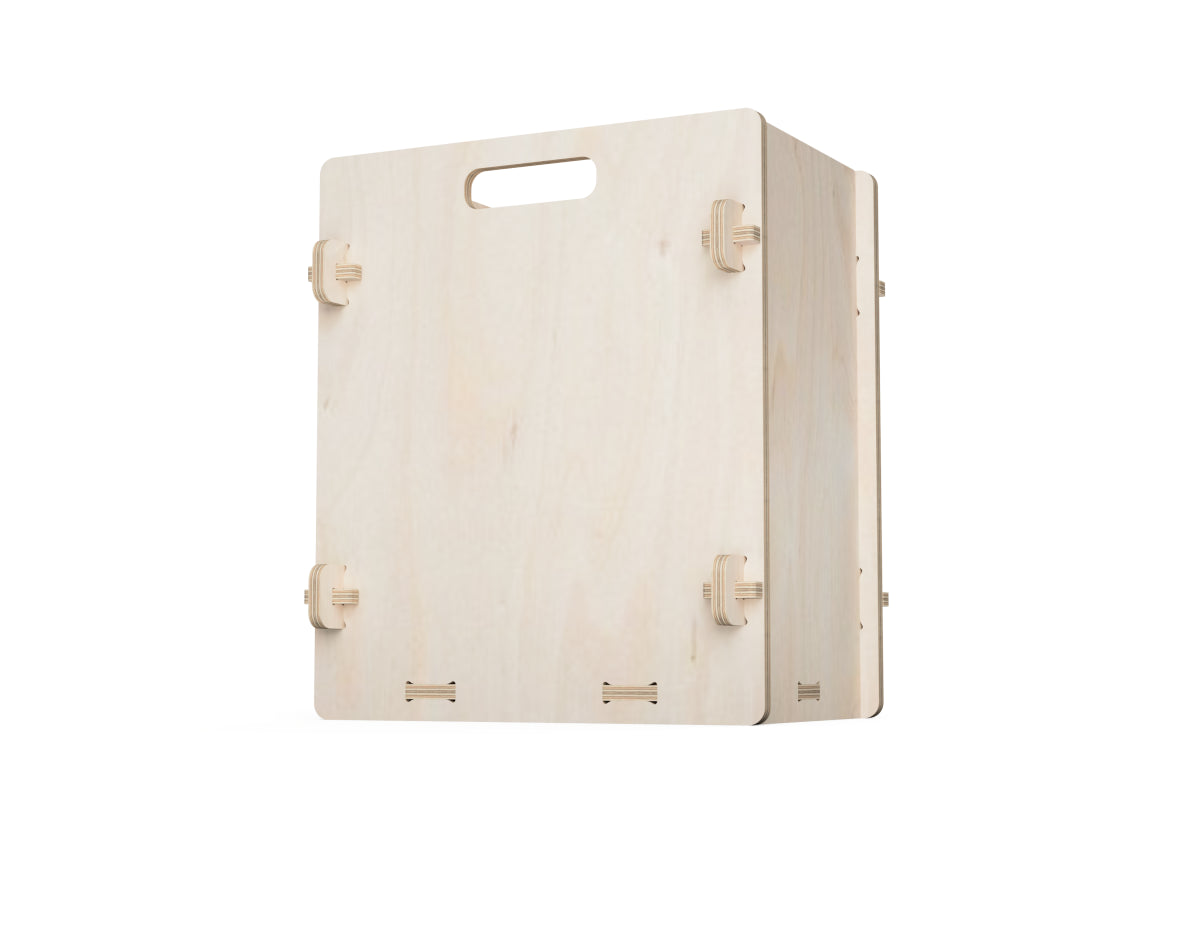

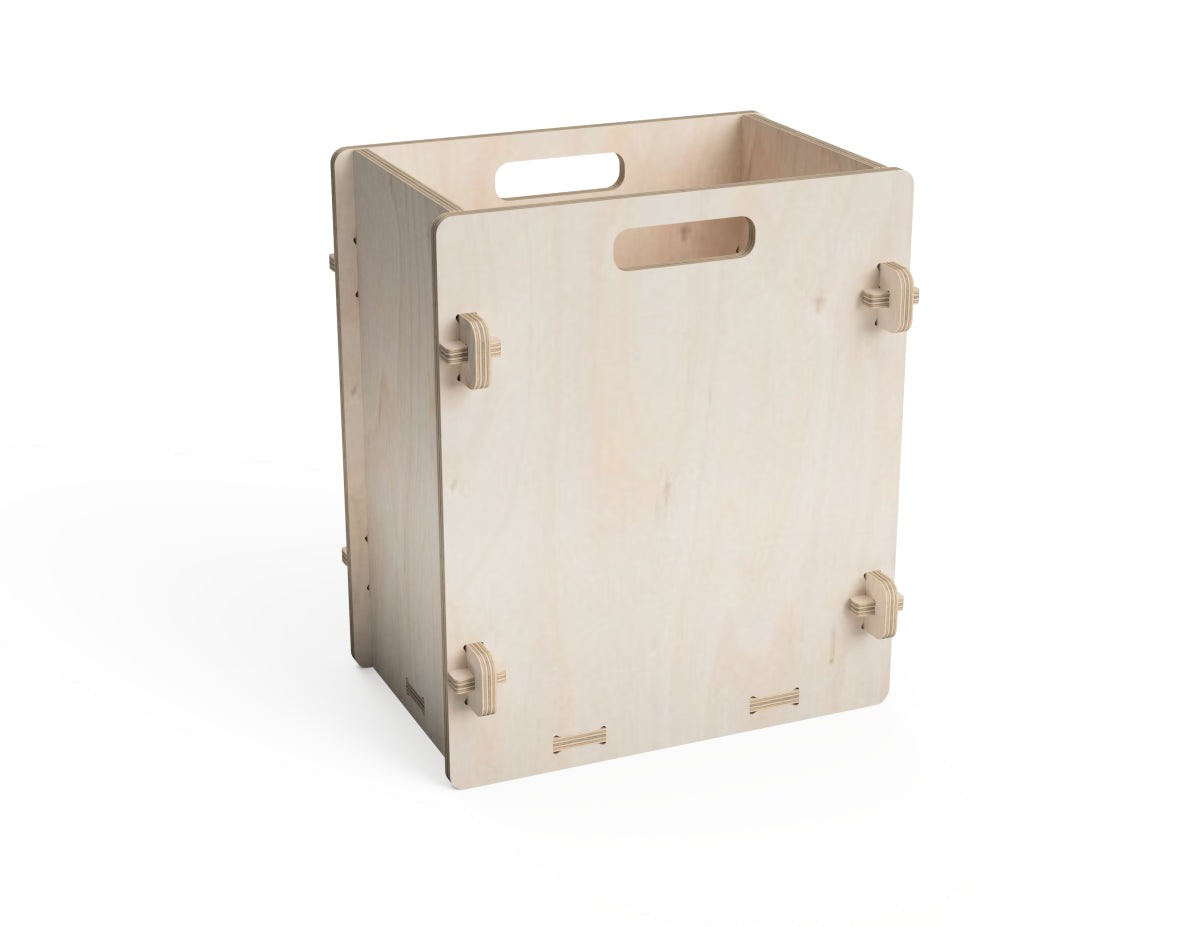

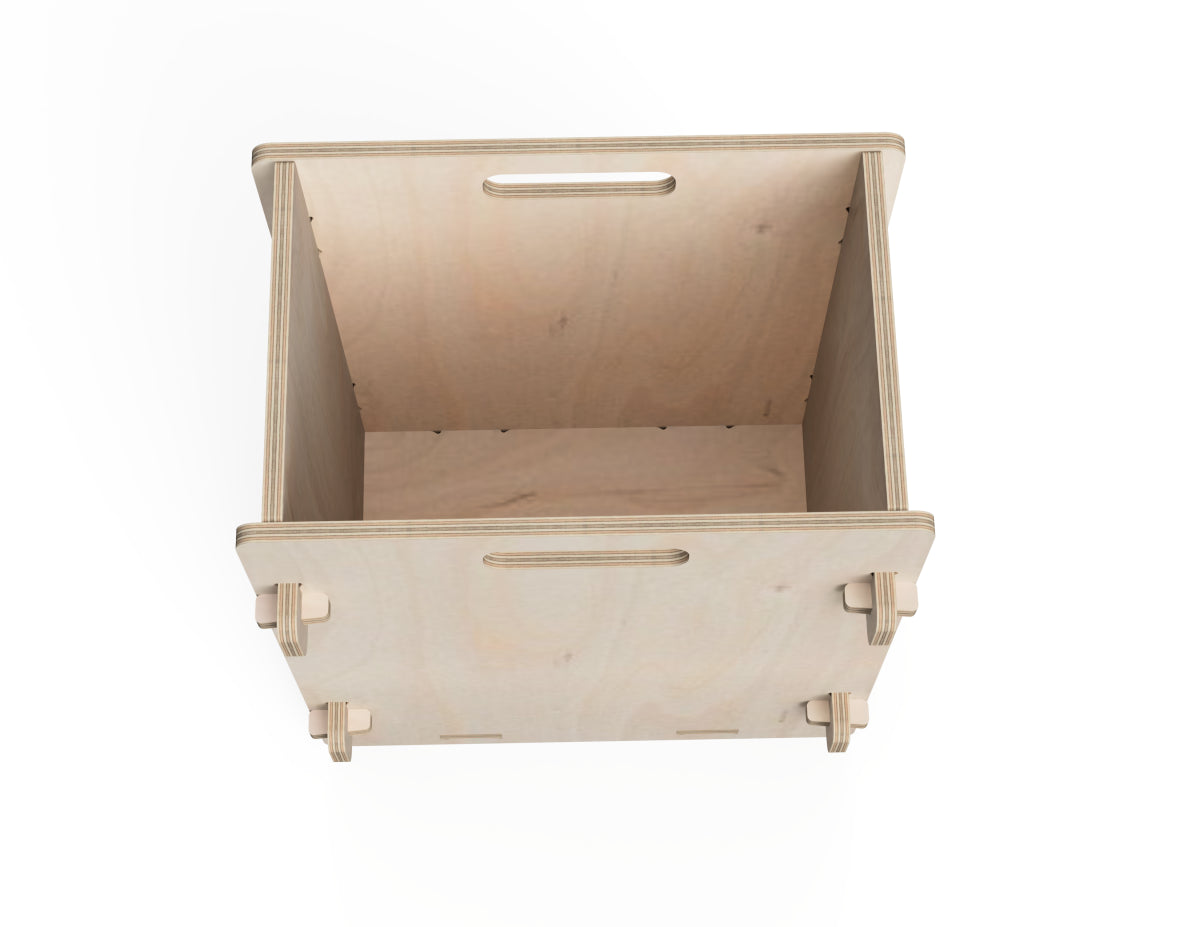

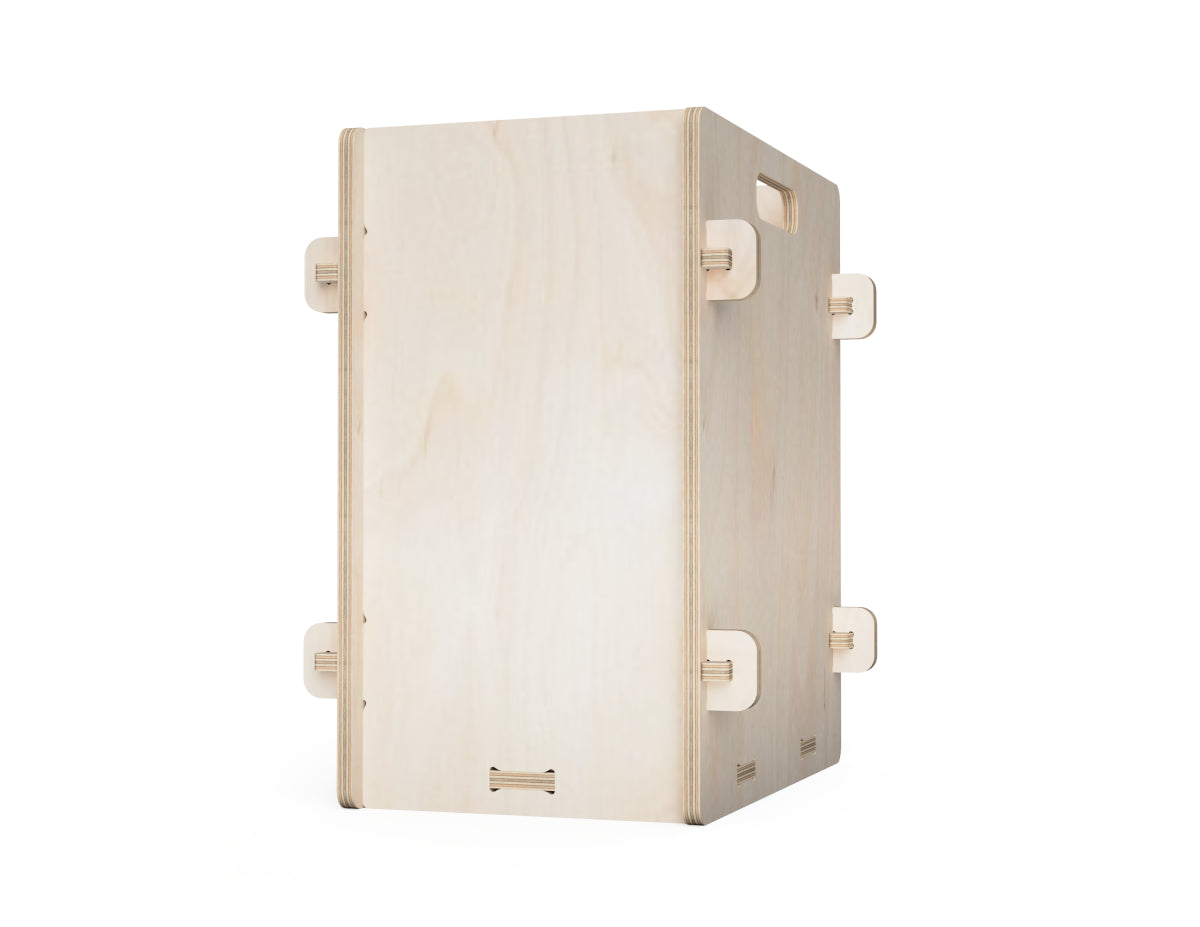

Keep your workshop clean and organized with this simple, functional trash can design!

These free CNC DXF files let you create a compact trash can perfectly sized for regular shopping bags or small trash bags.

The design uses mortise and tenon joints with a wedge-lock system, so you can assemble it without screws or nails – just cut, slot, and lock the pieces together. Ideal for plywood, MDF, or particle board, this project is quick to make and perfect for using up leftover material.

Build a sturdy and practical trash can in just one evening!

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Max single piece size

The biggest component is 300 x 400 mm (11.81 x 15.75 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width	Length	Height
175 mm	300 mm	400 mm
6⅞ inch	11¾ inch	15¾ inch

Required materials

For a 600 x 600 mm (2 x 2 ft) CNC:
- 2 sheets of 600 x 450 x 9 mm (24 x 18 x 3/8 inches) plywood
- 1 sheet of 320 x 300 x 9 mm (13 x 12 x 3/8 inches) plywood
- 3 mm (1/8 inch) router bit
For a 600 x 900 mm (2 x 3 ft) CNC
- 1 sheet of 600 x 900 x 9 mm (24 x 36 x 3/8 inches) plywood
- 1 sheet of 320 x 220 x 9 mm (13 x 10 x 3/8 inches) plywood
- 3 mm (1/8 inch) router bit
For a 820 x 1220 mm (2.6 x 4 ft) CNC and bigger
- 1 sheet of 600 x 1220 x 9 mm (24 x 48 x 3/8 inches) plywood
- 3 mm (1/8 inch) router bit
