Workbench DXF file

Workbench DXF file

Regular price $28.45 USD
Regular price $0.00 USD Sale price $28.45 USD
Sale Sold out
Tax included.

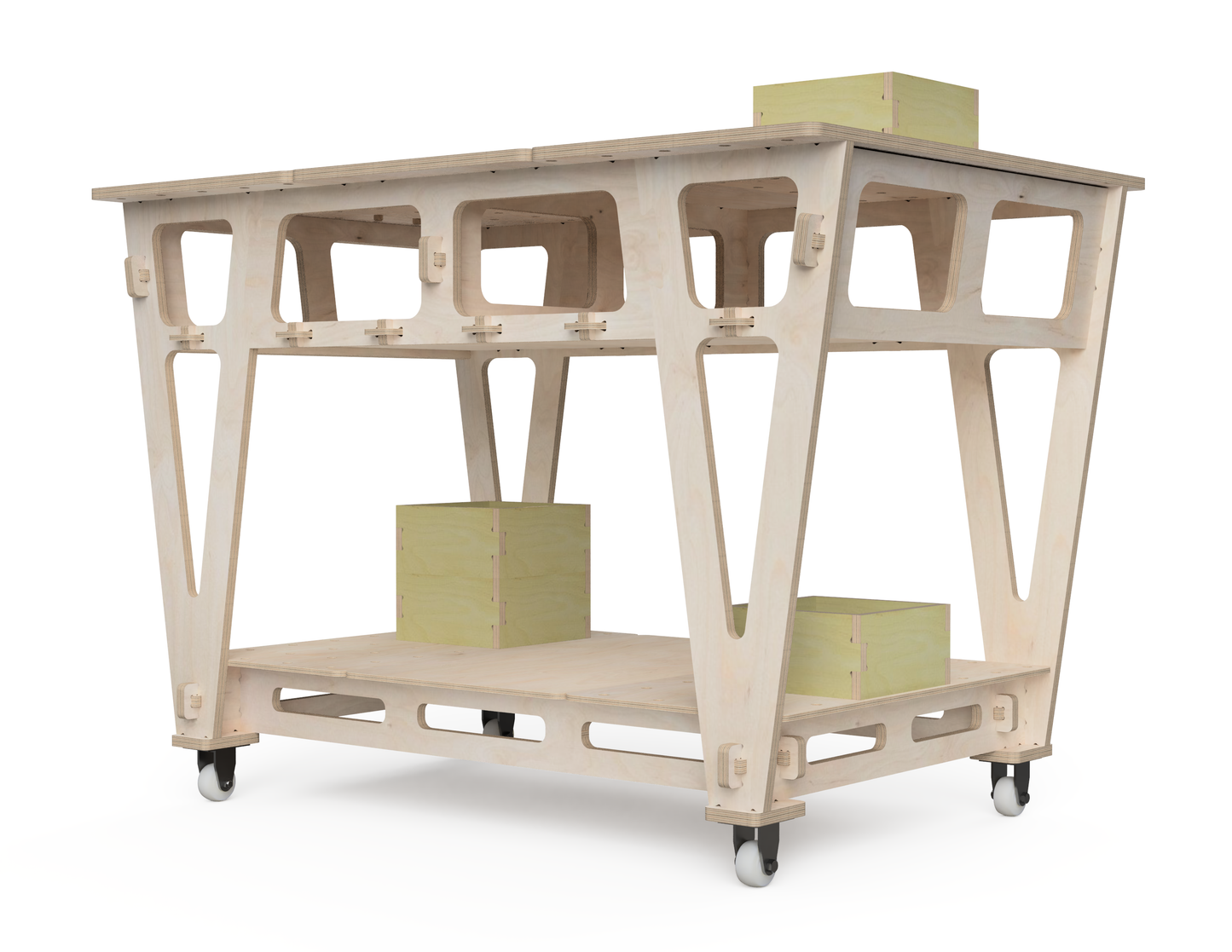

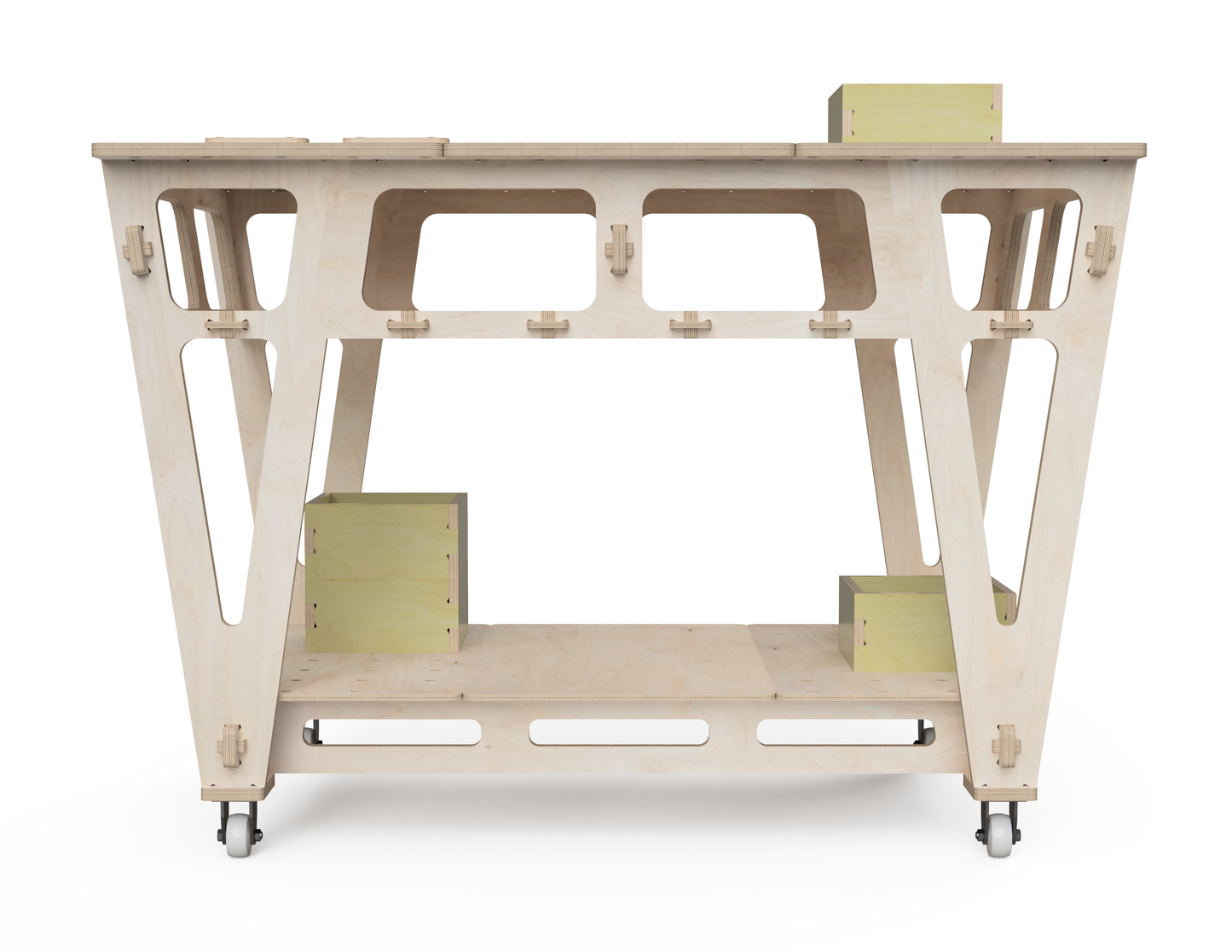

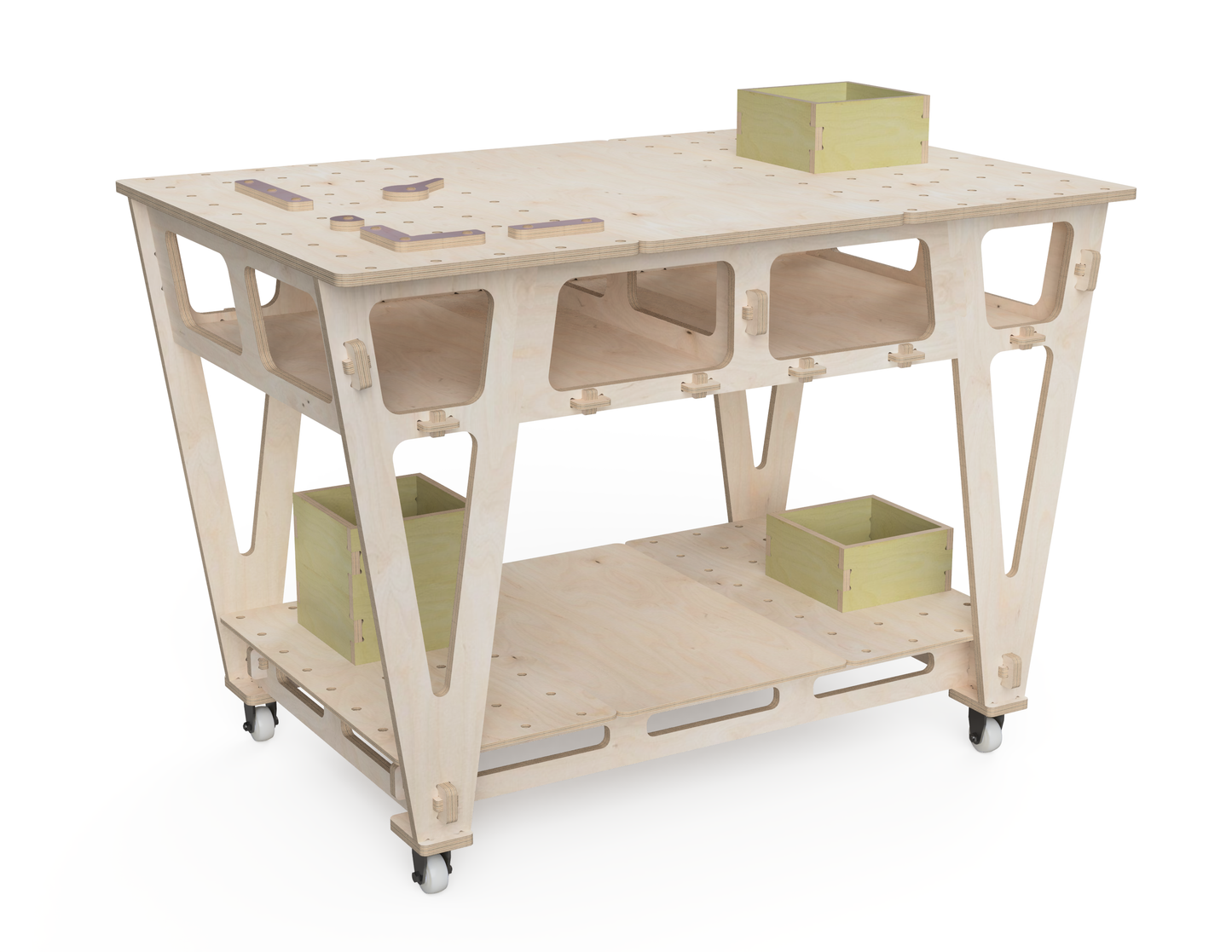

Constructing a new project, making new components, or restoring a furniture piece will be easier with this multifunctional workbench.

It has a spacious work surface, a top shelf for easy access to necessary tools, and a large bottom shelf for storing material and workpieces.

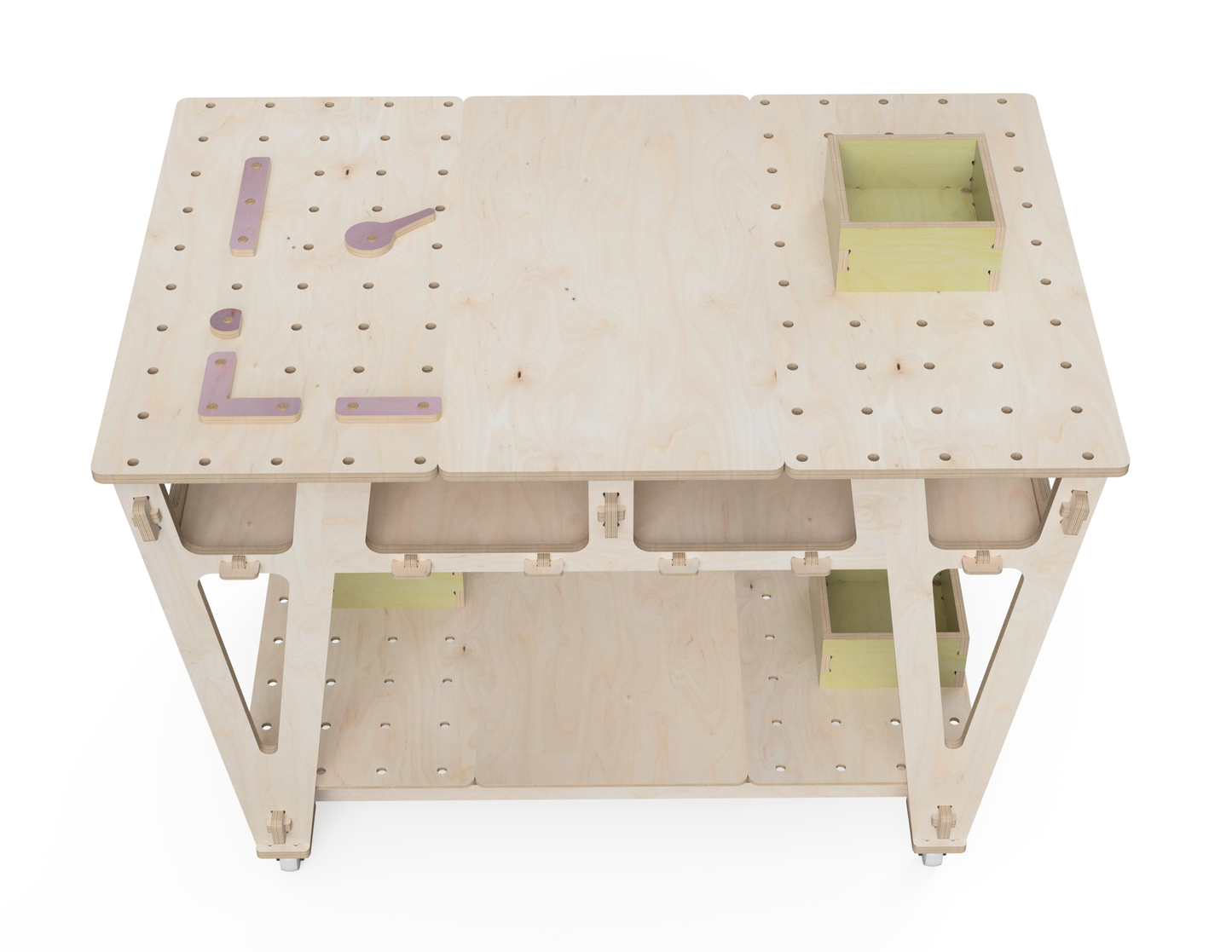

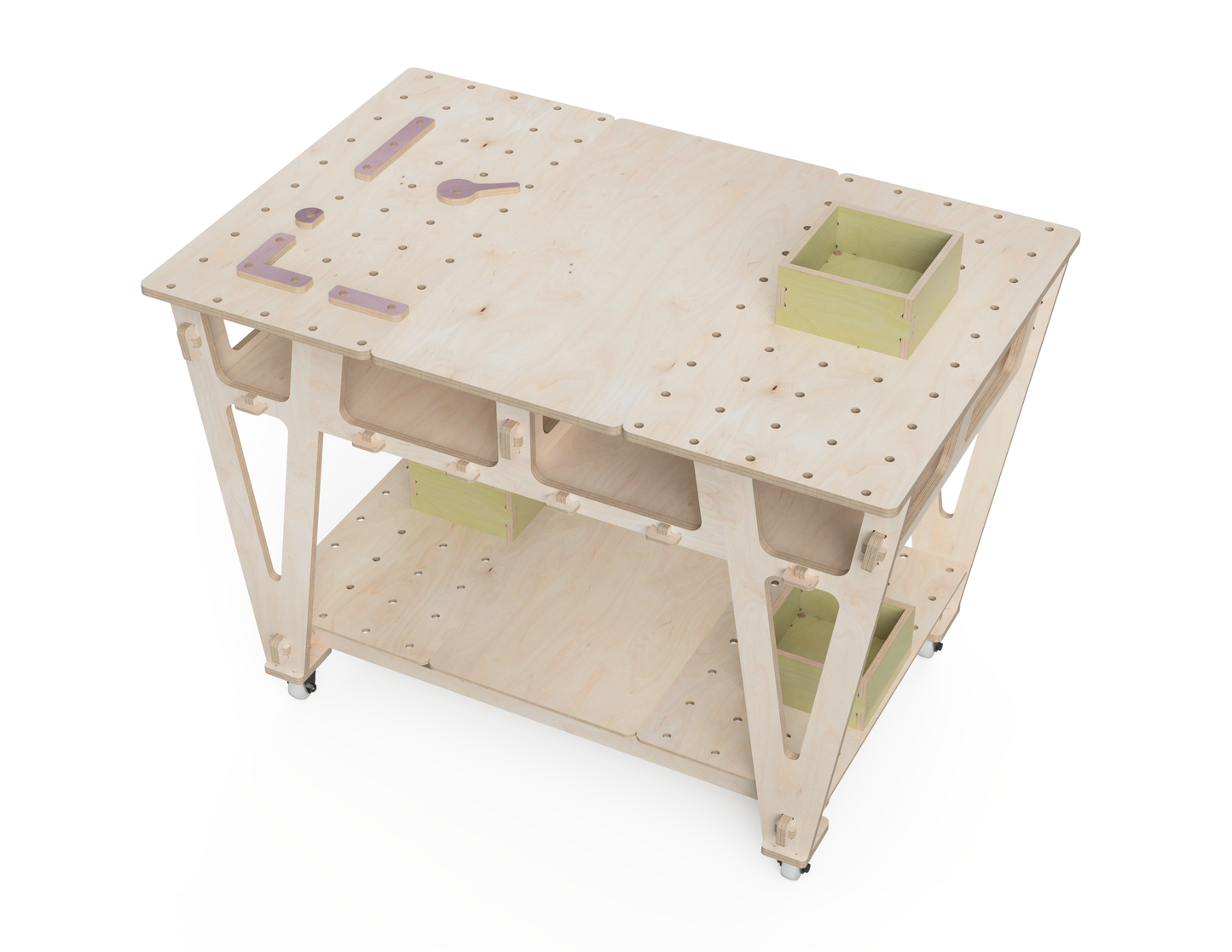

The dog hole attachments will help you secure your project to the workbench while drilling, chiseling, planing, carving, or sanding.

The design can be cut on an 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

*The files are adjusted to fit both metric and imperial standards for materials and tools


1000 mm (height including casters) x 1450 mm (length) x 950 mm (width)

39.35 inches (height including casters) x 57 inches (length) x 37.4 inches (width)

Required materials:

  • 2 sheets of 2440 x 1220 x 18 mm (96 x 48 x 3/4 inches) plywood
  • 1 sheet of 2440 x 1220 x 9 mm (96 x 48 x 3/8 inches) plywood
  • 1 sheet of 1220 x 550 x 15 mm (48 x 22 x 5/8 inches) plywood
  • 6 mm (¼ inch) router bit
  • 30 dowels (16 mm ⌀ - 0.625 inches ⌀)
  • 4 Casters

Assembling time:

1 hour

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.



If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise thickness to We will send you the updated DXF design file for free.

The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
