Wall Shelf - Birch DXF Files
Wall Shelf - Birch DXF Files
Regular price
$6.15 USD
Regular price
$12.35 USD
Sale price
$6.15 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

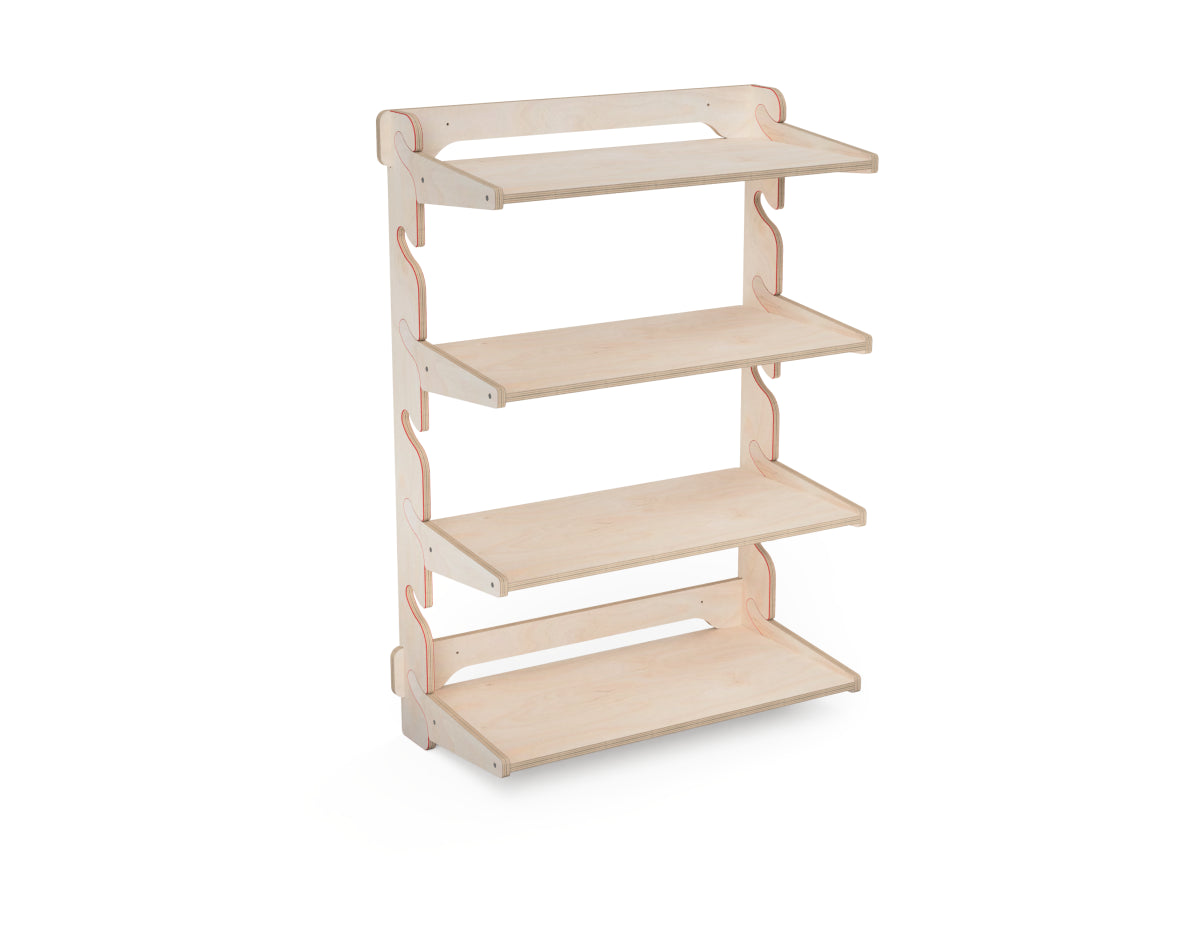

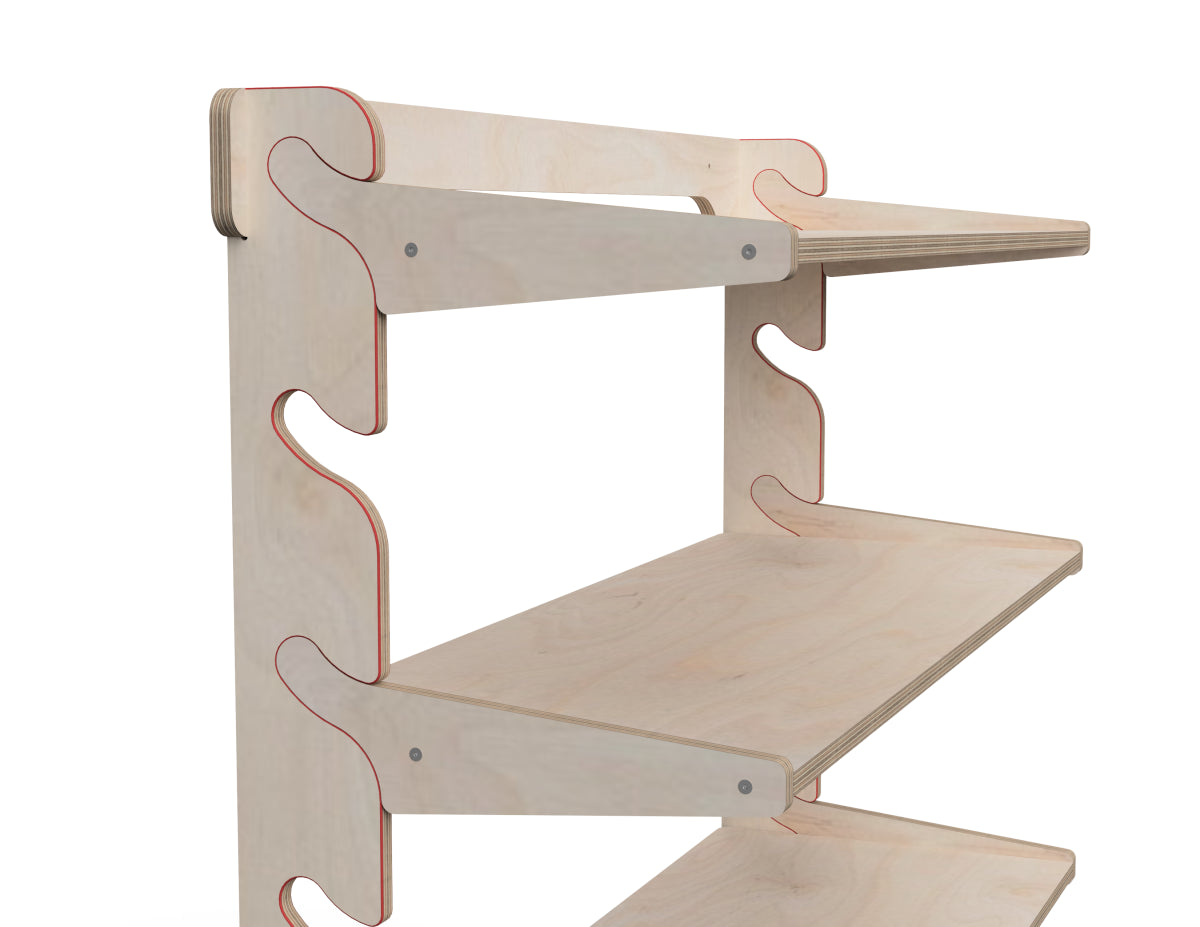

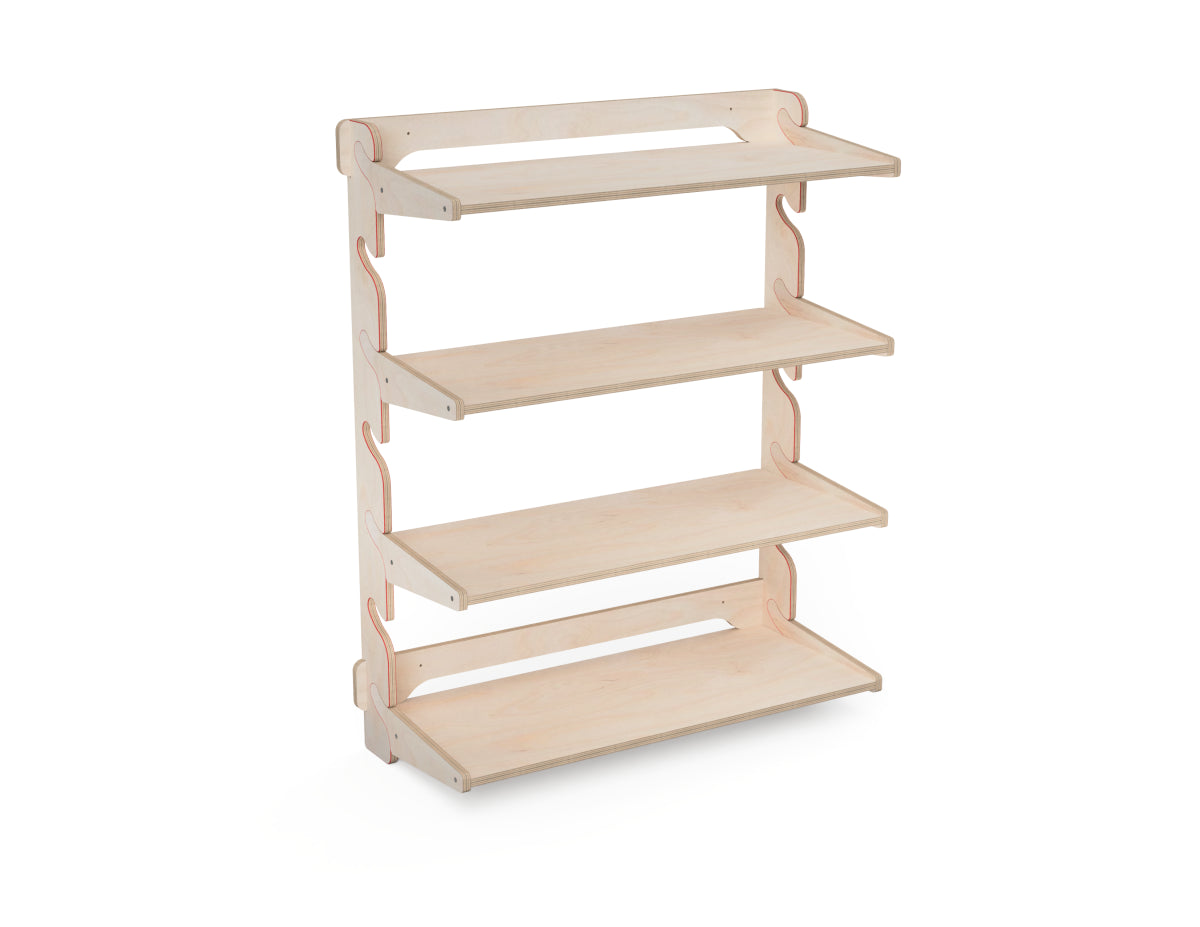

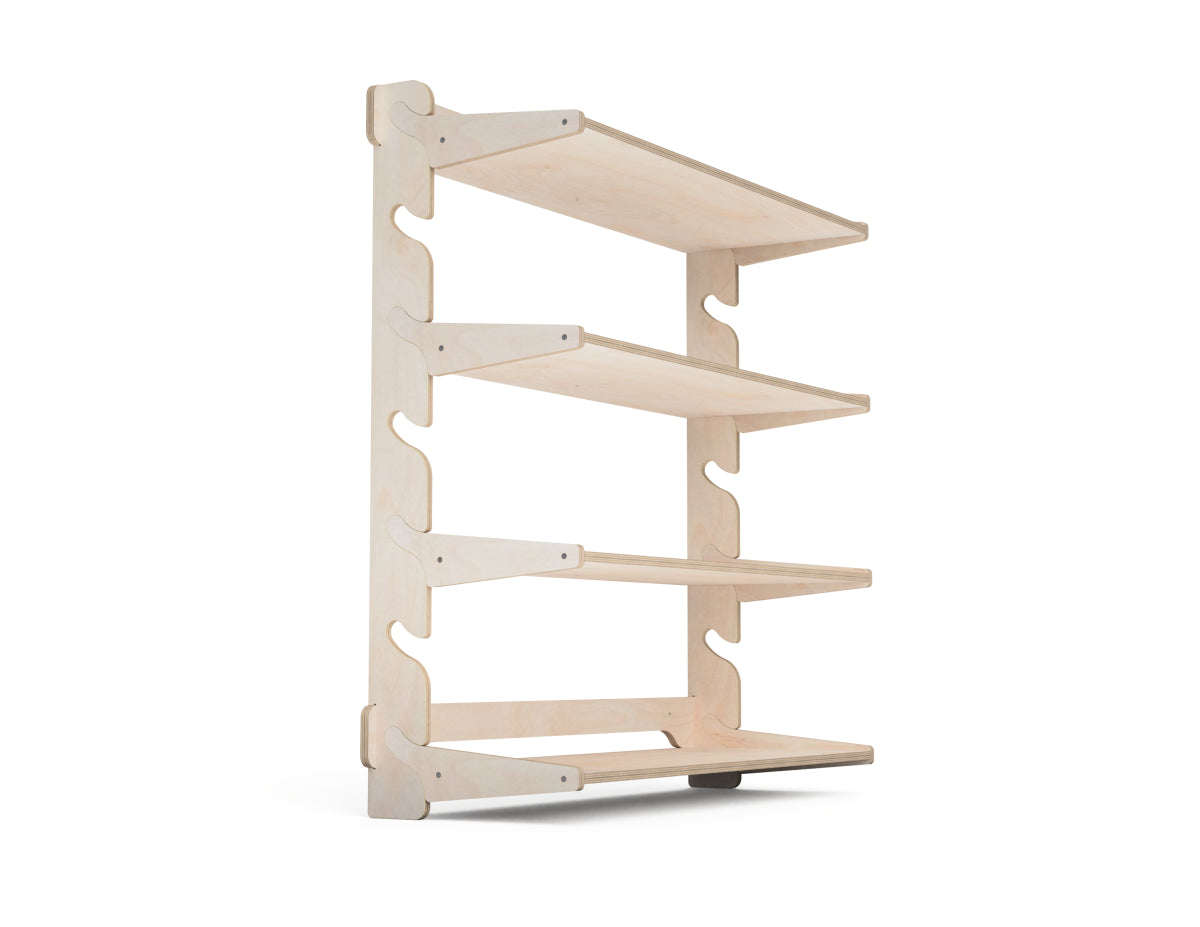

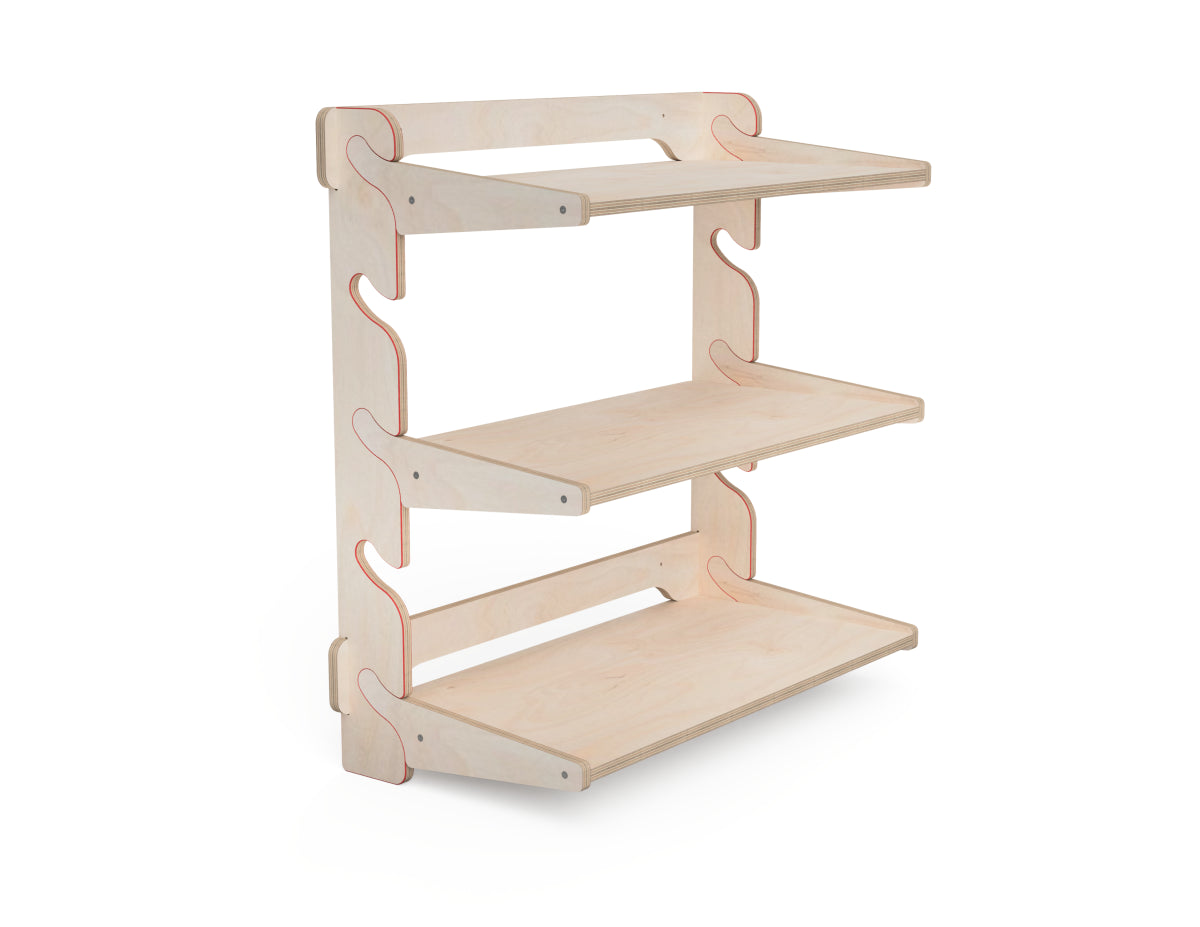

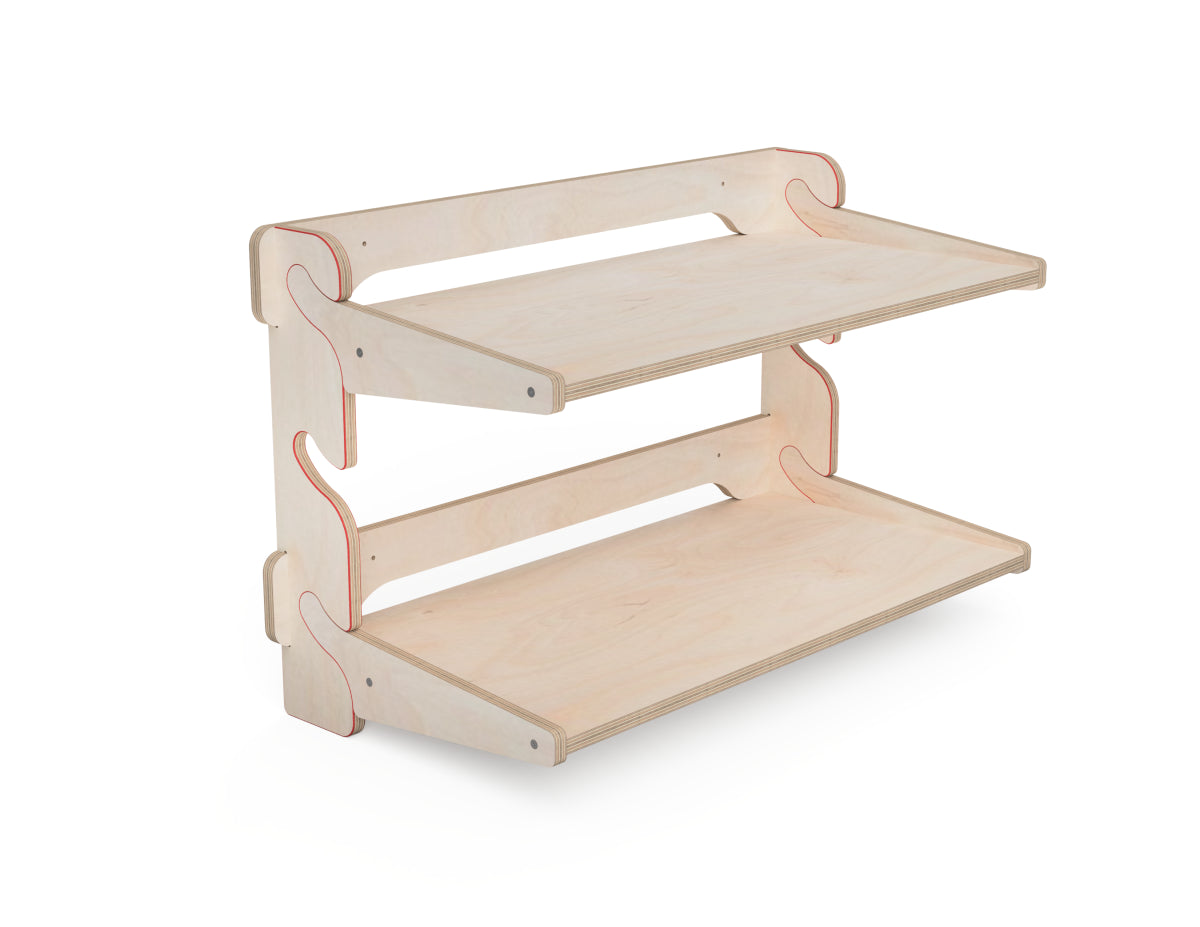

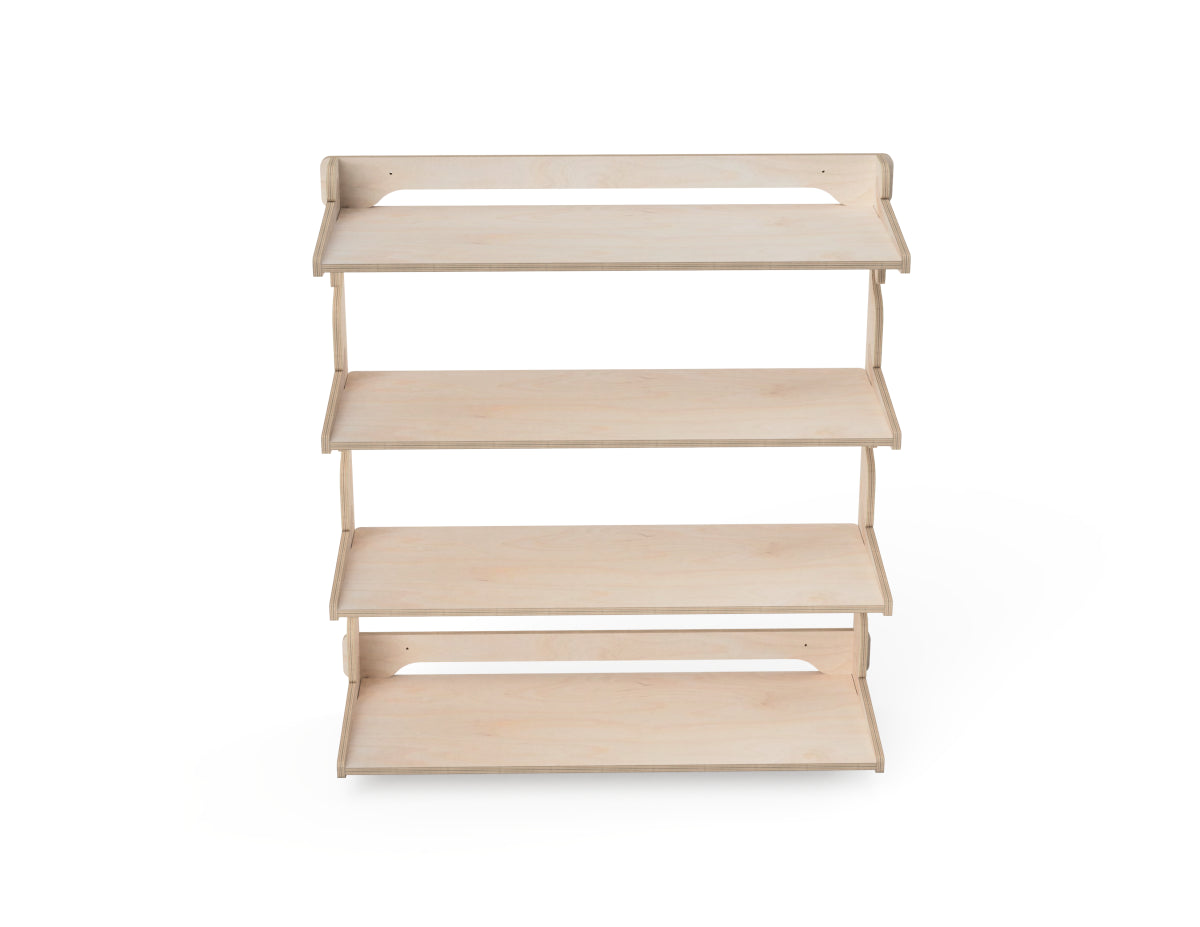

Build a modern plywood wall shelf with a unique interlocking joint designed for easy shelf installation and rearrangement.
Height options: 3 / 5 / 7 shelf slots
Width options: 600 / 700 / 800 mm
Total configurations: 9
Designed for CNC cutting from plywood, these digital woodworking plans are ideal for workshops, garages, studios, and home storage.
Supported CNC sizes
Supported CNC sizes
The project can be made on a
800 x 1200 mm (2.6 x 4 ft) CNC
router and bigger.
Max single piece size
Max single piece size
The biggest component is
900
x
300
mm (35.43
x
11.81
inches).
So if it can fit on your CNC router, you can build this project
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
Minimum
| Width | Length | Height |
|---|---|---|
| 600 mm | 300 mm | 400 mm |
| 23⅝ inch | 11¾ inch | 15¾ inch |
Maximum
| Width | Length | Height |
|---|---|---|
| 800 mm | 300 mm | 900 mm |
| 31½ inch | 11¾ inch | 35⅜ inch |
Required materials
Required materials
- a sheet of 1220 x 2440 x 12 mm (48 x 96 x 1/2 inches) plywood
- 30 mm (1-1/4 inch) wood screws - 30 pieces
- 3 mm (0.125 inch) router bit
Approximate CNC time
Approximate CNC time
30 minutes
Assembling time
Assembling time
45 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
