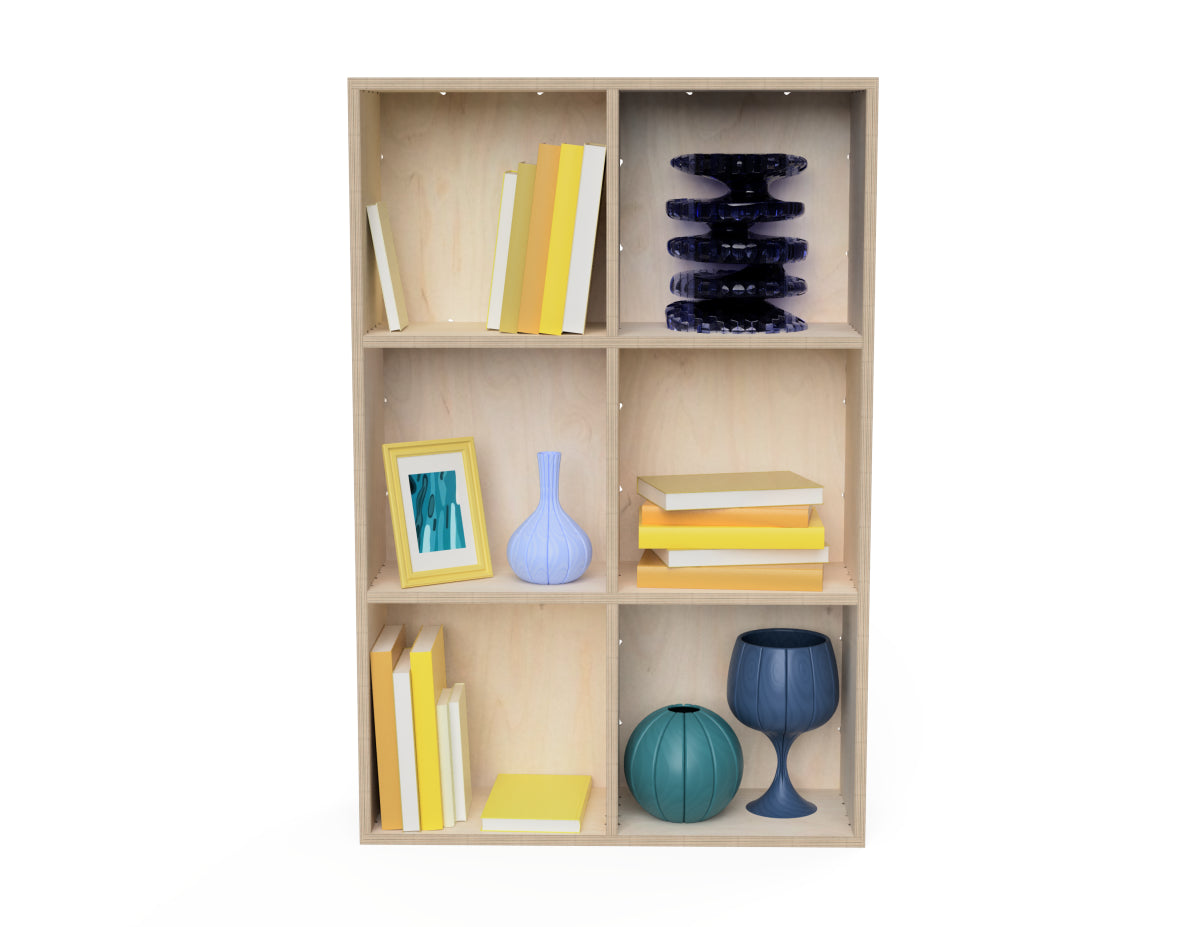

• Wall Shelf - 3 x 2 Cubes CNC DXF file design overview

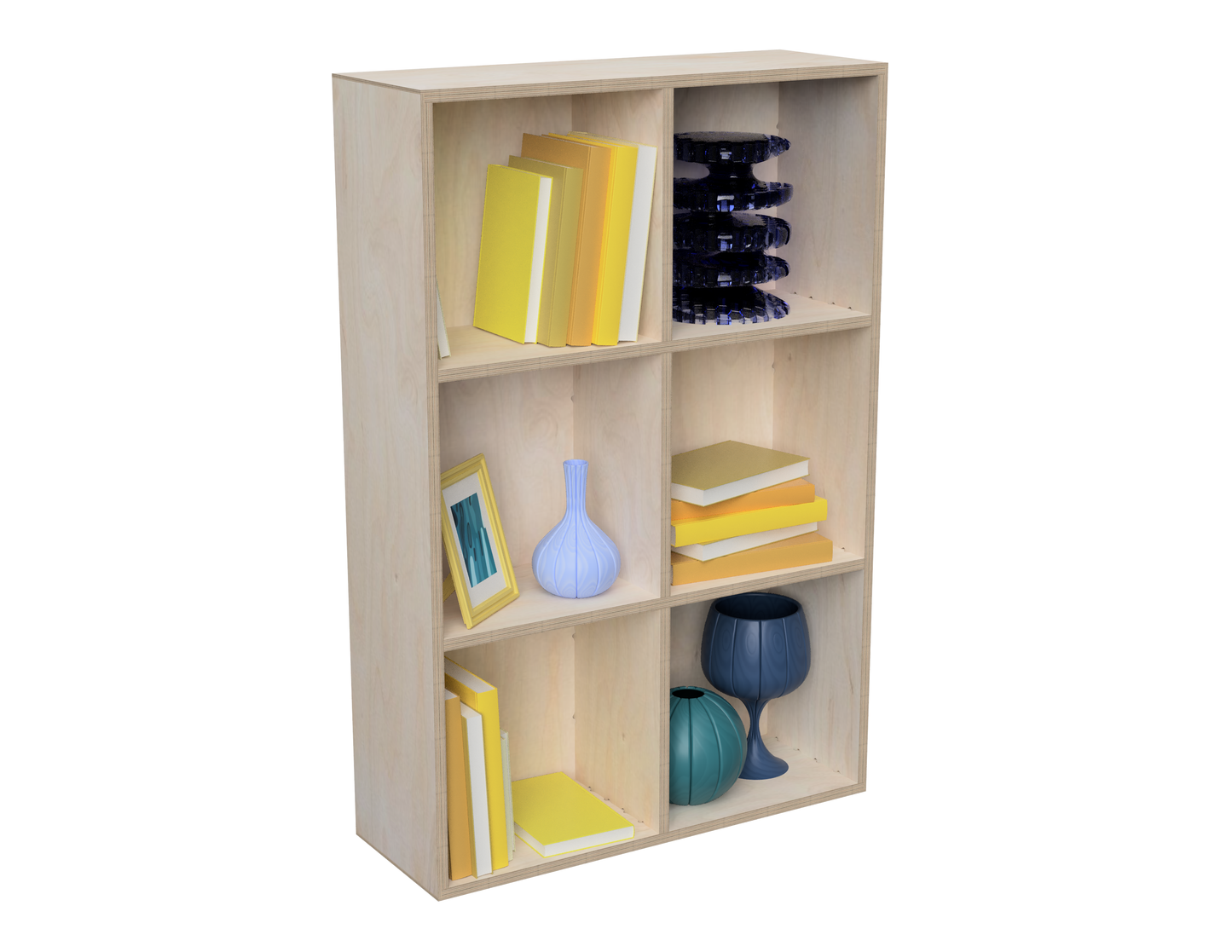

  • Wall Shelf - 3 x 2 Cubes DXF file rendered from angled view for CNC cutting

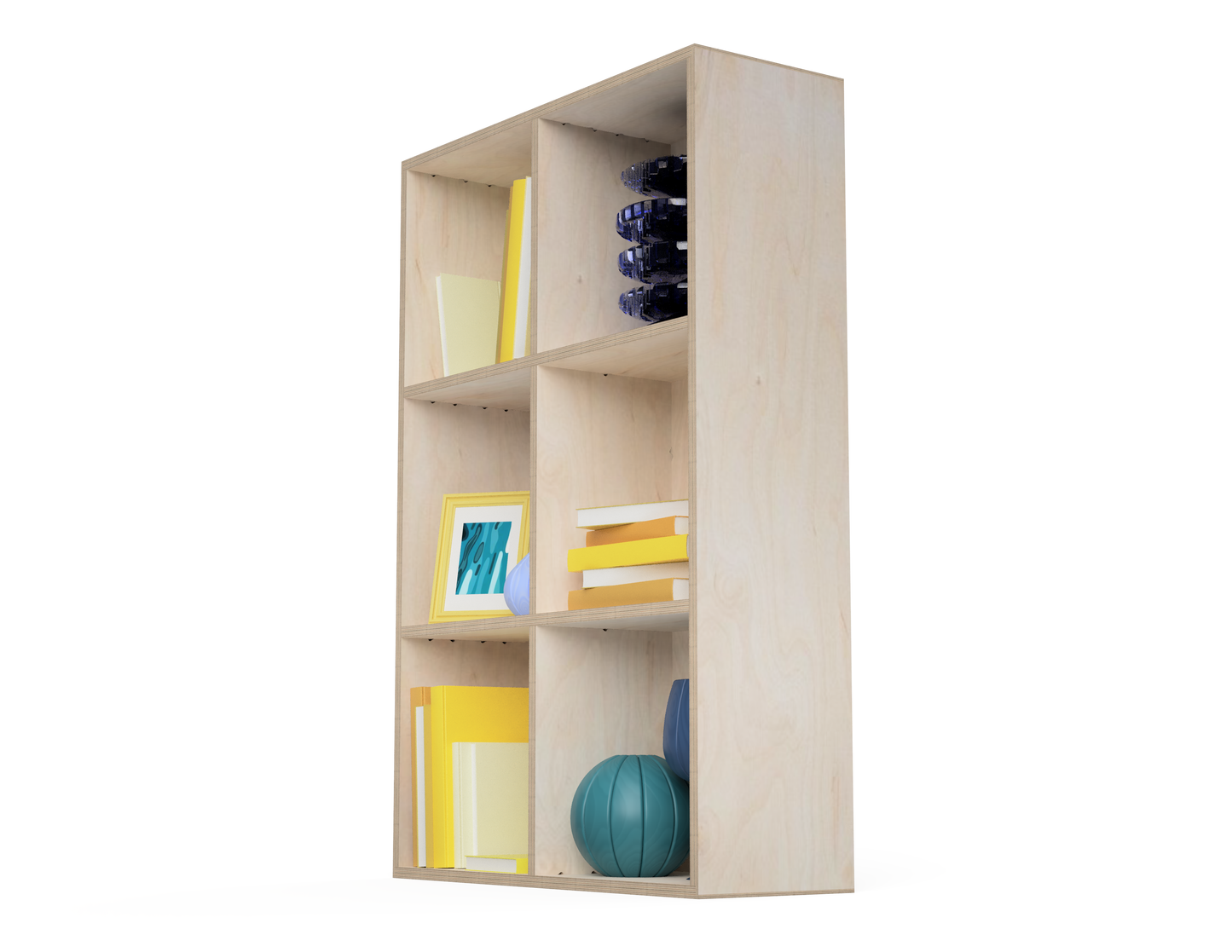

  • Detailed DXF drawing of wall shelf - 3 x 2 cubes for CNC router

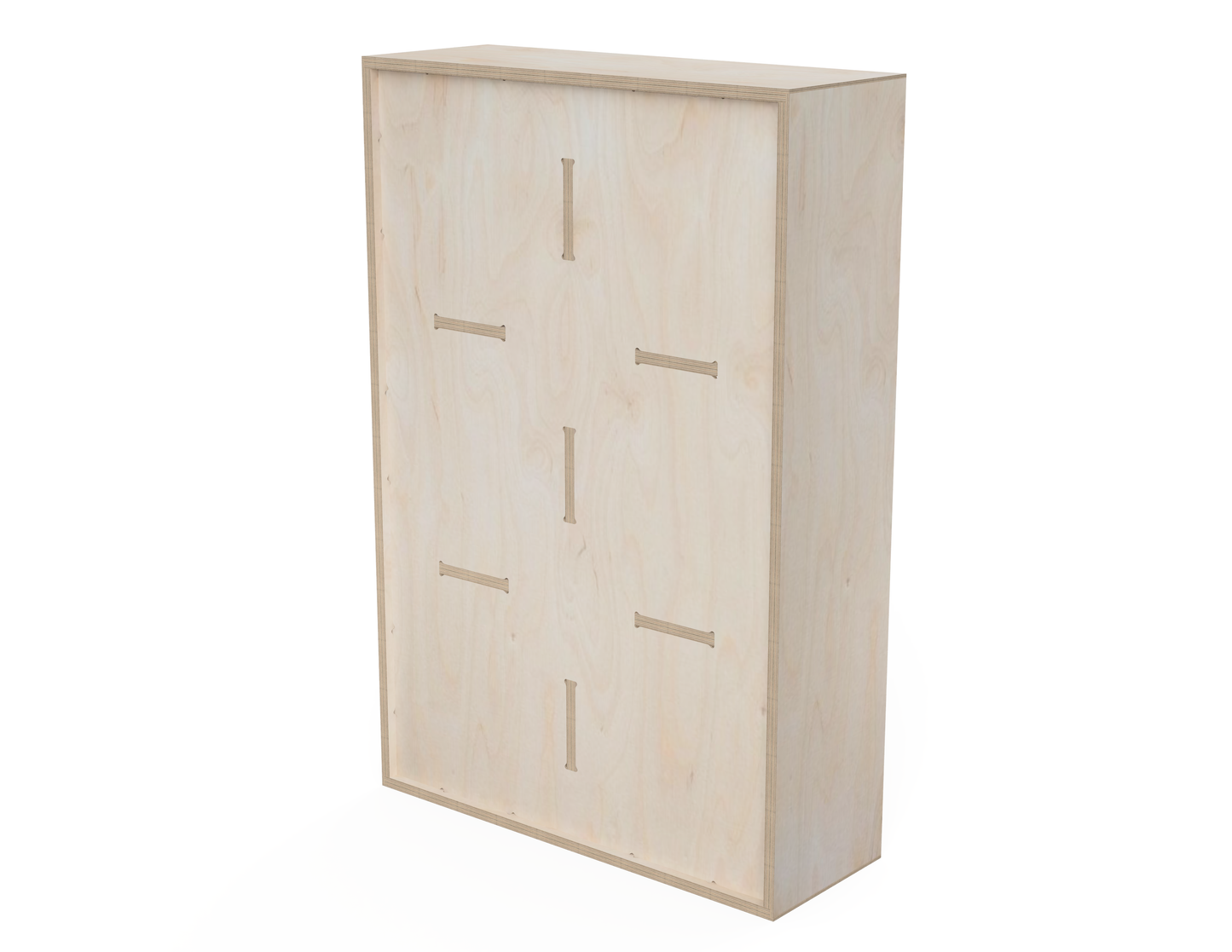

  • Wall Shelf - 3 x 2 Cubes CNC-ready design showing joints and assembly features

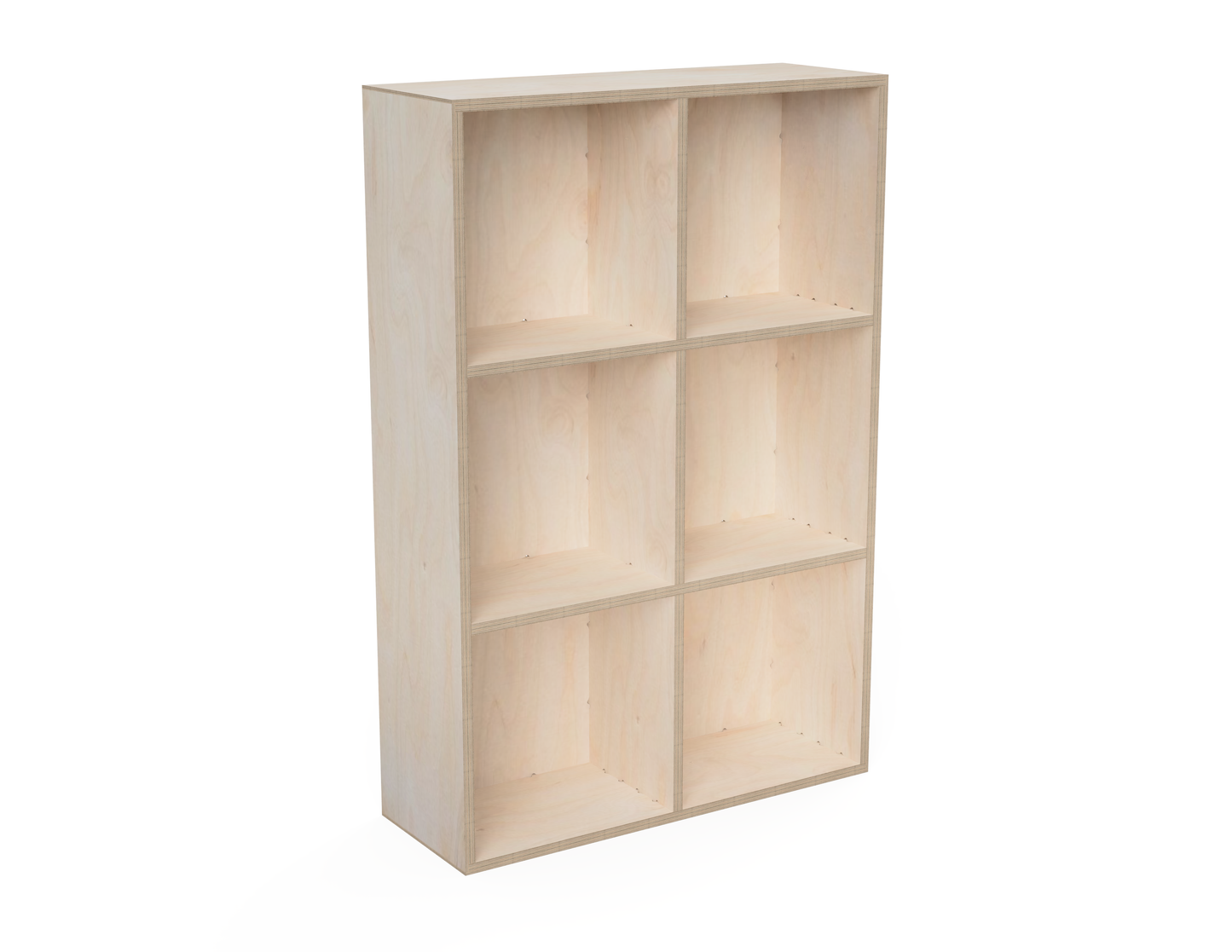

  • Rendered view of wall shelf - 3 x 2 cubes layout from DXF file
1 5

Wall Shelf - 3 x 2 Cubes DXF Files

Wall Shelf - 3 x 2 Cubes DXF Files

$10.35 USD
$10.35 USD $10.35 USD
Sale Sold out
Taxes included.

Make your own modern wall shelf with these easy-to-use CNC DXF files. The design features 6 equal-sized square compartments arranged in two columns and three rows, offering a clean and practical storage solution.



Whether mounted on the wall or used free-standing, this shelf fits well in living rooms, offices, workshops, or entryways. Ideal for organizing books, decor, or everyday essentials.



Compatible with standard CNC routers and plywood sheet sizes. A simple, functional project for anyone interested in DIY home furniture.

Supported CNC sizes

The project can be made on a 900 x 1200 mm (3 x 4 ft) CNC router and bigger.

Dimensions

Width Length Height
700 mm 250 mm 1050 mm
27½ inch 9⅞ inch 41⅜ inch

Required materials

For a 900 x 1200 mm (3 x 4 ft) CNC
- 2 sheet of 1100 x 800 x 15 mm (43-1/2 x 31-1/2 x 5/8 inches) plywood
- 1 sheet of 1100 x 730 x 6 mm (43-1/2 x 29 x 1/4 inches) plywood
- 4 mm (1/8 inch) router bit
For a 1200 x 1200 mm (4 x 4 ft) CNC
- 2 sheet of 1100 x 800 x 15 mm (43-1/2 x 31-1/2 x 5/8 inches) plywood
- 1 sheet of 1100 x 730 x 6 mm (43-1/2 x 29 x 1/4 inches) plywood
- 4 mm (1/8 inch) router bit
For a 1250 x 2500 mm (4 x 8 ft) CNC
- 1 sheet of 2050 x 800 x 15 mm (81 x 31-1/2 x 5/8 inches) plywood
- 1 sheet of 1100 x 730 x 6 mm (43-1/2 x 29 x 1/4 inches) plywood
- 4 mm (1/8 inch) router bit

Assembling time

30 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
