Universal Mole Hole Game - DXF Files

Name: Universal Mole Hole Game - DXF Files
Brand: Aribabox
Price: 12.45 USD
Availability: InStock

$12.45 USD

~~$12.45 USD~~ $12.45 USD

Sale Sold out

Taxes included.

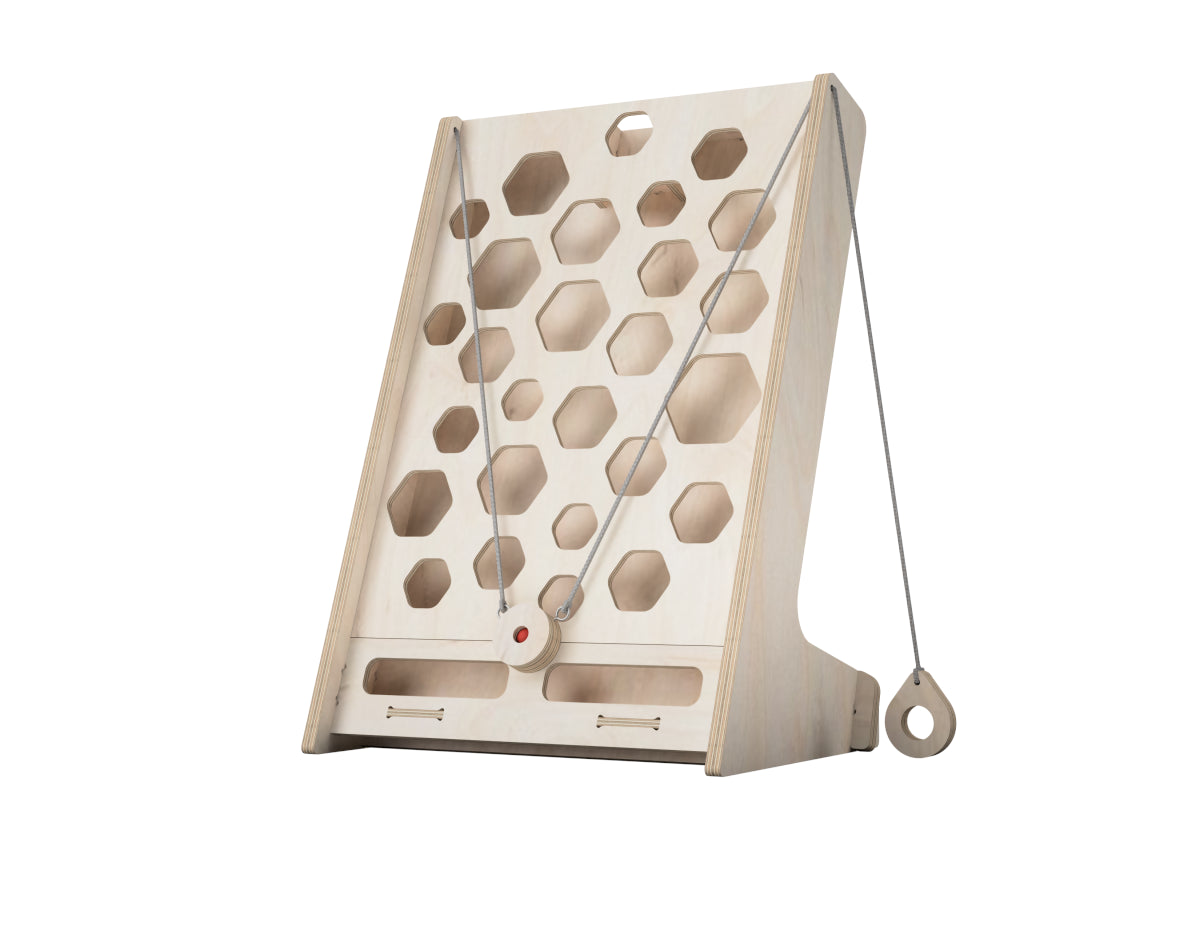

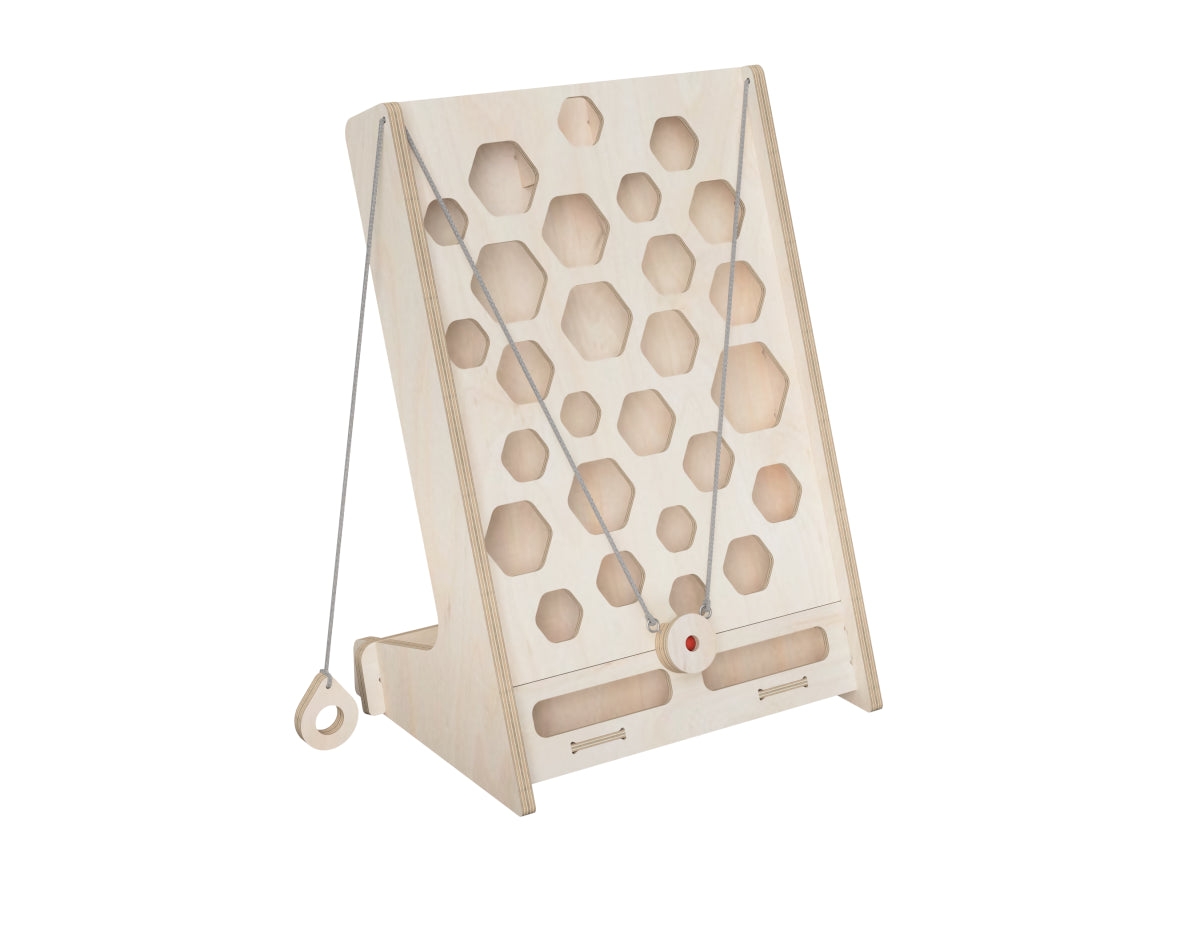

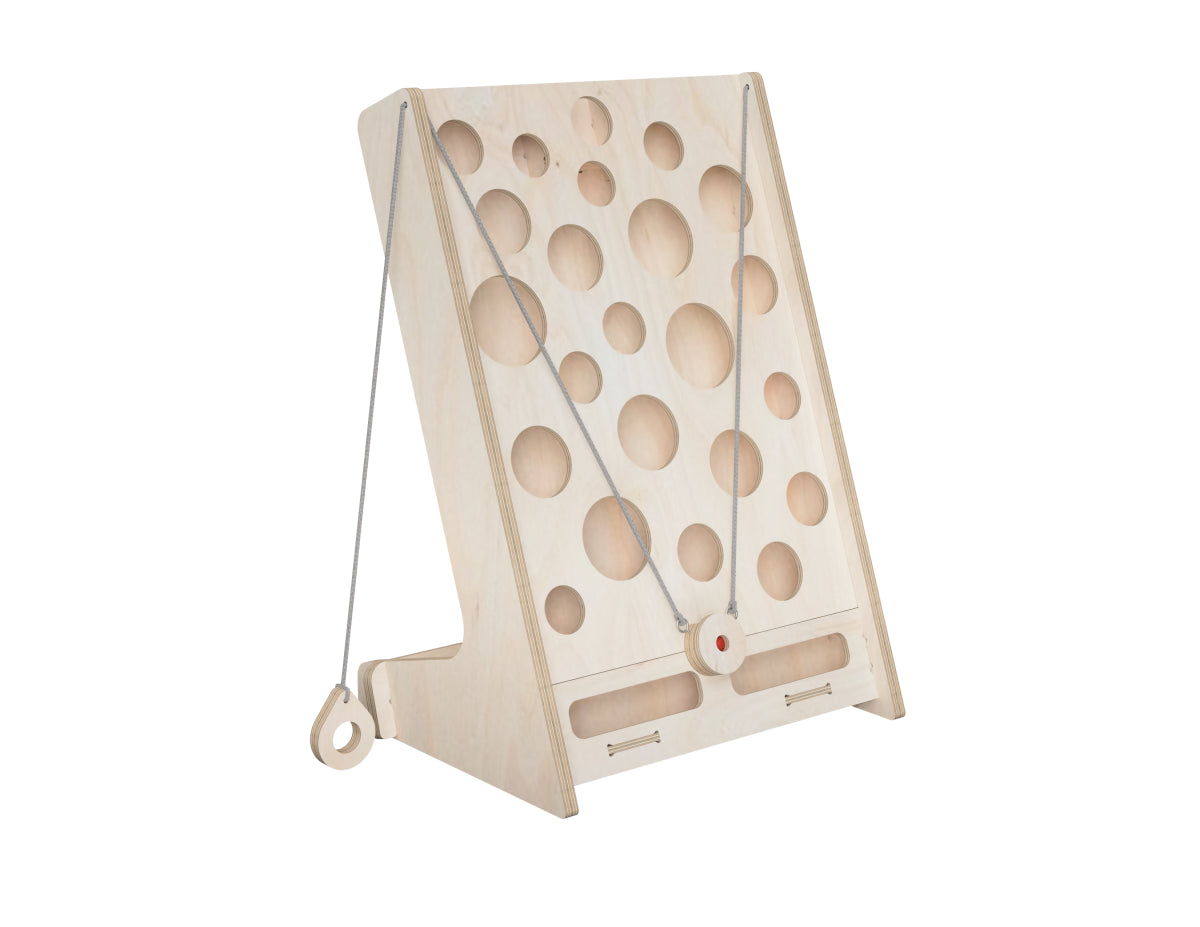

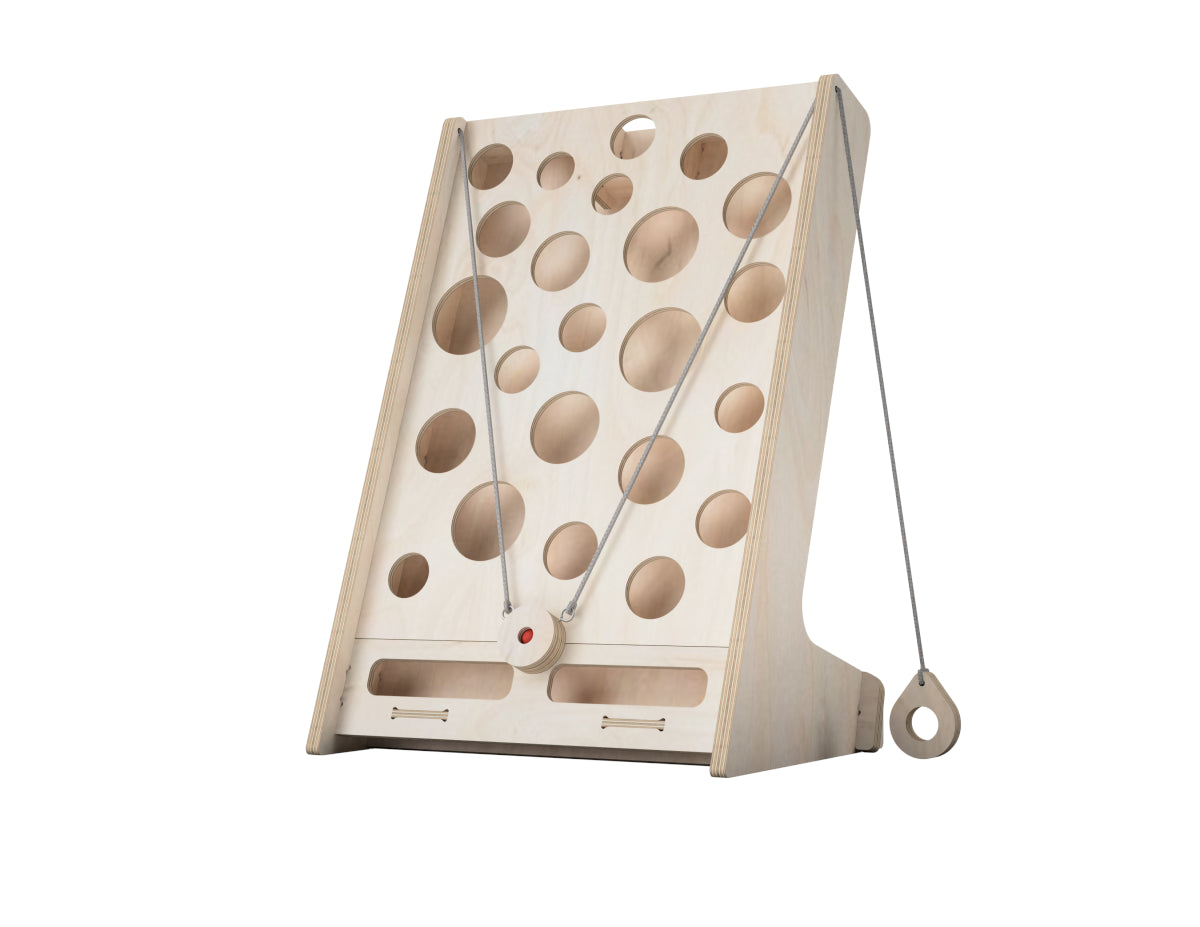

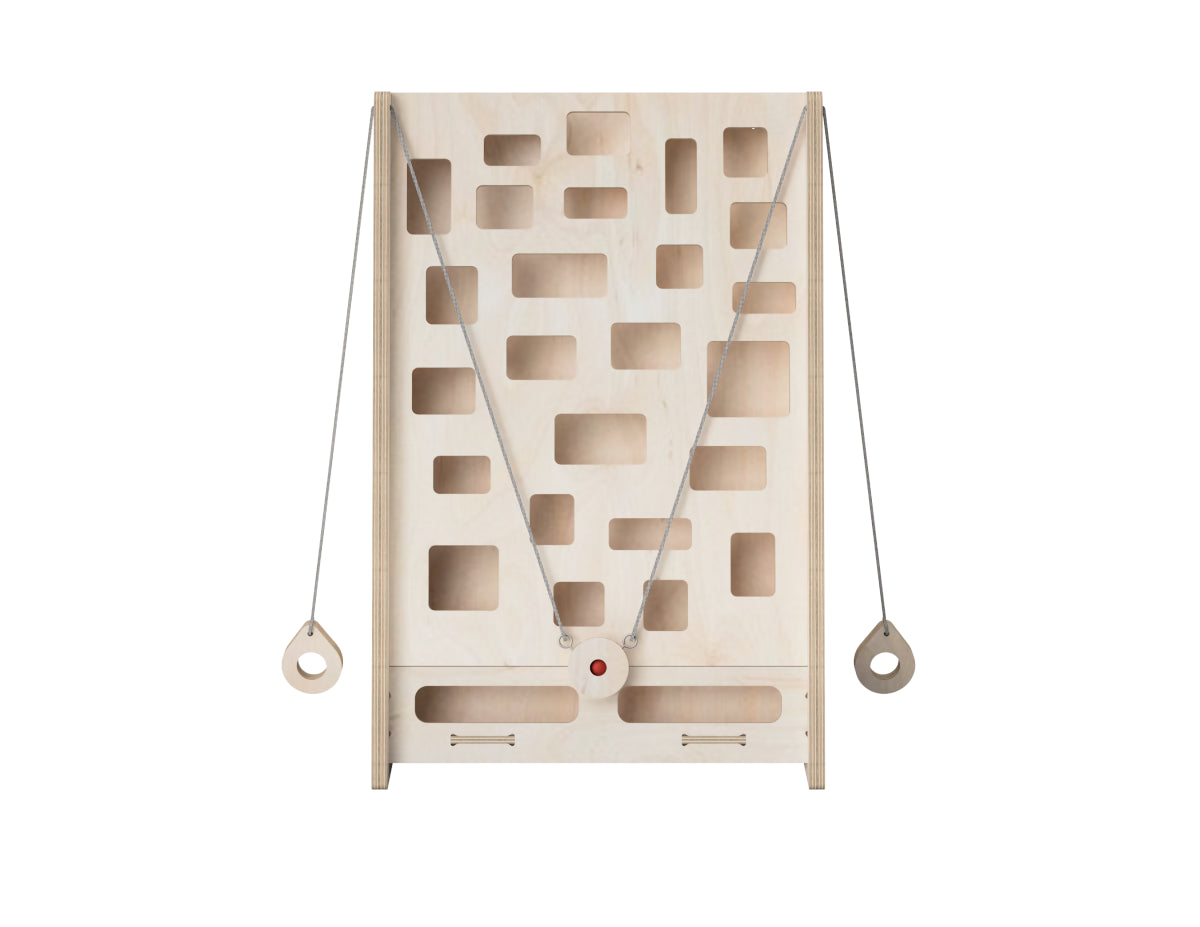

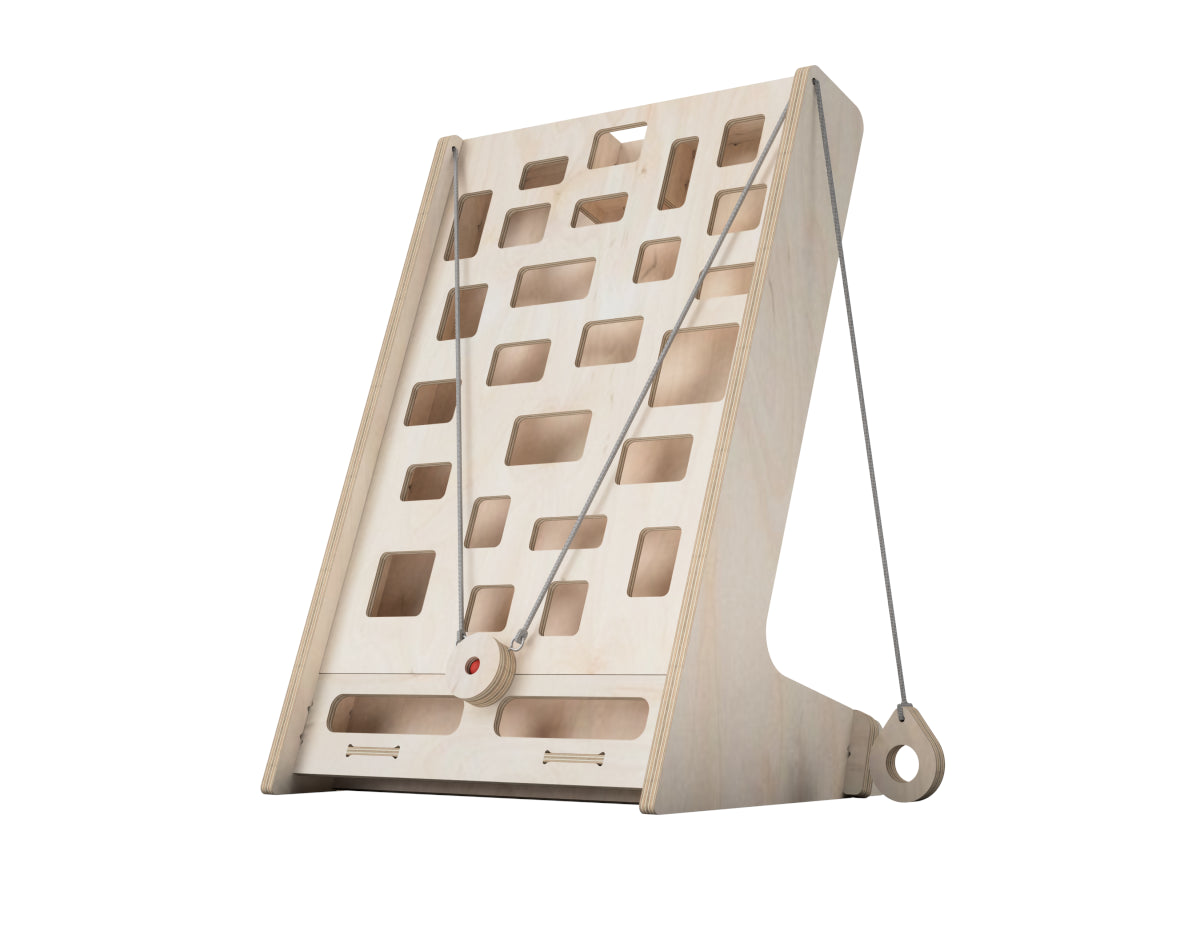

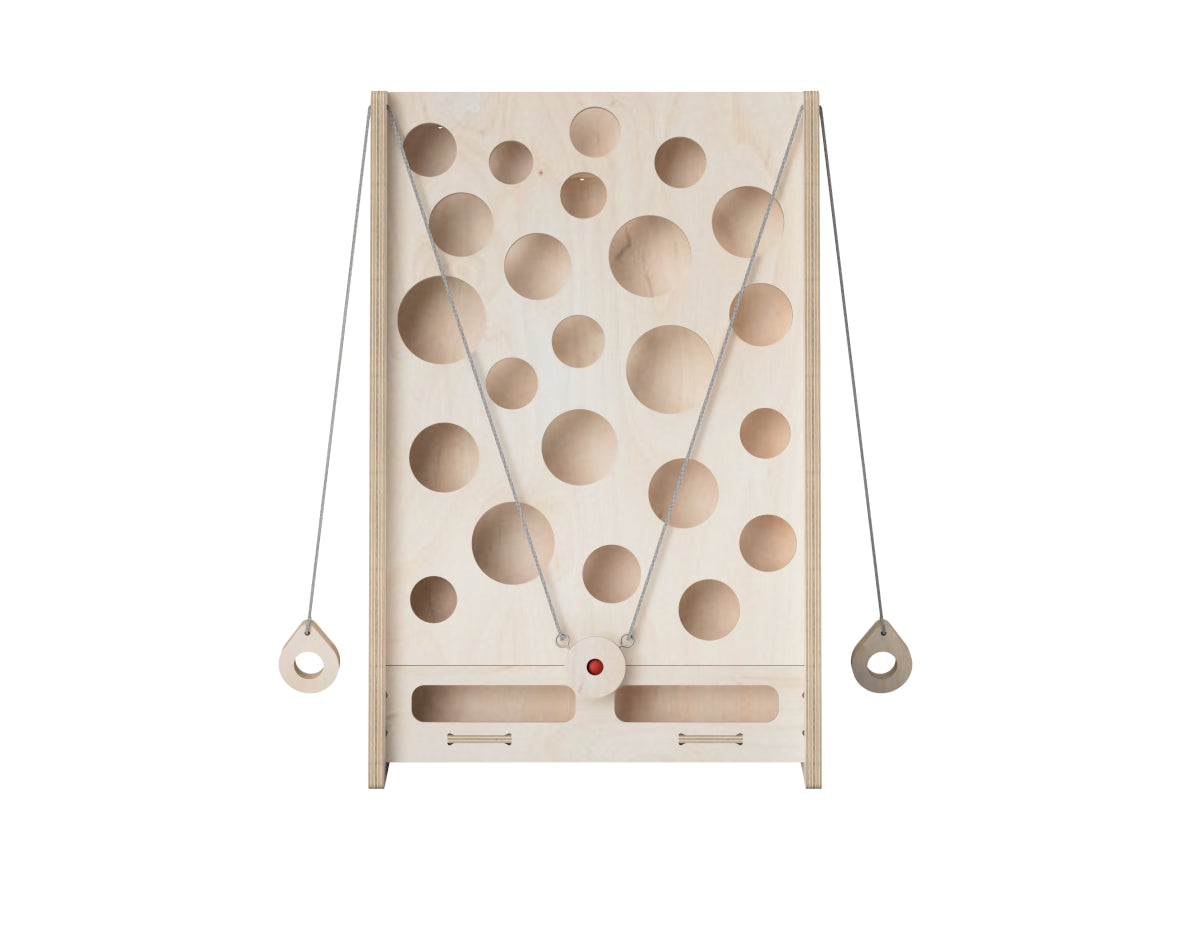

Bring fun and skill-building together with the Universal Mole Hole Game!

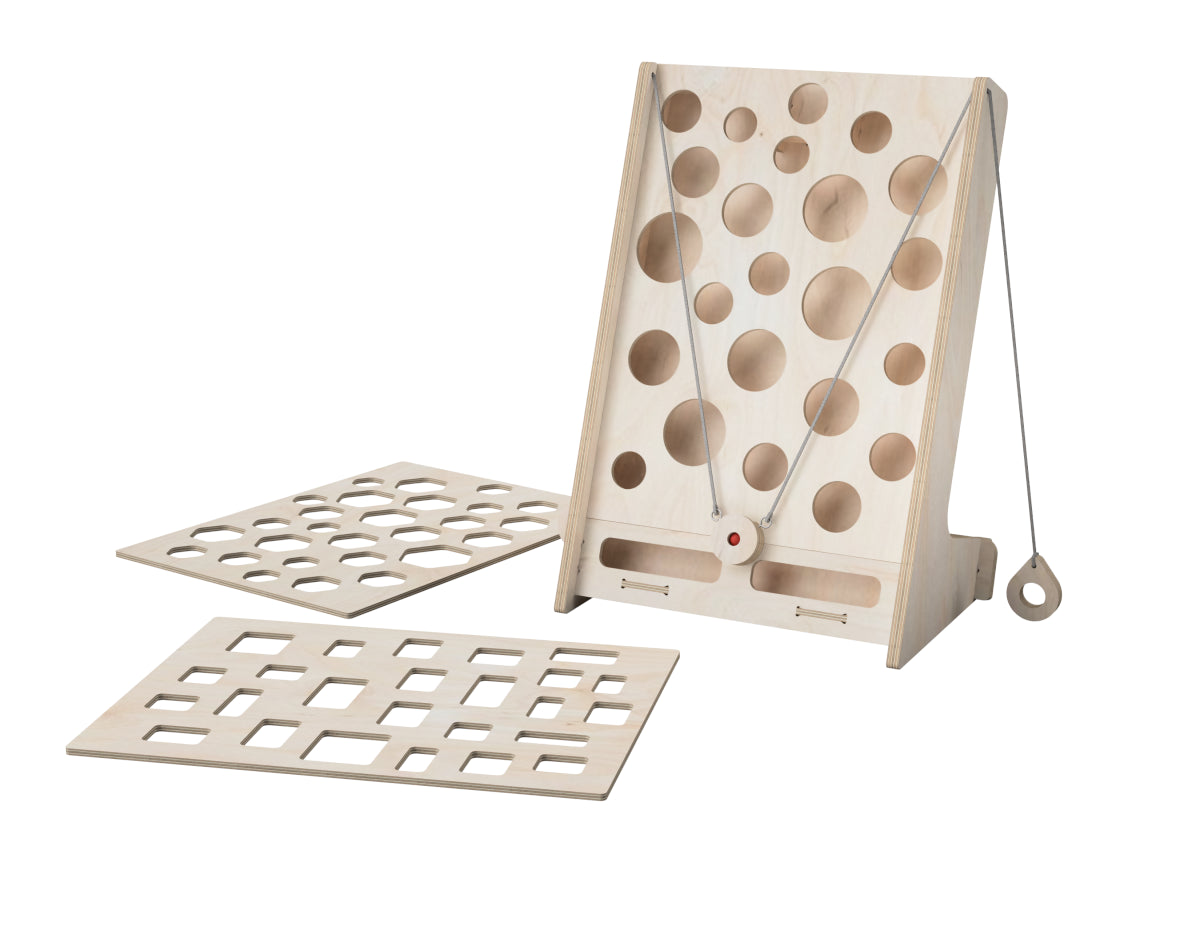

These DXF files let you create a wall ball maze game using your CNC router. Perfect for keeping kids entertained while sharpening their coordination skills, the game features three interchangeable maze panels for endless variety.

Easy to make and customize, it’s a great addition to any playroom or learning space.

*The files are adjusted to fit both metric and imperial standards for materials and tools

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Max single piece size

The biggest component is 550 x 350 mm (21.65 x 13.78 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width	Length	Height
380 mm	275 mm	510 mm
14 inch	10⅞ inch	20⅛ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC:
- 1 sheet of 750 x 400 x 12 mm (30 x 16 x 1/2 inches) plywood
- 2 sheets of 900 x 600 x 6 mm (36 x 24 x 1/4 inches) plywood
- 3 mm (1/8 inch) router bit
- Marble - 16 mm (5/8 inches) diameter
- String ~ 2.5 m (8 feet)
For a 820 x 1200 mm (2.6 x 4 ft) CNC:
- 1 sheet of 750 x 400 x 12 mm (30 x 16 x 1/2 inches) plywood
- 1 sheet of 820 x 1220 x 6 mm (32 x 48 x 1/4 inches) plywood
- 3 mm (1/8 inch) router bit
- Marble - 16 mm (5/8 inches) diameter
- String ~ 2.5 m (8 feet)
