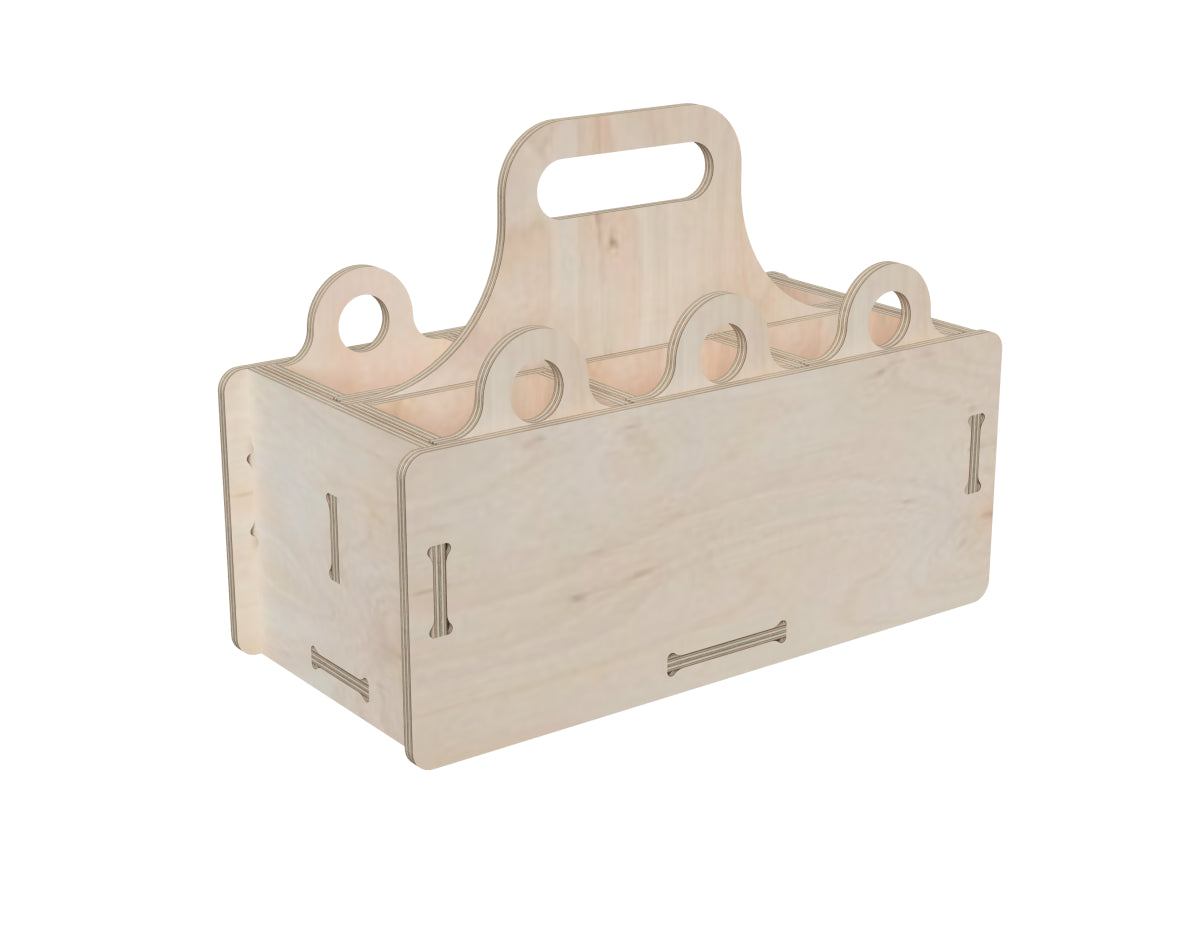

• Tool Carrier with small boxes DXF file CNC DXF file design overview

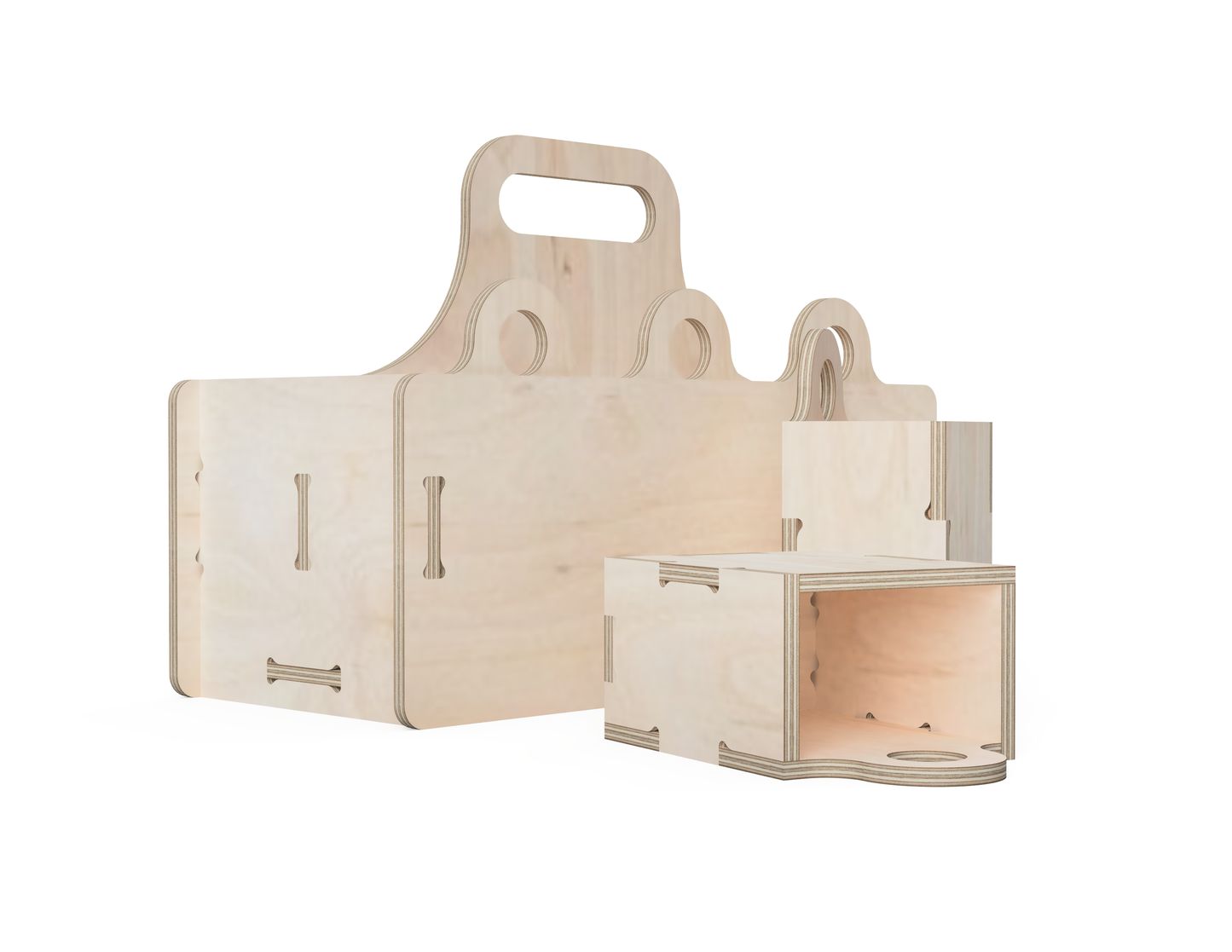

  • Tool Carrier with small boxes DXF file DXF file rendered from angled view for CNC cutting

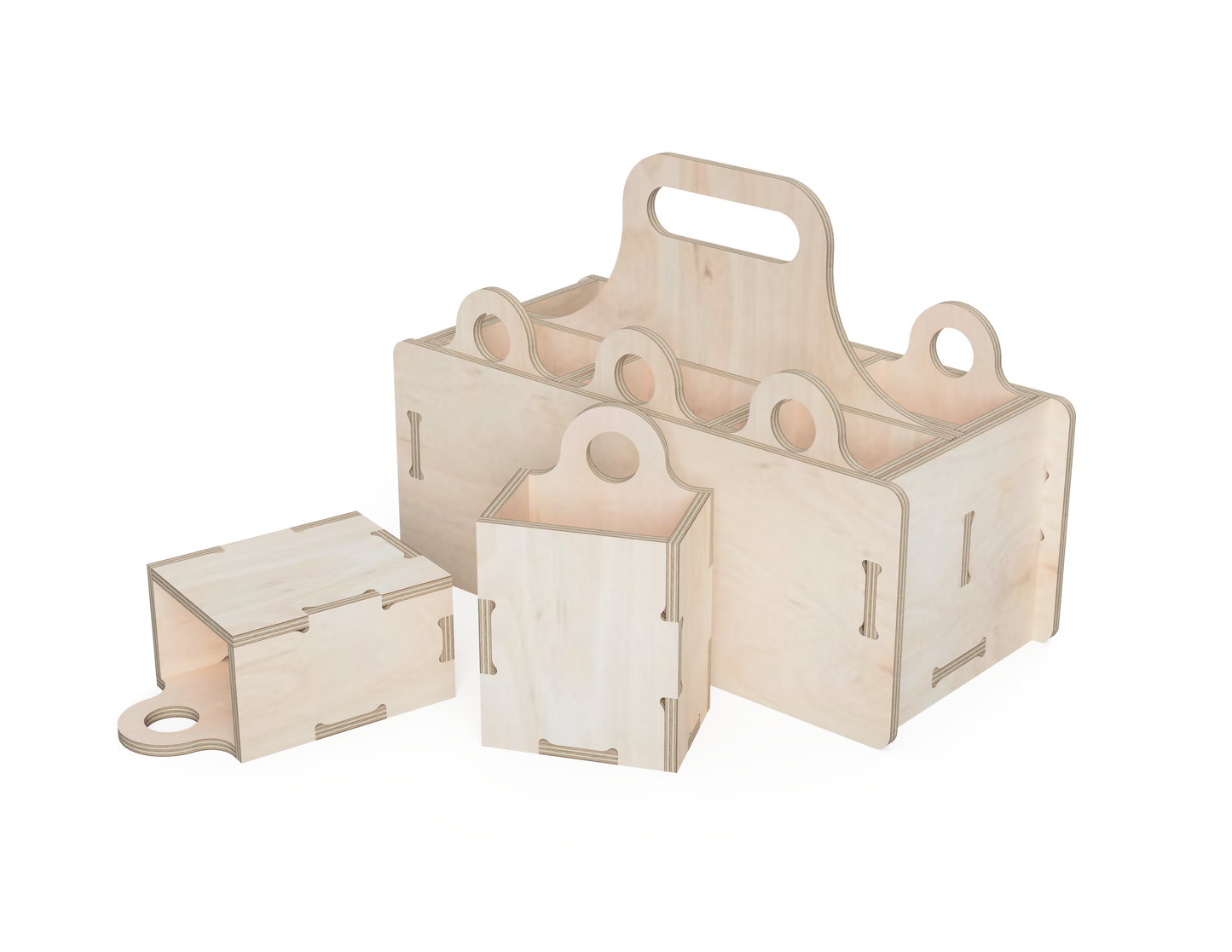

  • Detailed DXF drawing of tool carrier with small boxes dxf file for CNC router
  • Tool Carrier with small boxes DXF file CNC-ready design showing joints and assembly features
1 4

Tool Carrier with small boxes DXF Files

Tool Carrier with small boxes DXF Files

$4.95 USD
$4.95 USD $4.95 USD
Sale Sold out
Taxes included.

Create a versatile tool carrier with this easy-to-cut DXF file for CNC routers. The design features two large compartments perfect for hand tools, plus smaller removable boxes ideal for organizing screws, nails, and small parts.



Perfect for craftspeople and DIY enthusiasts, this tool carrier helps keep your workshop and job site organized. Download now and build a durable, functional carrier from plywood or MDF in just a few hours.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Dimensions

Width Length Height
340 mm 160 mm 250 mm
13⅜ inch 6¼ inch 9⅞ inch

Required materials

For 600 x 900 mm (2 x 3 ft) CNC
- 1 sheets of 900 x 600 x 6 mm (35-1/2 x 23-5/8 x 1/4 inches) plywood
- 1 sheets of 650 x 350 x 6 mm (25-1/2 x 14 x 1/4 inches) plywood
- 3 mm (1/8 inch) router bit
For 900 x 1200 mm (3 x 4 ft) CNC and bigger
- 1 sheet of 900 x 950 x 18 mm (35-1/2 x 37-1/2 x 1/4 inches) plywood
- 3 mm (1/8 inch) router bit

Assembling time

25 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
