ToolBox DXF Files
ToolBox DXF Files
Regular price
$10.35 USD
Regular price
$10.35 USD
Sale price
$10.35 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

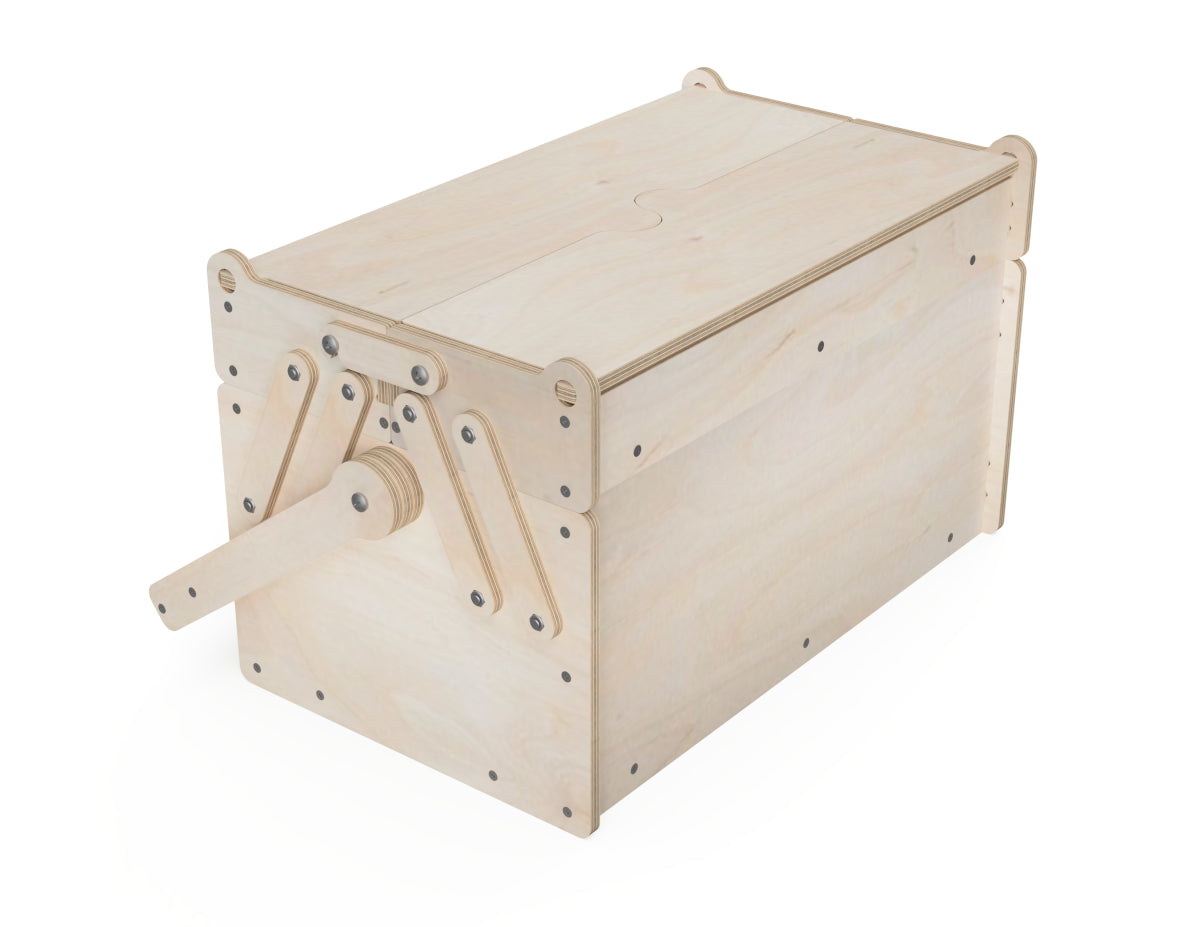

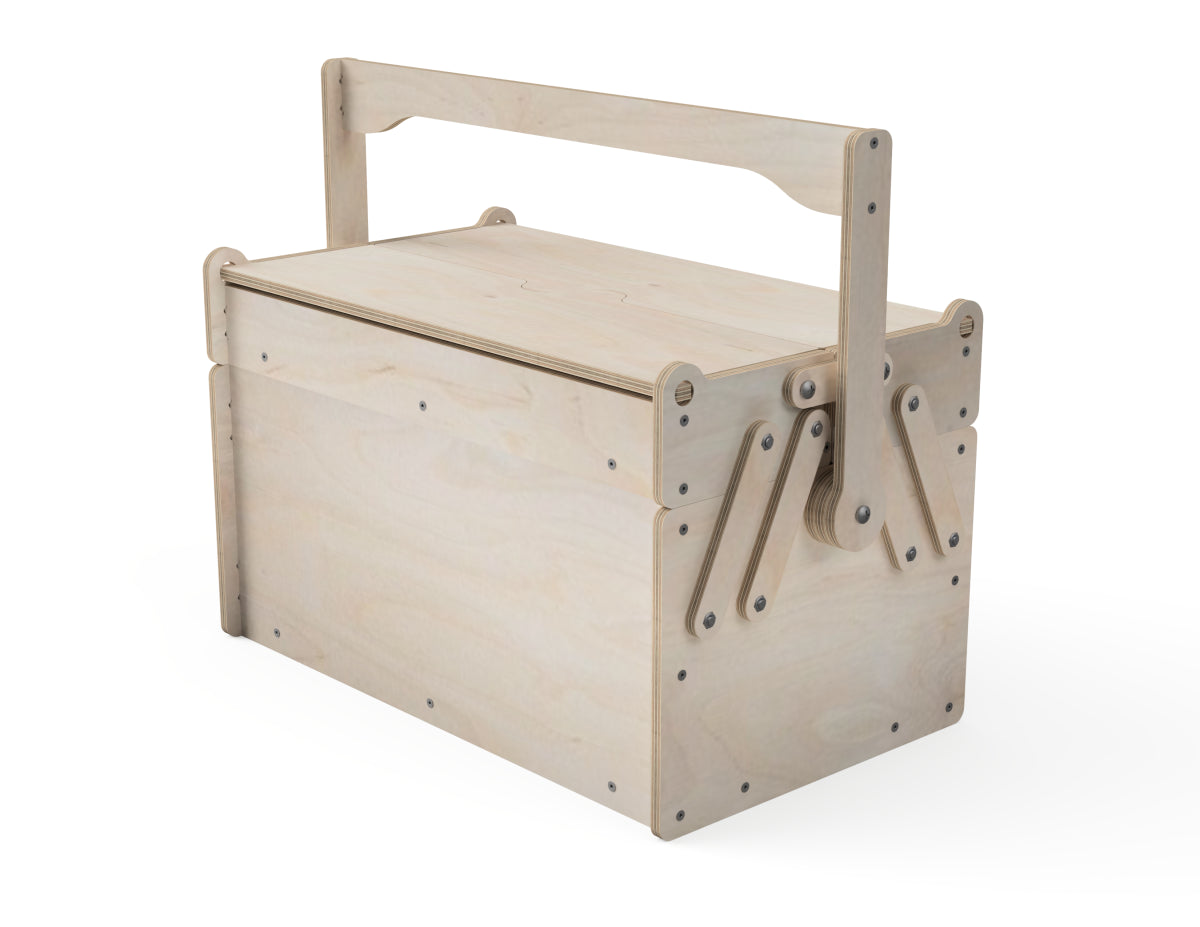

Craft your own spacious 3-compartment toolbox with these CNC-ready DXF files!

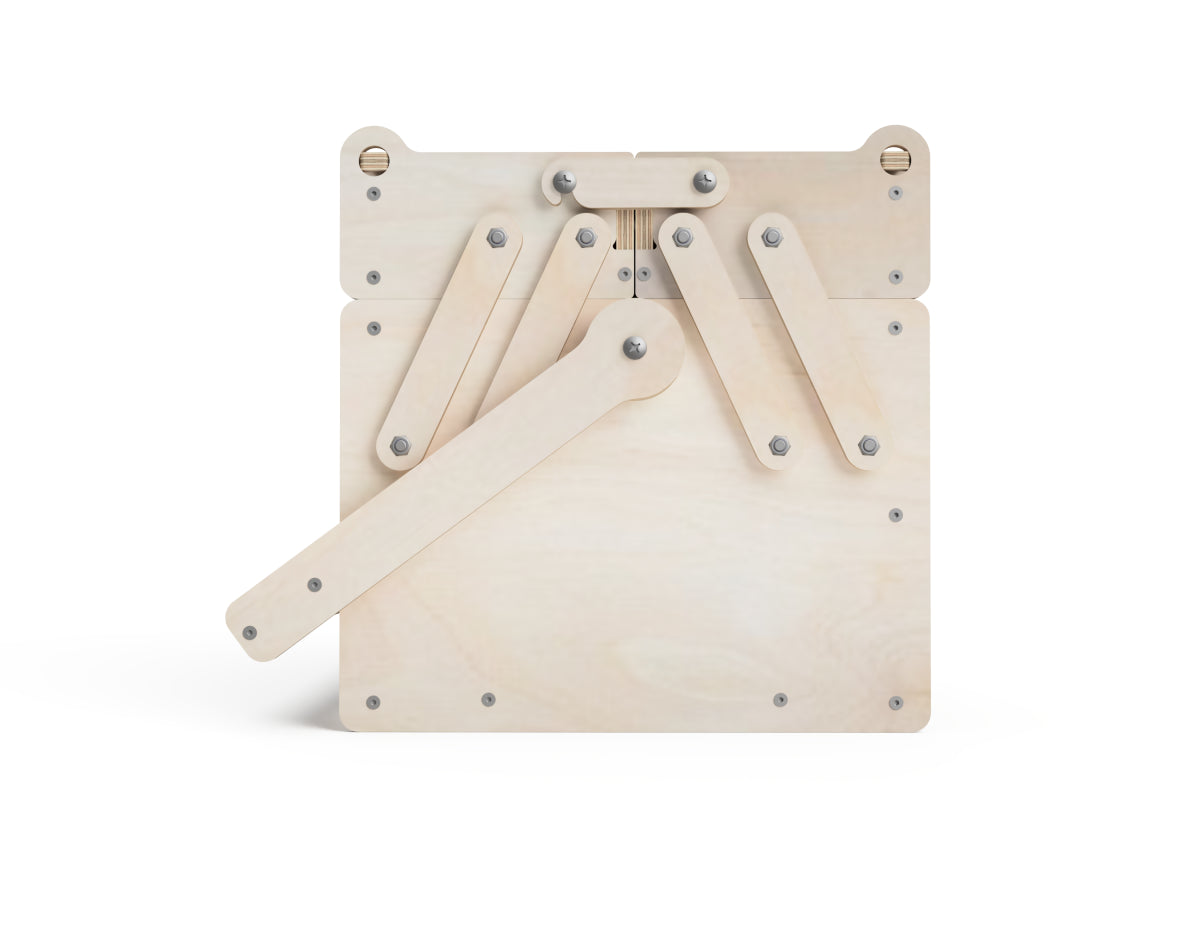

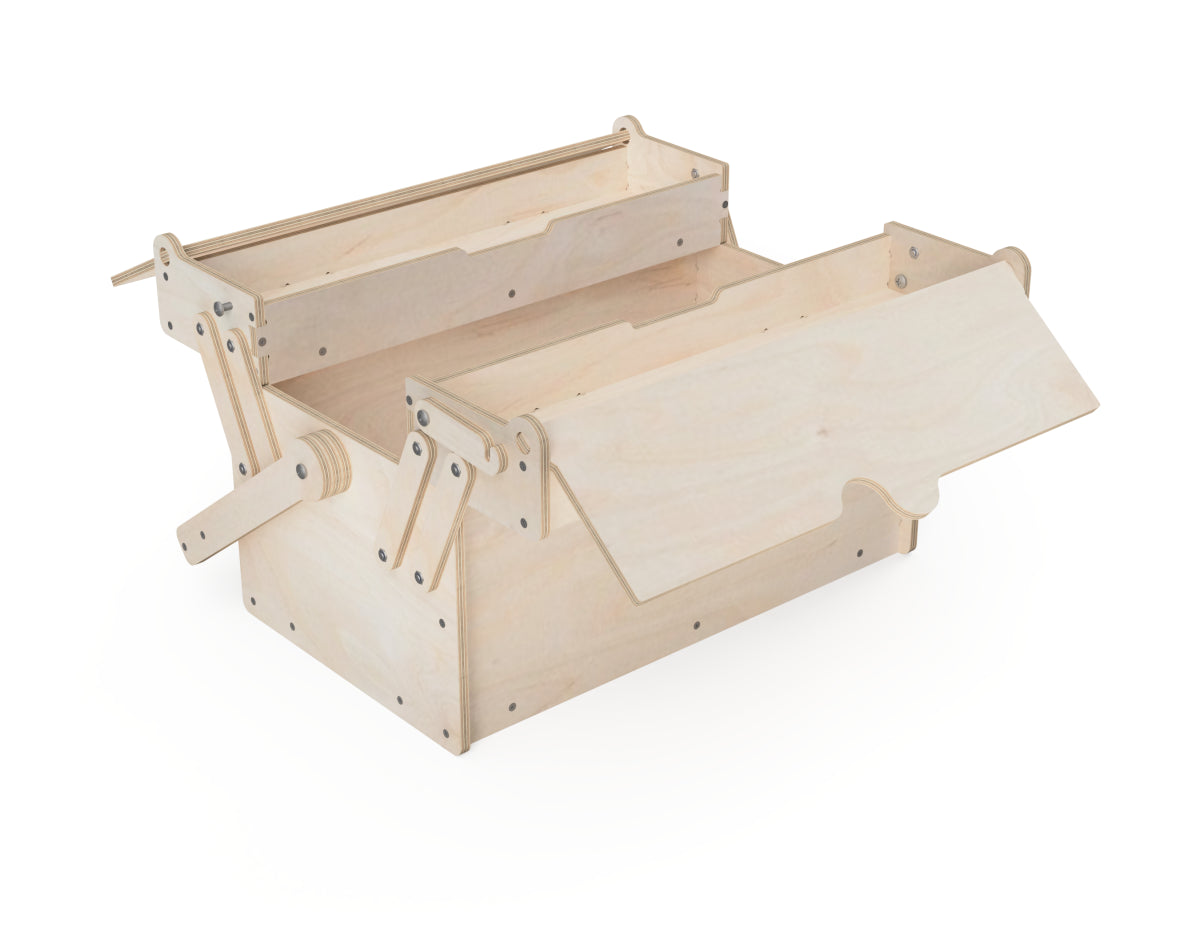

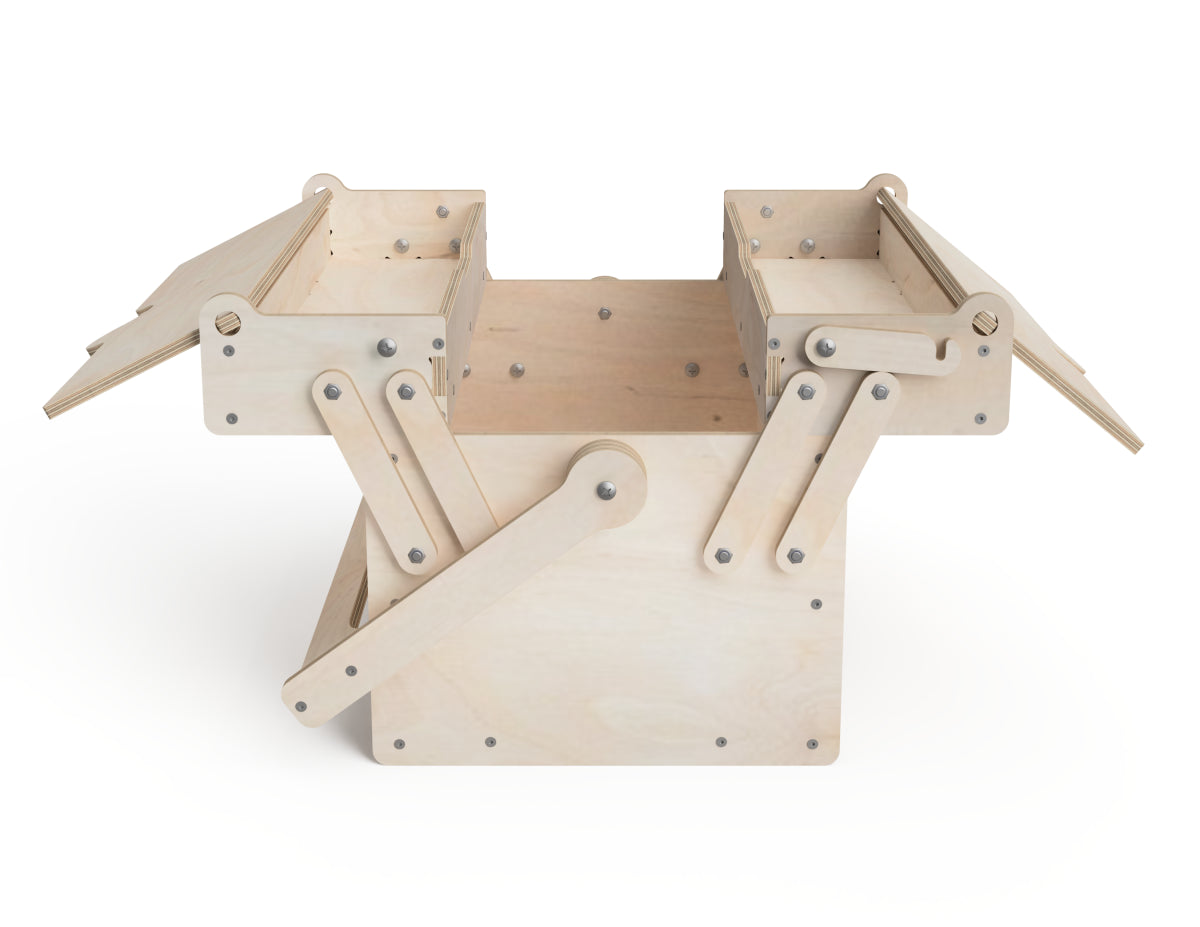

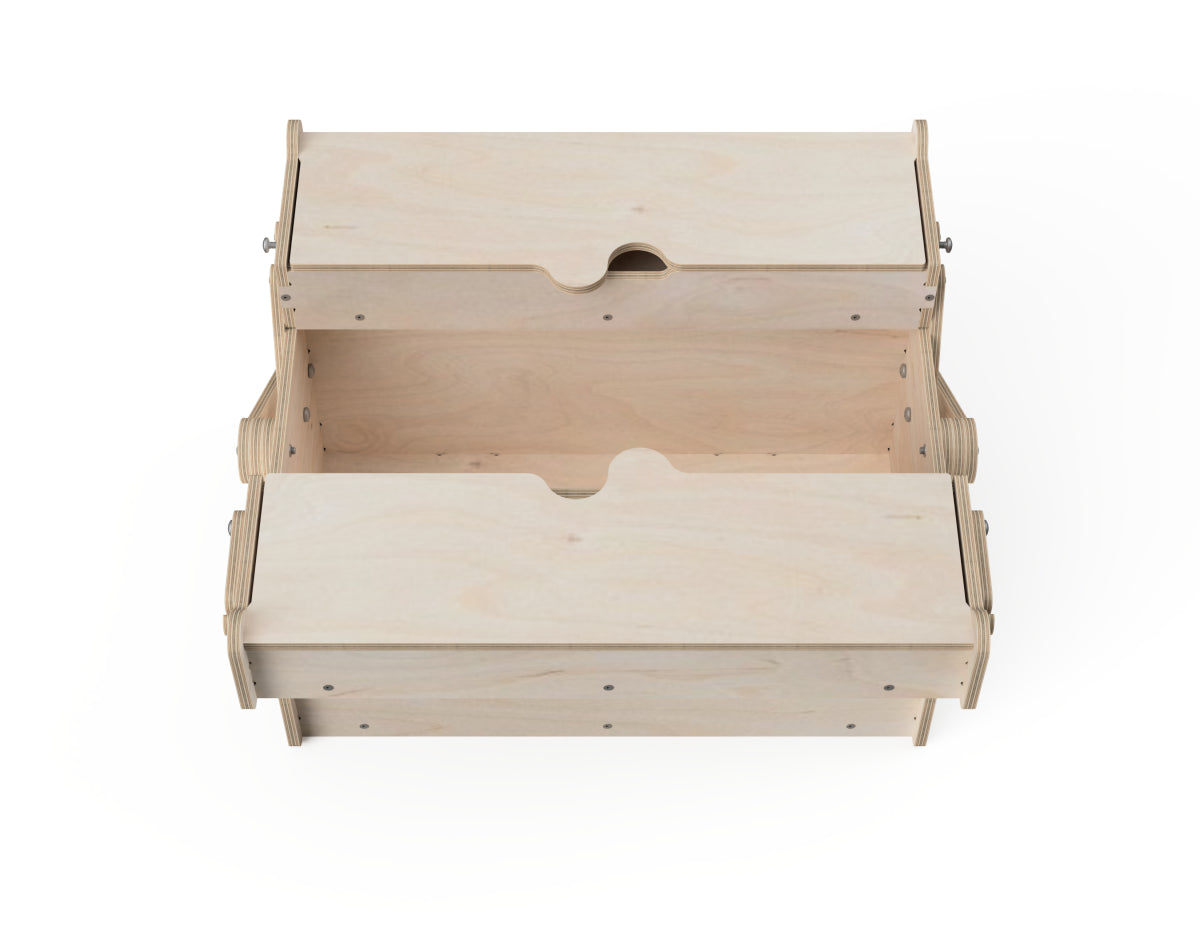

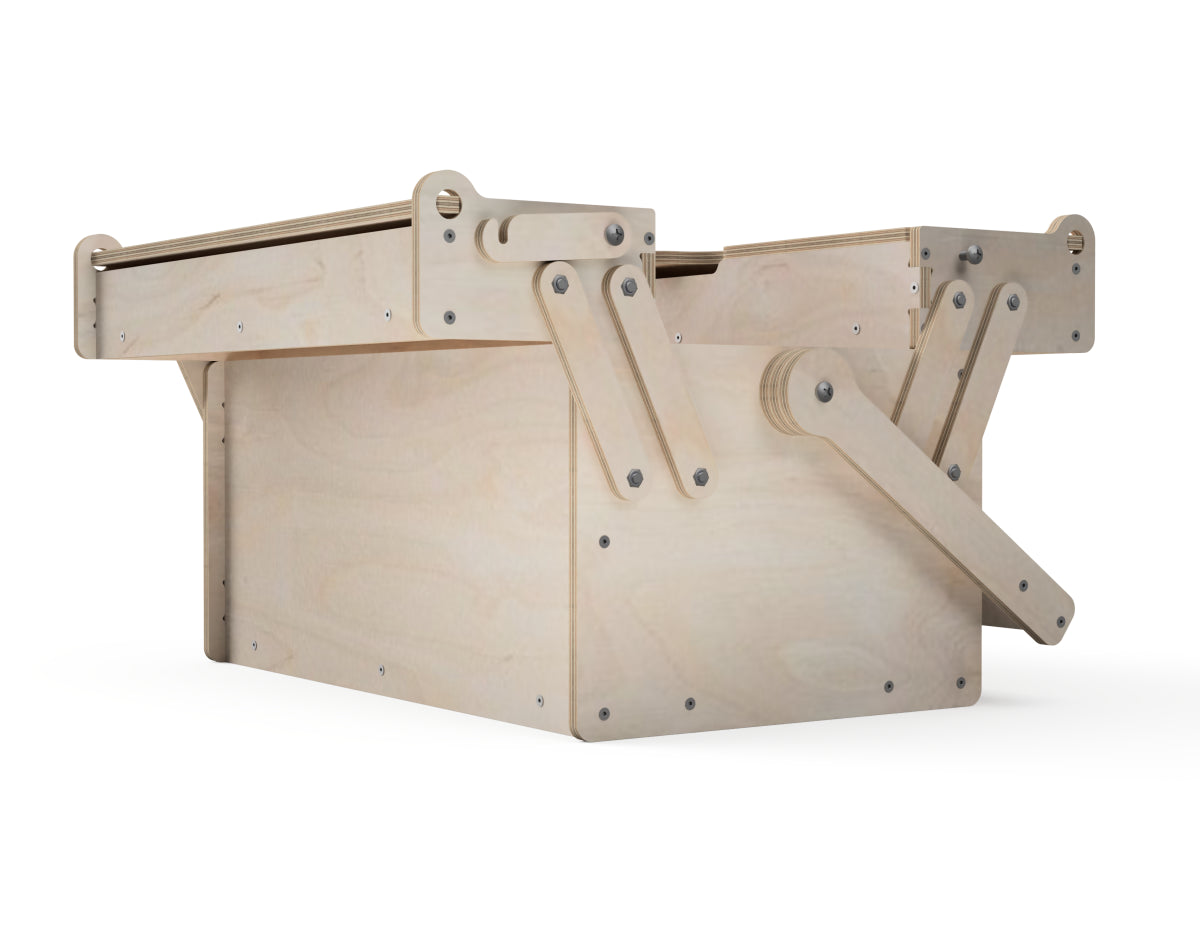

Perfect for woodworkers, the design features a clever lifting mechanism that moves two smaller compartments to the sides, revealing a large storage area for bigger tools. Showcase your skills while creating a functional, stylish storage solution.
Ideal for organizing tools in the workshop or on the go, this project is both practical and rewarding. Easy to cut and assemble, it's a must-have for any CNC enthusiast. Start building your custom toolbox today!
*The files are adjusted to fit both metric and imperial standards for materials and tools
Supported CNC sizes
Supported CNC sizes
The project can be made on a
600 x 600 mm (2 x 2 ft) CNC
router and bigger.
Max single piece size
Max single piece size
The biggest component is
555
x
300
mm (21.85
x
11.81
inches).
So if it can fit on your CNC router, you can build this project
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
| Width | Length | Height |
|---|---|---|
| 500 mm | 300 mm | 295 mm |
| 19⅝ inch | 11¾ inch | 11⅝ inch |
Required materials
Required materials
For a 600 x 600 mm (2 x 2 ft) CNC
For a 600 x 600 mm (2 x 2 ft) CNC
- 4 sheets of 600 x 600 x 9 mm (24 x 24 x 3/8 inch) plywood
- 3 mm (1/8 inch) router bit
- 25 mm (1 inch) wood screws - 60 pieces
- M6 locknuts - 22 pieces
- M6 x 20 screws - 20 pieces
- M6 x 40 screws - 2 pieces
For a 600 x 900 mm (2 x 3 ft) CNC
For a 600 x 900 mm (2 x 3 ft) CNC
- 2 sheets of 600 x 900 x 9 mm (24 x 36 x 3/8 inch) plywood
- 1 sheet of 350 x 700 x 9 mm (14 x 28 x 3/8 inch) plywood
- 3 mm (1/8 inch) router bit
- 25 mm (1 inch) wood screws - 60 pieces
- M6 locknuts - 22 pieces
- M6 x 20 screws - 20 pieces
- M6 x 40 screws - 2 pieces
For a 800 x 1200 mm (2.6 x 4 ft) CNC
For a 800 x 1200 mm (2.6 x 4 ft) CNC
- 1 sheet of 800 x 1220 x 9 mm (32 x 48 x 3/8 inch) plywood
- 1 sheet of 550 x 700 x 9 mm (22 x 28 x 3/8 inch) plywood
- 3 mm (1/8 inch) router bit
- 25 mm (1 inch) wood screws - 60 pieces
- M6 locknuts - 22 pieces
- M6 x 20 screws - 20 pieces
- M6 x 40 screws - 2 pieces
For a 900 x 1200 mm (3 x 4 ft) CNC
For a 900 x 1200 mm (3 x 4 ft) CNC
- 1 sheet of 900 x 1220 x 9 mm (36 x 48 x 3/8 inch) plywood
- 1 sheet of 350 x 750 x 9 mm (14 x 30 x 3/8 inch) plywood
- 3 mm (1/8 inch) router bit
- 25 mm (1 inch) wood screws - 60 pieces
- M6 locknuts - 22 pieces
- M6 x 20 screws - 20 pieces
- M6 x 40 screws - 2 pieces
For a 1200 x 1200 mm (4 x 4 ft) CNC
For a 1200 x 1200 mm (4 x 4 ft) CNC
- 1 sheet of 1200 x 1220 x 9 mm (48 x 48 x 3/8 inch) plywood
- 3 mm (1/8 inch) router bit
- 25 mm (1 inch) wood screws - 60 pieces
- M6 locknuts - 22 pieces
- M6 x 20 screws - 20 pieces
- M6 x 40 screws - 2 pieces
Approximate CNC time
Approximate CNC time
40 minutes
Assembling time
Assembling time
45 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
