Three Drawer Cabinet For Workshop DXF Files

Three Drawer Cabinet For Workshop DXF Files

Regular price $11.95 USD
Regular price $0.00 USD Sale price $11.95 USD
Sale Sold out
Taxes included.

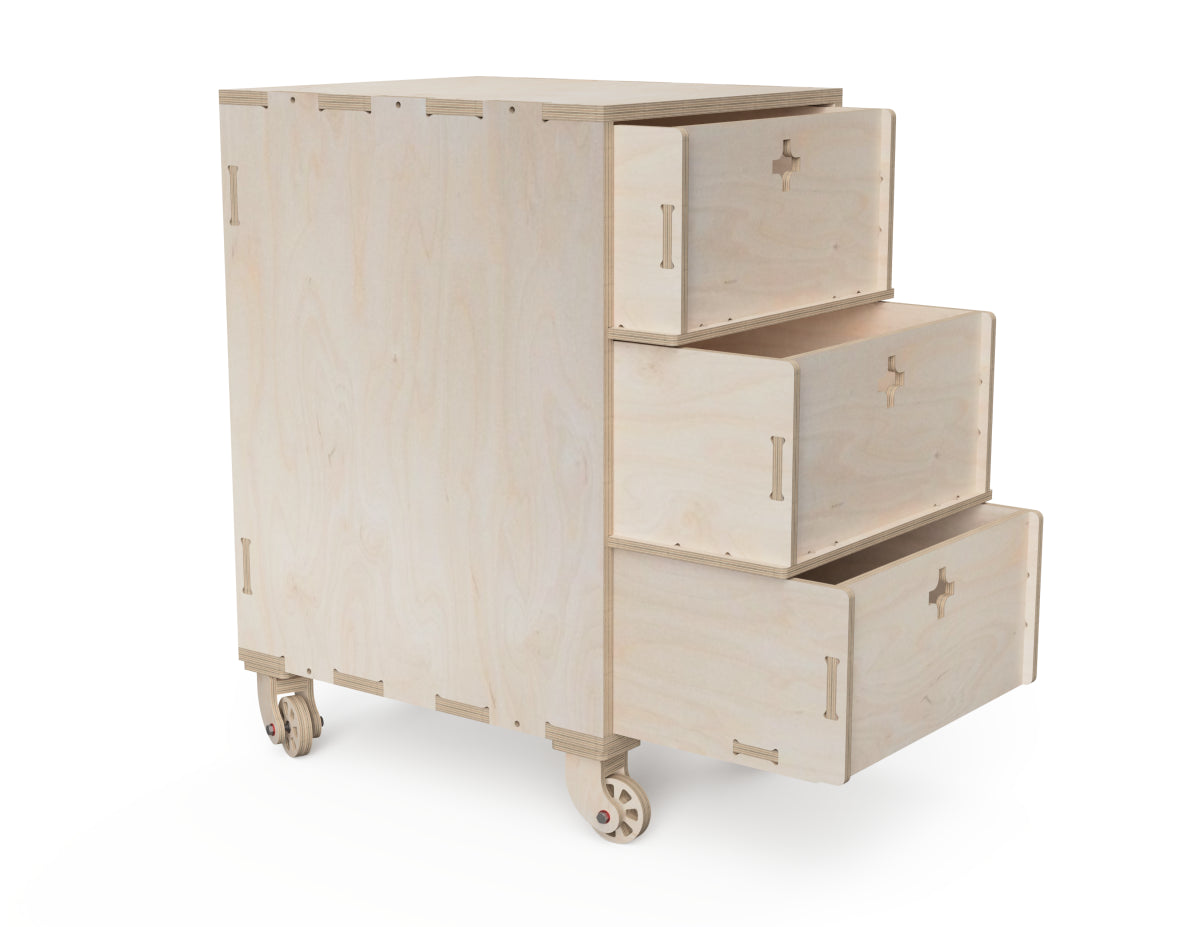

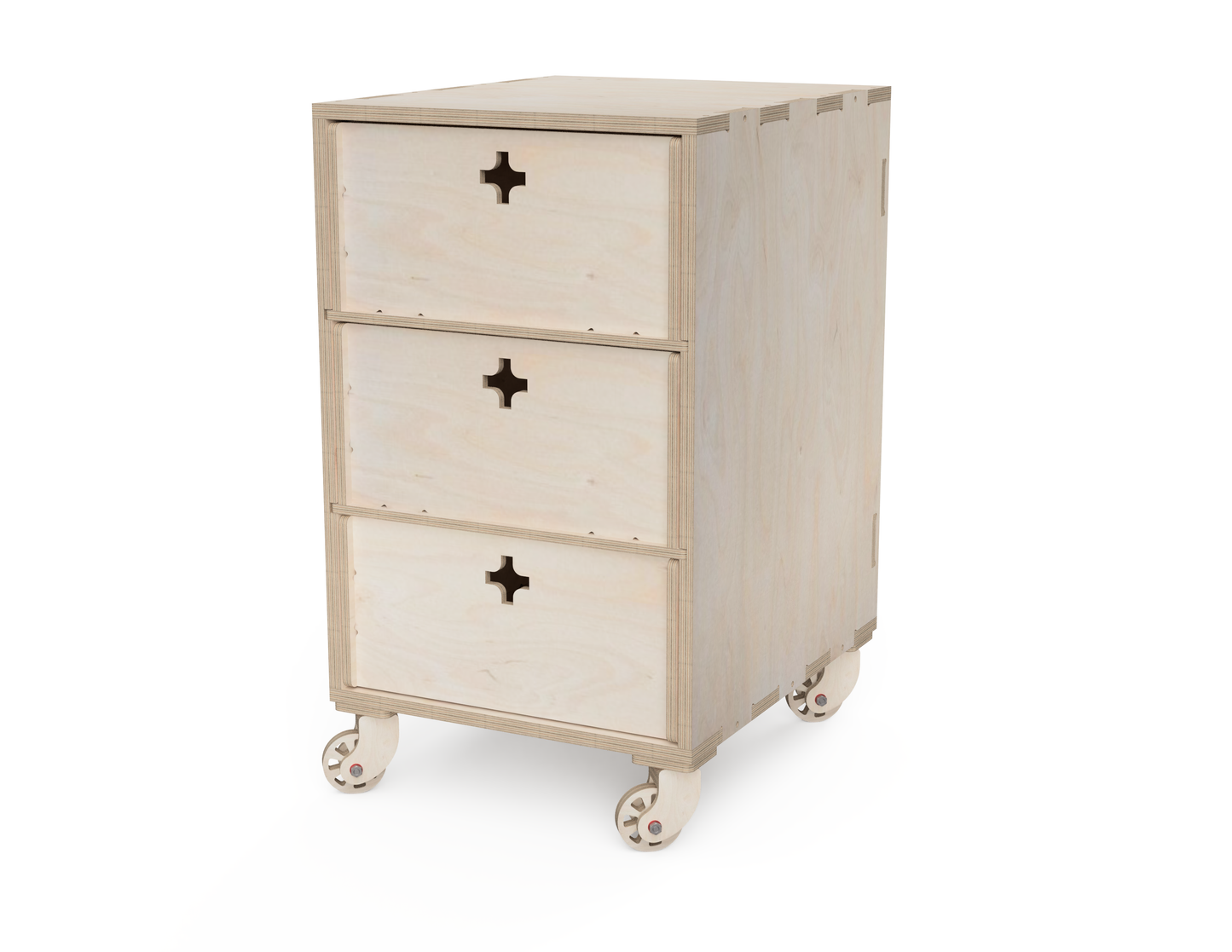

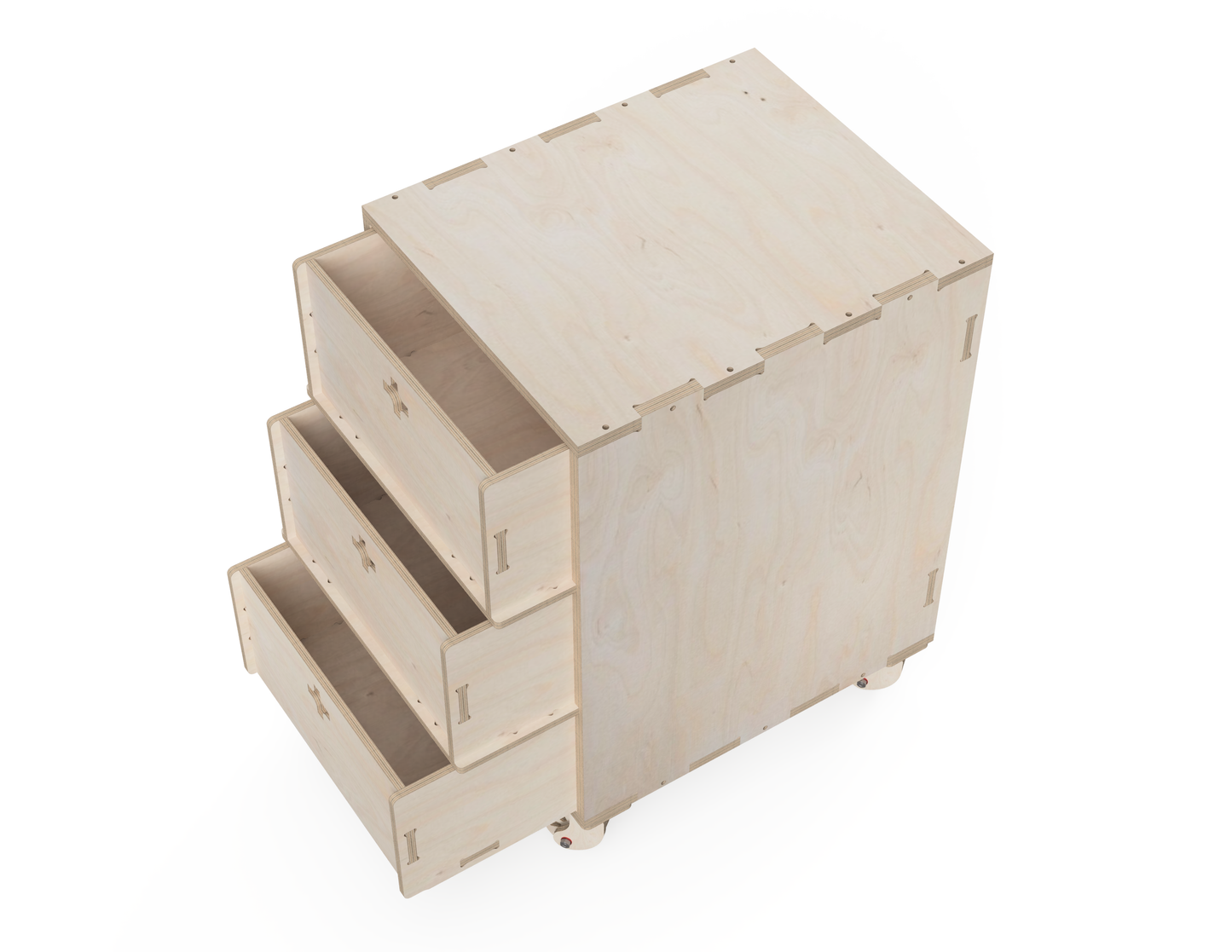

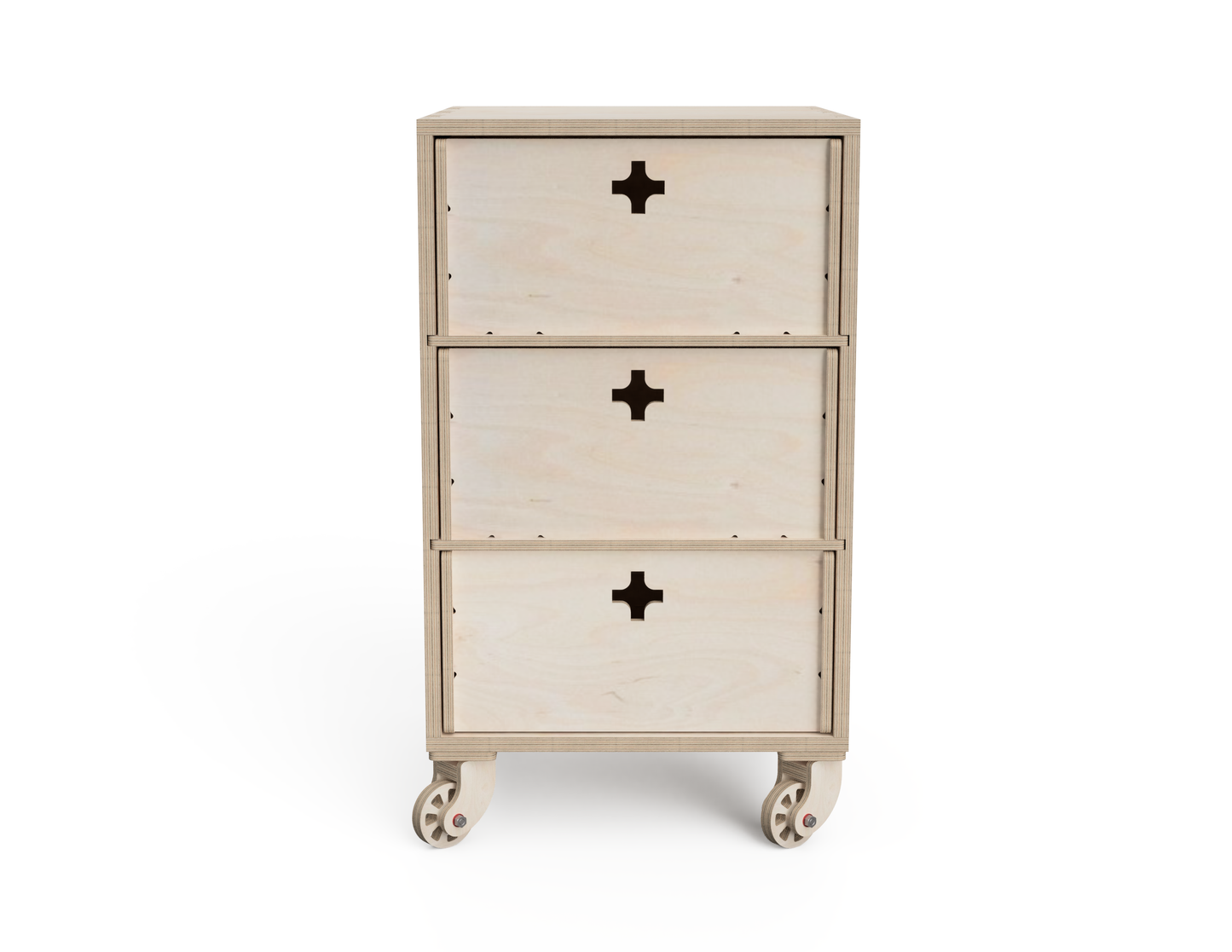

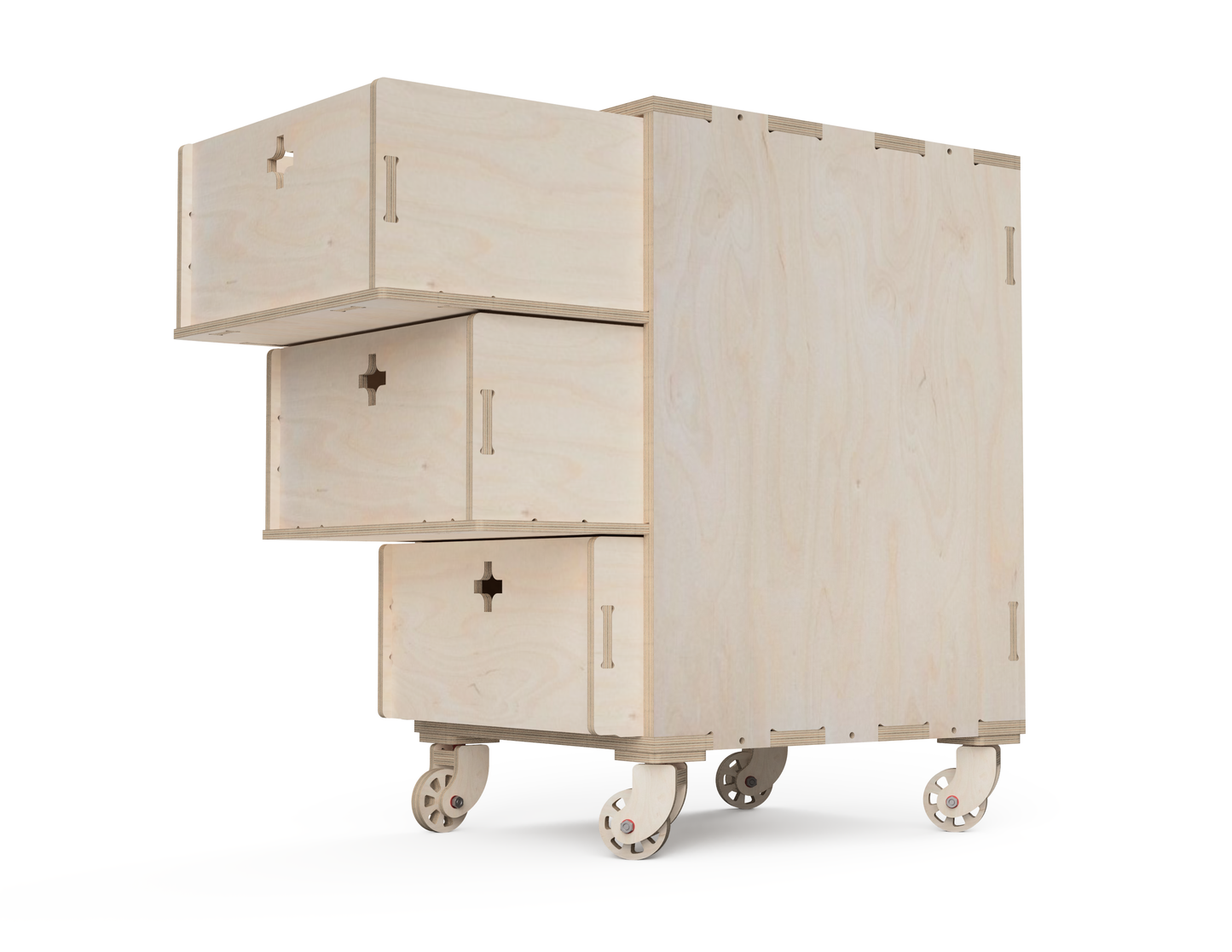

Introducing our convenient Drawer Cabinet DXF Files, the ultimate solution for creating a custom workshop cabinet with ease.


Designed for use with CNC routers, these files empower individuals with access to a CNC router to construct their very own drawer cabinet.


With straightforward usability, even beginners can effortlessly navigate and utilize the DXF files.


Assembling the cabinet is a breeze, requiring only dowels—no additional fasteners necessary.


Enhance your workshop organization and storage today with our user-friendly Drawer Cabinet DXF Files.


The design can be cut on an 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions (without casters):

740 mm (height) x 500 mm (width) x 600 mm (depth)

29.15 inches (height) x 19.7 inches (width) x 23.65 inches (depth)

Required materials:

For an 800 x 1200 (2.6 x 4 ft) CNC router

  • 2 sheets of 1200 x 800 x 18 mm (47.5 x 31.5 x 0.75 inches) Plywood
  • 4 sheets of 1200 x 800 x 12 mm (47.5 x 31.5 x 0.5 inches) Plywood
  • 8 mm (0.315 inch) dowels

For an 900 x 1200 (3 x 4 ft) CNC router

  • 2 sheets of 1200 x 800 x 18 mm (47.5 x 31.5 x 0.75 inches) Plywood
  • 4 sheets of 1200 x 800 x 12 mm (47.5 x 31.5 x 0.5 inches) Plywood
  • 8 mm (0.315 inch) dowels

For an 1200 x 1200 (4 x 4 ft) CNC router

  • 2 sheets of 1200 x 800 x 18 mm (47.5 x 31.5 x 0.75 inches) Plywood
  • 2 sheet of 1200 x 1200 x 12 mm (40 x 37.5 x 0.625 inches) Plywood
  • 1 sheet of 1200 x 800 x 12 mm (47.5 x 31.5 x 0.5 inches) Plywood
  • 8 mm (0.315 inch) dowels

For an 1220 x 2440 (4 x 8 ft) CNC router

    • 1 sheet of 2300 x 800 x 18 mm (91 x 32 x 0.75 inches) Plywood
    • 1 sheet of 2440 x 1220 x 12 mm (96 x 48 x 0.5 inches) Plywood
  • 1 sheet of 1100 x 700 x 12 mm (43.3 x 27.5 x 0.5 inches) Plywood
    • 8 mm (0.315 inch) dowels

    Assembling time:

    30 minutes


    Delivery time:

    30 seconds

    After completing the order, you will receive the DXF design file in your email within seconds.


    Updates:

    Free

    If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


    The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.



    Supported CNC sizes

    The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

    Dimensions

    500 mm (width) X 10 mm (length) X 740 mm (height)
    19.7 inches (width) X 0.4 inches (length) X 29.1 inches (height)

    Required materials

    For an 800 x 1200 (2.6 x 4 ft) CNC router
    - 2 sheets of 1200 x 800 x 18 mm (47.5 x 31.5 x 0.75 inches) Plywood
    - 4 sheets of 1200 x 800 x 12 mm (47.5 x 31.5 x 0.5 inches) Plywood
    - 8 mm (0.315 inch) dowels
    For an 900 x 1200 (3 x 4 ft) CNC router
    - 2 sheets of 1200 x 800 x 18 mm (47.5 x 31.5 x 0.75 inches) Plywood
    - 4 sheets of 1200 x 800 x 12 mm (47.5 x 31.5 x 0.5 inches) Plywood
    - 8 mm (0.315 inch) dowels
    For an 1200 x 1200 (4 x 4 ft) CNC router
    - 2 sheets of 1200 x 800 x 18 mm (47.5 x 31.5 x 0.75 inches) Plywood
    - 2 sheet of 1200 x 1200 x 12 mm (40 x 37.5 x 0.625 inches) Plywood
    - 1 sheet of 1200 x 800 x 12 mm (47.5 x 31.5 x 0.5 inches) Plywood
    - 8 mm (0.315 inch) dowels
    For an 1220 x 2440 (4 x 8 ft) CNC router
    - 1 sheet of 2300 x 800 x 18 mm (91 x 32 x 0.75 inches) Plywood
    - 1 sheet of 2440 x 1220 x 12 mm (96 x 48 x 0.5 inches) Plywood
    - 1 sheet of 1100 x 700 x 12 mm (43.3 x 27.5 x 0.5 inches) Plywood
    - 8 mm (0.315 inch) dowels

    Assembling time

    30 minutes
    The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
