Table-Top Pinball DXF Files

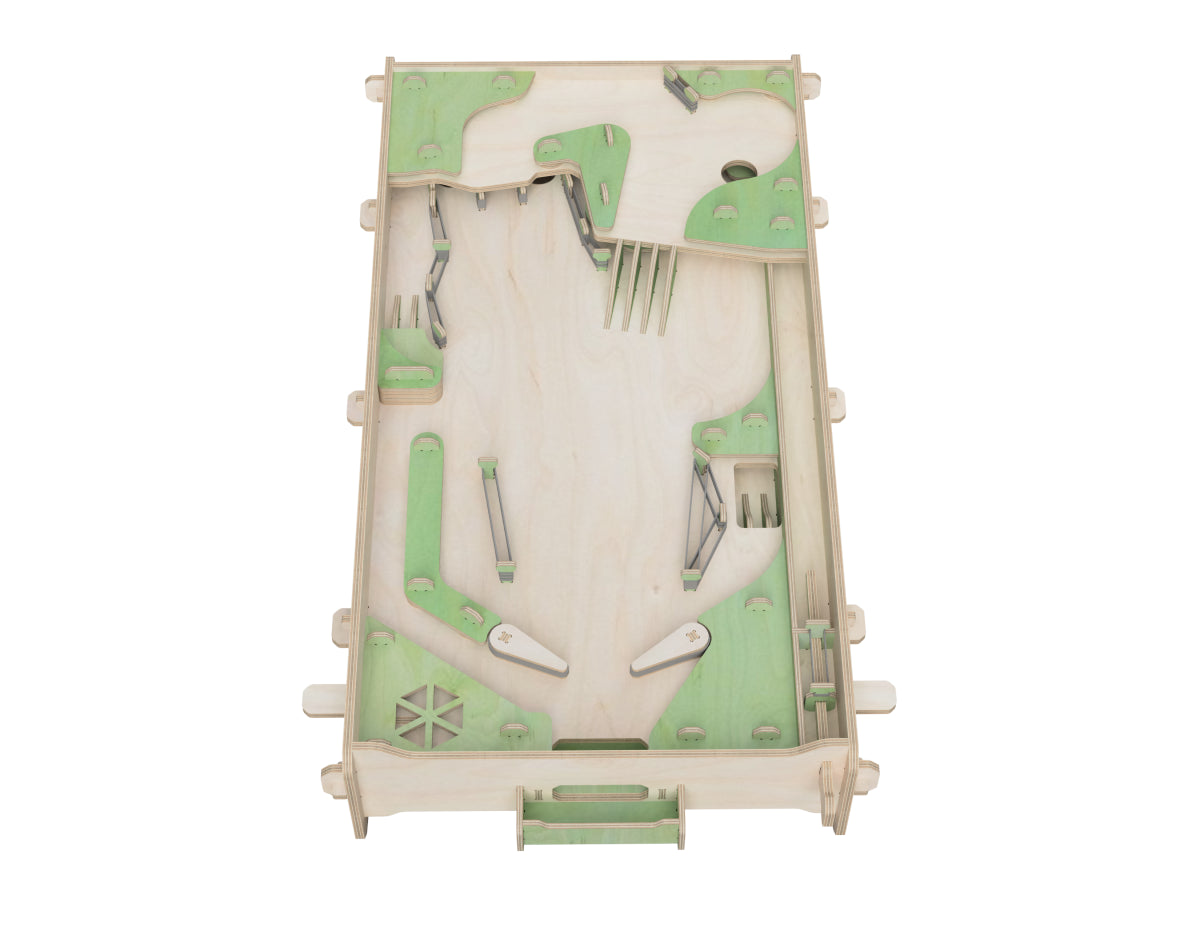

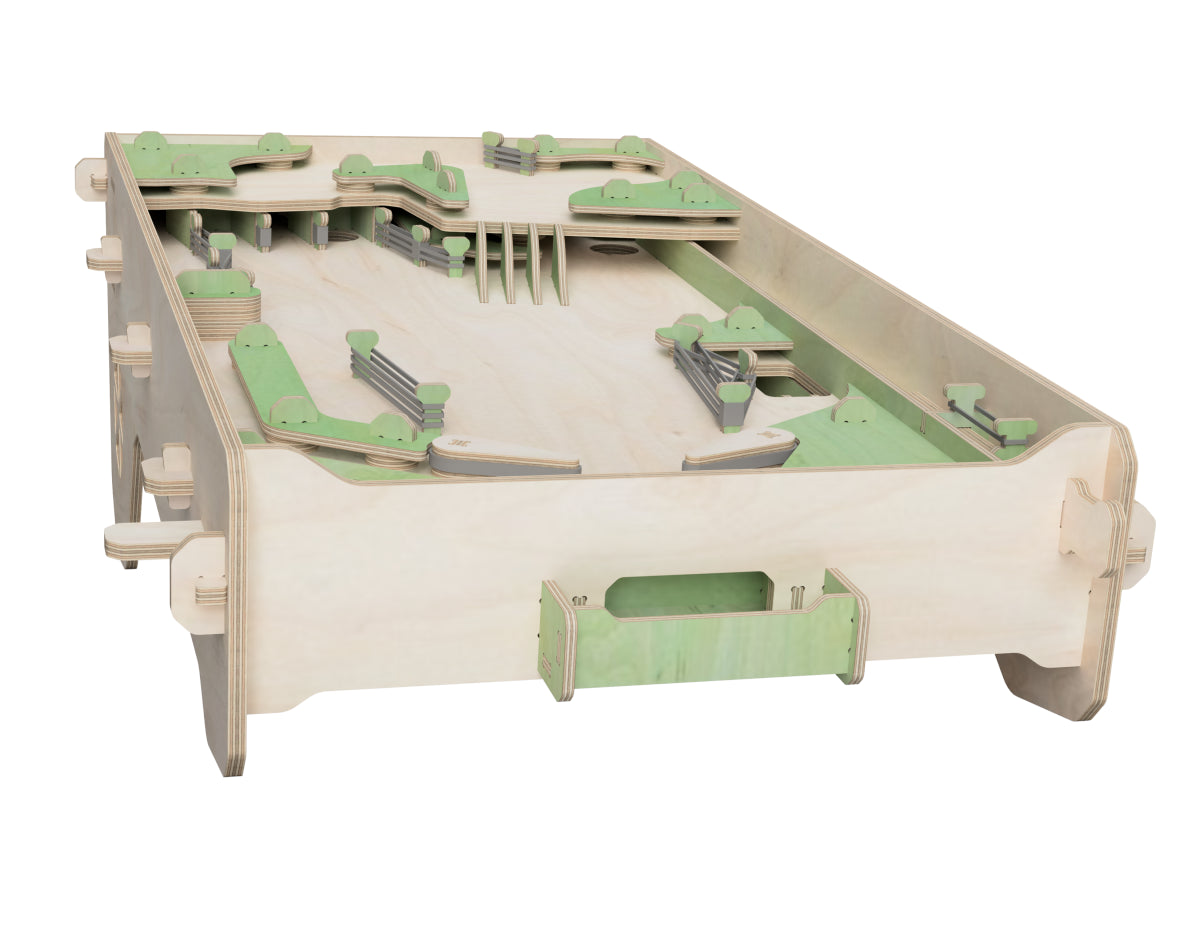

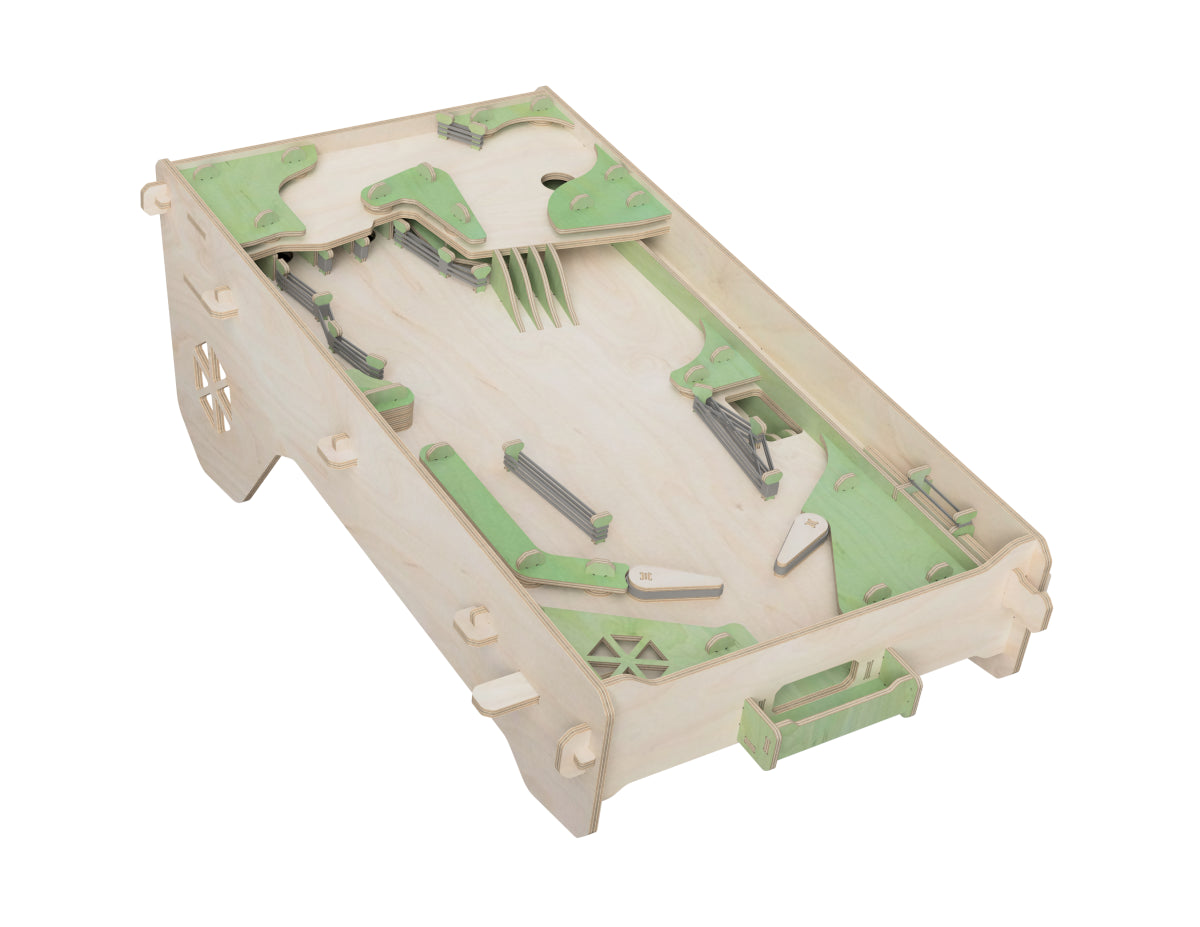

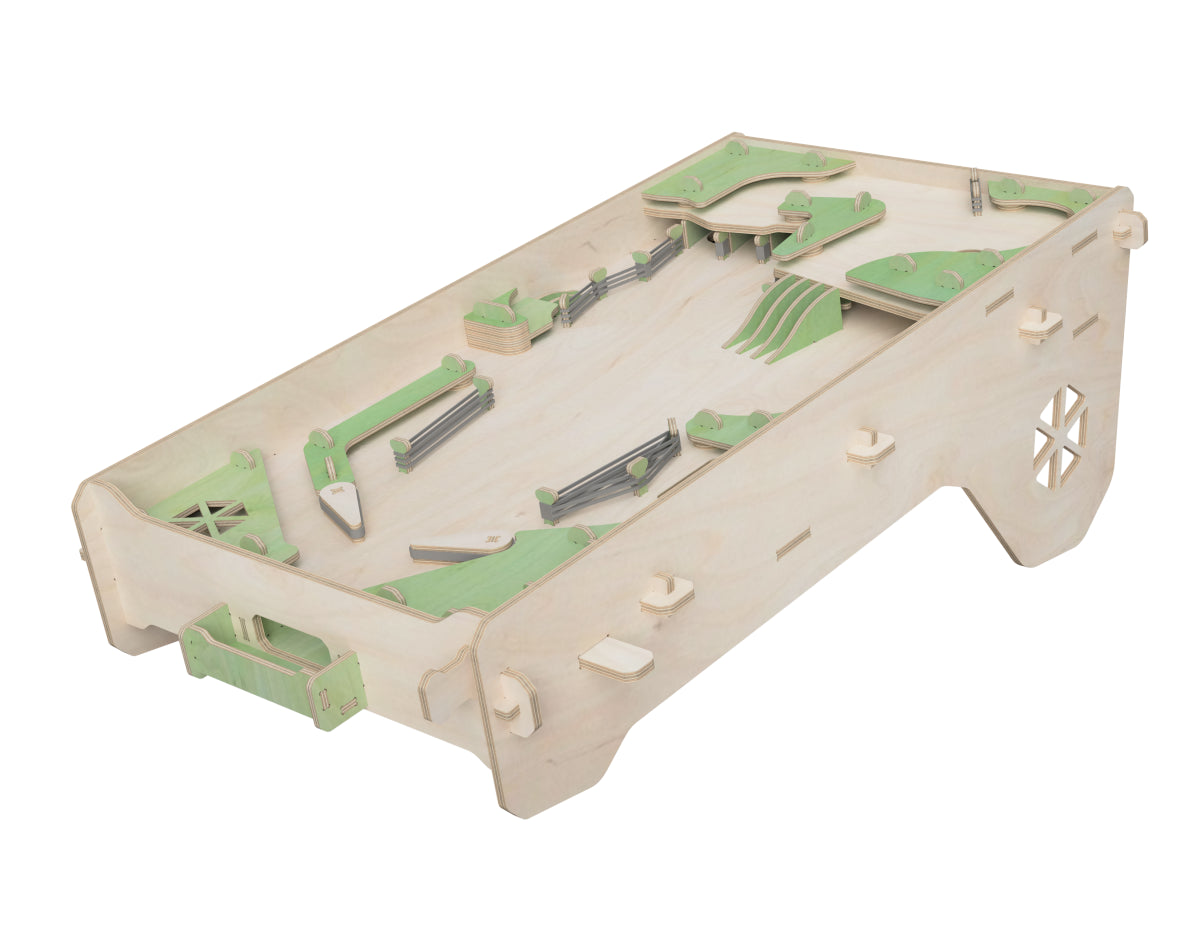

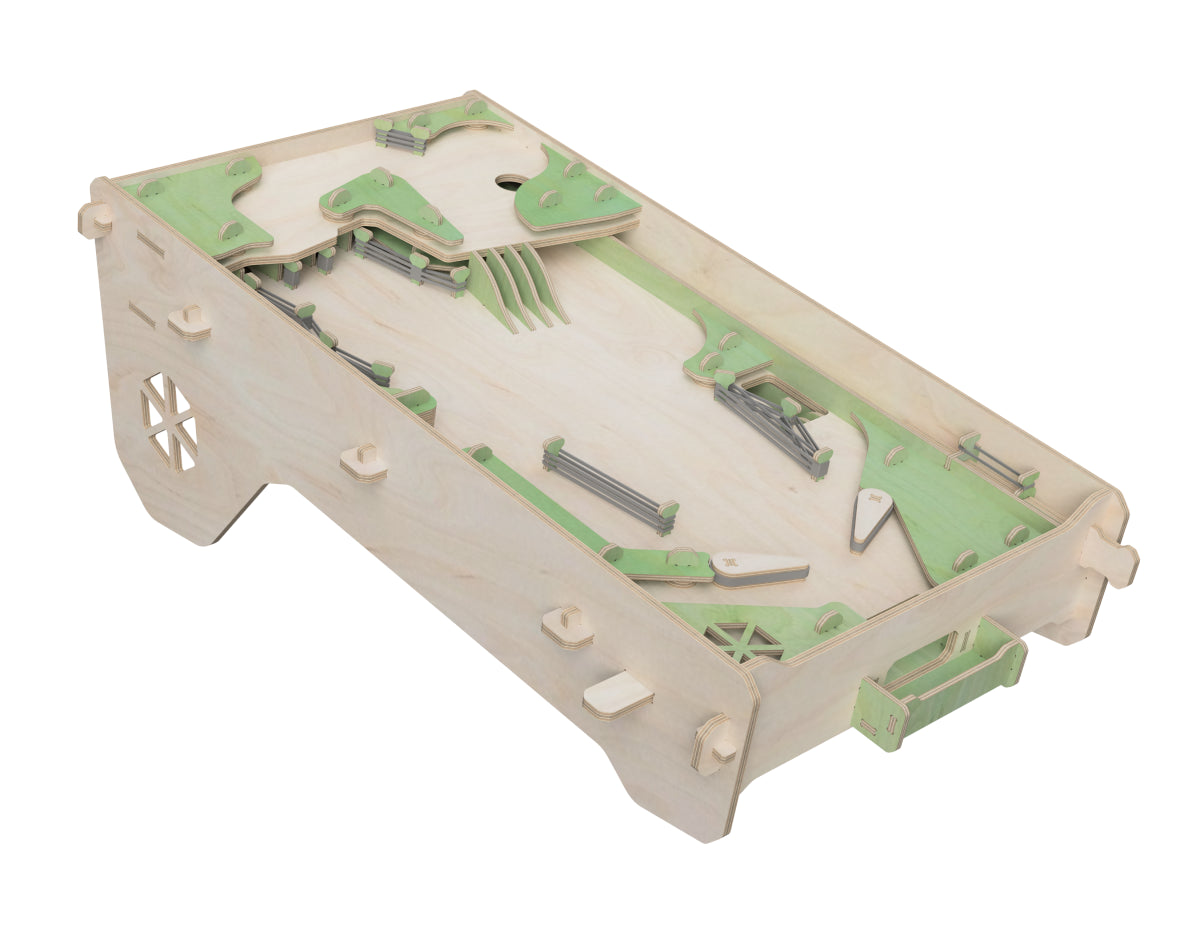

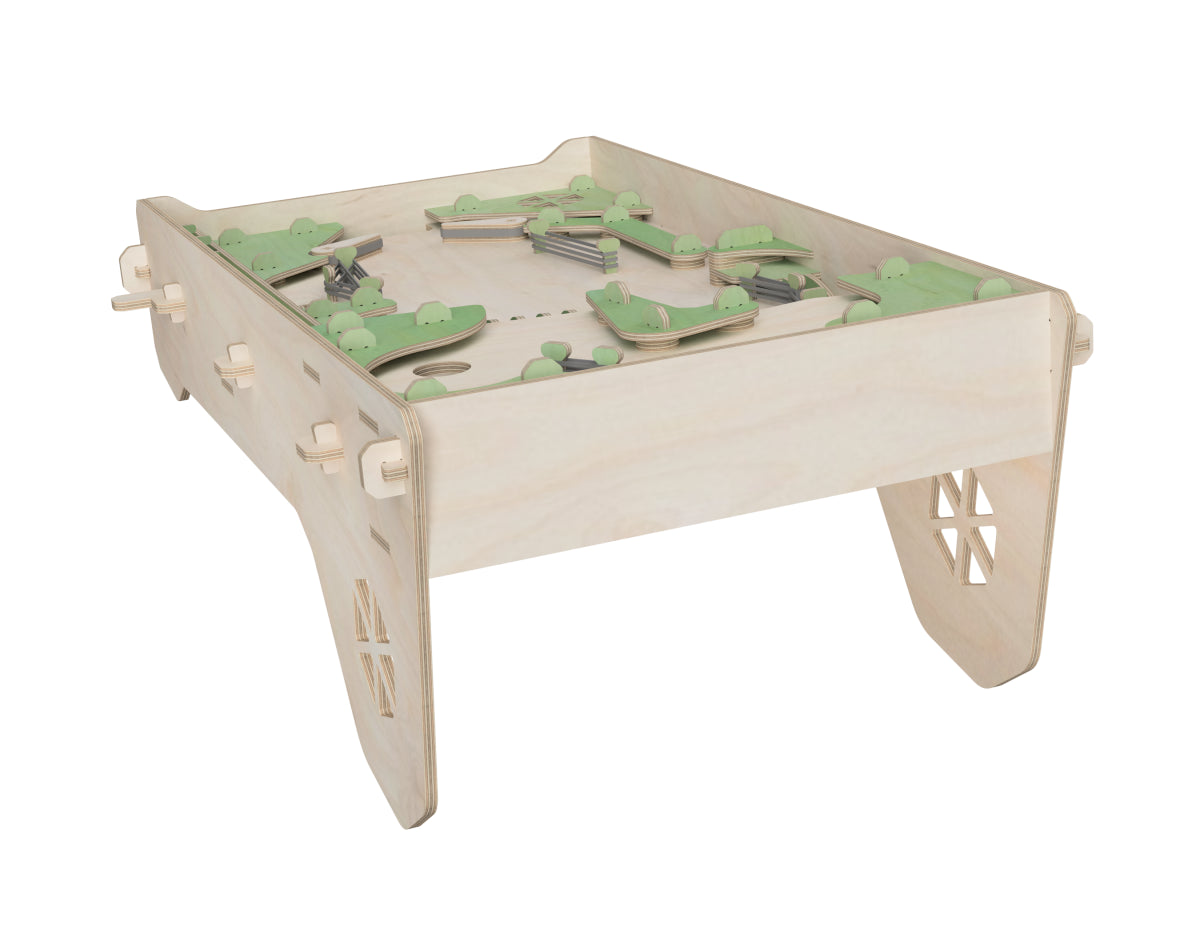

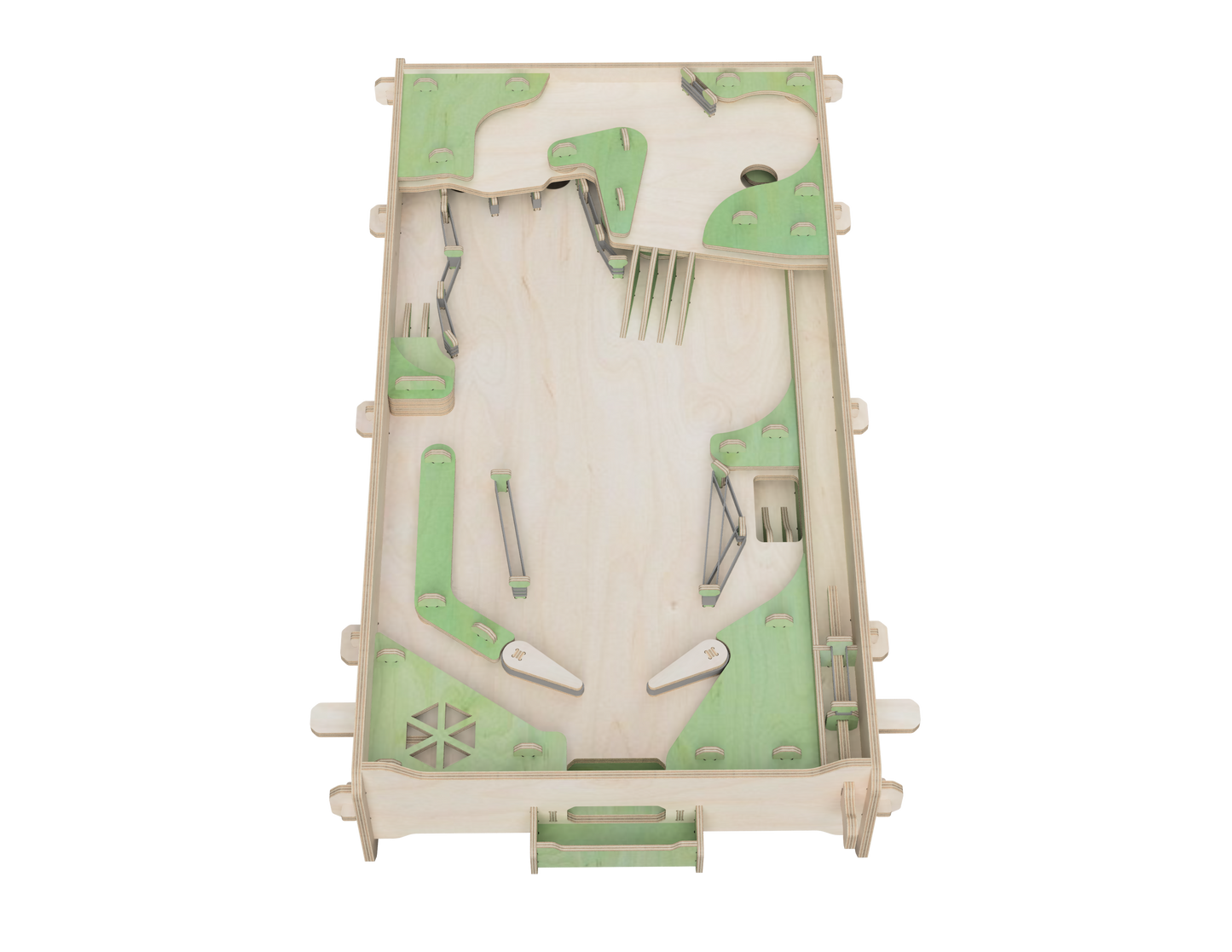

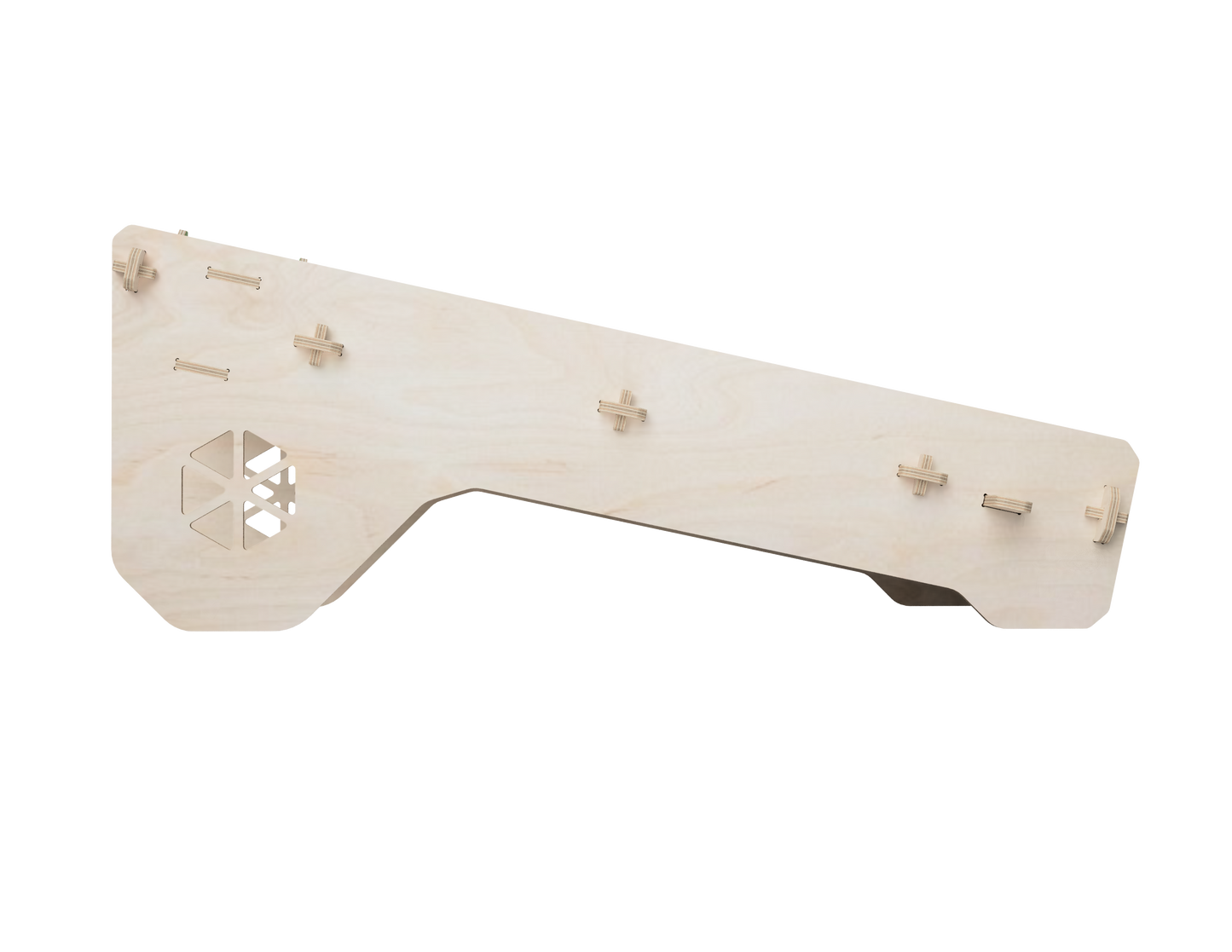

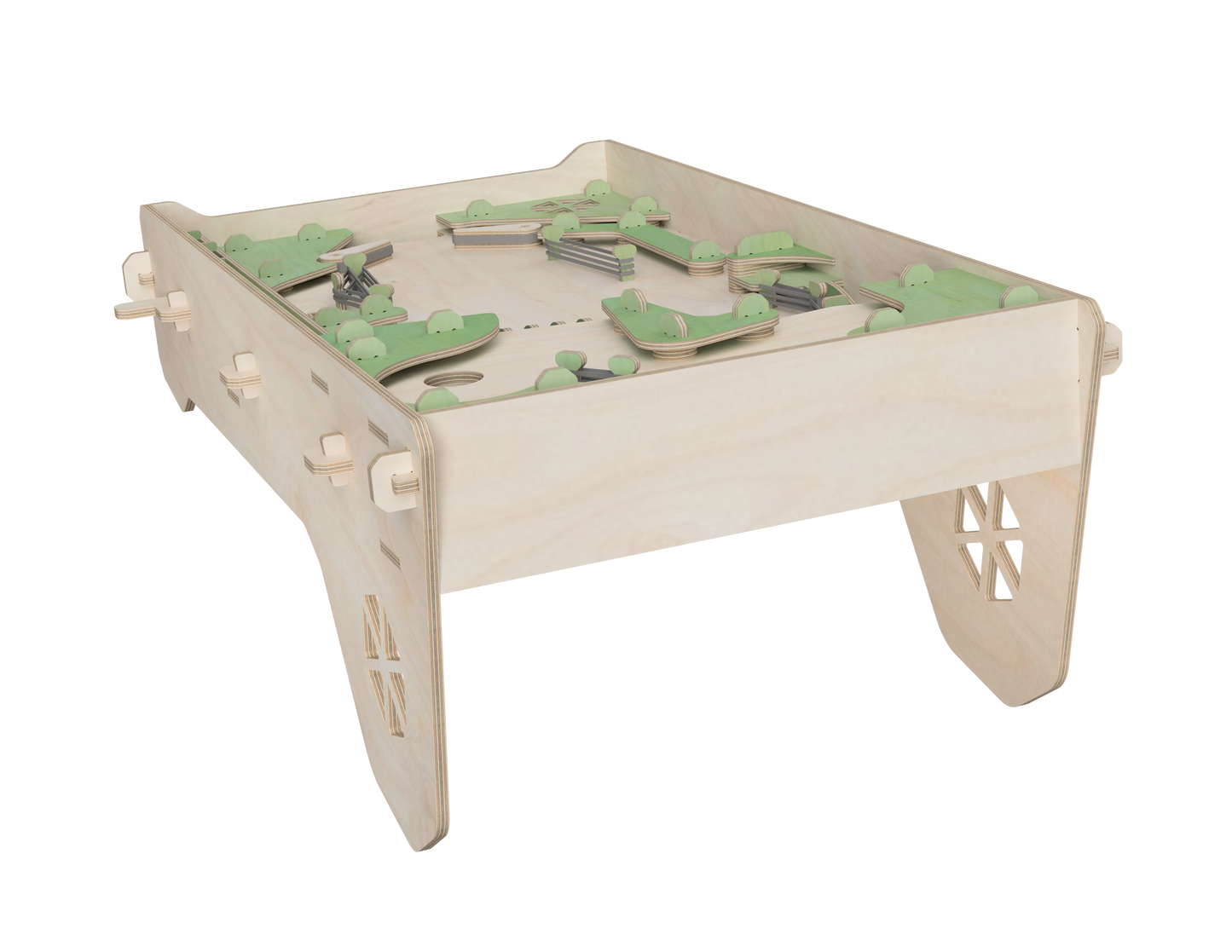

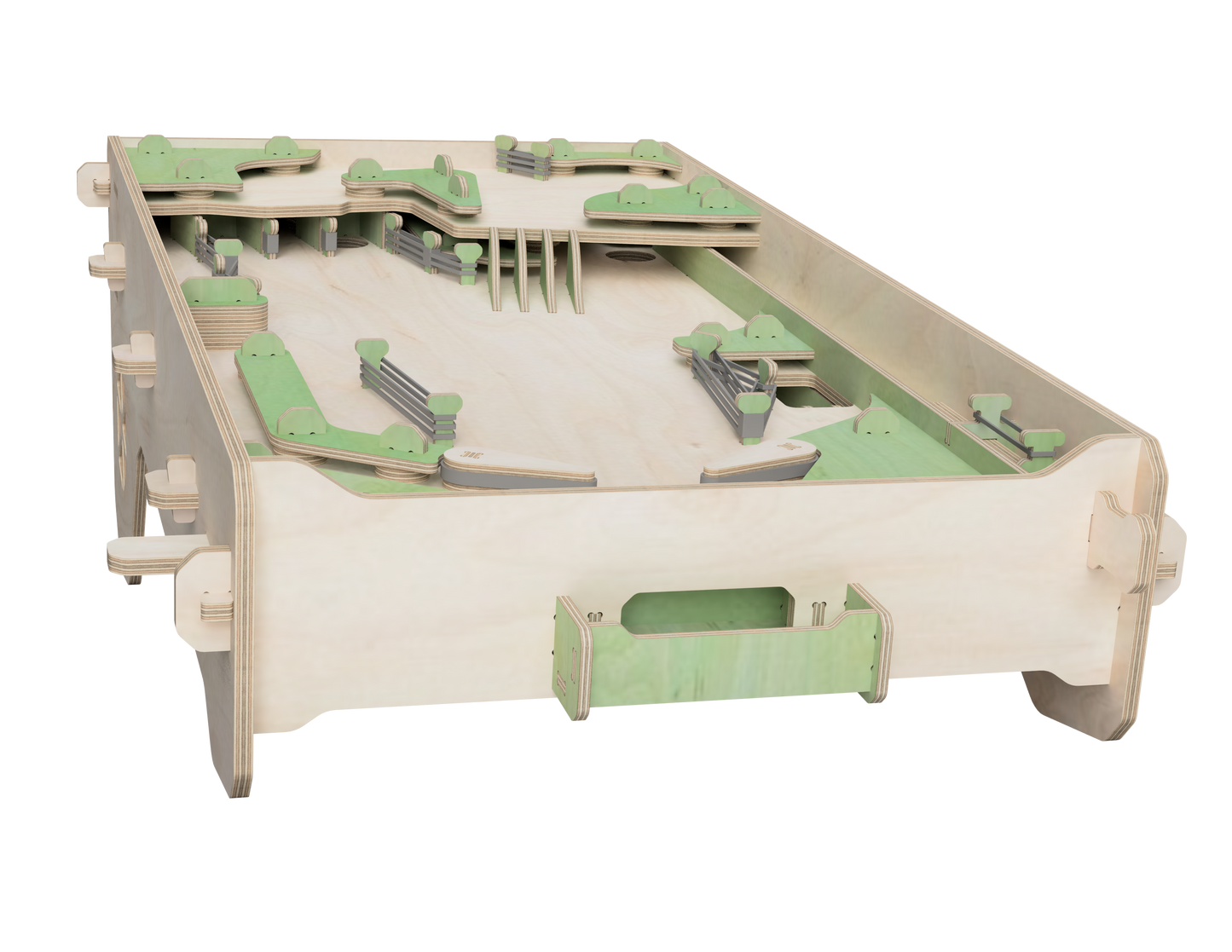

A fully functional plywood pinball table can really be made from plywood! You just need a little bit of plywood and some rubber bands. Thanks to the high precision of CNC, you just need to assemble the plywood pieces - no nails, screws, or glue required. We hope you enjoy quality time with your family or friends.

The design can be cut on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

After completing the order, you will receive DXF files with component layout adjusted to different CNC sizes:

600 x 900 (2 x 3 ft)

900 x 1200 (3 x 4 ft)

1200 x 1200 (4 x 4 ft)
1200 x 2400 (4 x 8 ft)

*The files are adjusted to fit both metric and imperial standards for materials and tools

Dimensions:

350 mm (height) x 890 mm (length) x 470 mm (width)

13-1/2 (height) x 35 (length) x 18-1/2 (width)

Required materials:

For a 600 x 900 (2 x 3 ft) CNC

• 3 sheets of 600 x 900 x 9 mm (23-⅝ x 35-1/2 x 3/8 inches) plywood
• 1 sheet of 600 x 900 x 6 mm (23-⅝ x 35-1/2 x 1/4 inches) plywood
• 3 mm (1/8 inch) router bit

For a 900 x 1200 (3 x 4 ft) CNC

• 1 sheet of 900 x 1200 x 9 mm (35-1/2 x 47-¼ x 3/8 inches) plywood
• 1 sheet of 1000 x 500 x 9 mm (40 x 20 x 3/8 inches) plywood
• 1 sheet of 600 x 900 x 6 mm (23-⅝ x 35-1/2 x 1/4 inches) plywood
• 3 mm (1/8 inch) router bit

For a 1200 x 1200 (4 x 4 ft) CNC

• 1 sheet of 1200 x 1200 x 9 mm (47-1/4 x 47-¼ x 3/8 inches) plywood
• 1 sheet of 500 x 300 x 9mm (20 x 12 x 3/8 inches) plywood
• 1 sheet of 600 x 900 x 6 mm (23-⅝ x 35-7/16 x 1/4 inches) plywood
• 3 mm (1/8 inch) router bit

For a 1200 x 2400 (4 x 8 ft) CNC

• 1 sheet of 1350 x 1220 x 9 mm (54 x 48 x 3/8 inches) plywood
• 1 sheet of 600 x 900 x 6 mm (23-⅝ x 35-7/16 x 1/4 inches) plywood
• 3 mm (1/8 inch) router bit

Assembling time:

2 hours

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.

Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.

The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
