Table Saw DXF files

Table Saw DXF files

Regular price $27.95 USD
Regular price $0.00 USD Sale price $27.95 USD
Sale Sold out
Tax included.

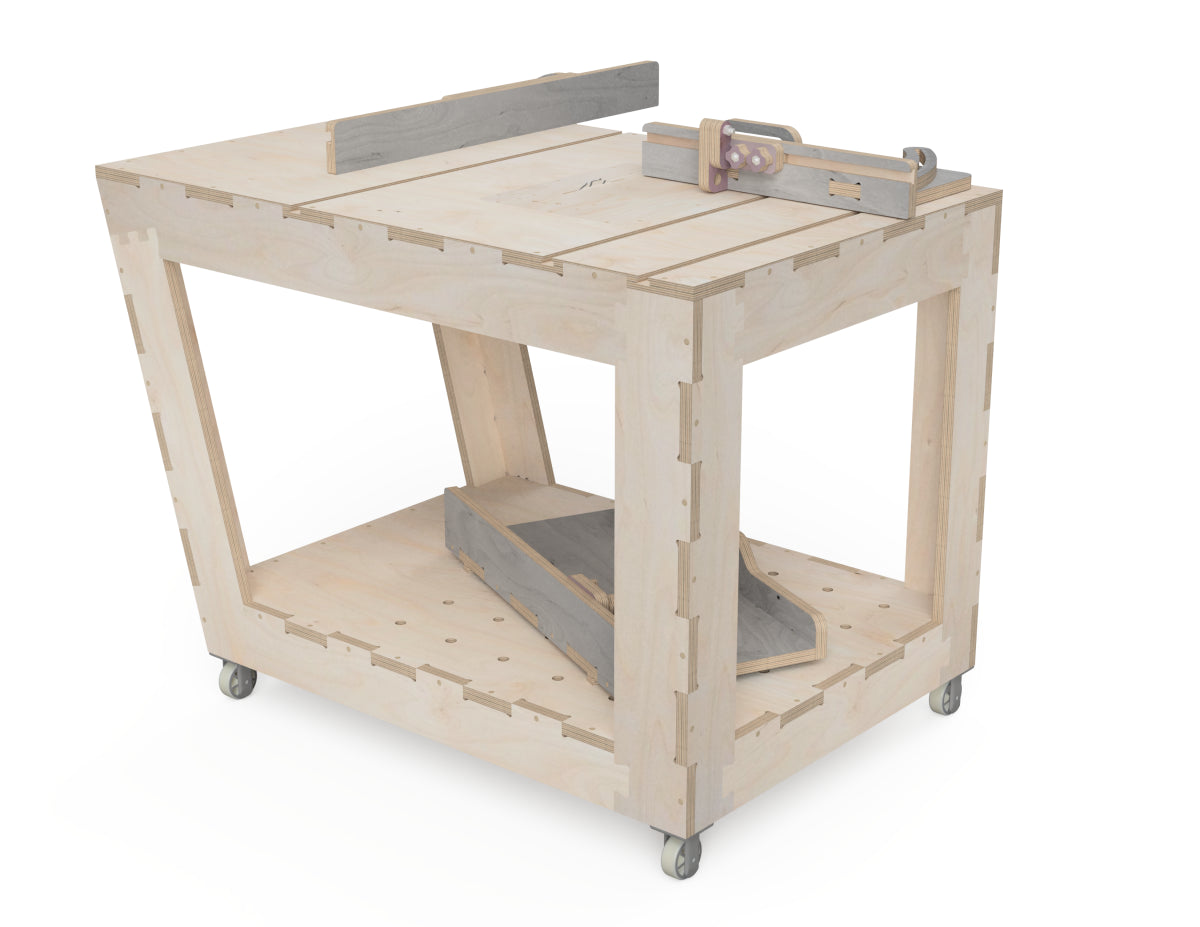

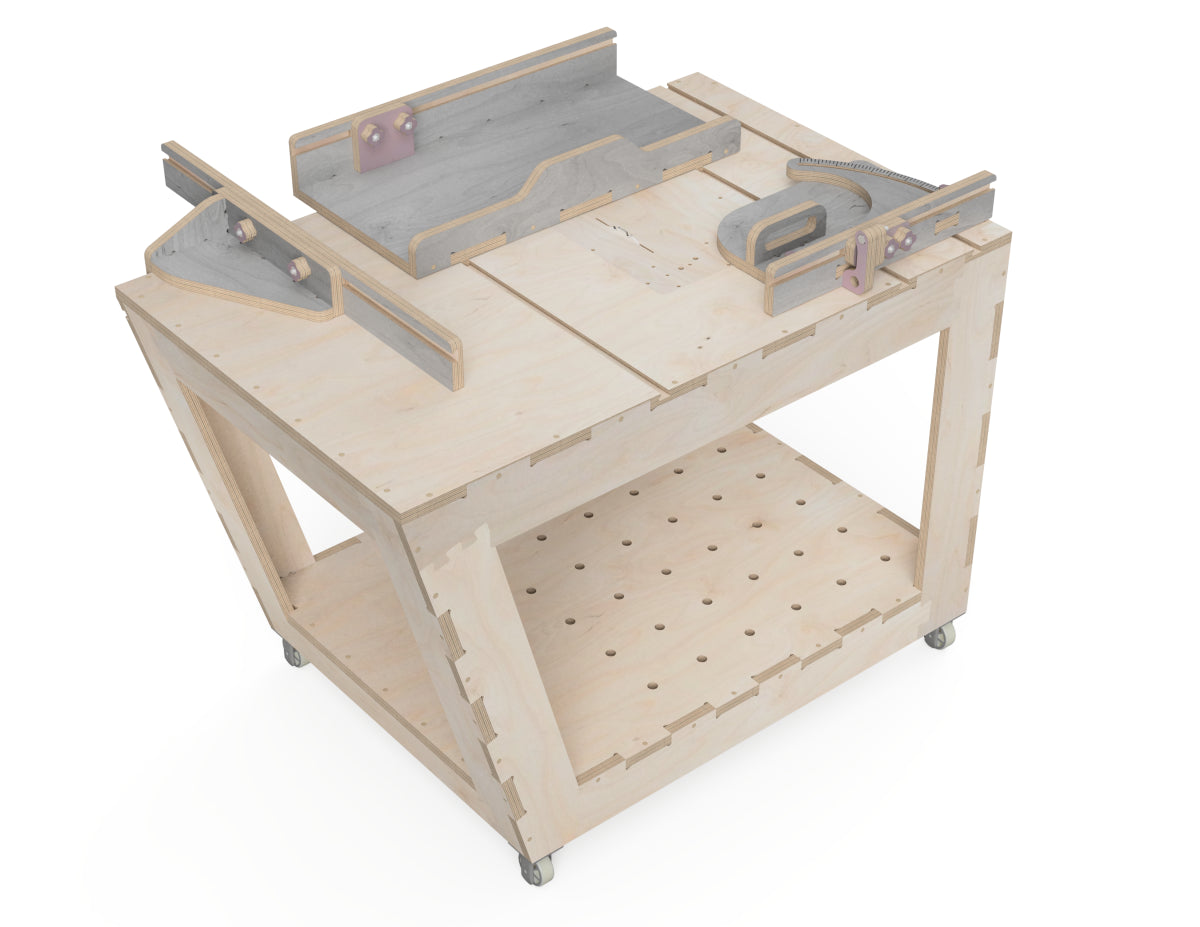

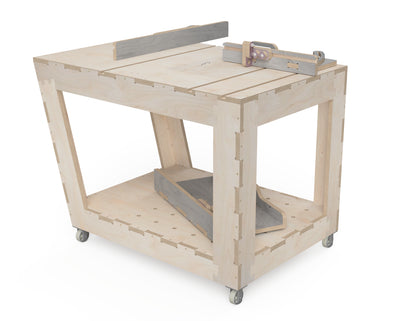

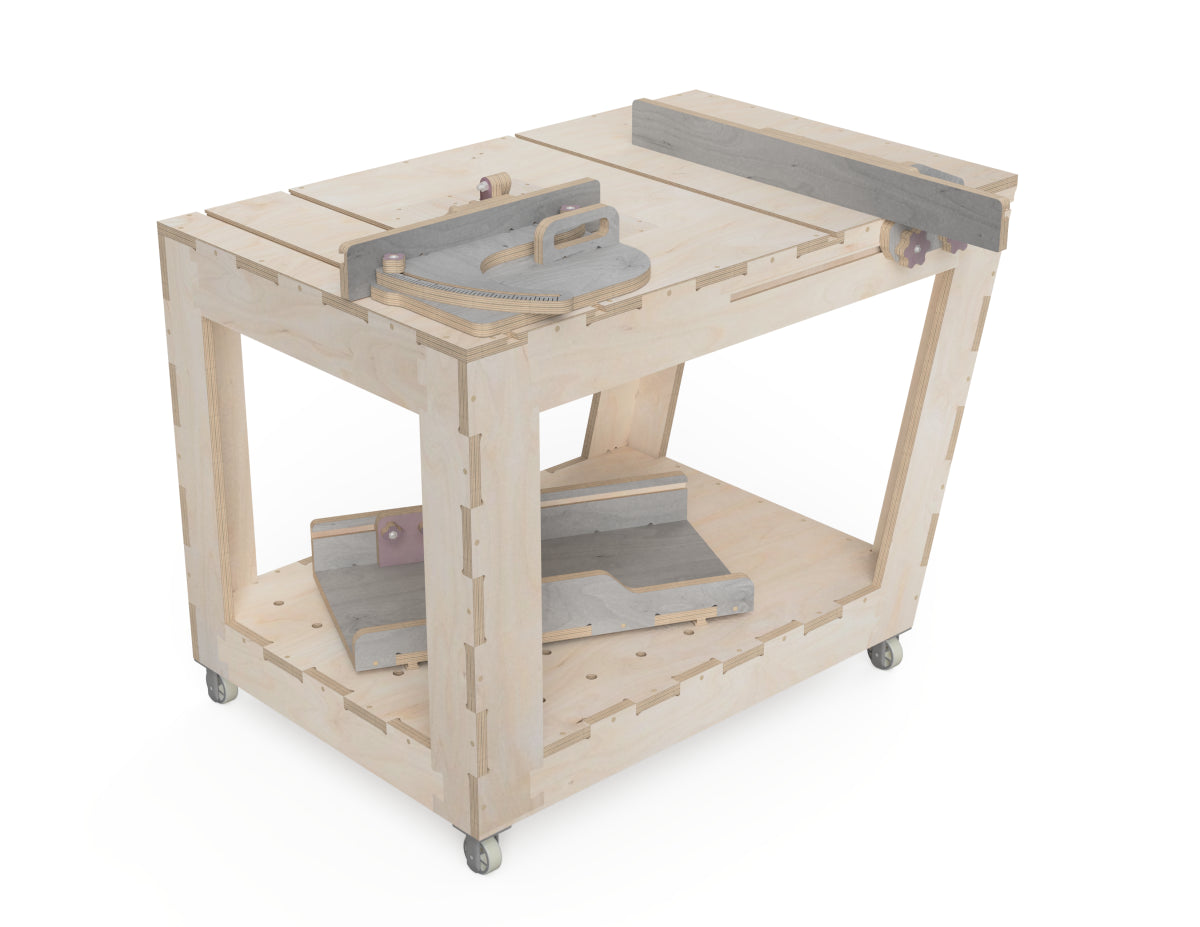

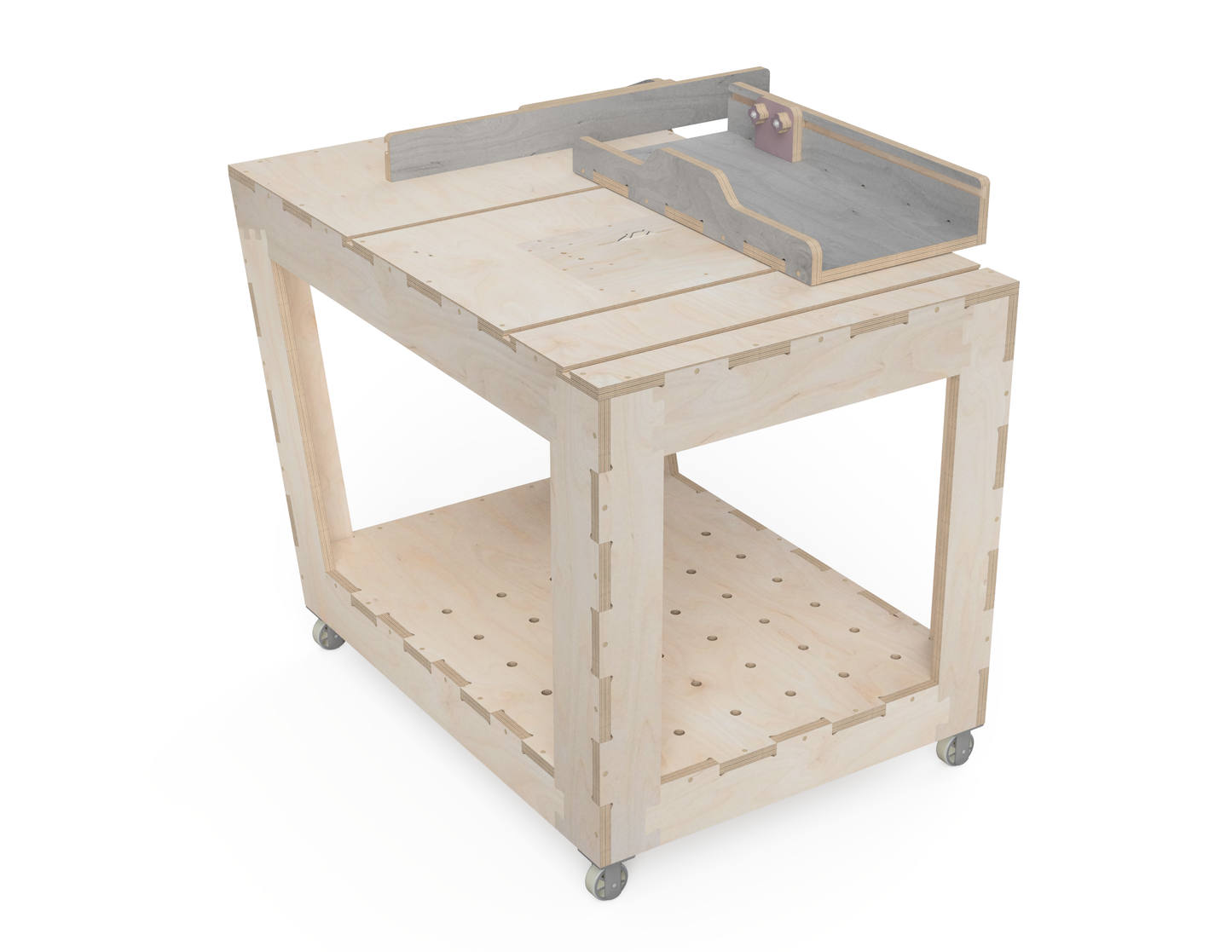

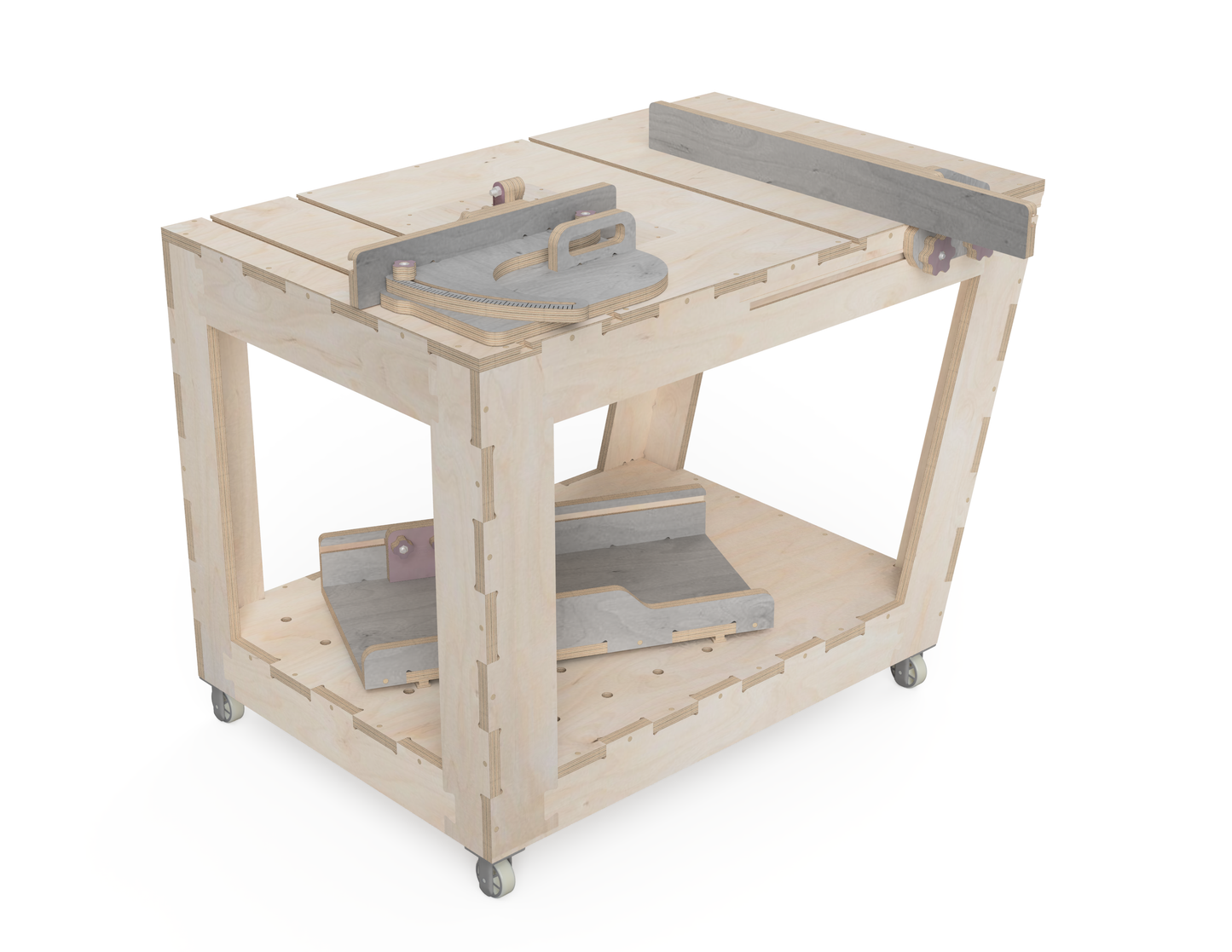

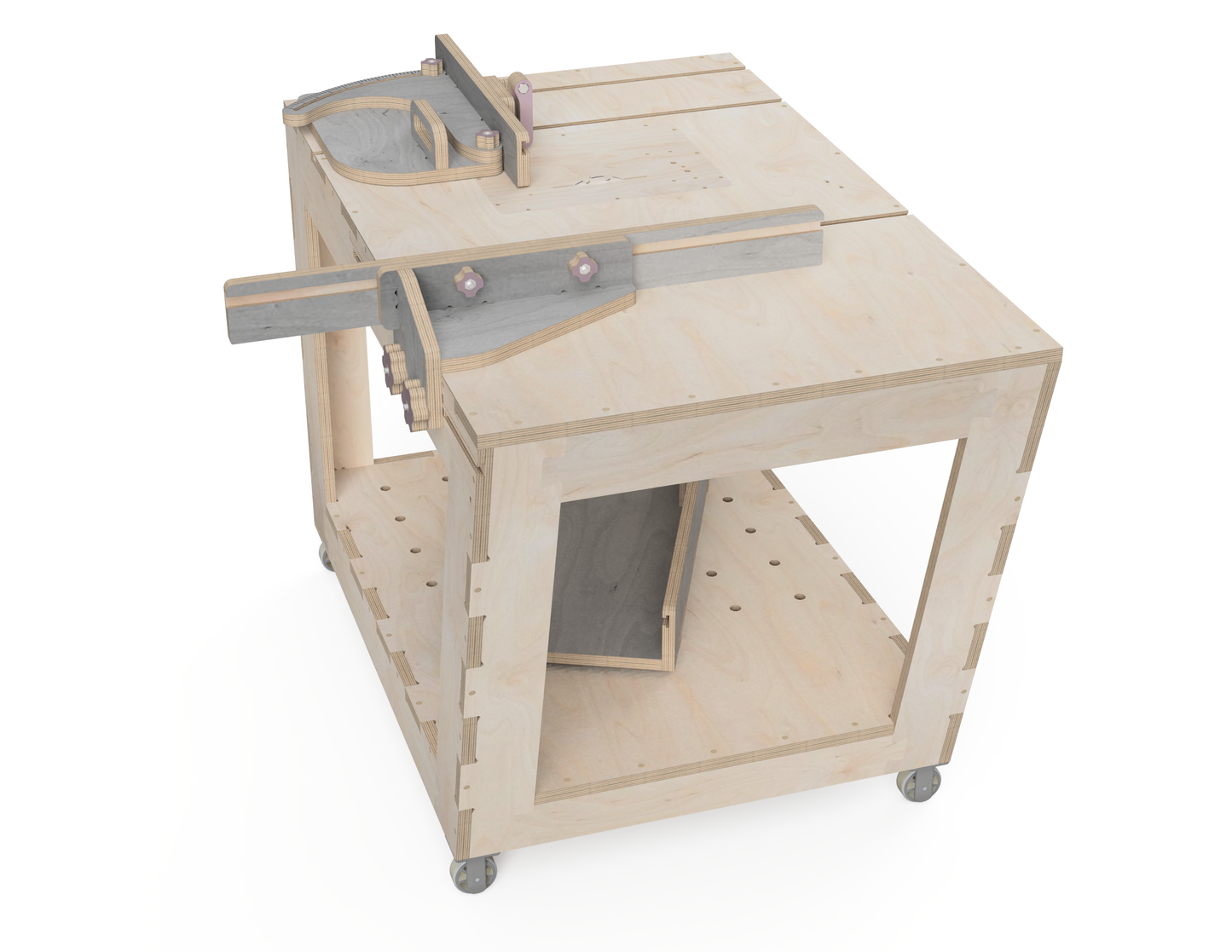

Looking to build your own table saw? Check out our CNC Table Saw Project Files! With our project files, you can easily create a fully functional table saw using your CNC router. Our files include everything you need, from design specifications to cutting templates and assembly instructions.


Our project files are compatible with a wide range of CNC routers and can be customized to fit your specific needs.


With our step-by-step instructions and clear diagrams, you can quickly and easily assemble your table saw with precision and accuracy. Once built, our table saw can handle a wide range of cutting tasks, from ripping to crosscutting and more.


Whether you're a seasoned woodworker or just getting started, our CNC Table Saw Project Files are a must-have for anyone looking to create their own customized table saw. Get yours today and start building the perfect table saw for your needs!

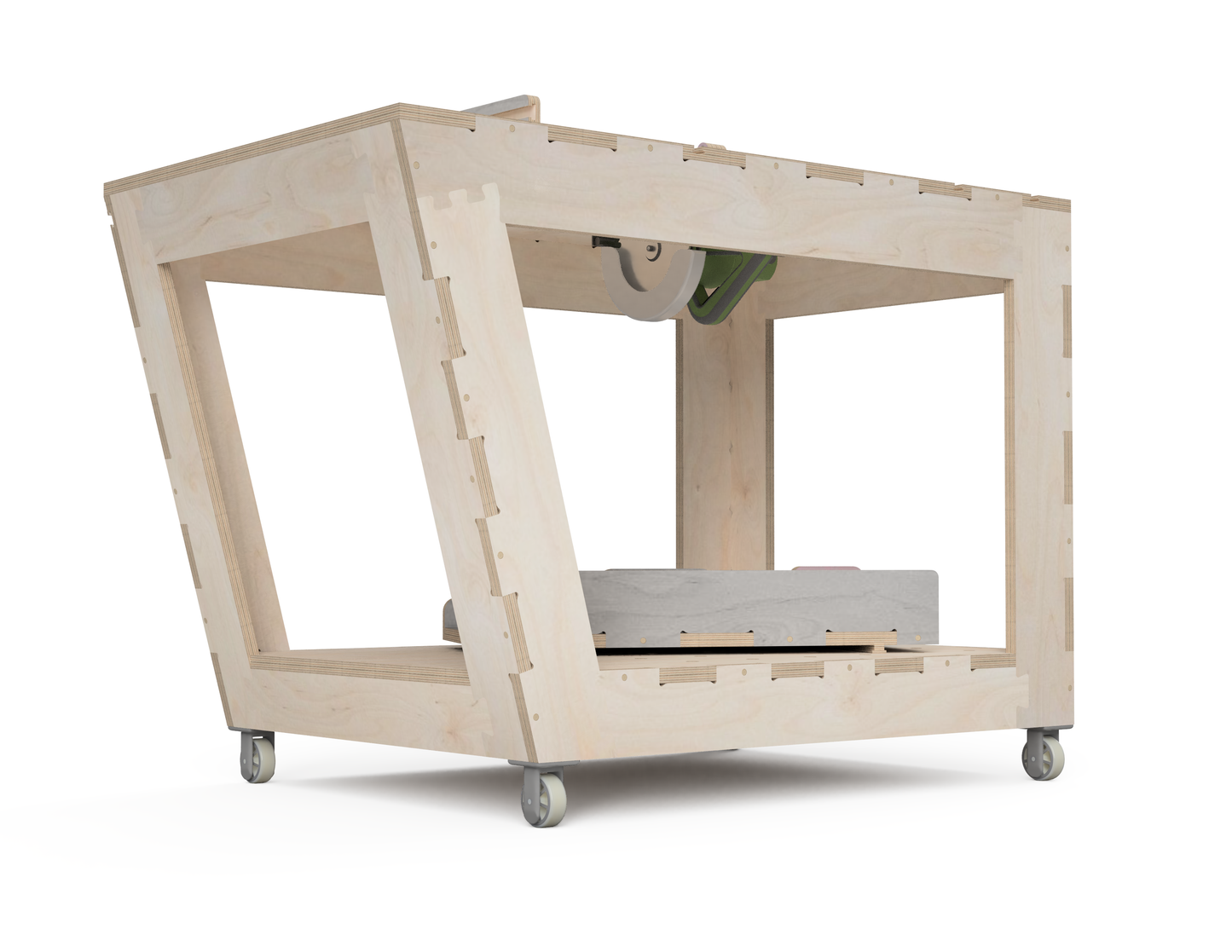

The Saw insert panel is designed for Makita HS7611 (it can be modified to fit any Circular Saw)


The project can be made on an 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions:

820 mm (height) x 1100 mm (lenght) x 700 mm (width)

32.3 inches (height) x 43.3 inches (lenght) x 27.5 inches (width)


Required materials:

For a 800 x 1200 mm (2.6 x 4 ft) CNC

  • 5 sheets of 1200 x 800 x 18 mm (47.25 x 31.5 x 0.75 inches) plywood
  • 1 sheet of 400 x 400 x 4 mm (15.75 x 15.75 x 0.375 inches) plywood
  • 3 mm (1/8 inch) router bit
  • 6 mm (1/4 inch) router bit
  • T-profile router bit
  • V-bit

For a 900 x 1200 mm (3 x 4 ft) CNC

  • 4 sheets of 1200 x 900 x 18 mm (47.25 x 35.45 x 0.75 inches) plywood
  • 1 sheet of 400 x 400 x 4 mm (15.75 x 15.75 x 0.375 inches) plywood
  • 3 mm (1/8 inch) router bit
  • 6 mm (1/4 inch) router bit
  • T-profile router bit
  • V-bit

For a 1200 x 1200 mm (4 x 4 ft) CNC

  • 3 sheets of 1200 x 1200 x 18 mm (47.25 x 47.25 x 0.75 inches) plywood
  • 1 sheet of 400 x 400 x 4 mm (15.75 x 15.75 x 0.375 inches) plywood
  • 3 mm (1/8 inch) router bit
  • 6 mm (1/4 inch) router bit
  • T-profile router bit
  • V-bit

For a 1200 x 2400 mm (4 x 8 ft) CNC

  • 1 sheet of 2440 x 1220 x 18 mm (96 x 48 x 0.75 inches) plywood
  • 1 sheet of 900 x 1220 x 18 mm (35.45 x 48 x 0.75 inches) plywood
  • 1 sheet of 400 x 400 x 4 mm (15.75 x 15.75 x 0.375 inches) plywood
  • 3 mm (1/8 inch) router bit
  • 6 mm (1/4 inch) router bit
  • T-profile router bit
  • V-bit

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.


Assembling:

2 hours


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
