Aribabox

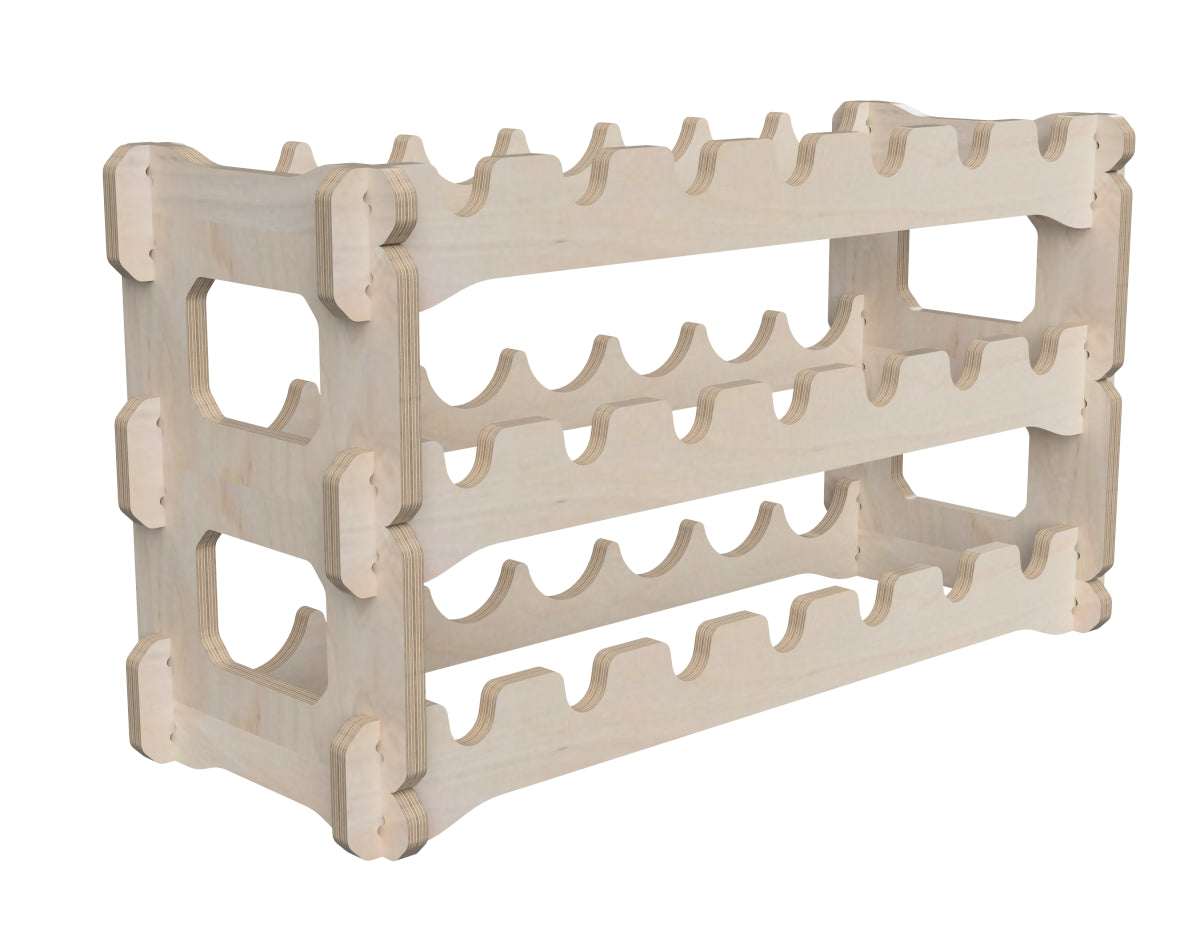

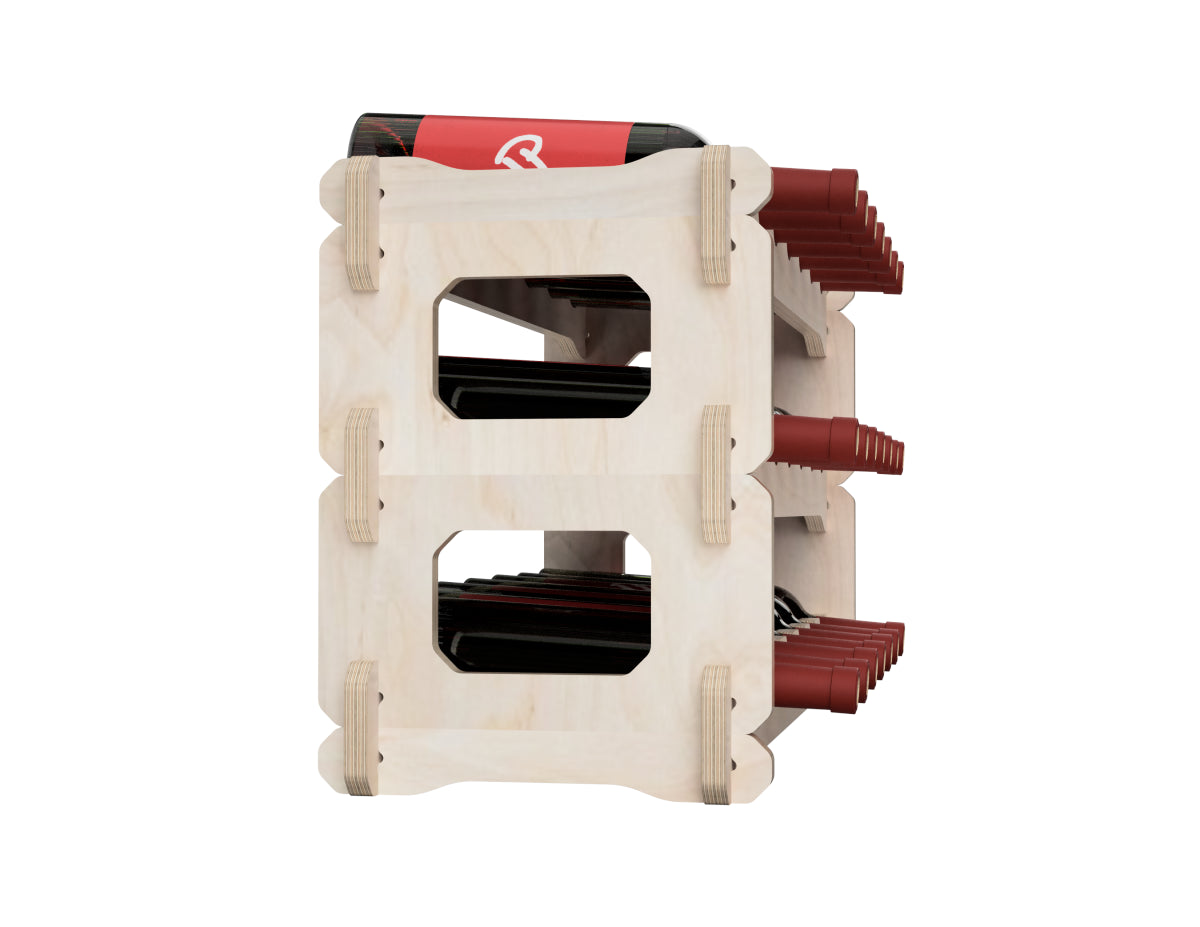

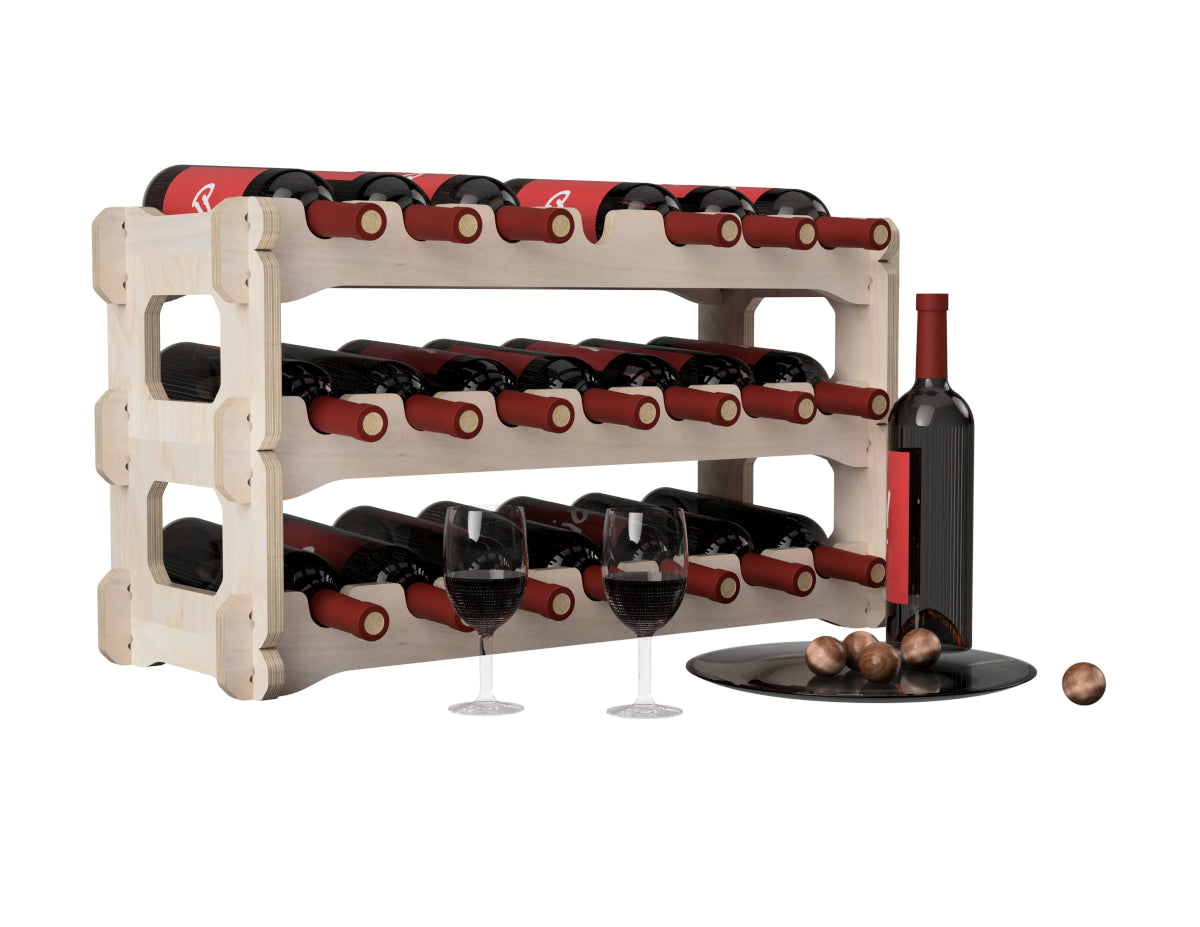

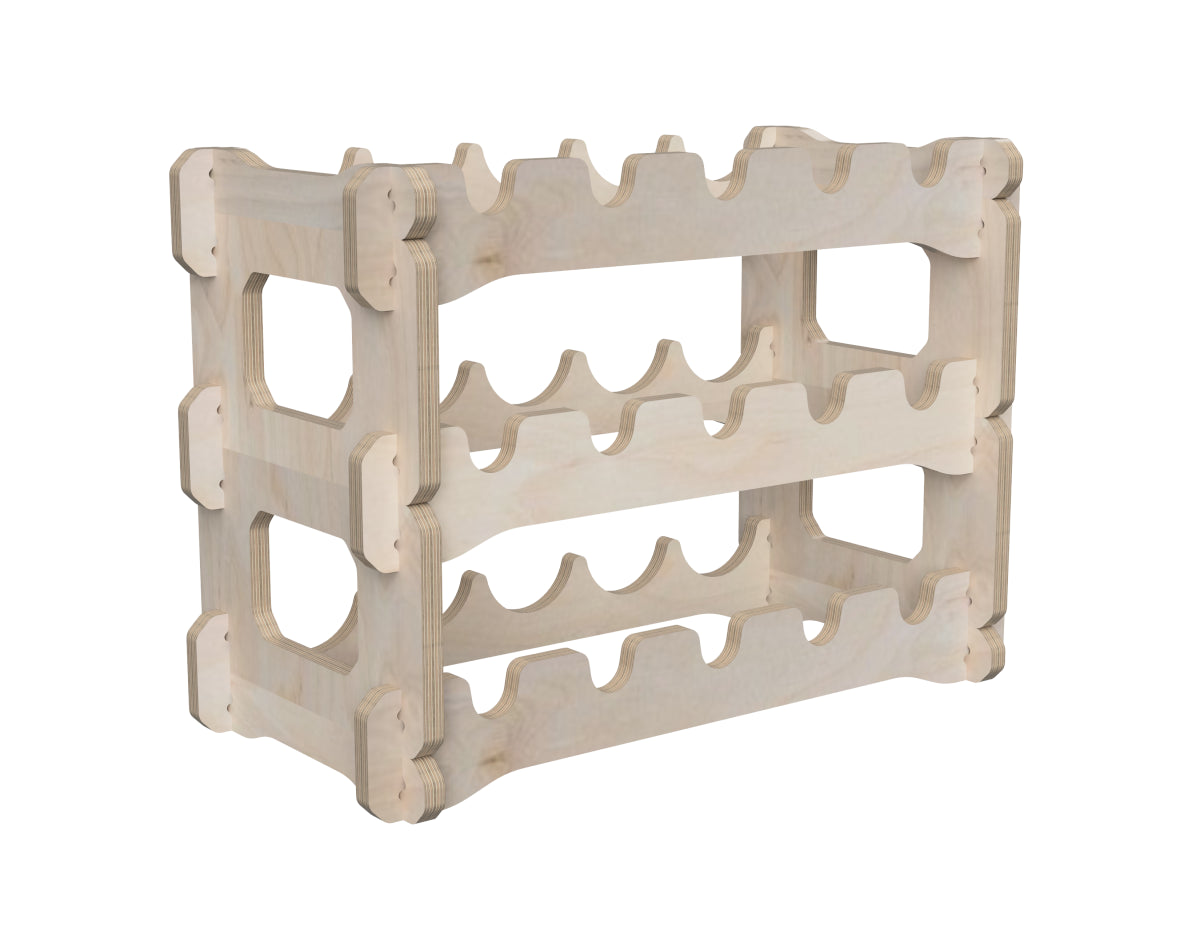

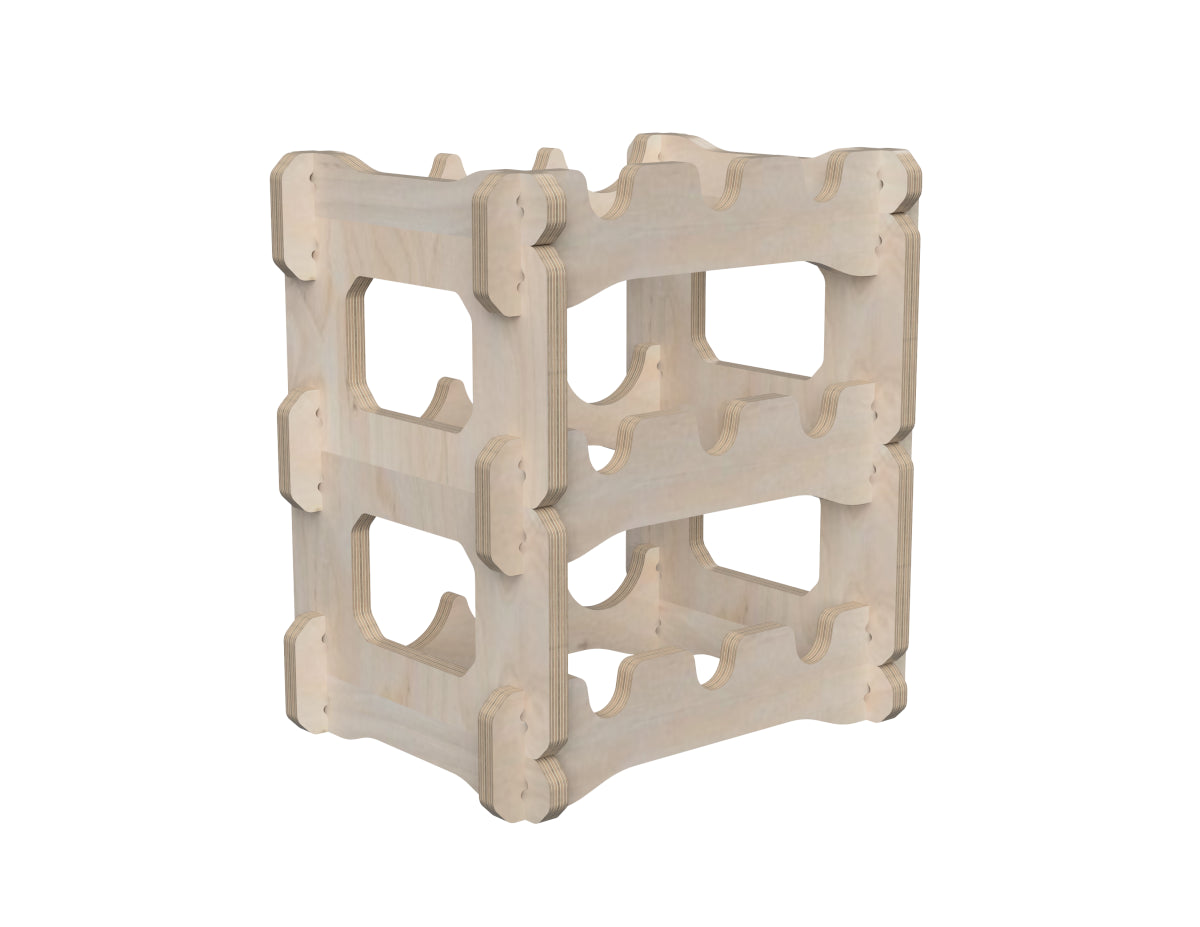

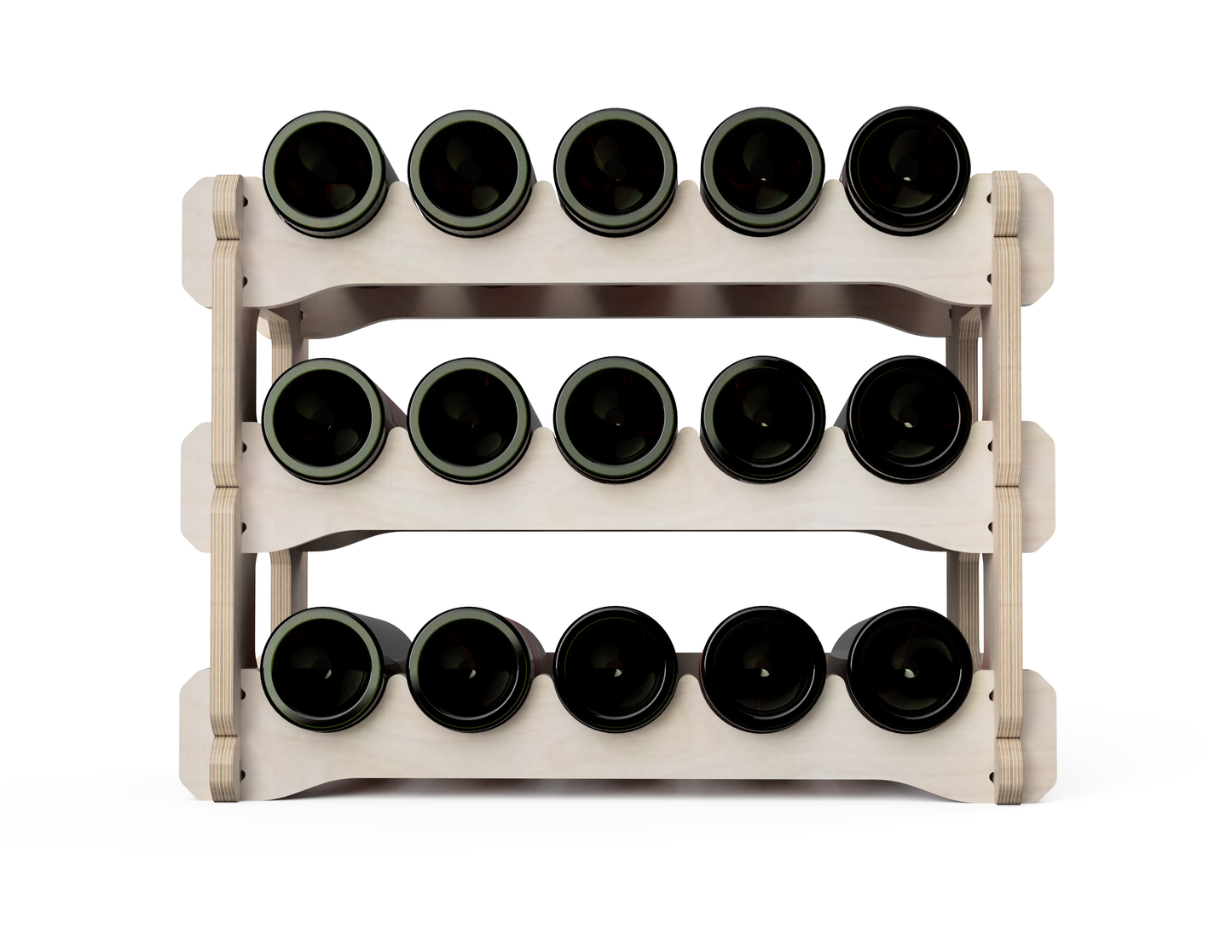

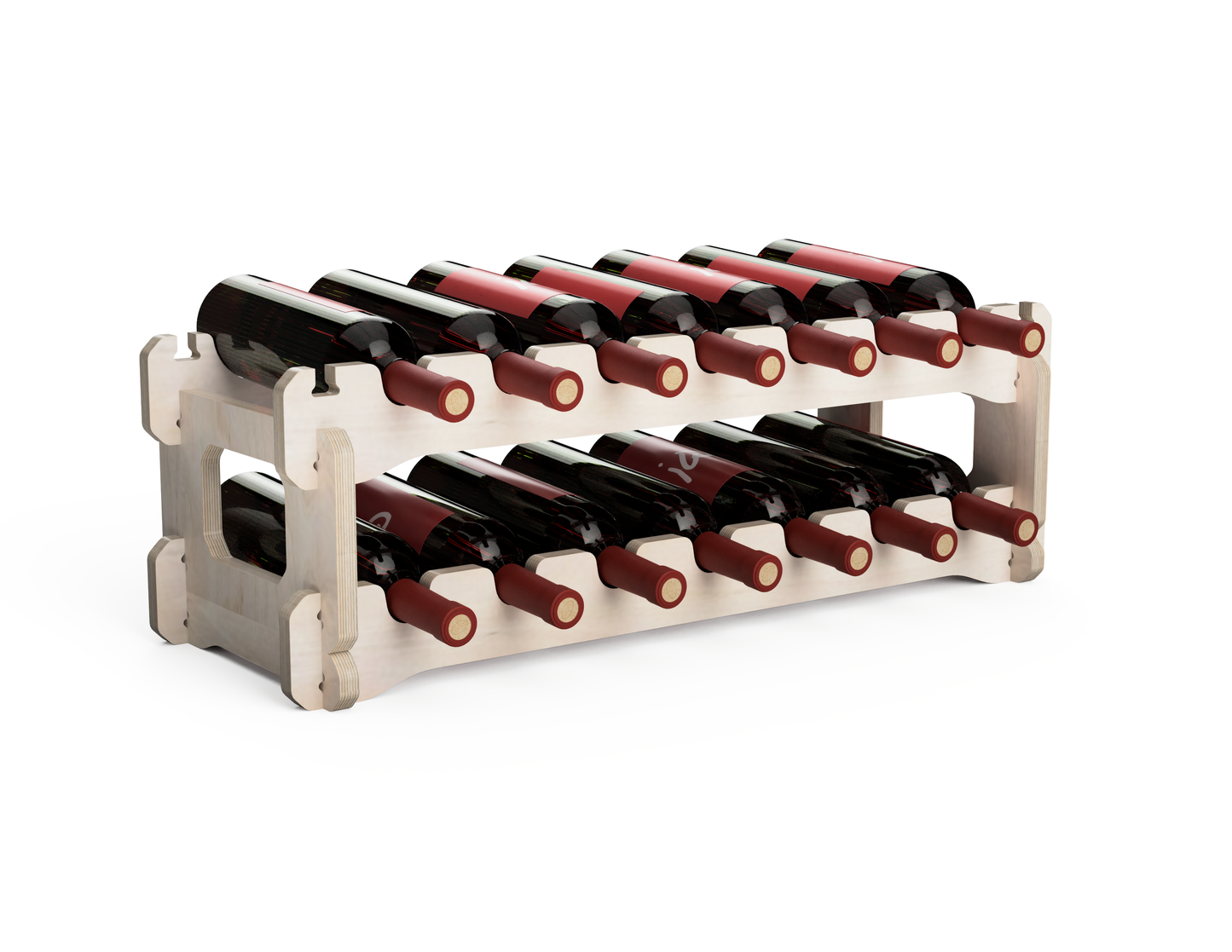

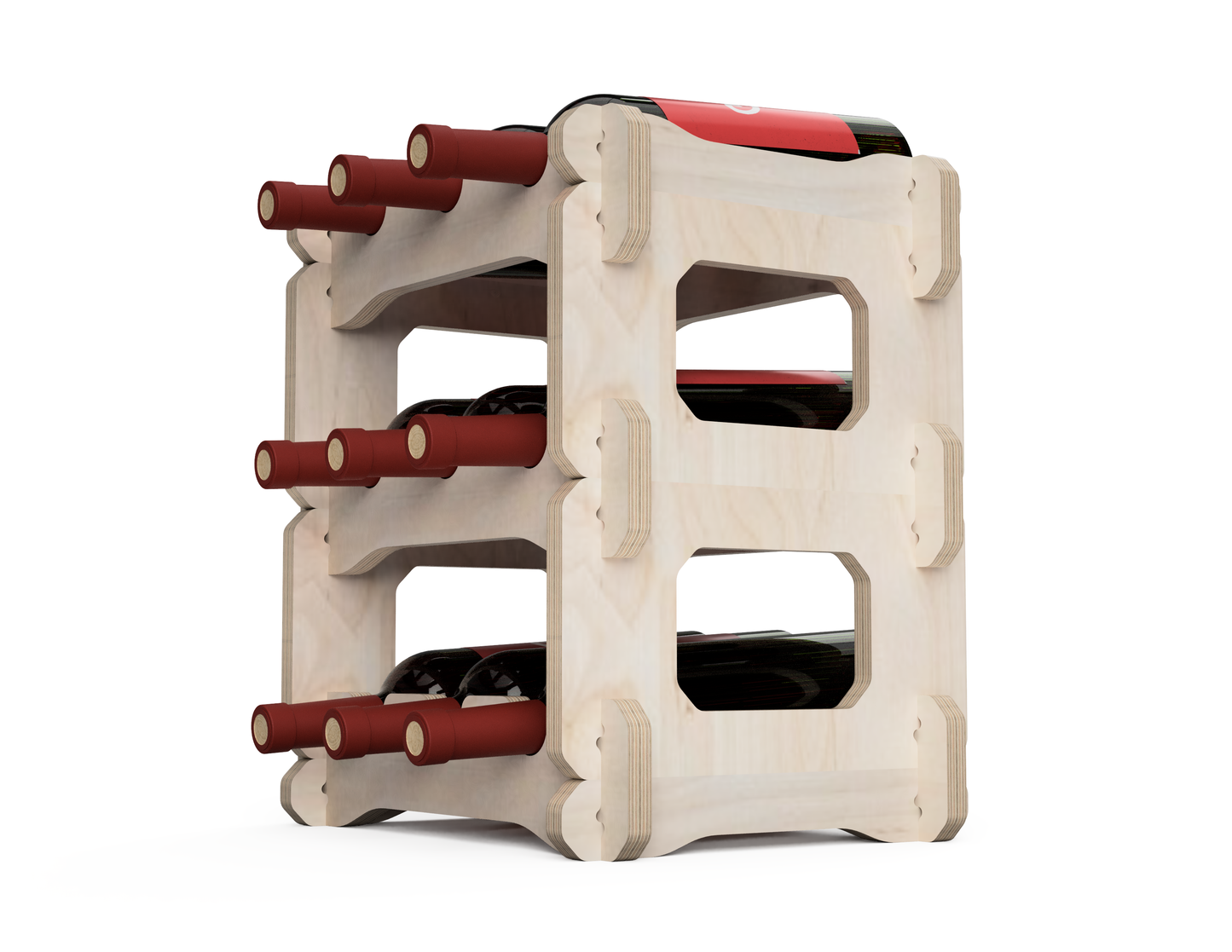

Stackable Wine Rack DXF file

Stackable Wine Rack DXF file

Regular price $10.45 USD
Regular price Sale price $10.45 USD
Sale Sold out
Tax included.
Size

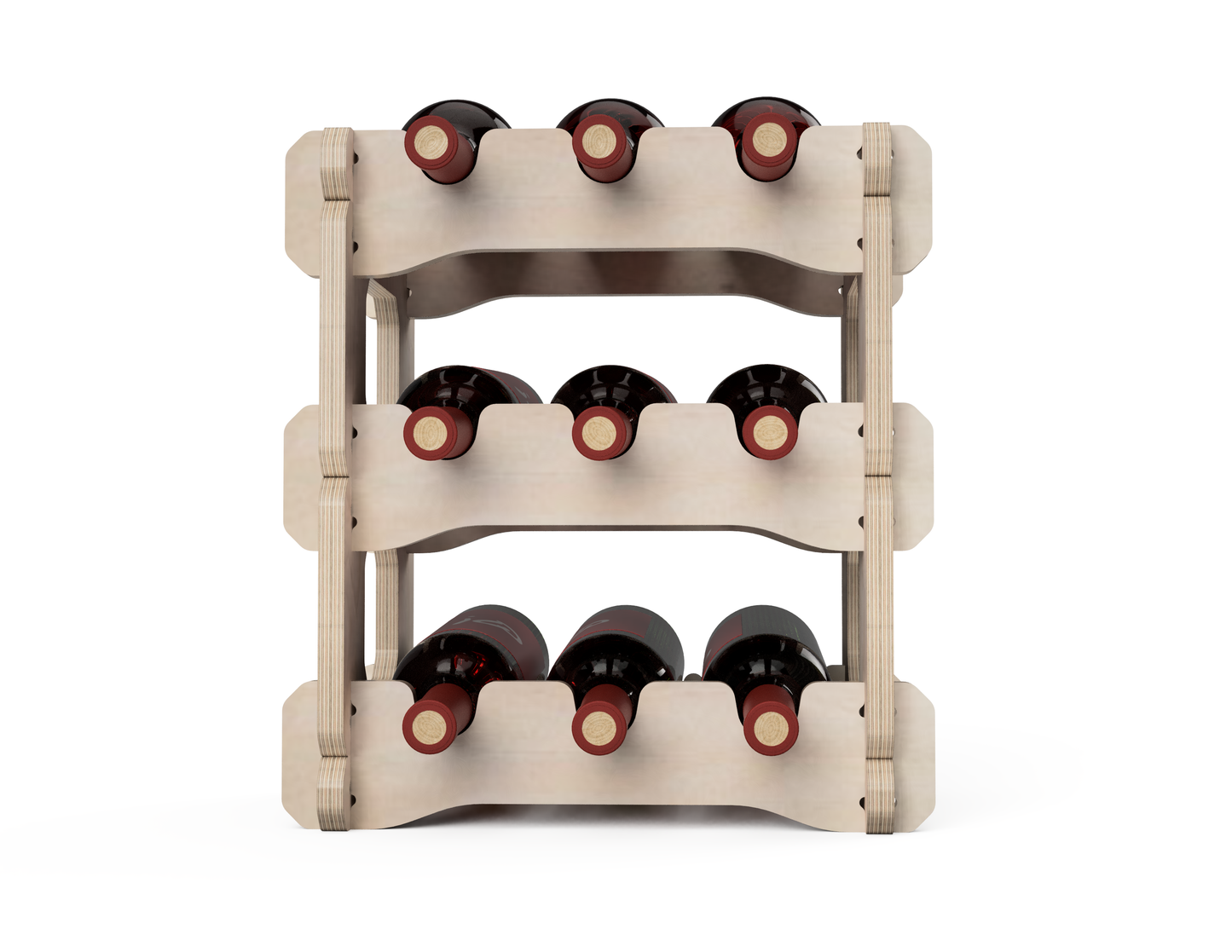

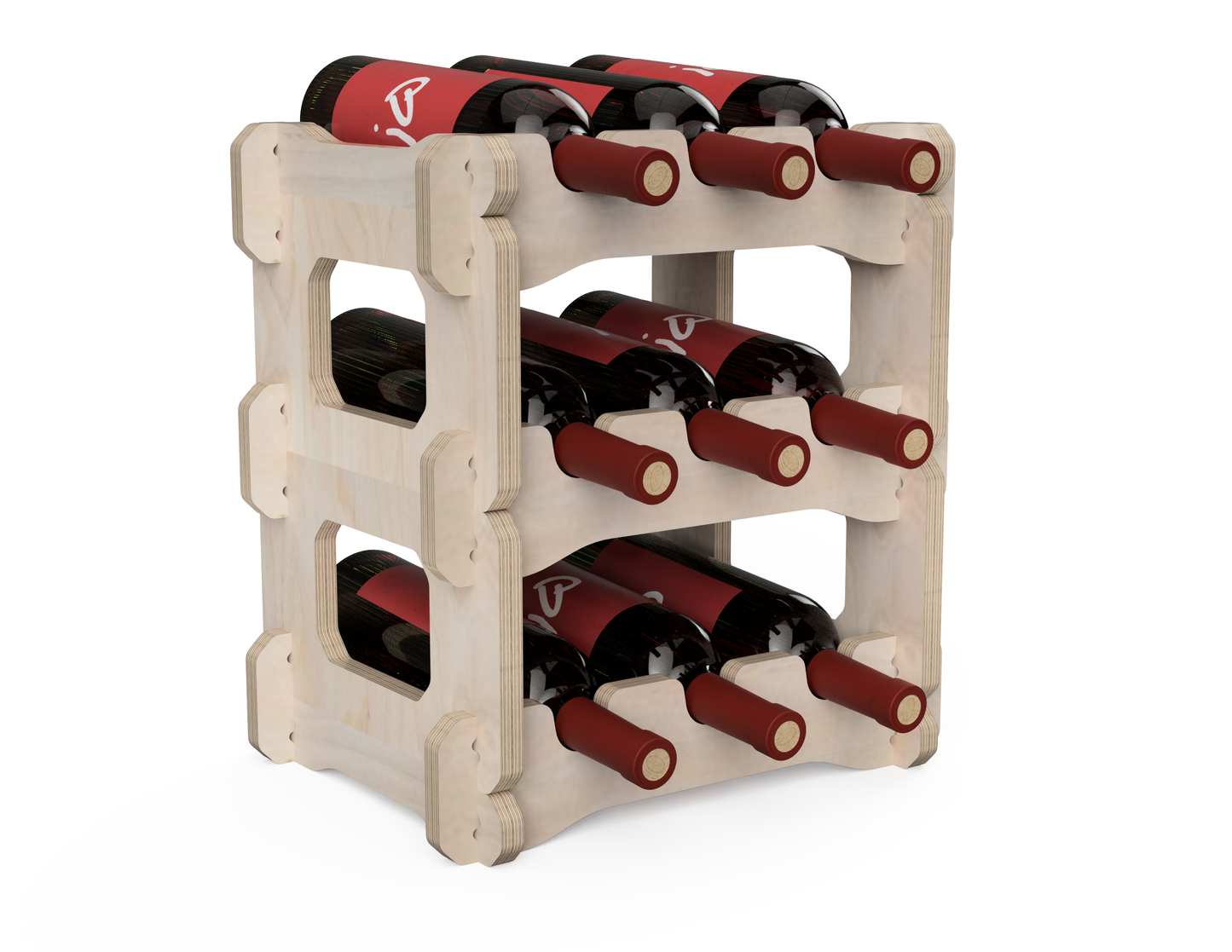

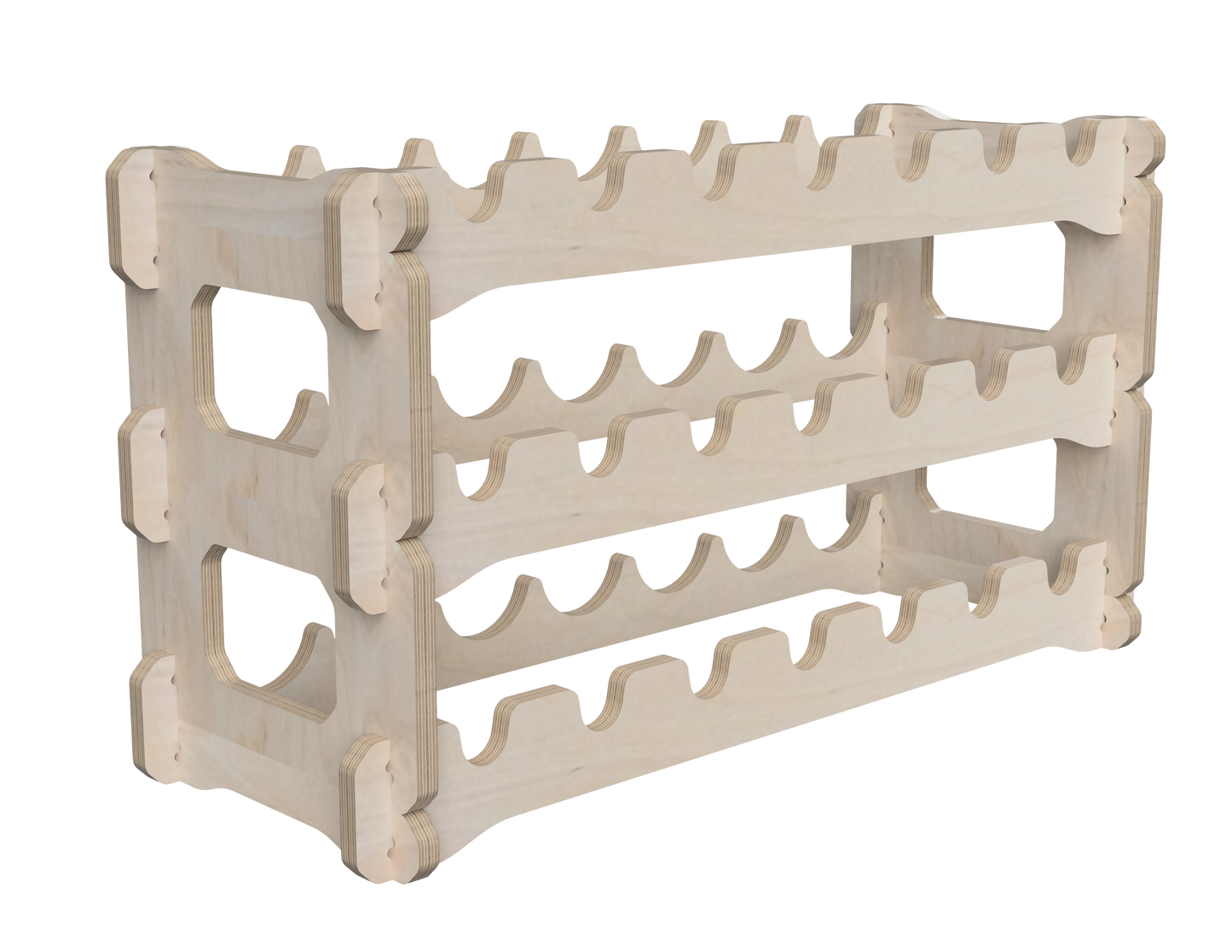

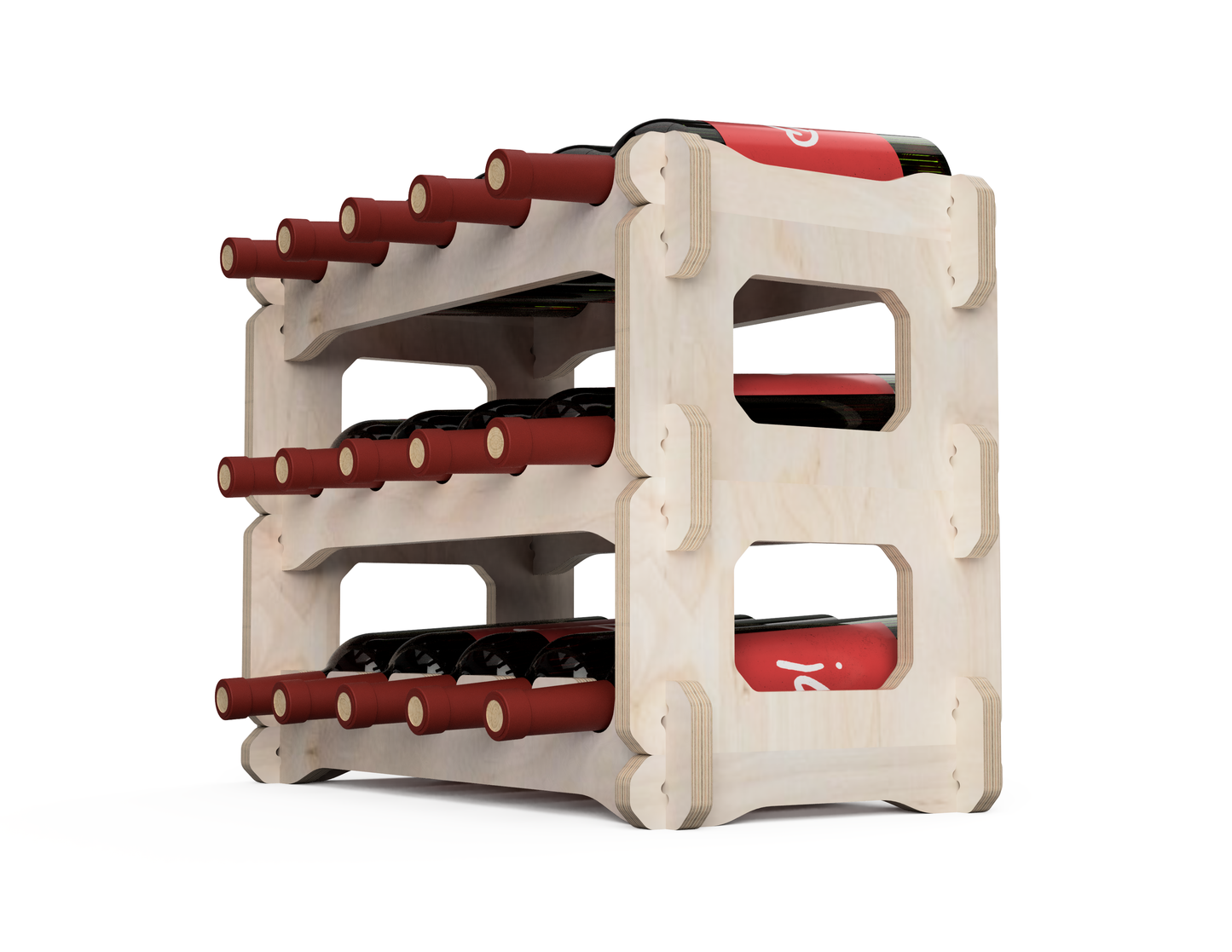

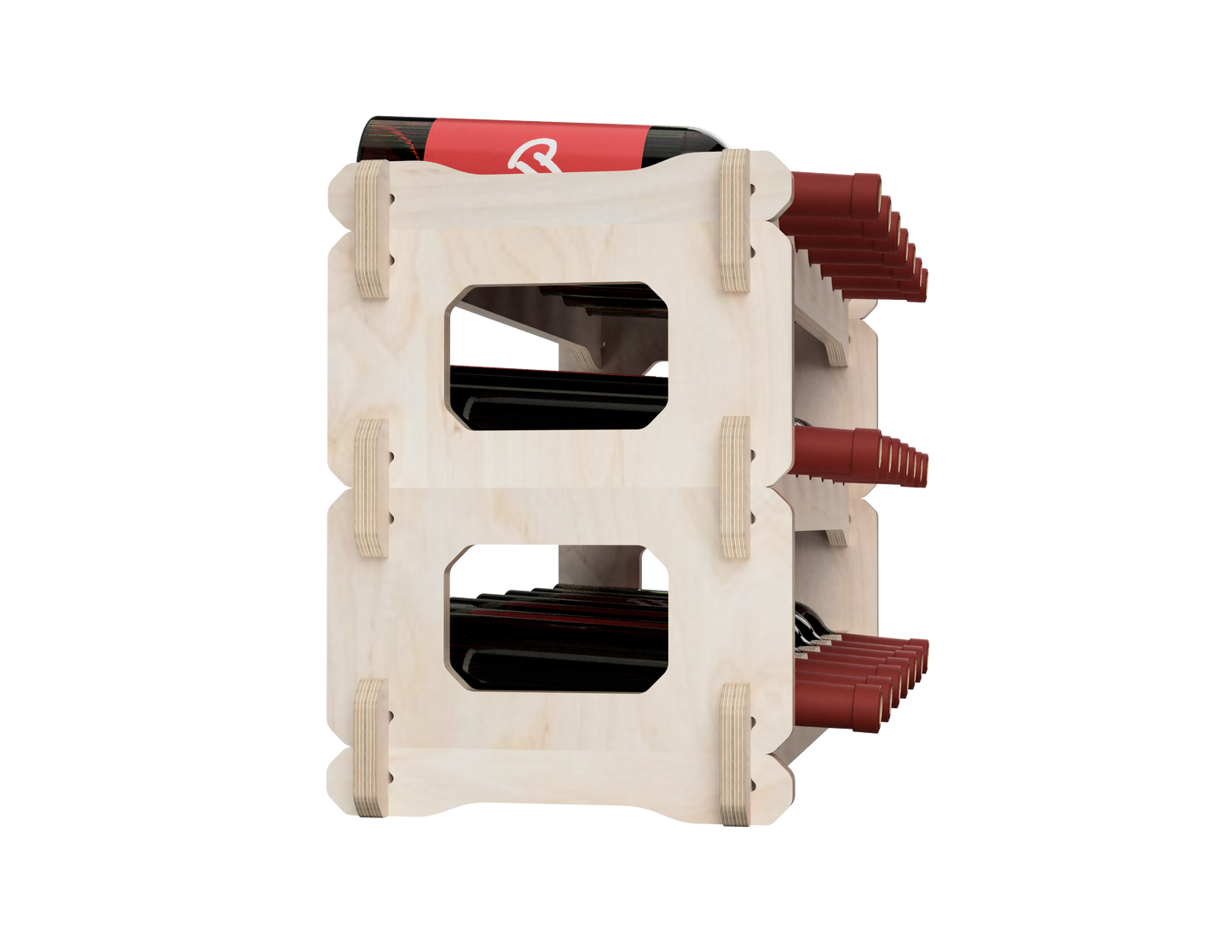

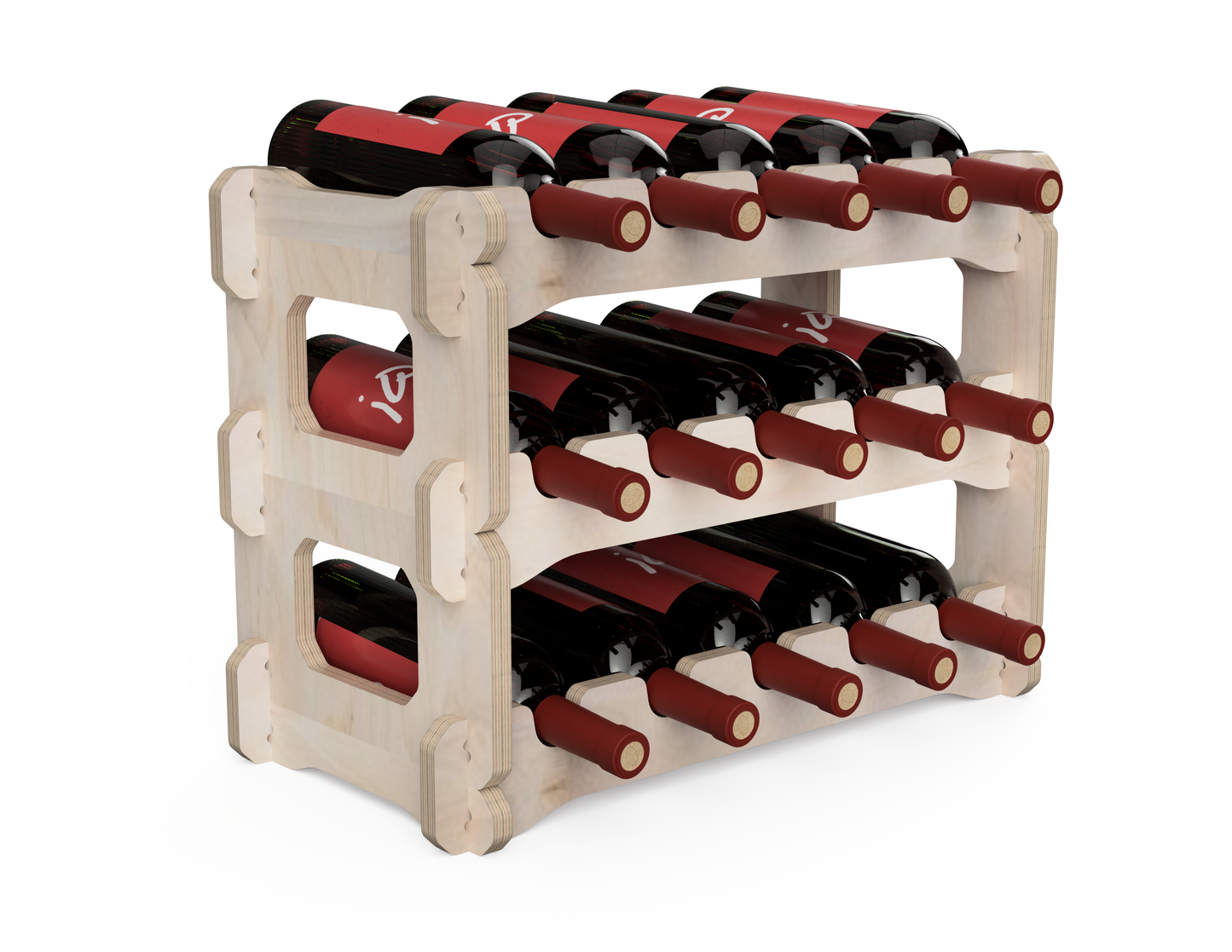

Have you got an elegant way of storing your favorite wine bottles? This holder will become a great decoration in your kitchen or living room. It’s also a great gift to a wine lover!


The design can be cut on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.


After completing the order, you will receive DXF files with component layout adjusted to different CNC sizes:

600 x 900 mm (2 x 3 ft)

900 x 1200 mm (3 x 4 ft)


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions:

Small

405 mm (height) x 375 mm (length) x 285 mm (width)

16 (height) x 14-1/4 (length) x 11-7/32 (width)


Medium

405 mm (height) x 565 mm (length) x 285 mm (width)

16 (height) x 22-1/4 (length) x 11-7/32 (width)


Large

405 mm (height) x 750 mm (length) x 285 mm (width)

16 (height) x 29-1/2 (length) x 11-7/32 (width)



Required materials:

For 600 x 900 mm (2 x 3 ft) CNC

  • 1 sheet of 600 x 900 x 15 mm (23-5/8 x 35-7/16 x 5/8 inches) plywood
  • 1 sheet of 350 x 750 x 15 mm (14 x 30 x 5/8 inches) plywood
  • 6 mm (1/4 inch) router bit for dogbones

For 900 x 1200 mm (3 x 4 ft) CNC and bigger

  • 1 sheet of 900 x 1100 x 15 mm (35-7/16 x 43-5/16 x 5/8 inches) plywood
  • 6 mm (1/4 inch) router bit for dogbones

Assembling time:

15 minutes


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
