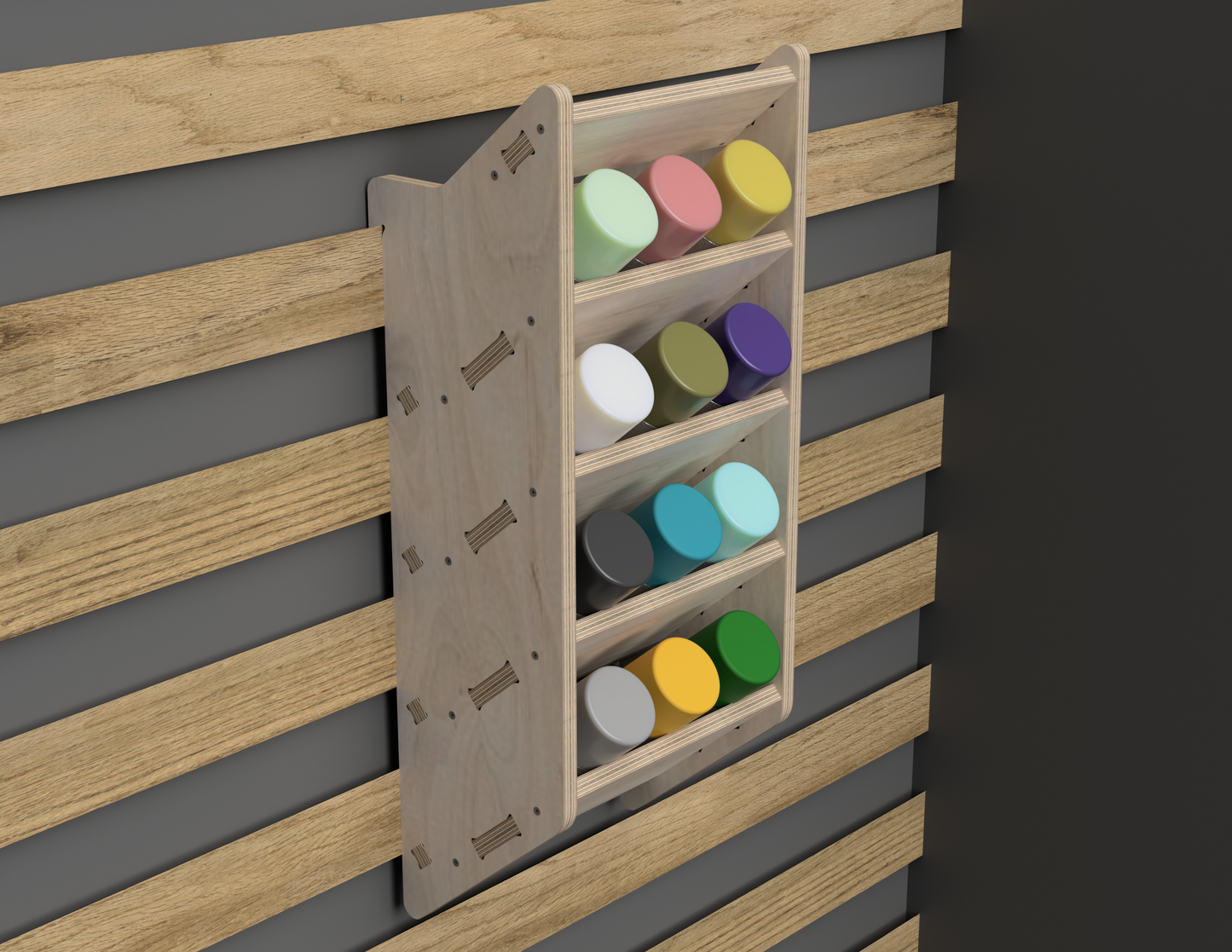

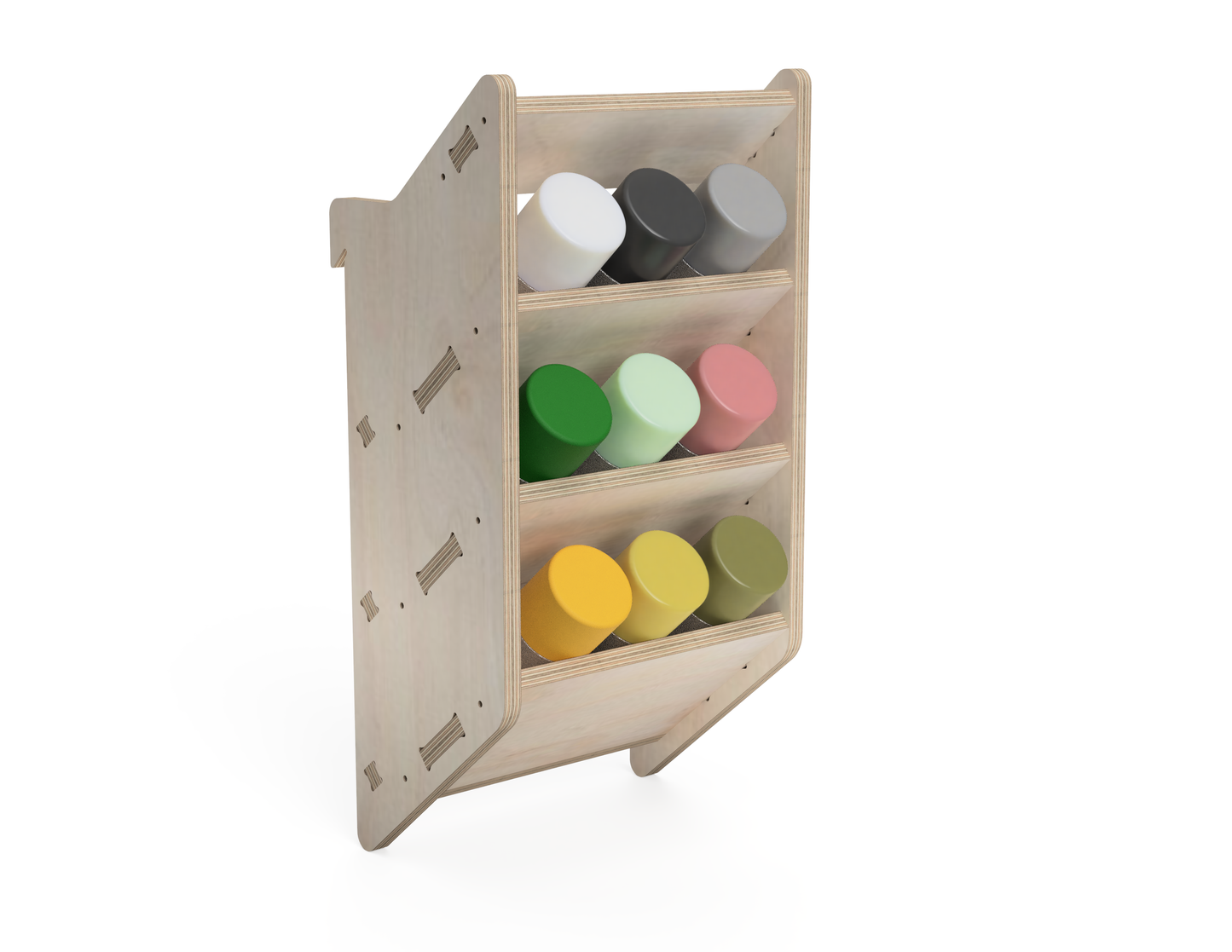

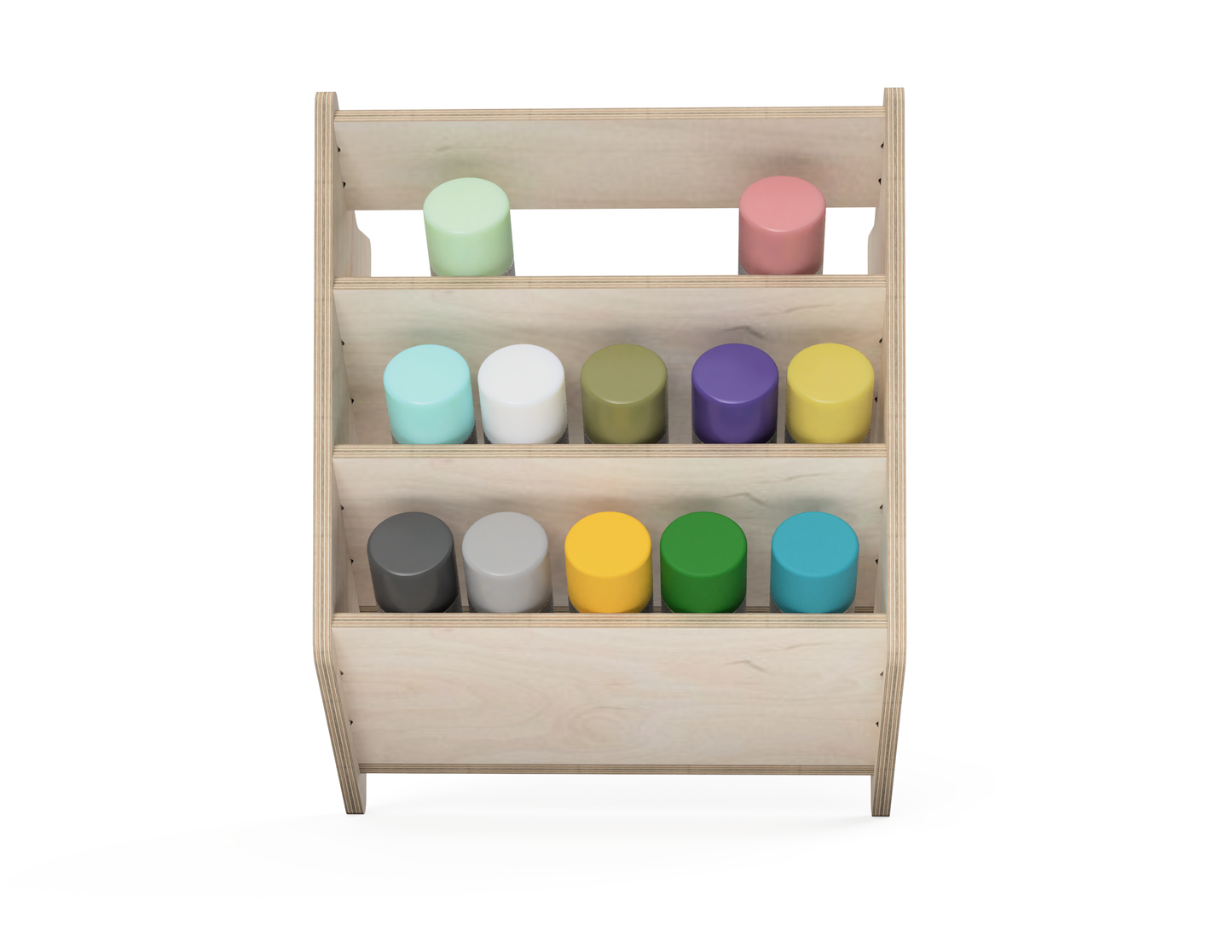

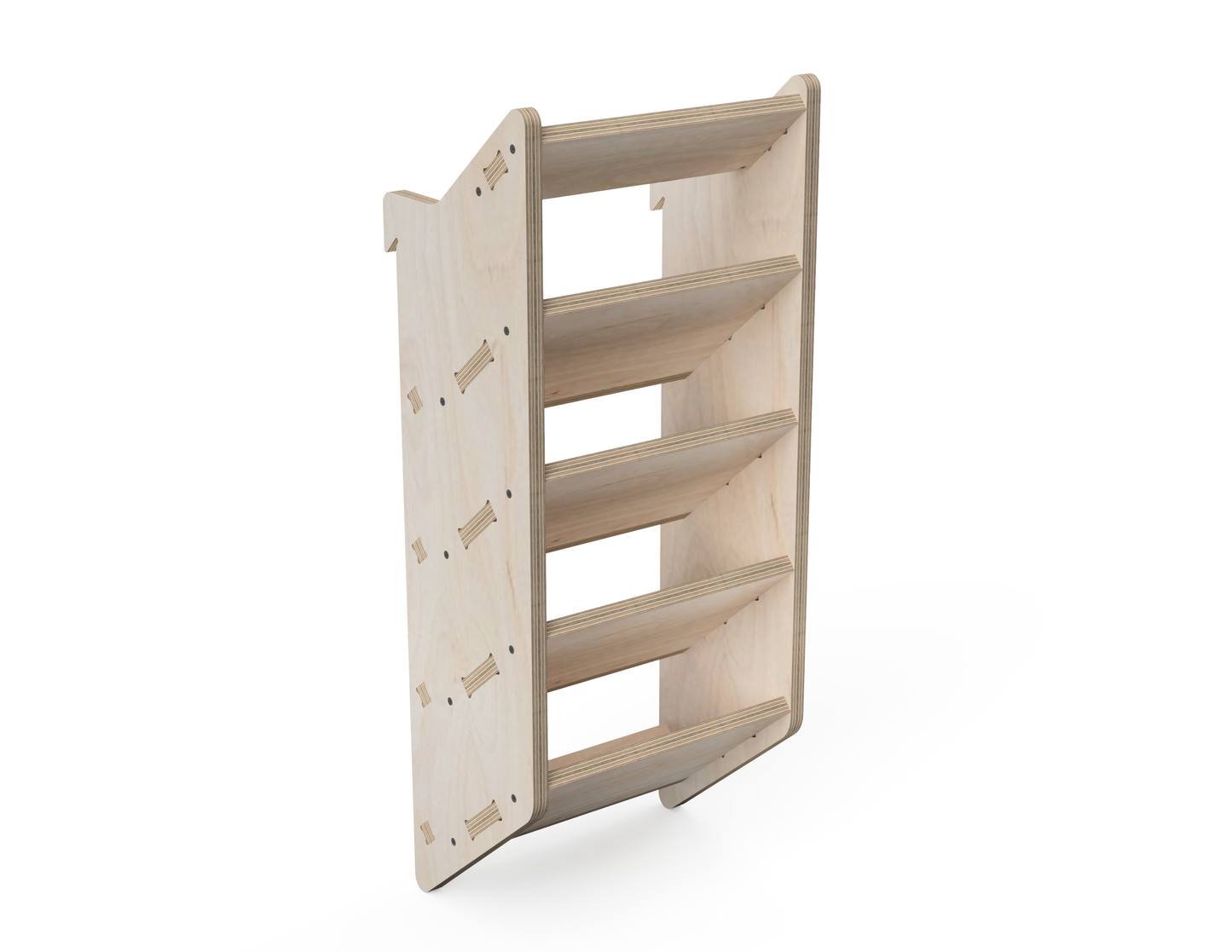

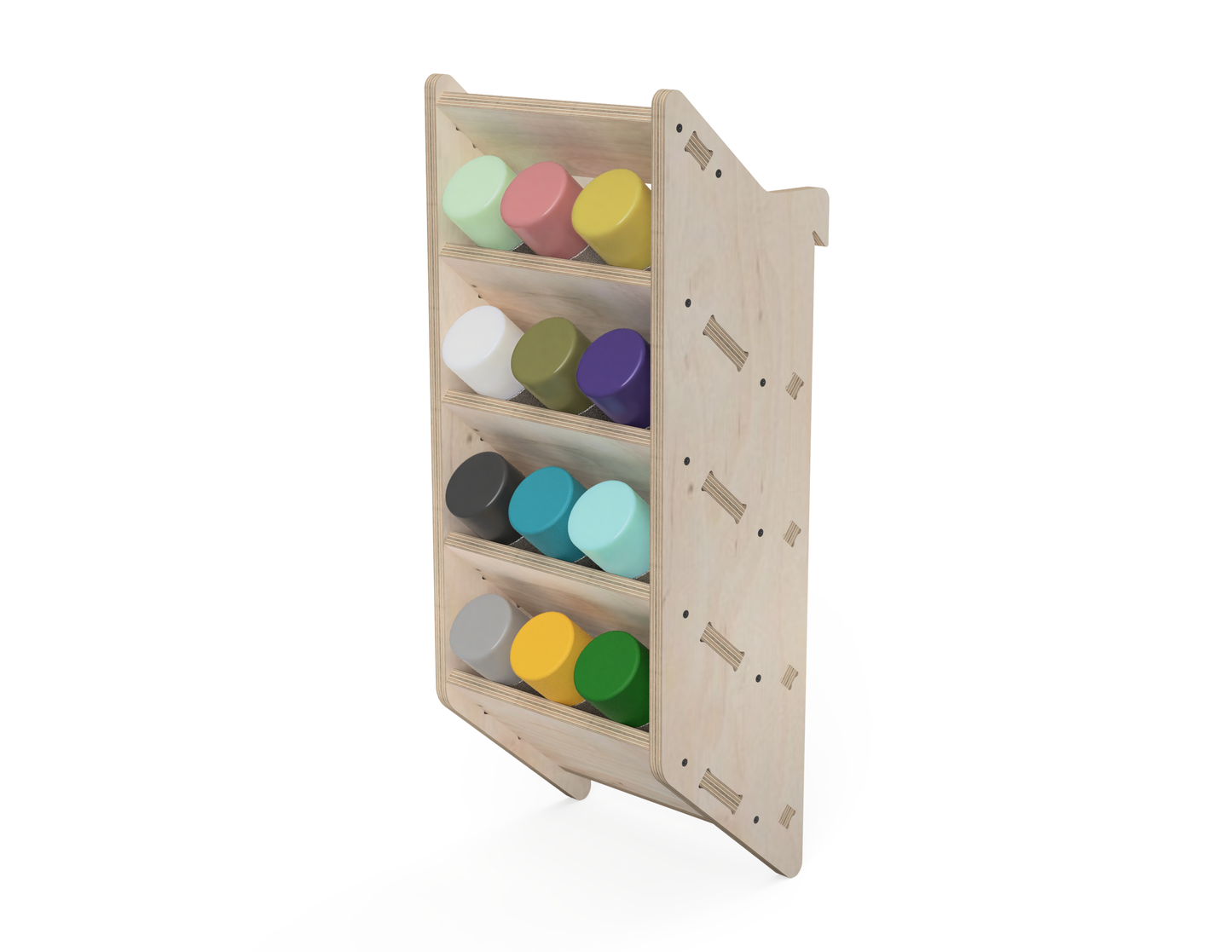

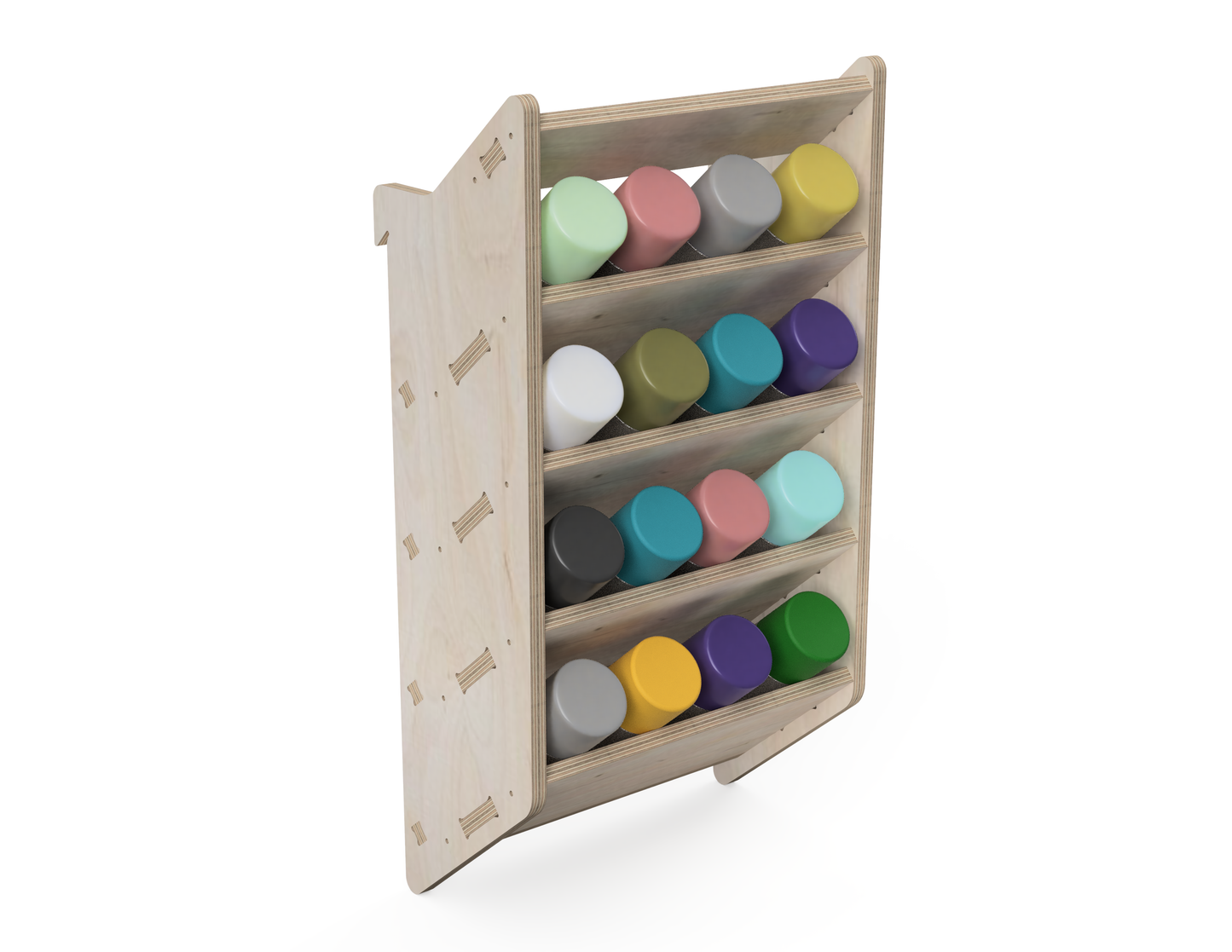

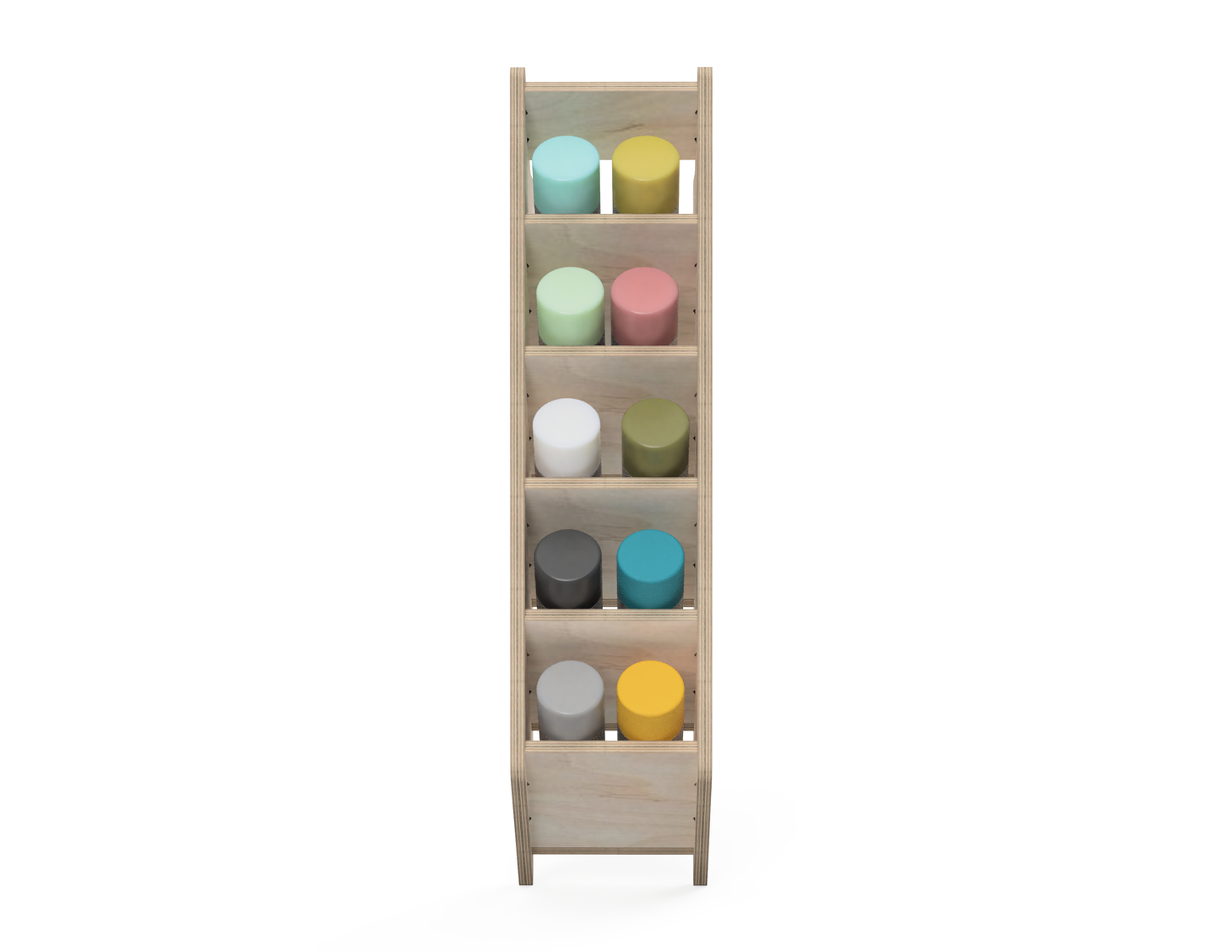

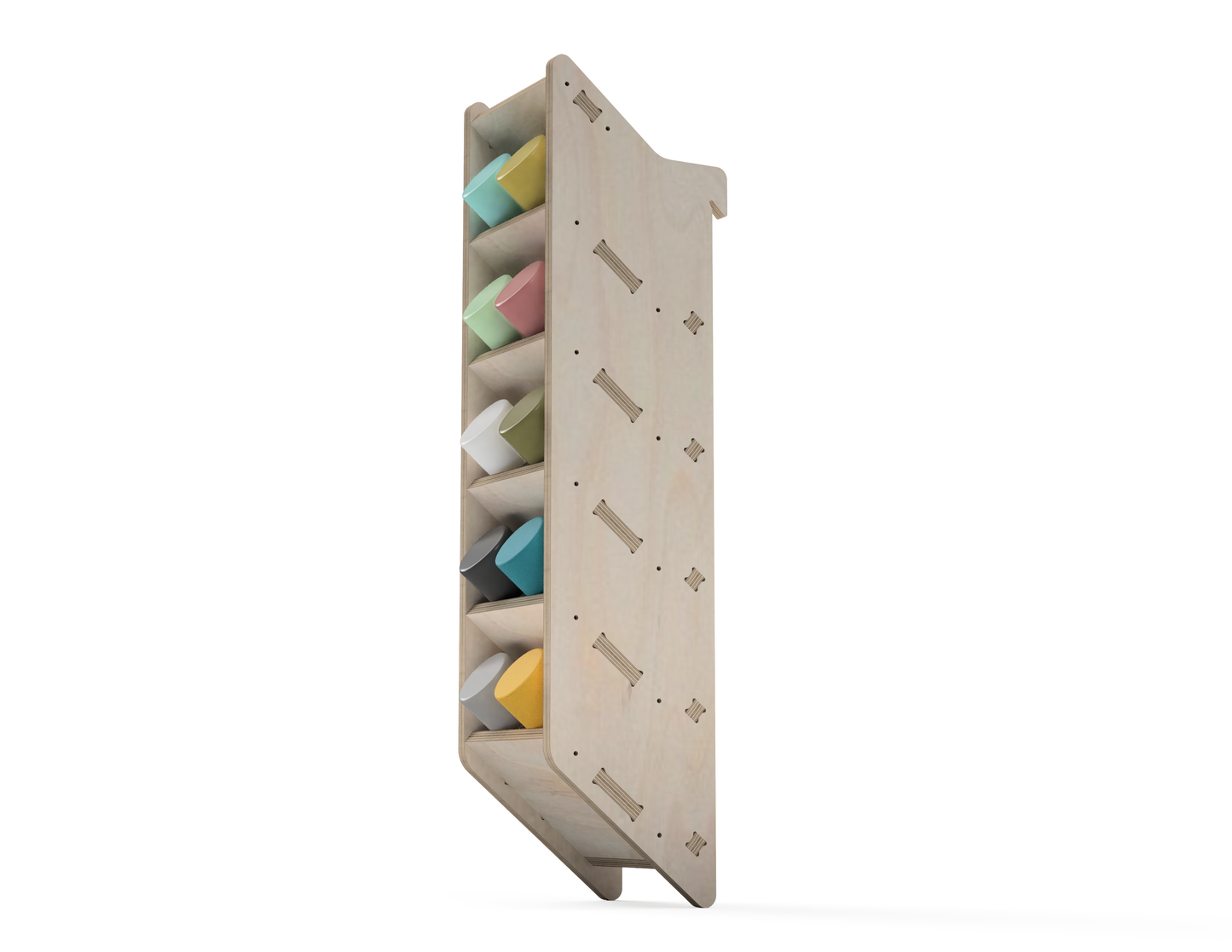

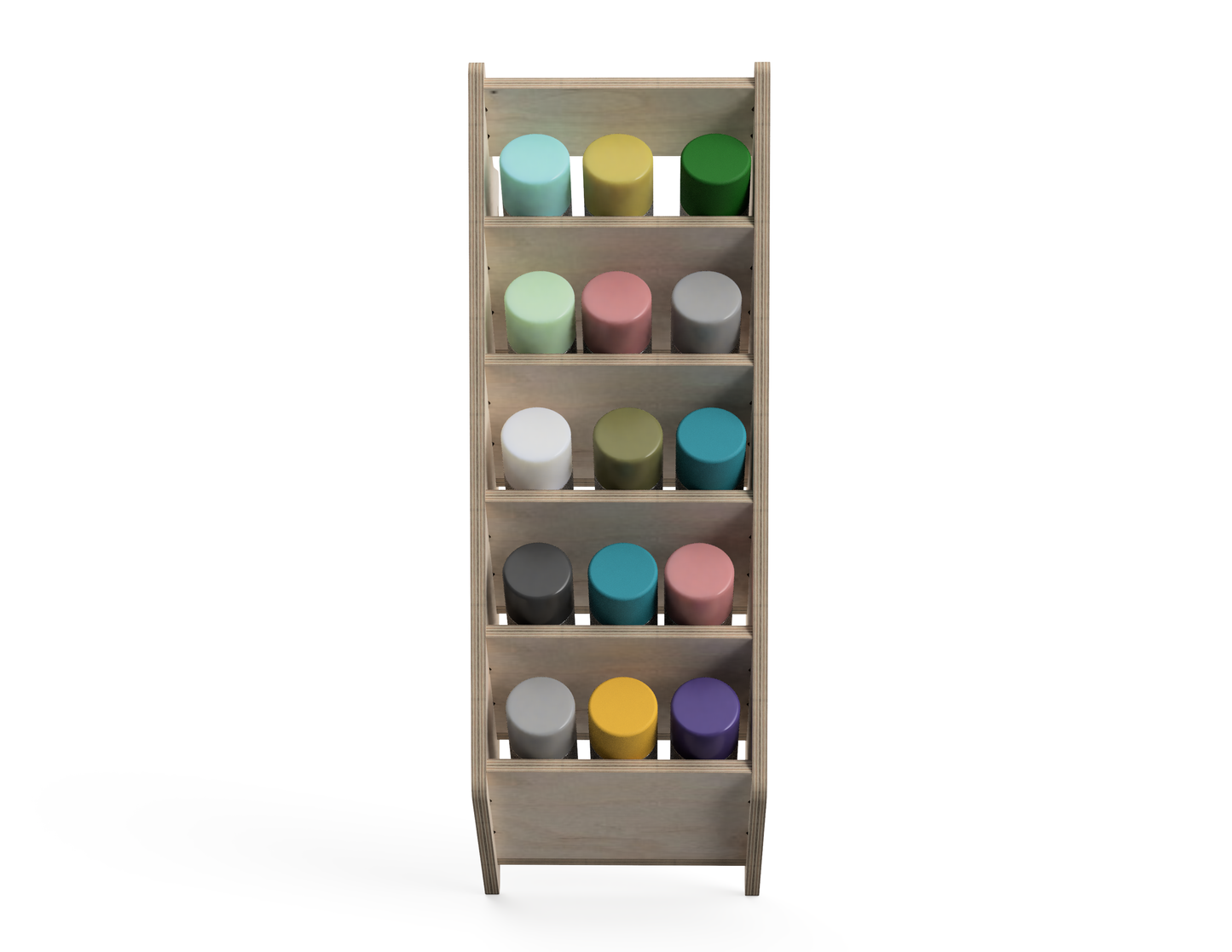

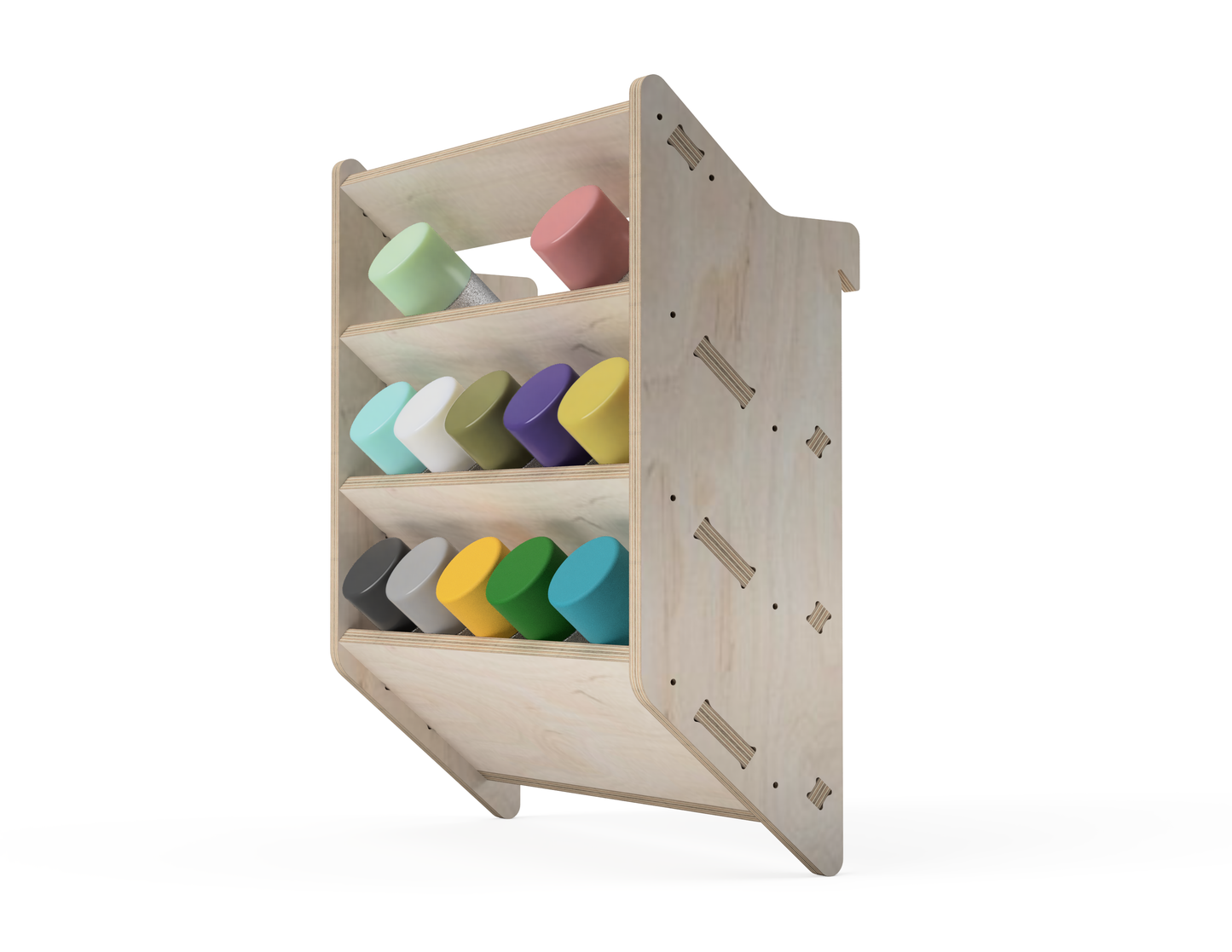

Introducing the Spray Paint Display - French Cleat Attachment - DXF Files, perfect for organizing and displaying your spray cans.

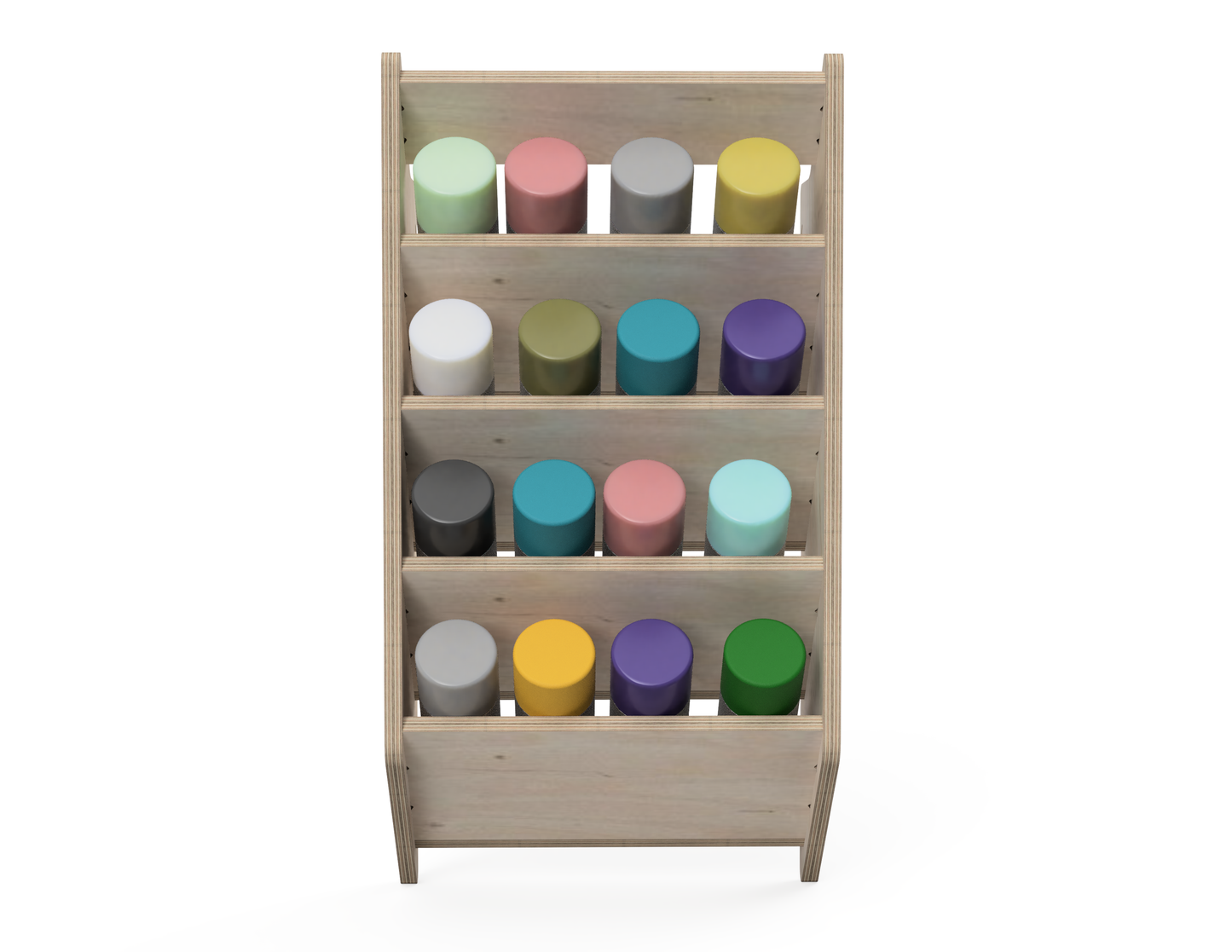

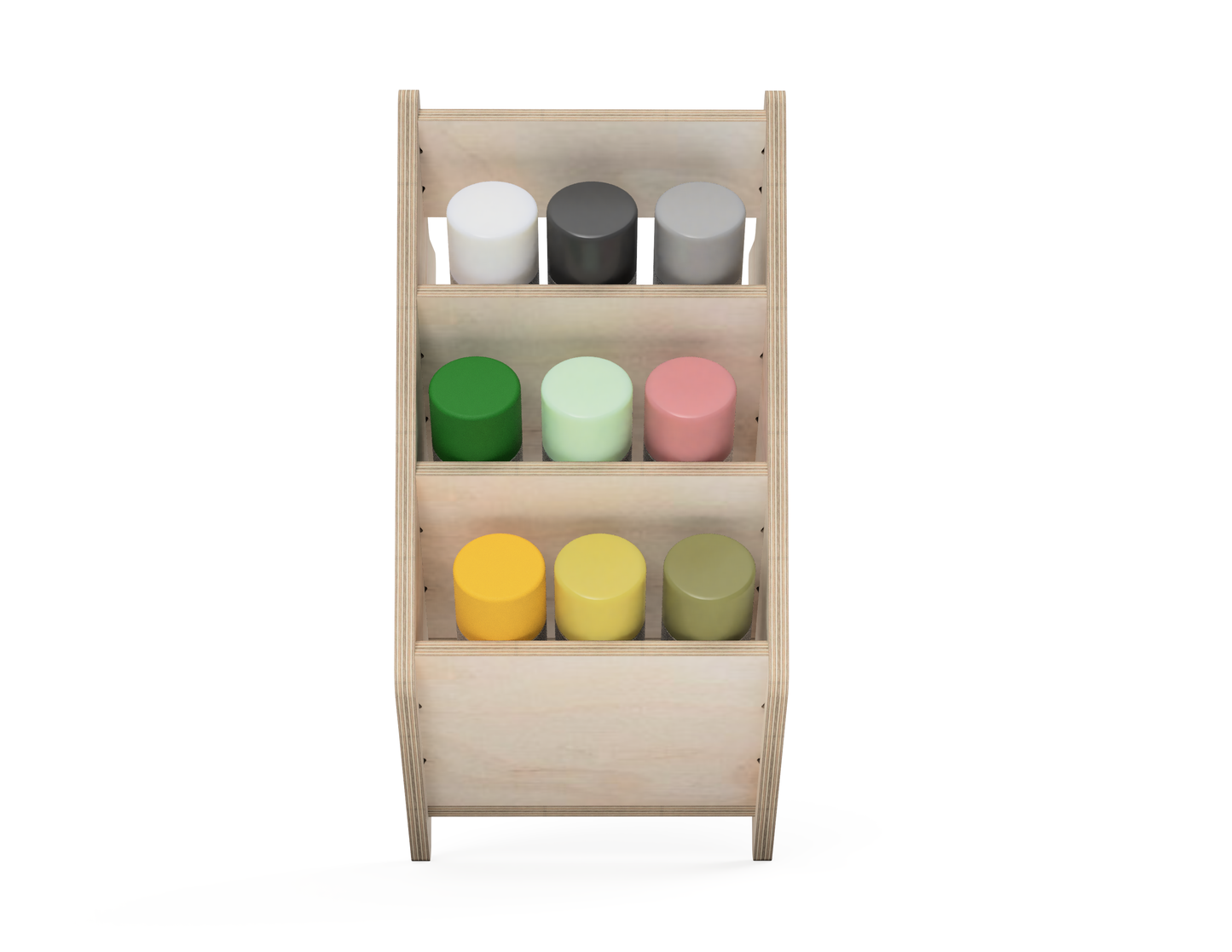

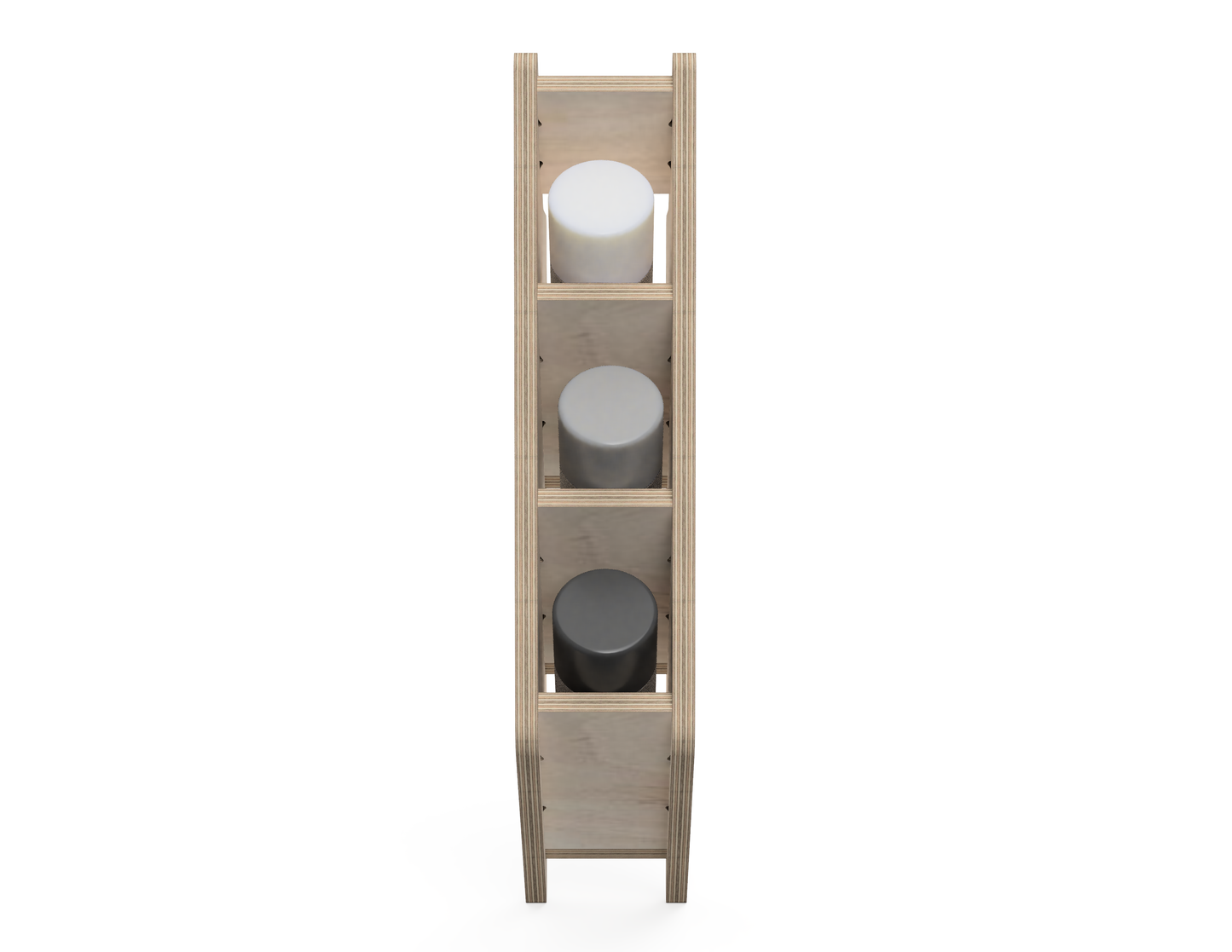

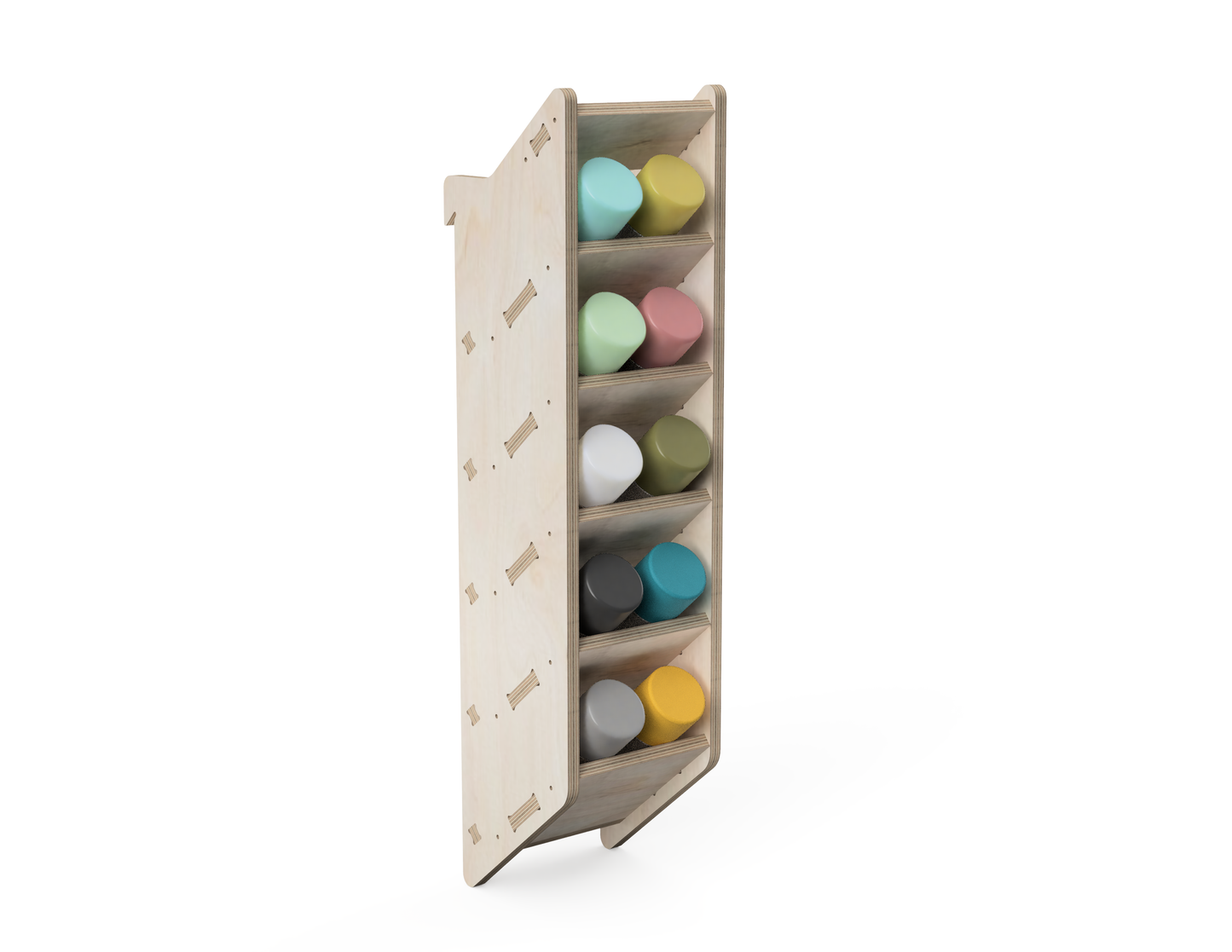

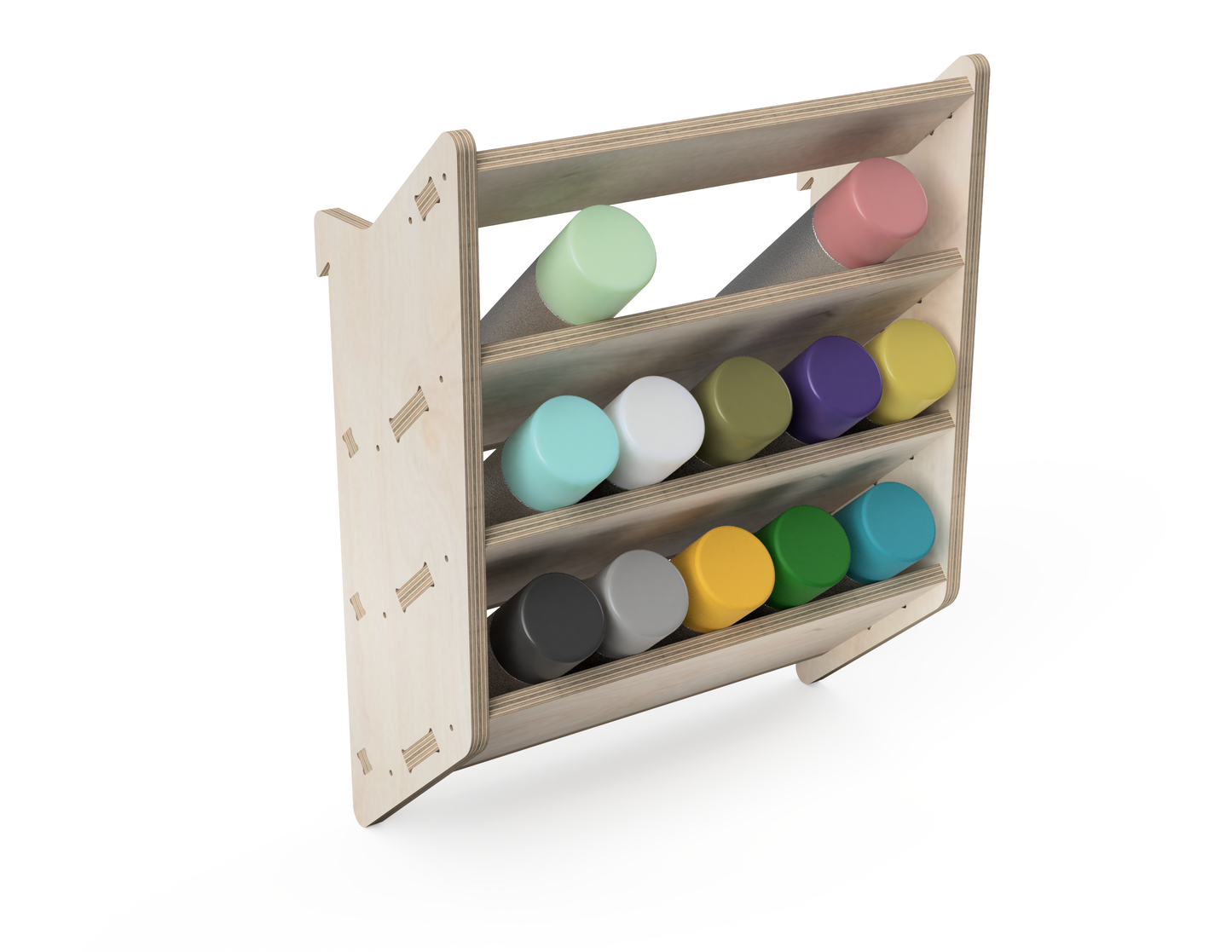

These CNC router-compatible DXF files allow you to create a customized storage rack with three different levels and varying shelf widths, holding 1 to 5 cans per shelf.

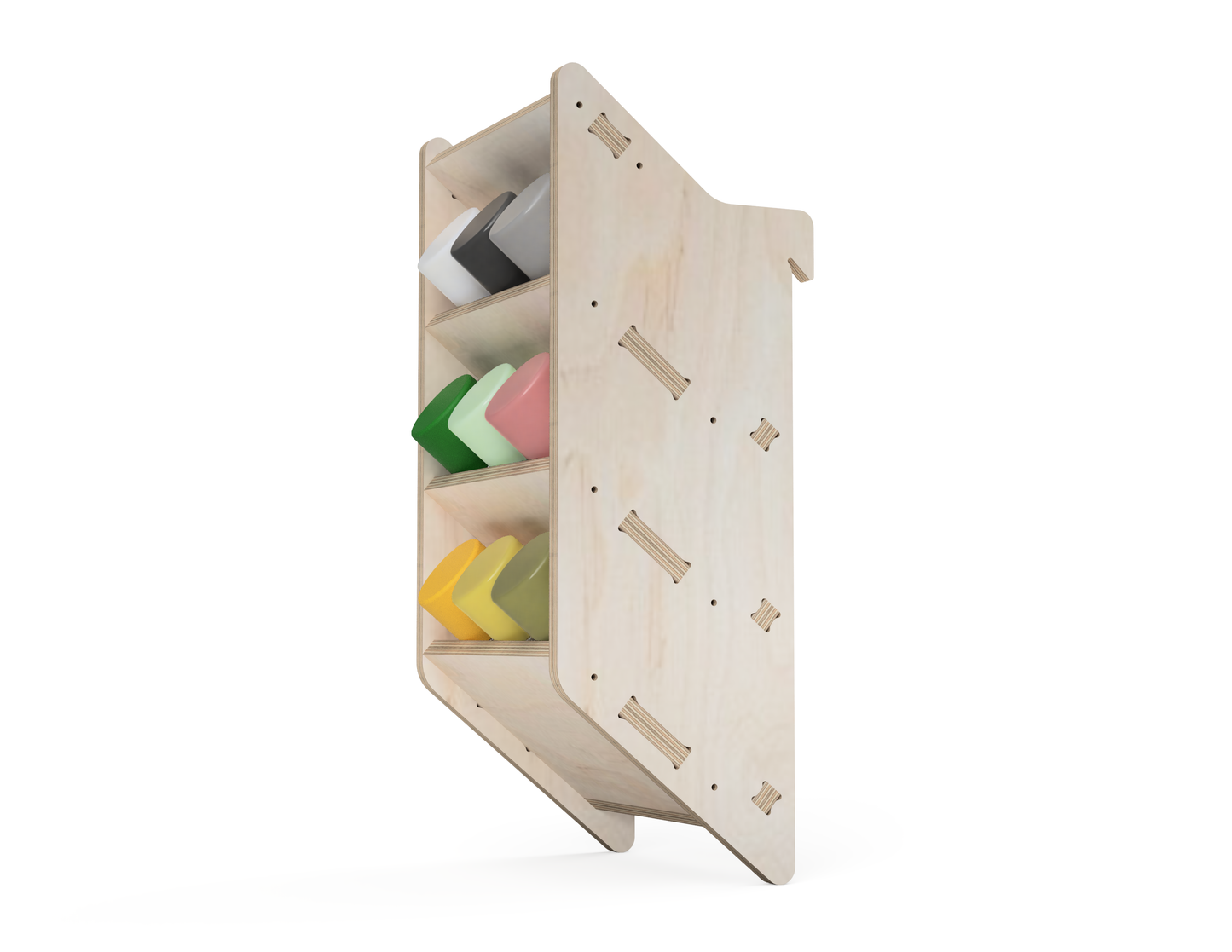

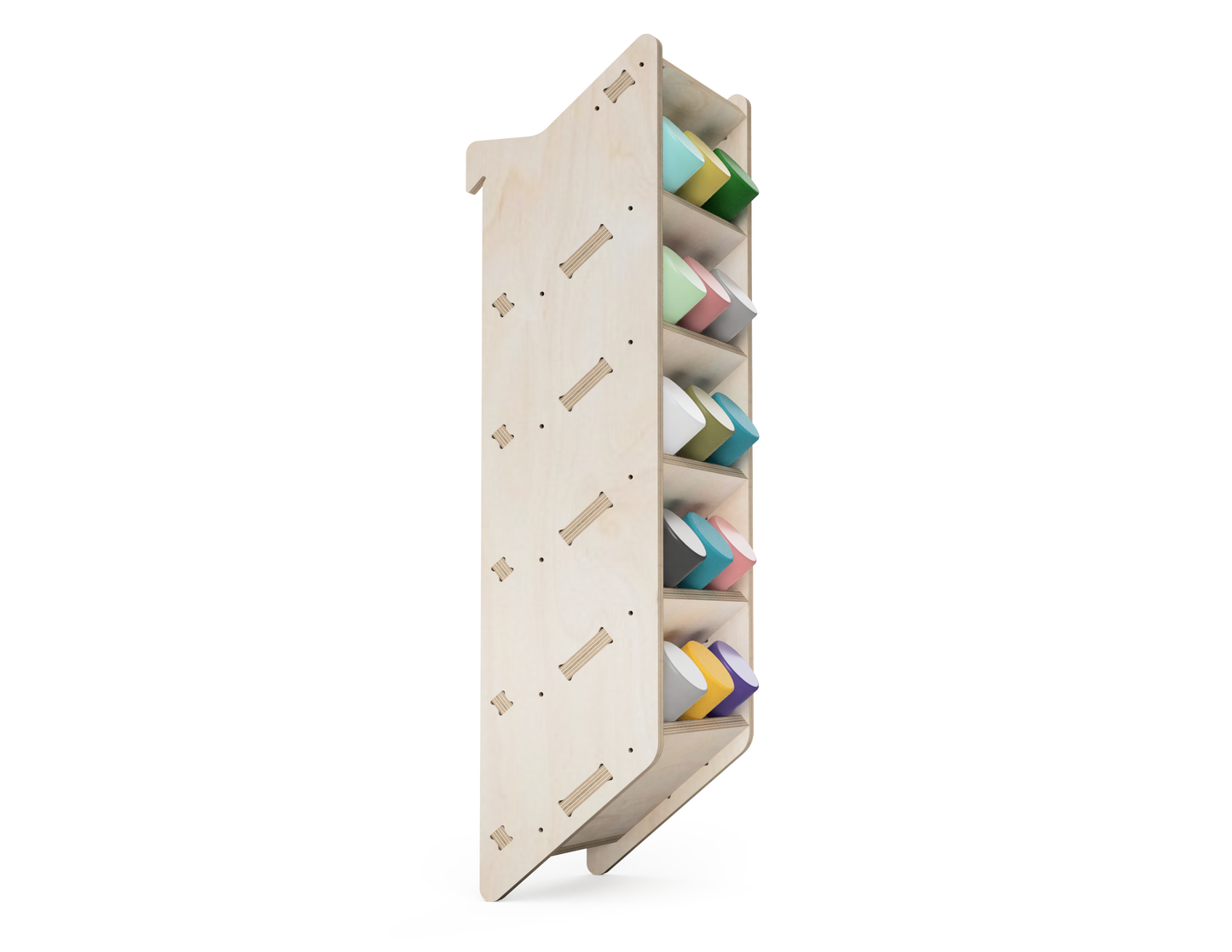

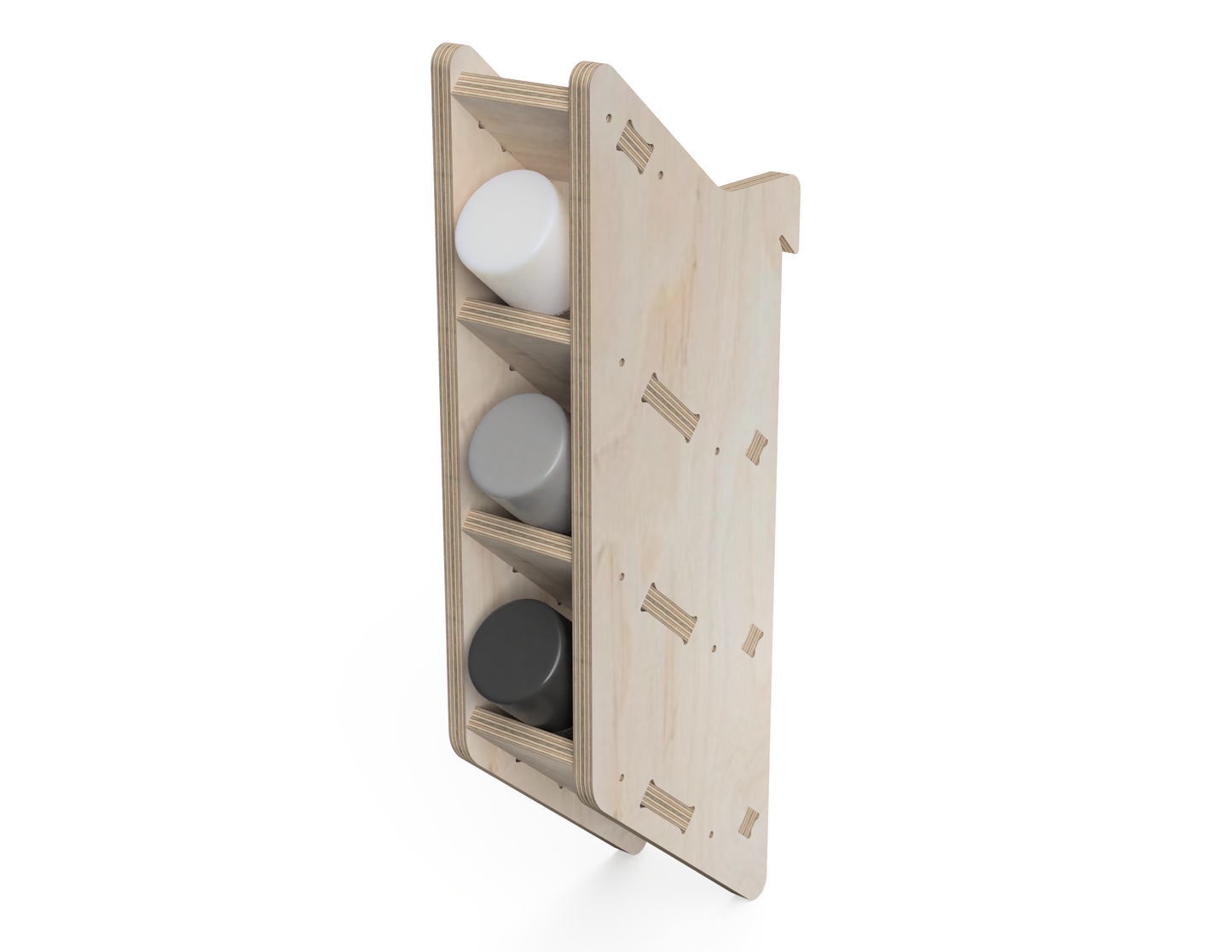

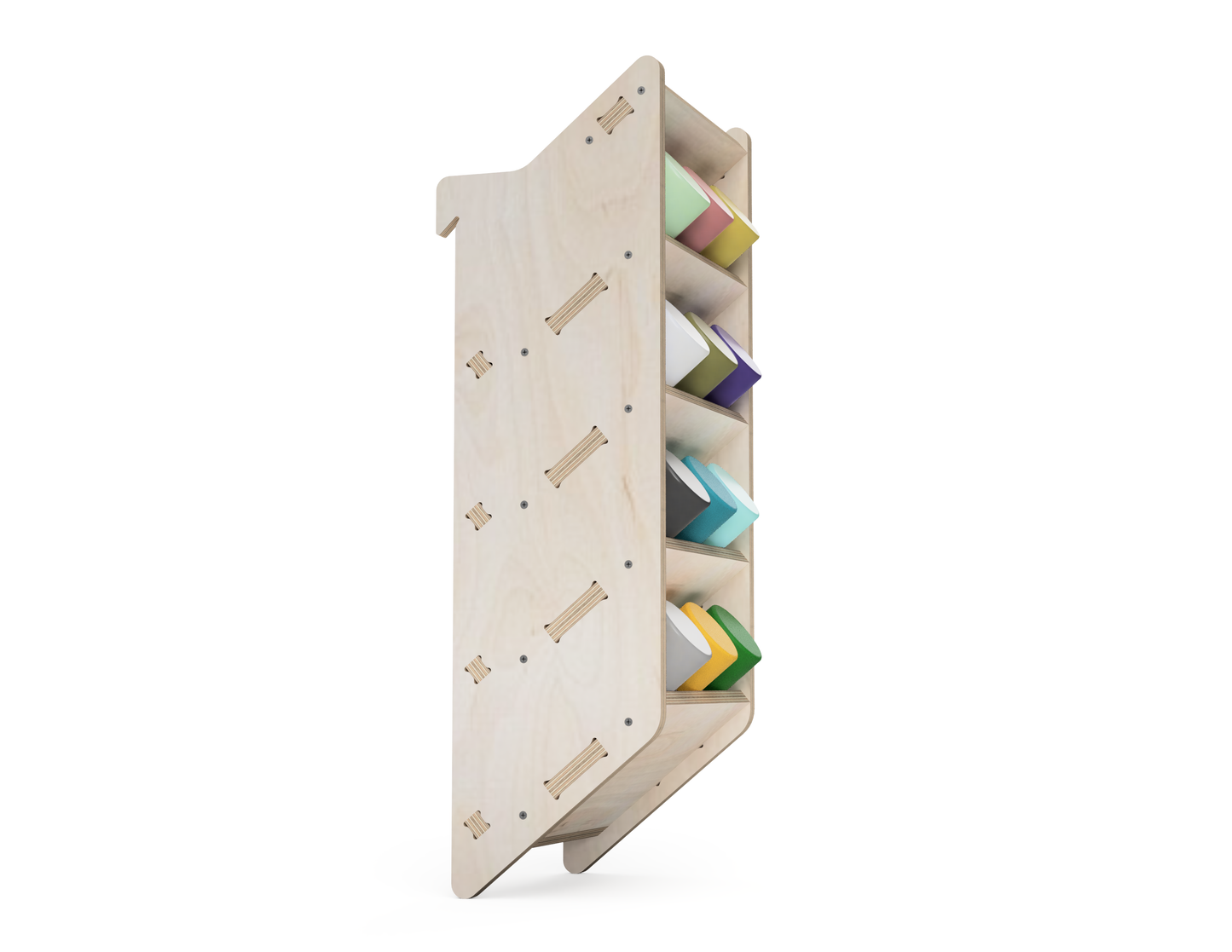

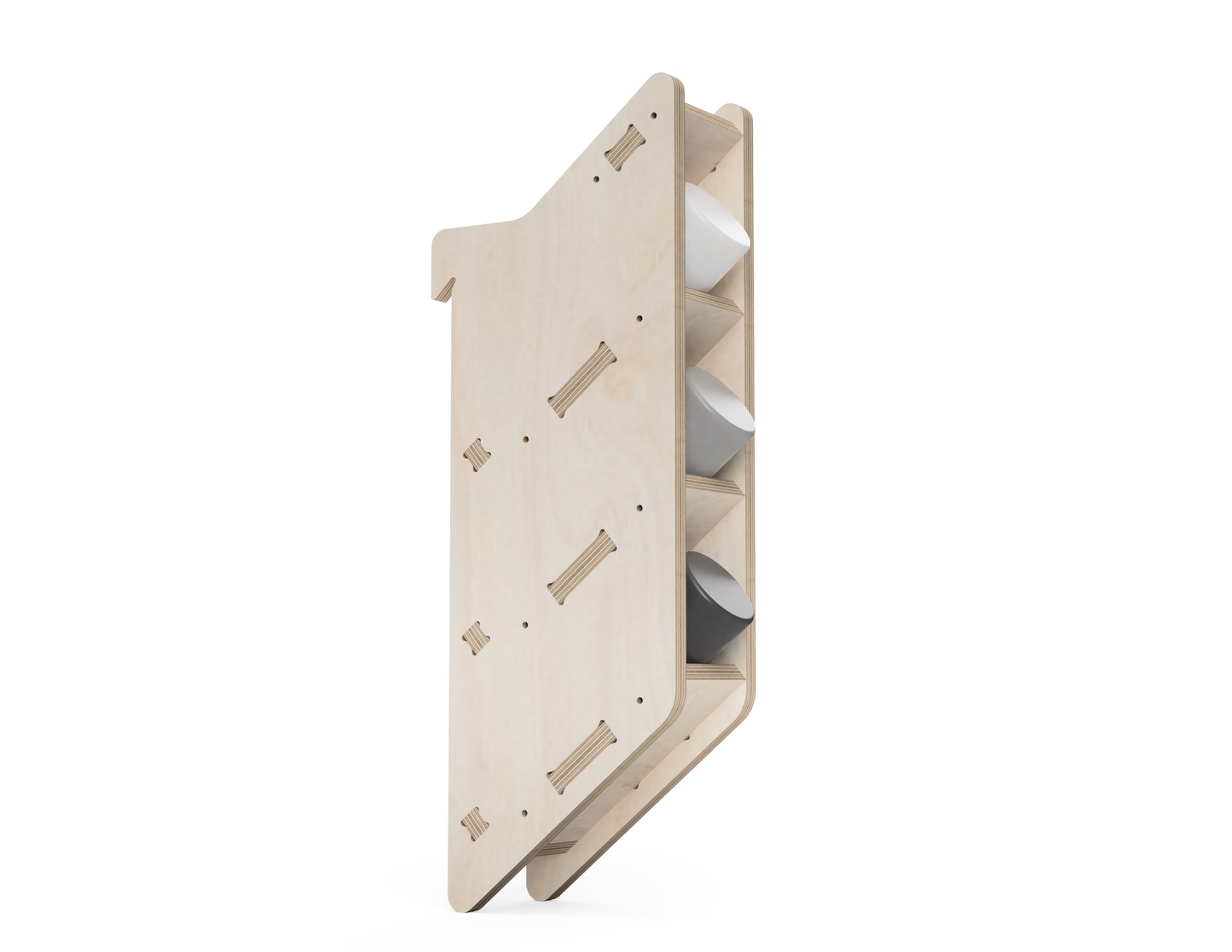

Designed to fit securely on a French cleat wall with a minimum cleat thickness of 12 mm, this storage solution is both practical and space-saving.
Ideal for DIY enthusiasts and makers, this project is easy to cut and assemble. Keep your workspace tidy and your spray cans accessible!
Supported CNC sizes
Supported CNC sizes
Max single piece size
Max single piece size
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
Minimum
| Width | Length | Height |
|---|---|---|
| 95 mm | 155 mm | 510 mm |
| 3¾ inch | 6⅛ inch | 20⅛ inch |
Maximum
| Width | Length | Height |
|---|---|---|
| 375 mm | 155 mm | 730 mm |
| 14¾ inch | 6⅛ inch | 28¾ inch |
Required materials
Required materials
For a 600 x 900 mm (2 x 3 ft) CNC and bigger
- 2 sheets of 900 x 600 x 12 mm (36 x 24 x 1/2 inches) plywood
- 3 mm (1/8 inch) router bit
- 24 wood screws (optional)
Approximate CNC time
Approximate CNC time
Assembling time
Assembling time
