Regular price $5.95 Unit price  per

Tax included.

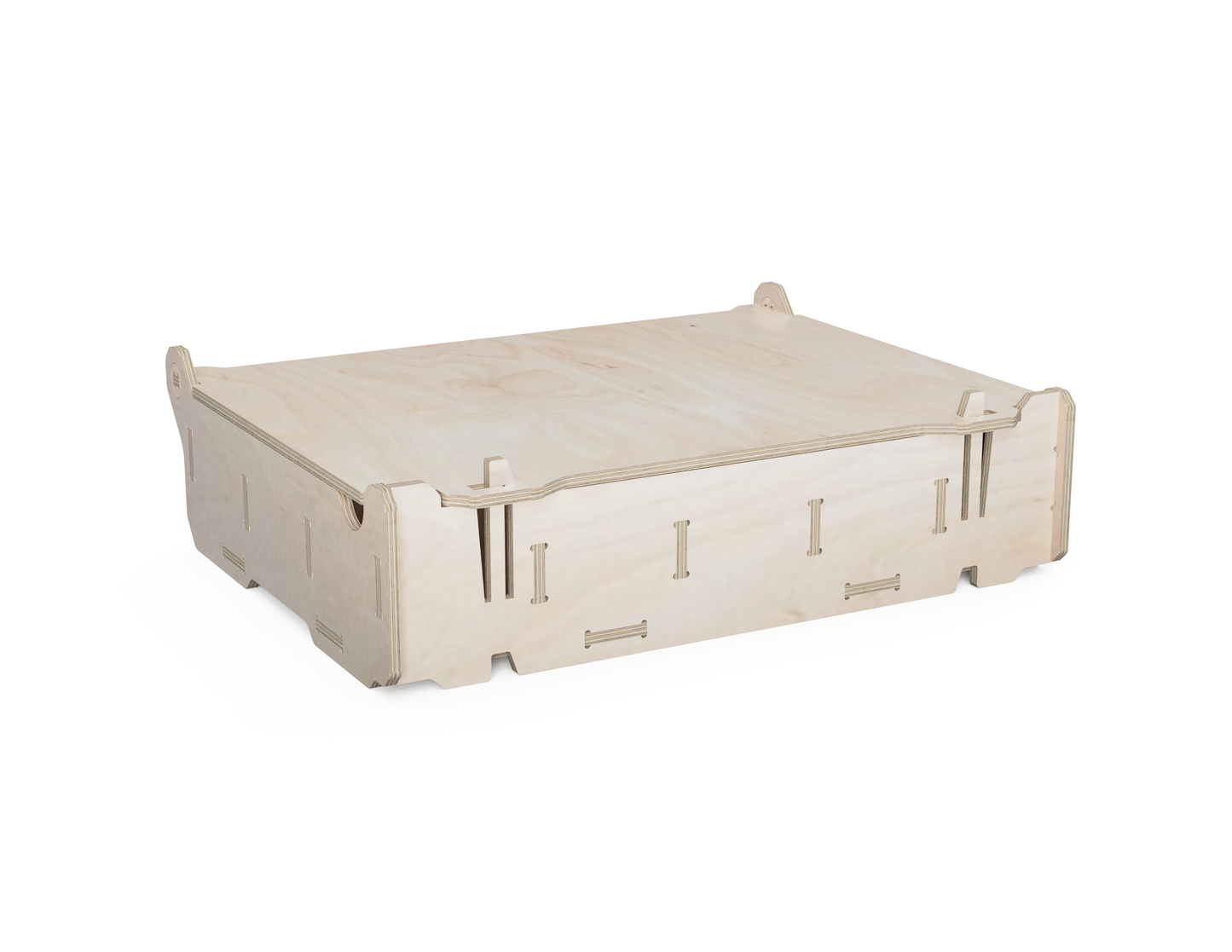

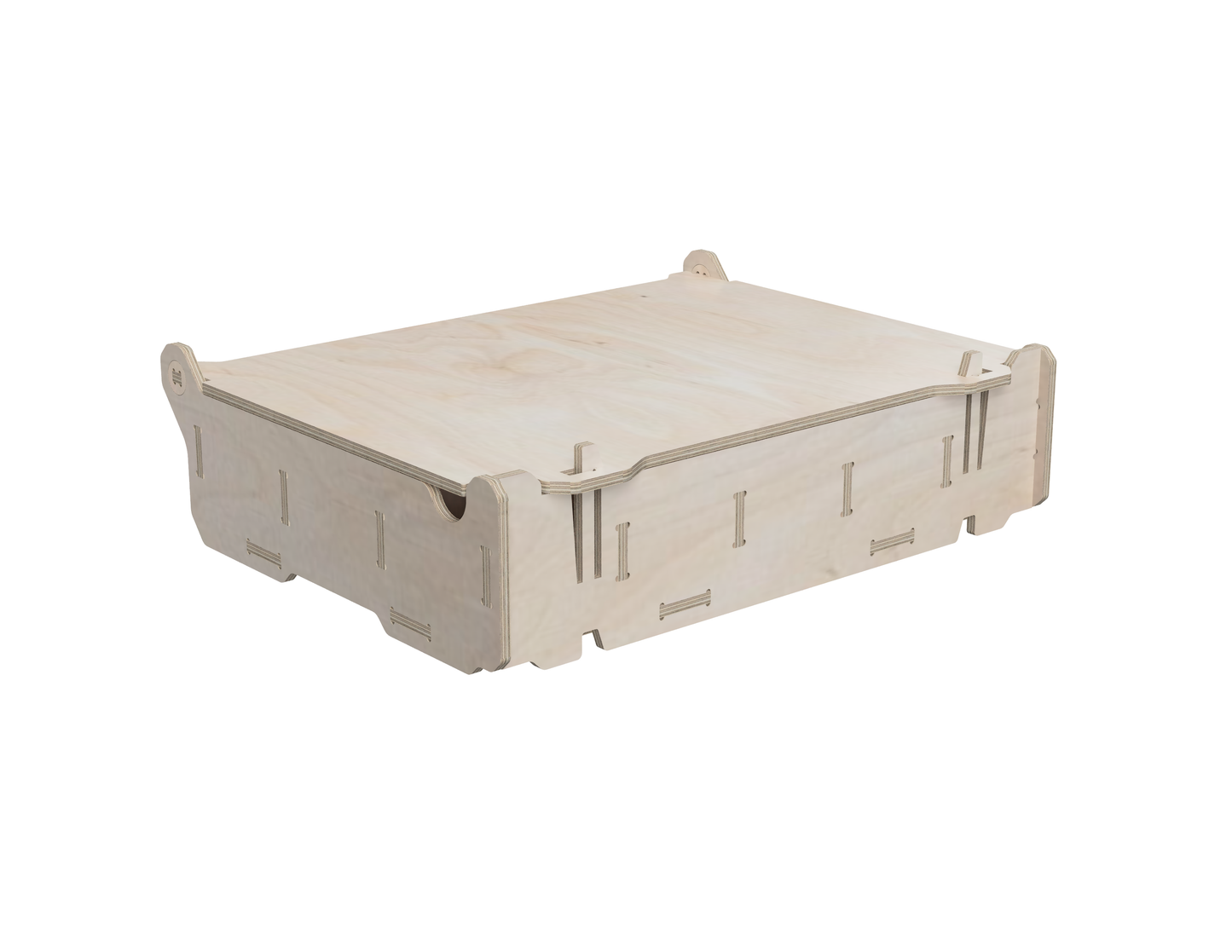

If you need to store small items of different sorts, this box is just what you need.

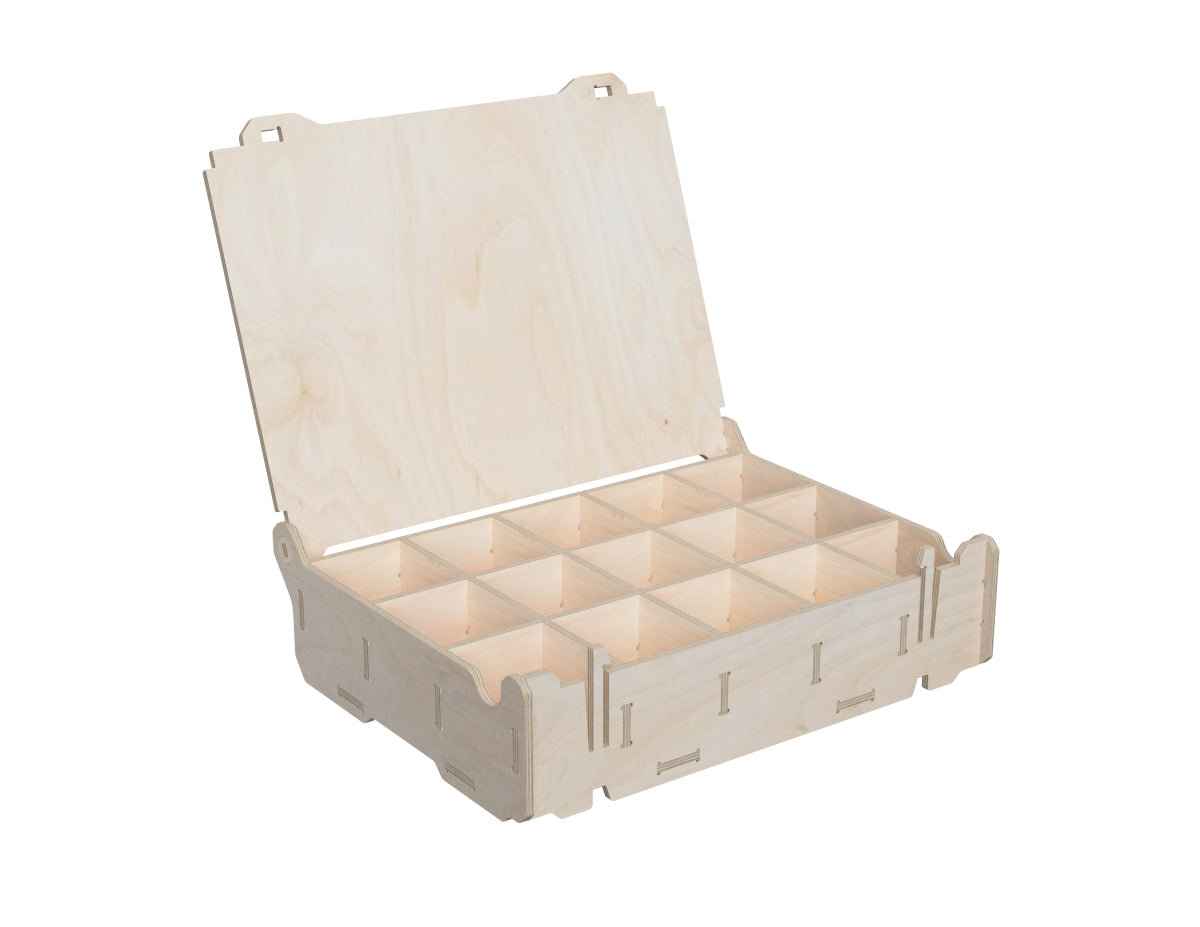

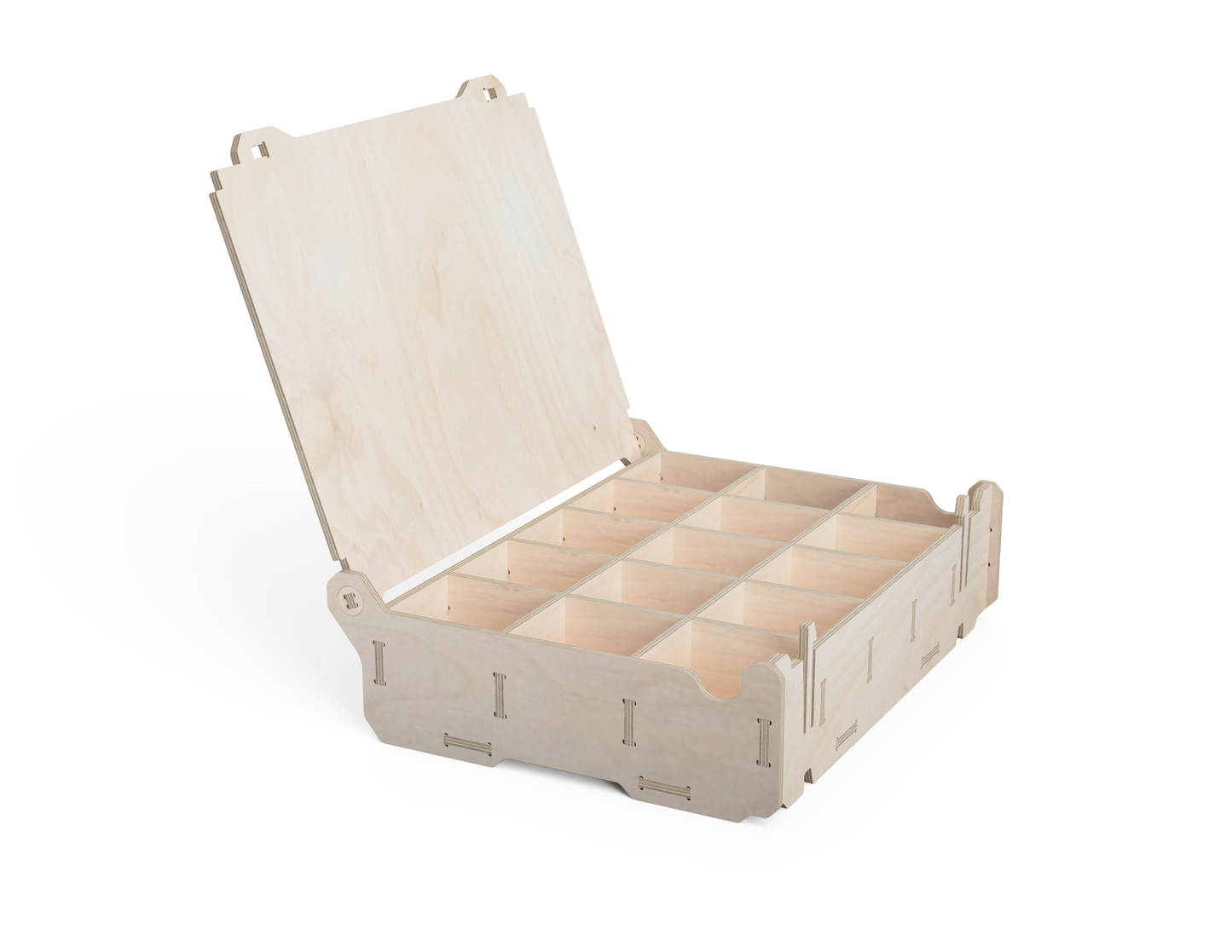

  • 15 segments will keep your items separate
  • Easy to open lid will prevent dust from collecting in the box
  • The clip-tenon joint system will keep your box closed even if it’s upside-down

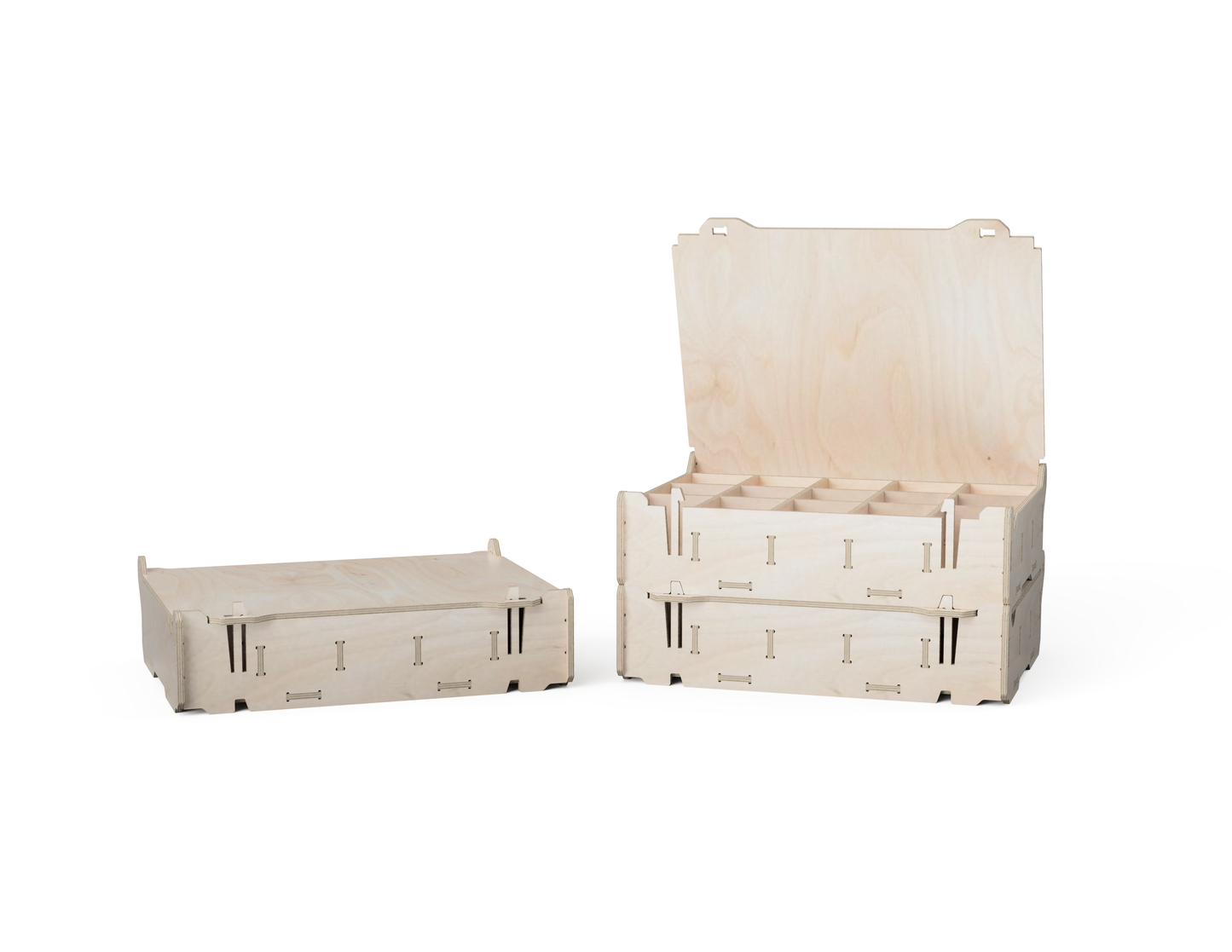

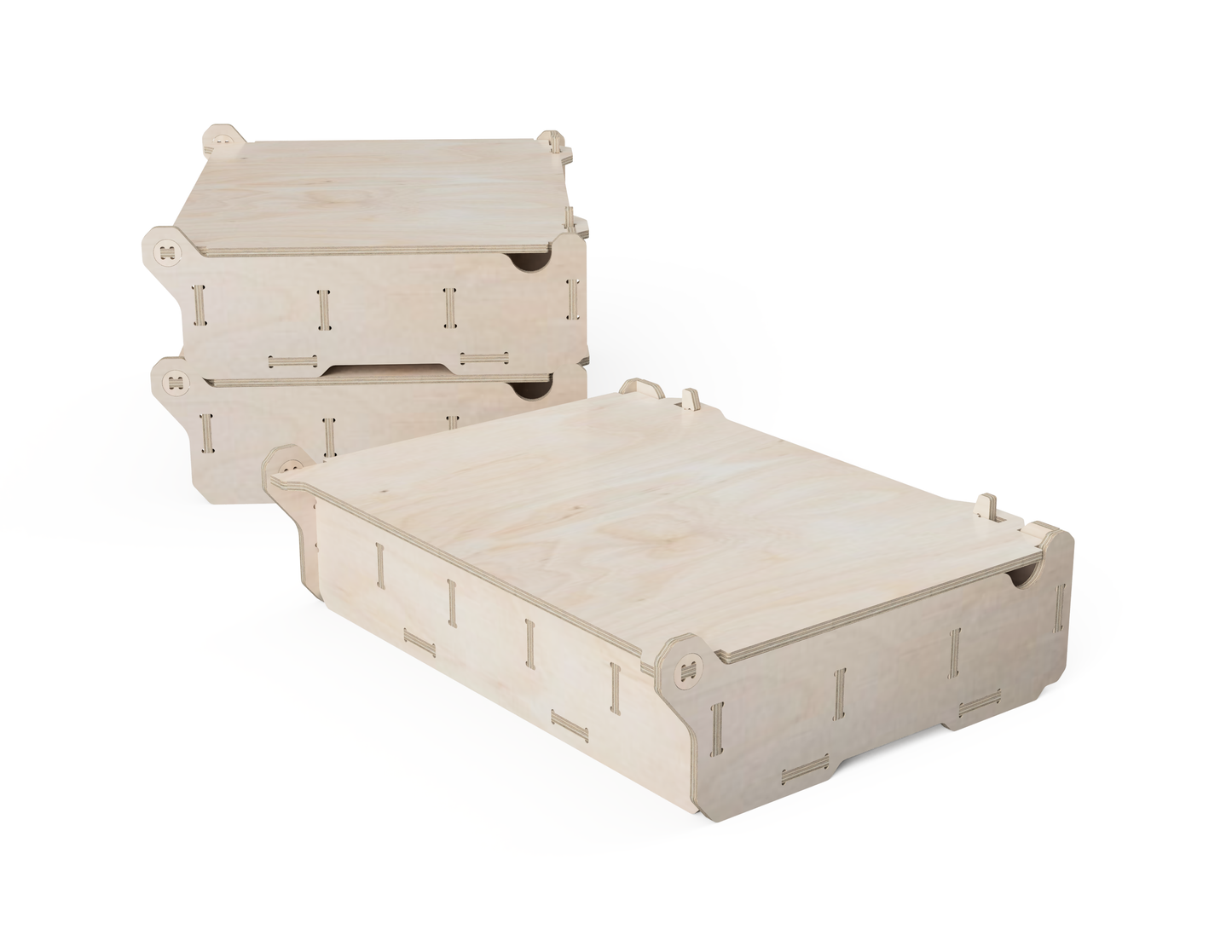

  • Clever design allows the boxes to be stacked safely

The design can be cut on a 600 x 900 (2 x 3 ft) CNC router and bigger as well as on a laser cutter.


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions:

90 mm (height) x 400 mm (length) x 290 mm (width)

3-35/64 (height) x 15-3/4 mm (length) x 11-27/64 mm (width)


Required materials:

For 600 x 900 (2 x 3 ft) CNC

  • 1 sheet of 600 x 900 x 6 mm (23-5/8 x 35-7/16 x 1/4 inches) plywood
  • 1 sheet of 300 x 200 x 6 mm (11-13/16 x 7-7/8 x 1/4 inches) plywood
  • 3 mm (1/8 inch) router bit for dogbones

For 900 x 1200 (3 x 4 ft) CNC

  • 1 sheet of 730 x 900 x 6 mm (29 x 35-7/16 x 1/4 inches) plywood
  • 3 mm (1/8 inch) router bit for dogbones

For a laser cutter

  • 1 sheet of 600 x 900 x 6 mm (23-5/8 x 35-7/16 x 1/4 inches) plywood
  • 1 sheet of 300 x 200 x 6 mm (11-13/16 x 7-7/8 x 1/4 inches) plywood

Assembling time:

15 minutes


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
