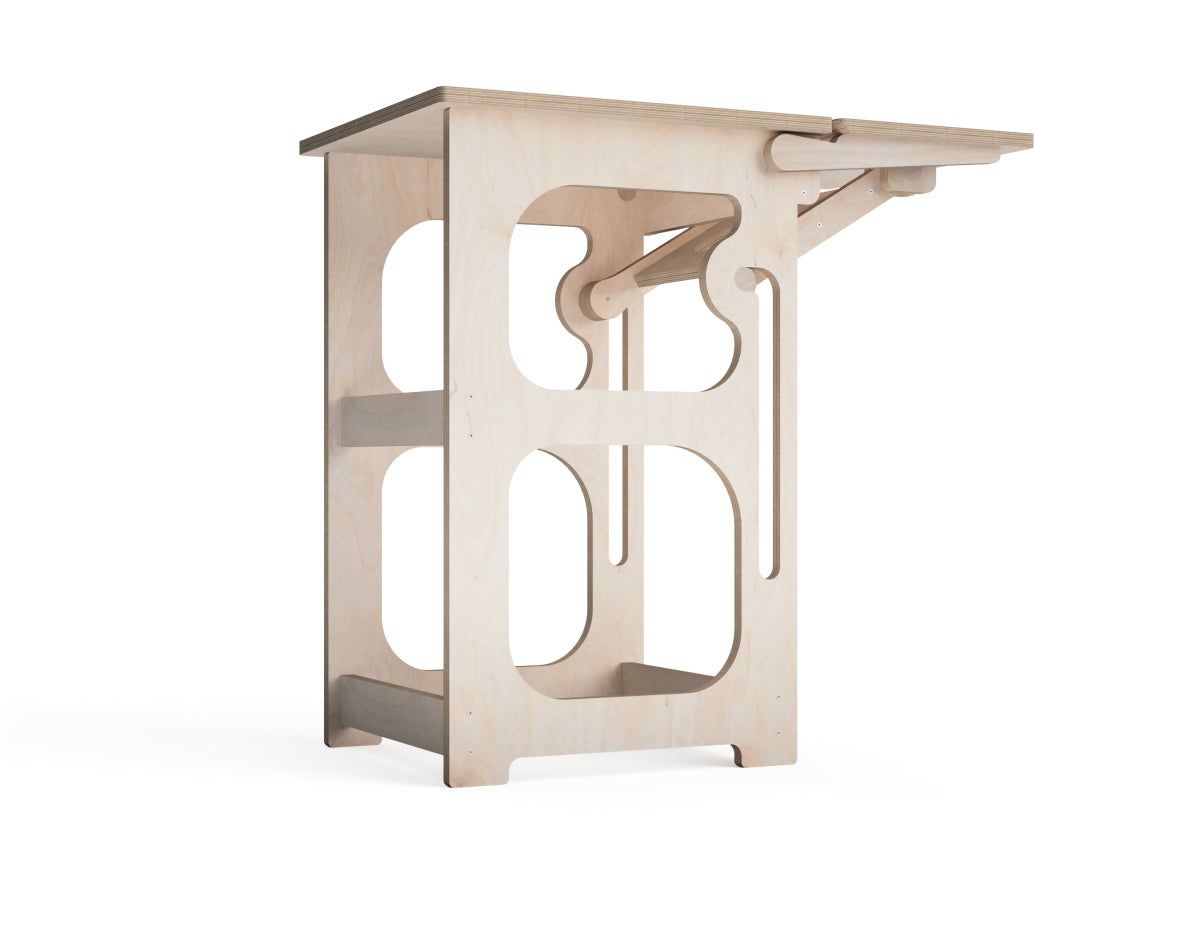

• Small table with foldable surface made from plywood using CNC router files

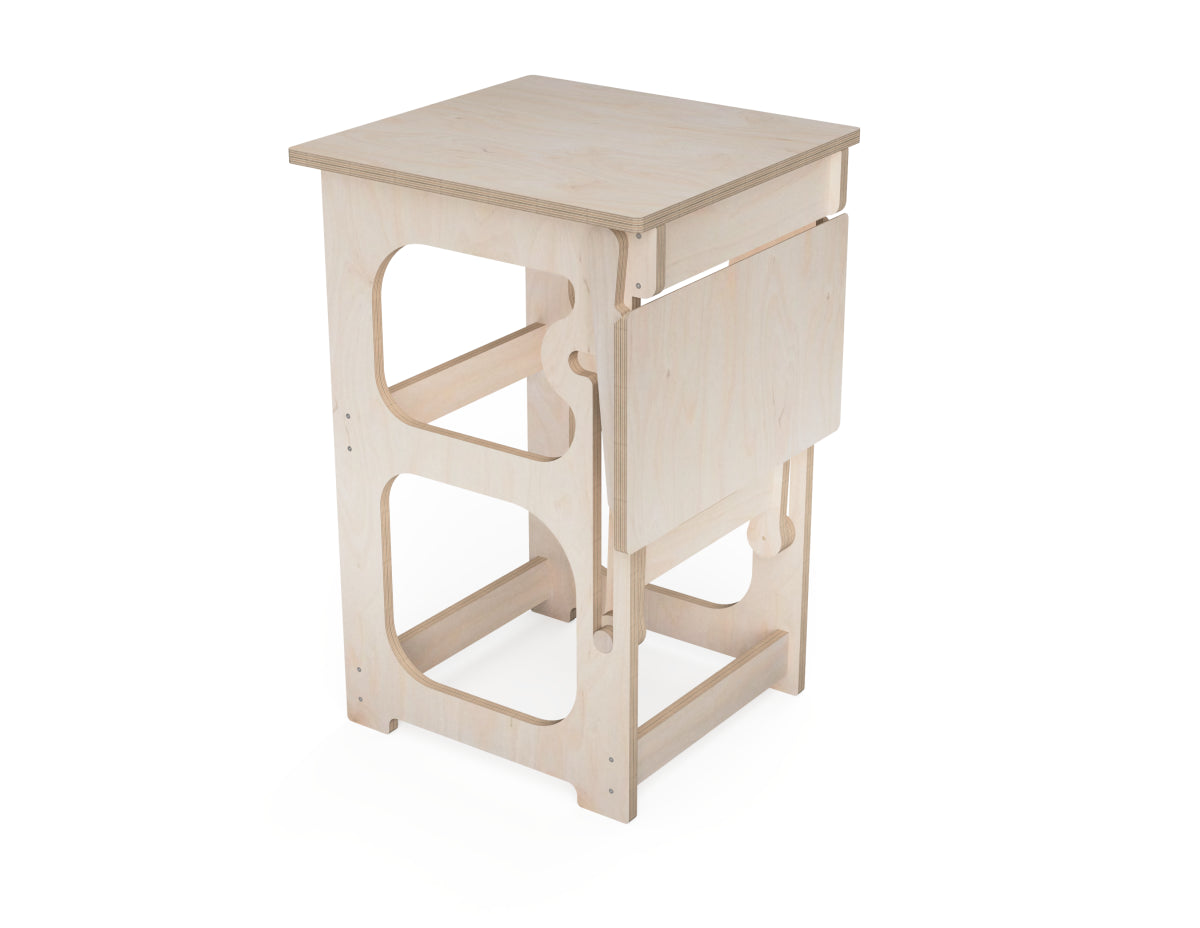

  • Expandable plywood table with folded extension tabletop in compact position

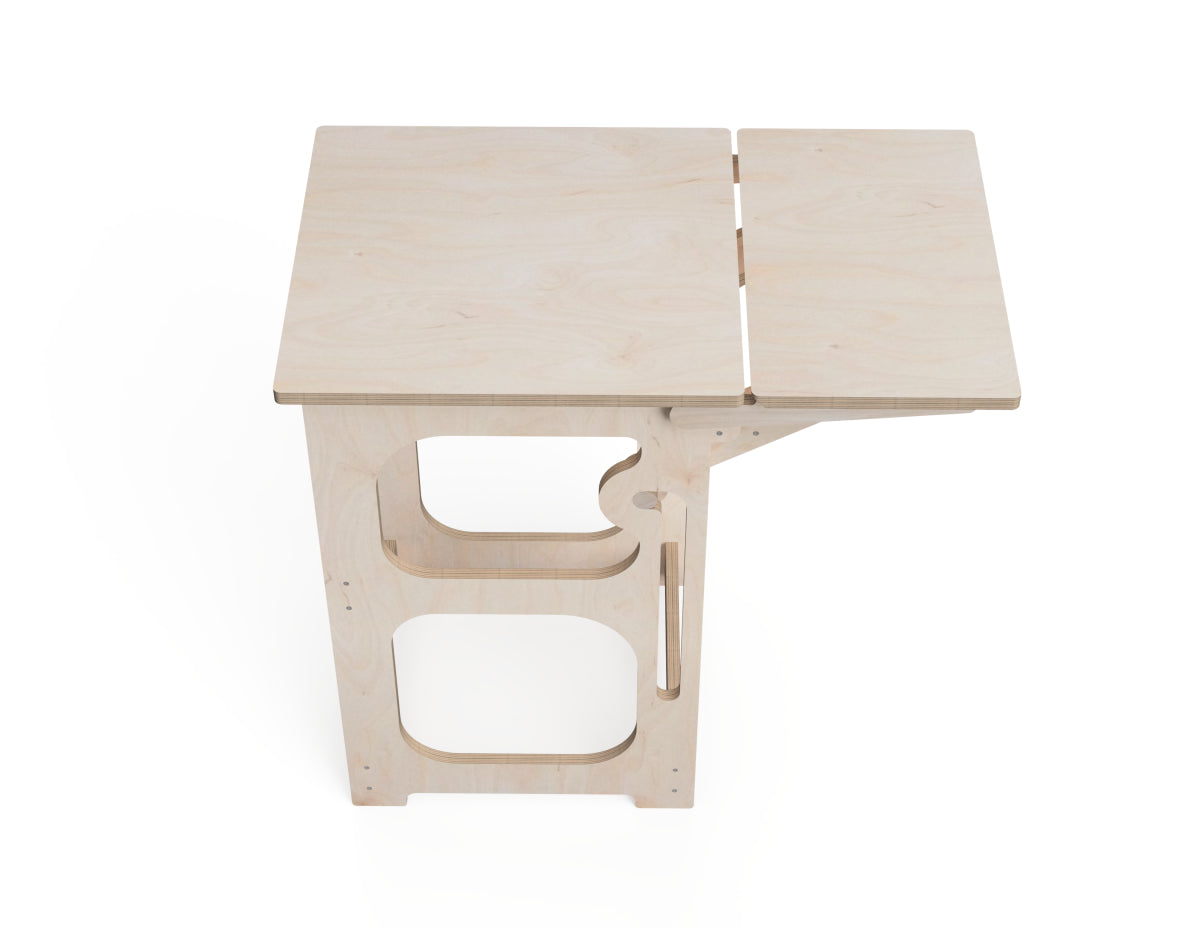

  • Small plywood table extended from 500x525 mm to 500x830 mm

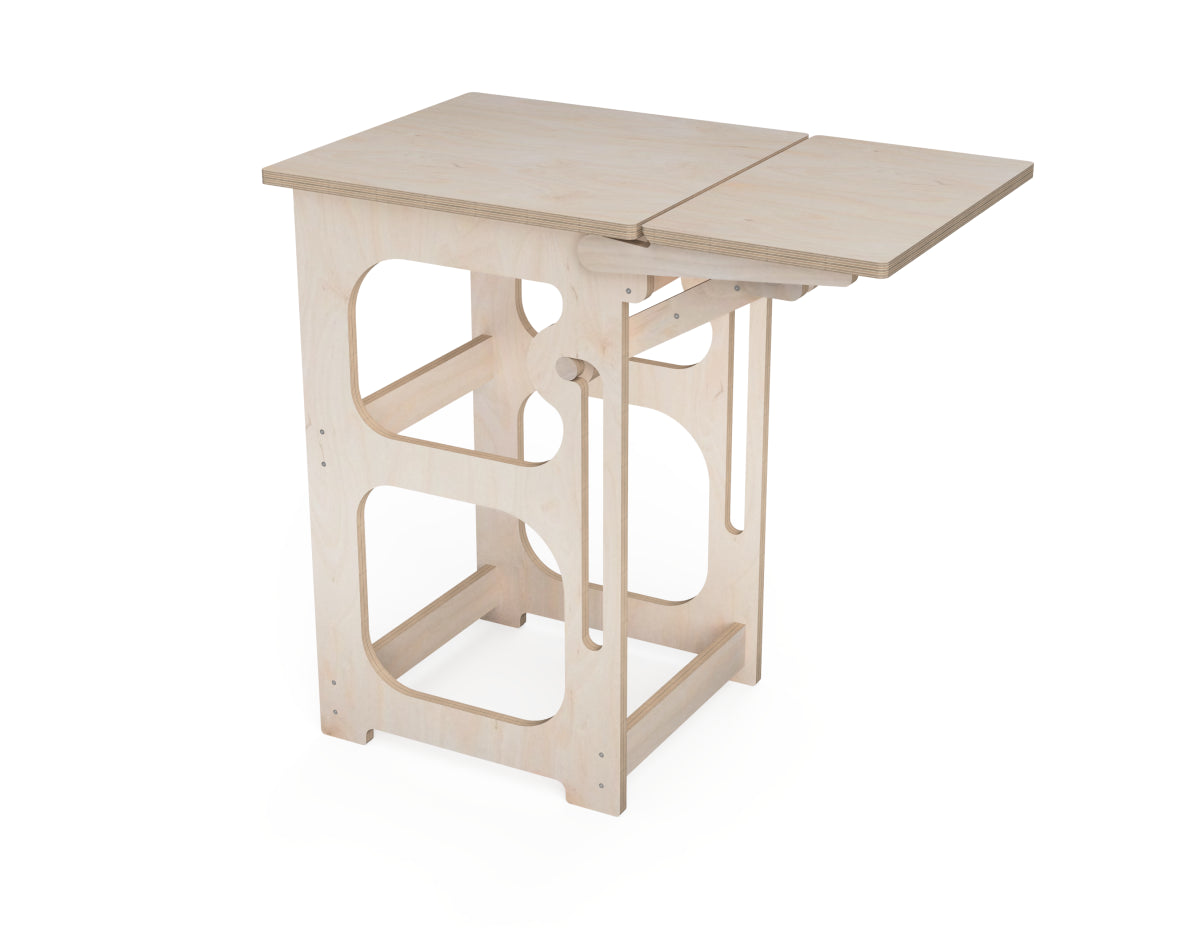

  • Modern space-saving plywood table with folding surface extension

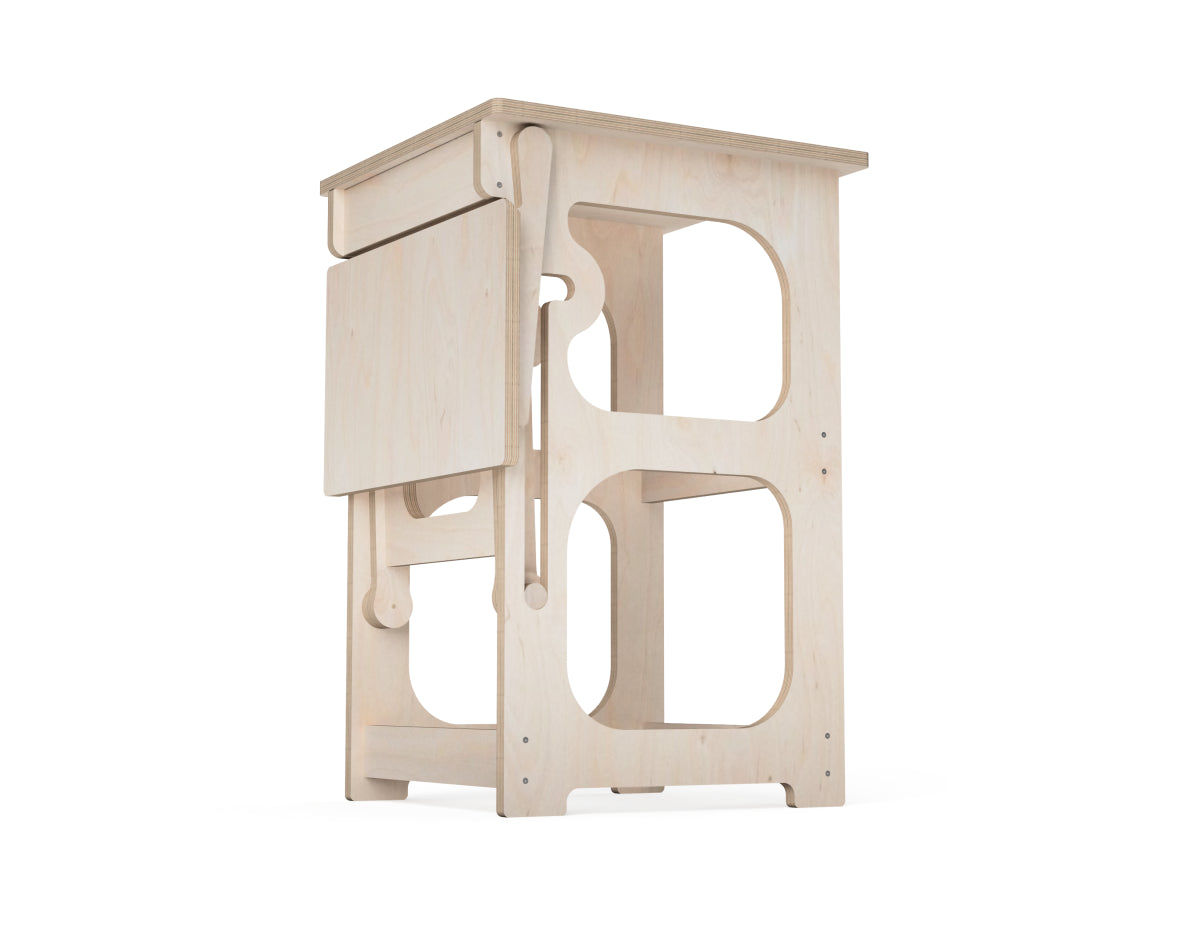

  • CNC router furniture project featuring a fold-up tabletop extension mechanism
1 5

Small Table with a Foldable Surface DXF Files

Small Table with a Foldable Surface DXF Files

$7.45 USD
$14.90 USD $7.45 USD
Sale Sold out
Taxes included.

Make the most of your space without sacrificing comfort. This clever expandable table provides a compact footprint for everyday use and quickly transforms into a larger surface whenever extra room is needed.



Perfect for apartments, tiny homes, and multifunctional spaces, the table expands from 500 x 525 mm to 500 x 830 mm, giving you additional space for guests, dining, work, or hobbies.



The exposed plywood mechanism adds a distinctive design look, turning a practical piece of furniture into a conversation starter.



Download the DXF files and build a stylish space-saving table that adapts to your needs while showcasing the beauty of CNC-crafted woodworking.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Max single piece size

The biggest component is 800 x 500 mm (31.5 x 19.69 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
500 mm 525 mm 800 mm
19⅝ inch 20⅝ inch 31½ inch

Maximum

Width Length Height
500 mm 830 mm 800 mm
19⅝ inch 32⅝ inch 31½ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC:
- 3 sheets of 600 x 900 x 18 mm (24 x 32 x 3/4 inches) plywood
- 1 sheet of 450 x 450 x 18 mm (18 x 18 x 3/4 inches) plywood
- 6 x 30 mm Wooden Dowel
- 6 x 50 mm Wooden Dowel
- 30 mm (1-1/4 inches) wood screws
For a 800 x 1220 mm (2.6 x 4 ft) CNC
- 1 sheet of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 650 x 1220 x 18 mm (26 x 48 x 3/4 inches) plywood
- 6 x 30 mm Wooden Dowel
- 6 x 50 mm Wooden Dowel
- 30 mm (1-1/4 inches) wood screws
For a 1220 x 1220 mm (4 x 4 ft) CNC:
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 600 x 600 x 18 mm (24 x 24 x 3/4 inches) plywood
- 6 x 30 mm Wooden Dowel
- 6 x 50 mm Wooden Dowel
- 30 mm (1-1/4 inches) wood screws
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 820 x 2440 x 18 mm (33 x 96 x 3/4 inches) plywood
- 6 x 30 mm Wooden Dowel
- 6 x 50 mm Wooden Dowel
- 30 mm (1-1/4 inches) wood screws

Approximate CNC time

30 minutes

Assembling time

45 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
