Small Modular Workshop Cabinet - DXF Files

Small Modular Workshop Cabinet - DXF Files

$2.95 USD
$5.95 USD $2.95 USD
Sale Sold out
Taxes included.

Build your own customizable workshop storage with the Small Modular Workshop Cabinet – DXF Files.



Designed for CNC routers, this modular system lets you cut and assemble cabinet sections that stack together to fit any workspace.

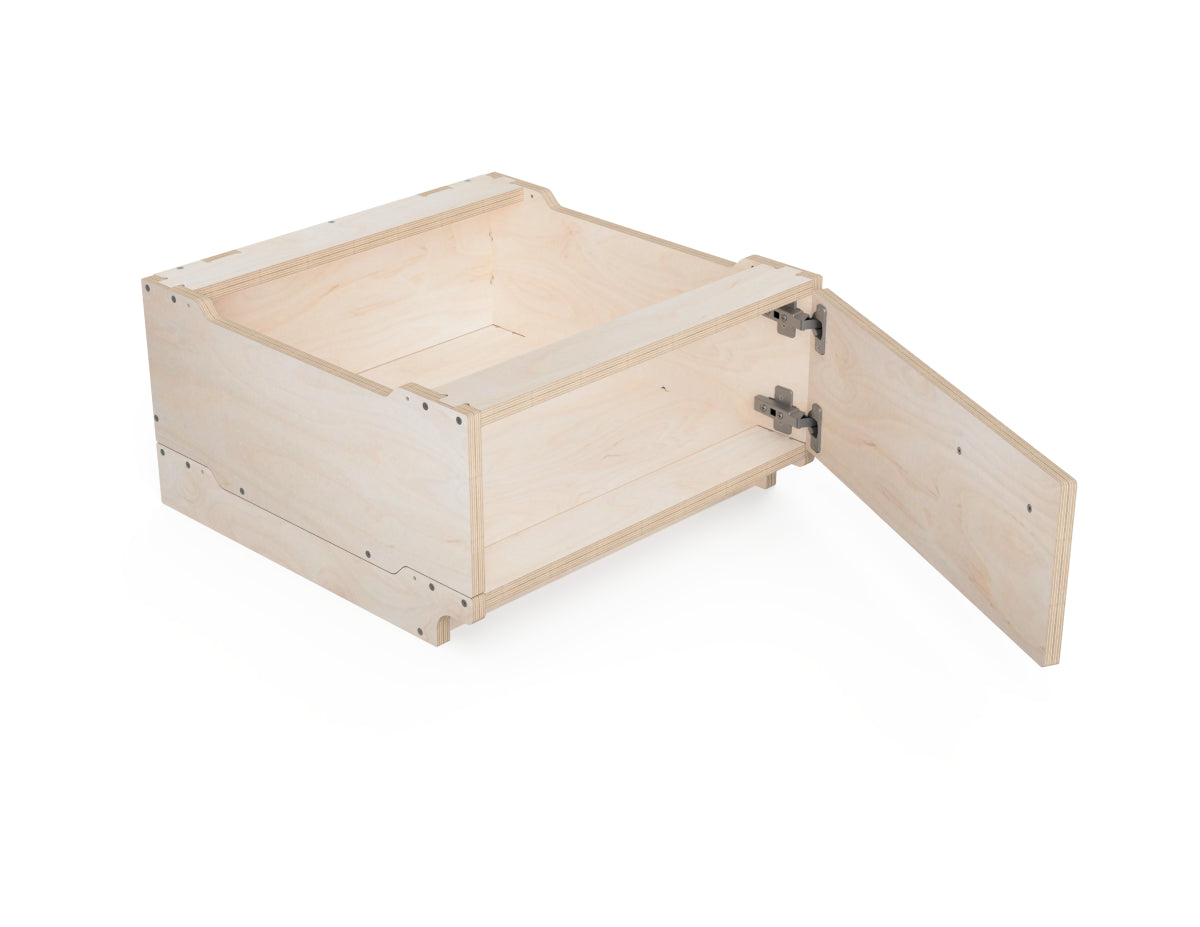

This 1/4-height module (900 mm standard height) includes a built-in front door for quick access to tools and supplies.

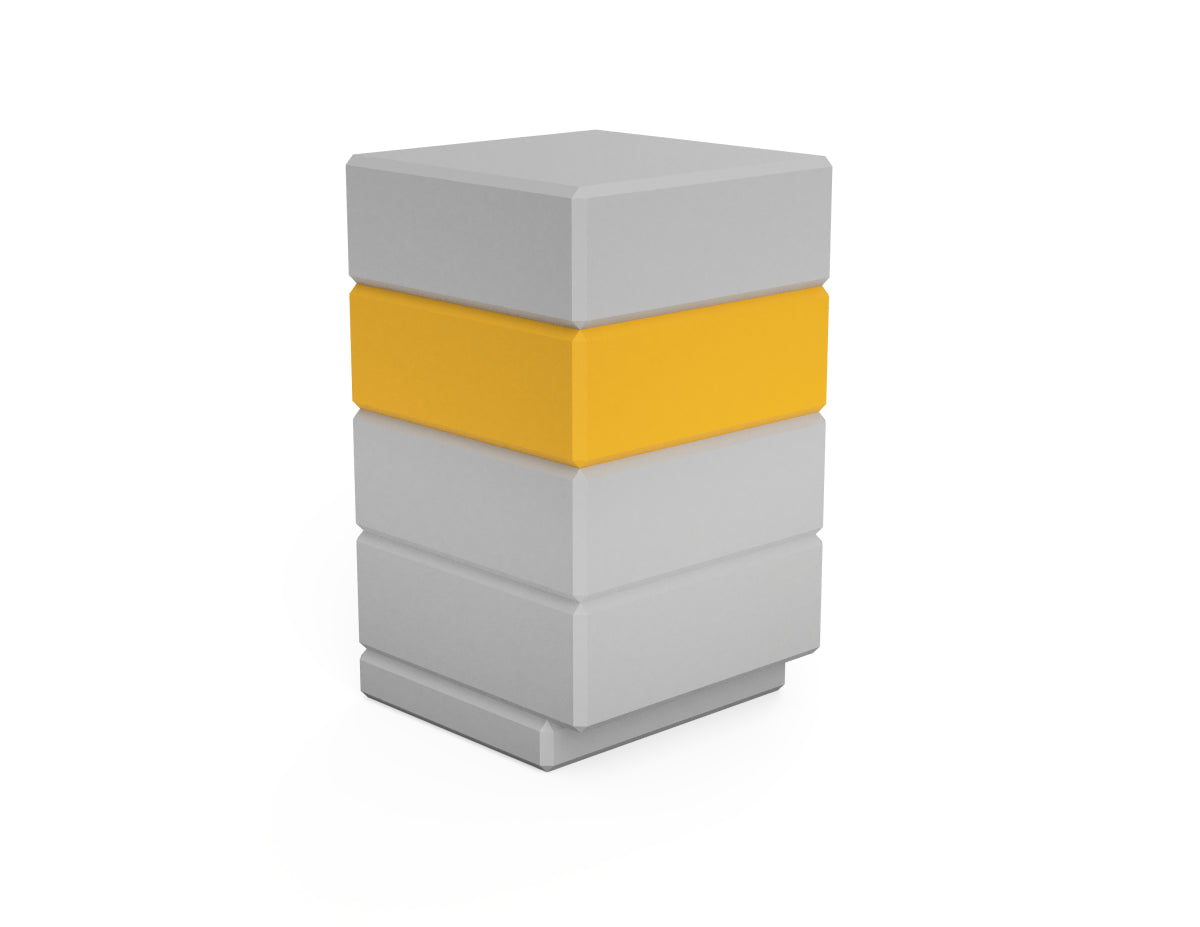

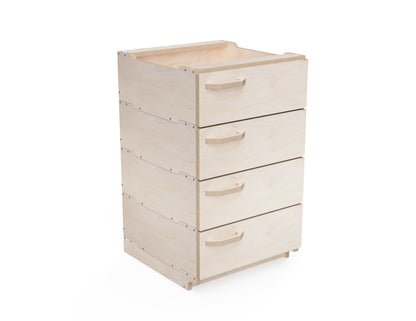

Choose from three widths - 550 mm, 475 mm, and 400 mm - to match your setup.



Perfect for workshops looking for clean organization, easy assembly, and fully customizable CNC storage.

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Max single piece size

The biggest component is 550 x 550 mm (21.65 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
400 mm 550 mm 225 mm
15¾ inch 21⅝ inch 8⅞ inch

Maximum

Width Length Height
550 mm 550 mm 225 mm
21⅝ inch 21⅝ inch 8⅞ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 2 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 1 sheet of 600 x 300 x 12 mm (24 x 12 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 20 pieces
- 6 mm (1/4 inch) router bit
For a 900 x 1220 mm (3 x 4 ft) CNC and bigger
- a sheet of 700 x 1220 x 18 mm (28 x 48 x 3/4 inches) plywood
- 1 sheet of 600 x 300 x 12 mm (24 x 12 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 20 pieces
- 6 mm (1/4 inch) router bit

Approximate CNC time

15 minutes

Assembling time

15 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
