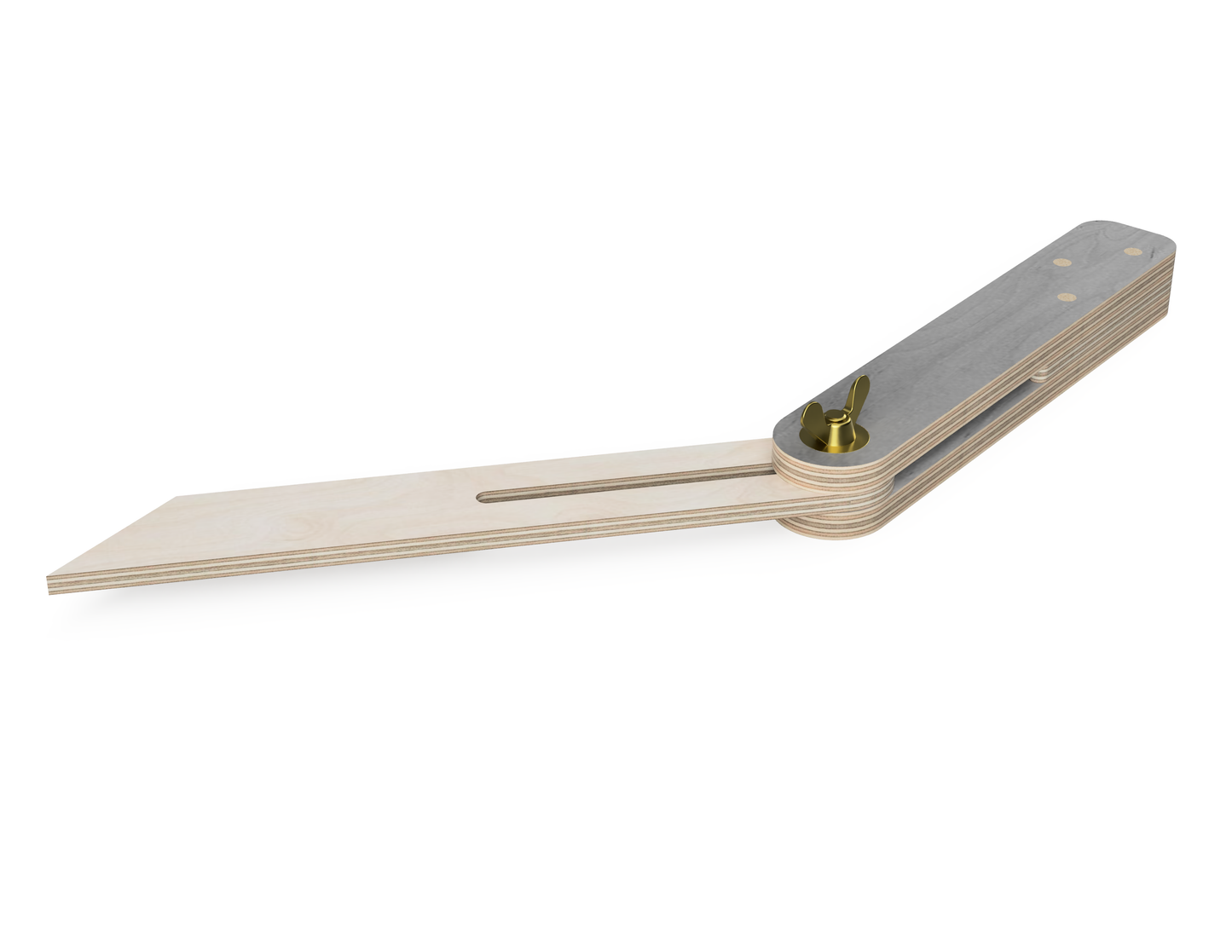

• Sliding T-Bevel Free CNC DXF file design overview

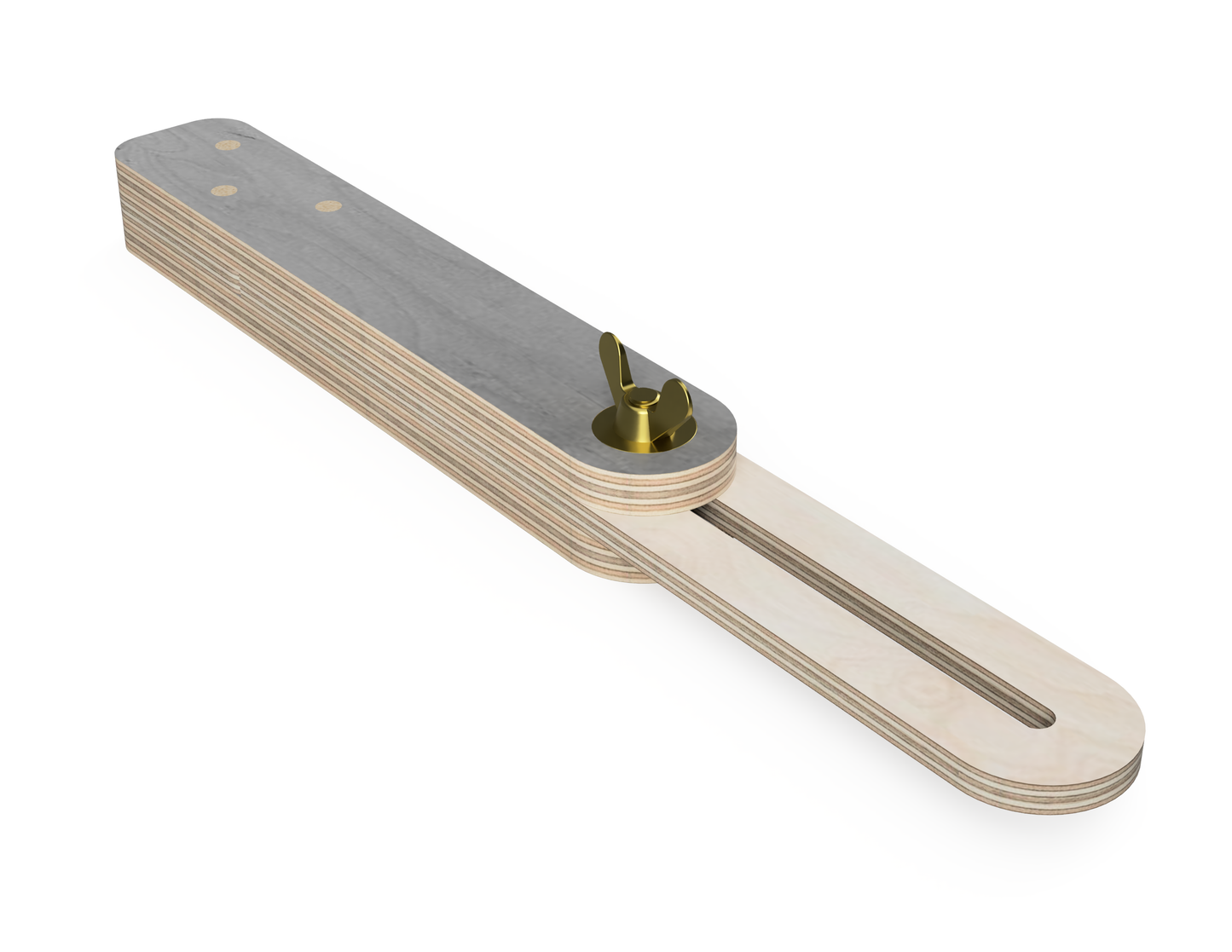

  • Sliding T-Bevel Free DXF file rendered from angled view for CNC cutting

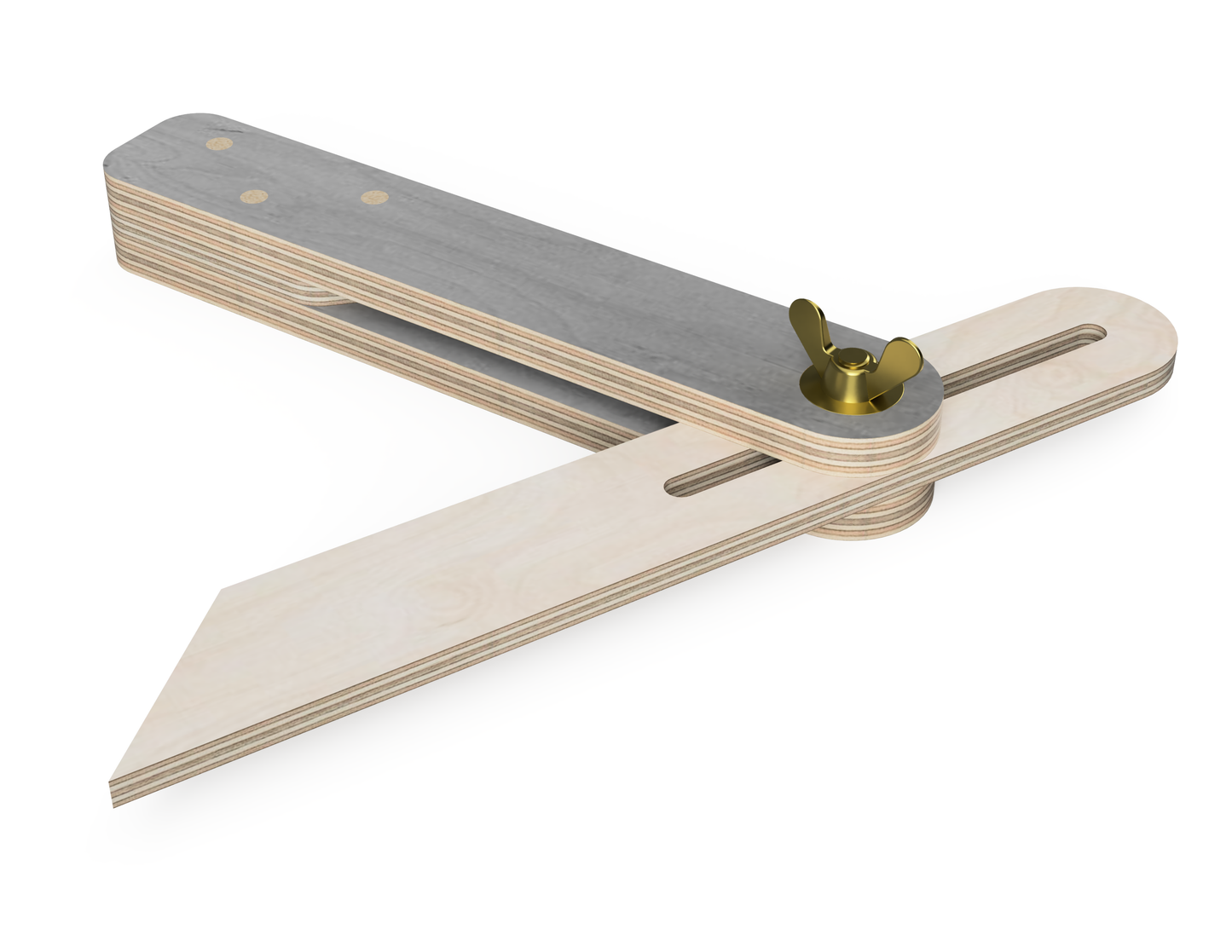

  • Detailed DXF drawing of sliding t-bevel for CNC router

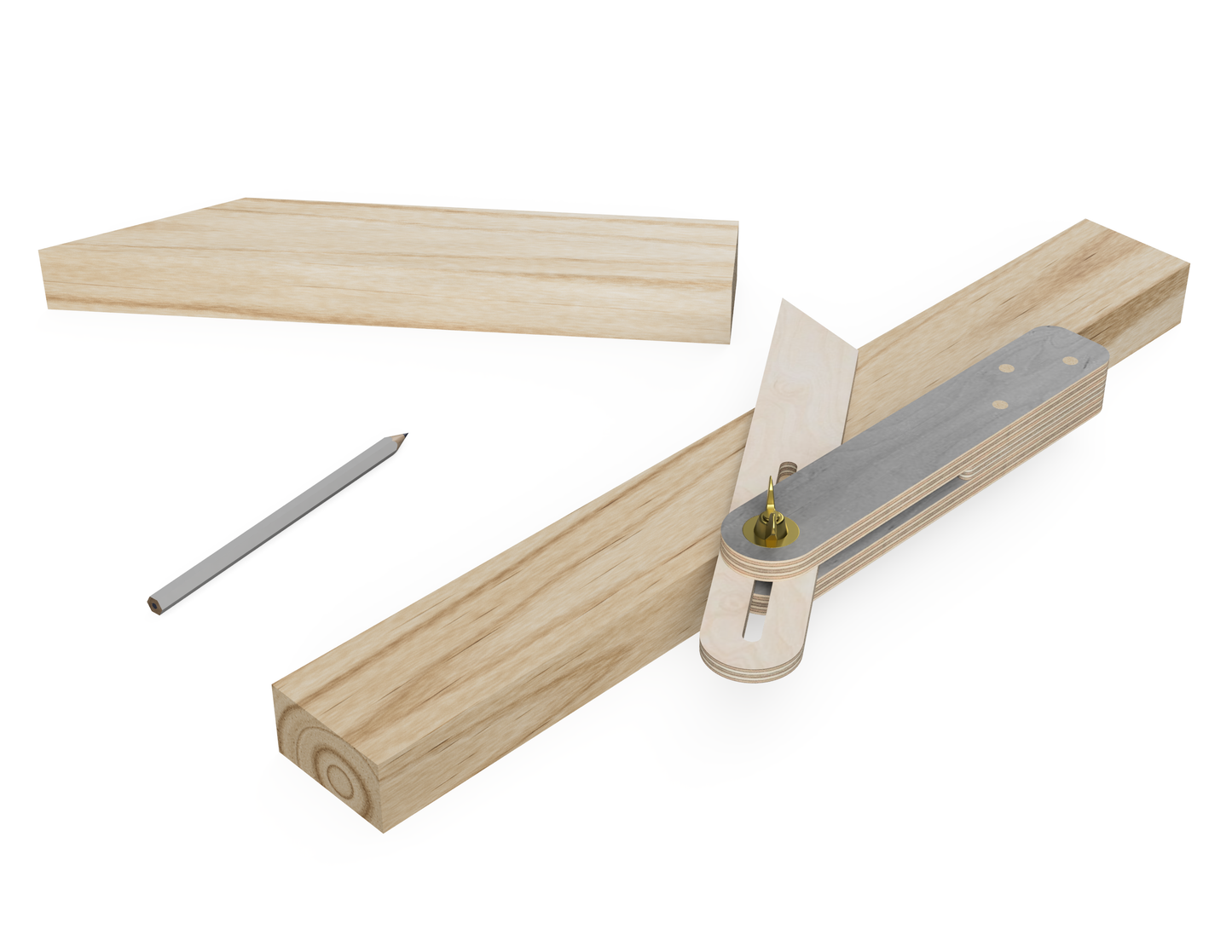

  • Sliding T-Bevel CNC-ready design showing joints and assembly features

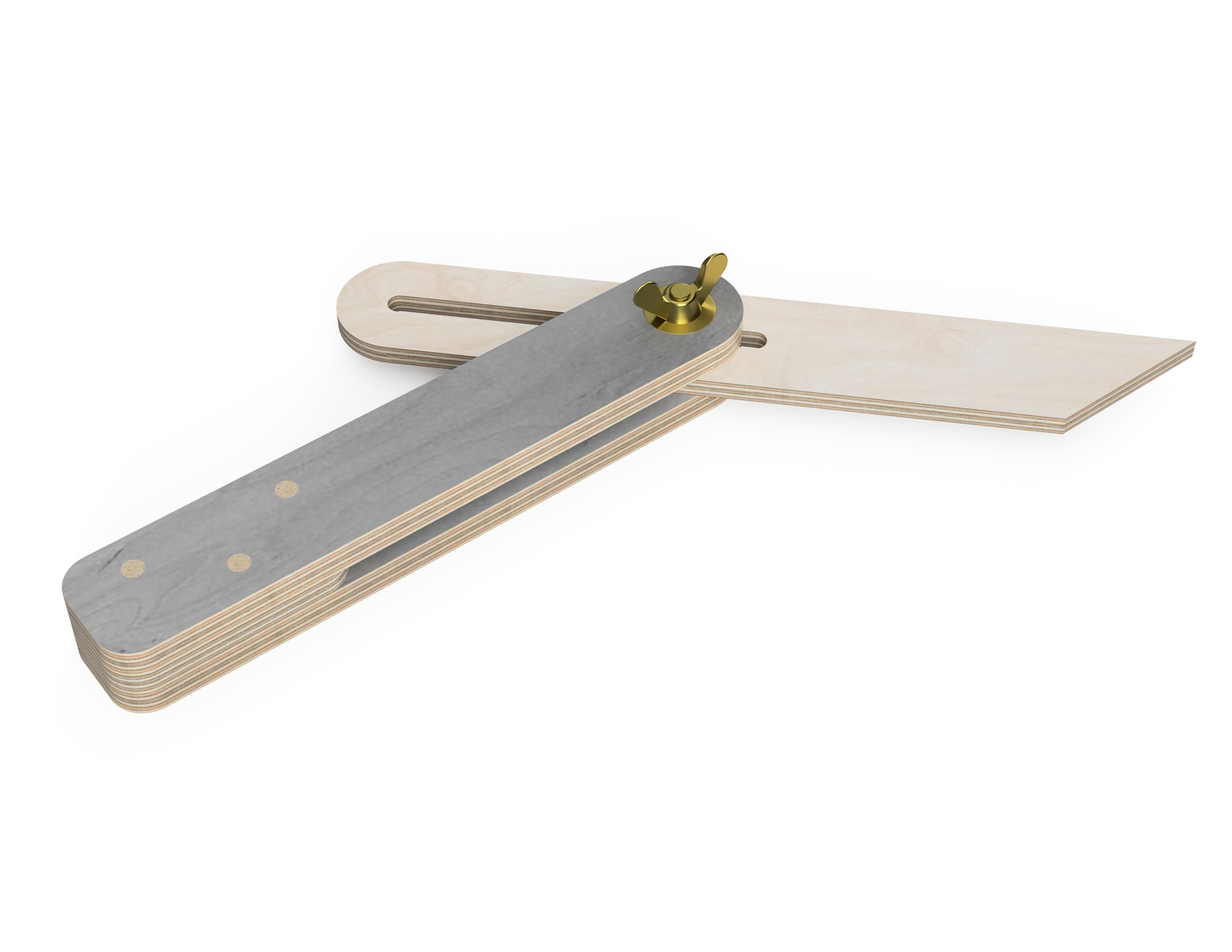

  • Rendered view of sliding t-bevel layout from Free DXF file
1 5

Sliding T-Bevel Free DXF Files

Sliding T-Bevel Free DXF Files

$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Taxes included.

Make your own sliding T-bevel with these ready-to-use DXF files designed for CNC routers. A sliding T-bevel is a must-have tool for accurately transferring angles between workpieces, helping you mark and cut with precision.



Whether you're working on furniture, cabinetry, or custom builds, this tool ensures your angles stay consistent from start to finish. Ideal for any CNC woodworking setup, the design is simple to cut and easy to assemble from plywood or hardwood.



Perfect for makers looking to add a reliable angle-marking tool to their workshop without buying off the shelf.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Dimensions

Width Length Height
300 mm 35 mm 24 mm
11¾ inch 1⅜ inch inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC and bigger
- 1 sheet of 250 x 120 x 9 mm (10 x 5 x 3/8 inches) plywood
- 1 sheet of 400 x 70 x 6 mm (15 x 2-3/4 x 1/4 inches) plywood
- 1 M6 Screw with a butterfly nut and a washer
- 3 mm (1/8 inch) router bit

Assembling time

10 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
