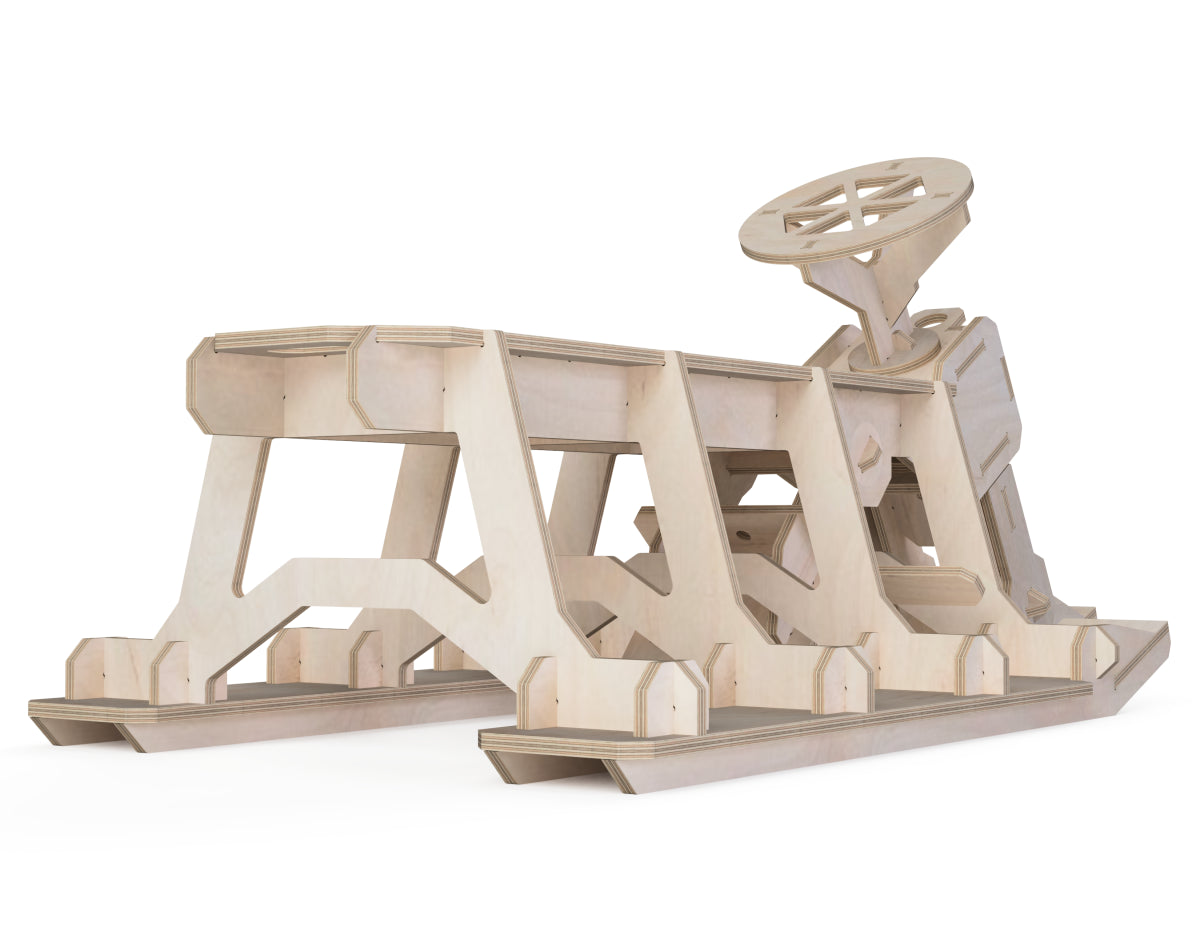

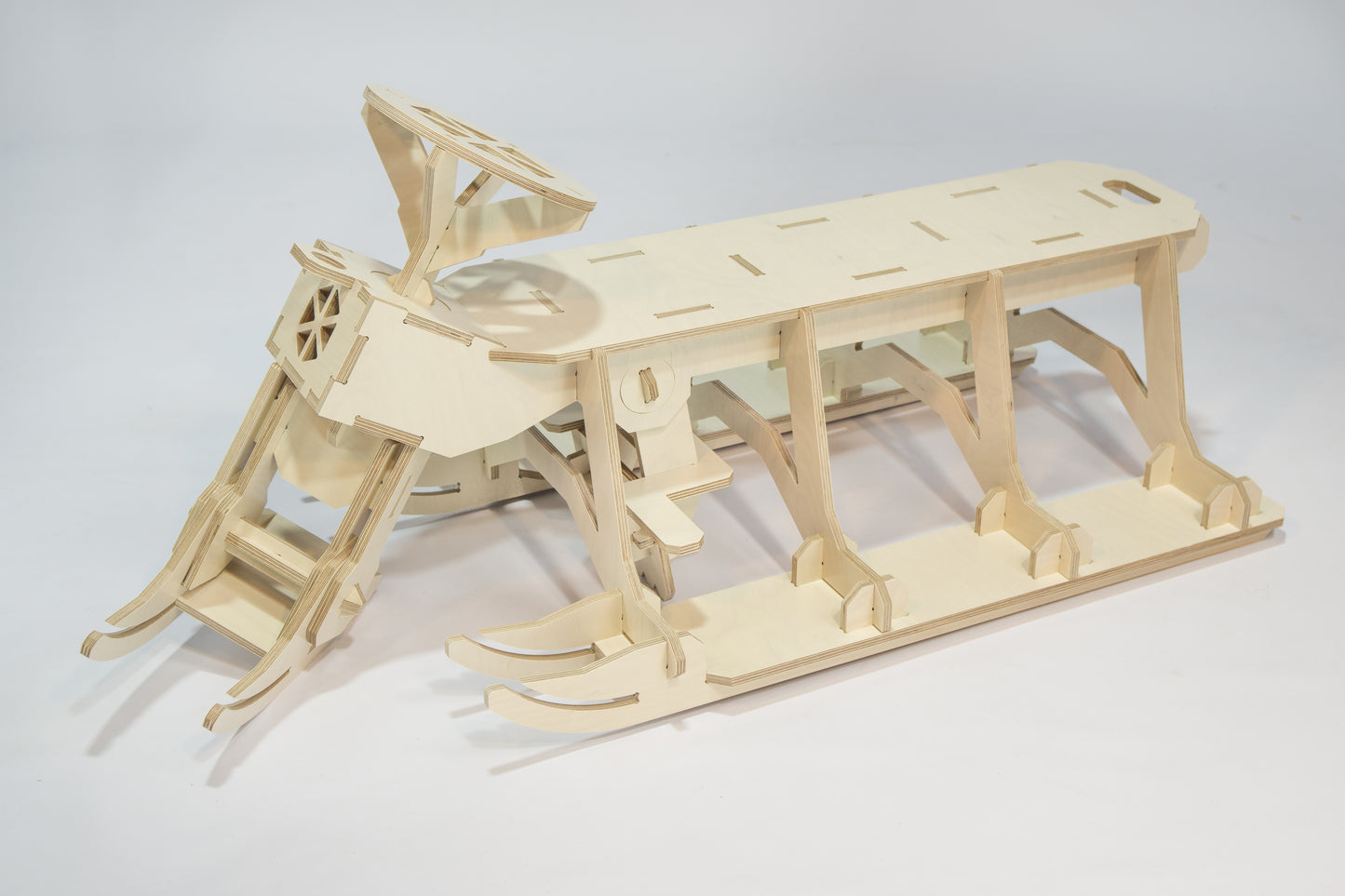

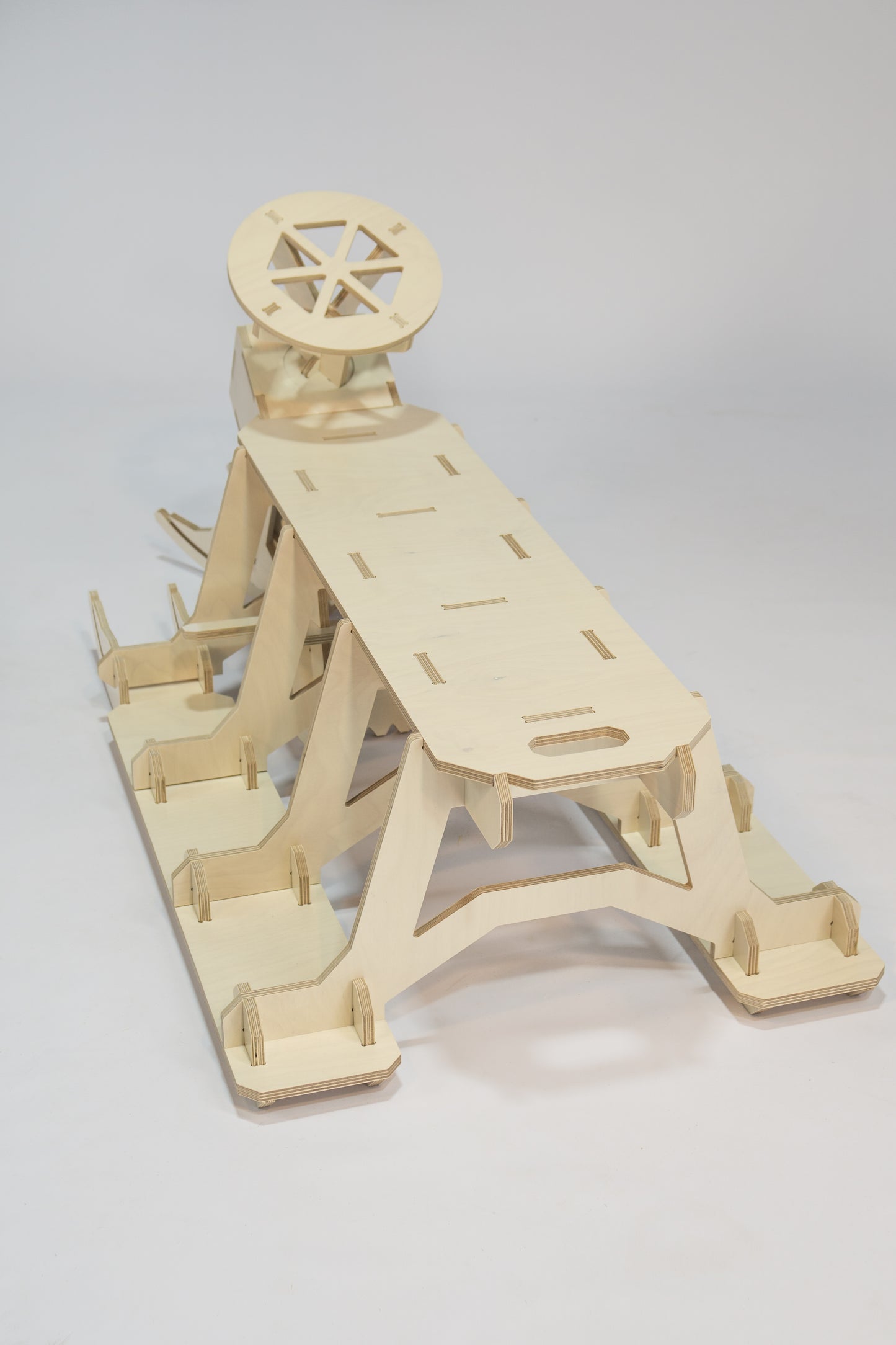

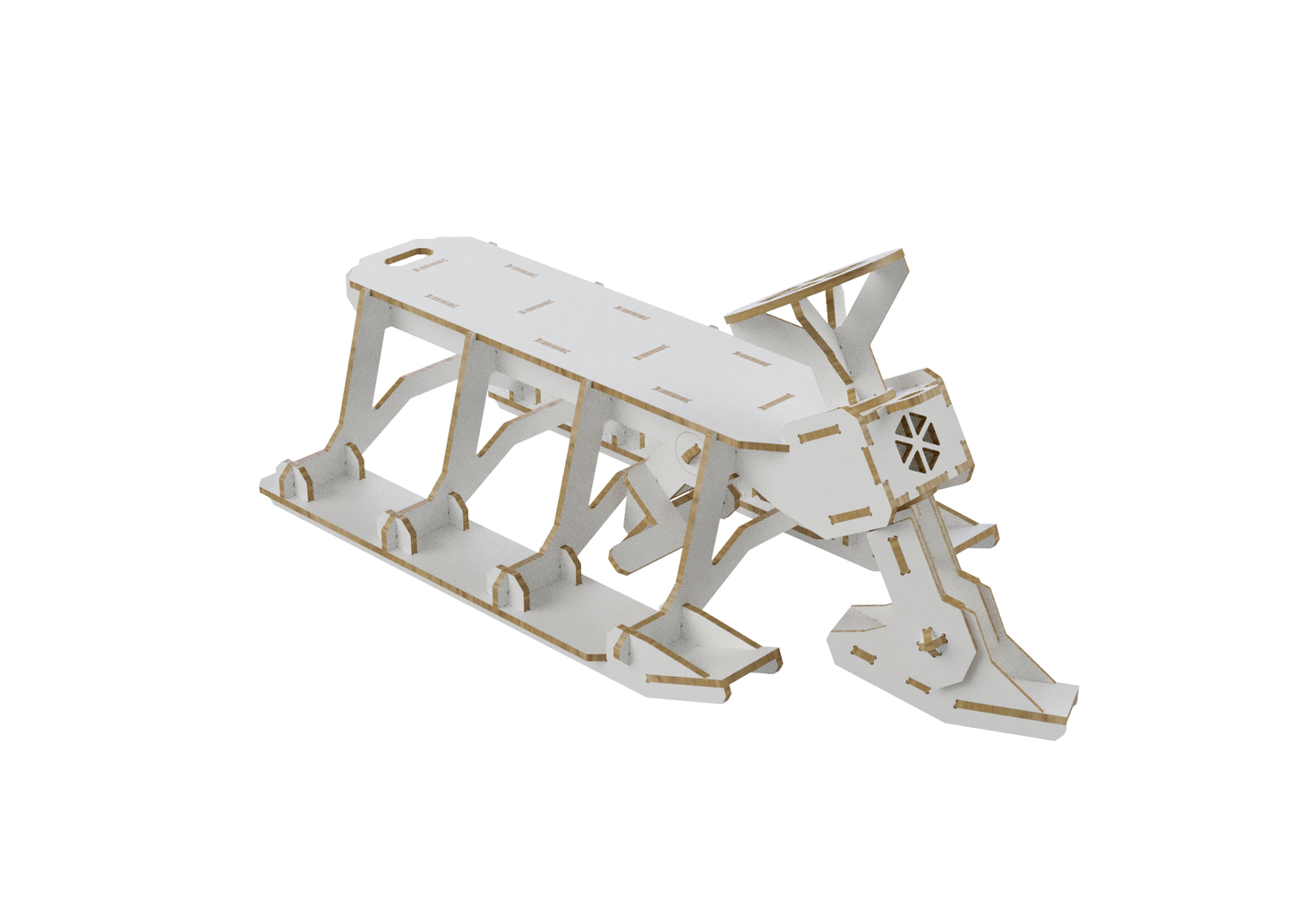

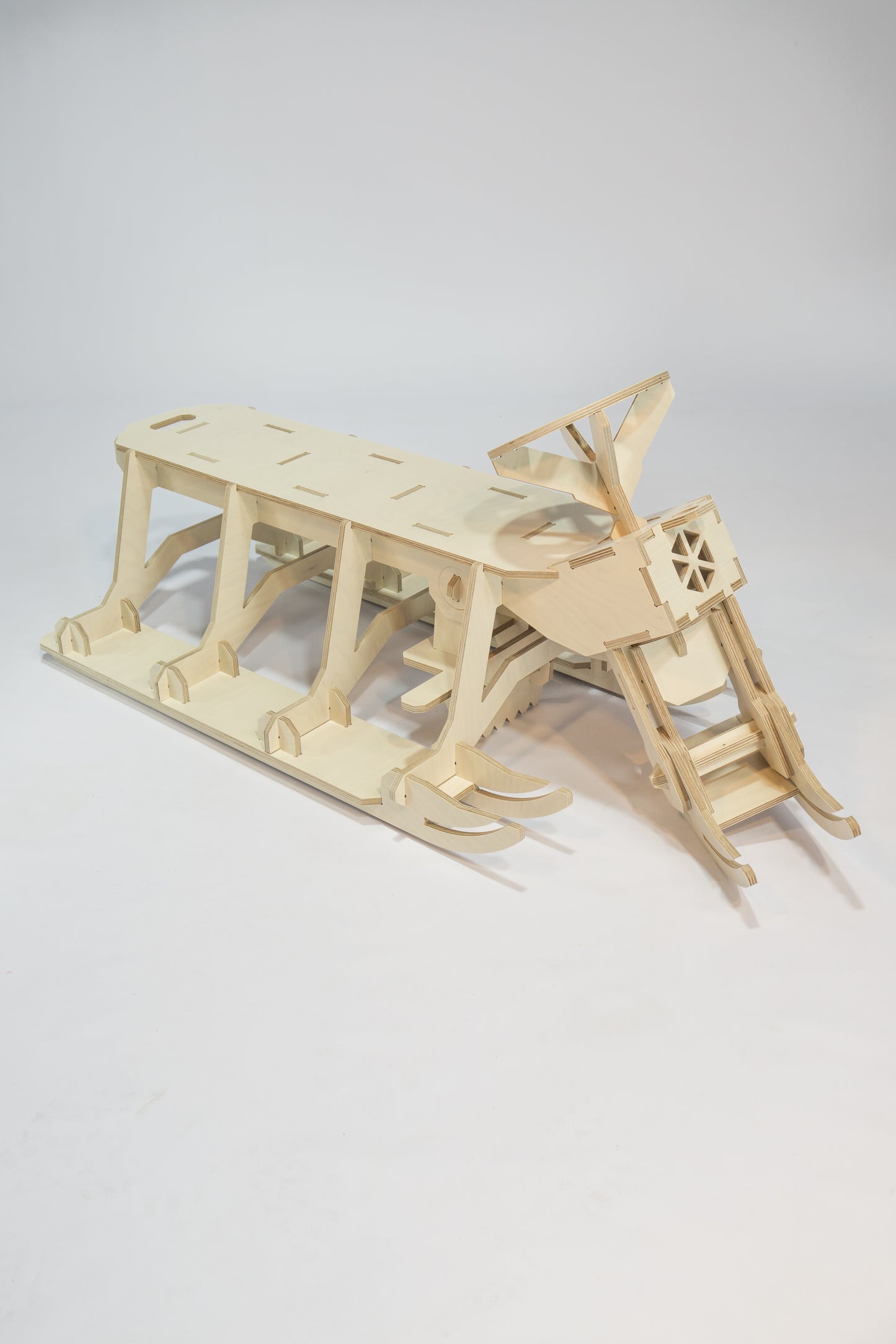

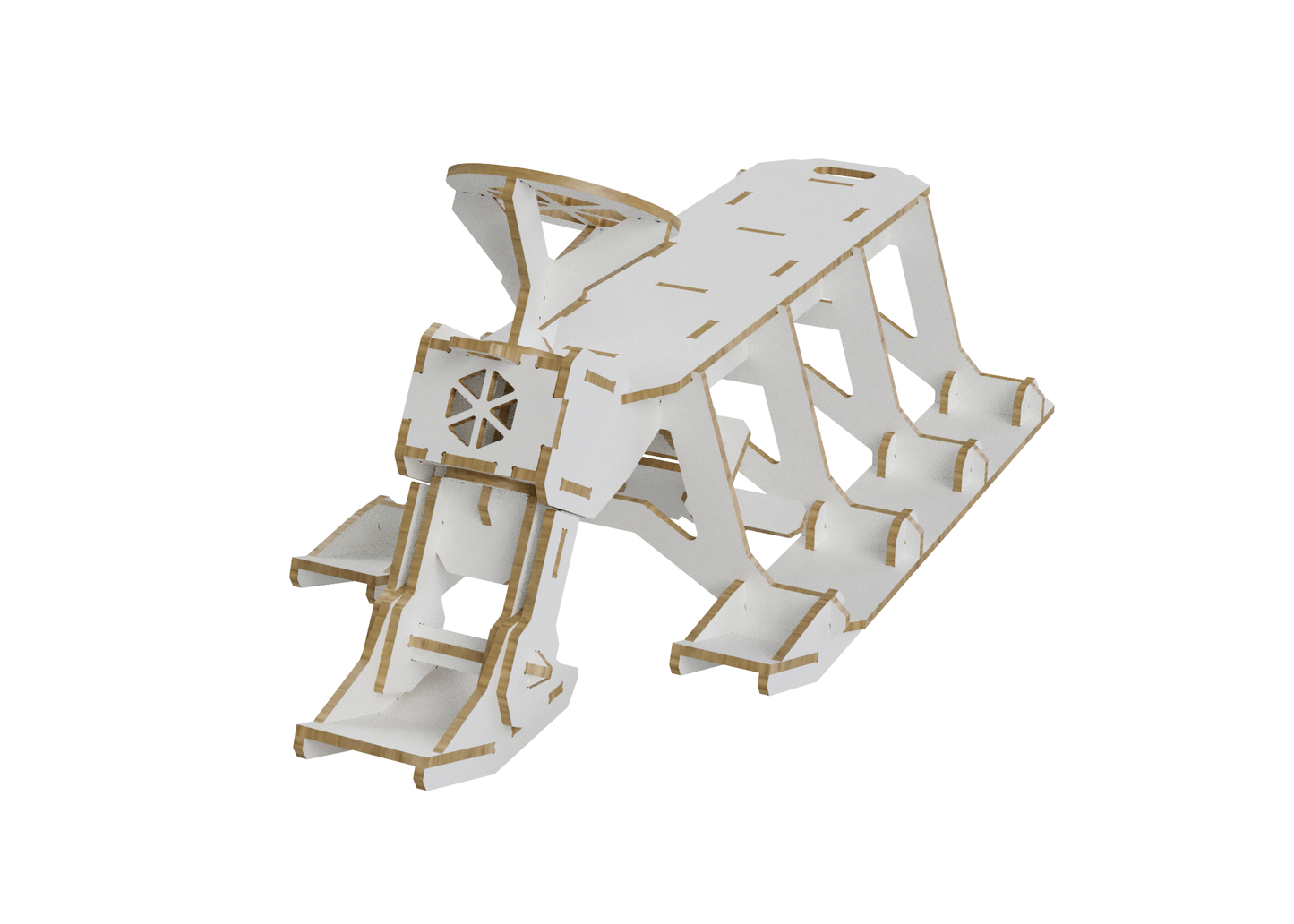

Sled DXF file

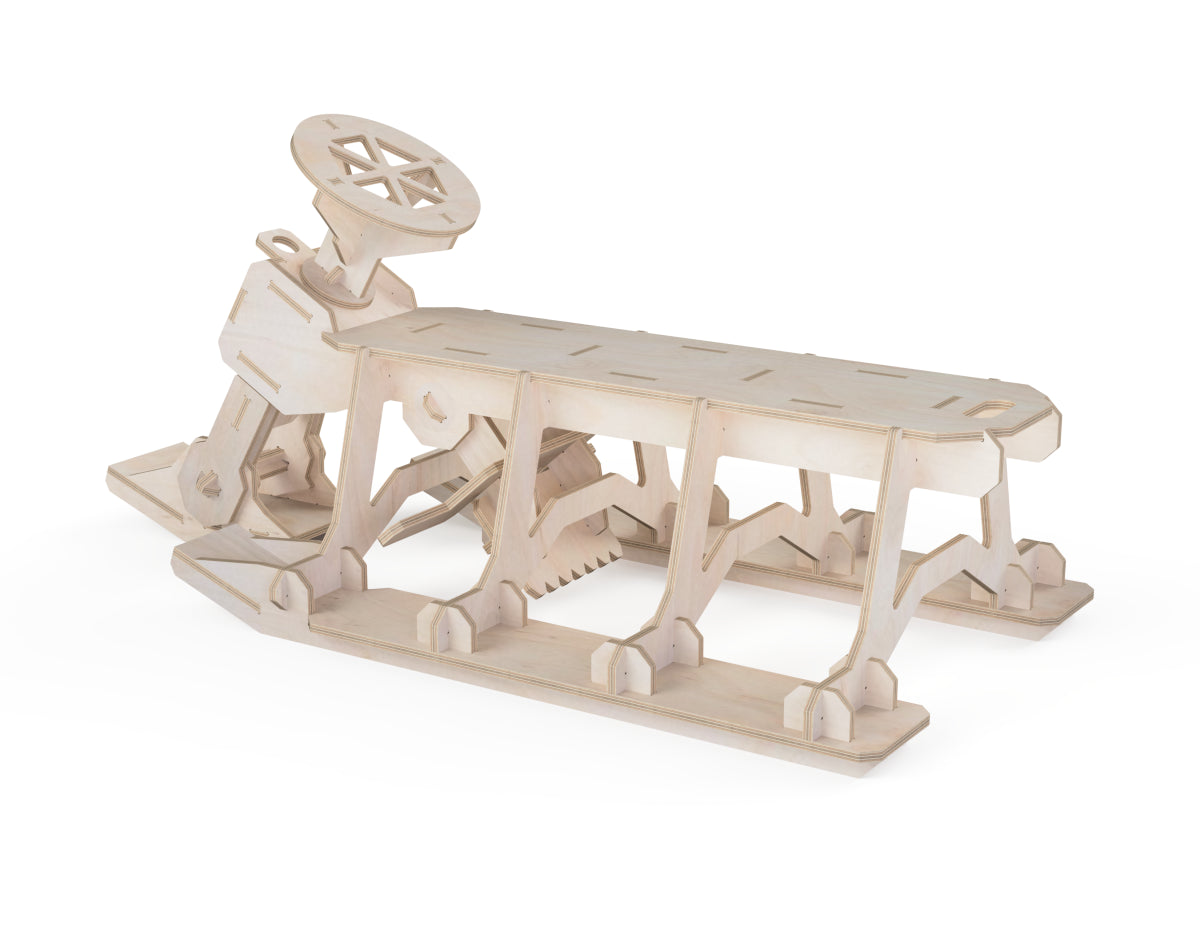

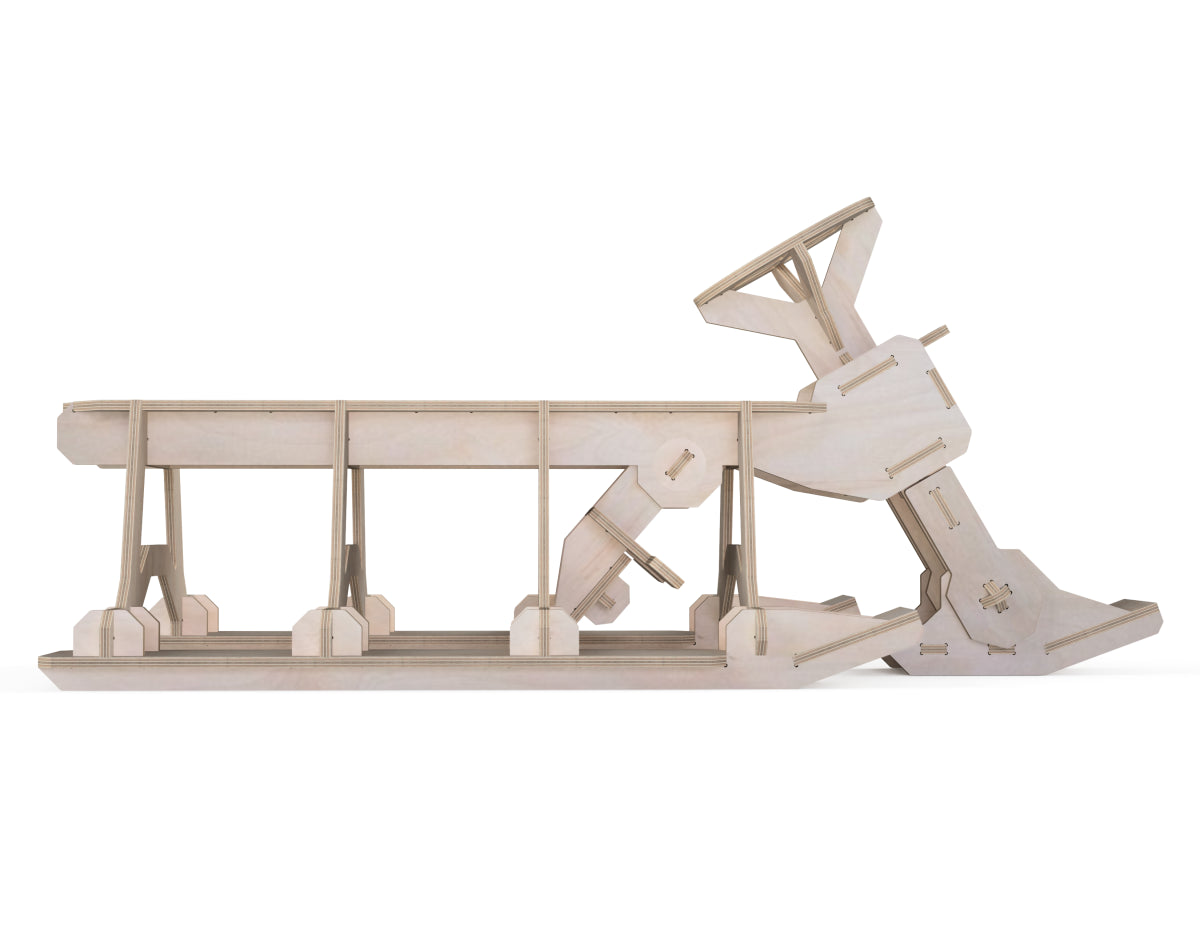

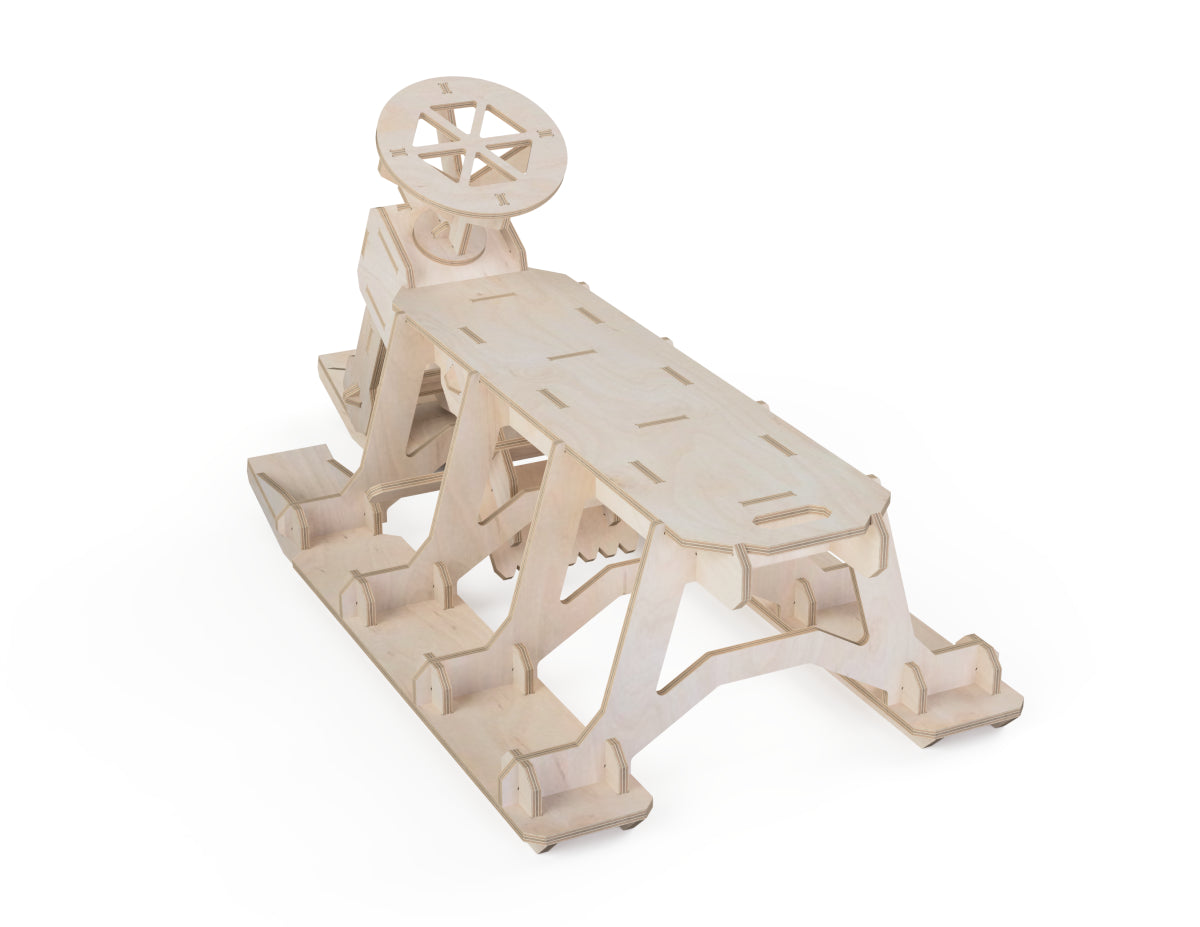

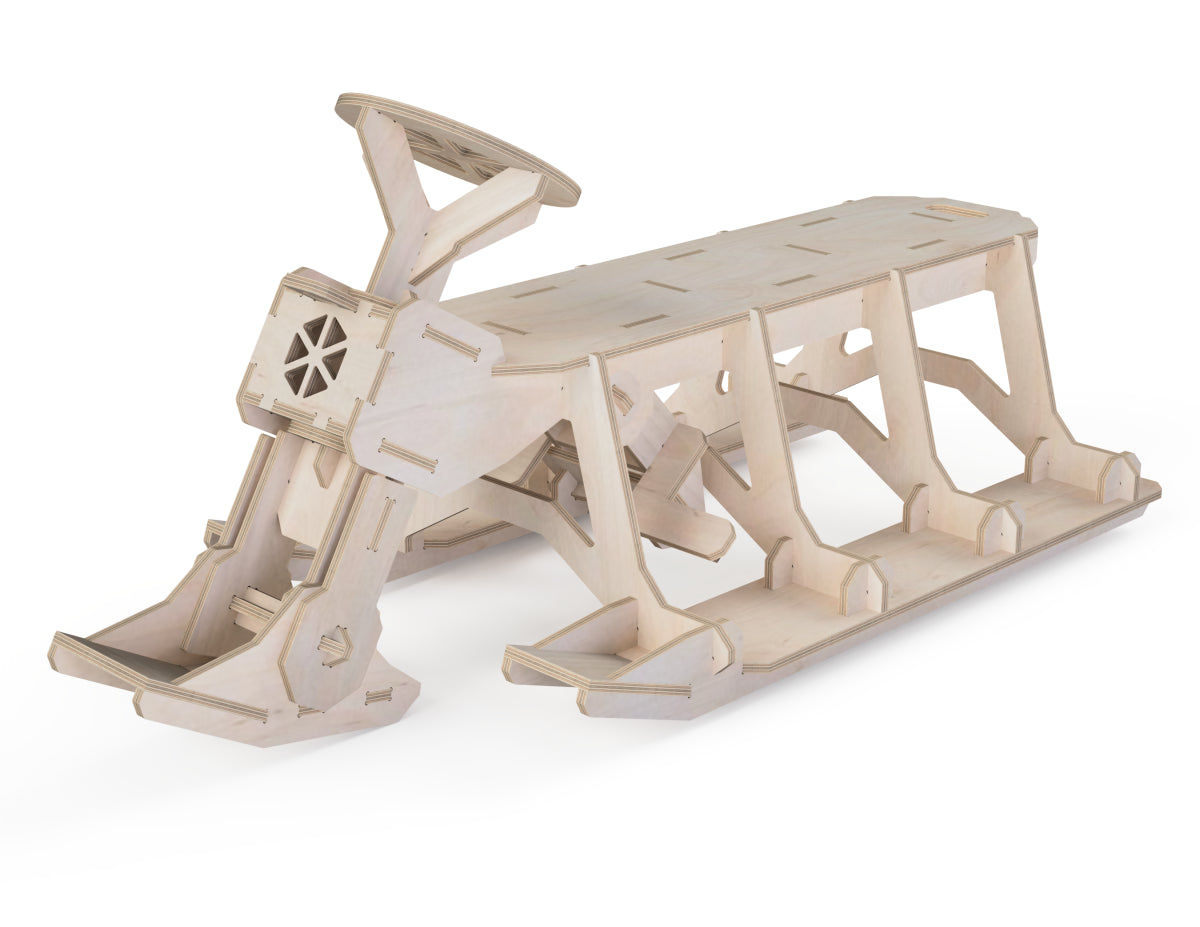

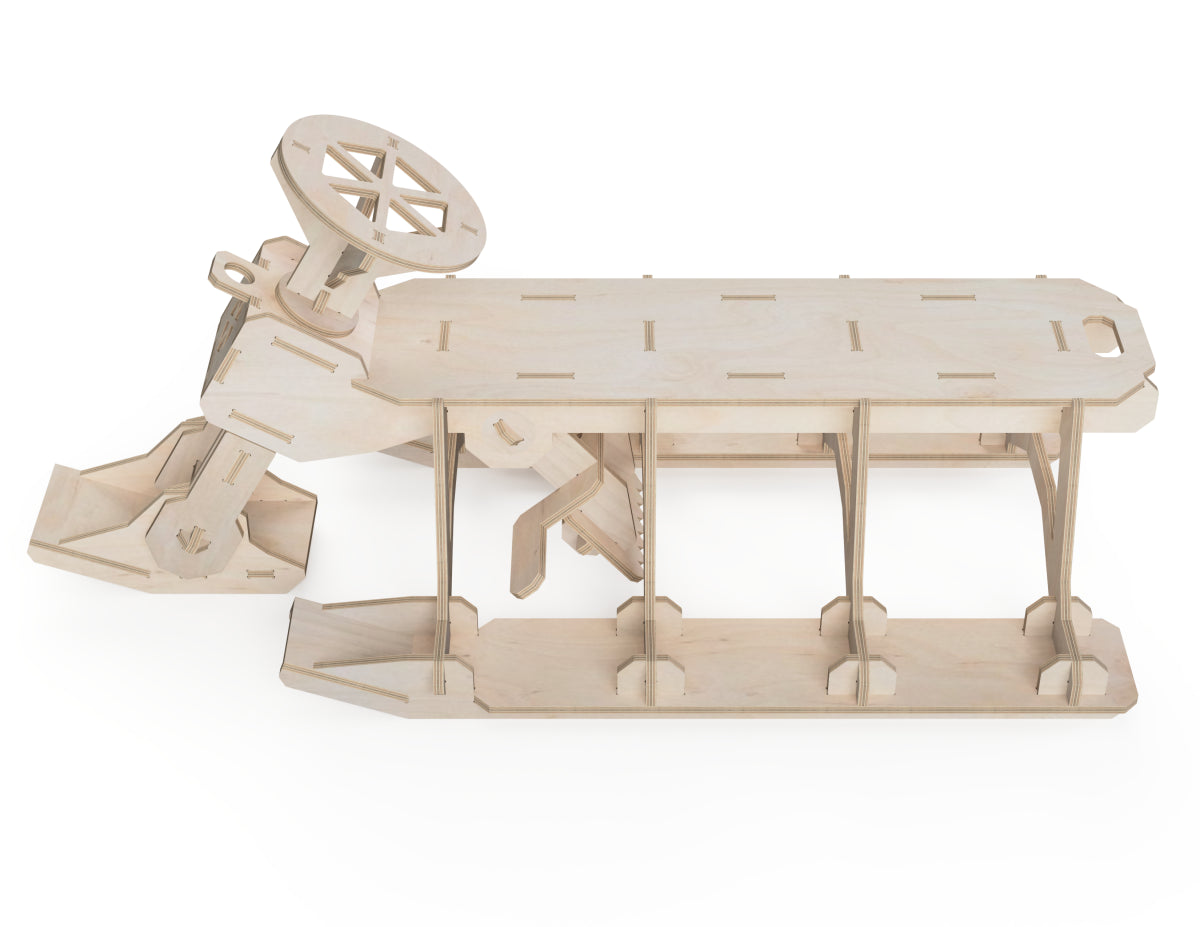

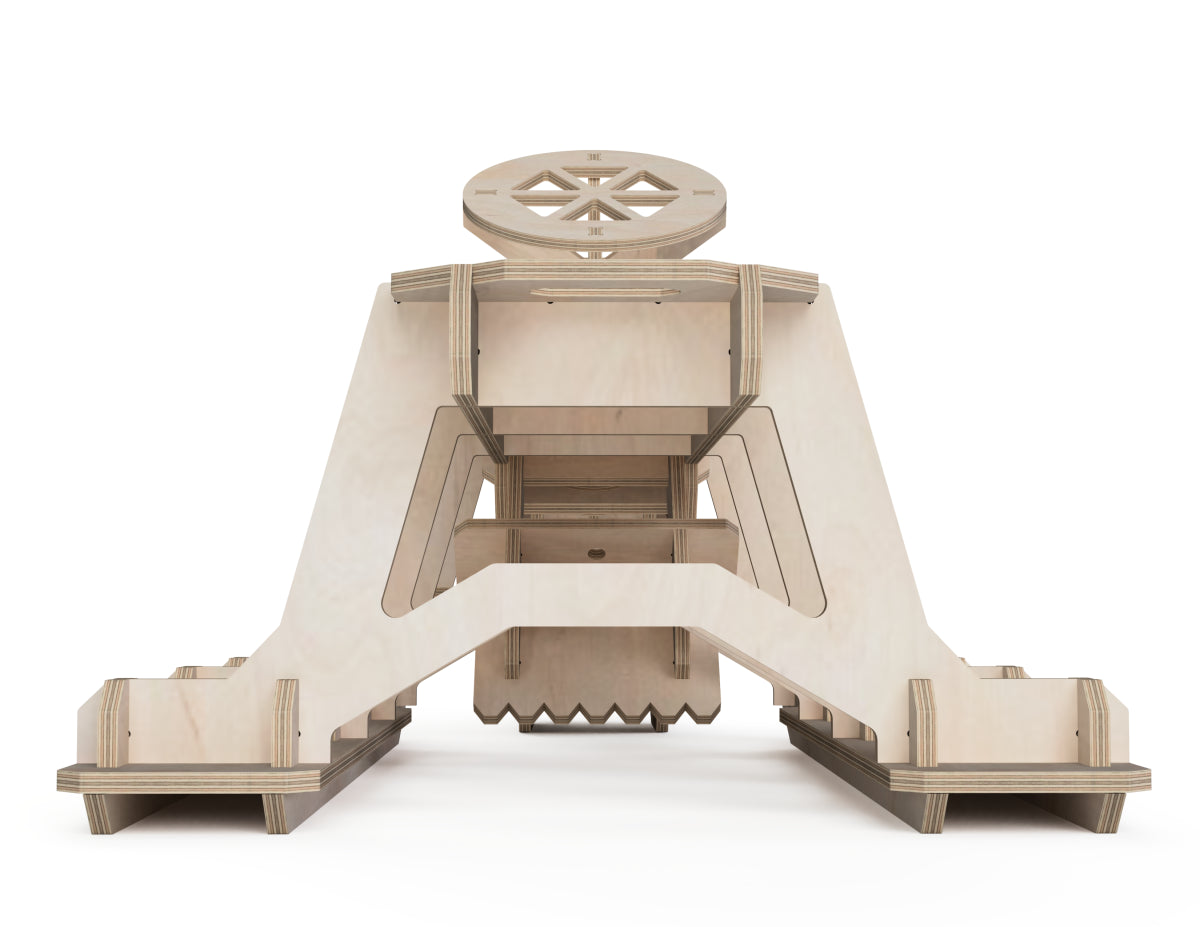

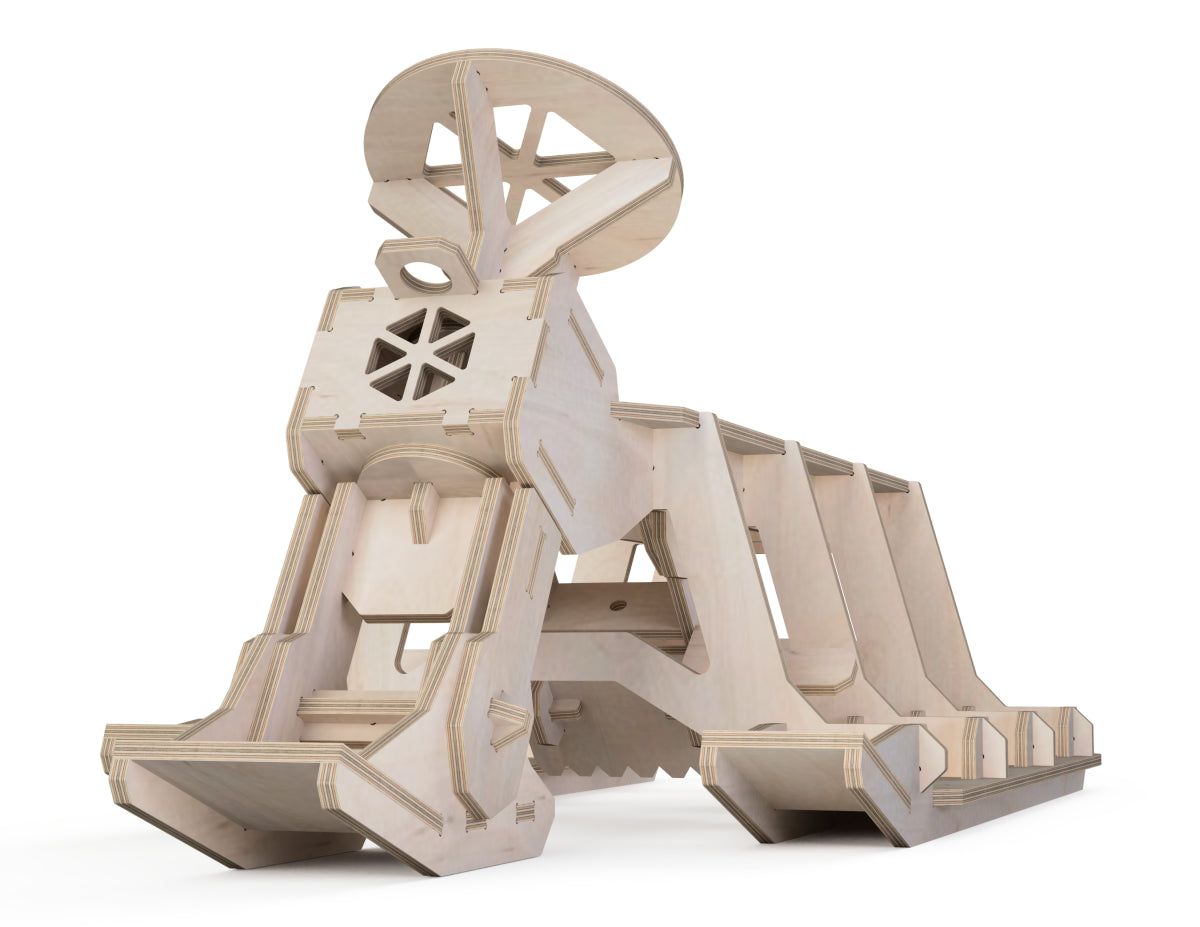

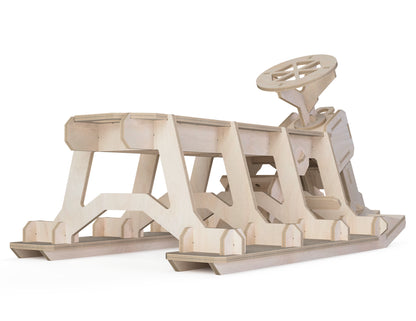

Winter is amazing when your child has a sled - preferably with a fully functional steering wheel and braking system. Did you know S.L.E.D. is also an acronym for School, Laughter, Endurance, and D vitamin? These are four areas that benefit greatly from sledding.

The design can be cut on 600 x 900 mm (2 x 3 ft) CNC router and bigger.

After completing the order, you will receive DXF files with component layout adjusted to different CNC sizes:

600 x 900 (2 x 3 ft)

900 x 1200 (3 x 4 ft)

1200 x 1200 (4 x 4 ft)
1200 x 2400 (4 x 8 ft)

*The files are adjusted to fit both metric and imperial standards for materials and tools

Dimensions:

470 mm (hight) x 1030 mm (length) x 500 mm (width)

18-1/2(hight) x 40-35/64 (length) x 19-11/16 (width)

Required materials:

For 600 x 900 (2 x 3 ft) CNC

• 4 sheets of 600 x 900 x 9 mm (23-⅝ x 35-7/16 x 3/8 inches) plywood
• 4 mm (1/8 inch) router bit for dogbones
• Rubber band or tension coil spring (for brakes)

For 900 x 1200 (3 x 4 ft) CNC

• 2 sheets of 900 x 1200 x 9 mm (35-7/16 x 47-¼ x 3/8 inches) plywood
• 4 mm (1/8 inch) router bit for dogbones
• Rubber band or tension coil spring (for brakes)

For 1200 x 1200 (4 x 4 ft) CNC and bigger

• 1 sheet of 1200 x 1200 x 9 mm (47-¼ x 47-¼ x 3/8 inches) plywood
• 1 sheet of 1000 x 400 x 9mm (39-3/8 x 15-3/4 x 3/8 inches) plywood
• 4 mm (1/8 inch) router bit for dogbones
• Rubber band or tension coil spring (for brakes)

For 1200 x 2400 (4 x 8 ft) CNC

• 1 sheet of 1220 x 1550 x 9 mm (48-1/32 x 61-1/32 x 3/8 inches) plywood
• 4 mm (1/8 inch) router bit for dogbones
• Rubber band or tension coil spring (for brakes)

Assembling time:

30 minutes

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file to your email within seconds.

Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.

The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
