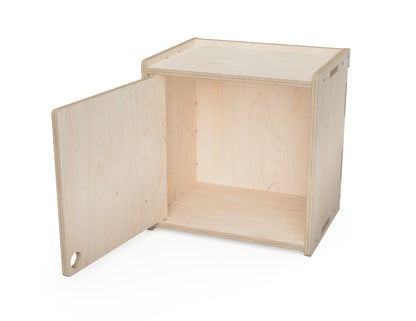

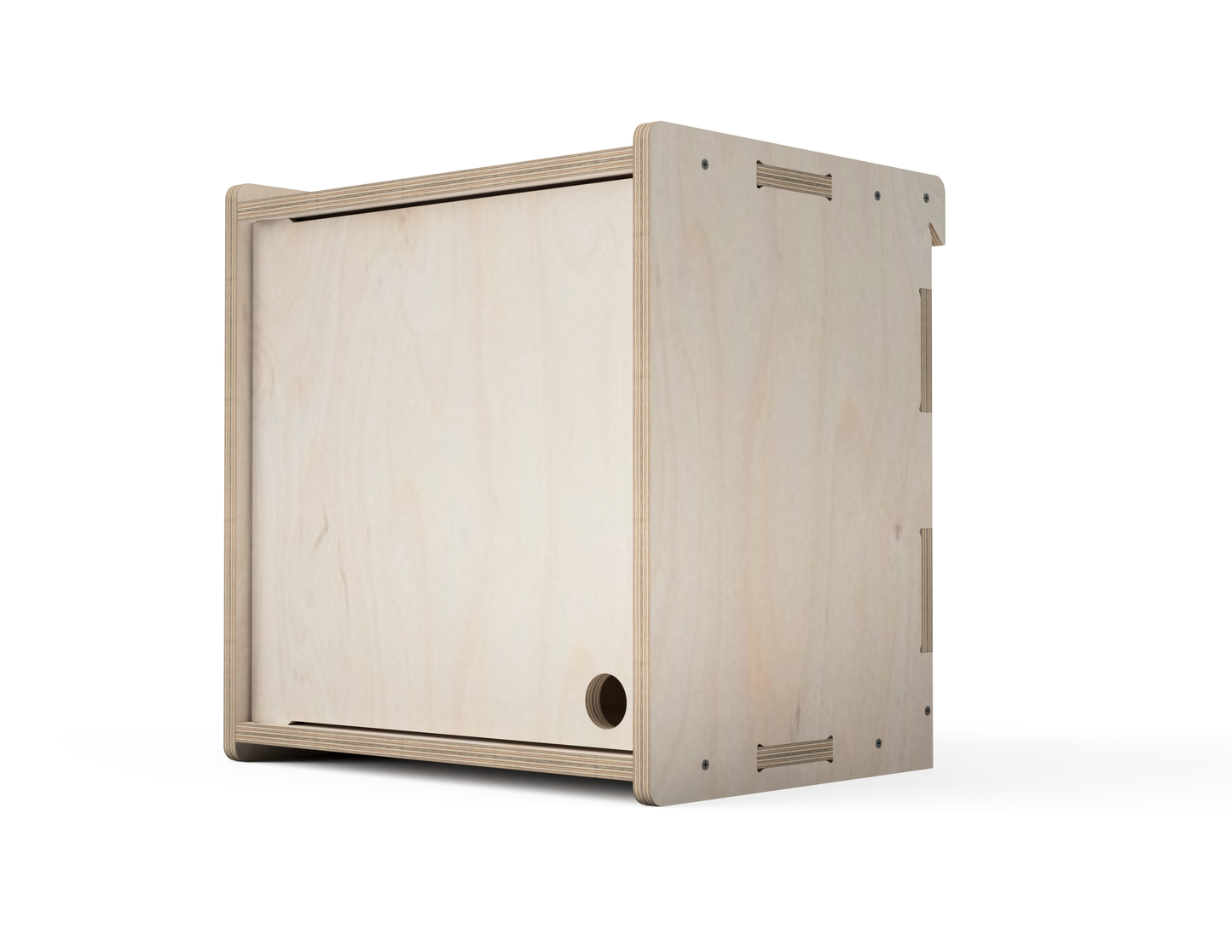

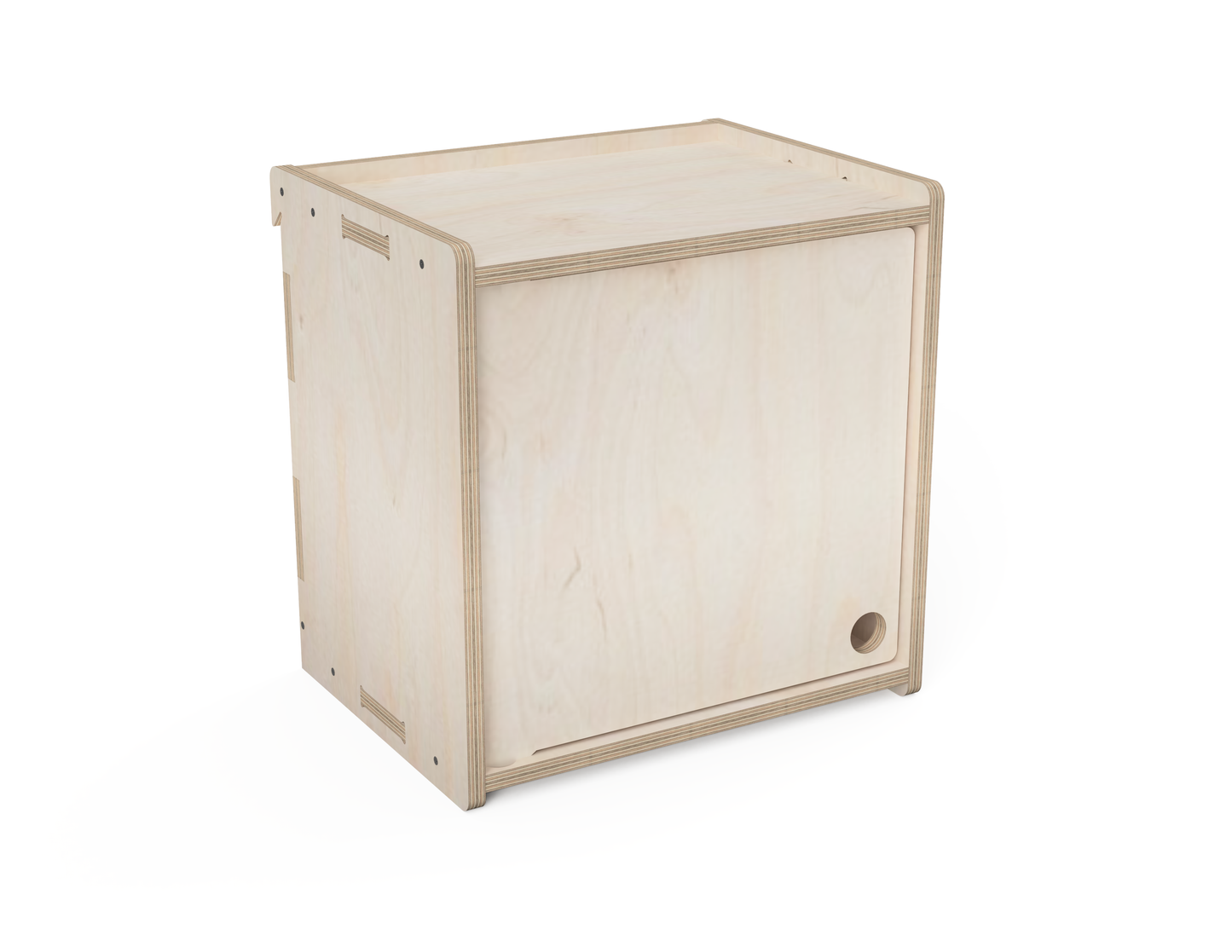

Create your ideal workshop storage solution with our Single Door Cabinet DXF Files.

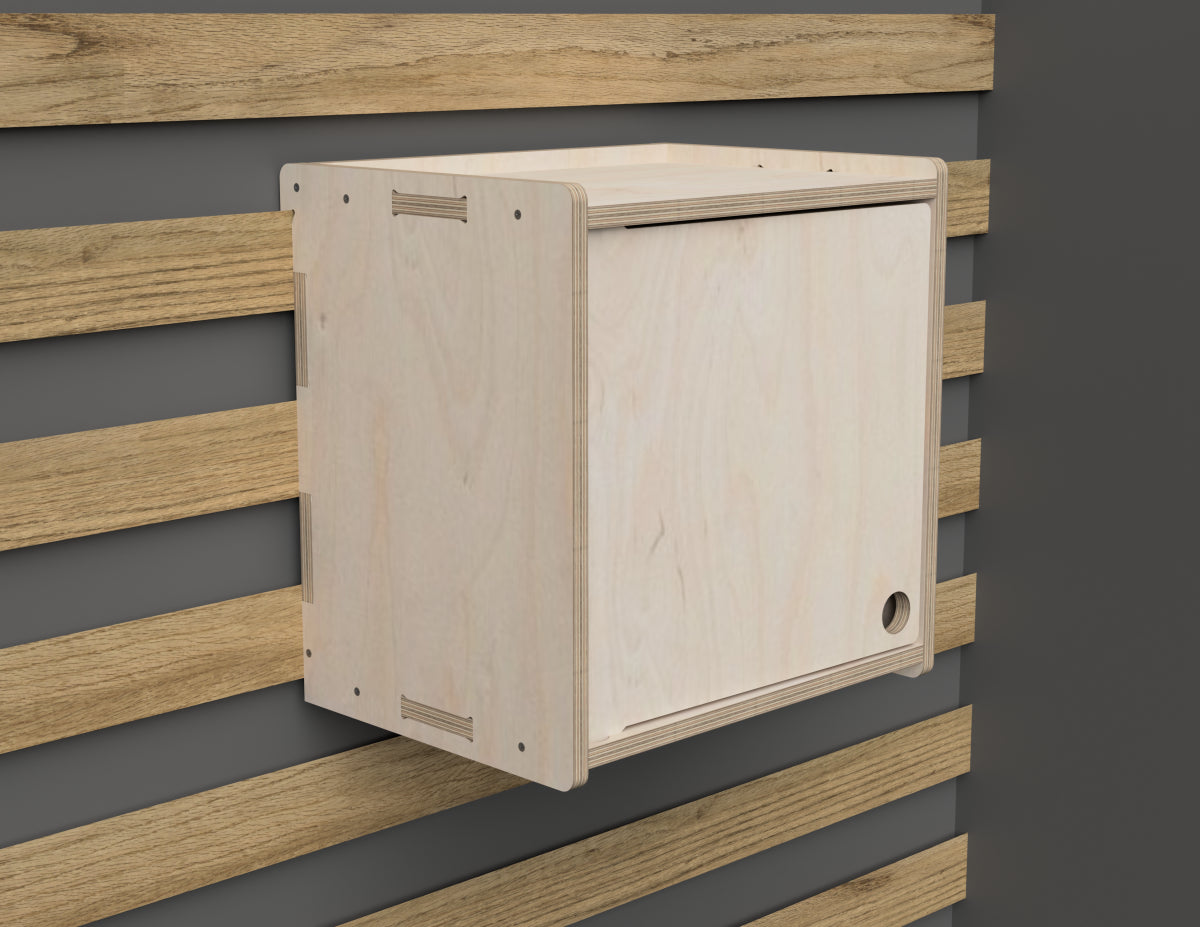

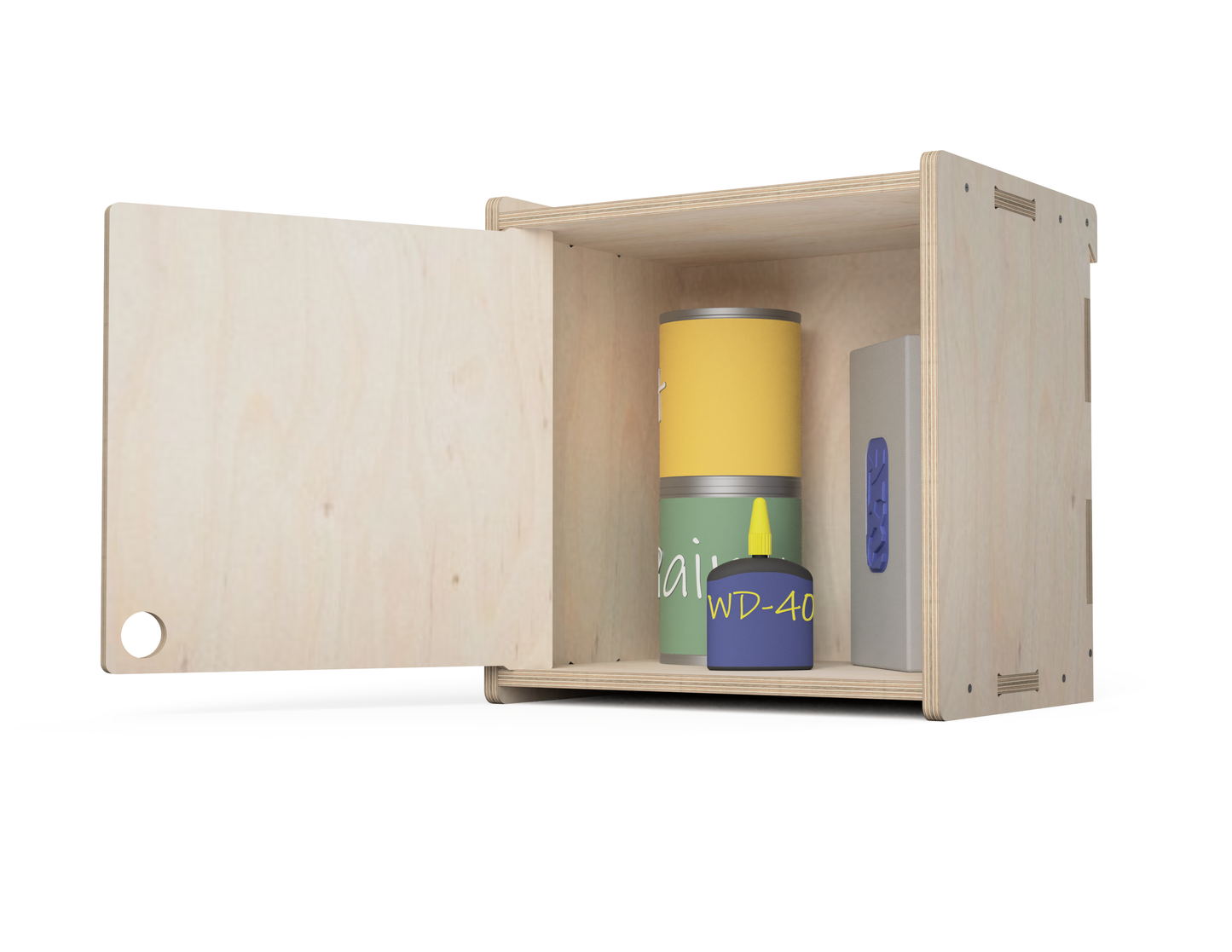

Designed for use with French Cleat walls (minimum cleat thickness: 12 mm), this CNC file set allows you to build a larger, durable storage cabinet perfect for organizing your tools, paint cans, and other essentials.

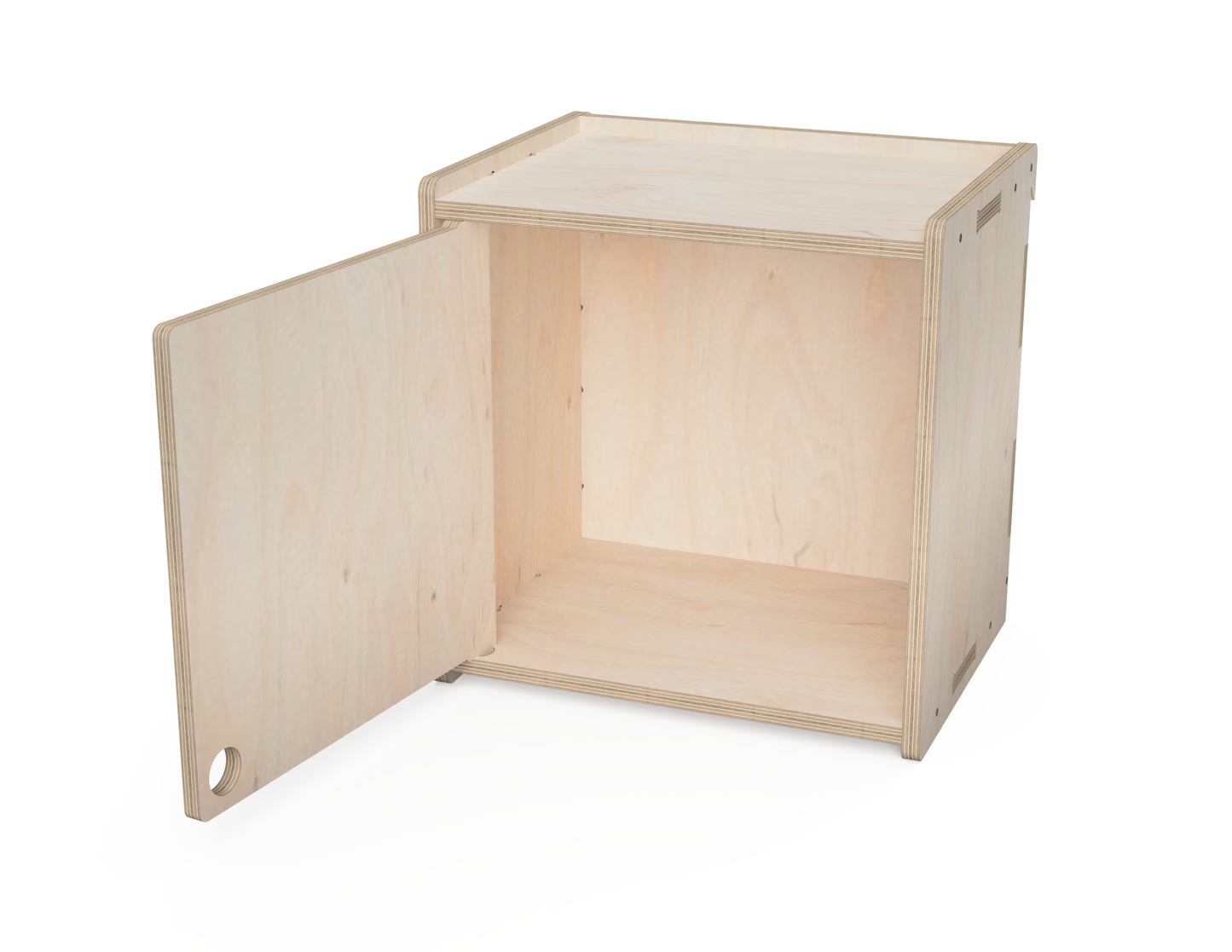

Featuring ample internal space, this cabinet provides a practical and stylish addition to any workspace.
Download the DXF files today and streamline your workshop with custom, DIY storage solutions!
Supported CNC sizes
Supported CNC sizes
Max single piece size
Max single piece size
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
| Width | Length | Height |
|---|---|---|
| 350 mm | 262 mm | 360 mm |
| 13¾ inch | 10⅜ inch | 14⅛ inch |
Required materials
Required materials
For a 600 x 900 mm (2 x 3 ft)
- 1 sheet of 750 x 600 x 12 mm (30 x 24 x 1/2 inches) plywood
- 1 sheet of 750 x 400 x 12 mm (30 x 16 x 1/2 inches) plywood
- 3 mm (1/8 inch) router bit
- 16 wood screws (optional)
For a 820 x 1220 mm (2.6 x 4 ft) CNC and bigger
- 1 sheet of 950 x 750 x 12 mm (38 x 30 x 1/2 inches) plywood
- 3 mm (1/8 inch) router bit
- 16 wood screws (optional)
Approximate CNC time
Approximate CNC time
Assembling time
Assembling time
