Simple Star Knobs - DXF Files
Simple Star Knobs - DXF Files
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

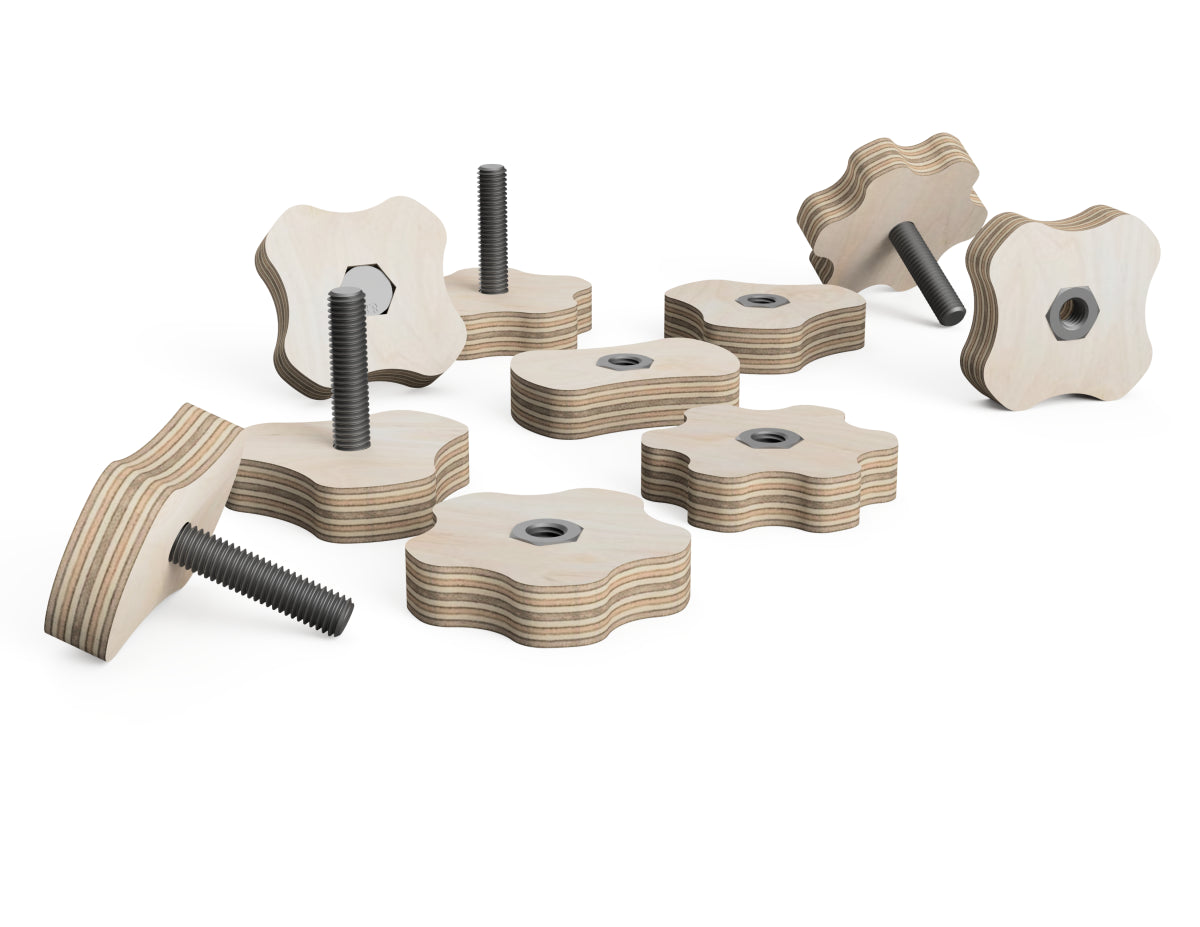

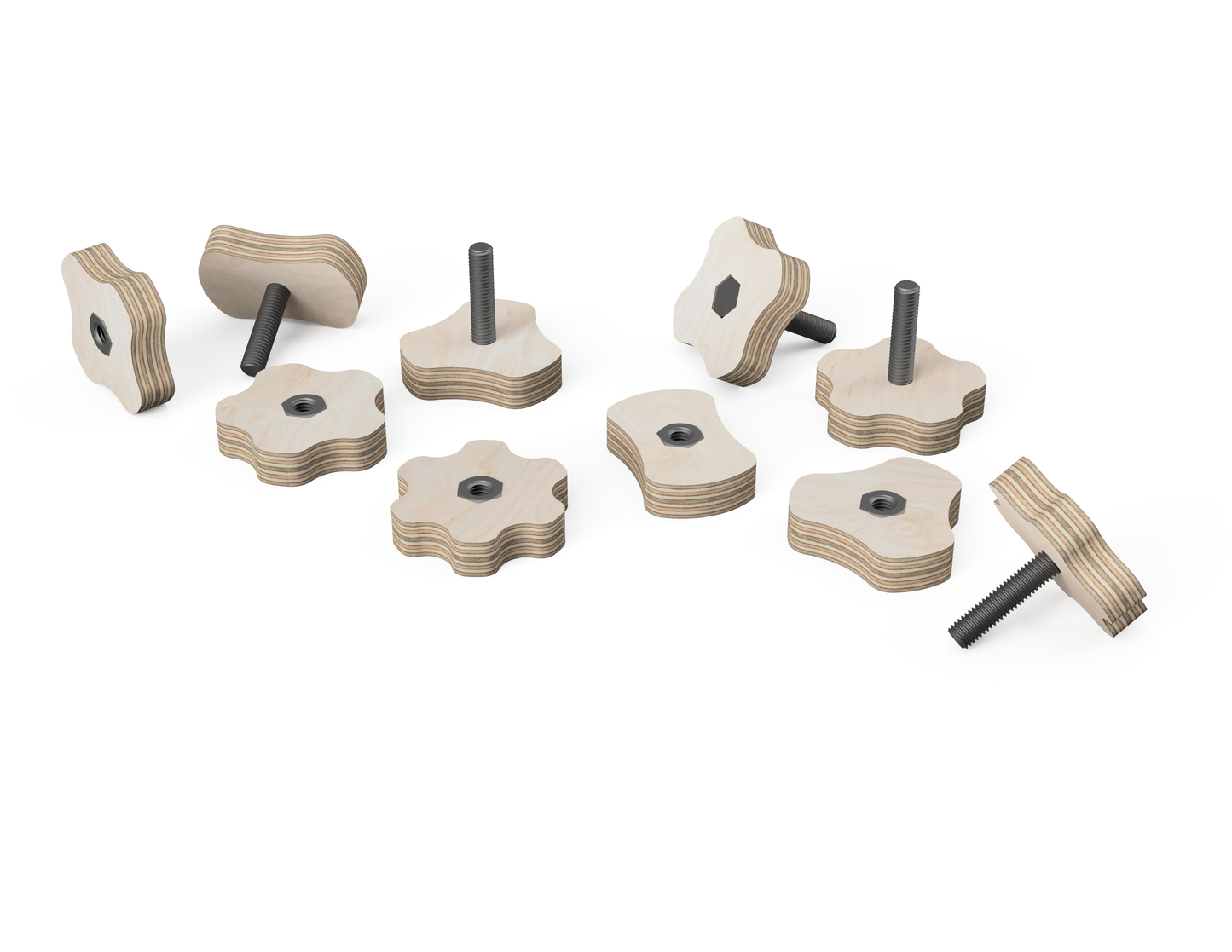

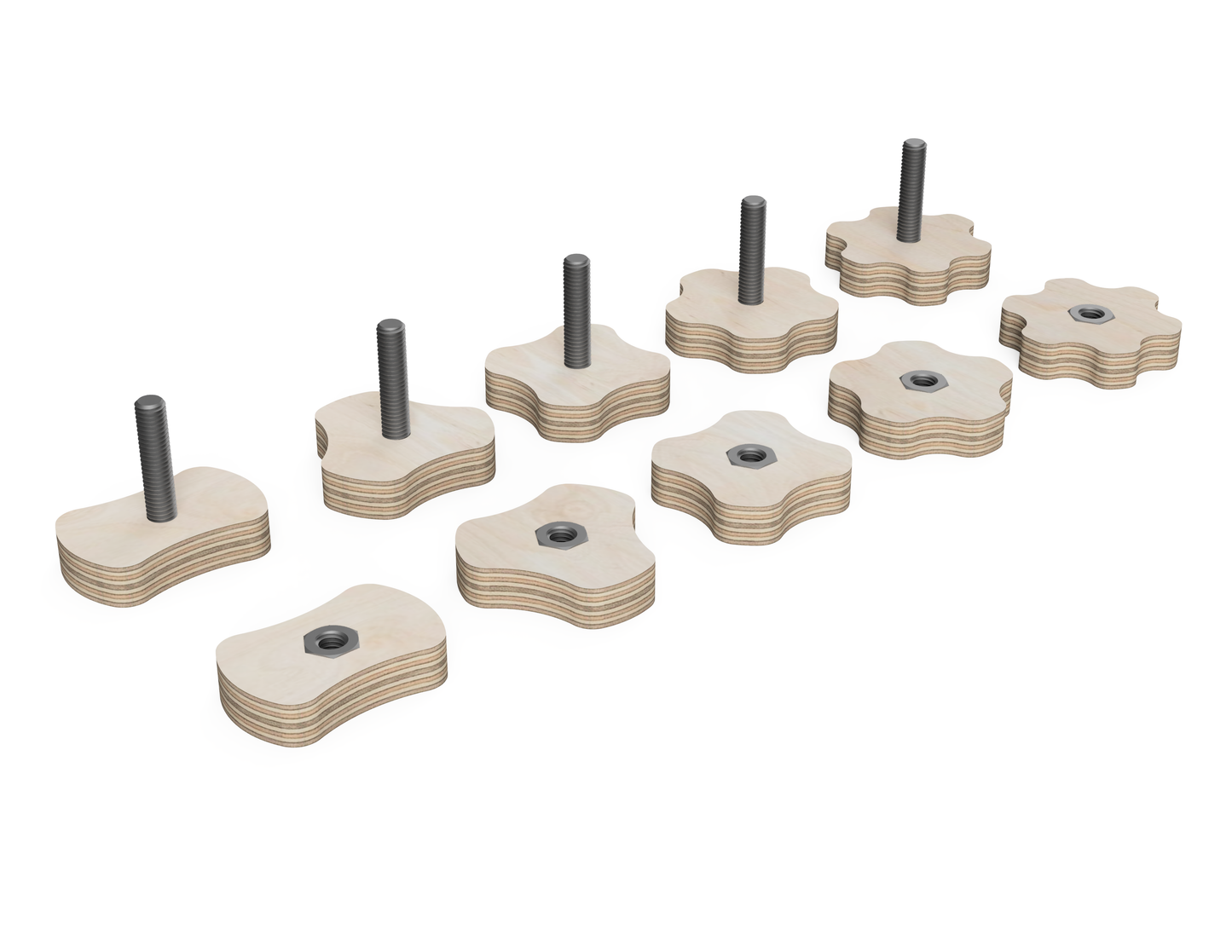

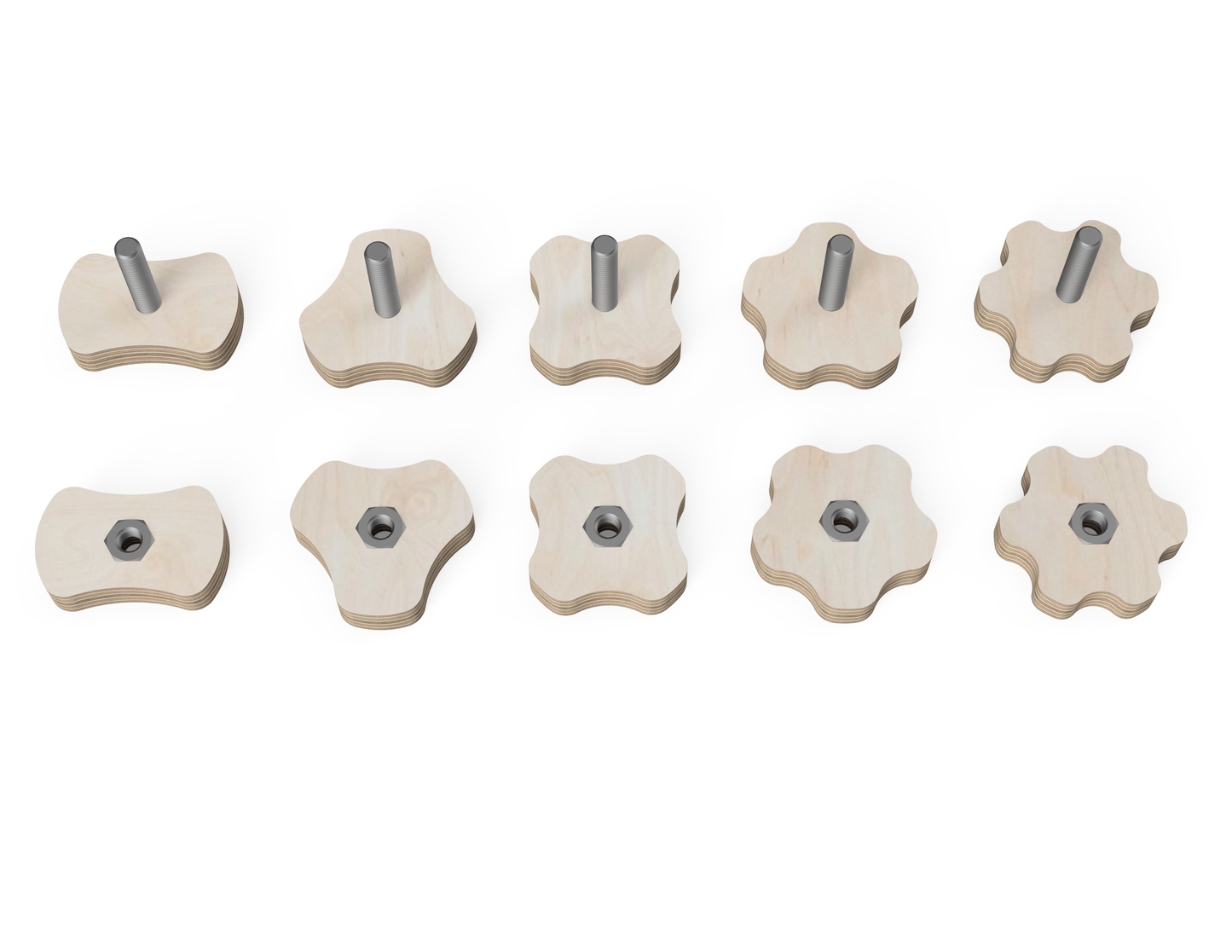

Upgrade your CNC projects with these Simple Star Knobs, a practical and stylish alternative to regular screws and nuts. This free DXF file set allows you to easily create ergonomic star-shaped knobs compatible with M6, M8, and M10 screws.
Simply insert the screw head or nut into the star knob - no wrenches are required! Enjoy quick and hassle-free adjustments.
*The files are adjusted to fit both metric and imperial standards for materials and tools
Supported CNC sizes
Supported CNC sizes
The project can be made on a
600 x 600 mm (2 x 2 ft) CNC
router and bigger.
Max single piece size
Max single piece size
The biggest component is
60
x
60
mm (2.36
x
2.36
inches).
So if it can fit on your CNC router, you can build this project
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
| Width | Length | Height |
|---|---|---|
| 60 mm | 60 mm | 15 mm |
| 2⅜ inch | 2⅜ inch | ⅝ inch |
Required materials
Required materials
- 1 sheet of 100 x 400 mm (4 x 12 inches) plywood
Approximate CNC time
Approximate CNC time
2 minutes
Assembling time
Assembling time
1 minute
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
