Simple Shelves - French Cleat Attachment - DXF Files
Simple Shelves - French Cleat Attachment - DXF Files
Couldn't load pickup availability

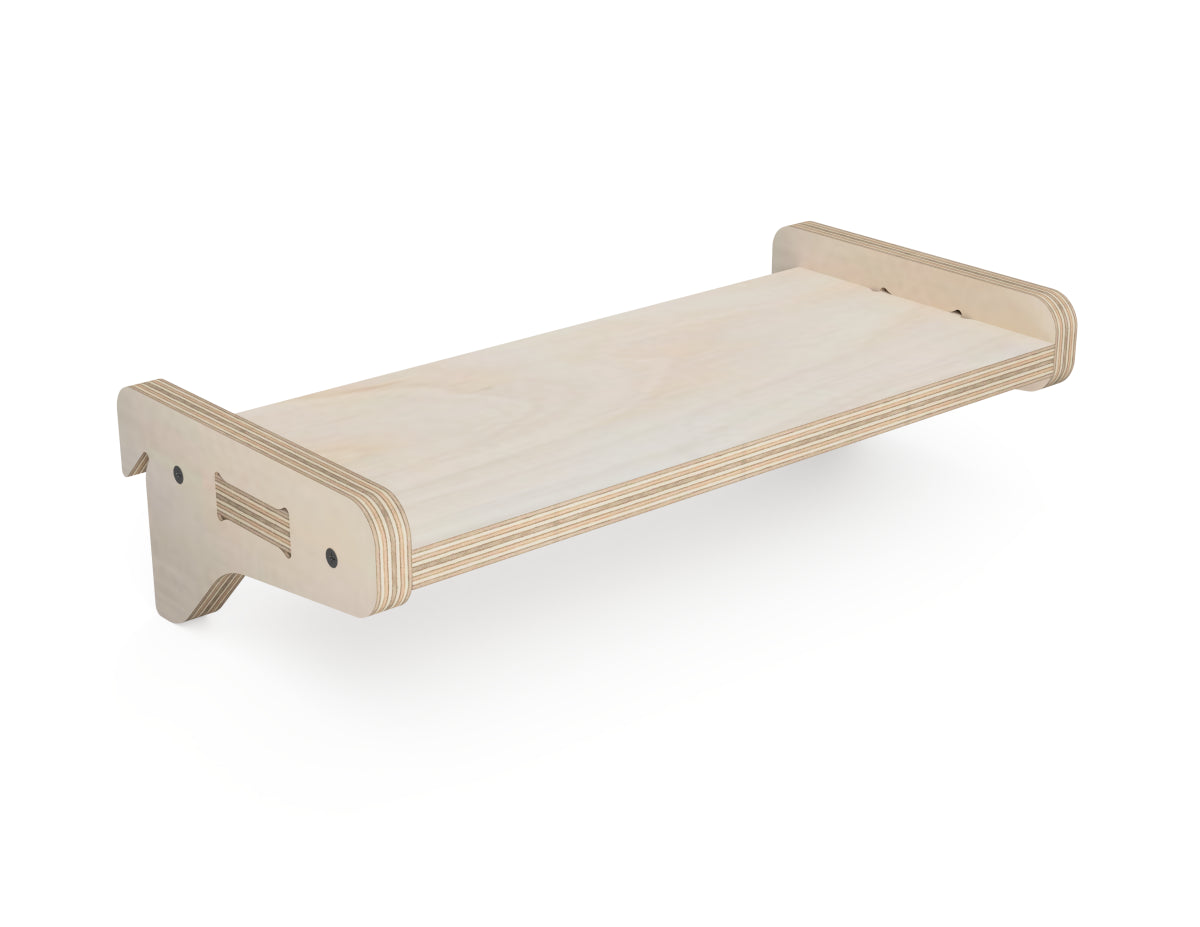

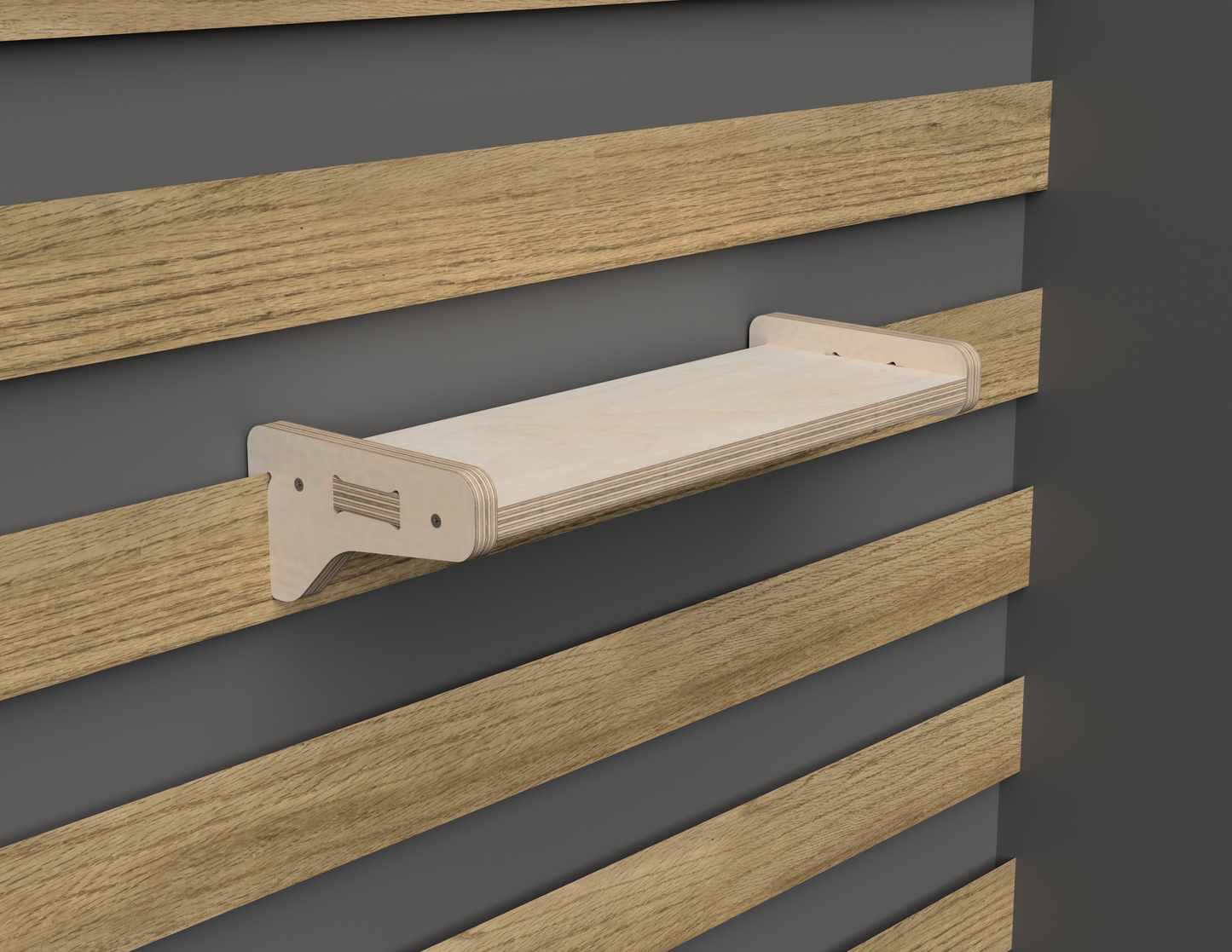

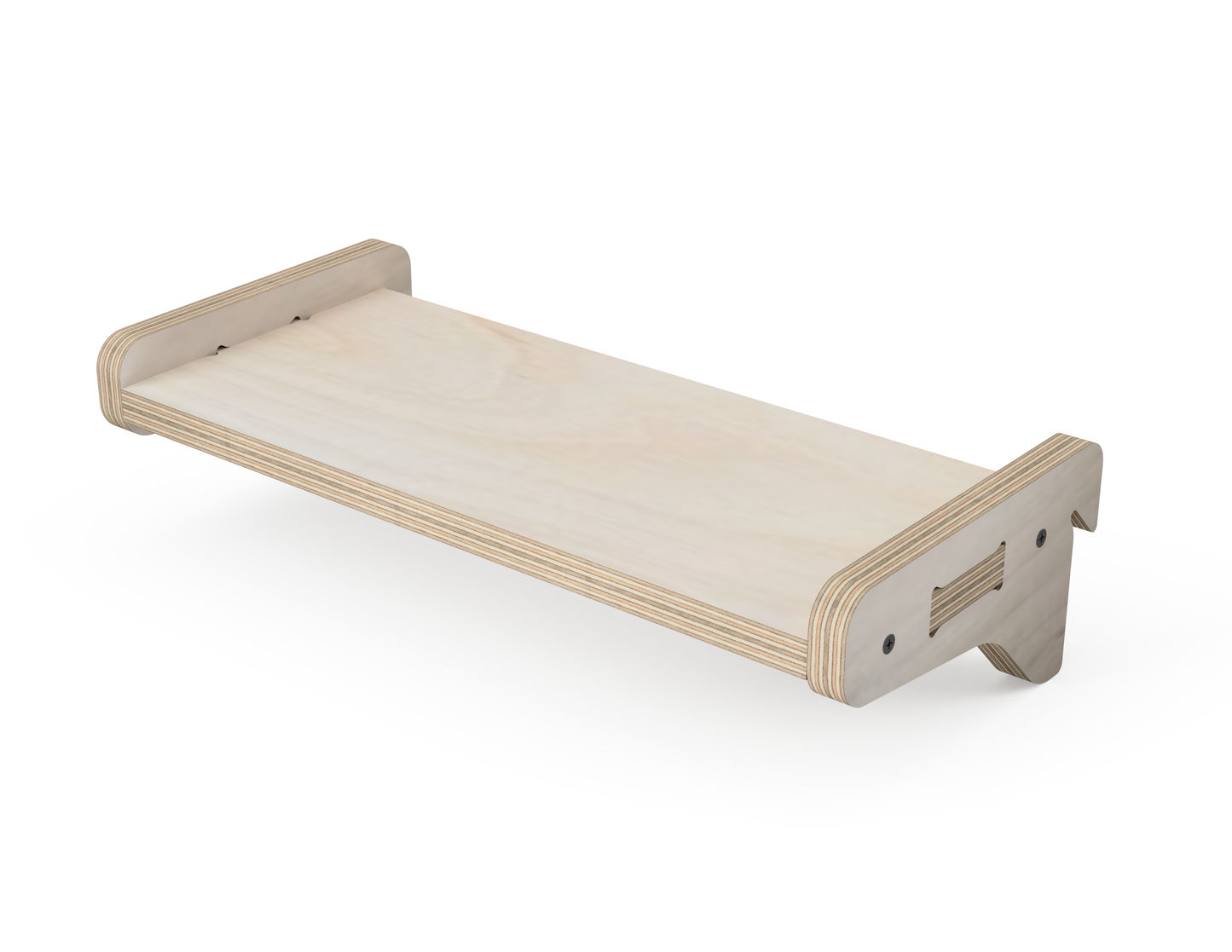

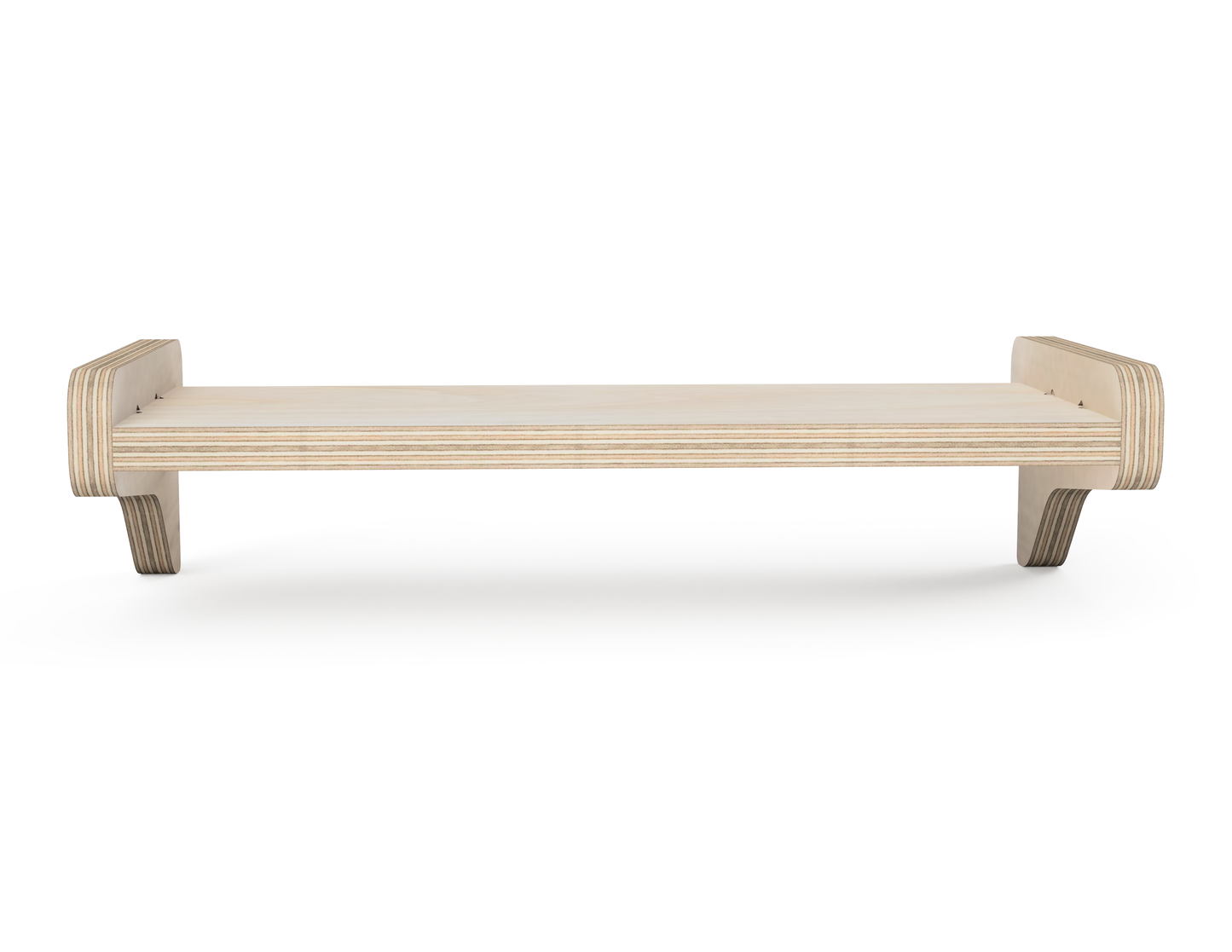

Transform your workspace with Simple Shelves - French Cleat Attachment DXF Files. These files are perfect for anyone with a CNC router (or access to one), enabling you to craft versatile shelves that attach securely to a French cleat wall.

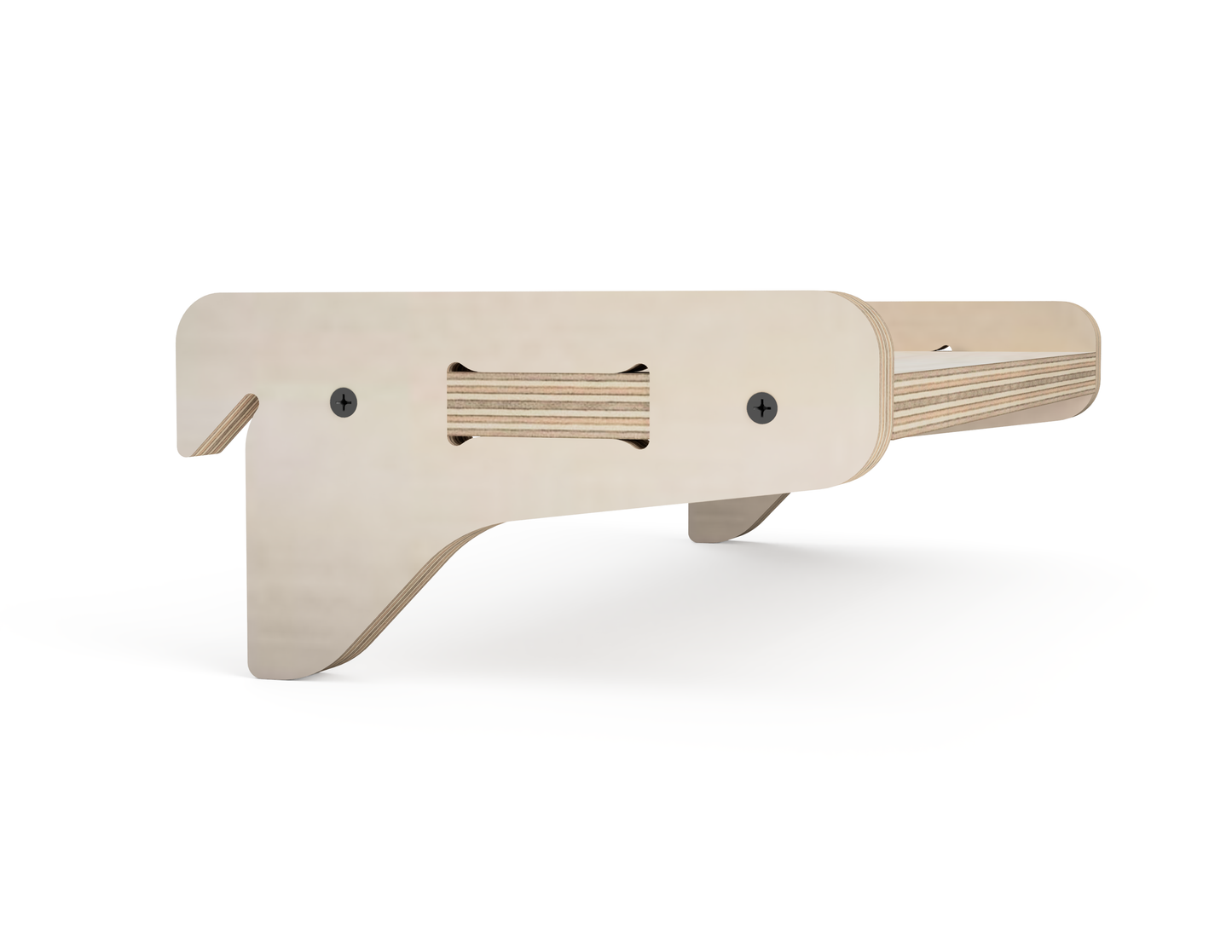

Designed for tool storage, paint cans, or easy-to-reach items, the package includes four different shelf sizes to suit your needs. Each shelf comes with built-in hooks to fit cleat walls with a minimum thickness of 12mm.
Streamline your organization and boost productivity with this easy-to-make storage solution. Download now and upgrade your workshop setup.
Supported CNC sizes
Supported CNC sizes
Max single piece size
Max single piece size
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
Minimum
| Width | Length | Height |
|---|---|---|
| 200 mm | 125 mm | 75 mm |
| 7⅞ inch | 4⅞ inch | 2 inch |
Maximum
| Width | Length | Height |
|---|---|---|
| 350 mm | 125 mm | 75 mm |
| 13¾ inch | 4⅞ inch | 2 inch |
Required materials
Required materials
For a 600 x 900 mm (2 x 3 ft) CNC and bigger
- 1 sheet of 550 x 200 x 12 mm (22 x 8 x 1/2 inches) plywood
- 3 mm (1/8 inch) router bit
- 4 wood screws (optional)
Approximate CNC time
Approximate CNC time
Assembling time
Assembling time
