Simple Pinball Table DXF Files

Simple Pinball Table DXF Files

Regular price $19.95 USD
Regular price $0.00 USD Sale price $19.95 USD
Sale Sold out
Tax included.

Playing a pinball game never gets boring. However, if you get tired of the game-field layout, you can easily adjust it.

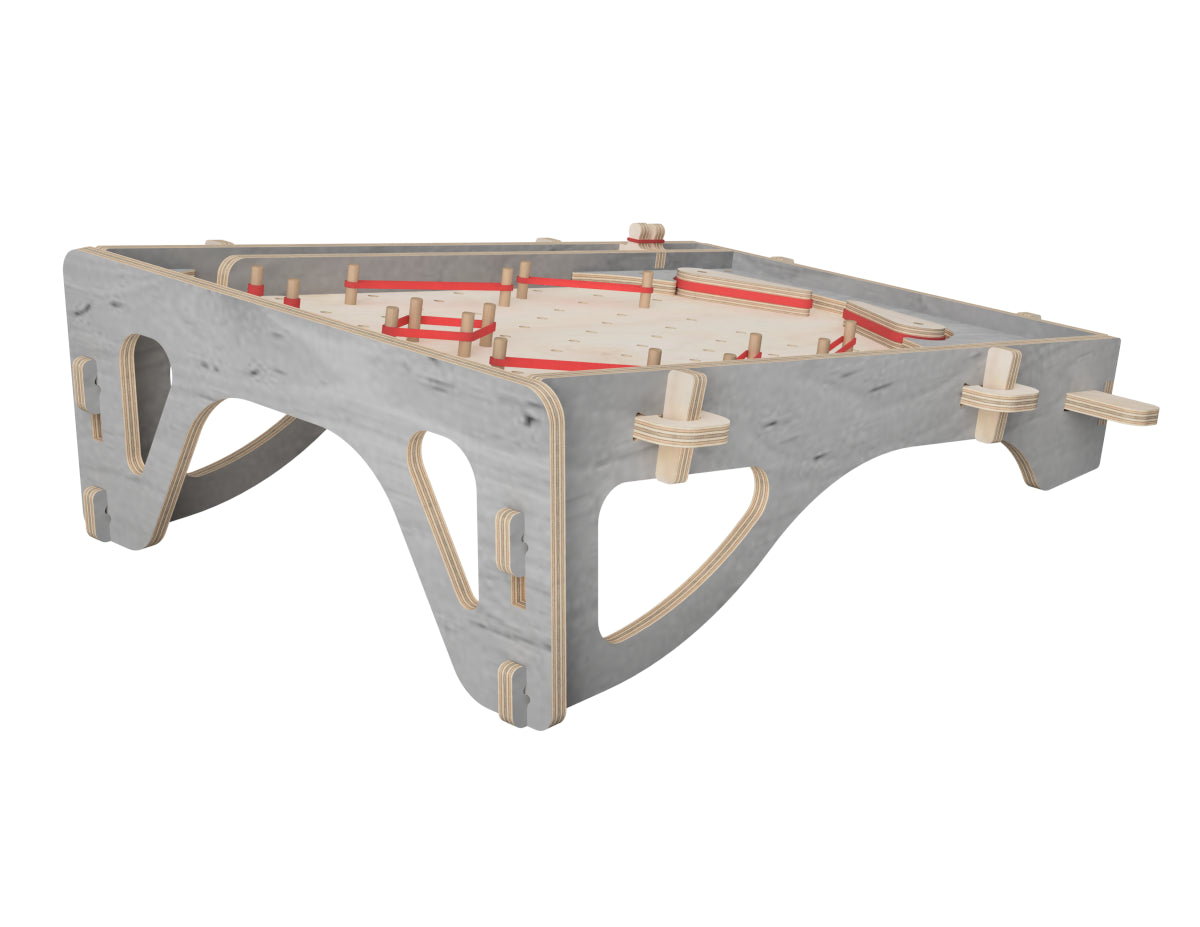

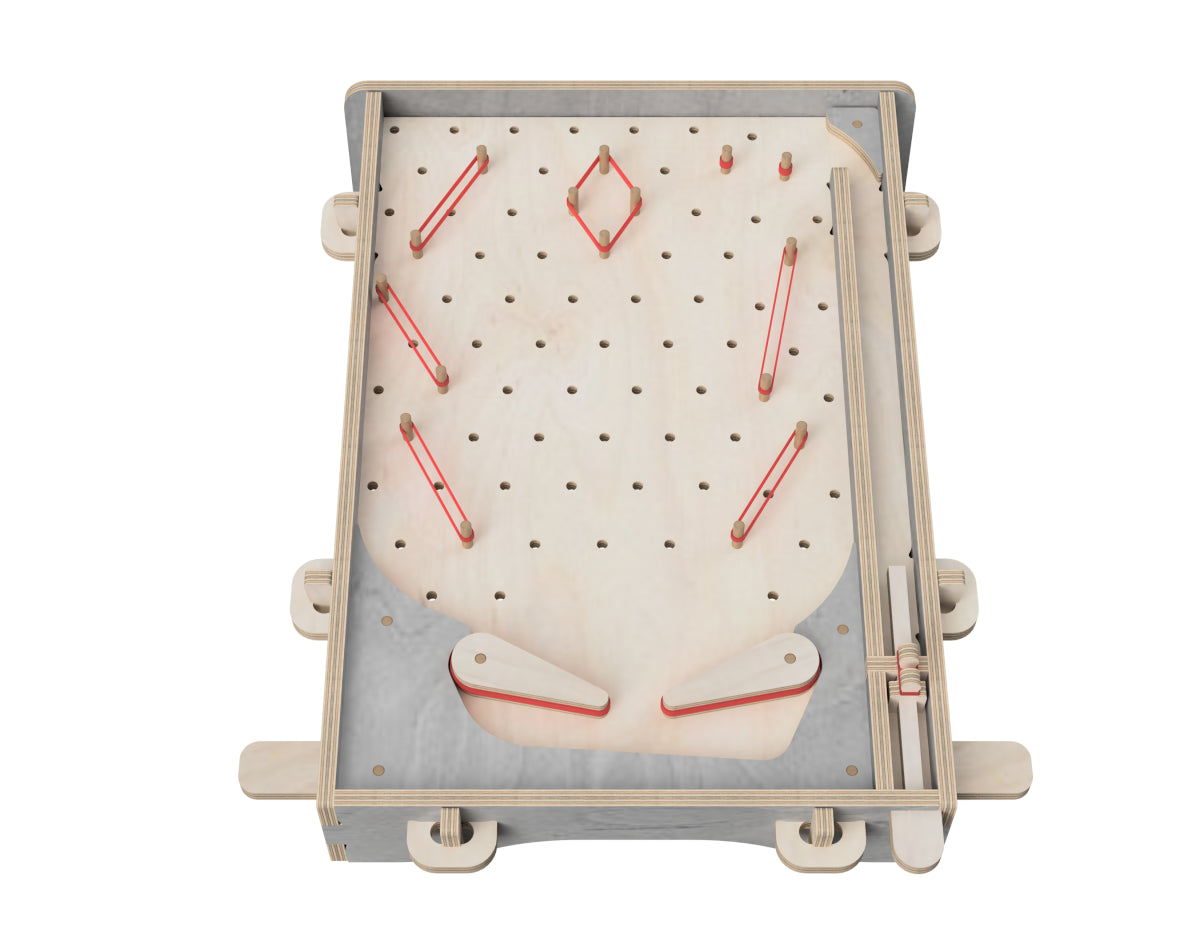

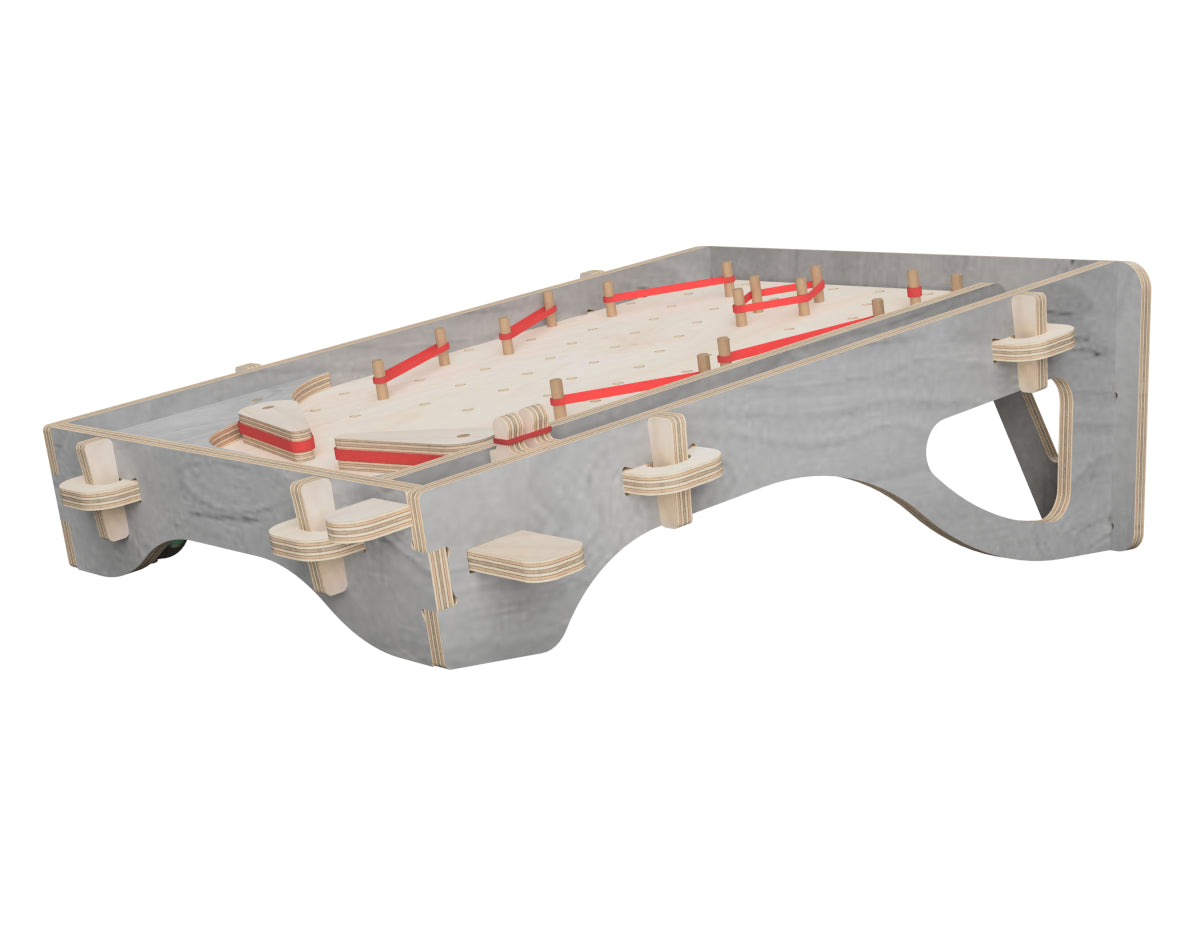

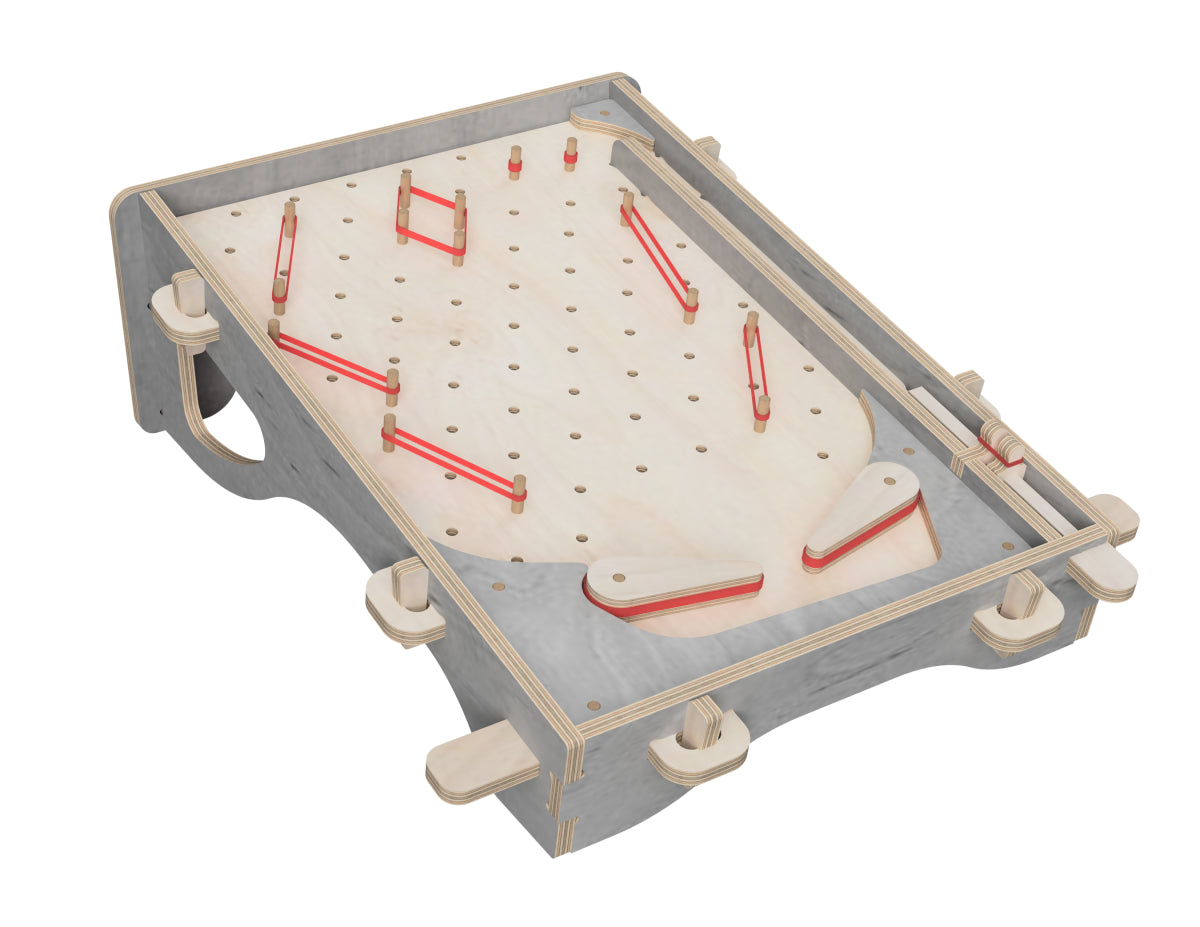

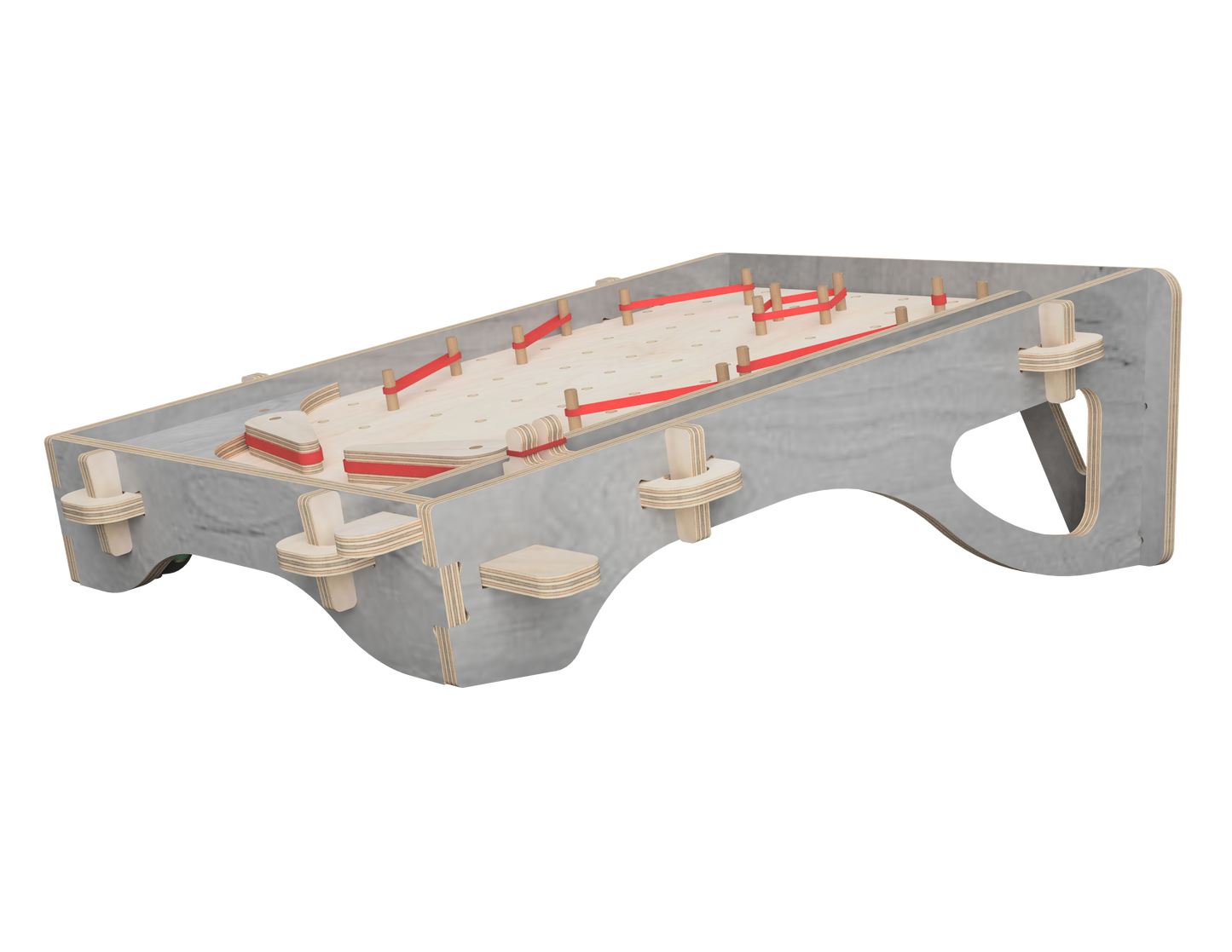

This small and simple pinball table has a base panel with dowel holes, which means you can rearrange pop bumpers and other game features in hundreds of different ways.

The best thing is, using Extension Modules, you can join 2 to 6 pinball tables together and create a multiplayer game.

The design can be cut on a 600 x 900 mm (3 x 4 ft) CNC router and bigger.

(The biggest component is 485 x 370 mm (19 x 14.5 inches). So if it can fit on your CNC router, you can build this project)

*The files are adjusted to fit both metric and imperial standards for materials and tools


155 mm (height) x 485 mm (length) x 370 mm (width)

6.1 inches (height) x 19 inches (length) x 14.5 inches (width)

Required materials:

  • 1 sheet of 900 x 600 x 9 mm (35.5 x 23.5 x 0.375 inches) plywood
  • 1 sheet of 150 x 150 x 15 mm (6 x 6 x 0.625 inches) plywood
  • 3 mm (1/8 inch) router bit
  • 50 dowels (6 mm ⌀ - 0.25 inches ⌀)
  • Rubber bands

Assembling time:

30 minutes

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.



If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise thickness to We will send you the updated DXF design file for free.

The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
