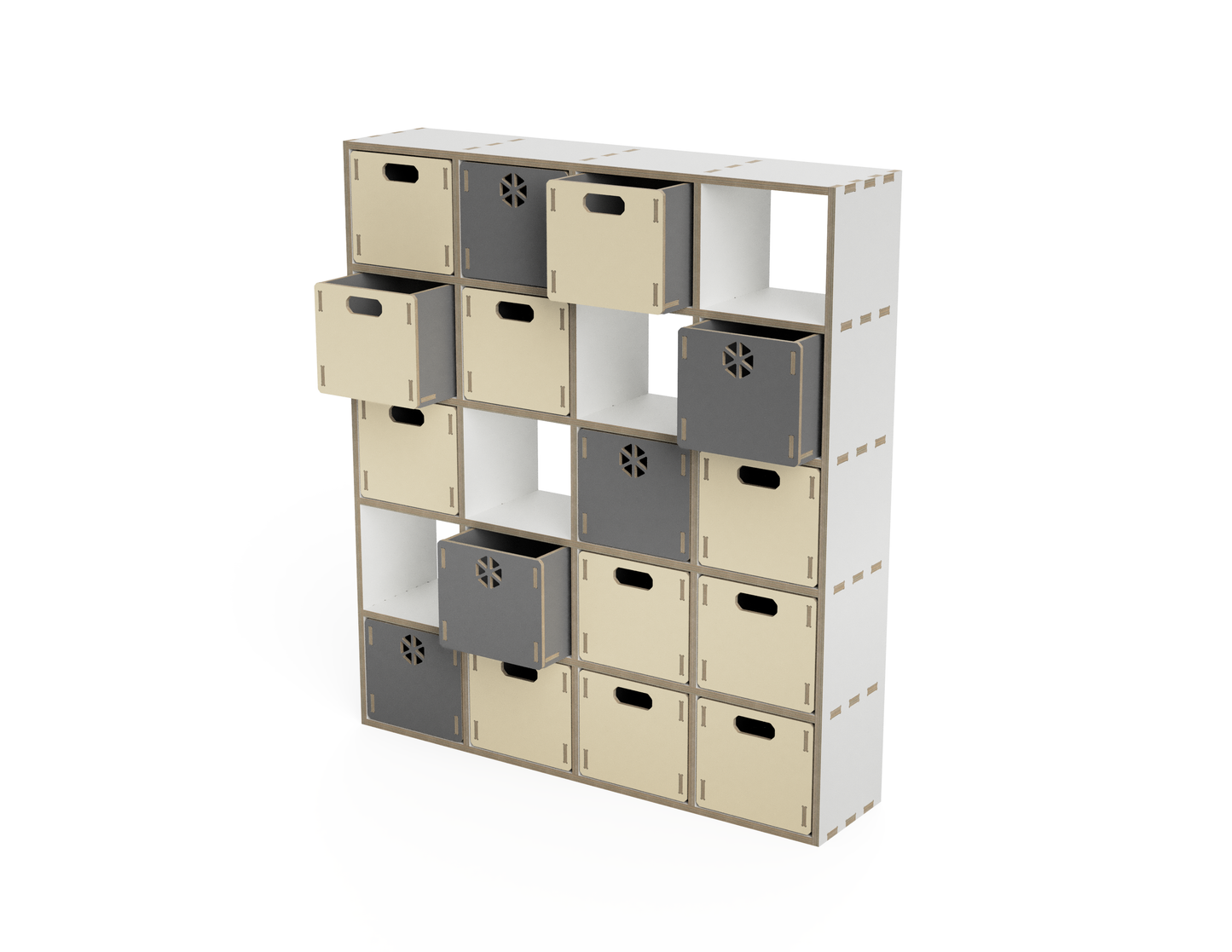

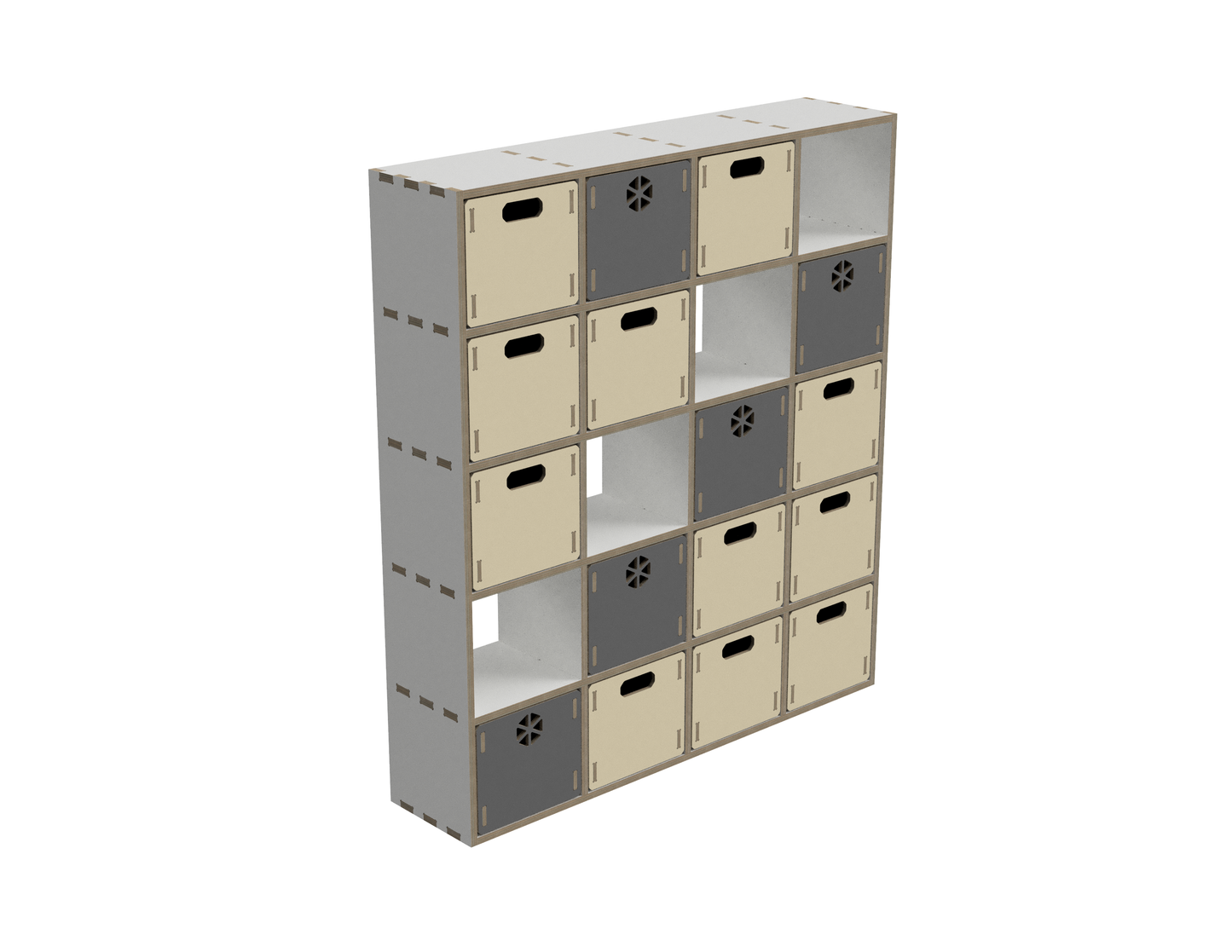

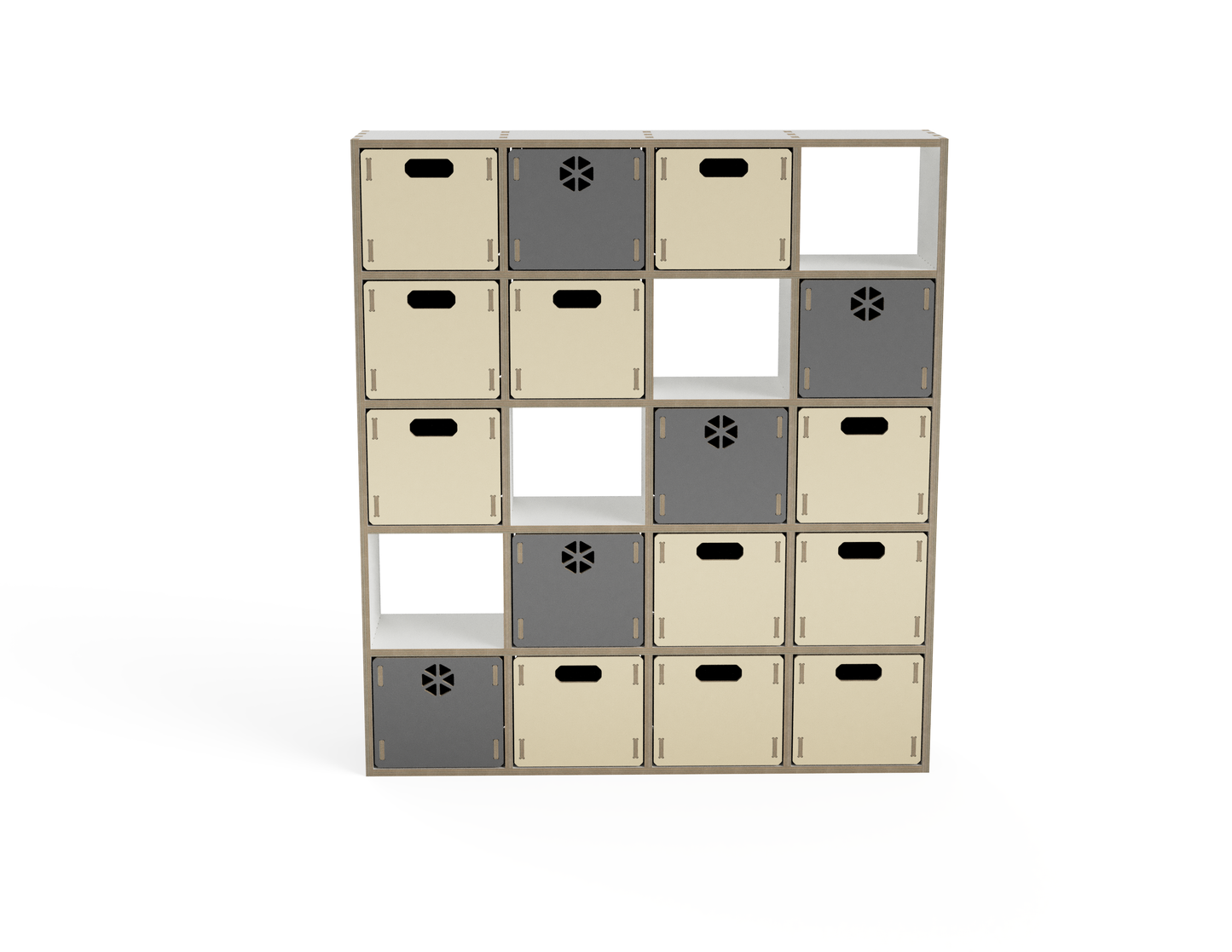

Want to store your valuables in style? 16 drawers will give you plenty of space to store your items. And 4 open shelves will serve as a display for your picture frames, travel souvenirs, or dequers for your house guests to admire.

The design can be cut on 900 x 1200 (3 x 4 ft) CNC router and bigger.


After completing the order, you will receive DXF files with component layout adjusted to different CNC sizes:

900 x 1200 (3 x 4 ft)

1200 x 1200 (4 x 4 ft)
1200 x 2440 (4 x 8 ft)


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions:

1200 mm (hight) x 1100 mm (length) x 250 mm (width)

47-1/4 (height) x 43-5/16 (length) x 9-27/32 (width)


Required materials:

For 900 x 1200 (3 x 4 ft) CNC

  • 5 sheets of 800 x 1200 x 9 mm (31-1/2 x 47-¼ x 3/8 inches) plywood
  • 1 sheet of 250 x 980 x 9 mm (9-27/32 x 38-37/64 x 3/8 inches) plywood
  • 4 sheets of 800 x 1200 x 15 mm (31-1/2 x 47-1/4 x 5/8 inches) plywood
  • 4 mm (⅜ inch) router bit
  • 6 mm (¼ inches) router

For 1200 x 1200 (4 x 4 ft) CNC

  • 4 sheets of 1070 x 1200 x 9 mm (42-1/8 x 47-1/4 x 3/8 inches) plywood
  • 3 sheets of 1070 x 1200 x 15 mm (42-1/8 x 47-1/4 x 5/8 inches) plywood
  • 4 mm (⅜ inch) router bit
  • 6 mm (¼ inches) router

For 1200 x 2440 (4 x 8 ft) CNC

  • 2 sheets of 1220 x 2440 x 9 mm (48-1/32 x 96-1/16 x 3/8 inches) plywood
  • 1 sheet of 1220 x 2440 x 15 mm (48-1/32 x 96-1/16 x 5/8 inches) plywood
  • 1 sheet of 550 x 1200 x 15 mm  (21-21/32 x 47-1/4 x 5/8 inches) plywood
  • 4 mm (⅜ inch) router bit
  • 6 mm (¼ inches) router

Assembling time:

55 minutes


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file to your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
