Scissor Jack DXF Files
Scissor Jack DXF Files
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

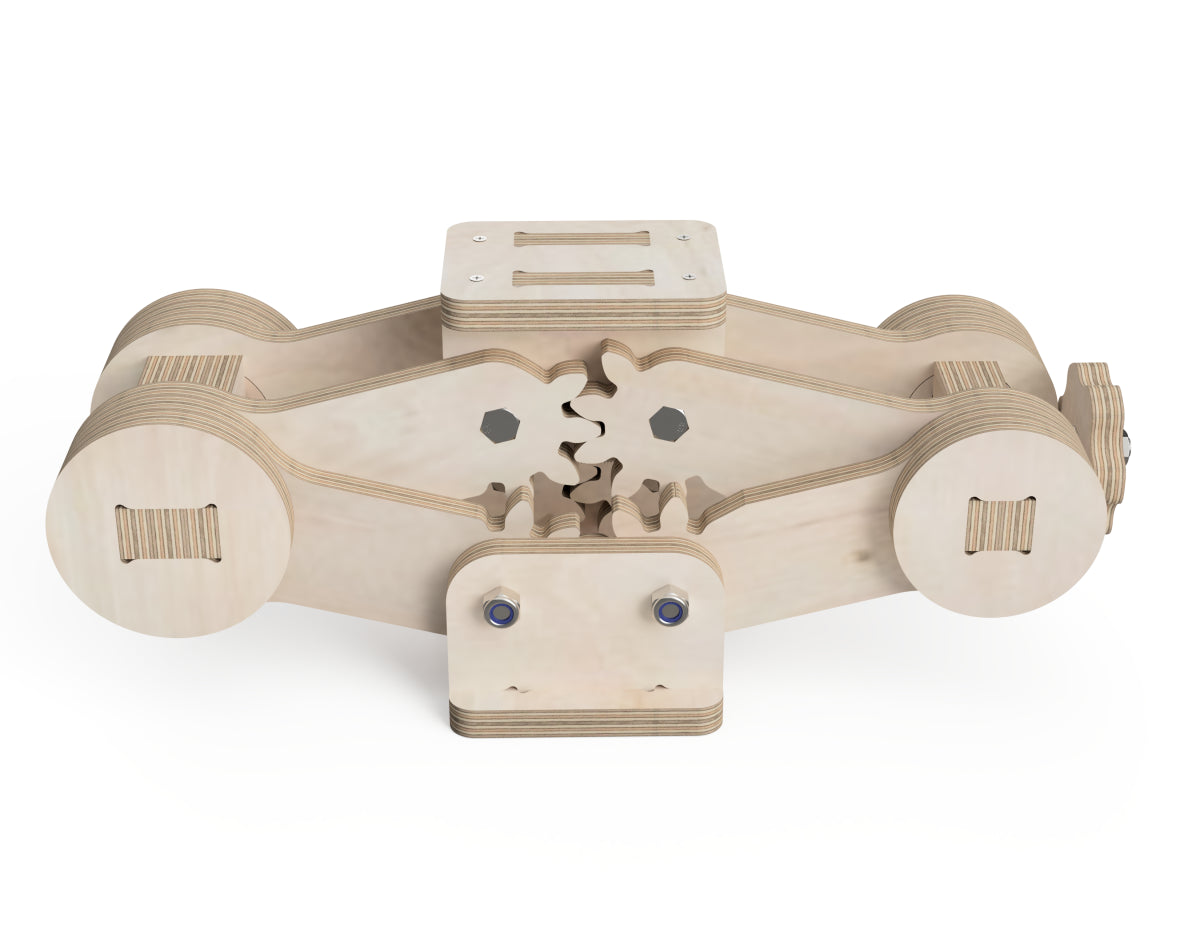

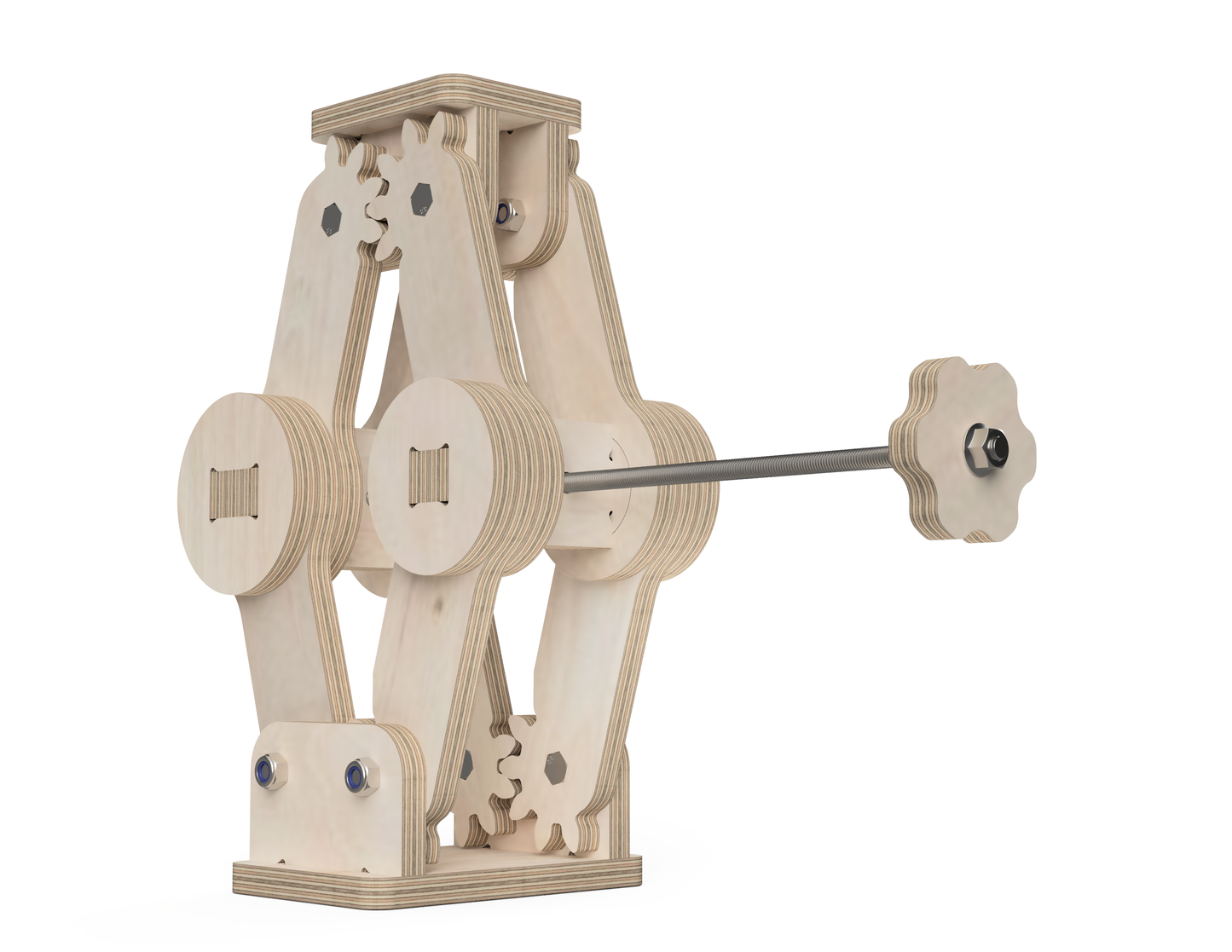

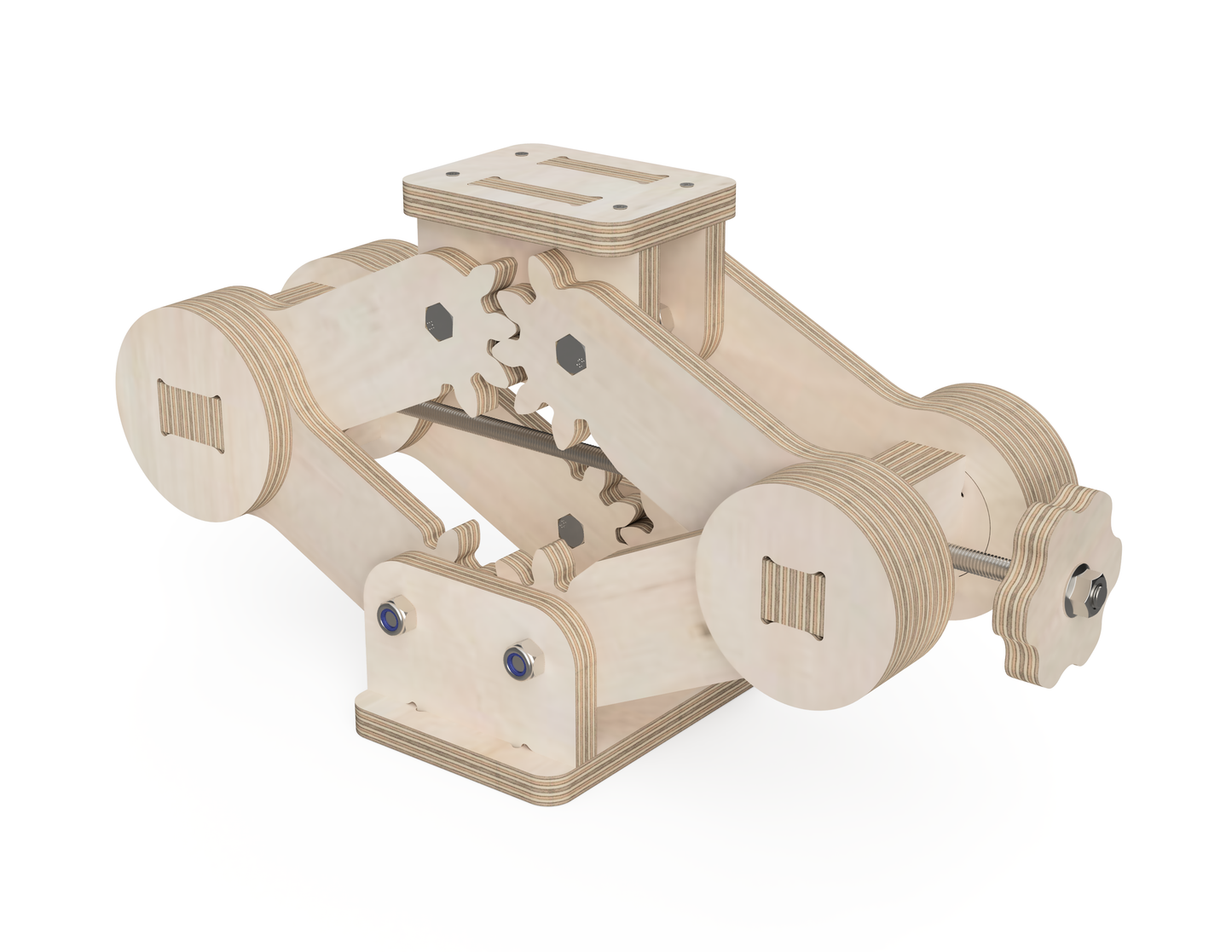

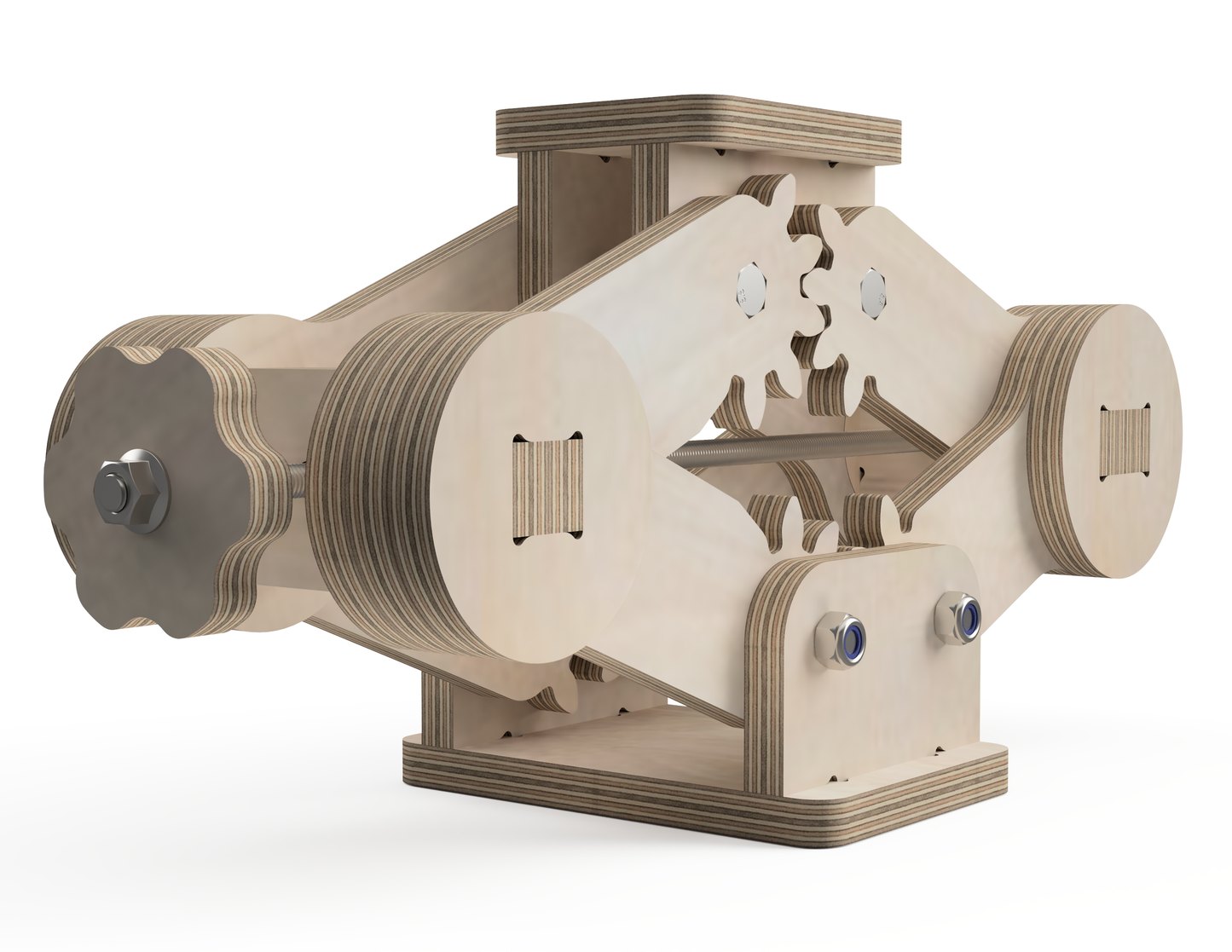

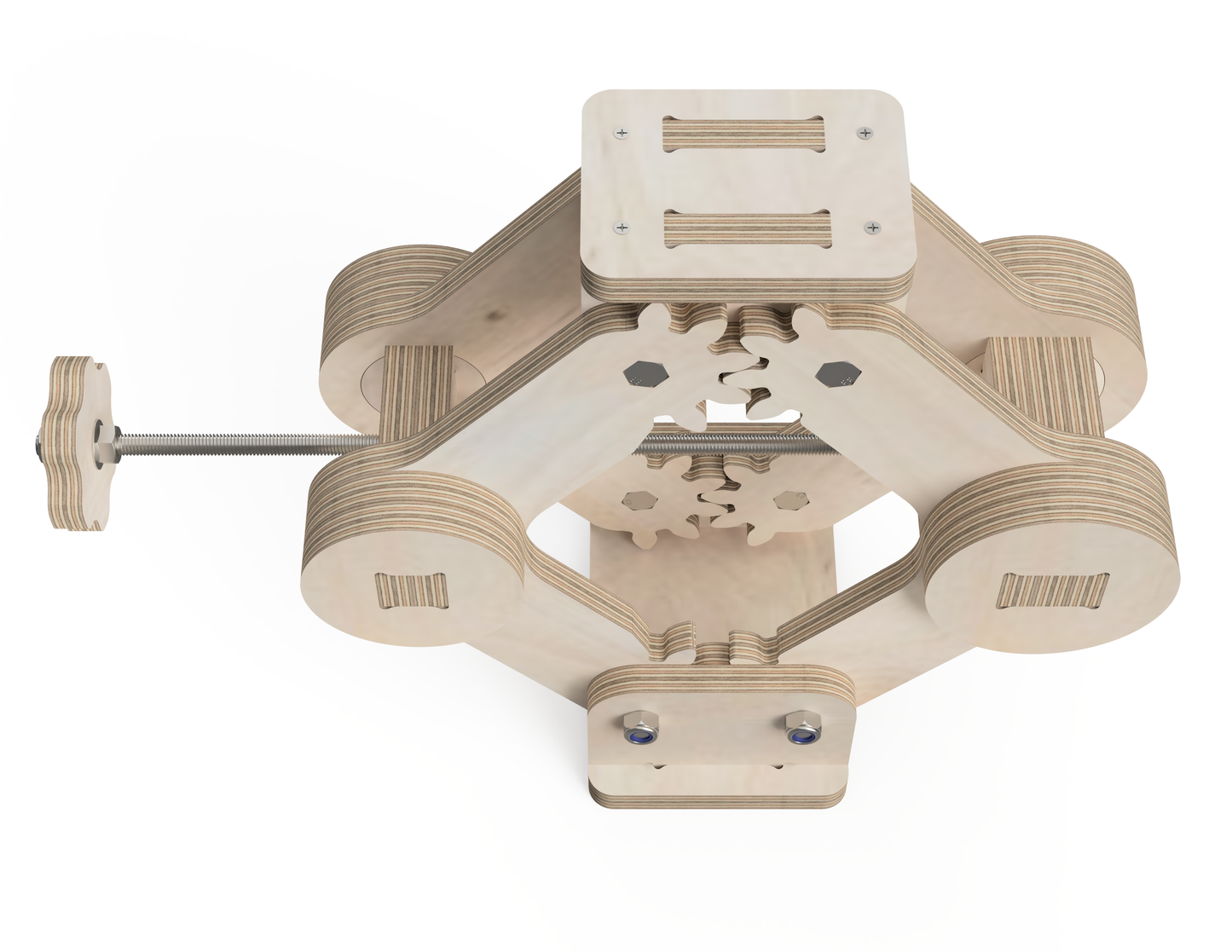

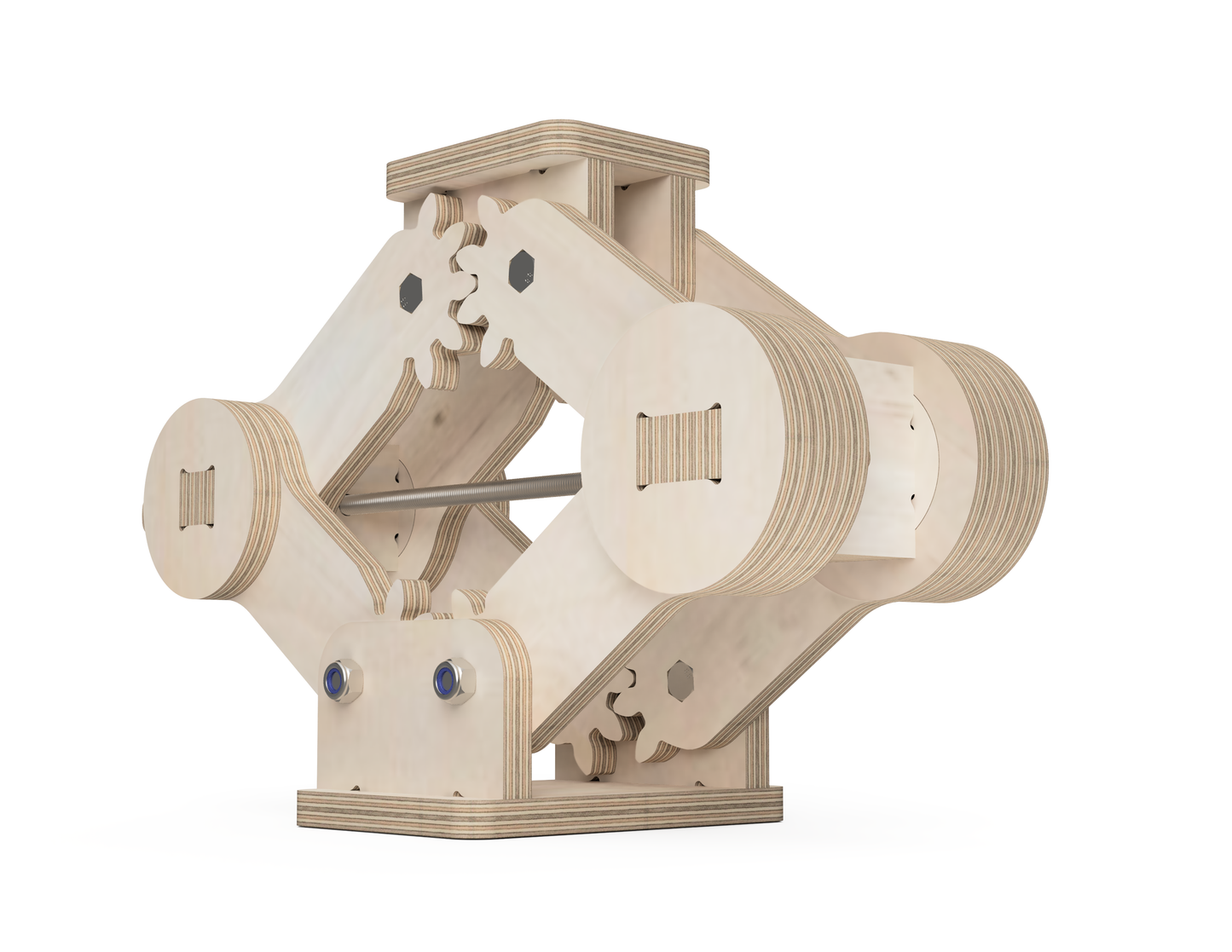

Elevate your CNC router game with our Scissor Car Jack DXF Files!
This innovative project is perfect for CNC enthusiasts looking to create a functional and stylish tool.
With a load capacity of 10 kilograms, this scissor car jack is specifically designed to simplify the adjustment of router bit height on your router table.
The detailed DXF files ensure precise cuts and a seamless assembly process. Ideal for those with access to a CNC router, this project combines practicality with a cool factor, making it a must-have addition to your workshop.
Download your Free Scissor Car Jack DXF Files today and enhance your workshop!
Supported CNC sizes
Supported CNC sizes
The project can be made on a
600 x 600 mm (2 x 2 ft) CNC
router and bigger.
Dimensions
Dimensions
Minimum
| Width | Length | Height |
|---|---|---|
| 400 mm | 150 mm | 160 mm |
| 15¾ inch | 5⅞ inch | 6¼ inch |
Maximum
| Width | Length | Height |
|---|---|---|
| 400 mm | 150 mm | 335 mm |
| 15¾ inch | 5⅞ inch | 13¼ inch |
Required materials
Required materials
For a 600 x 900 mm (2 x 3 ft) CNC and bigger
For a 600 x 900 mm (2 x 3 ft) CNC and bigger
- 1 sheets of 800 x 500 x 12 mm (36 x 22 x 1/2 inches) plywood
- 3 mm (1/8 inch) router bit
- M8 Flange nuts - 4 pieces
- M8 Lock nuts - 8 pieces
- M8 Screws - 25 mm (1-inch) long - 8 pieces
- M8 threaded rod - 500 mm (20-inches) long
- Wood screws - 25 mm (1-inch) long
Approximate CNC time
Approximate CNC time
1 hour
30 minutes
Assembling time
Assembling time
35 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
