Sawhorse DXF Files

Sawhorse DXF Files

$9.95 USD
$9.95 USD $9.95 USD
Sale Sold out
Taxes included.

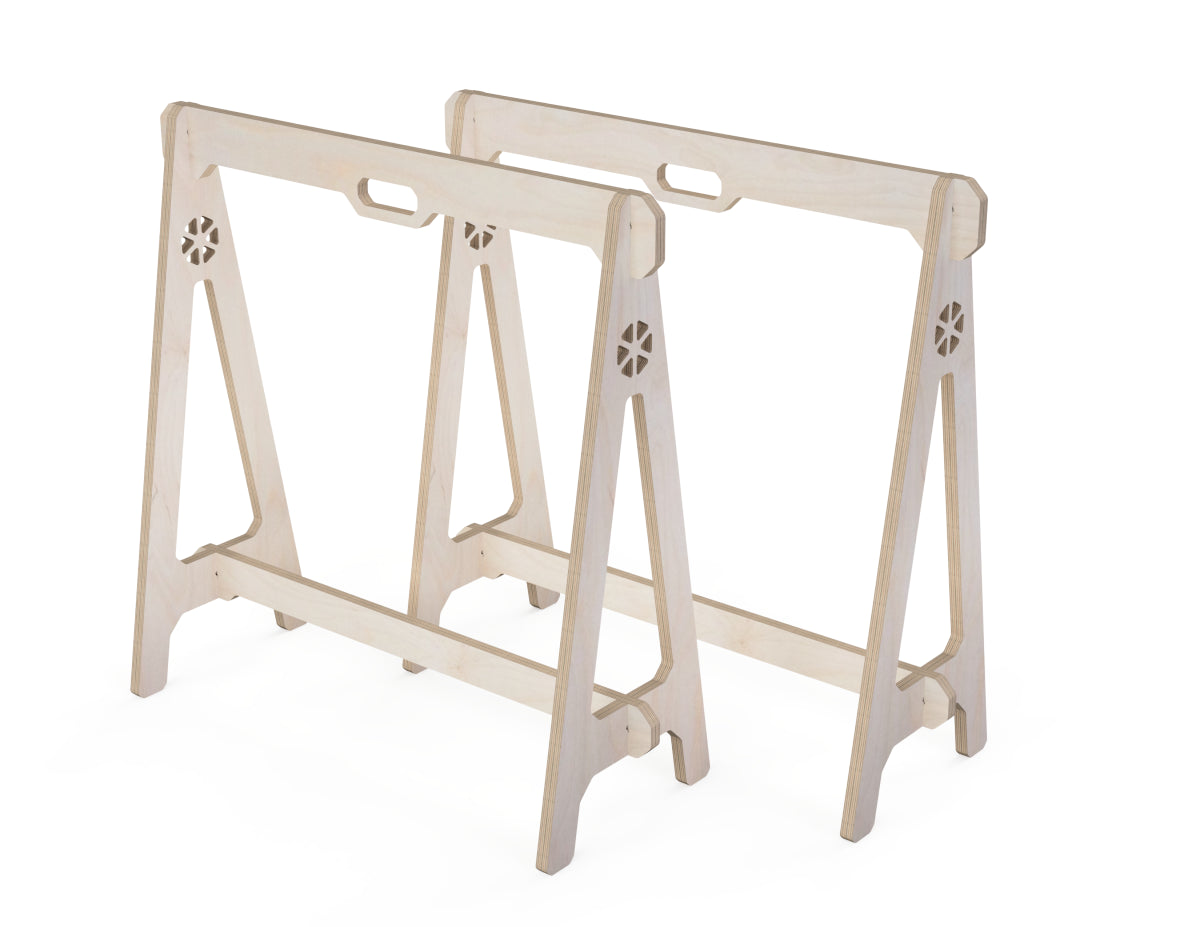

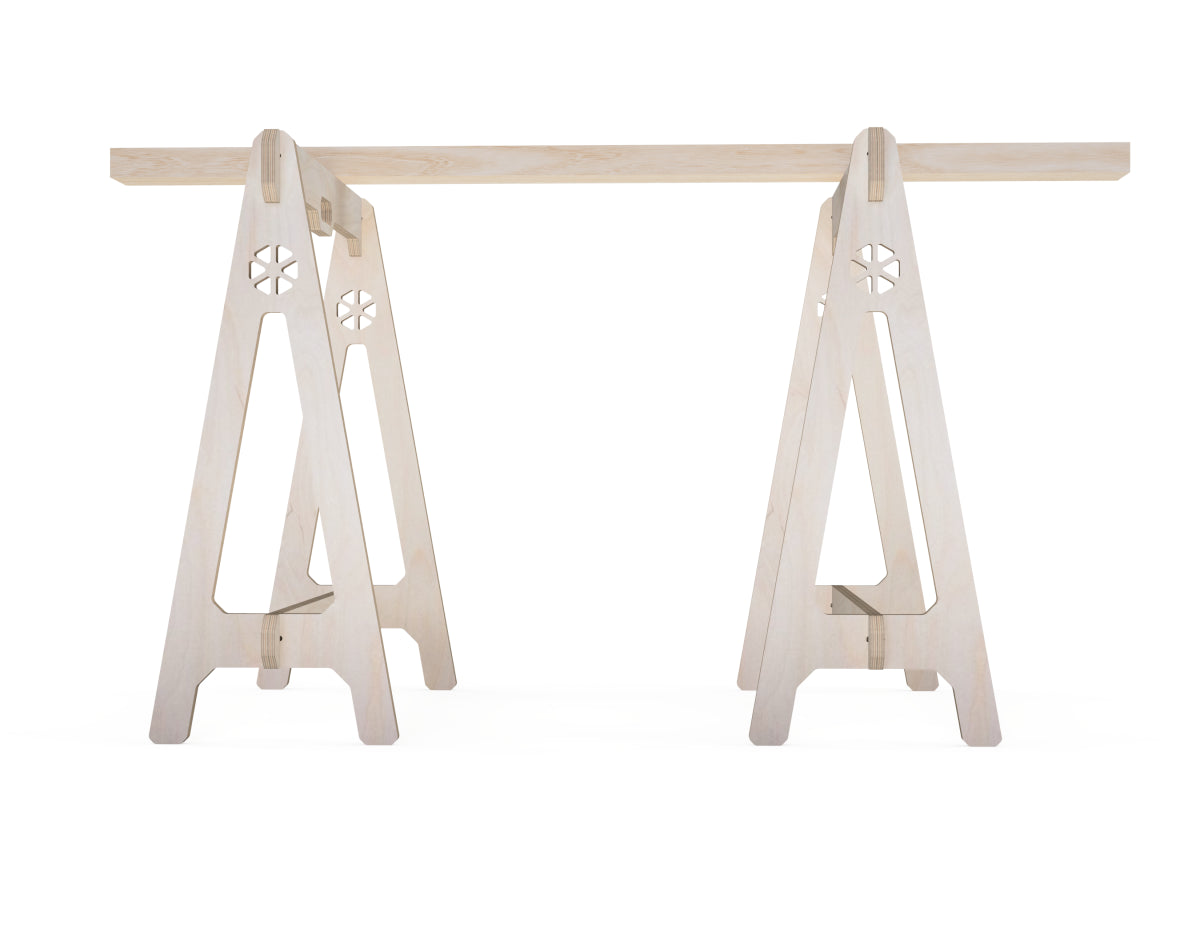

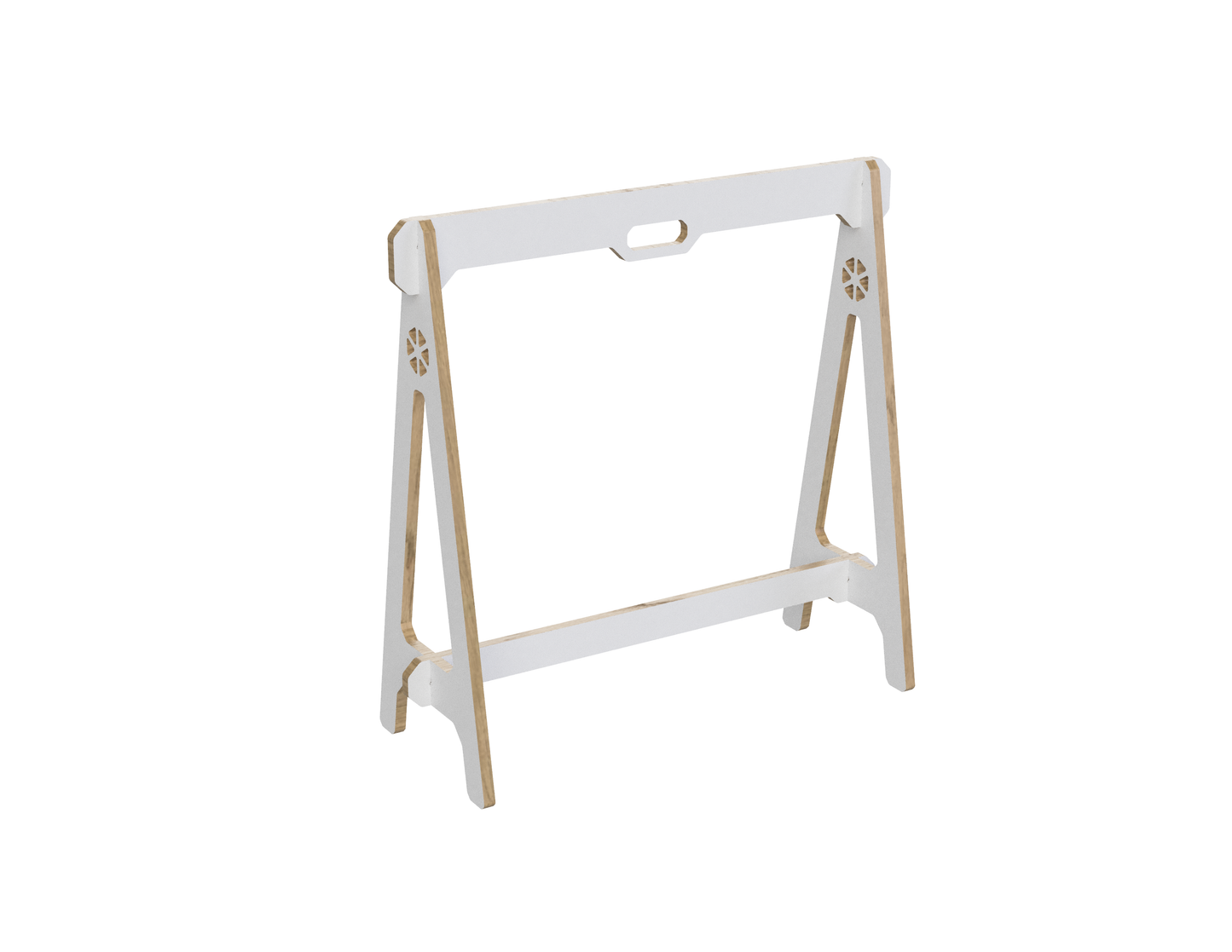

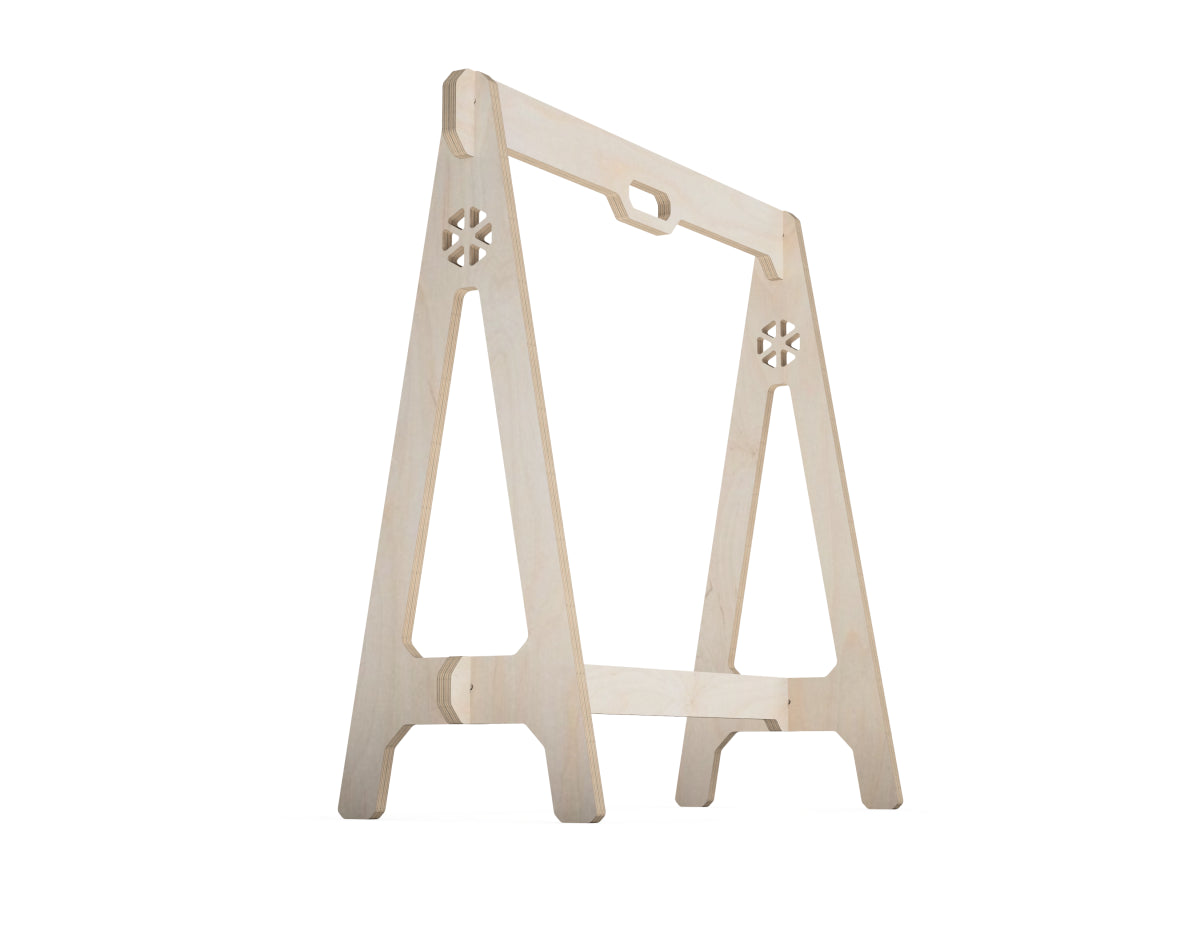

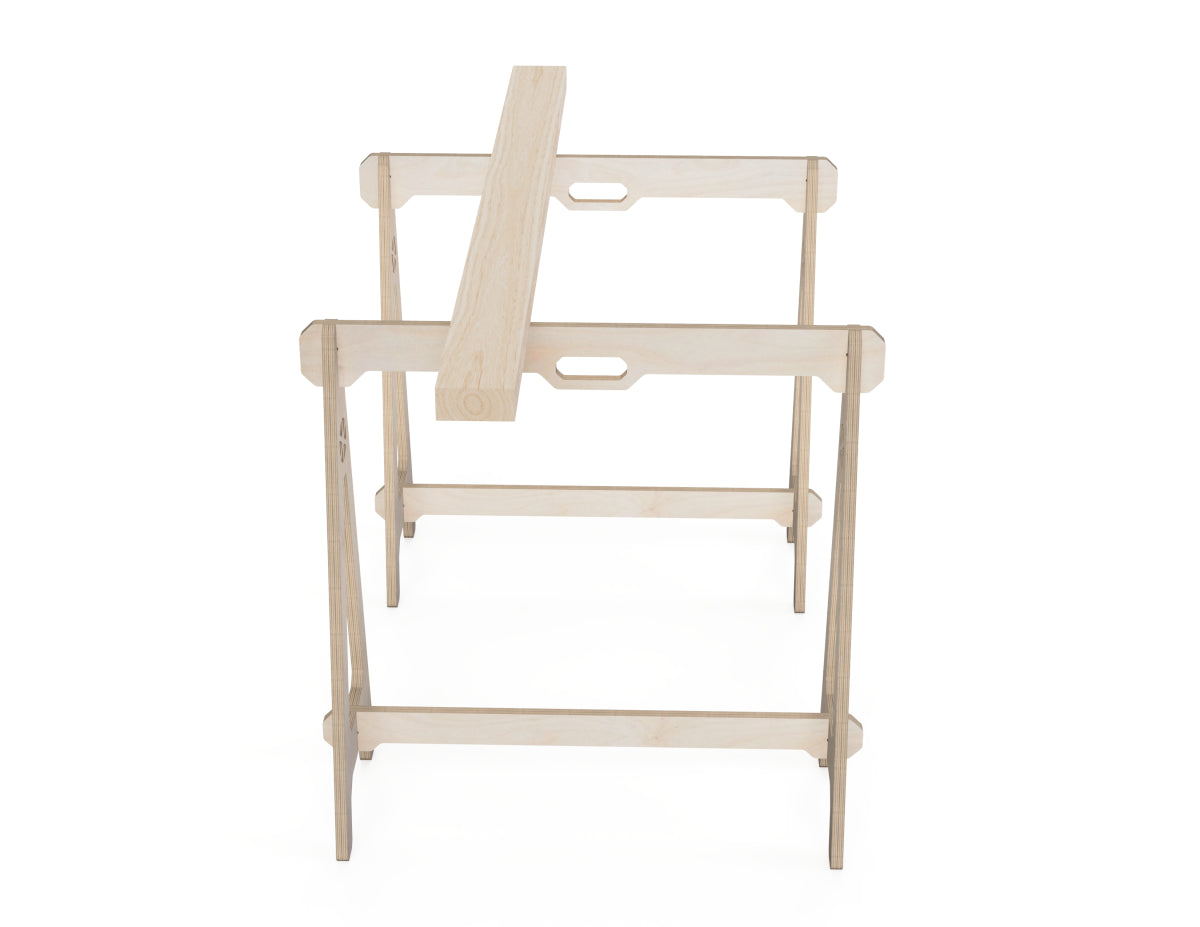

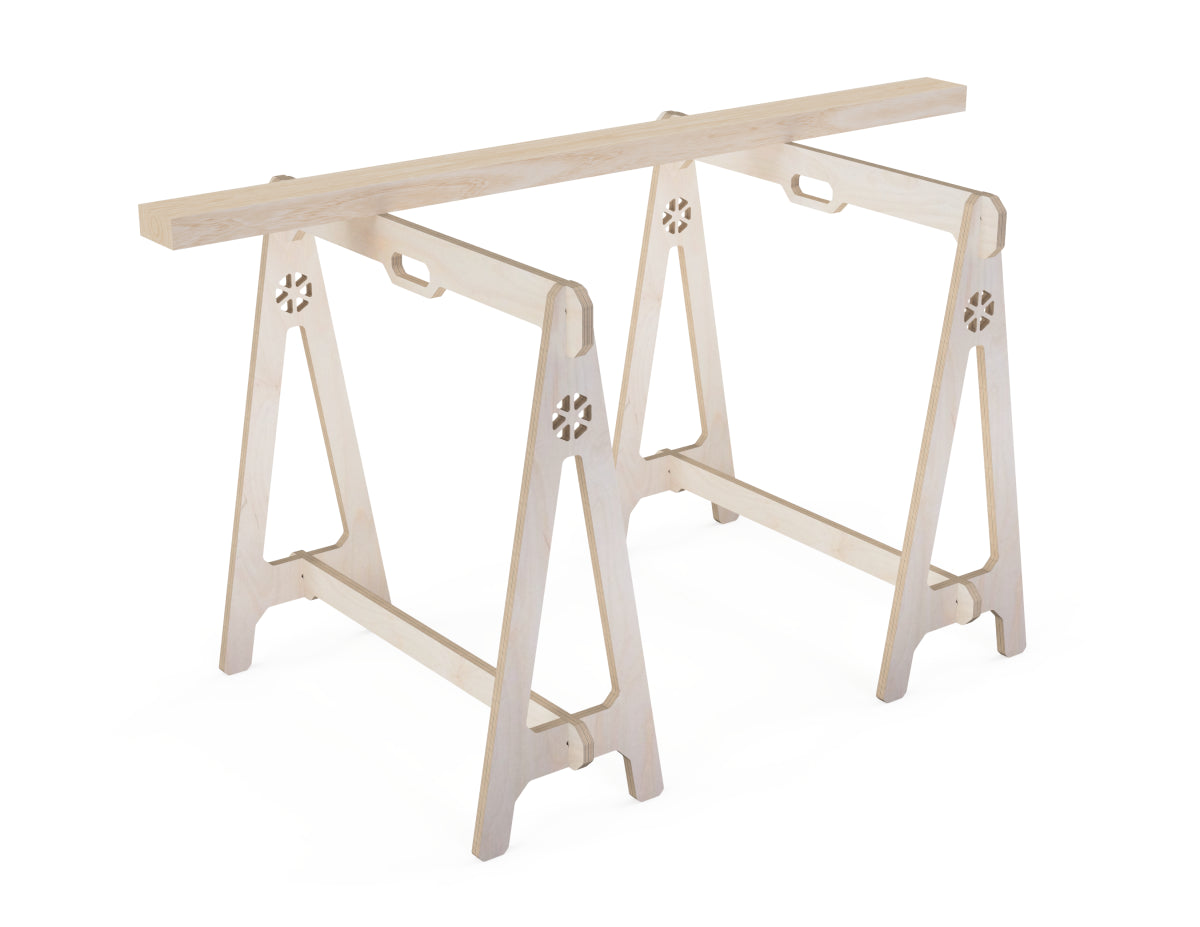

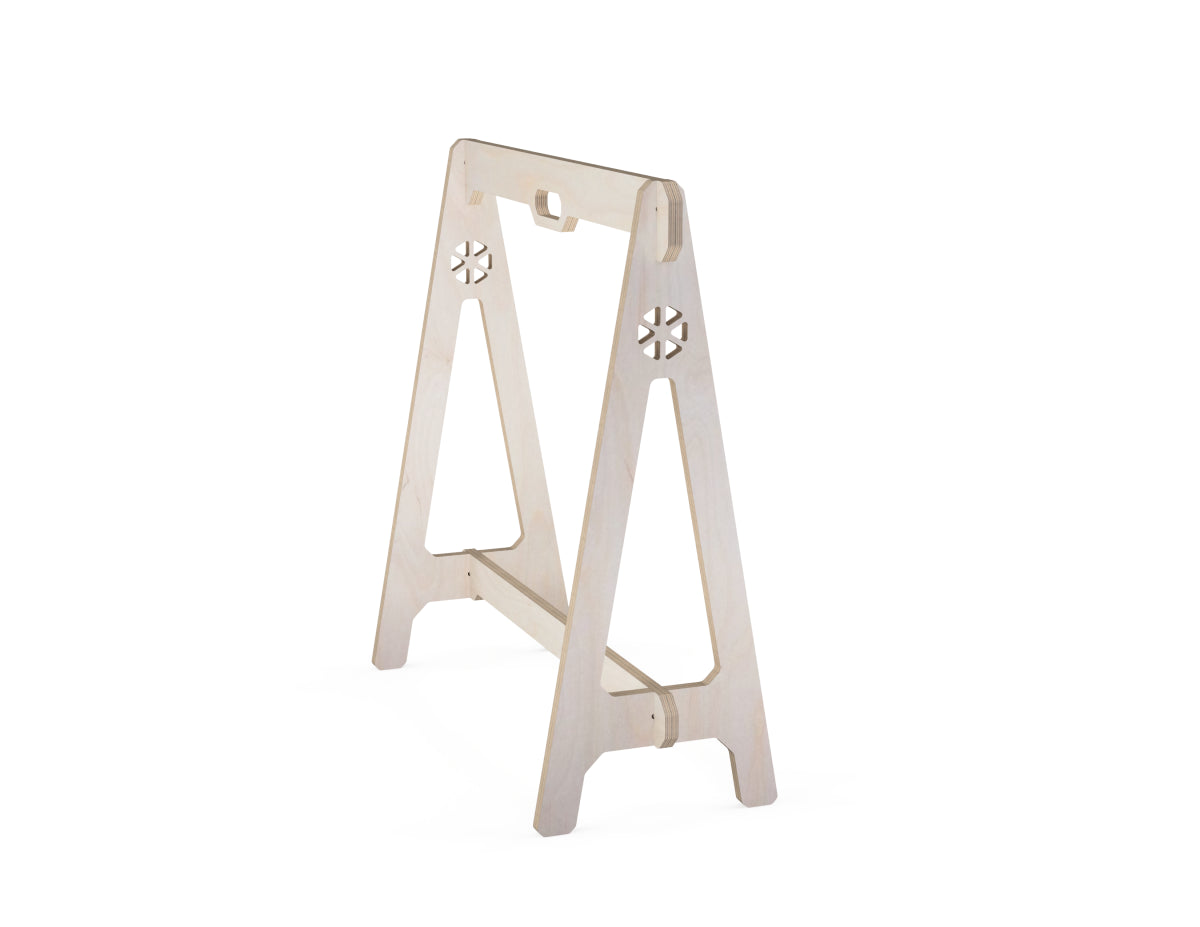

Make your own sturdy A-frame sawhorses with these ready-to-cut DXF files for CNC routers. Designed for workshop use, they’re perfect for supporting workpieces, stacking materials, or creating a quick temporary workbench - just add a sheet of plywood or MDF on top.



This simple, beginner-friendly design is easy to assemble and can be built in just one evening. A practical project for any maker, woodworker, or DIY enthusiast looking for a reliable and space-saving shop solution.



Optimized for plywood or MDF sheets and ideal for repeatable cuts on your CNC machine.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Dimensions

Width Length Height
820 mm 325 mm 800 mm
32¼ inch 12¾ inch 31½ inch

Required materials

For 600 x 900 (2 x 3 ft) CNC
- 2 sheets of 600 x 900 x 18 mm (23-⅝ x 35-7/16 x 3/4 inches) plywood
- 6 mm (¼ inches) router bit for dogbones
For 900 x 1200 (3 x 4 ft) CNC
- 1 sheets of 900 x 1200 x 18 mm (35-7/16 x 47-¼ x 3/4 inches) plywood
- 6 mm (¼ inches) router bit for dogbones
For 1200 x 1200 (4 x 4 ft) CNC and bigger
- 1 sheets of 900 x 1200 x 18 mm (35-7/16 x 47-¼ x 3/4 inches) plywood
- 6 mm (¼ inches) router bit for dogbones

Assembling time

5 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
