Sawhorse DXF file
Sawhorse DXF file
Couldn't load pickup availability

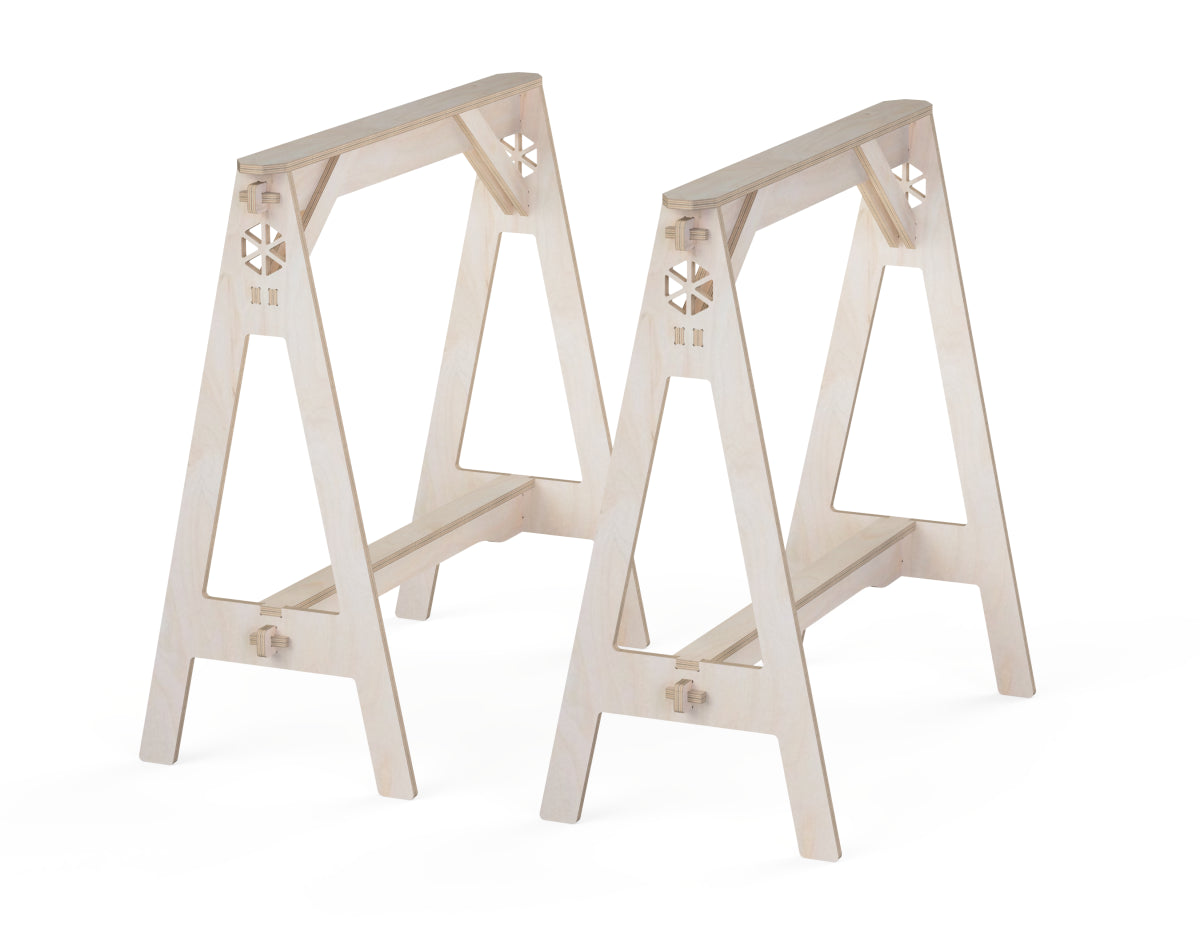

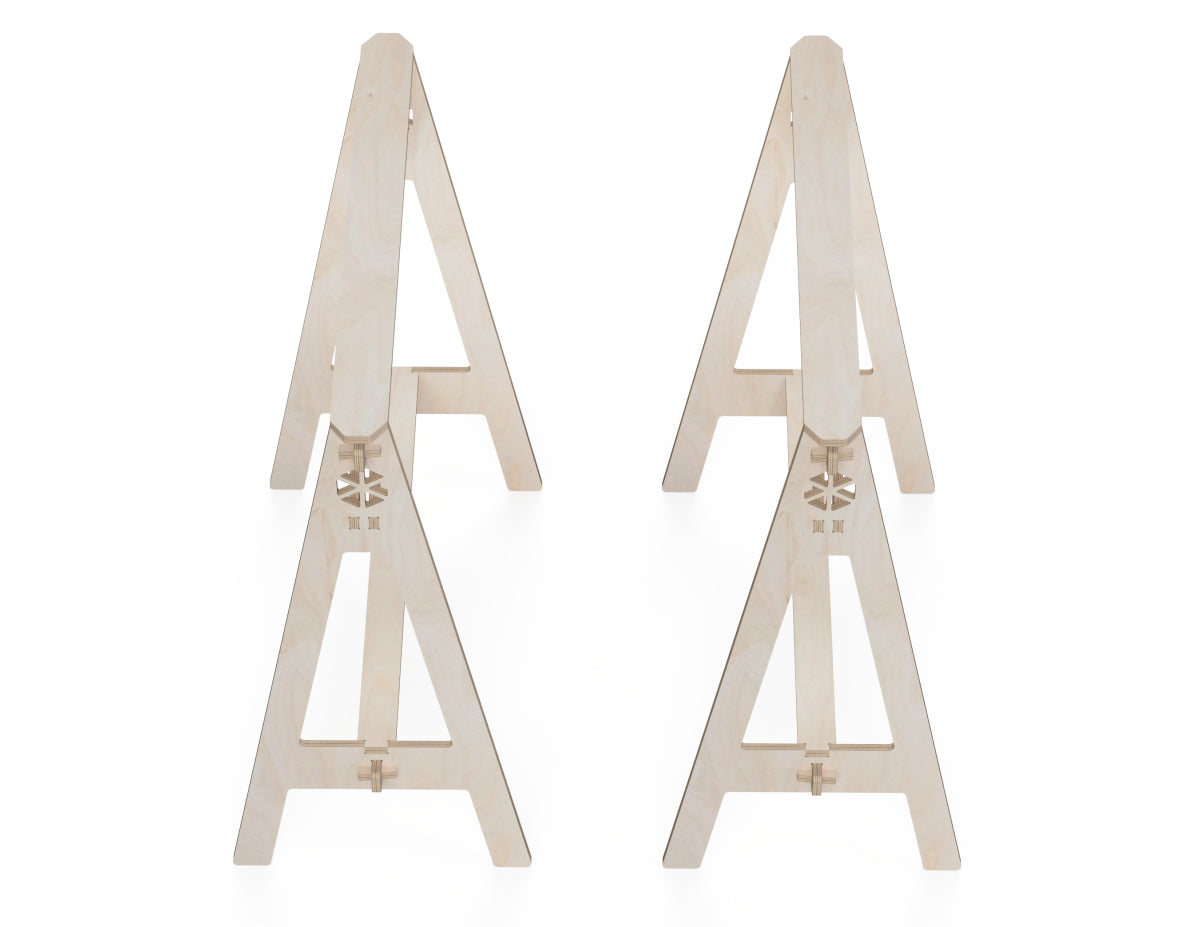

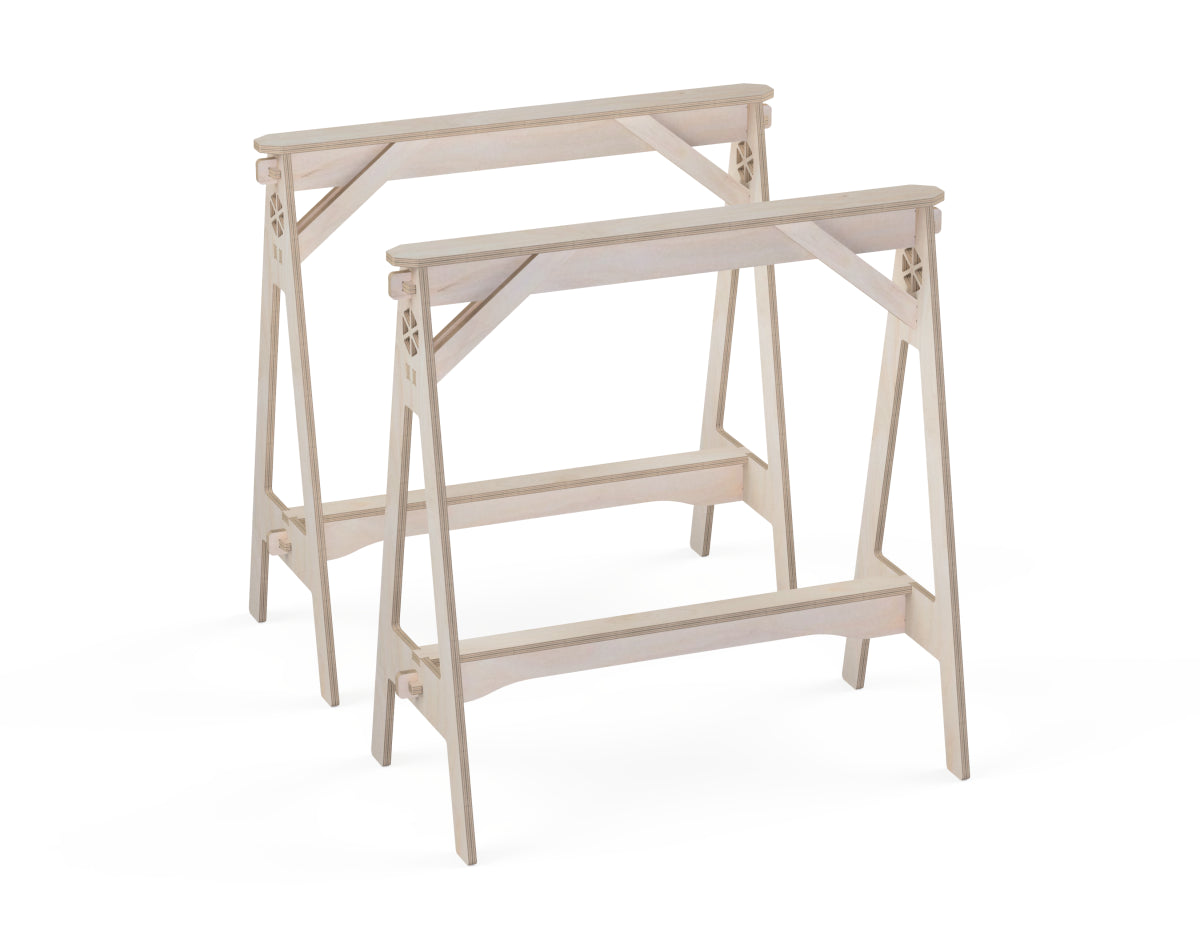

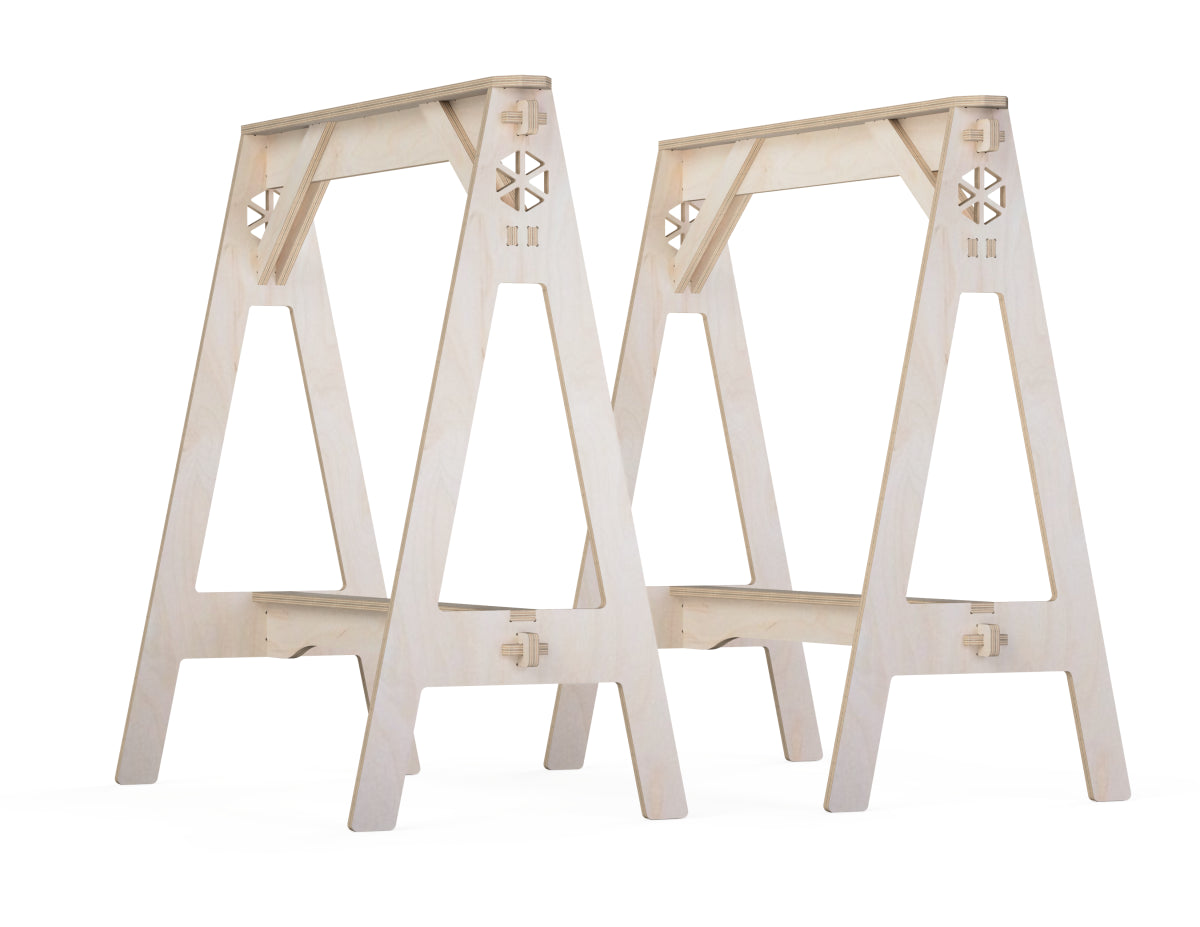

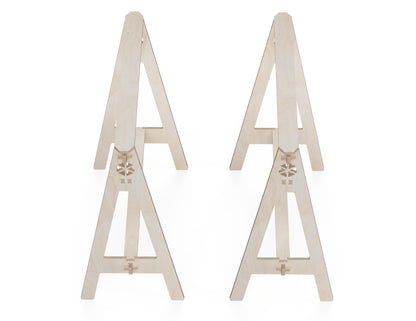

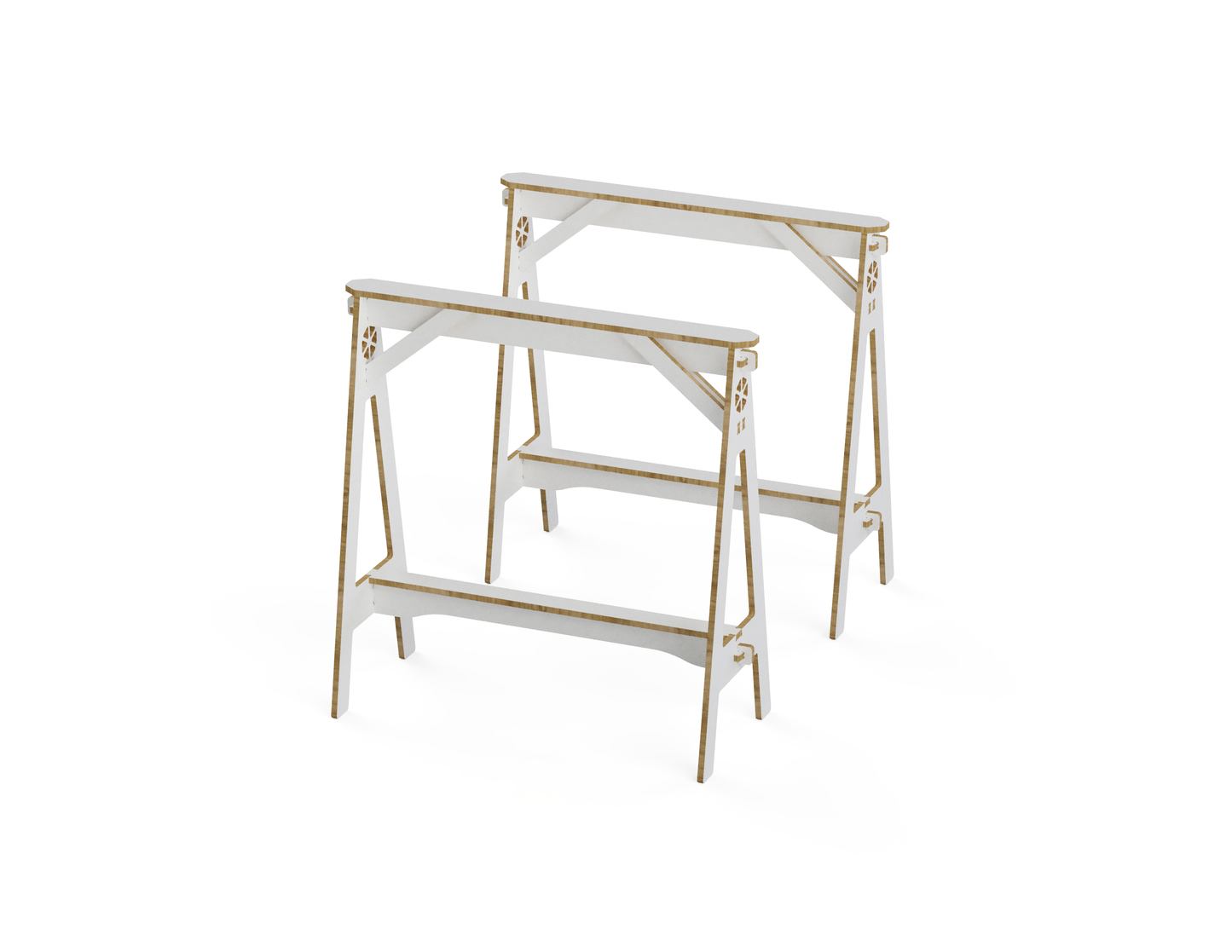

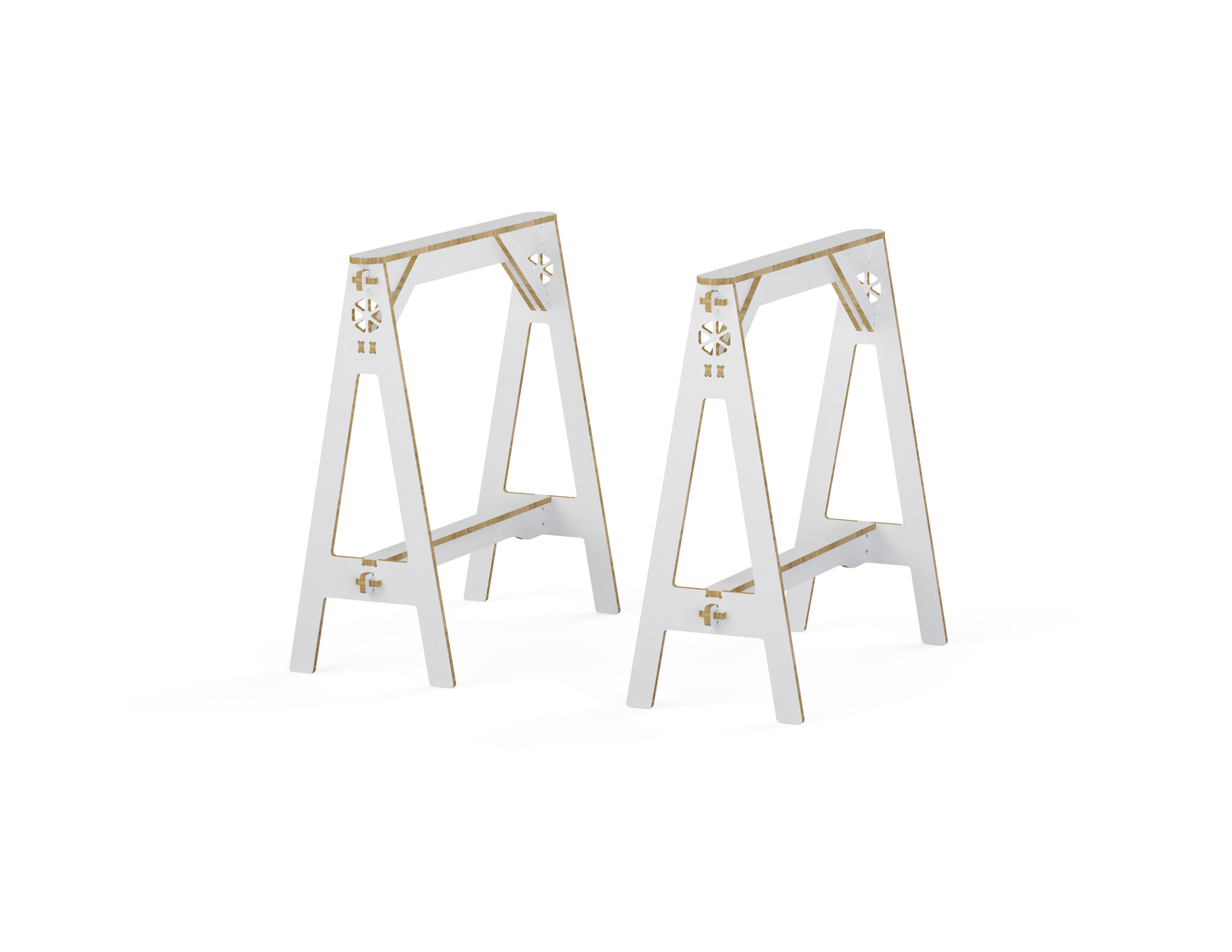

The sawhorse supports a piece of material that is being processed. An improvised shelf can be easily made by putting two sawhorses in front of each. The sawhorse is durable, light, and can be easily assembled.
The design can be cut on 600 x 900 mm (2 x 3 ft) CNC router and bigger.
After completing the order, you will receive DXF files with component layout adjusted to different CNC sizes:
600 x 900 (2 x 3 ft)
900 x 1200 (3 x 4 ft)
1200 x 1200 (4 x 4 ft)
1200 x 2400 (4 x 8 ft)
*The files are adjusted to fit both metric and imperial standards for materials and tools

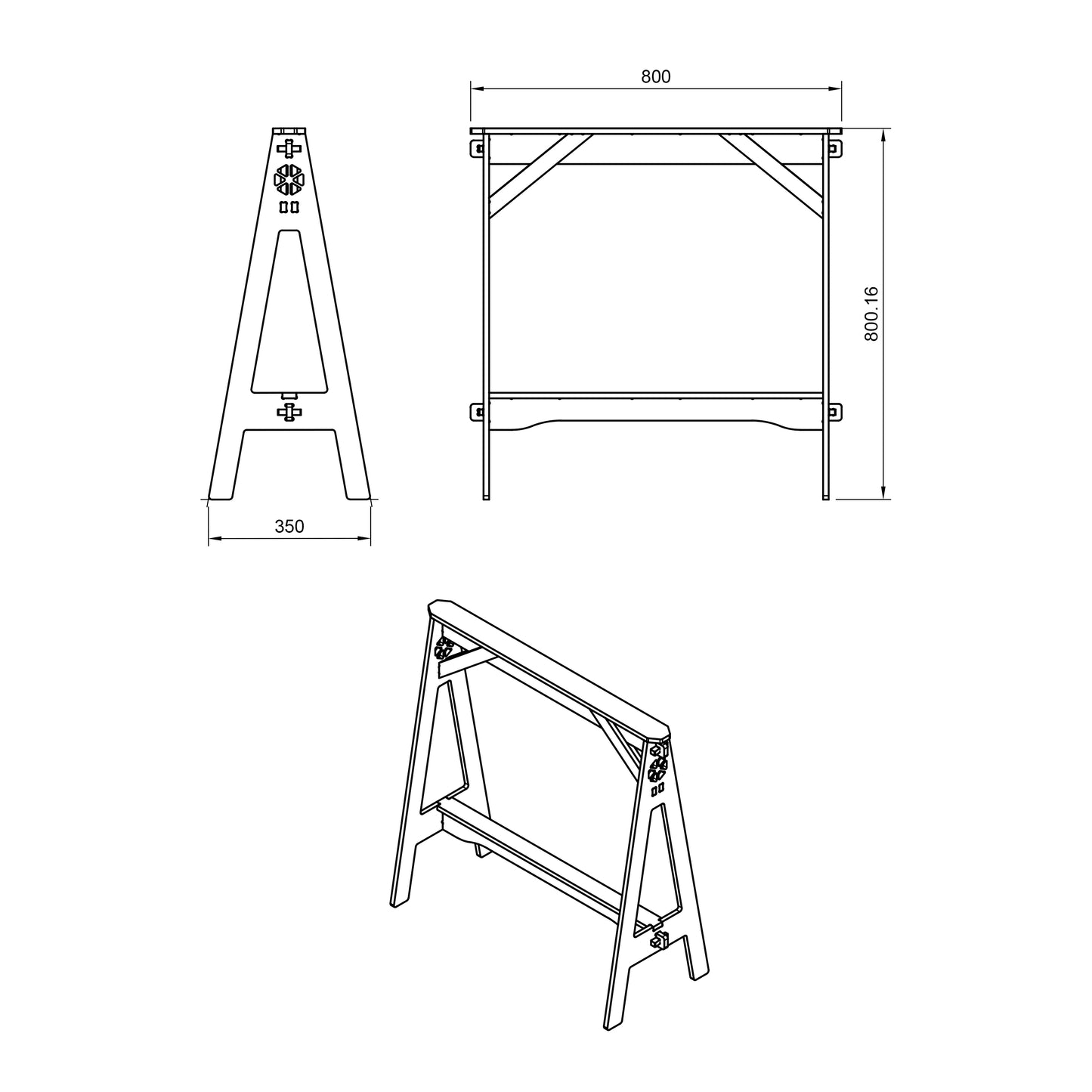

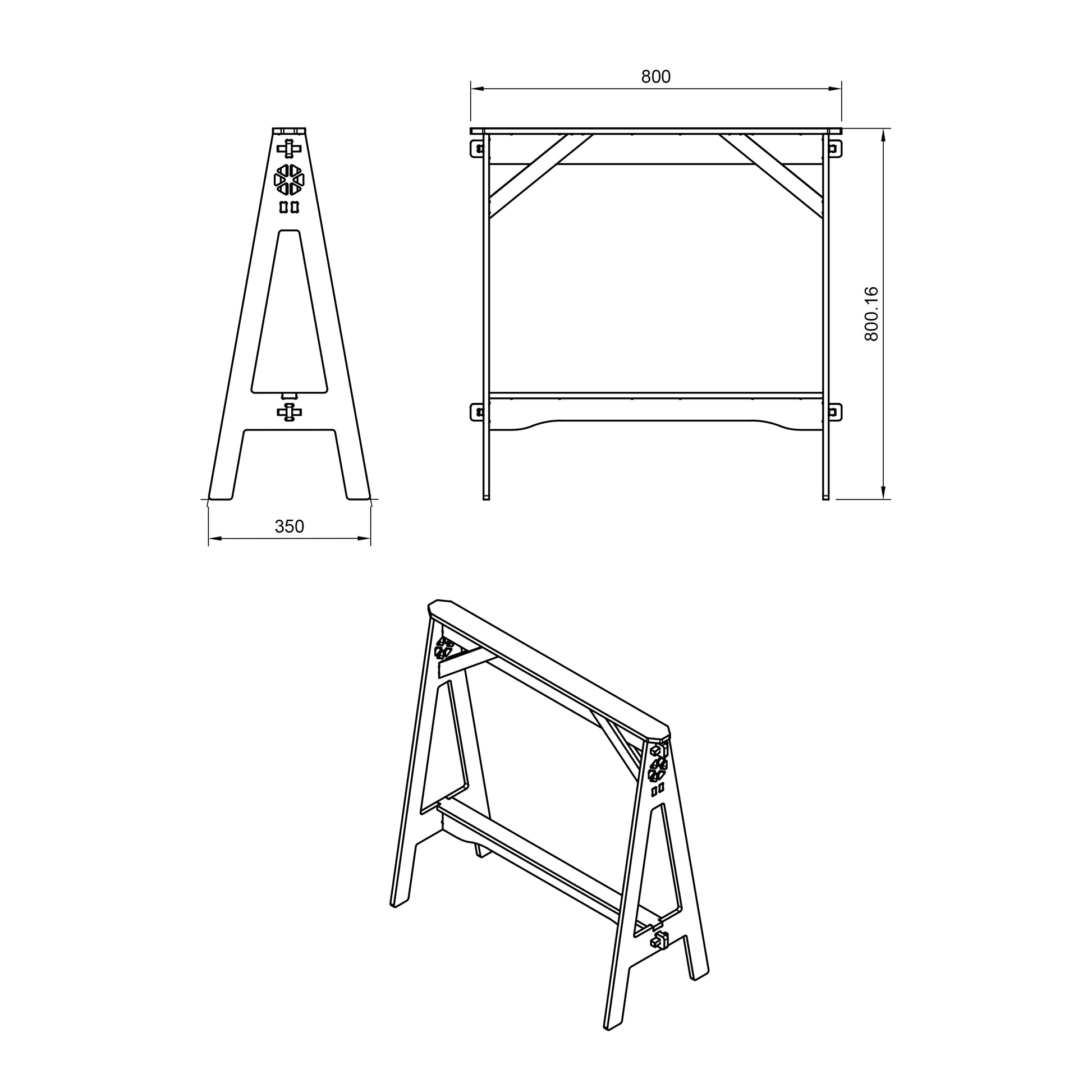

Dimensions:
800 mm (hight) x 800 mm (length) x 400mm (width)
31-1/2 (hight) x 31-1/2 (length) x 15-3/4 (width)
Required materials:
For 600 x 900 (2 x 3 ft) CNC
- 3 sheets of 600 x 900 x 12 mm (23-⅝ x 35-7/16 x 1/2 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones
For 900 x 1200 (3 x 4 ft) and 1200 x 1200 (4 x 4 ft) CNC
- 2 sheets of 900 x 1200 x 12 mm (35-7/16 x 47-¼ x 1/2 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones
For 1200 x 2400 (4 x 8 ft) CNC
- 1 sheet of 1200 x 1500 x 12 mm (47-1/4 x 59-1/16 x 1/2 inches) plywood
- 4 mm (1/8 inch) router bit for dogbones
Assembling time:
10 minutes
Delivery time:
30 seconds
After completing the order, you will receive the DXF design file to your email within seconds.
Updates:
Free
If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
