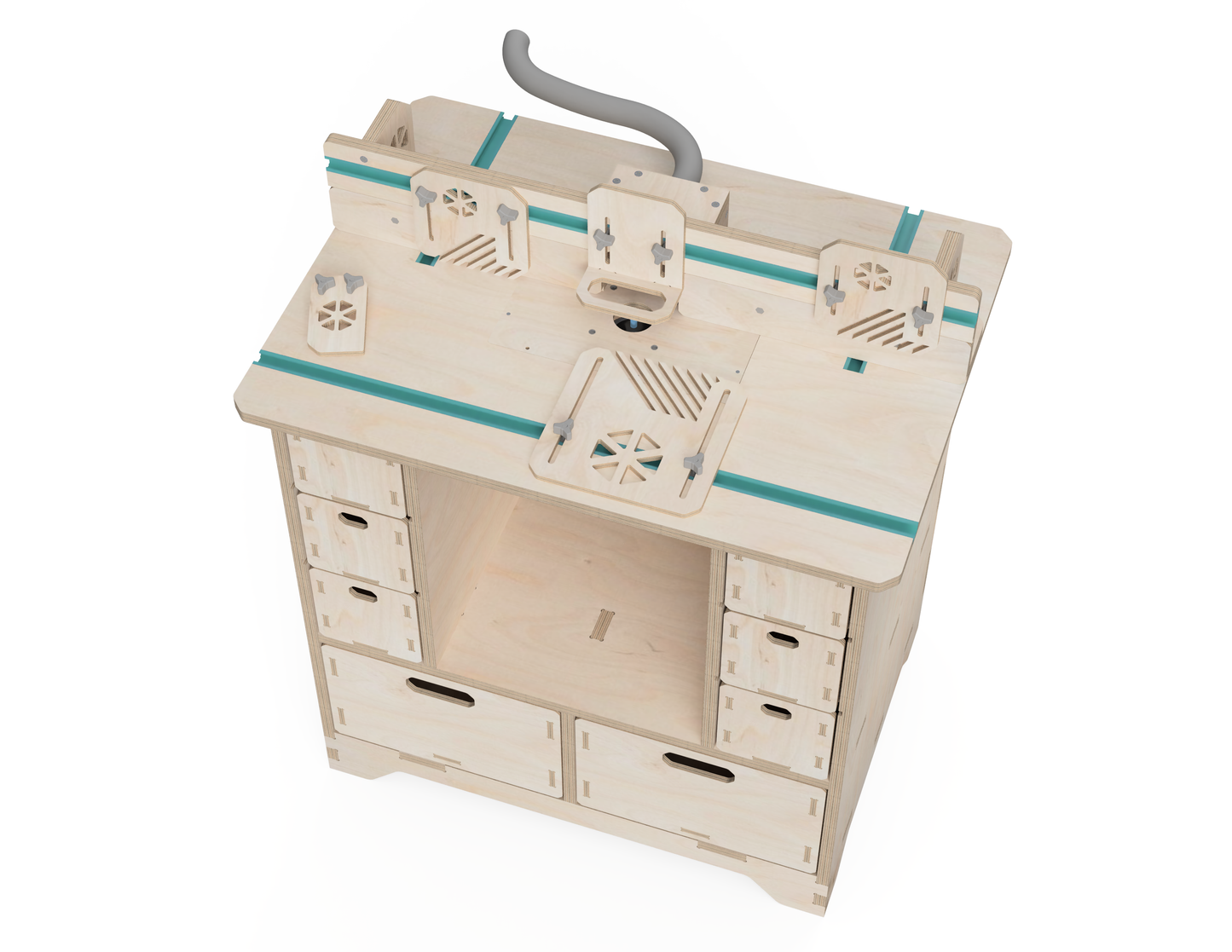

  • Router Table DXF file DXF file rendered from angled view for CNC cutting

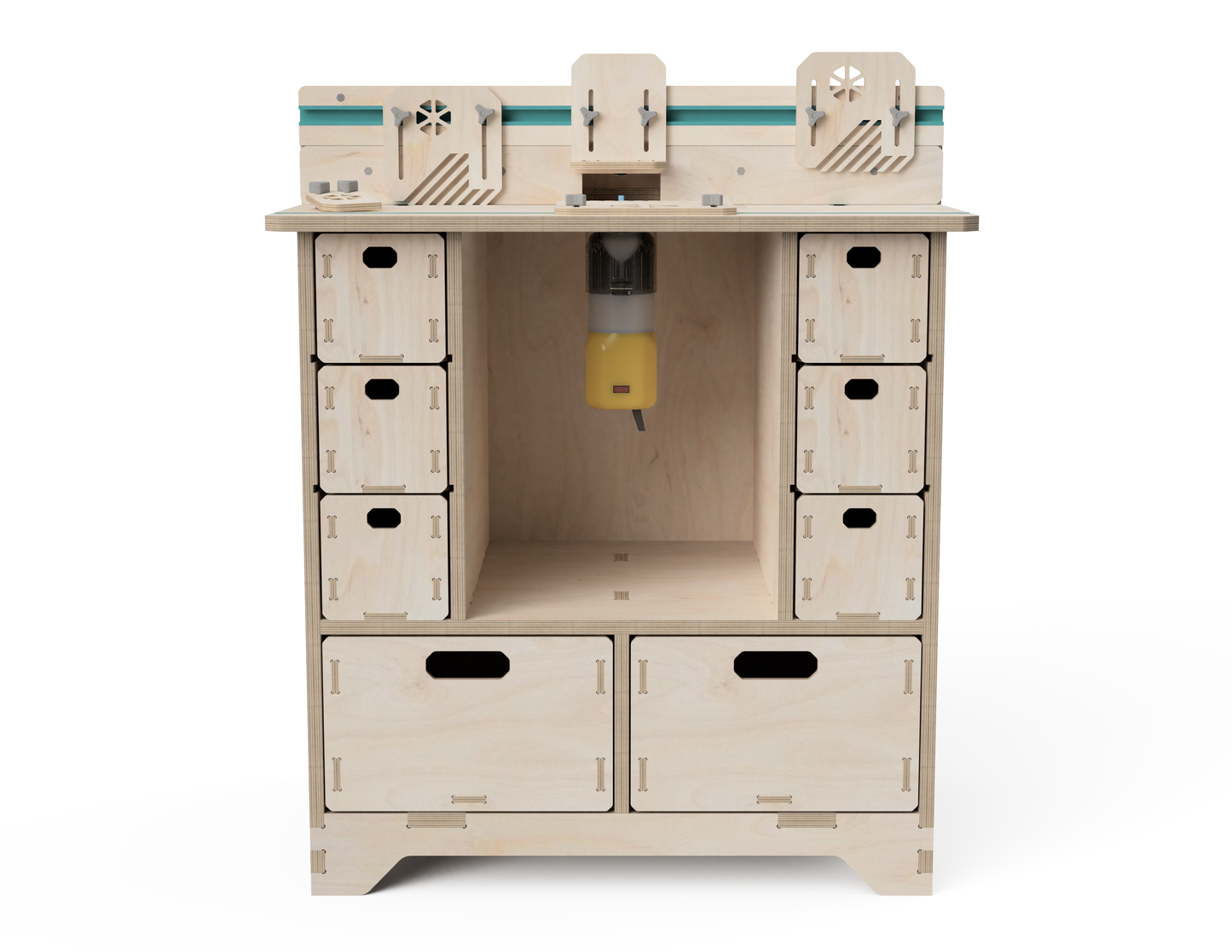

  • Detailed DXF drawing of router table dxf file for CNC router
  • Router Table DXF file CNC-ready design showing joints and assembly features

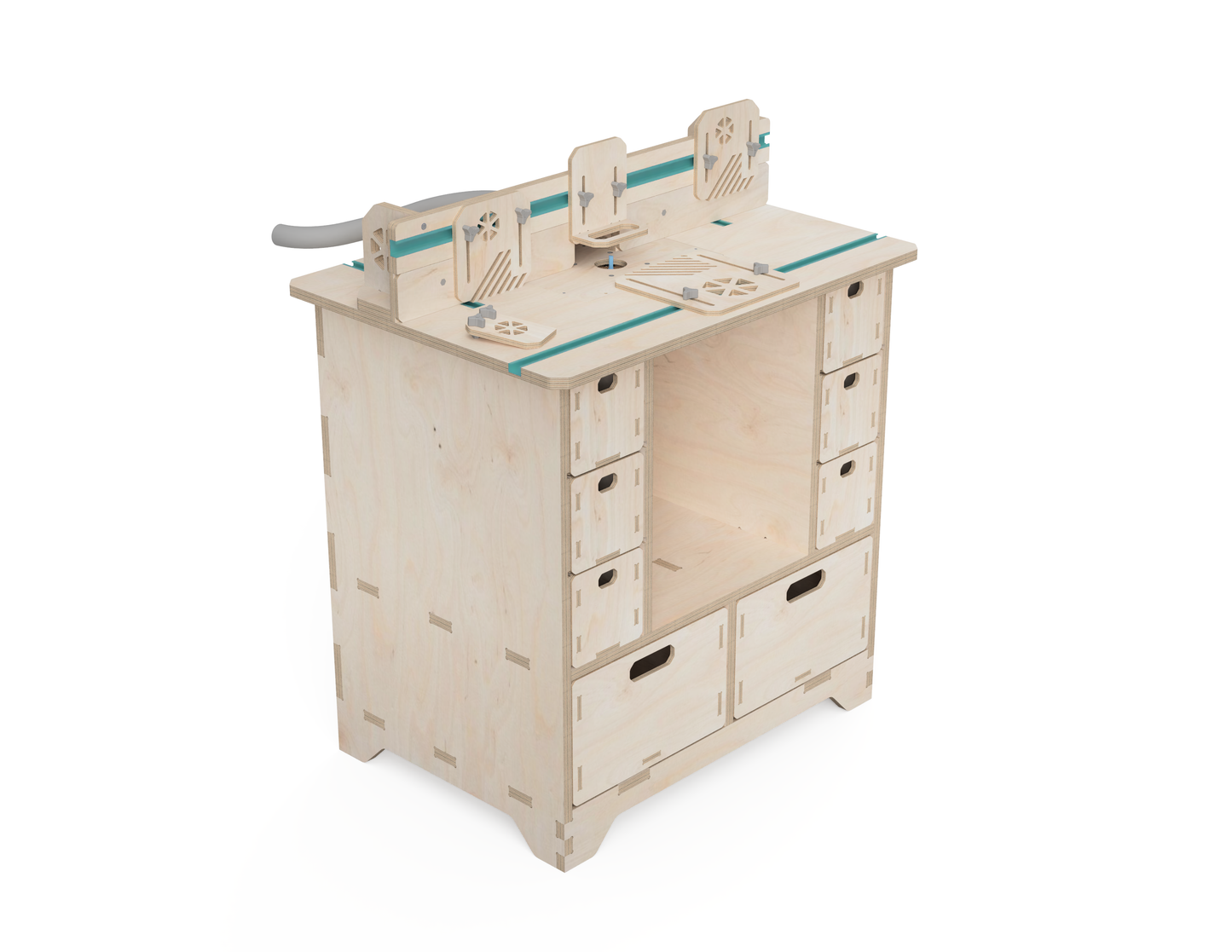

  • Rendered view of router table dxf file layout from DXF file
  • Router Table DXF file CNC DXF file design overview
1 6

Router Table DXF Files

Router Table DXF Files

$38.50 USD
$38.50 USD $38.50 USD
Sale Sold out
Taxes included.

Every woodworking and CNC enthusiast needs a reliable router table - and this DXF file set makes building one easy. Perfect for workshops of all levels, this router table design helps you efficiently:

- Remove support tags from CNC-cut parts

- Round edges smoothly

- Create custom wood moldings

- Rout precise grooves

- Work with templates and jigs for repeatable accuracy

Included are detailed DXF files for the router table, adjustable fence, insert, featherboards, stops, and a safety guard - everything you need for a safe and versatile setup.



Build your own router table with these CNC-ready files and elevate your woodworking projects today.

Supported CNC sizes

The project can be made on a 900 x 1200 mm (3 x 4 ft) CNC router and bigger.

Dimensions

Width Length Height
820 mm 600 mm 800 mm
32¼ inch 23⅝ inch 31½ inch

Required materials

For 900 x 1200 mm (3 x 4 ft) CNC
- 3 sheets of 900 x 1200 x 9 mm (36 x 48 x 3/8 inches) plywood
- 1 sheet of 1000 x 400 x 9 mm (39-3/8 x 15-3/4 x 3/8 inches) plywood
- 3 sheets of 900 x 1200 x 18 mm (69 x 48 x ¾ inches) plywood
- 2 sheets of 550 x 1100 x 18 mm (22 x 43-½ x ¾ inch) plywood
- 6 mm and 3 mm (¼ and ⅛ inch) router bit for dogbones
For 1220 x 1220 mm (4 x 4 ft) CNC
- 2 sheets of 1220 x 1220 x 9 mm (48 x 48 x 3/8 inches) plywood
- 1 sheet of 650 x 1220 x 9 mm (26 x 48 x 3/8 inches) plywood
- 2 sheets of 1220 x 1220 x 18 mm (48 x 48 x 5/8 inches) plywood
- 2 sheets of 1220 x 800 x 18 mm (48 x 31-½ x ⅝ inches) plywood
- 6 mm (1/4 inch) router bit for dogbones
For 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 1220 x 2440 x 9 mm (48 x 96 x ⅜ inch) plywood
- 1 sheet of 950 x 750 x 9 mm (37-½ x 30 x ⅜ inch) plywood
- 1 sheet of 1220 x 2440 x 18 mm (48 x 96 x 5/8 inch) plywood
- 1 sheet of 1100 x 1400 x 18 mm (43-5/16 x 55-1/8 x 5/8 inch) plywood
- 6 mm (1/4 inch) router bit for dogbones
- You will also need a T-track set:
- T-track - 1500 x 19 x 9 mm (60 x 3/4 x 1/2 inches)
- T-bolts - 20 pieces
- Knobs - 20 pieces
- Wood screws - 30 pieces (35 mm - 1-⅜ inch long)

Assembling time

1 hour 30 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
