Right Angle Corner Jig DXF Files

Right Angle Corner Jig DXF Files

Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Tax included.

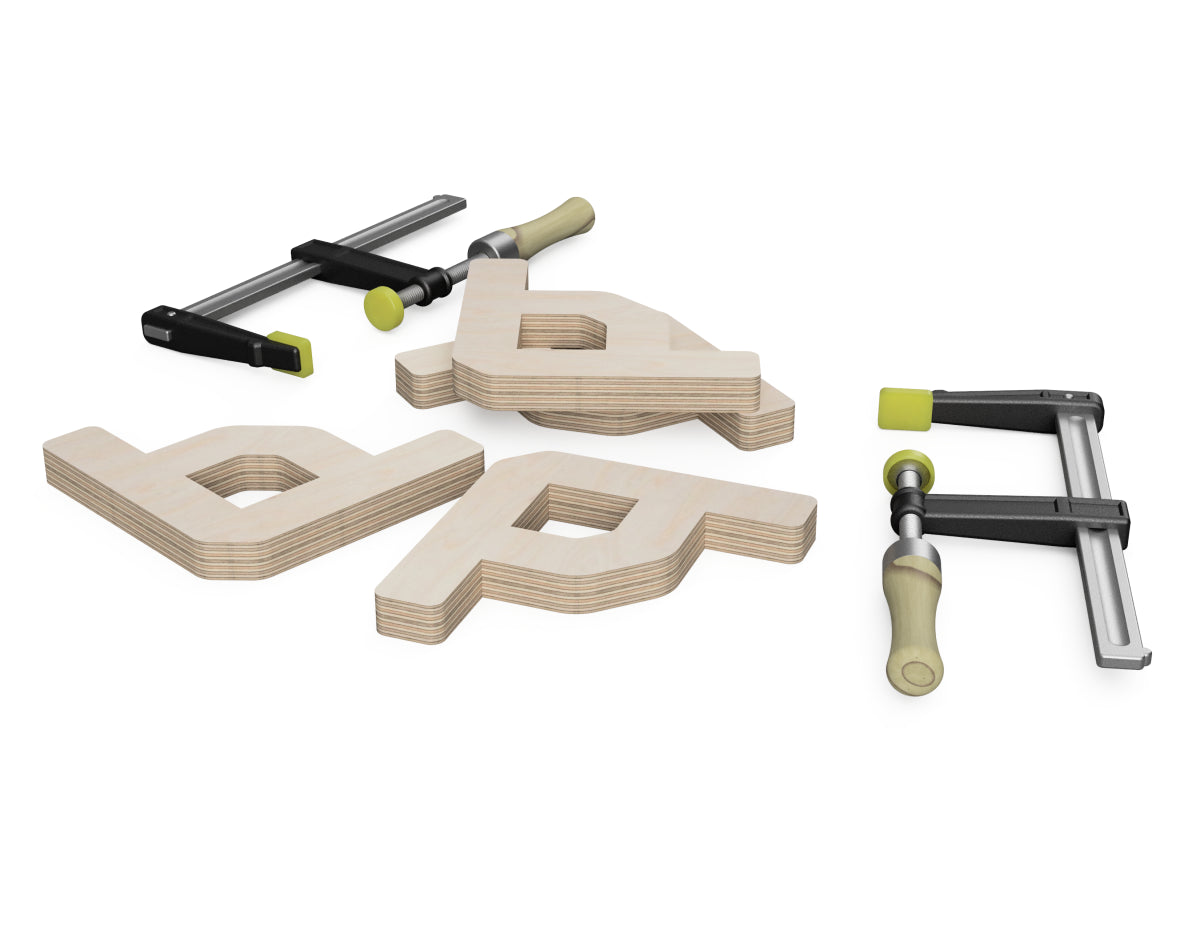

Clamping 90-degree right-angle joints can be a difficult task.

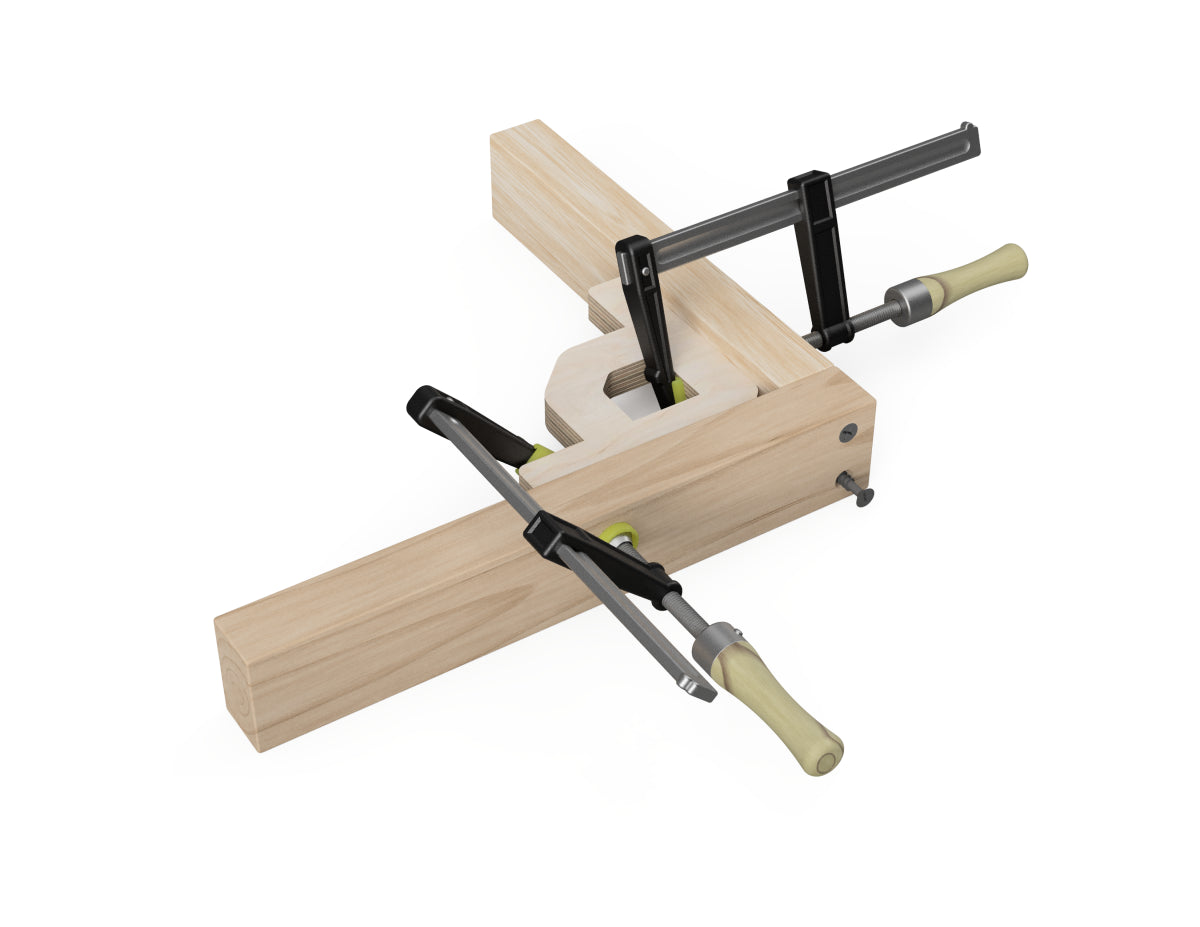

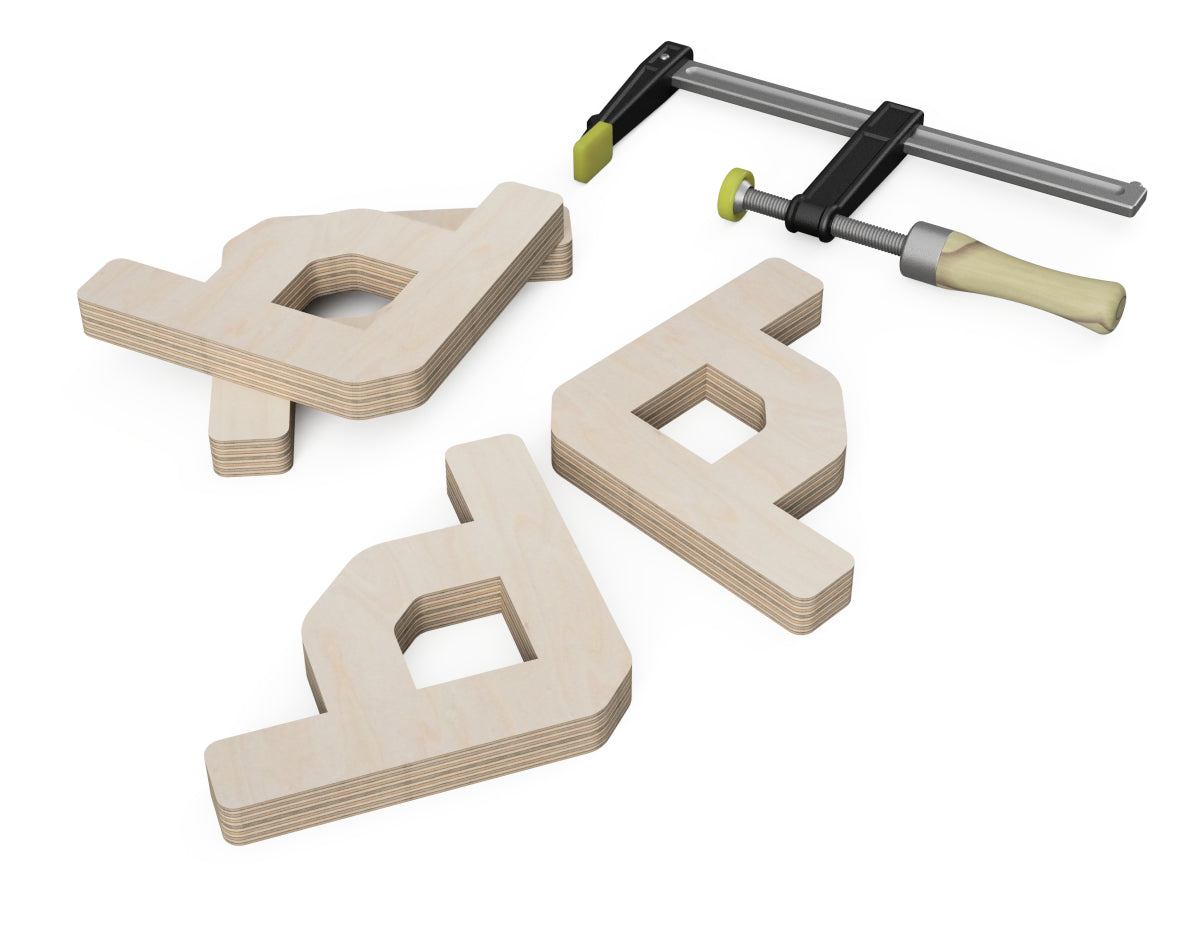

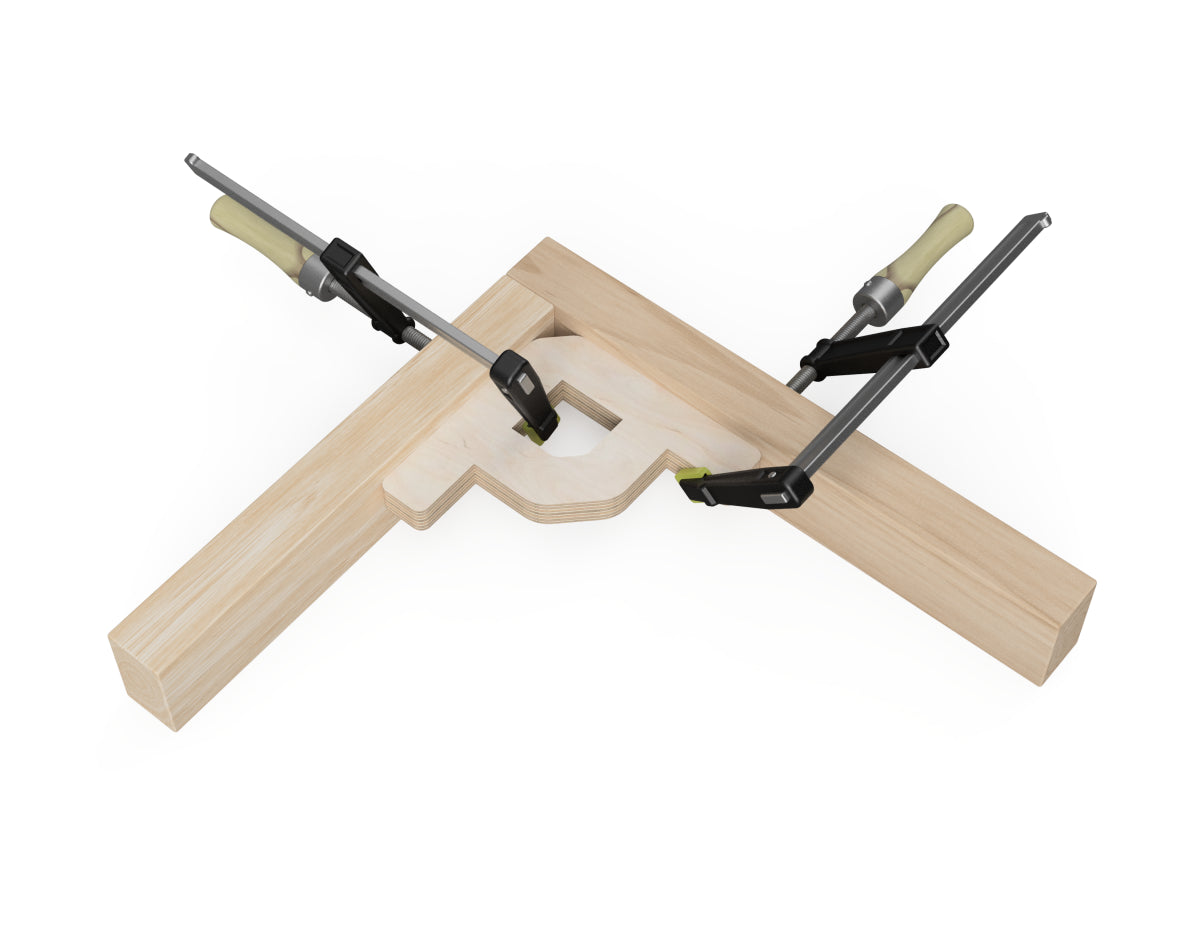

With this simple, easy-to-make jig, you can align your workpieces at a 90-degree angle with ease.

The design can be cut on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

*The files are adjusted to fit both metric and imperial standards for materials and tools

Dimensions (for the biggest one):

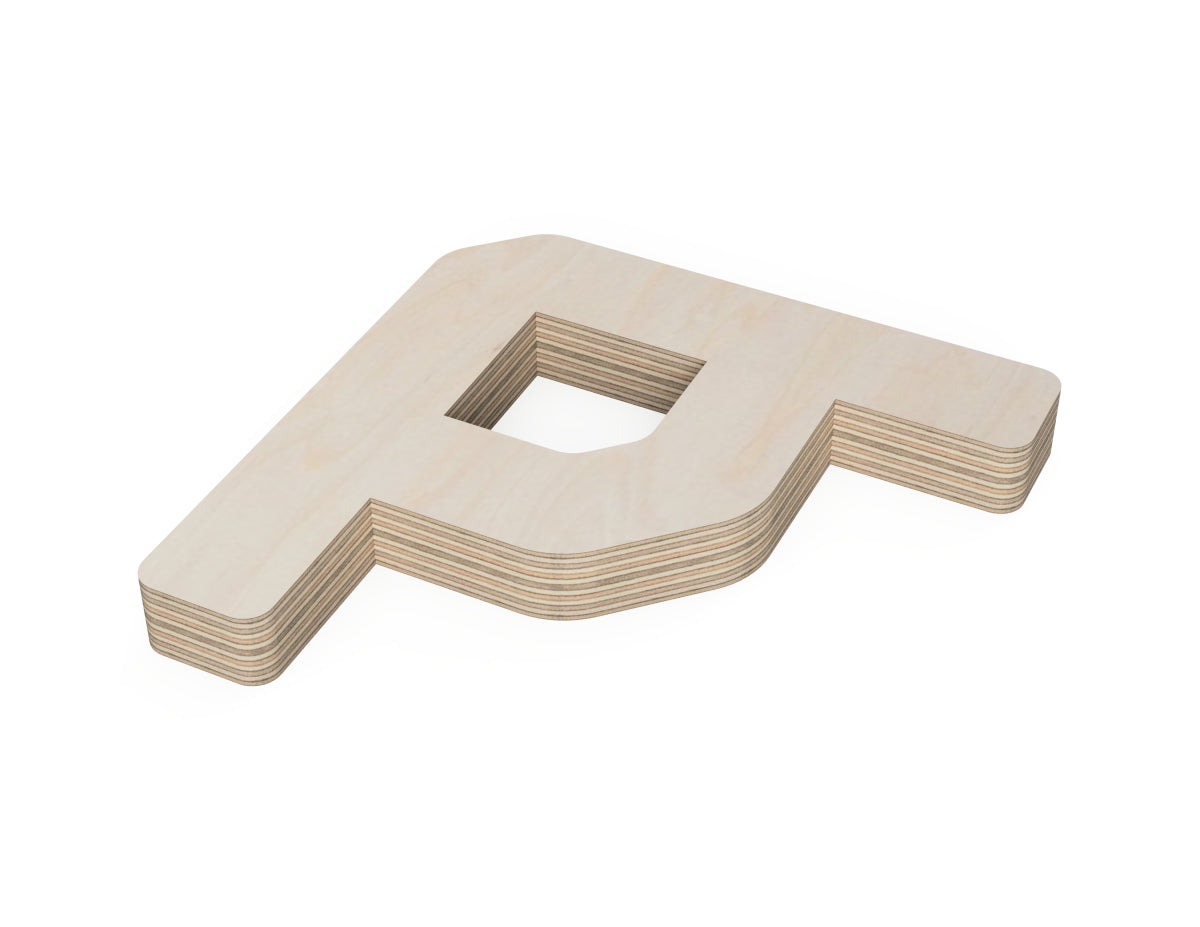

120 mm (width) x 120 mm (length)

5 inches (width) x 5 inches (length)

Required materials:

For a 600 x 900 mm (2 x 3 ft) CNC and bigger

  • 1 sheet of 450 x 170 mm (18 x 7 inches) plywood (recommended thickness - 18 mm (3/4 inch))
  • 6 mm (¼ inch) router bit

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.



If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to We will send you the updated DXF design file for free.
