Quadruple Cube - Wall Shelf DXF Files

Quadruple Cube - Wall Shelf DXF Files

$9.35 USD
$9.35 USD $9.35 USD
Sale Sold out
Taxes included.

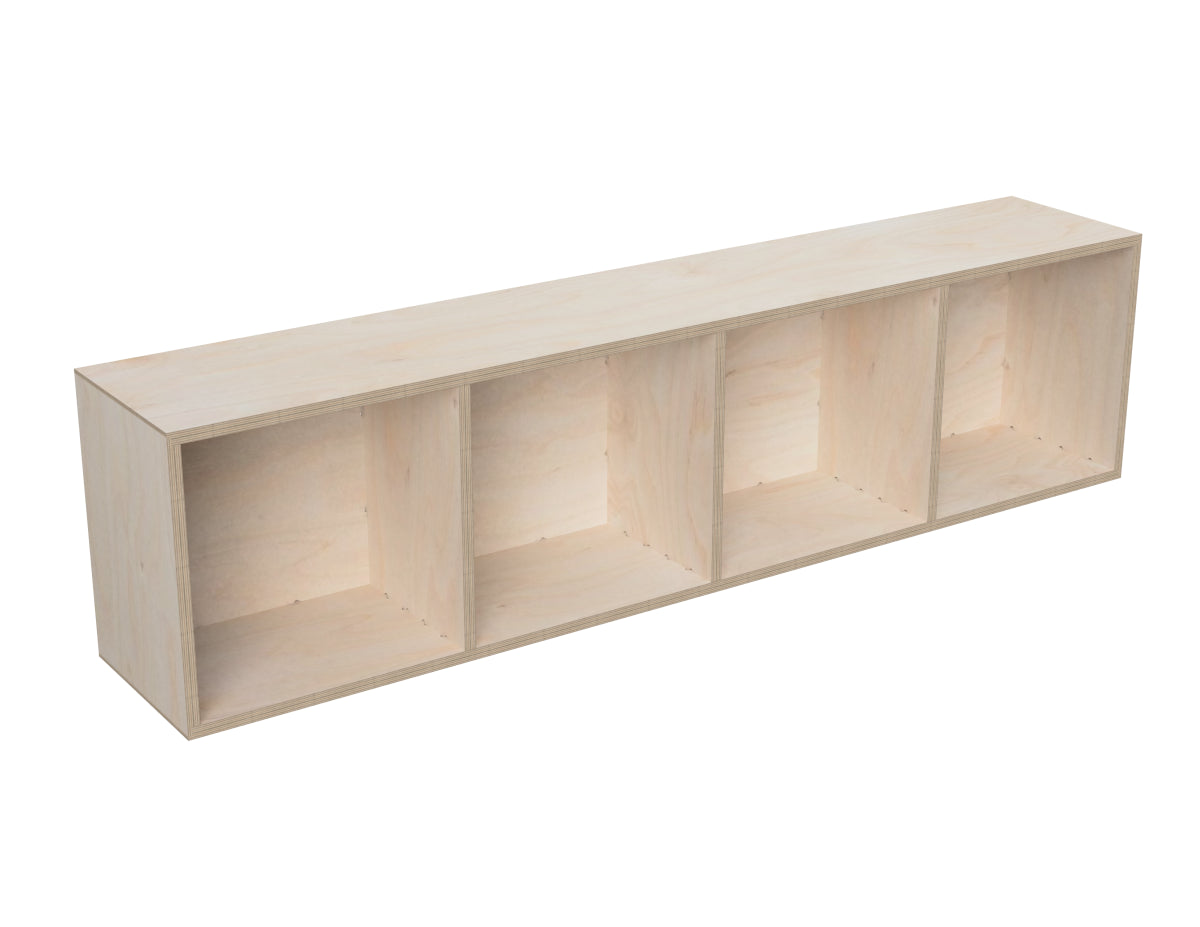

Downloadable DXF files for CNC router users to create a clean, modern wall shelf with four equal-sized square compartments.

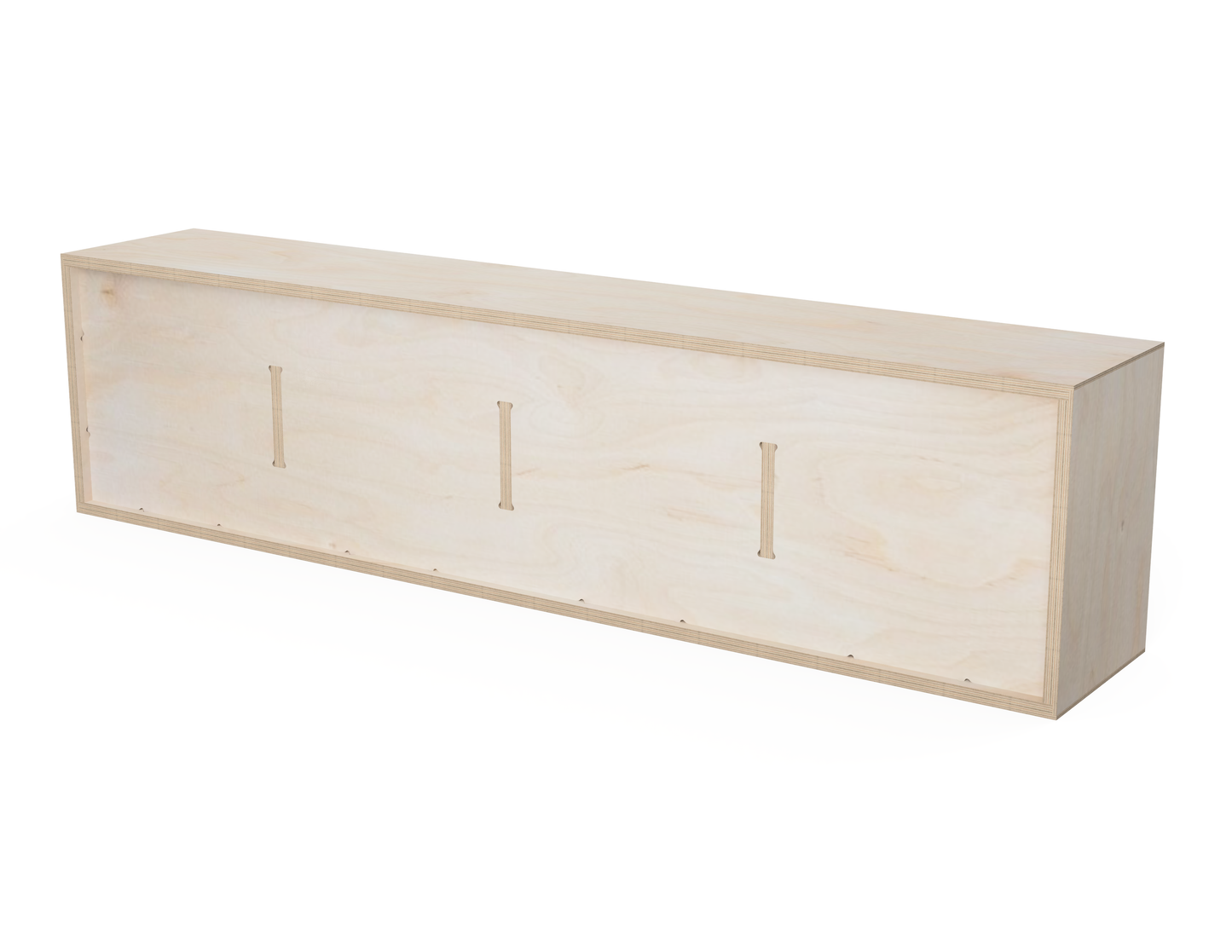

The Quadruple Cube design offers flexible installation - mount it vertically or horizontally to fit your space and storage needs.

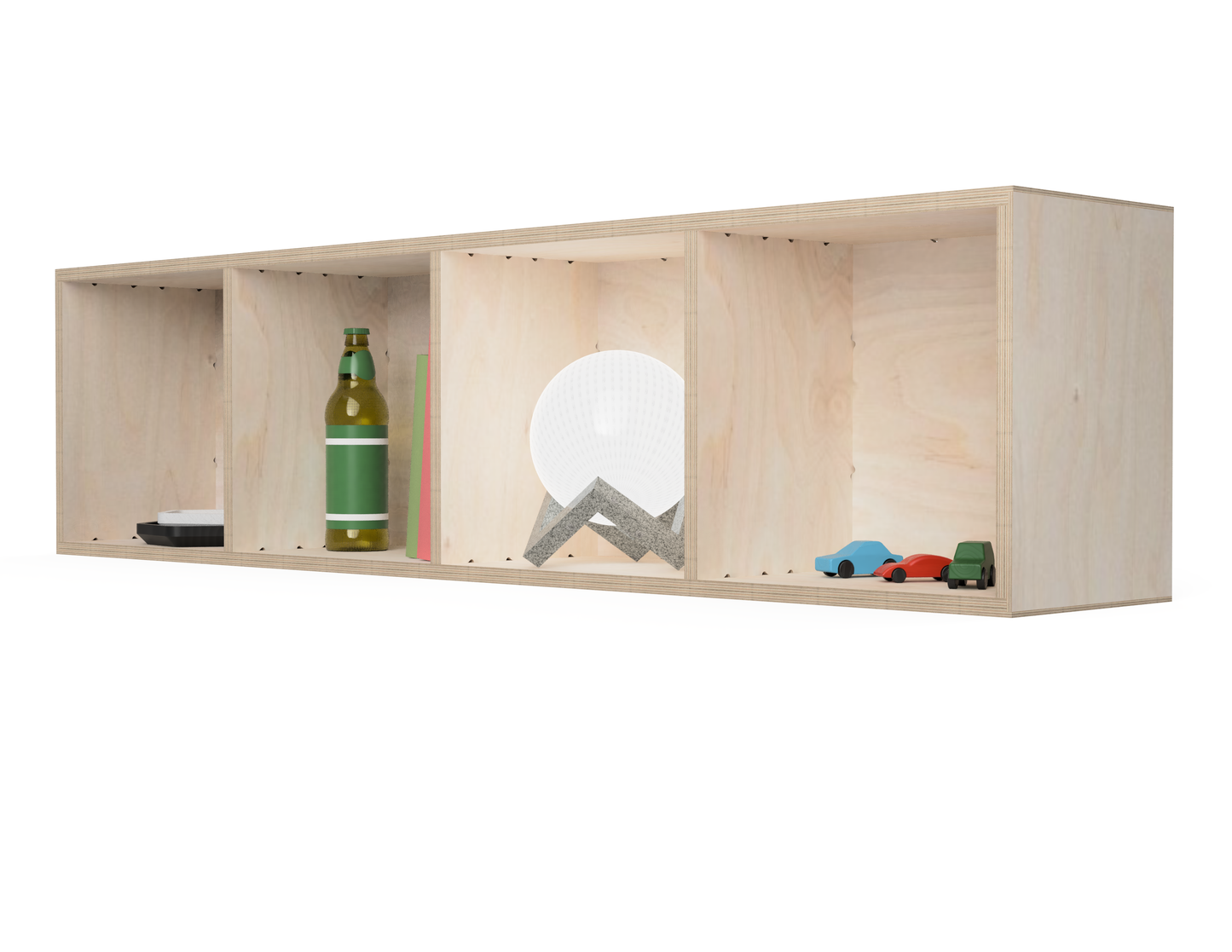

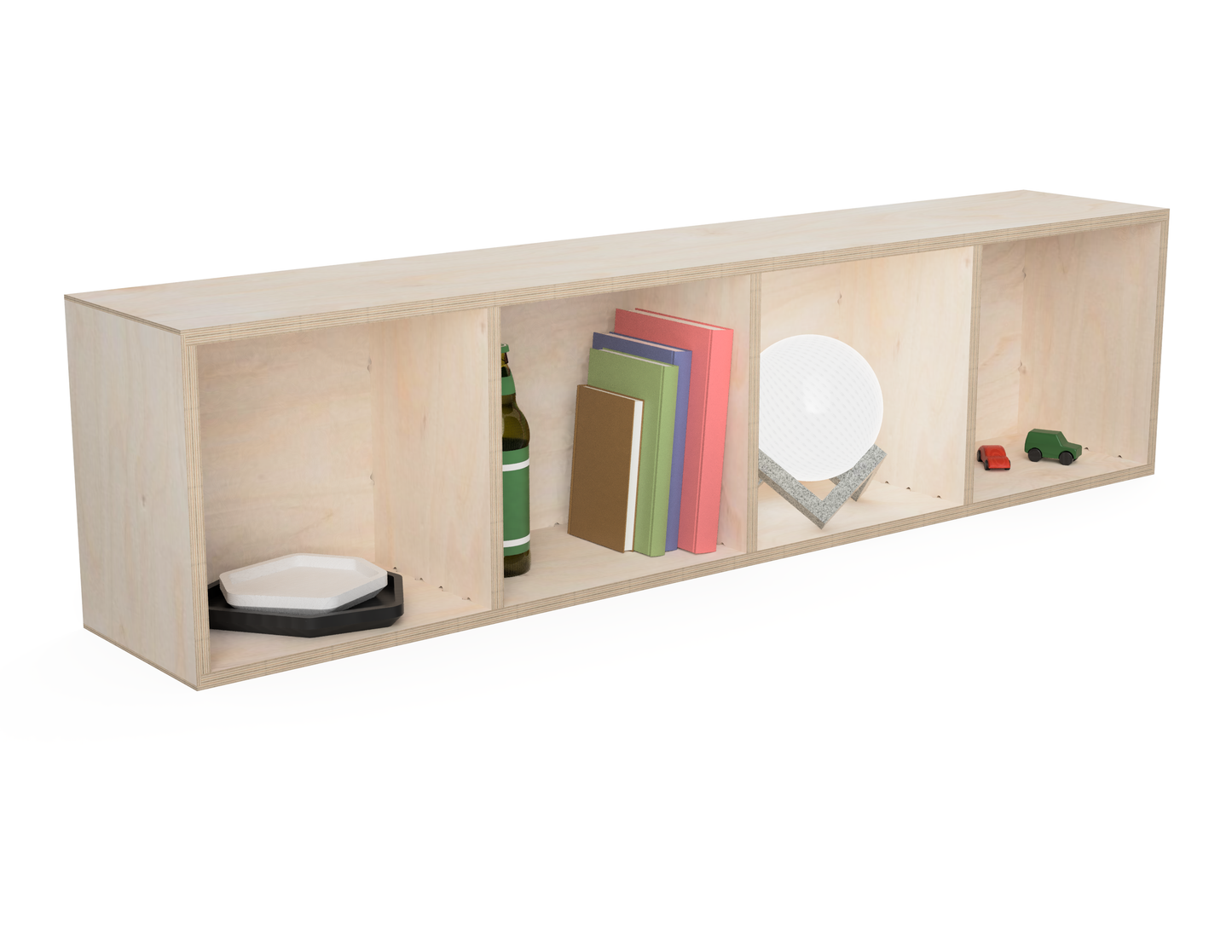

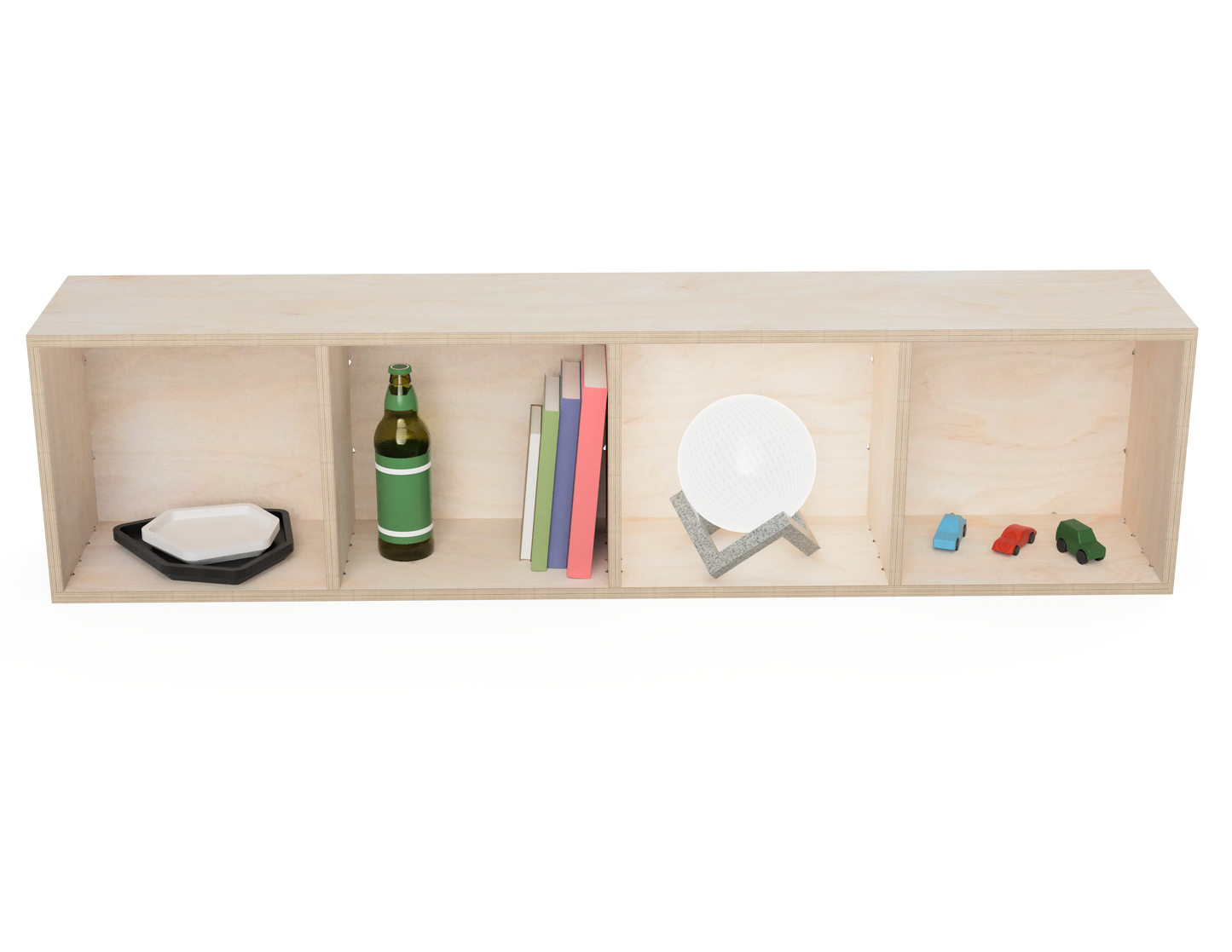

Perfect for displaying books, plants, or home decor, this shelf is a practical CNC project for any interior. Designed for efficient cutting and simple assembly from plywood or MDF.

Supported CNC sizes

The project can be made on a 1200 x 2500 mm (4 x 8 ft) CNC router and bigger.

Dimensions

Width Length Height
250 mm 1400 mm 350 mm
9⅞ inch 55⅛ inch 13¾ inch

Required materials

For 2500 x 1250 mm (4 x 8 ft) CNC
- 1 sheets of 1450 x 1100 x 15 mm (57 x 43-1/2 x 5/8 inches) plywood
- 1 sheet of 1450 x 400 x 6 mm (57 x 16 x 1/4 inches) plywood
- 4 mm (1/8 inch) router bit

Assembling time

25 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
