Move full plywood sheets around your workshop without the struggle.

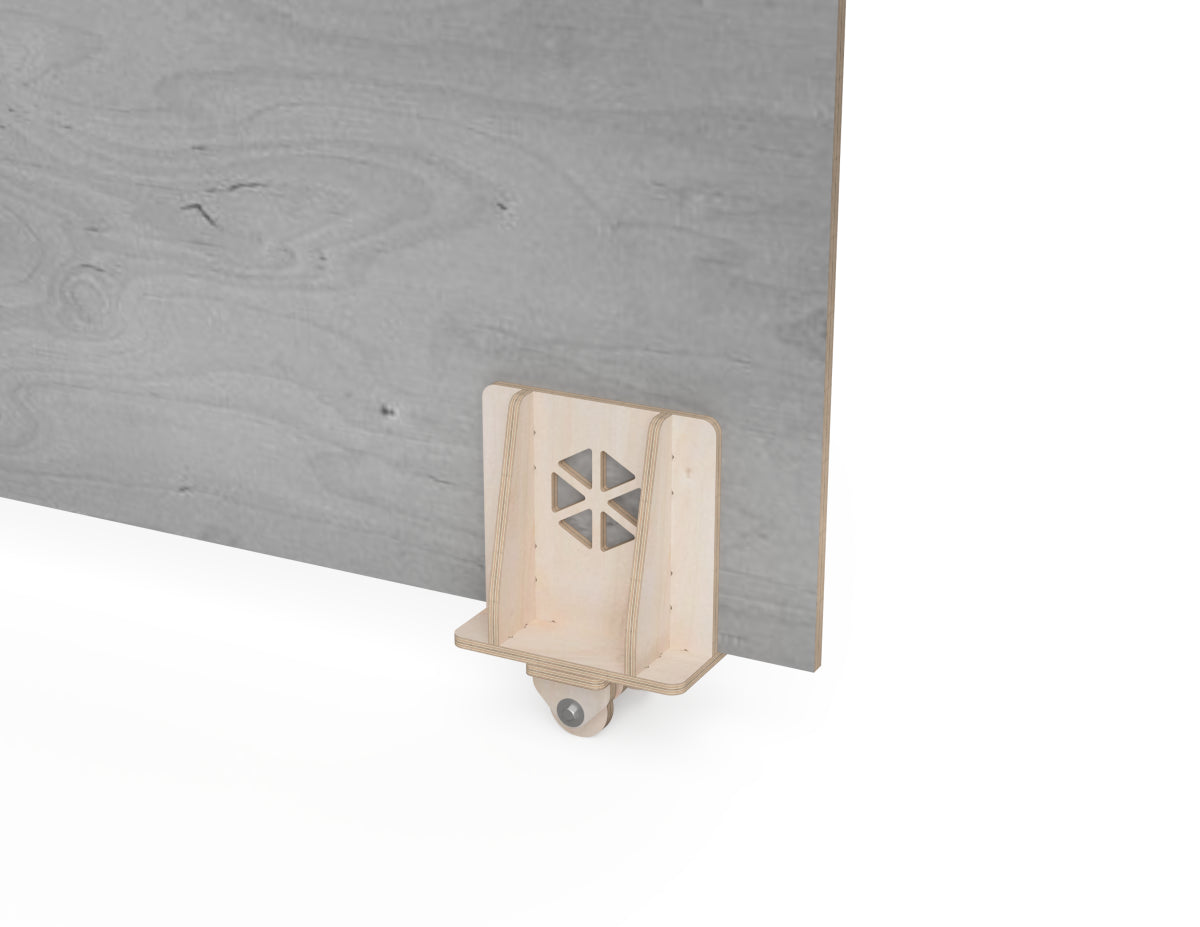

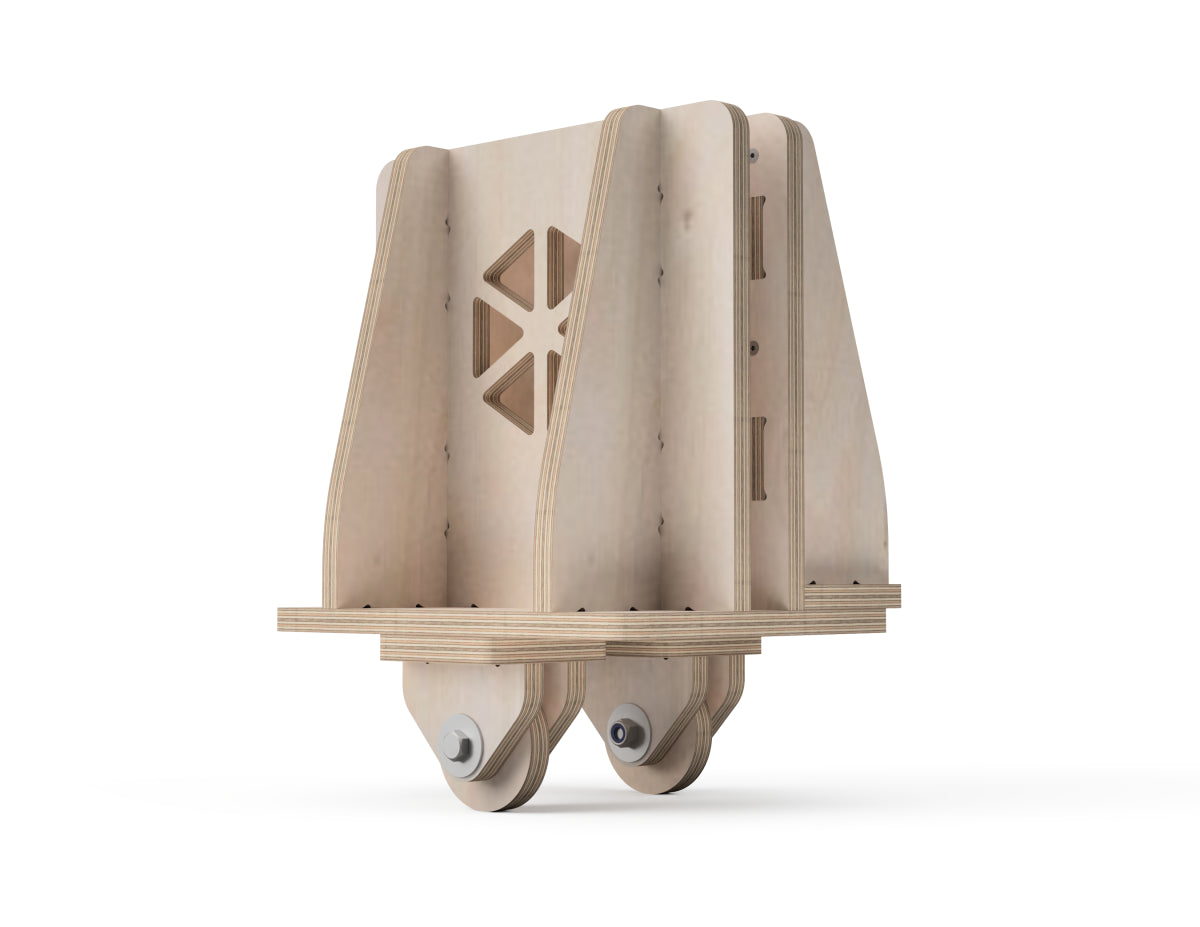

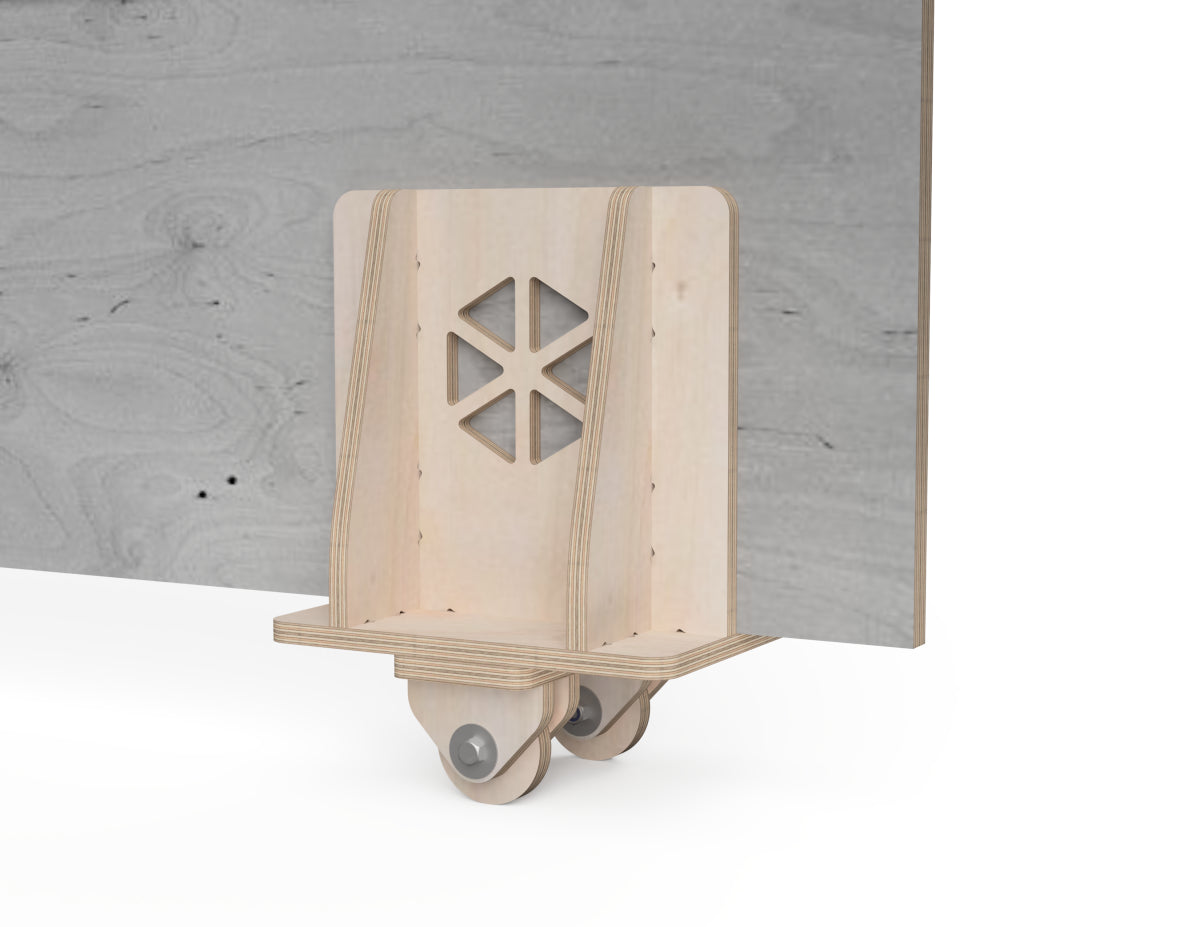

These free CNC DXF files let you build a simple, adjustable plywood sheet dolly that makes transporting sheet materials much easier for a single person. The platform supports one end of the sheet, carrying roughly half of its weight while the opposite end is guided by hand, making large panels far easier to maneuver.

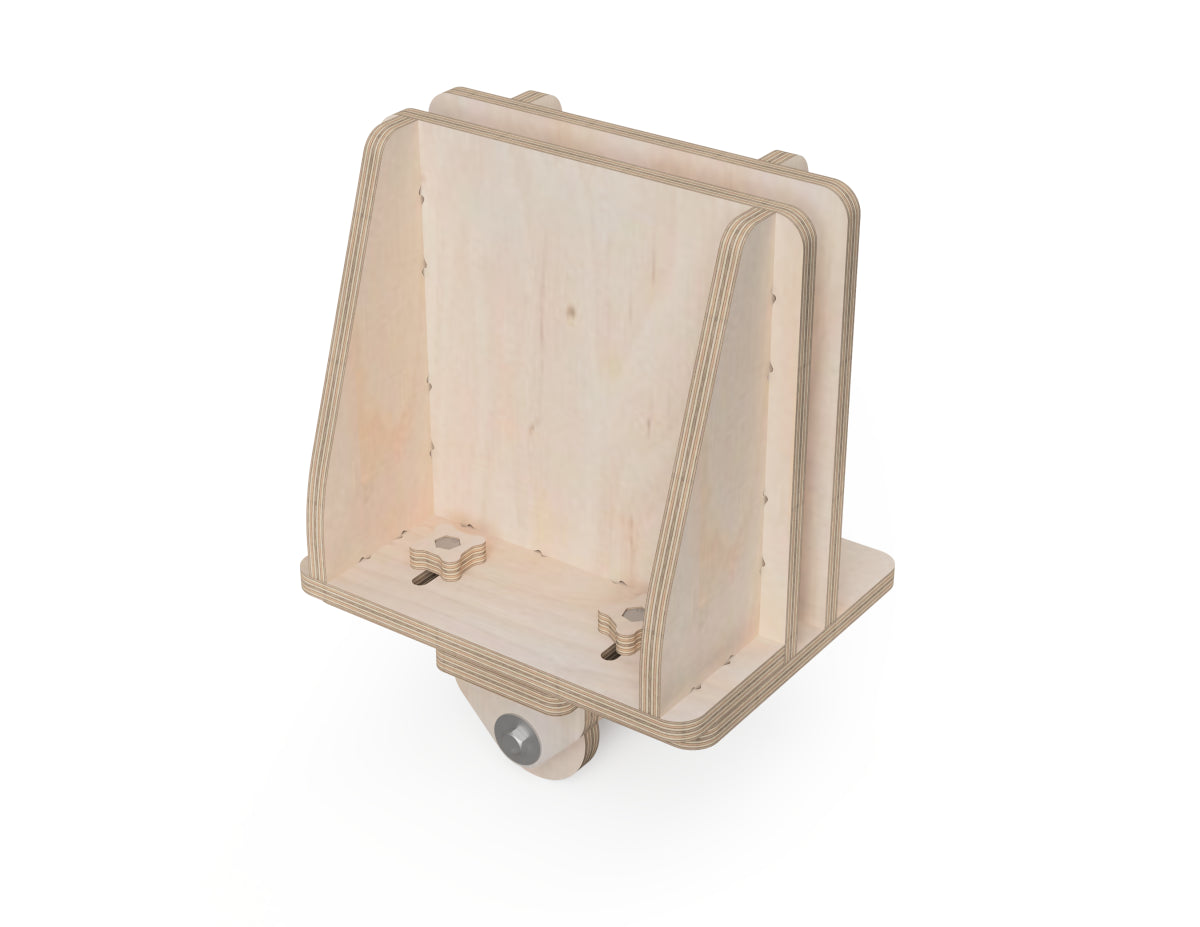

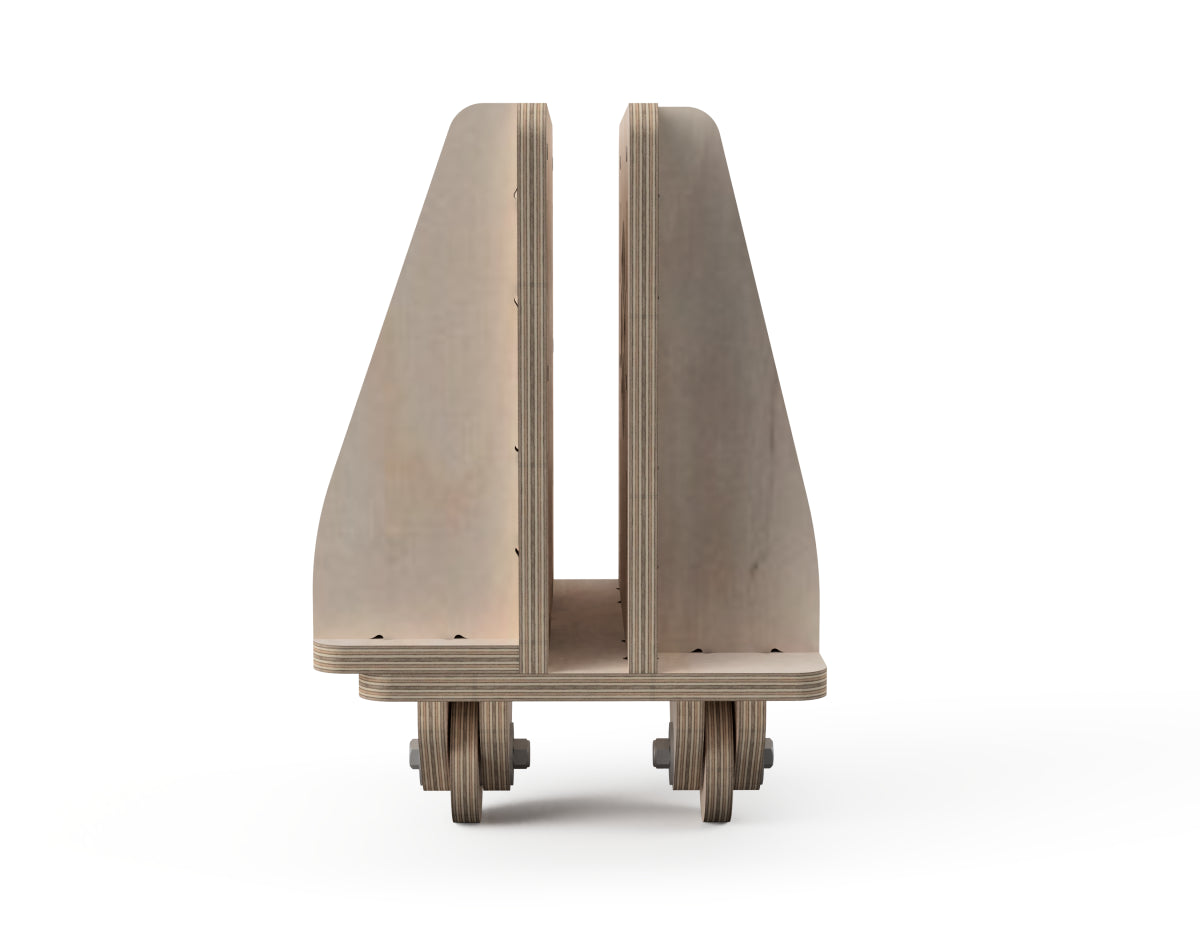

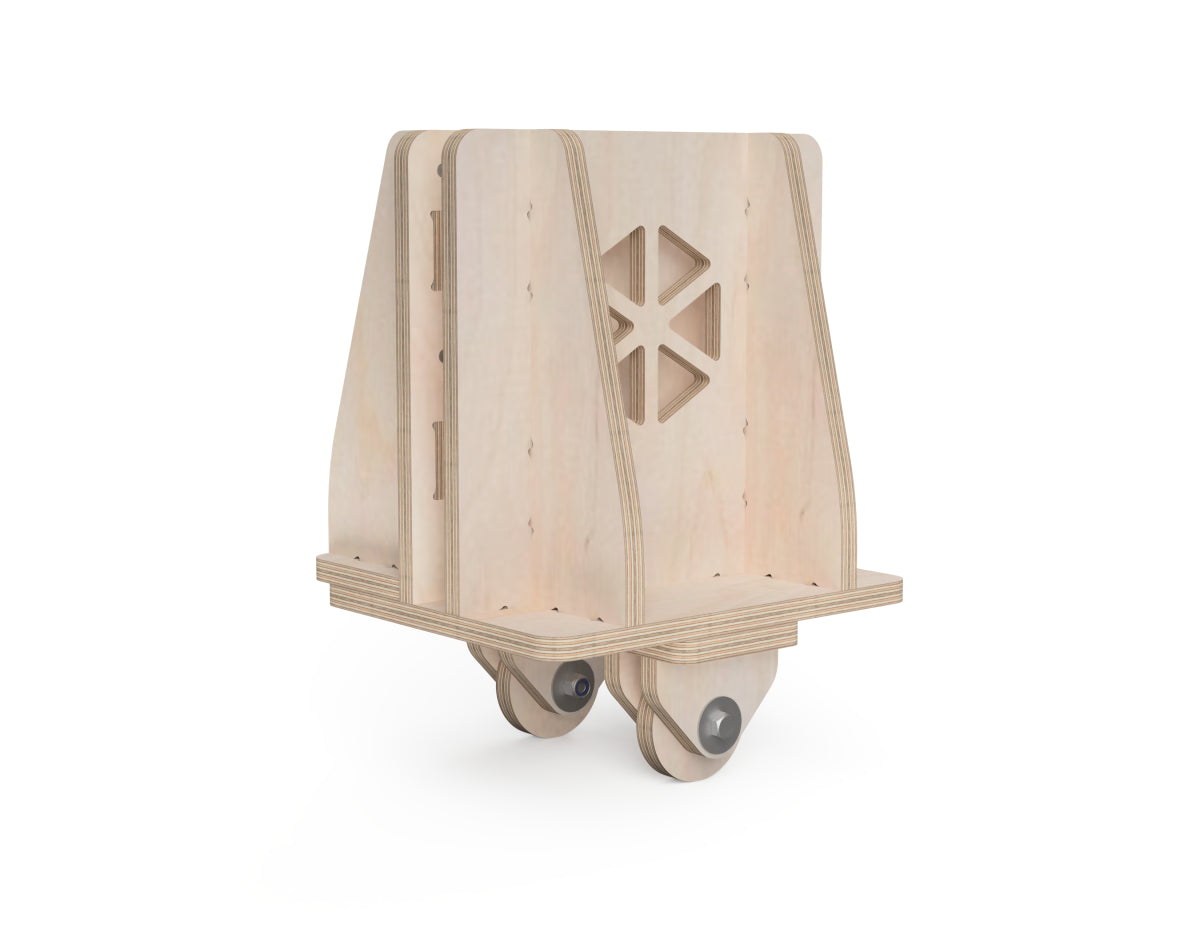

The design features an adjustable platform that accommodates material thicknesses from 6 mm to 40 mm (1/2 to 1-1/2 inches), allowing the same dolly to work with a wide range of plywood, MDF, and other sheet goods.

The files are compatible with most CNC routers and provide a quick, practical workshop project that can save time and effort every time you handle large sheets.

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Max single piece size

The biggest component is 250 x 250 mm (9.84 x 9.84 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width	Length	Height
250 mm	200 mm	335 mm
9⅞ inch	7⅞ inch	13¼ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- a sheet of 750 x 550 x 12 mm (30 x 22 x 0.5 inches) plywood
- 25 mm (1-inch) wood screws - 25 pieces
- M8x30 Screws - 2 pieces
- M8 Nut - 2 pieces
- Aribabox Fixed Caster Wheels - 2 pieces
- 3 mm (1/8-inch) router bit
