Plywood Clamps DXF Files

Plywood Clamps DXF Files

Regular price $9.95 USD
Regular price Sale price $9.95 USD
Sale Sold out
Tax included.

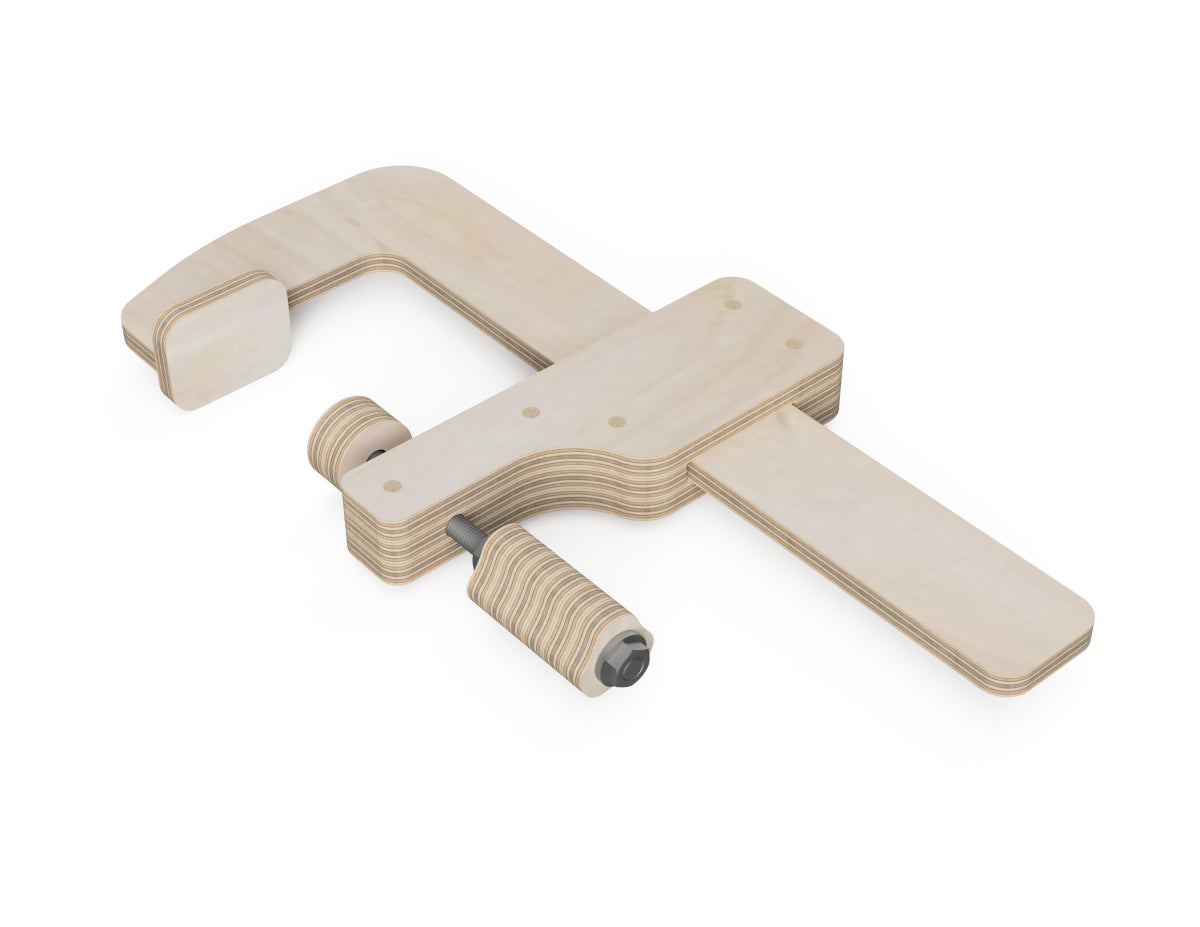

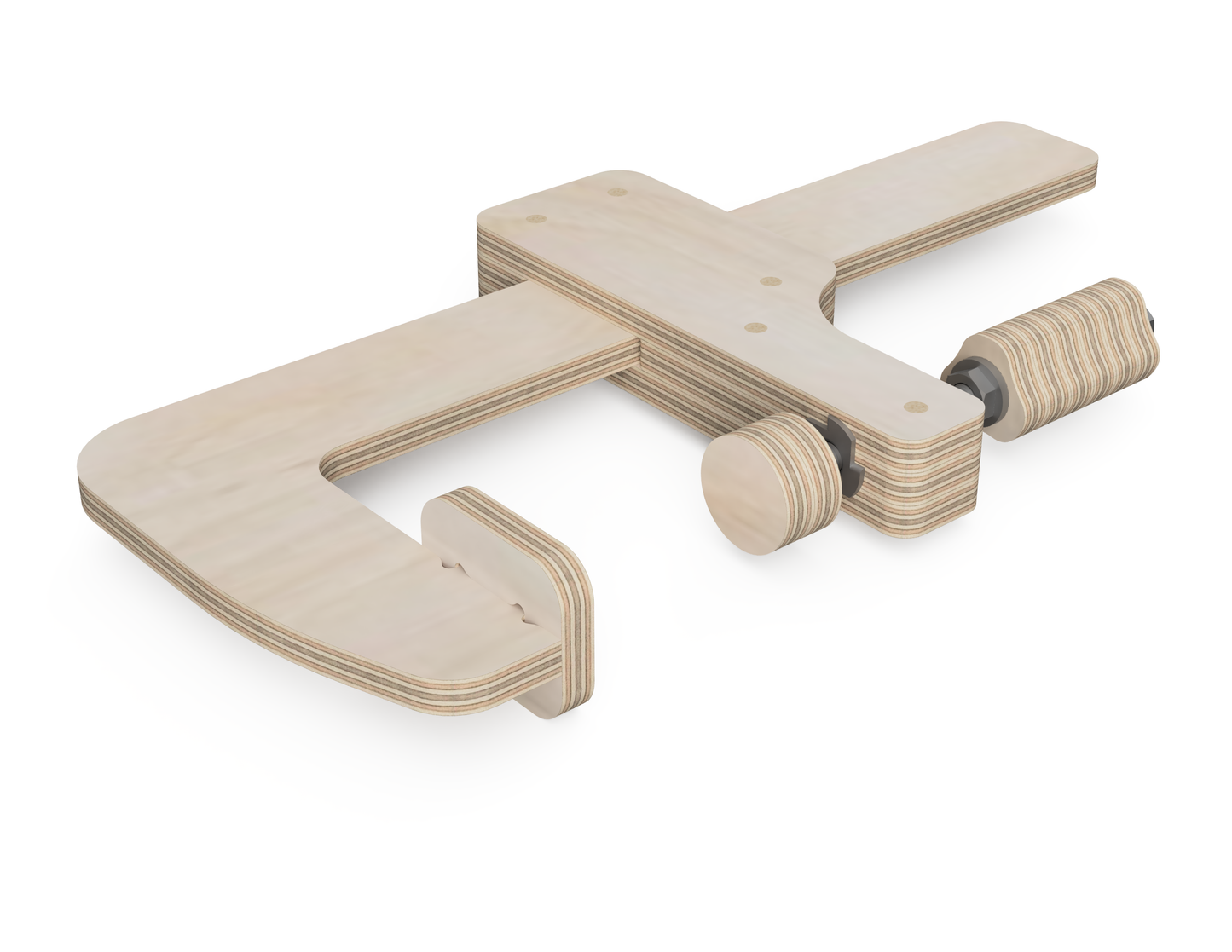

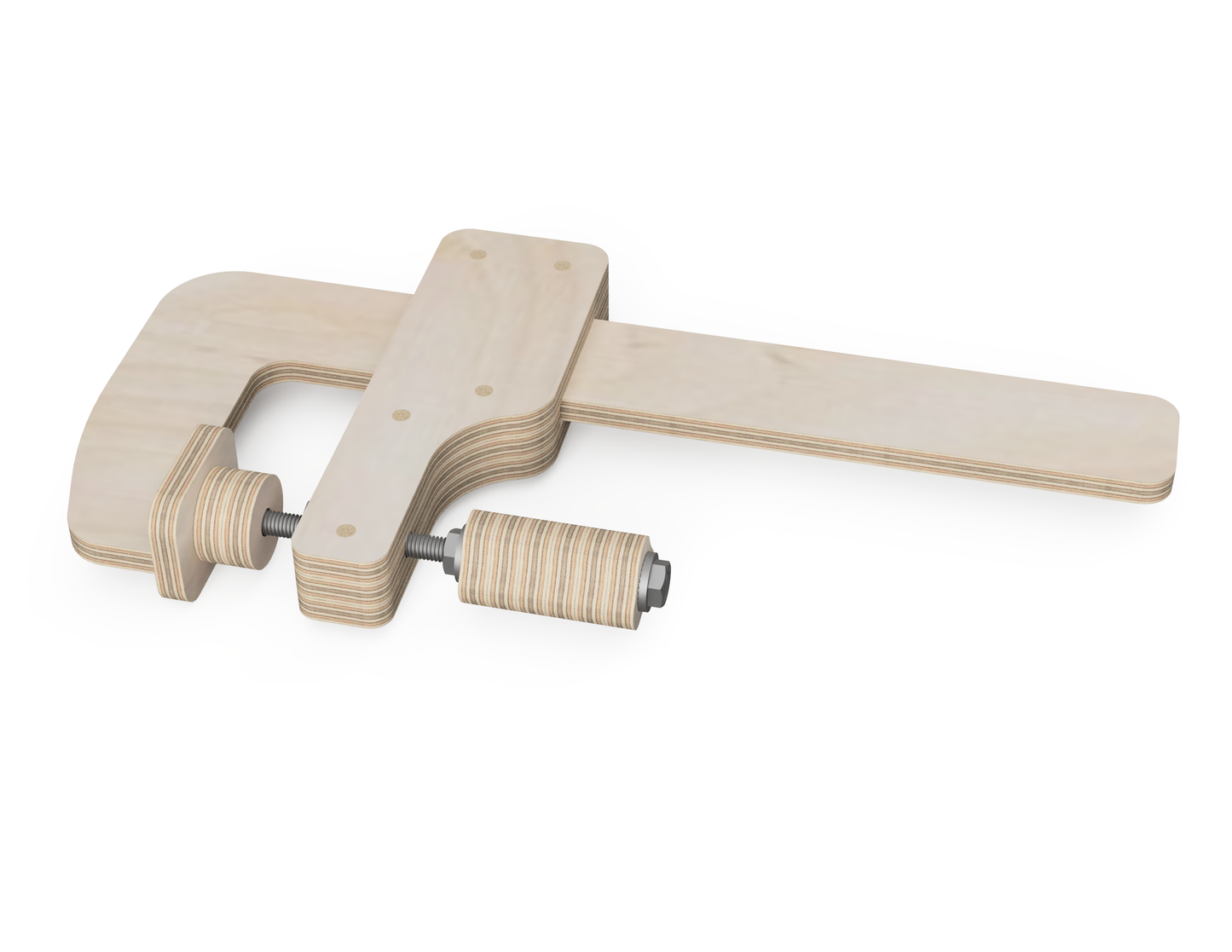

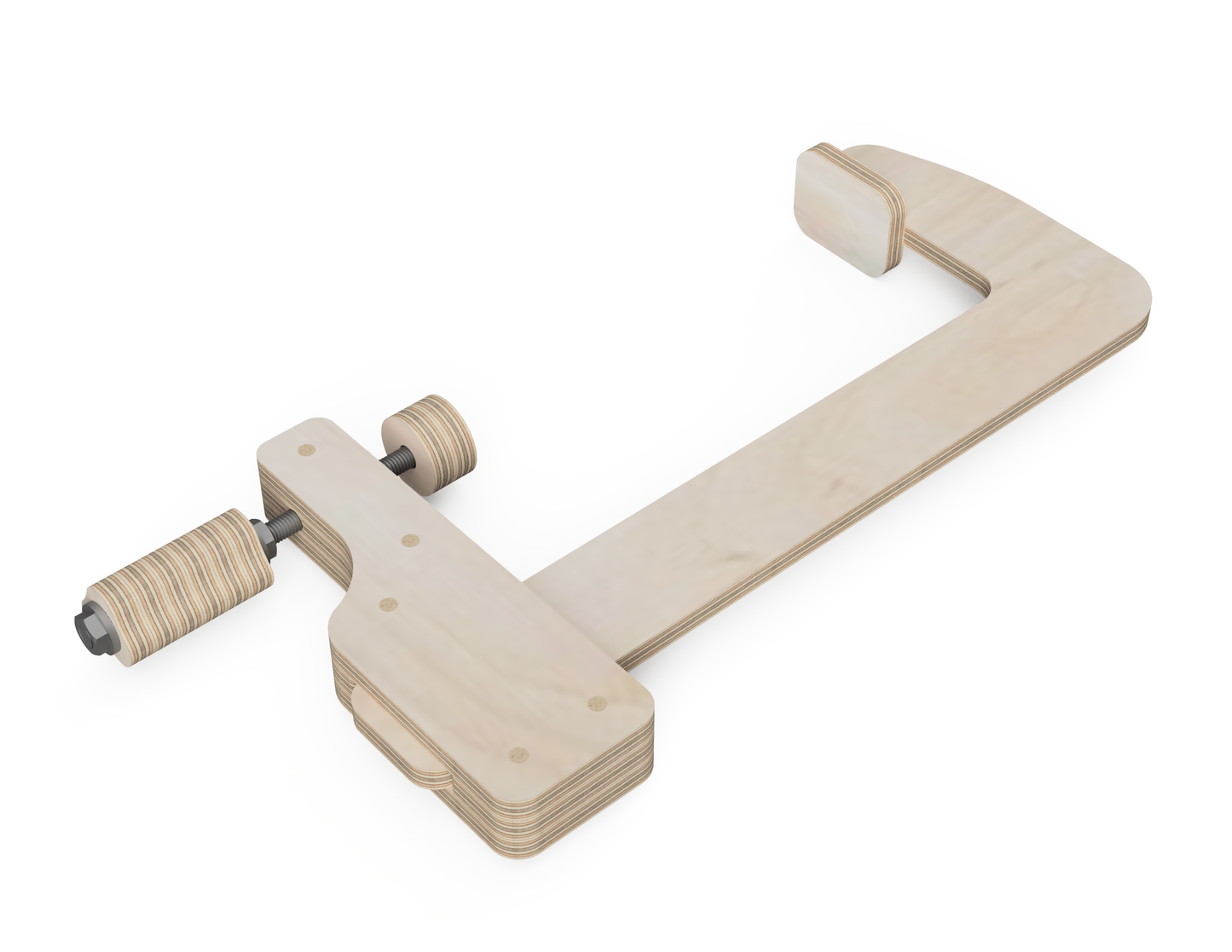

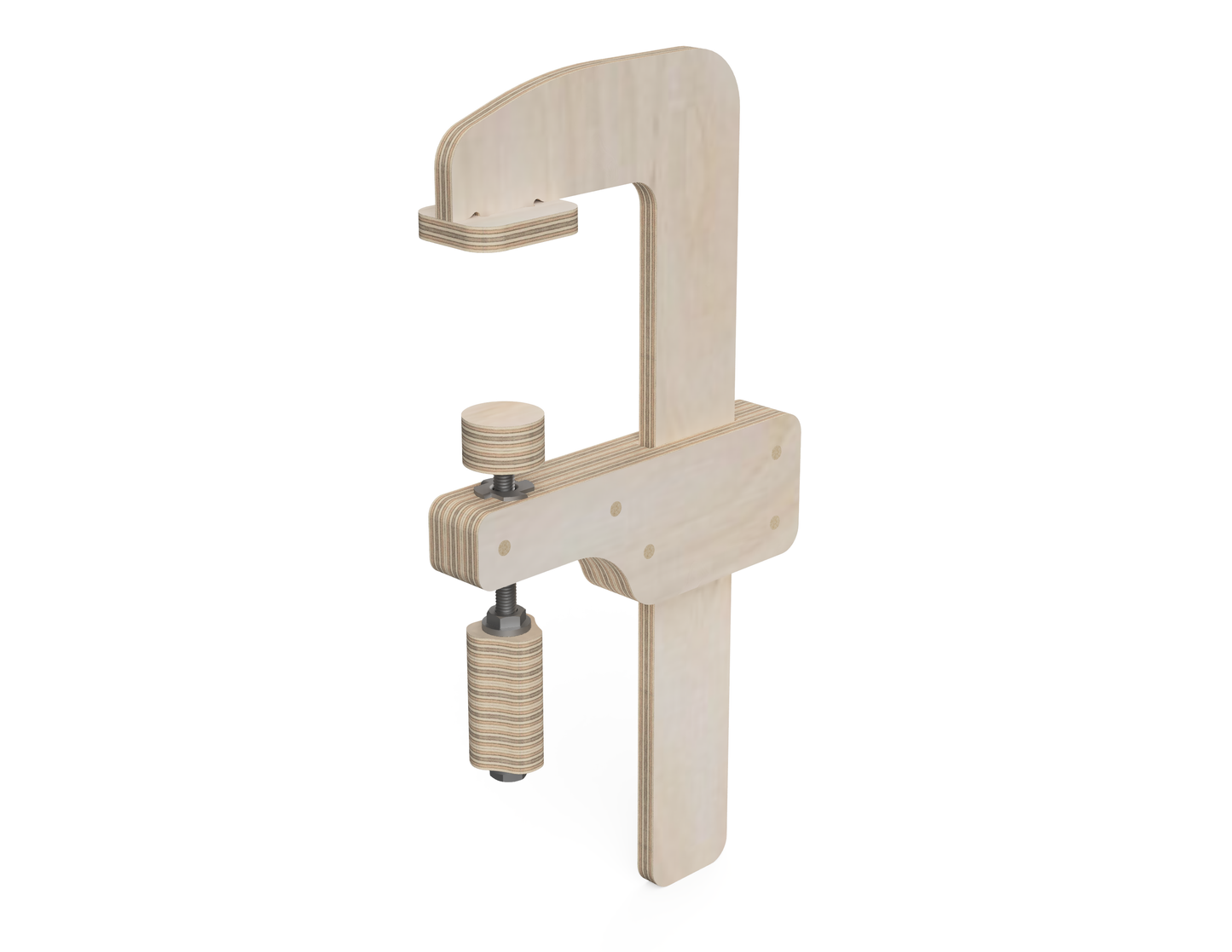

Save money and unleash your creativity with our Plywood Clamp DXF Files. Designed for CNC router enthusiasts, these files empower you to transform plywood offcuts into high-quality clamps. Simply combine them with M8 rods and a variety of M8 nuts for a secure and versatile clamping solution.


Crafted for durability and simplicity, our DXF files provide step-by-step instructions for hassle-free assembly. Say goodbye to expensive ready-made clamps and embrace the cost-effective alternative that doesn't compromise on quality.


Start your woodworking projects with confidence, knowing you've optimized your budget without sacrificing functionality. Unleash the potential of your CNC router and unlock endless possibilities with our Plywood Clamp DXF Files.


Don't miss out on this opportunity to save money and create professional-grade clamps effortlessly. Get your Plywood Clamp DXF Files now and experience the joy of DIY woodworking.


The design can be cut on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions:

100 mm (3.95 inches) - jaw length

200 mm (7.9 inches) - max distance between the jaws


Required materials:

For a 600 x 900 mm (2 x 3 ft) CNC and bigger

  • 1 sheet of 400 x 200 x 12 mm (15.75 x 8 x 0.5 inches) plywood
  • 1 sheet of 400 x 200 x 9 mm (15.75 x 8 x 0.375 inches) plywood
  • 3 mm (1/8 inch) router bit
  • 6 mm (0.25-inch) dowels
  • T-nut (M8)
  • Self-fixating nut (M8)
  • 2 Flange nuts (M8)
  • M8 Rod (150 mm - 6 inces)
  • Sandpaper

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.


Assembling:

25 minutes


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
