Pinball (for small CNC) DXF file

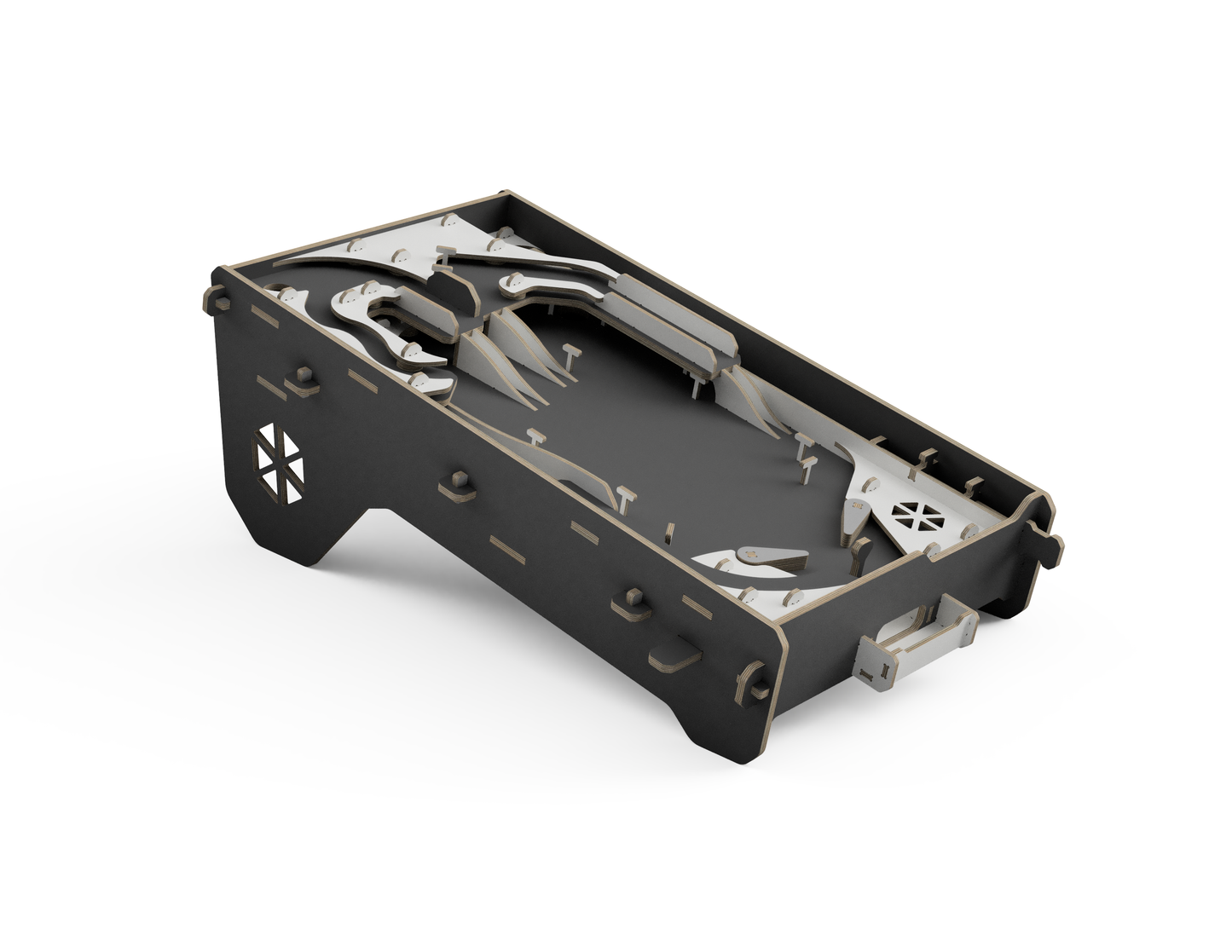

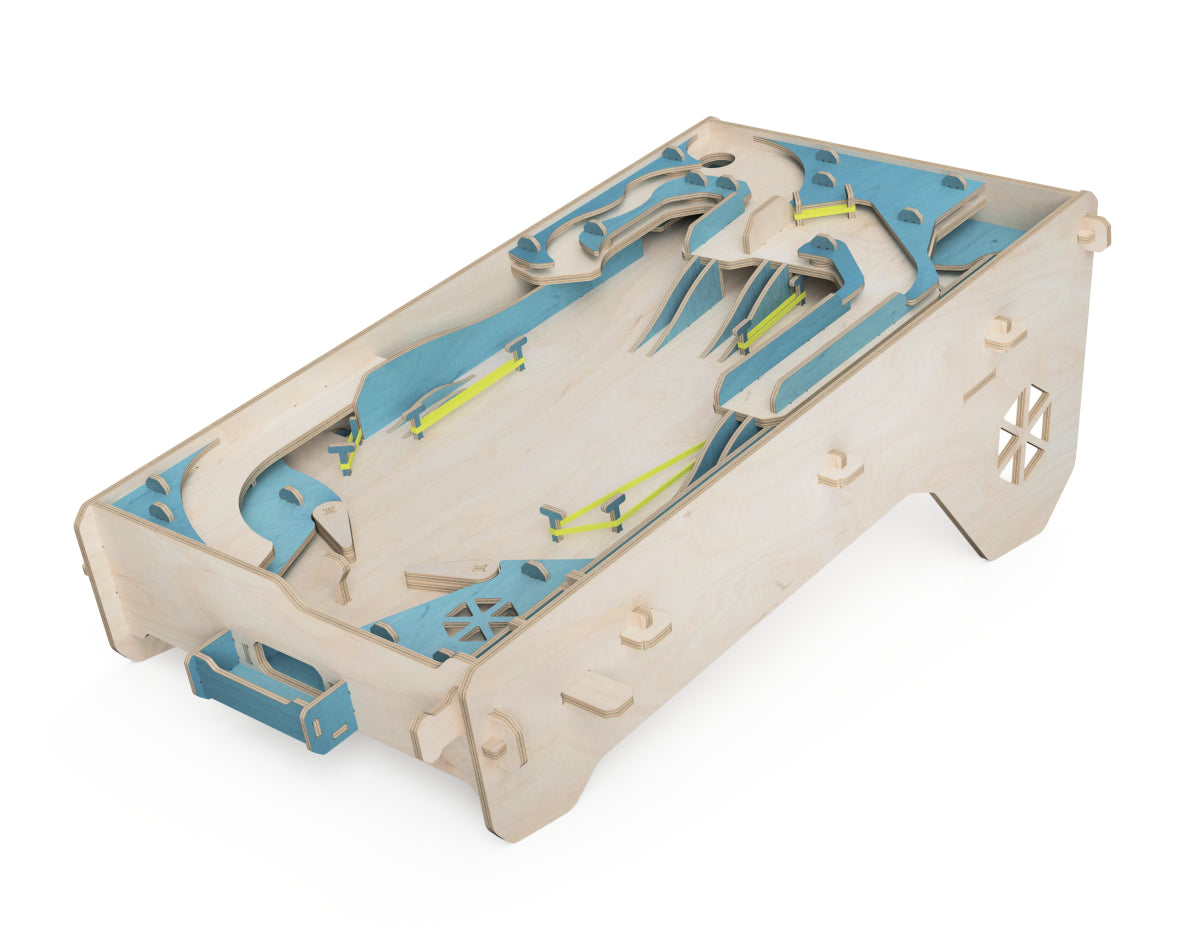

A fully functional Pinball table can really be made from plywood! And if you have a 600 x 900mm CNC router table or laser engraver, you can easily make one for yourself!

The design can be cut on 600 x 900 mm (2 x 3 ft) CNC router and bigger.

After completing the order, you will receive DXF files with component layout adjusted to different CNC sizes:

600 x 900 (2 x 3 ft)

900 x 1200 (3 x 4 ft)

1200 x 1200 (4 x 4 ft)
1200 x 2400 (4 x 8 ft)

*The files are adjusted to fit both metric and imperial standards for materials and tools

Dimensions:

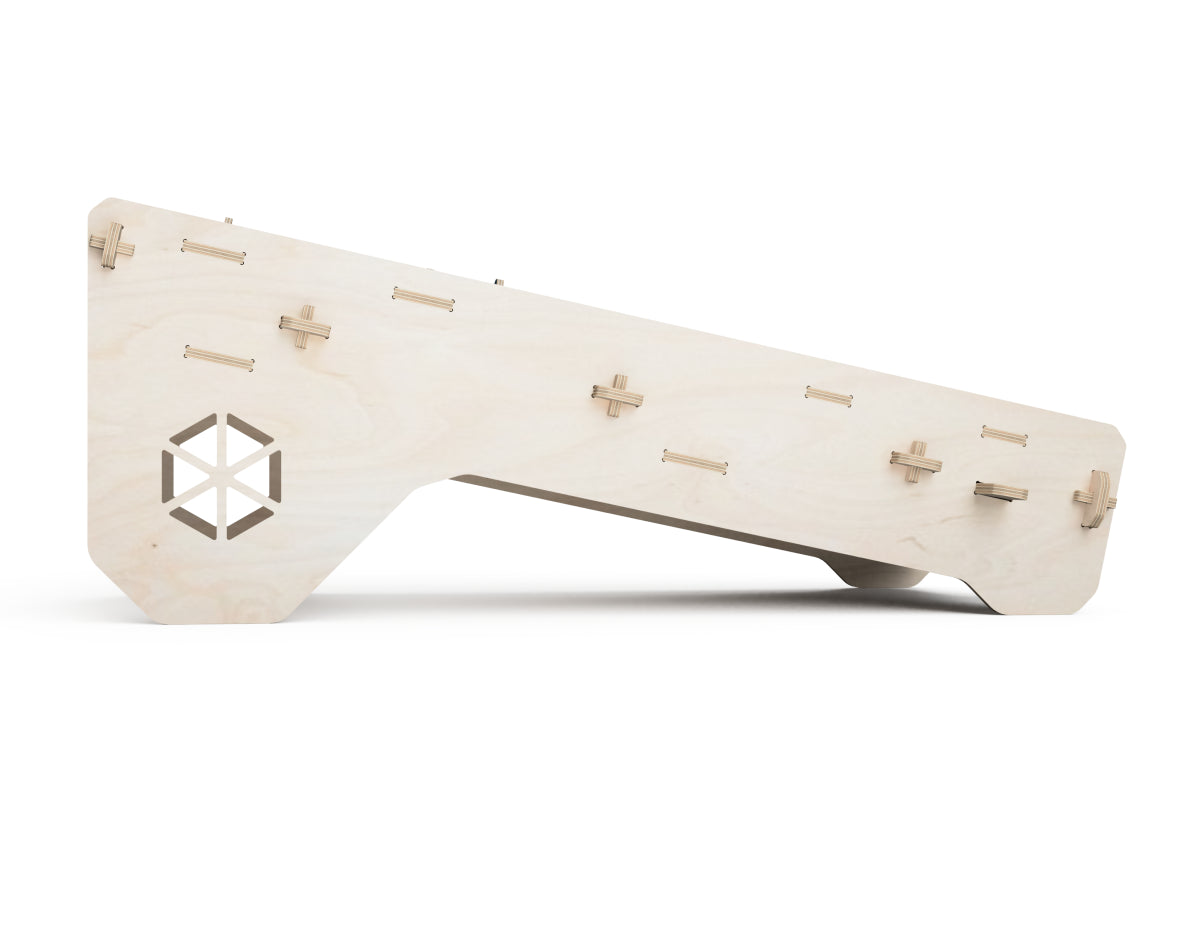

230 mm (hight) x 890 mm (length) x 445 mm (width)

9-1/16 (hight) x 35-3/64 (length) x 17-33/64 (width)

Required materials:

For 600 x 900 (2 x 3 ft) CNC

3 sheets of 600 x 900 x 9 mm (23-⅝ x 35-7/16 x 3/8 inches) plywood
1 sheet of 600 x 900 x 6 mm (23-⅝ x 35-7/16 x 1/4 inches) plywood
3 mm (1/8 inch) router bit for dogbones

For 900 x 1200 (3 x 4 ft) CNC

2 sheets of 900 x 1200 x 9 mm (35-7/16 x 47-¼ x 3/8 inches) plywood
1 sheet of 600 x 900 x 6 mm (23-⅝ x 35-7/16 x 1/4 inches) plywood
3 mm (1/8 inch) router bit for dogbones

For 1200 x 1200 (4 x 4 ft) CNC

1 sheet of 1200 x 1200 x 9 mm (47-1/4 x 47-¼ x 3/8 inches) plywood
1 sheet of 500 x 450 x 9mm (19-11/16 x 17-23/32 x 3/8 inches) plywood
1 sheet of 600 x 900 x 6 mm (23-⅝ x 35-7/16 x 1/4 inches) plywood
3 mm (1/8 inch) router bit for dogbones

For 1200 x 2400 (4 x 8 ft) CNC

1 sheet of 1200 x 1600 x 9 mm (47-1/4 x 62-63/64 x 3/8 inches) plywood
1 sheet of 600 x 900 x 6 mm (23-⅝ x 35-7/16 x 1/4 inches) plywood
3 mm (1/8 inch) router bit for dogbones

Assembling time:

45 minutes

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file to your email within seconds.

Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.
