Regular price $29.95 Unit price  per

Tax included.

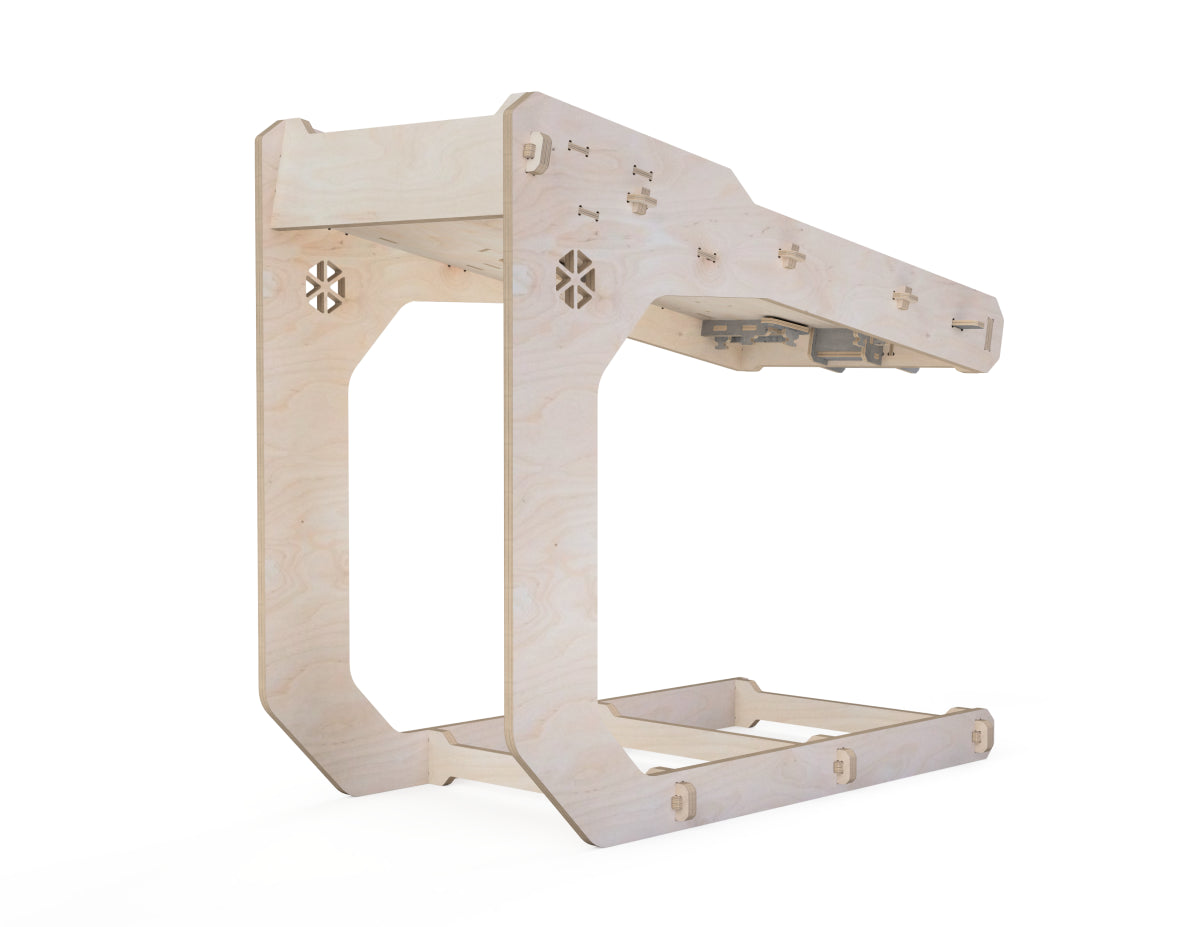

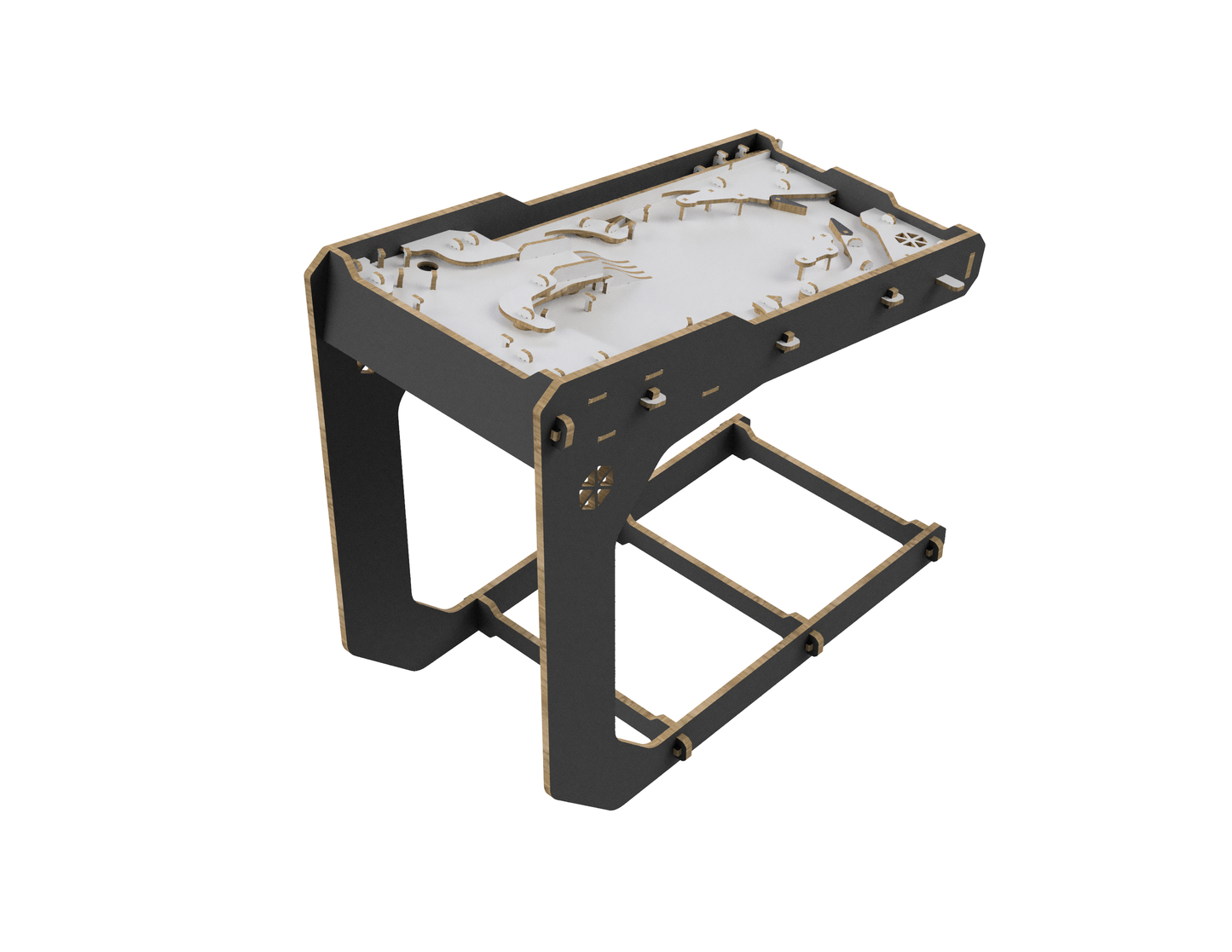

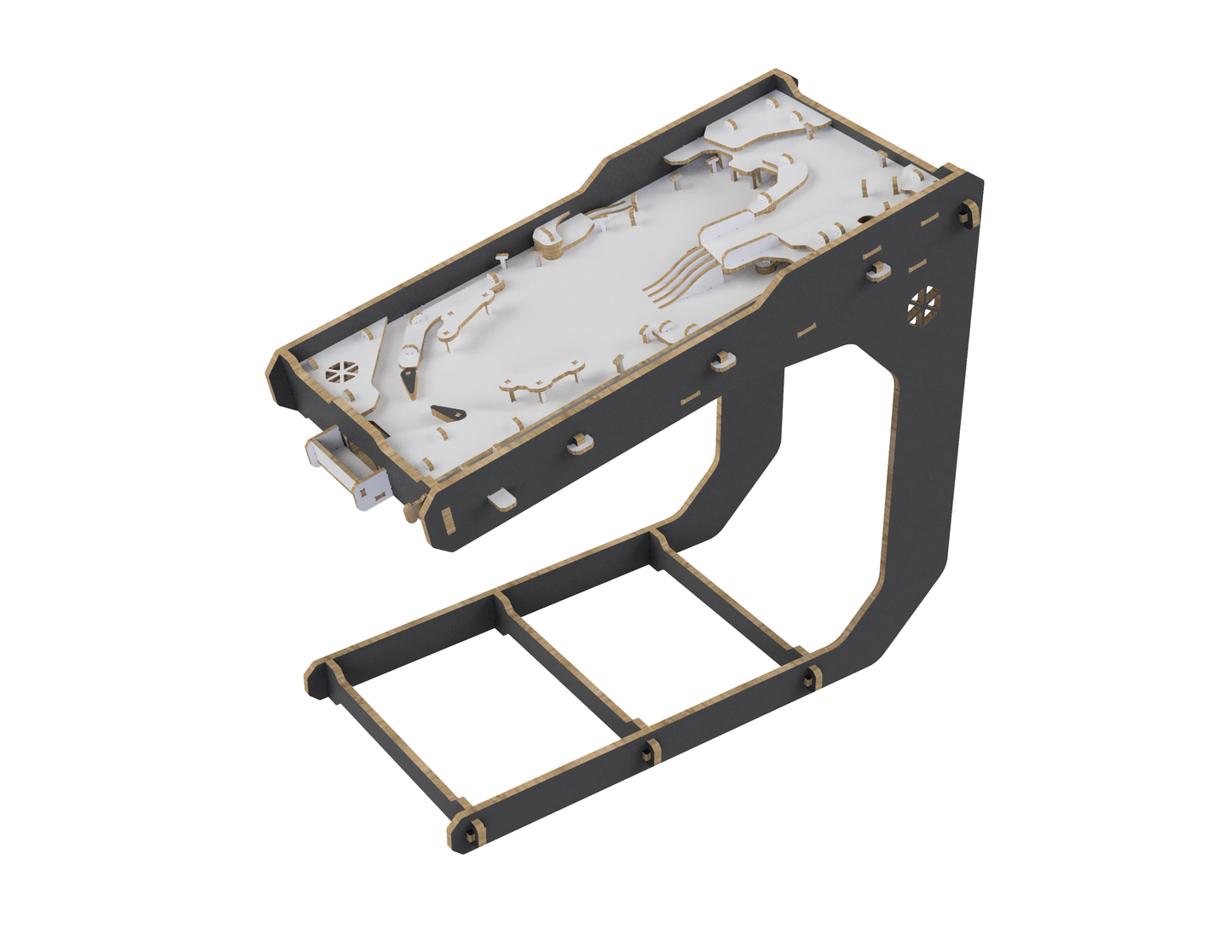

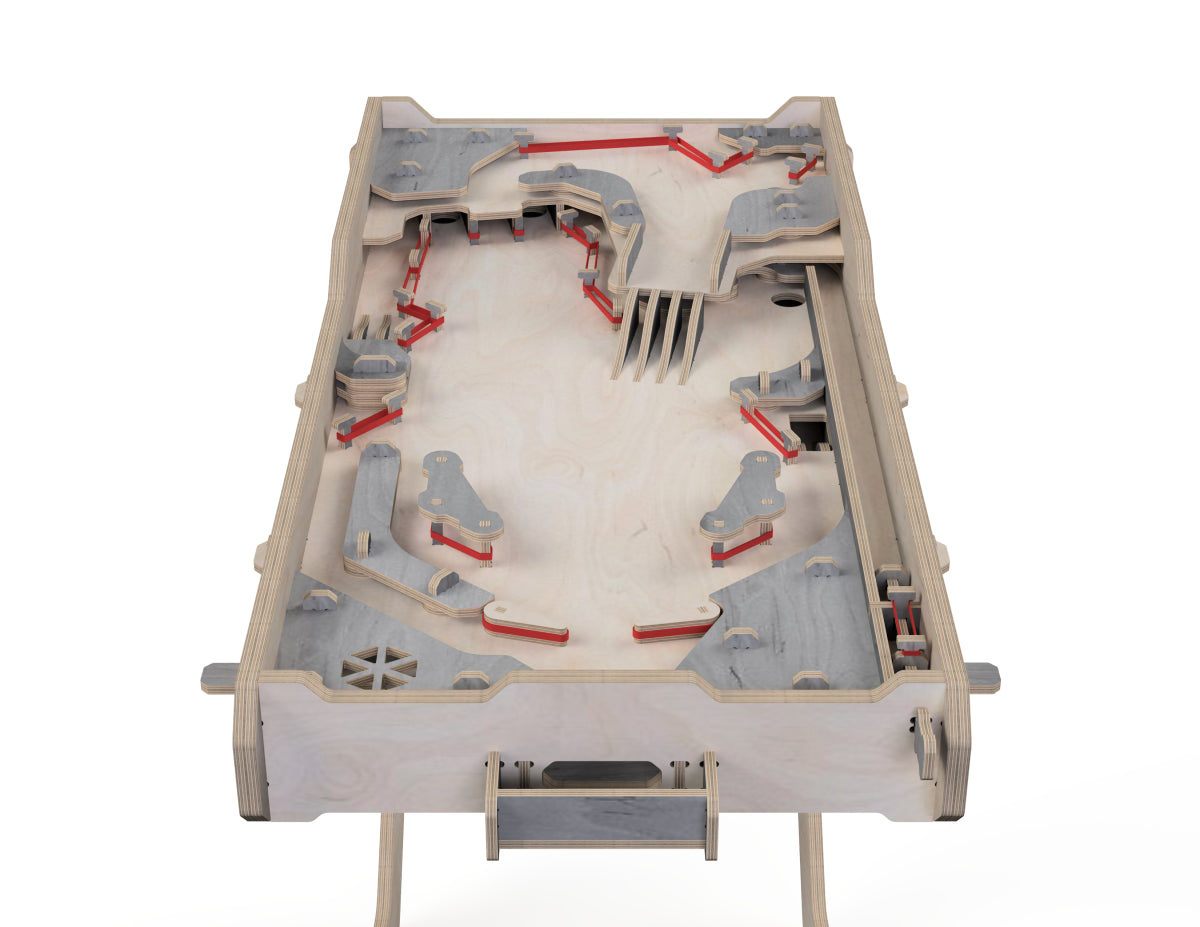

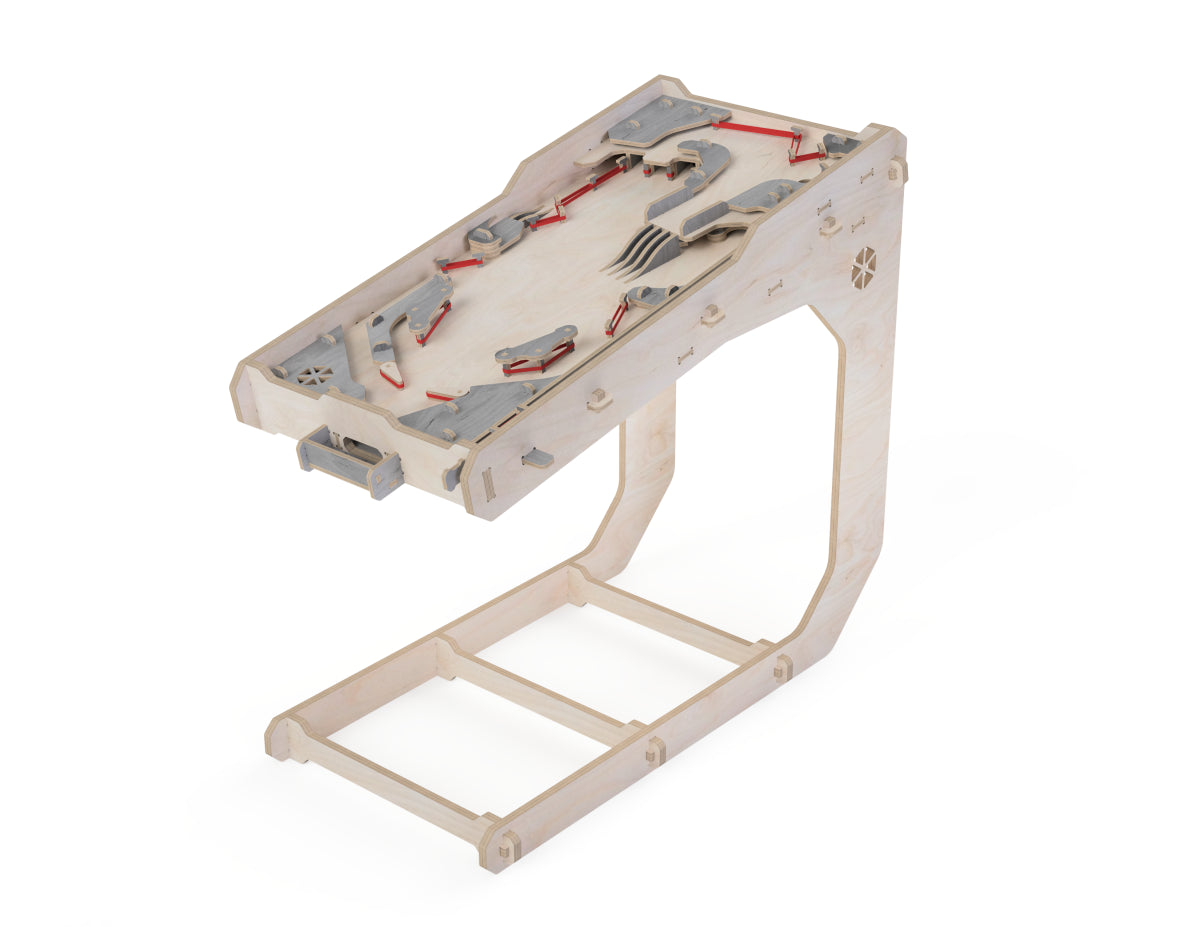

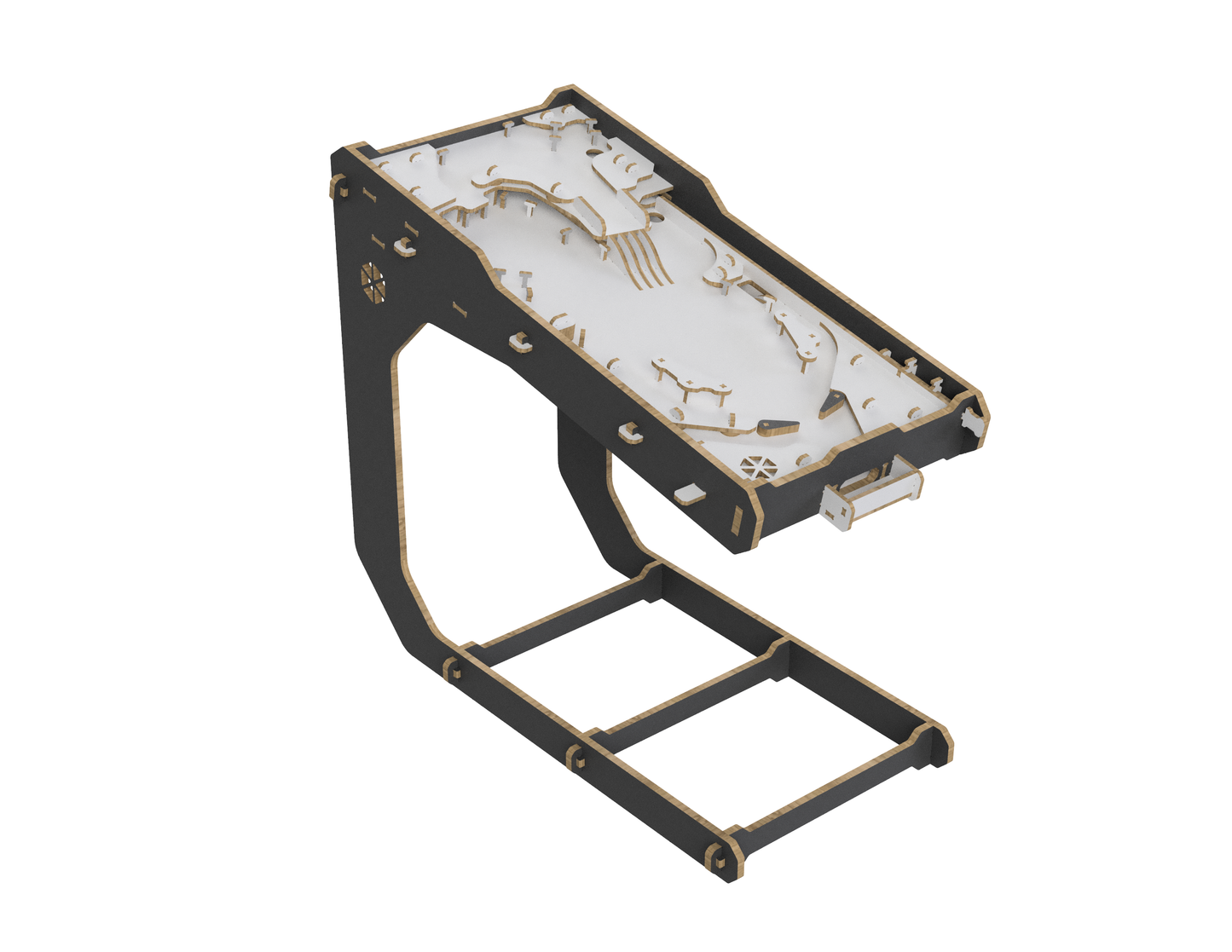

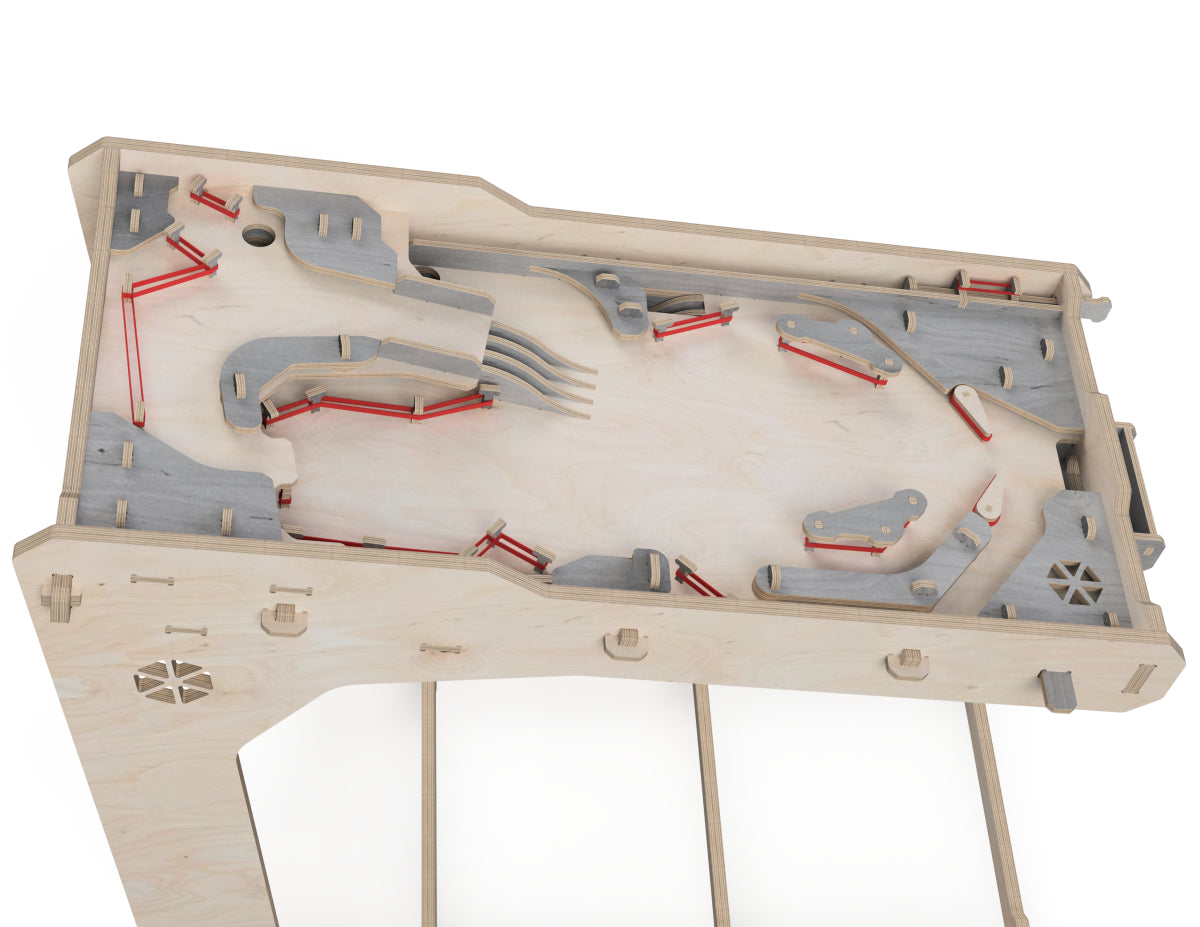

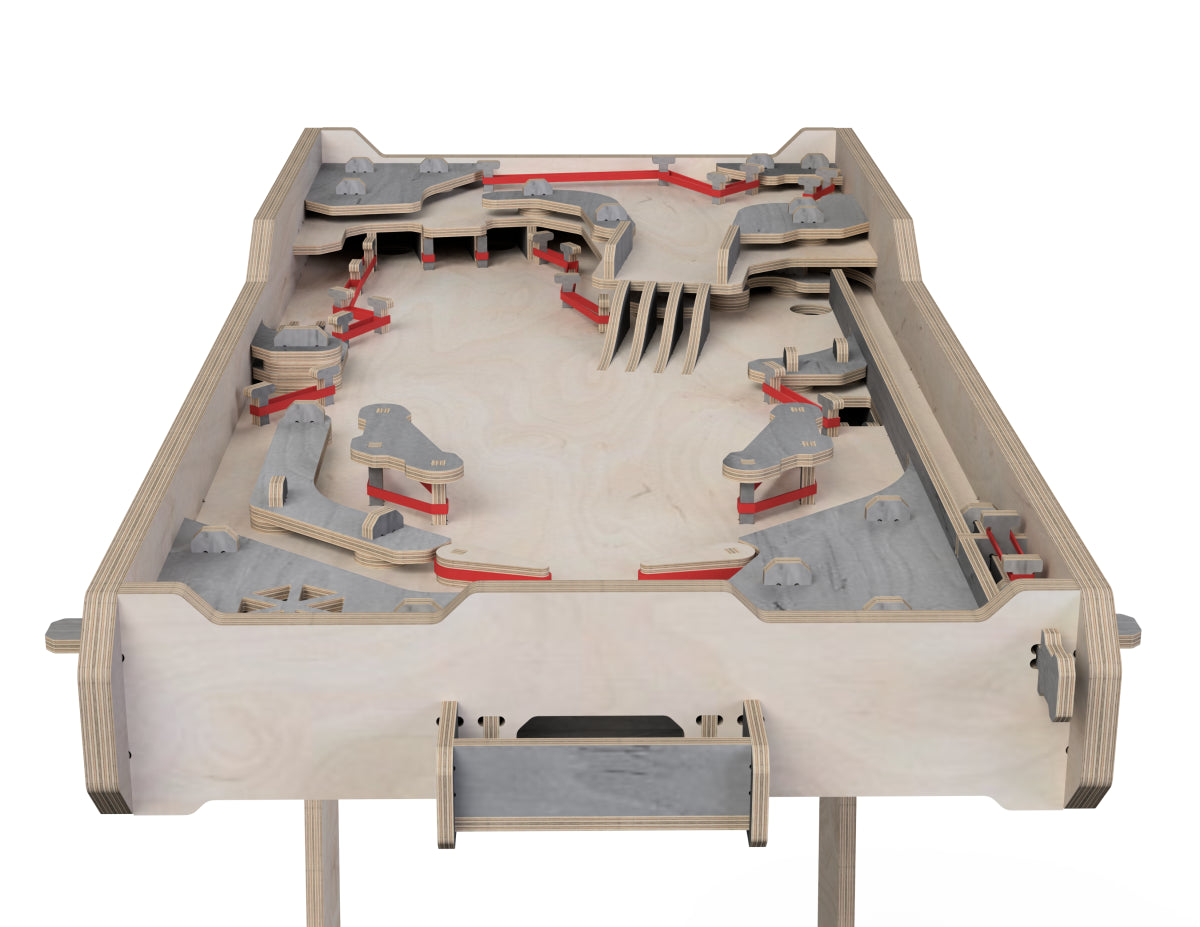

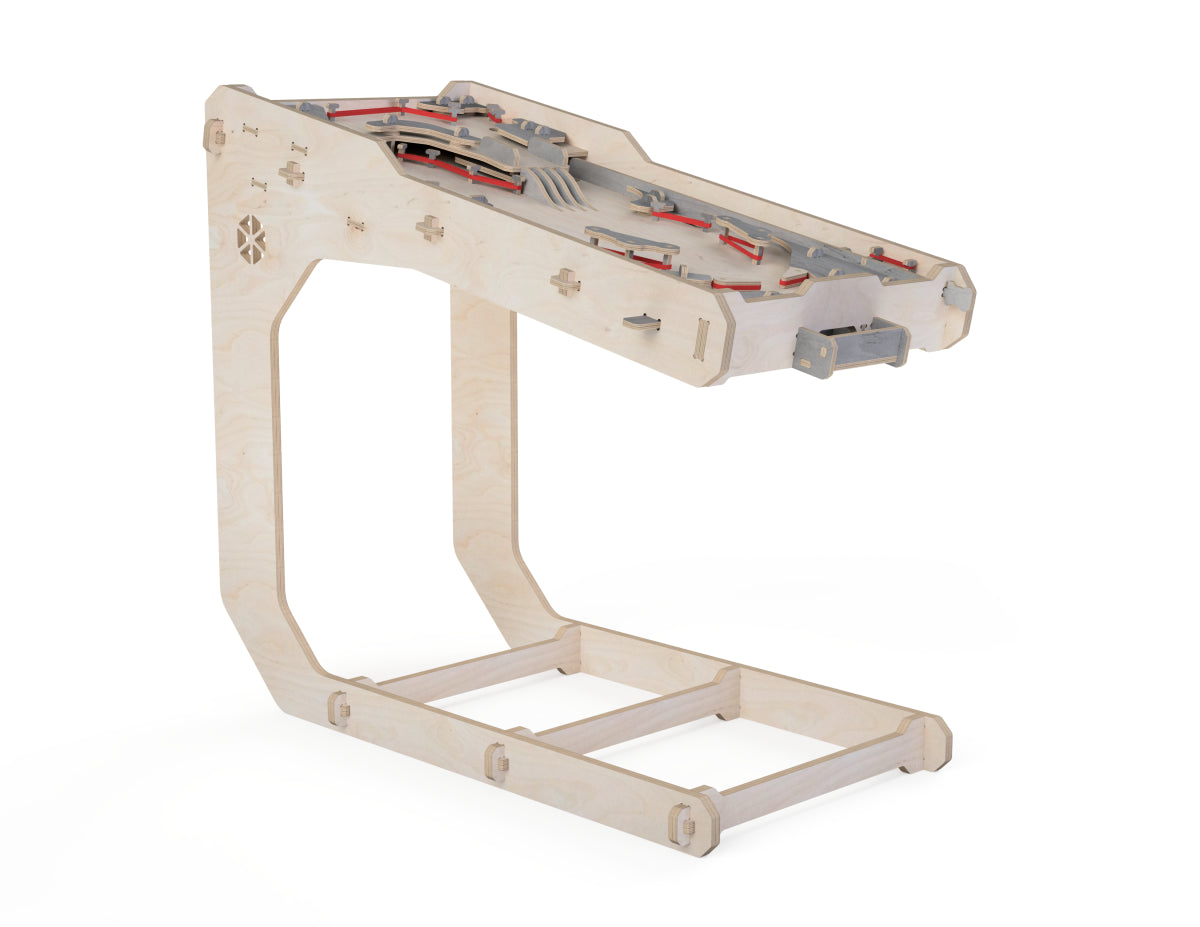

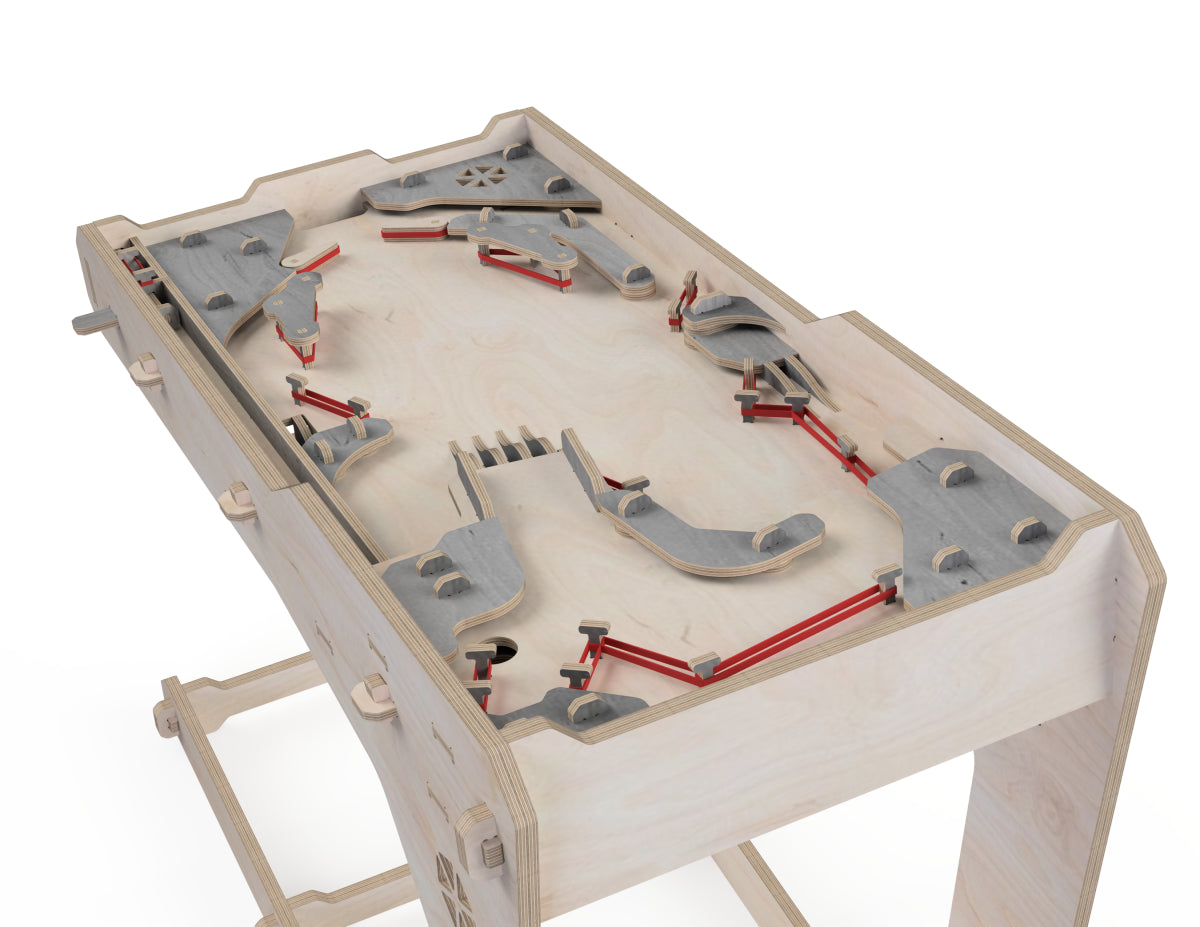

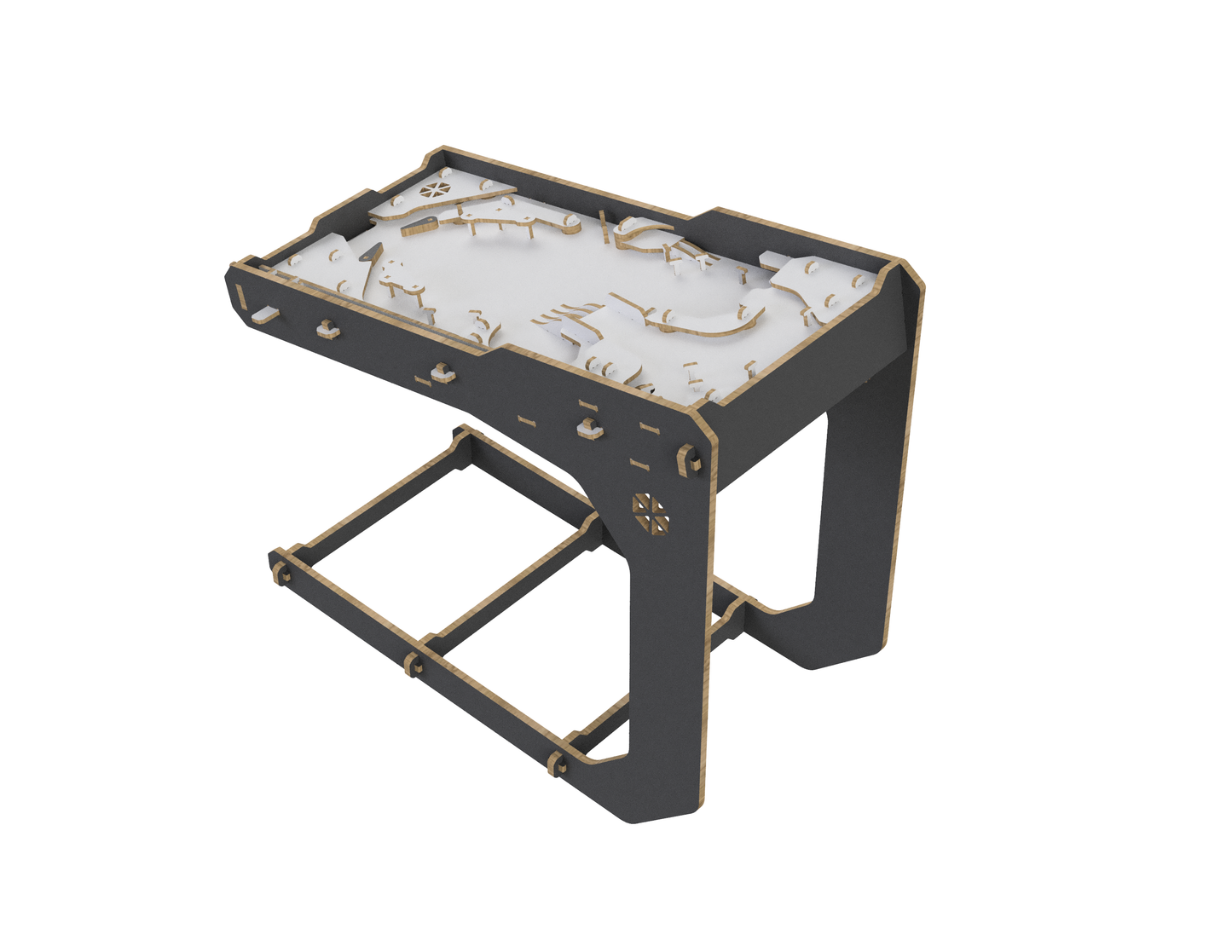

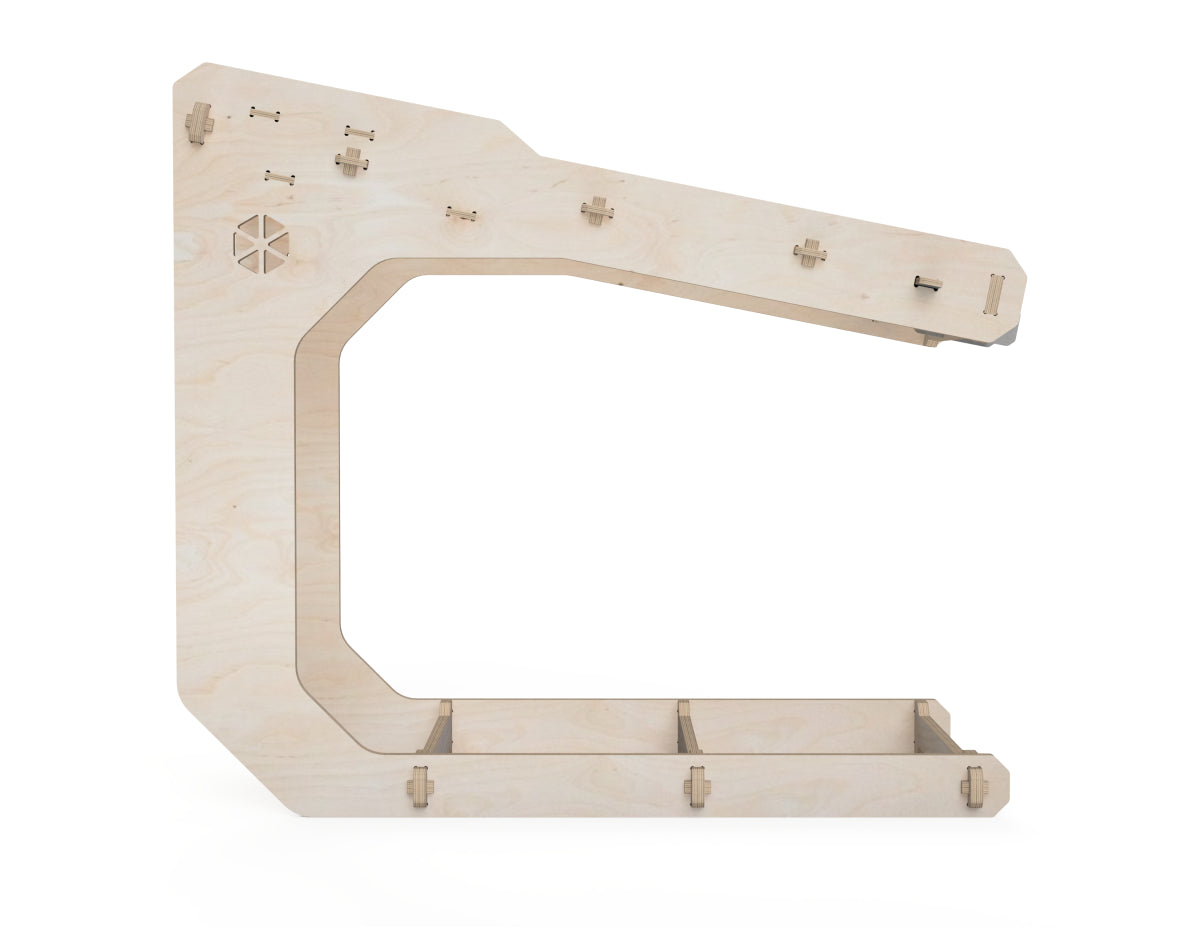

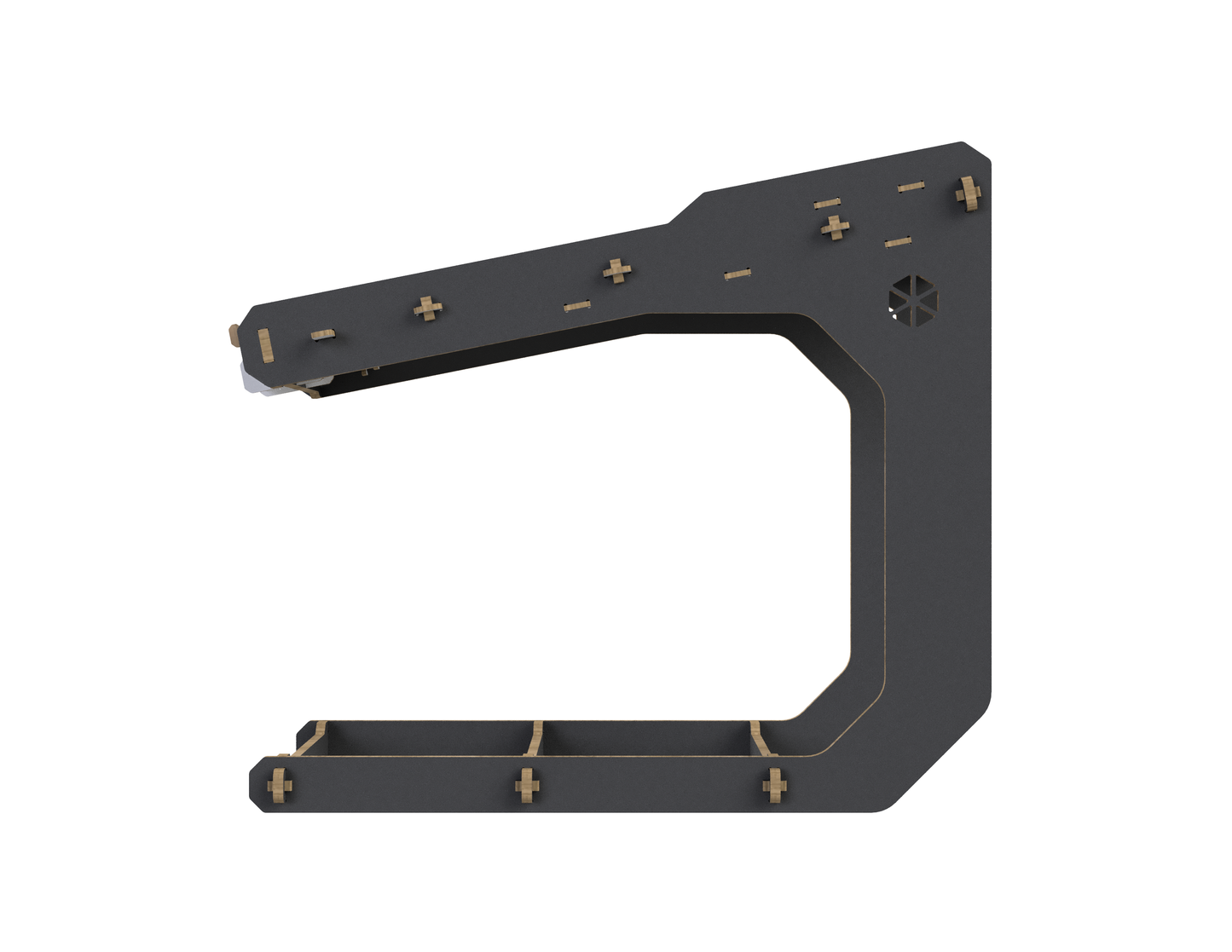

A fully functional plywood pinball table can really be made from plywood! You just need two sheets of plywood and some rubber bands. Thanks to the high precision of CNC, you just need to assemble the plywood pieces - no nails, screws, or glue required. We hope you enjoy quality time with your family or friends.

If you make flippers from the same 18-millimeter sheet of plywood, you will need to do some chiseling afterward. To avoid chiseling, use the optional part of the CNC blueprint that lets you make flippers from two 9-millimeter plywood pieces.

The design can be cut on 1200 x 2400 (4 x 8 ft) CNC router.


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions:

1150 mm (hight) x 1260 mm (length) x 695 mm (width)

45-9/32 (hight) x 49-39/64 (length) x 27-23/64mm (width)


Required materials:

For 1200 x 2440 (4 x 8 ft)

  • 1 sheets of 1700 x 1200 x 18 mm (66-59/64 x 47-¼ x 3/4 inches) plywood
  • 1 sheets of 2000 x 1200 x 9 mm (78-47/64 x 47-¼ x 1/2 inches) plywood
  • 6  and 3 mm (¼ and ⅛ inch) router bit for dogbones


Assembling time:

1 hour


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file to your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
