Pegboard DXF file

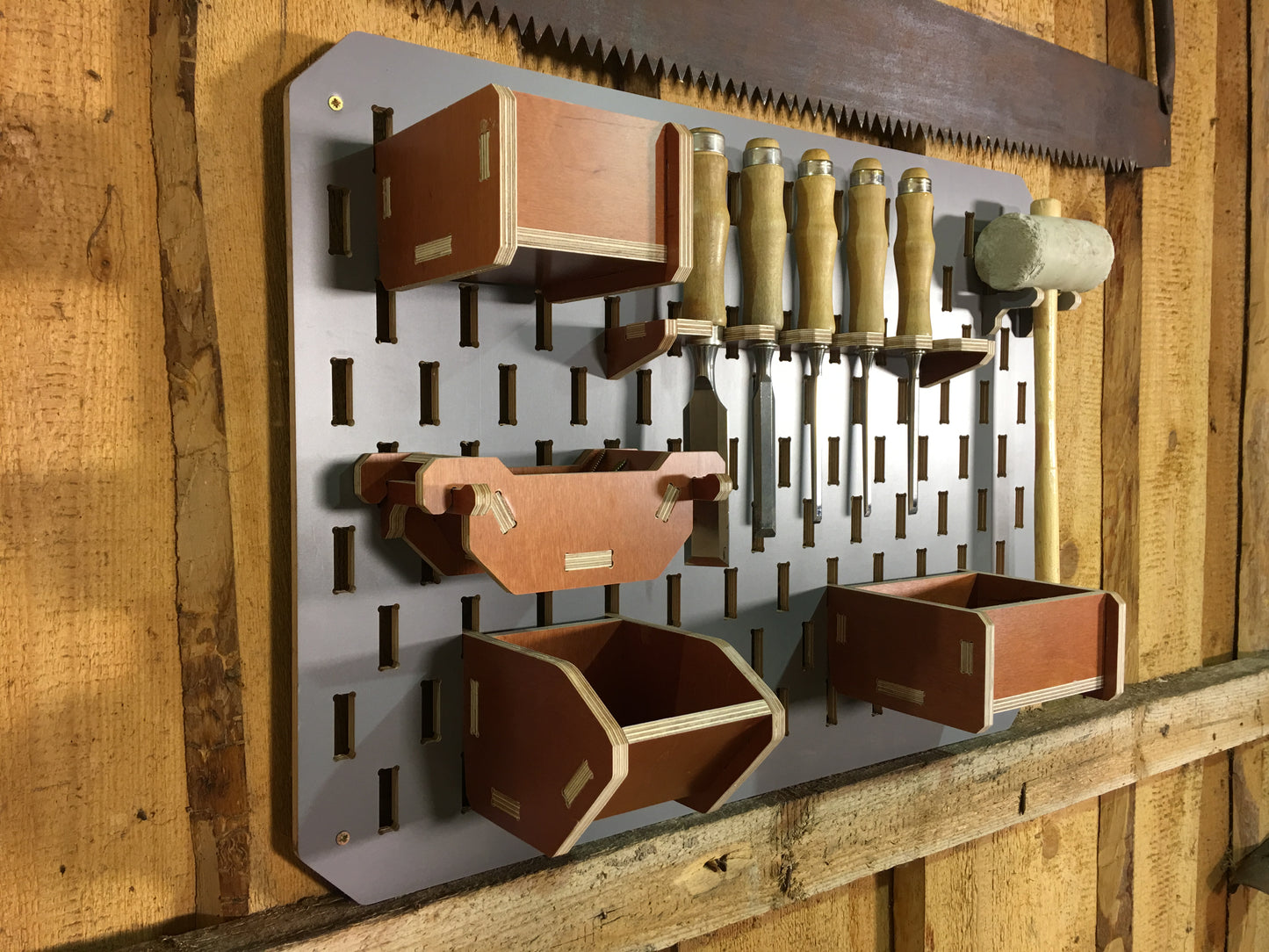

Are your tools often obscured by other tools? The tool pegboard lets you visually locate the tools when you need them ASAP.

Its design is lightweight yet strong. The pegboard can be installed in a few minutes but will save you hours in the long run.

The design can be cut on 600 x 900 mm (2 x 3 ft) CNC router and bigger.

After completing the order, you will receive DXF files with component layout adjusted to different CNC sizes:

600 x 900 (2 x 3 ft)

900 x 1200 (3 x 4 ft)

*The files are adjusted to fit both metric and imperial standards for materials and tools

Dimensions:

The pegboard comes in 4 sizes: Small, Long, Big, and Square. The Small, Long, and Big sizes can have either horizontal or vertical orientation.



Small horizontal: 650mm (width) x 470mm (height) - 25-19/32 x 18-1/2

Small vertical: 470mm (width) x 650mm (height) - 18-1/2 x 25-19/32

Long horizontal: 900mm (width) x 470mm (height) - 35-7/16 x 18-1/2

Long vertical: 470mm (width) x 900mm (height) - 18-1/2 x 35-7/16

Big horizontal: 1200mm (width) x 750mm (height) - 47-1/2 x 29-17/32

Big vertical: 750mm (width) x 1200mm (height) - 29-17/32 x 47-1/2

Square: 570mm x 570mm (equal width and height) - 22-7/16 x 22-7/16

Orientation

When choosing a horizontal or vertical pegboard, please consider the wall space, the types of your instruments, and other factors.

Accessories

• Simple box
• Screw box
• Removable box (easy to attach and detach)
• Hooks for hamer
• Chisel rack
• Screwdriver rack
• Wrench stand
• 3 different size shelfs

Assembling time:

10 - 15 minutes

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file to your email within seconds.

Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.

The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
