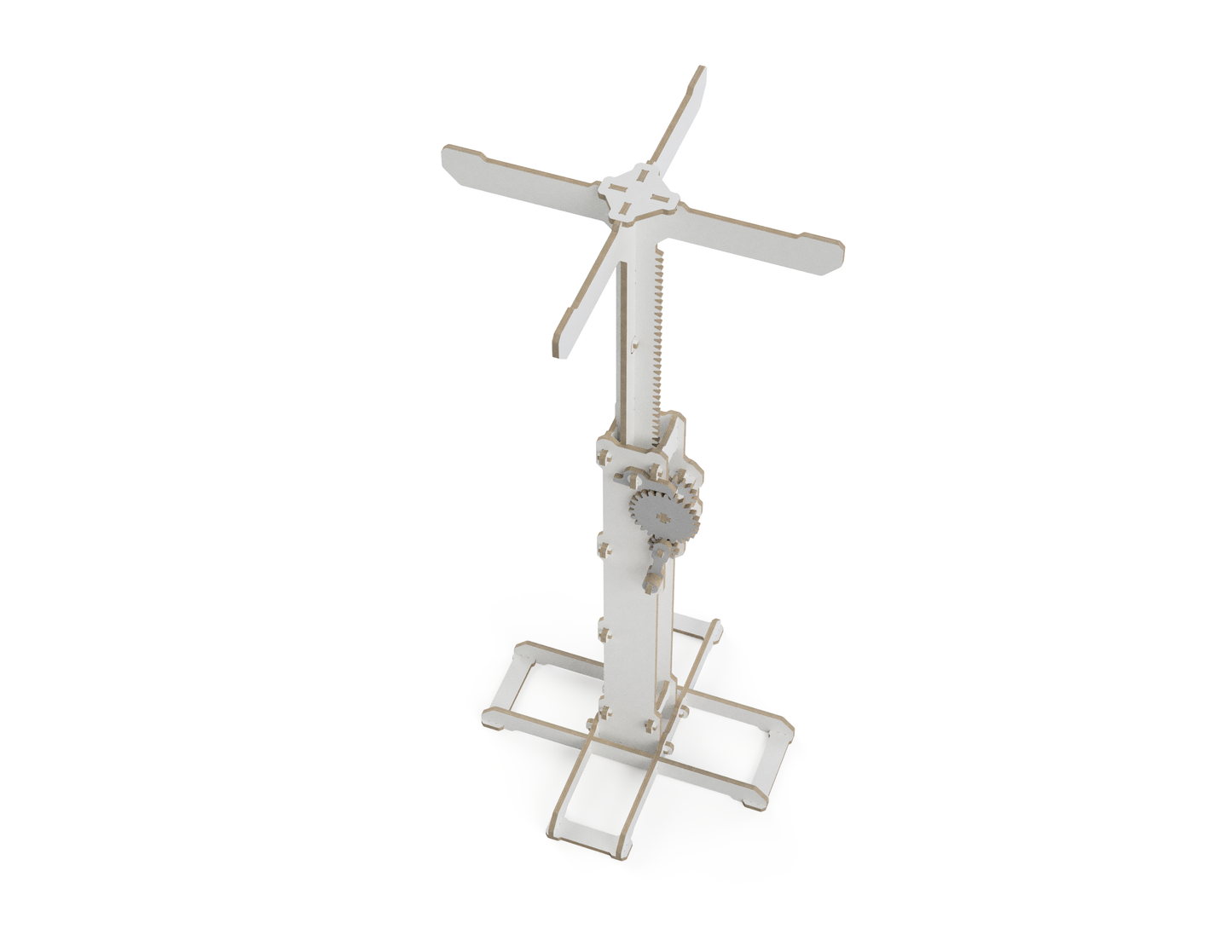

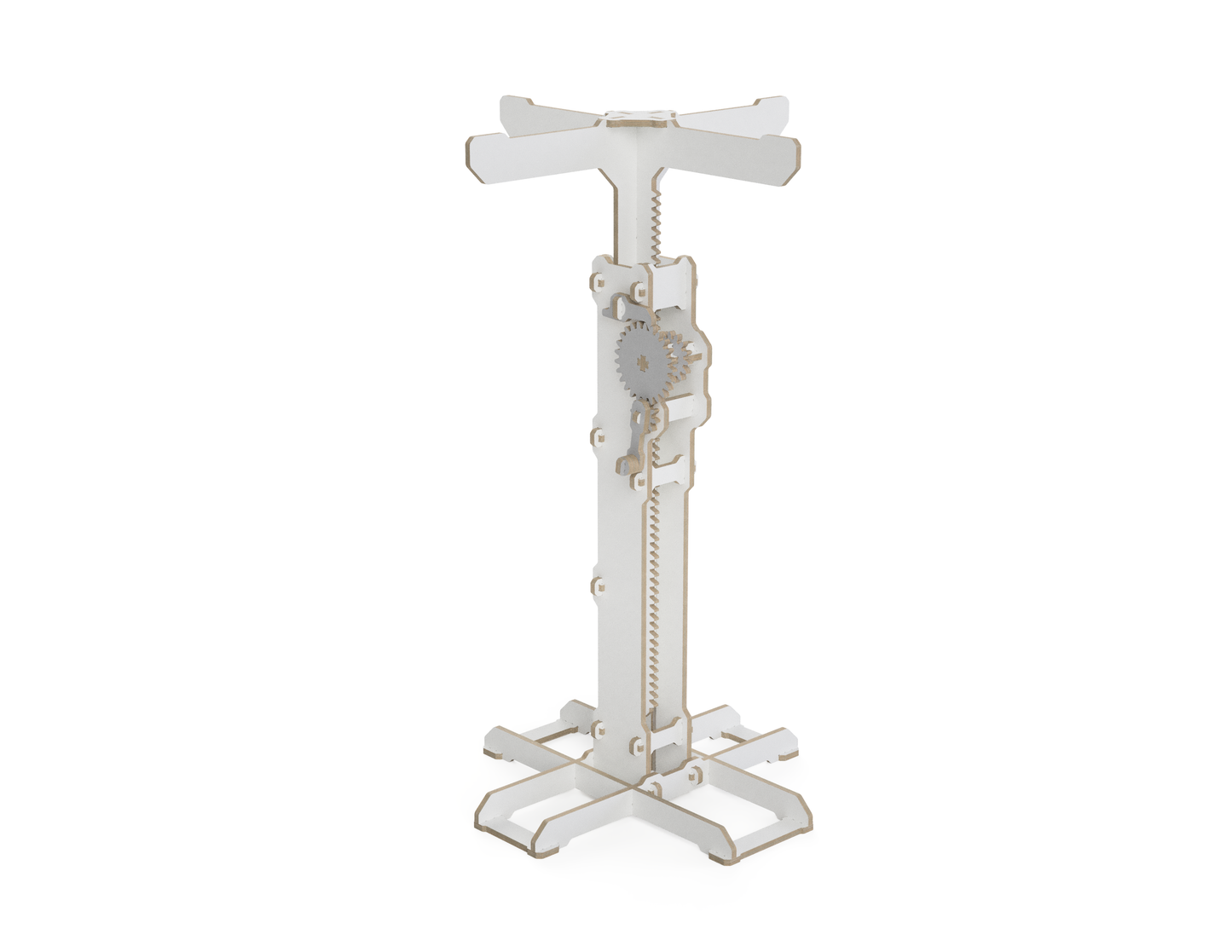

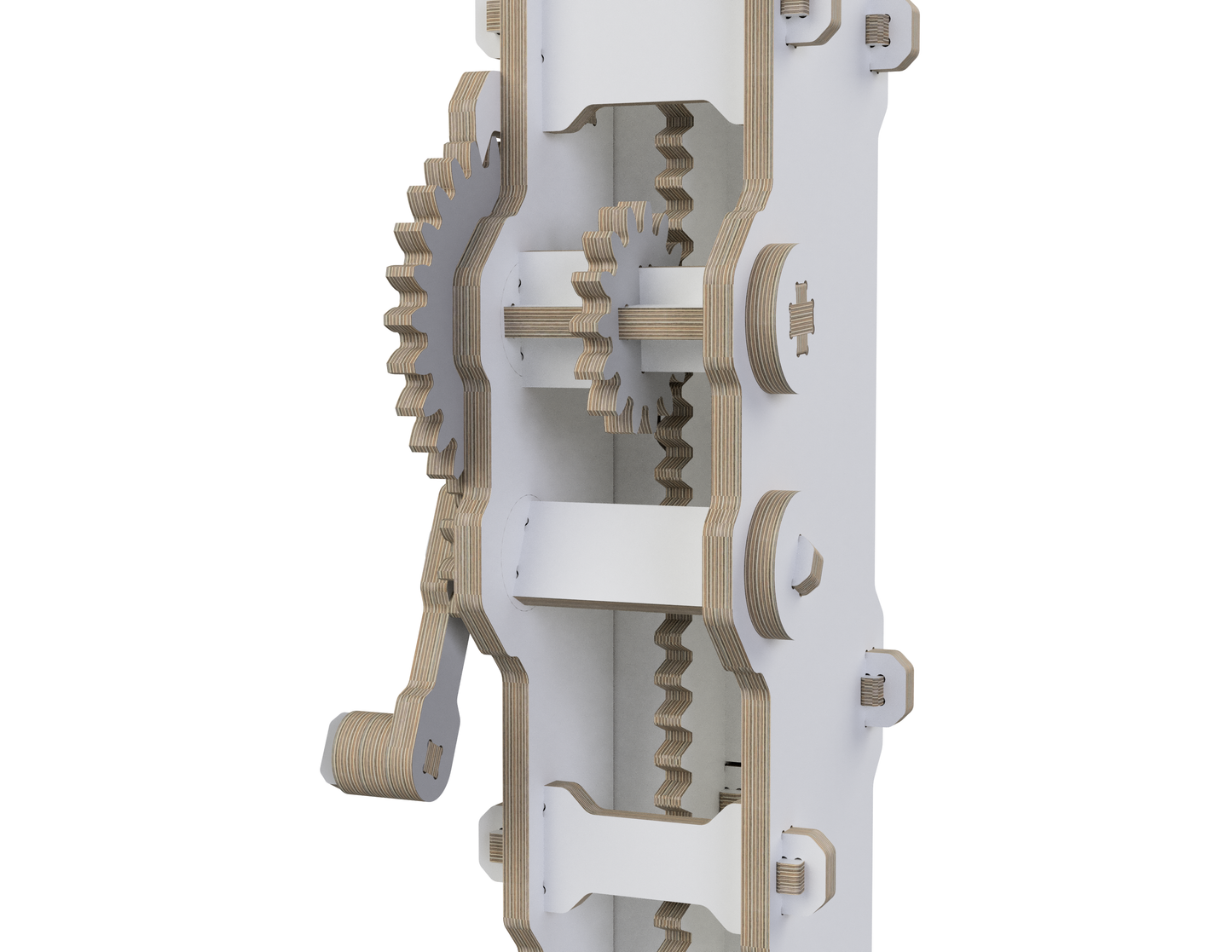

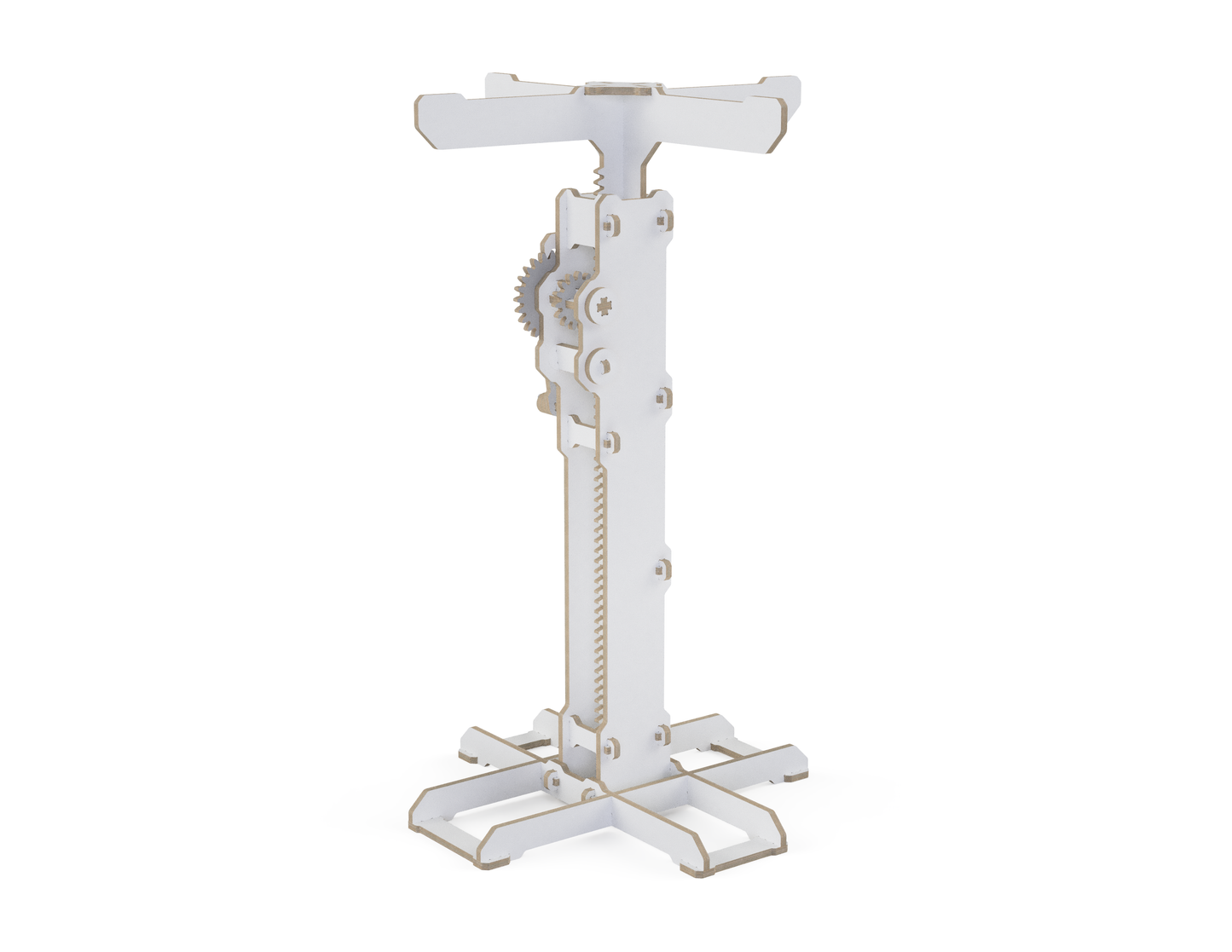

Need to install panels on the ceiling? If you find yourself in a position when you have to do it by yourself, this panel lift will assist you well. Just cut it from a single sheet of plywood and after less than 35 minutes of assembling it will be ready to use.

You can also add a couple of casters at the bottom so the panel lift would be easy to move around.

The design can be cut on 1200 x 2400 (4 x 8 ft) CNC router.


*The files are adjusted to fit both metric and imperial standards for materials and tools


Dimensions:

Up to 3000 mm (height with casters) x 1000 mm (length) x 1000 mm (width)

Up to 118-7/64 (height with casters) x 39-3/8 (length) x 39-3/8 (width)


Required materials:

For 1200 x 2400 (4 x 8 ft) CNC

  • 1 sheet of 1220 x 2440 x 18 mm (48-1/32 x 96-1/16 x 3/4 inches) plywood
  • 6 mm (¼ inch) router bit for dogbones


Assembling time:

35 minutes


Delivery time:

30 seconds

After completing the order, you will receive the DXF design file to your email within seconds.


Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.


The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
