Paint Drying Rack DXF Files

Paint Drying Rack DXF Files

Regular price $14.95 USD
Regular price $0.00 USD Sale price $14.95 USD
Sale Sold out
Tax included.

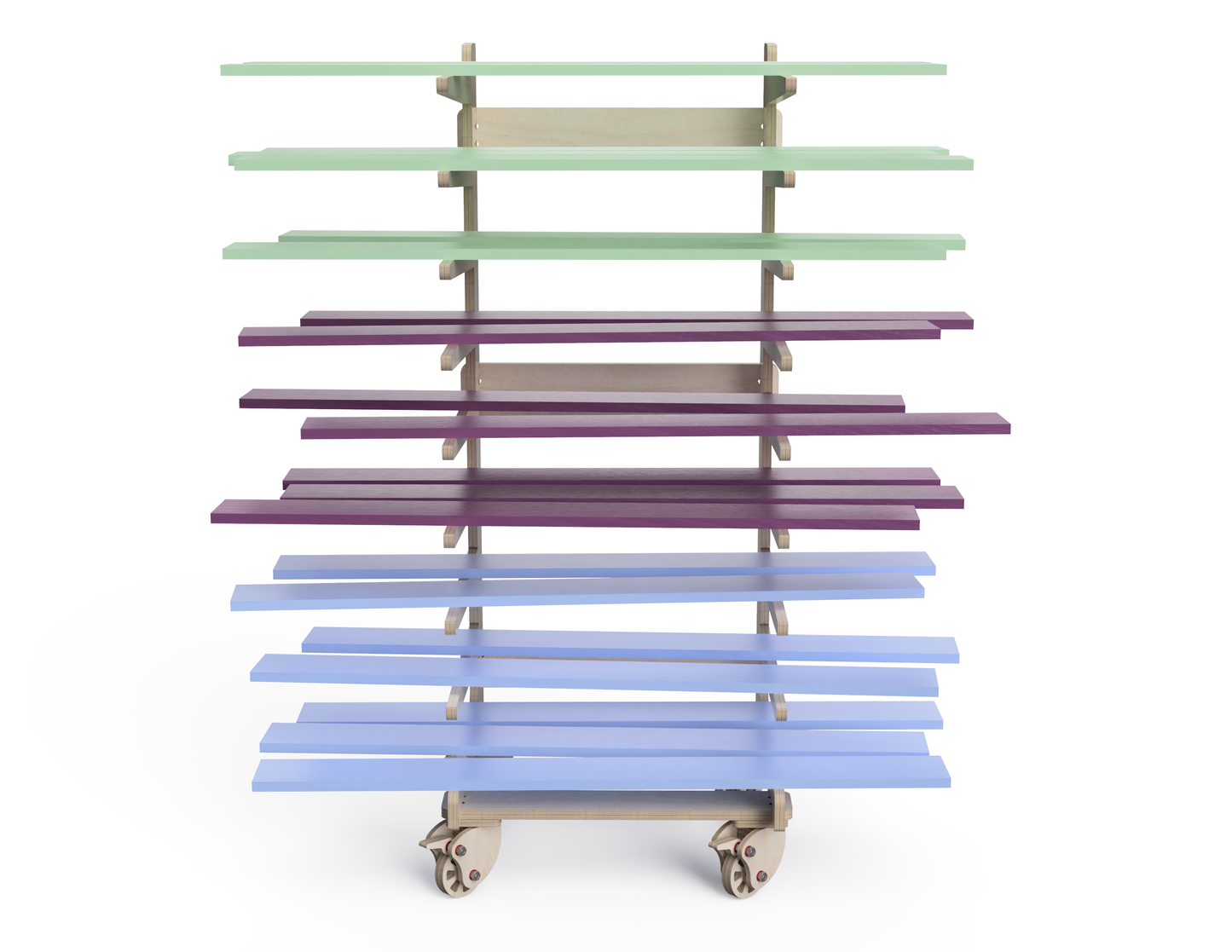

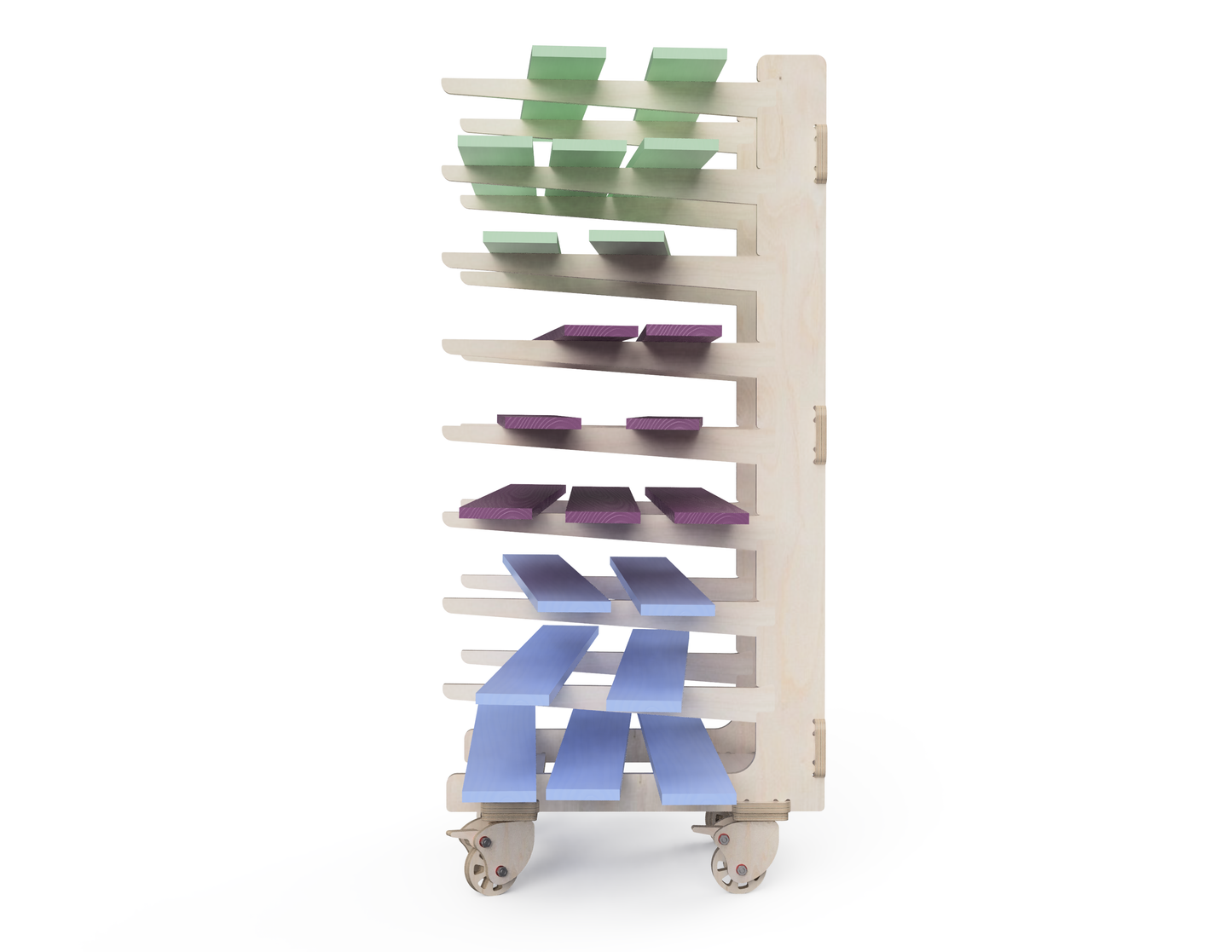

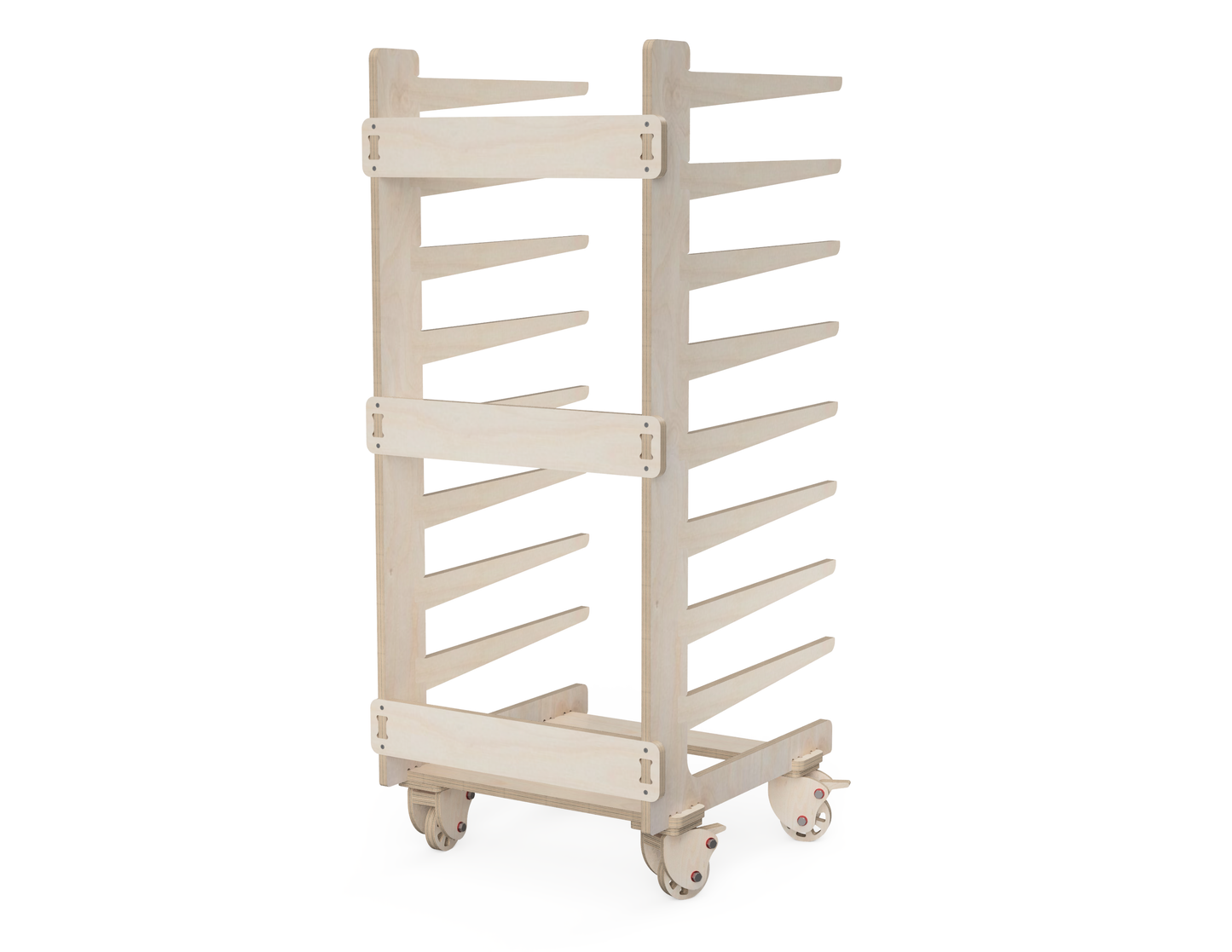

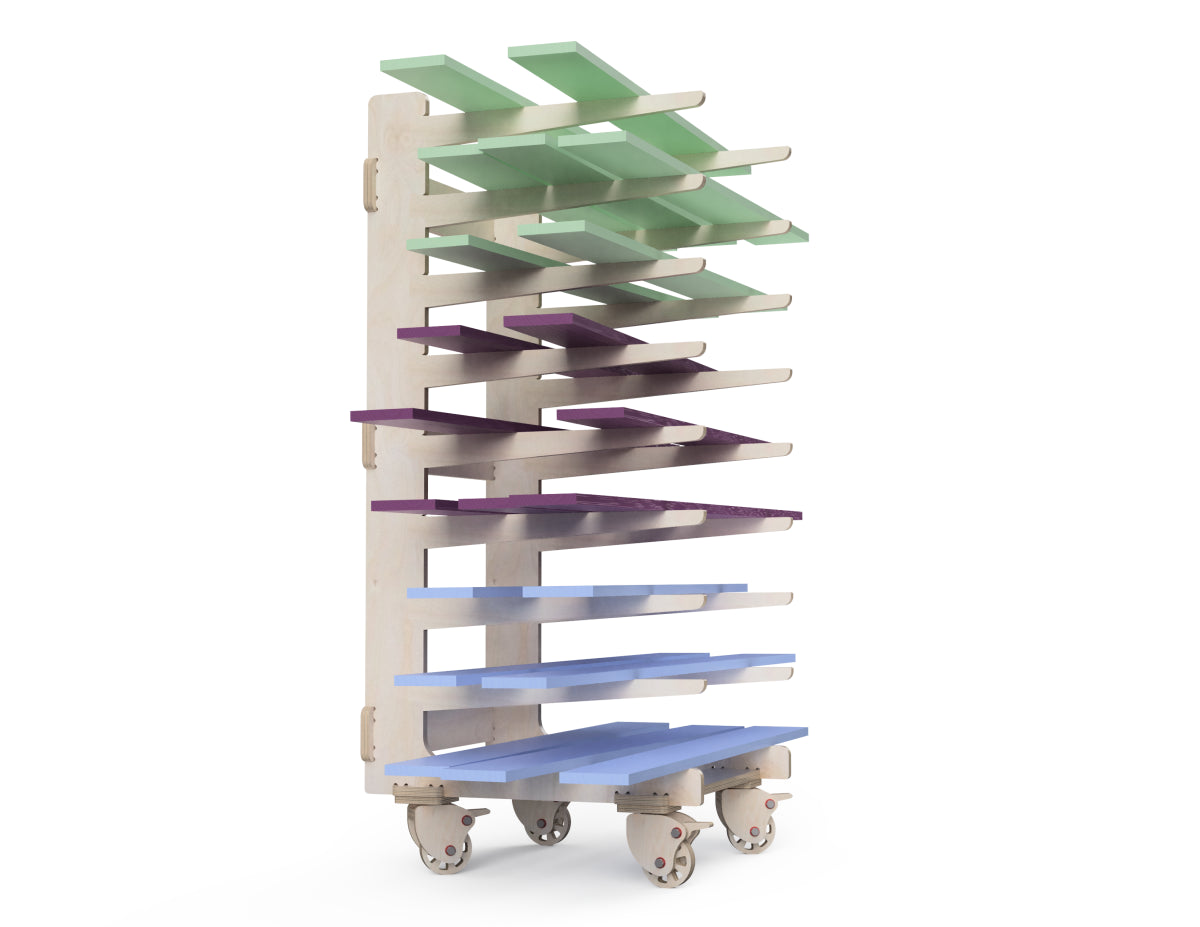

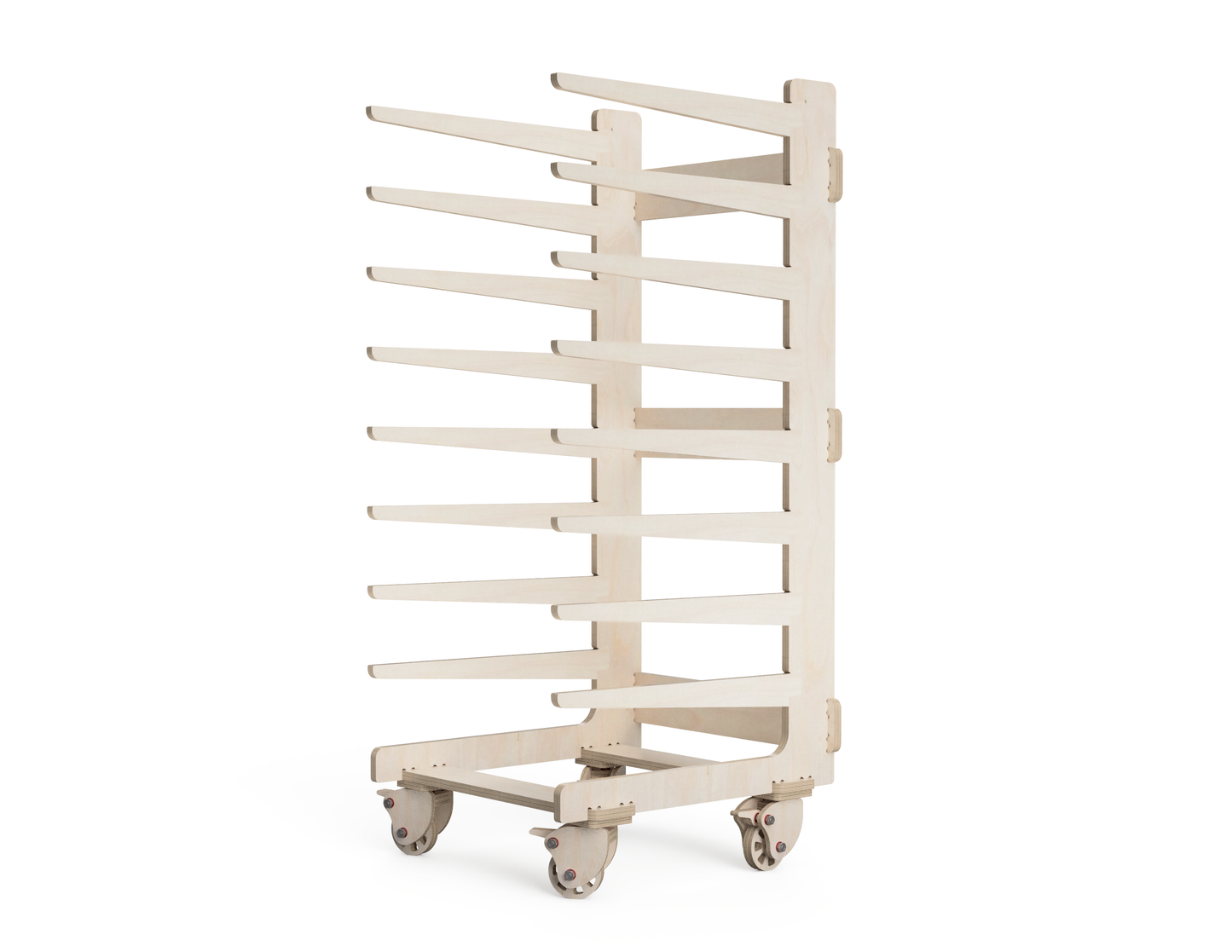

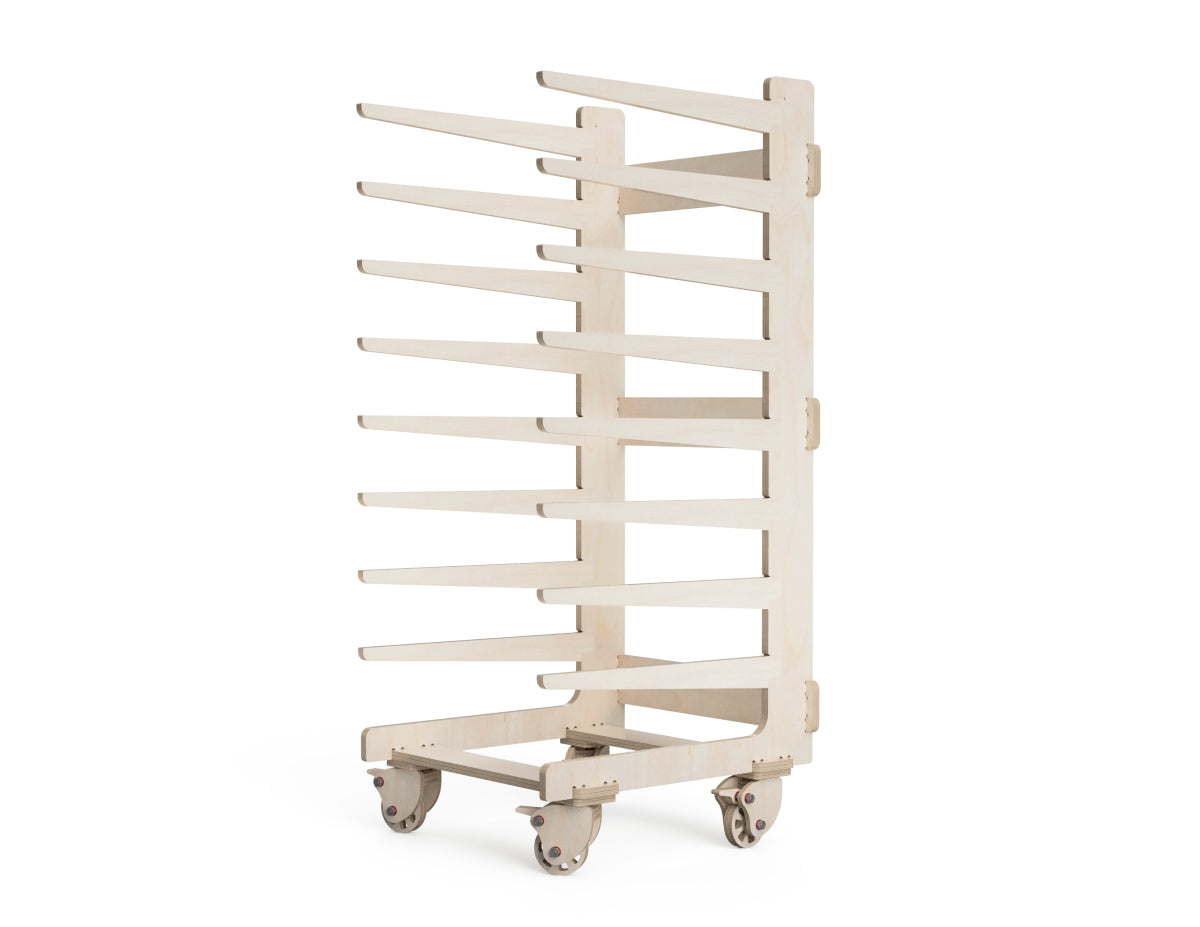

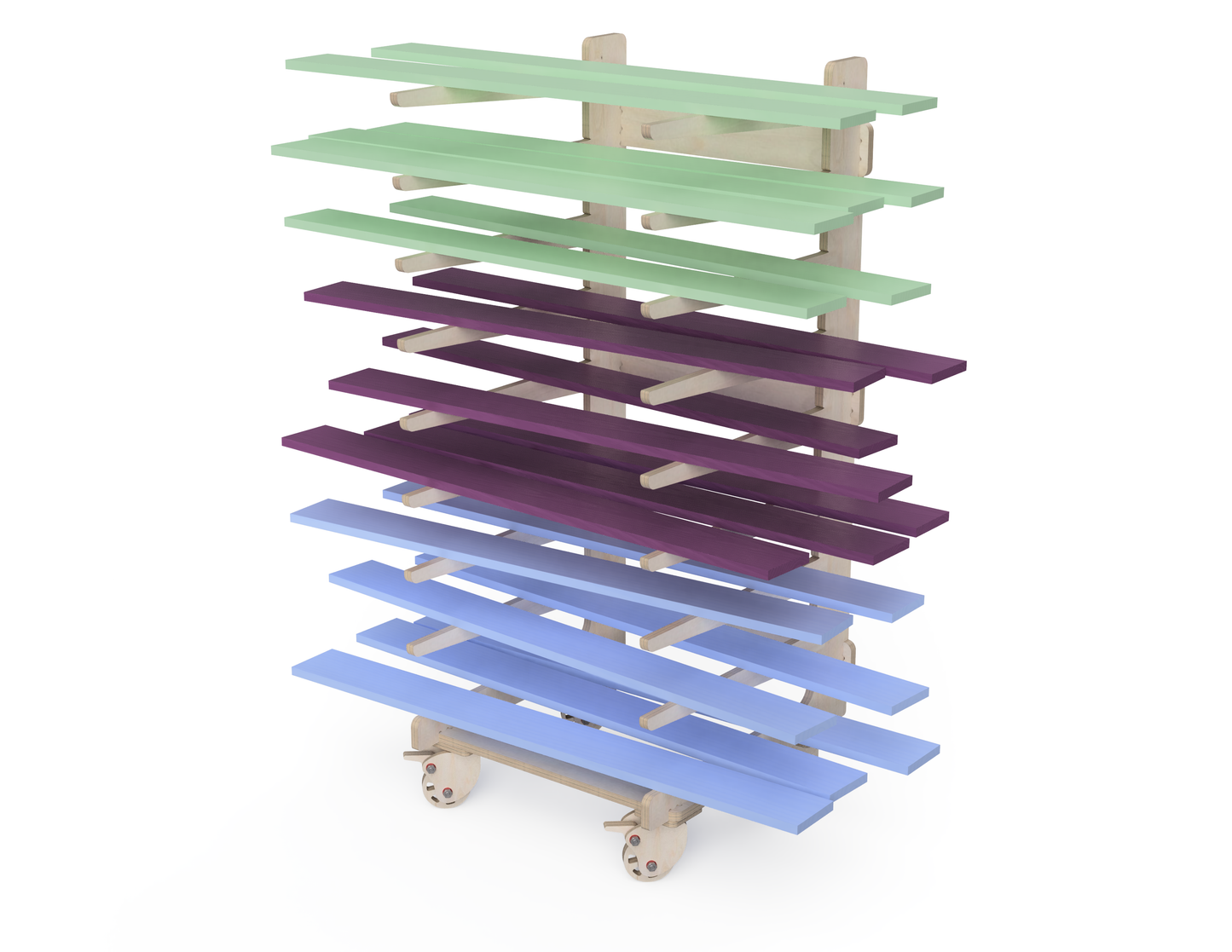

Revolutionize your workshop with our CNC-ready DXF files for a top-notch paint-drying rack. Featuring nine generous shelves, you can efficiently air dry your recently completed components.

Elevate your workspace and simplify your projects by attaching casters for mobility. Transform your workshop today and enhance your productivity!

The design can be cut on an 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

*The files are adjusted to fit both metric and imperial standards for materials and tools


1100 mm (height) x 555 mm (depth) x 485 mm (width) - 455 mm (depth of the shelve)

43.3 inches (height) x 22 inches (depth) x 18 inches (width) - 18 inches (depth of the shelve)

Required materials:

  • 1 sheet of 1100 x 1220 x 15 mm (44 x 48 x 0.625 inches) plywood
  • 6 mm (0.25 inch) router bit

Assembling time:

20 minutes

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file in your email within seconds.



If your plywood sheet is thicker or thinner than expected, send your purchase number and the precise thickness to We will send you the updated DXF design file for free.

The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
