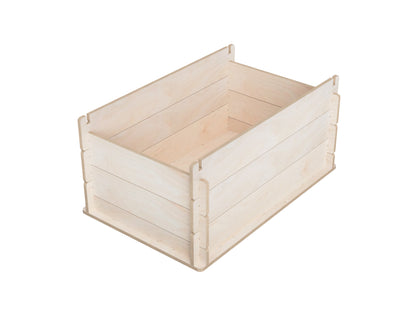

Make the most of your workshop space with the Offcut Tower, a DIY CNC router project designed for organizing wood scraps and offcuts. These free DXF files let you cut and assemble a stackable plywood storage box that keeps your leftover wood neatly contained and easy to access.

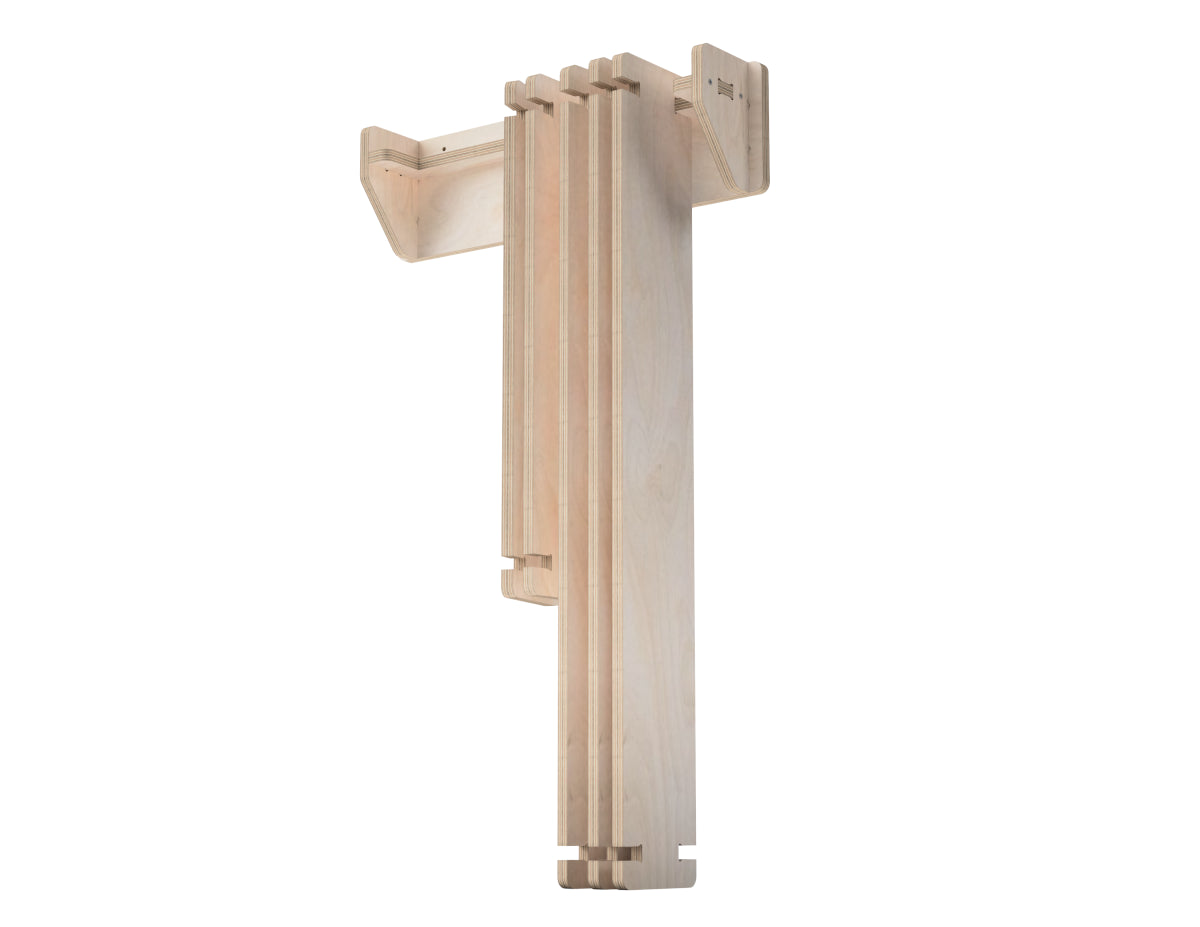

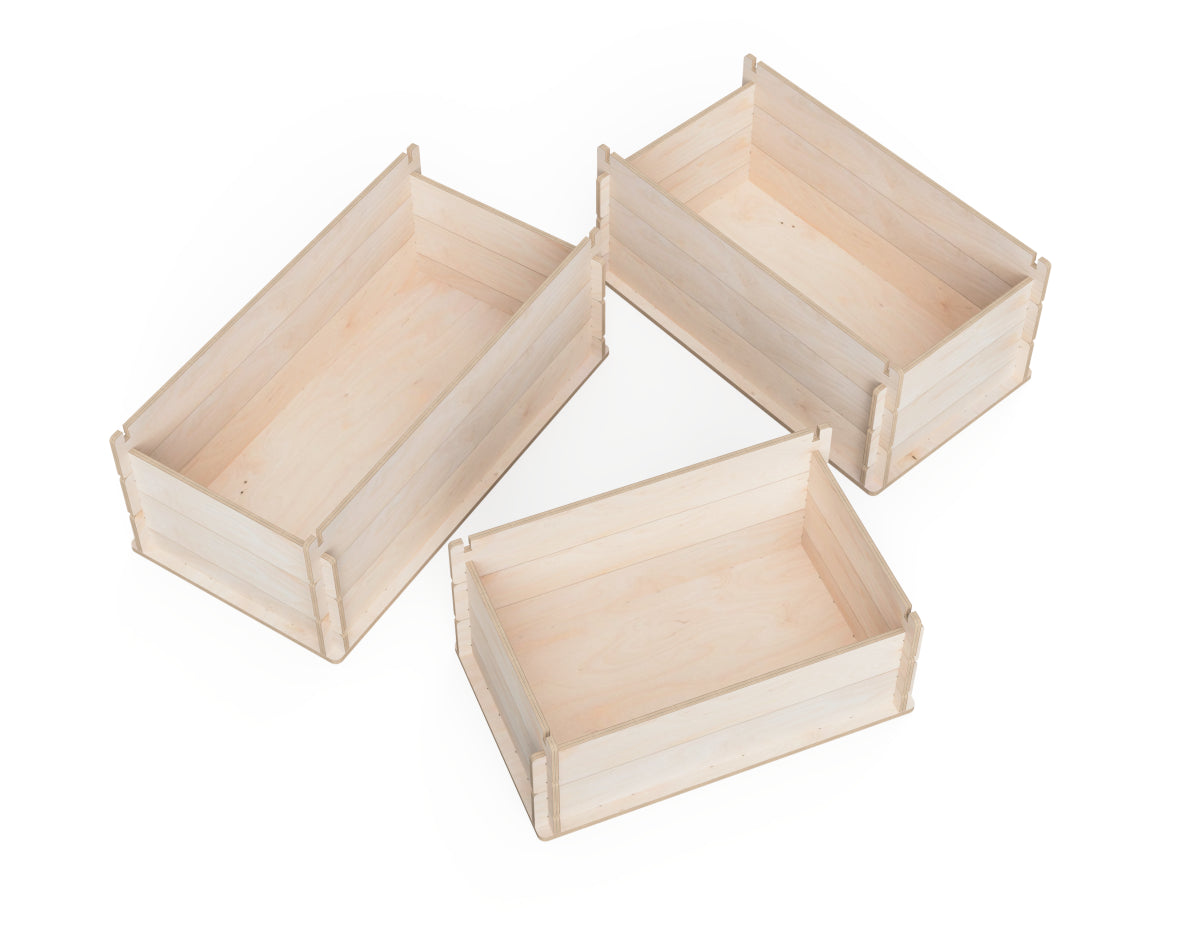

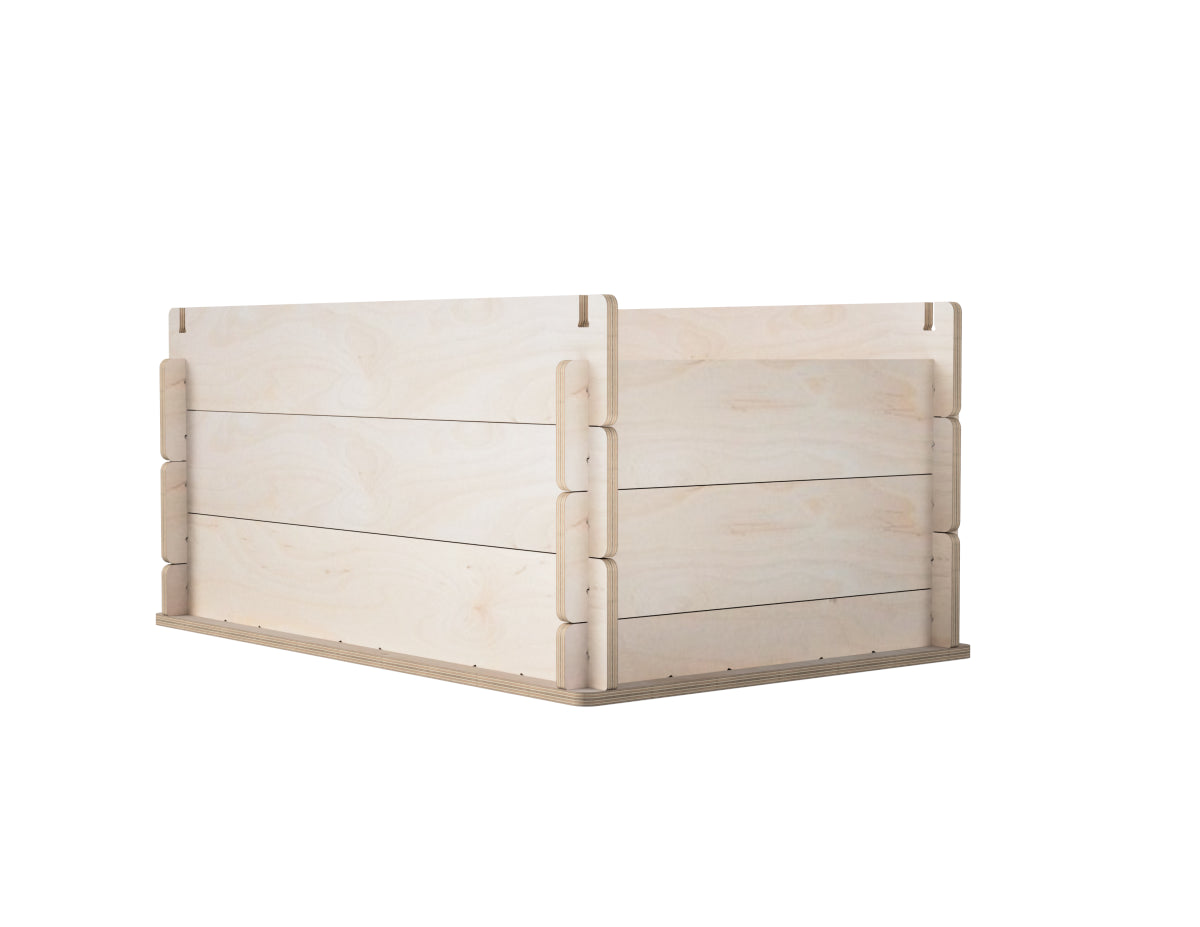

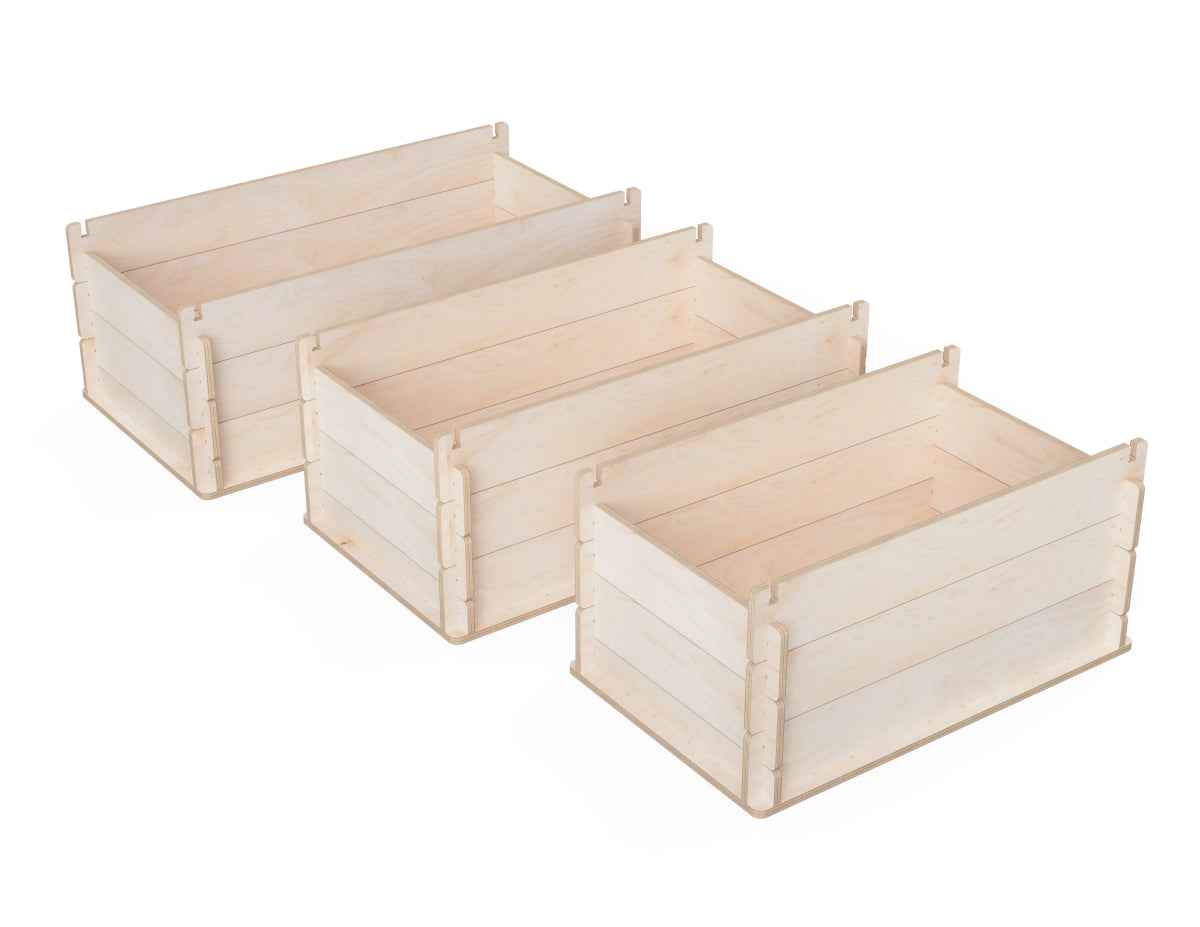

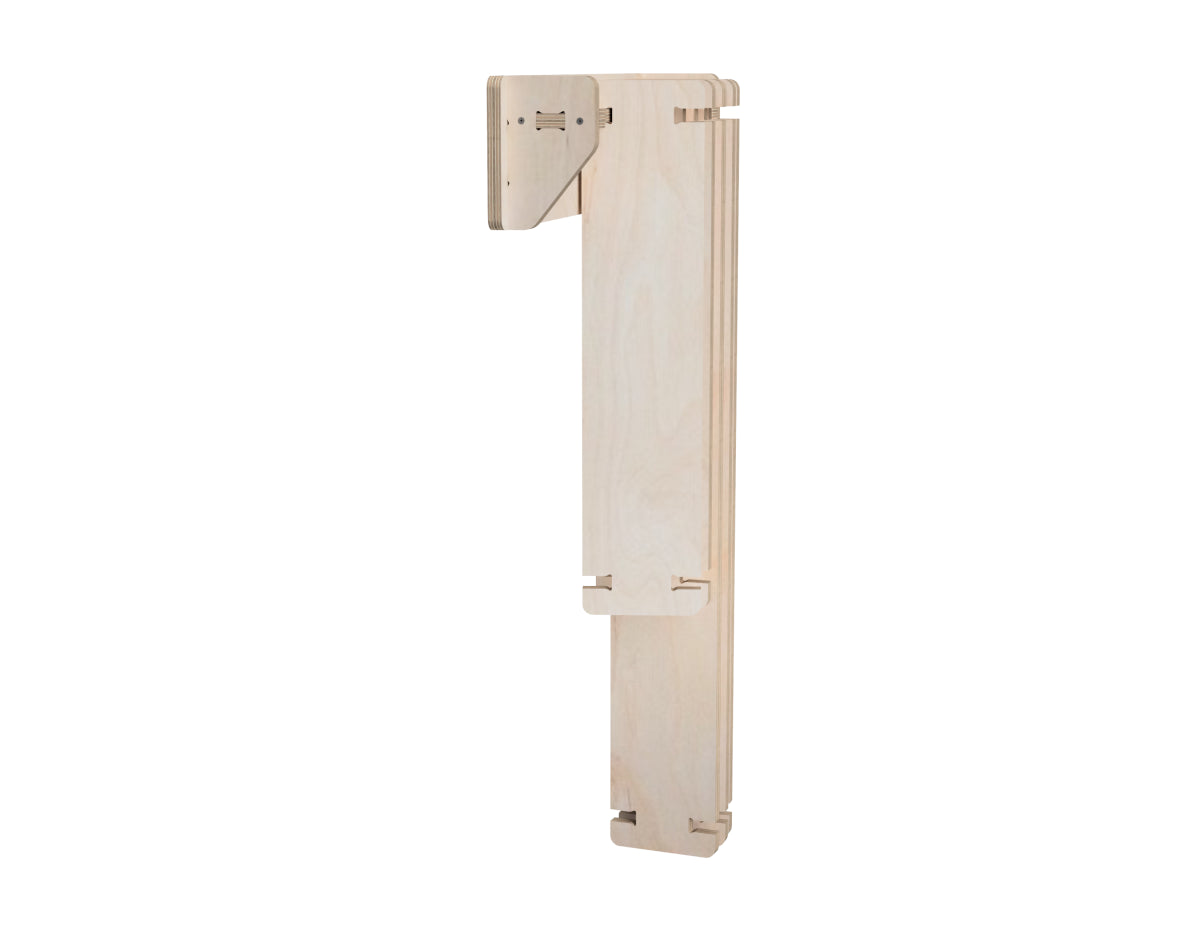

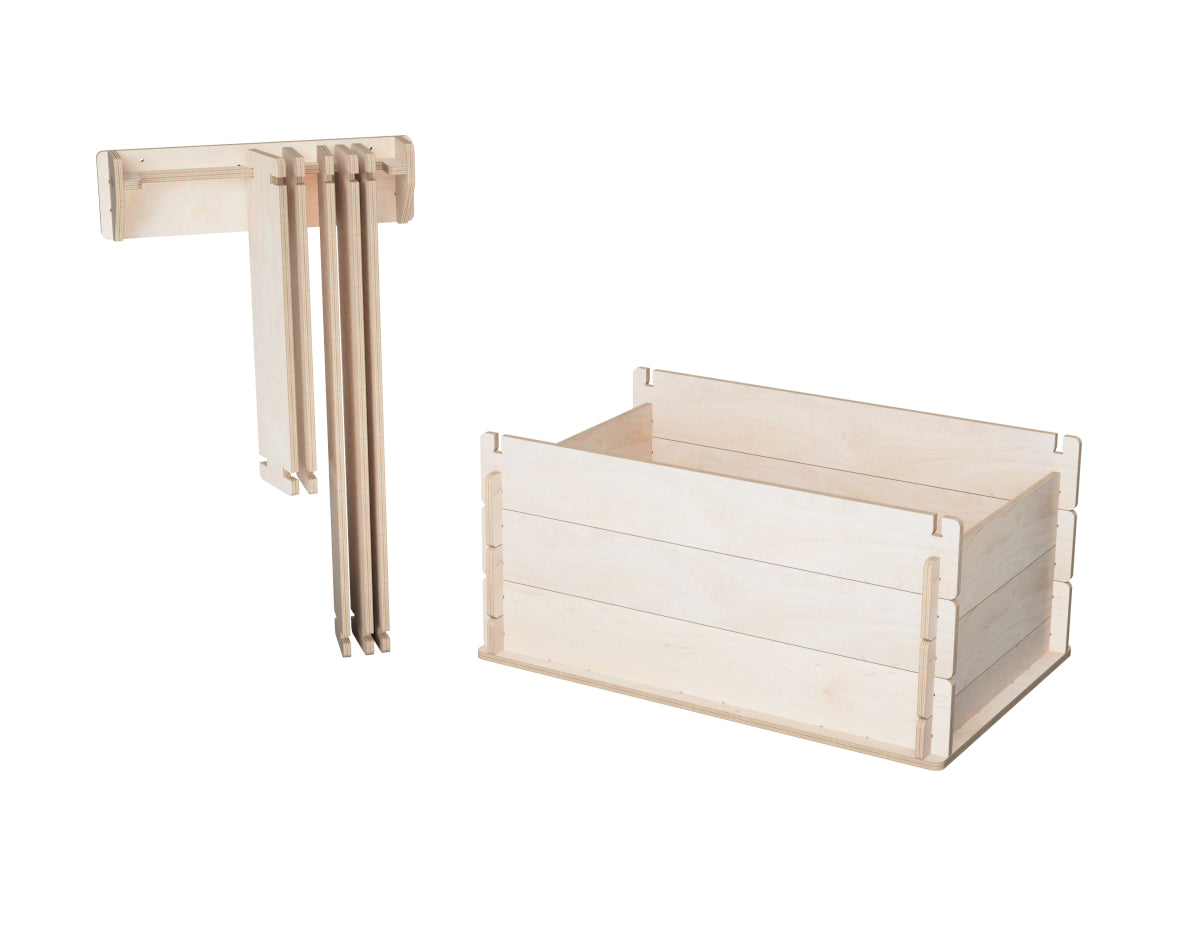

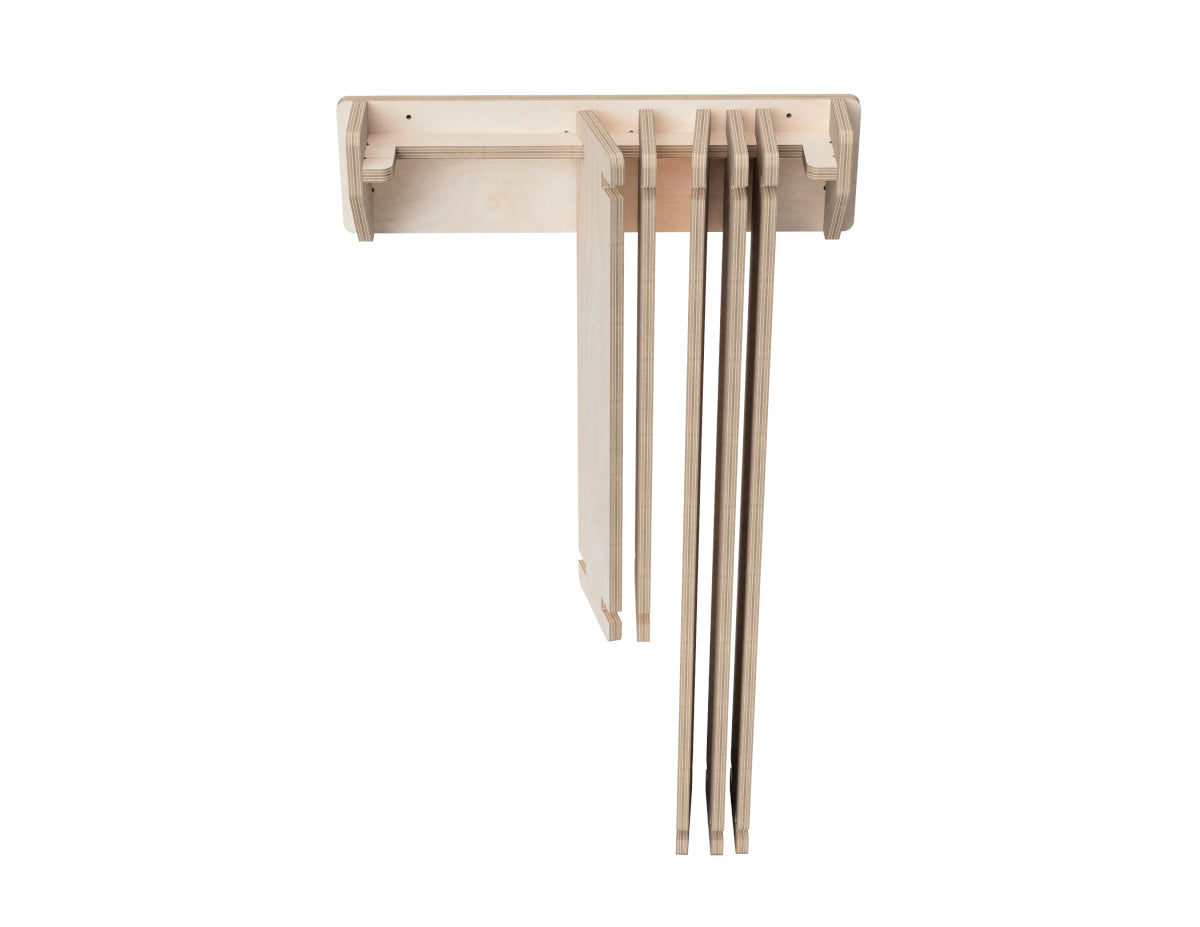

Each box features interlocking wall panels that can be stacked as high as you need — or removed for quick access when the box is empty. The design comes in three sizes (S, M, and L), and all wall sections can be made from narrow plywood strips, making it perfect for turning offcuts into something functional.

✅ Free CNC DXF files
✅ Stackable plywood offcut storage box
✅ Adjustable height with interlocking walls
✅ Ideal for organizing workshop scraps

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Max single piece size

The biggest component is 930 x 500 mm (36.61 x 19.69 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Minimum

Width	Length	Height
730 mm	450 mm	125 mm
28¾ inch	17¾ inch	4⅞ inch

Maximum

Width	Length	Height
930 mm	500 mm	1500 mm
36⅝ inch	19⅝ inch	59 inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 3 sheets of 600 x 900 x 12 mm (24 x 36 x 1/2 inches) plywood
- 2 sheets of 500 x 300 x 12 mm (21 x 12 x 1/2 inches) plywood
- 30 mm (1-1/4 inch) wood screws - 12 pieces
- Caster wheels (optional)
For a 820 x 1220 mm (2.6 x 4 ft) CNC
- 4 sheets of 600 x 1220 x 12 mm (24 x 48 x 1/2 inches) plywood
- 1 sheet of 500 x 300 x 12 mm (21 x 12 x 1/2 inches) plywood
- 30 mm (1-1/4 inch) wood screws - 12 pieces
- Caster wheels (optional)
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 1 sheet of 500 x 300 x 12 mm (21 x 12 x 1/2 inches) plywood
- 30 mm (1-1/4 inch) wood screws - 12 pieces
- Caster wheels (optional)
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 975 x 2440 x 12 mm (39 x 96 x 1/2 inches) plywood
- 30 mm (1-1/4 inch) wood screws - 12 pieces
- Caster wheels (optional)
