Narrow Shelves - French Cleat Attachment - DXF Files
Narrow Shelves - French Cleat Attachment - DXF Files
Regular price
$9.95 USD
Regular price
$9.95 USD
Sale price
$9.95 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

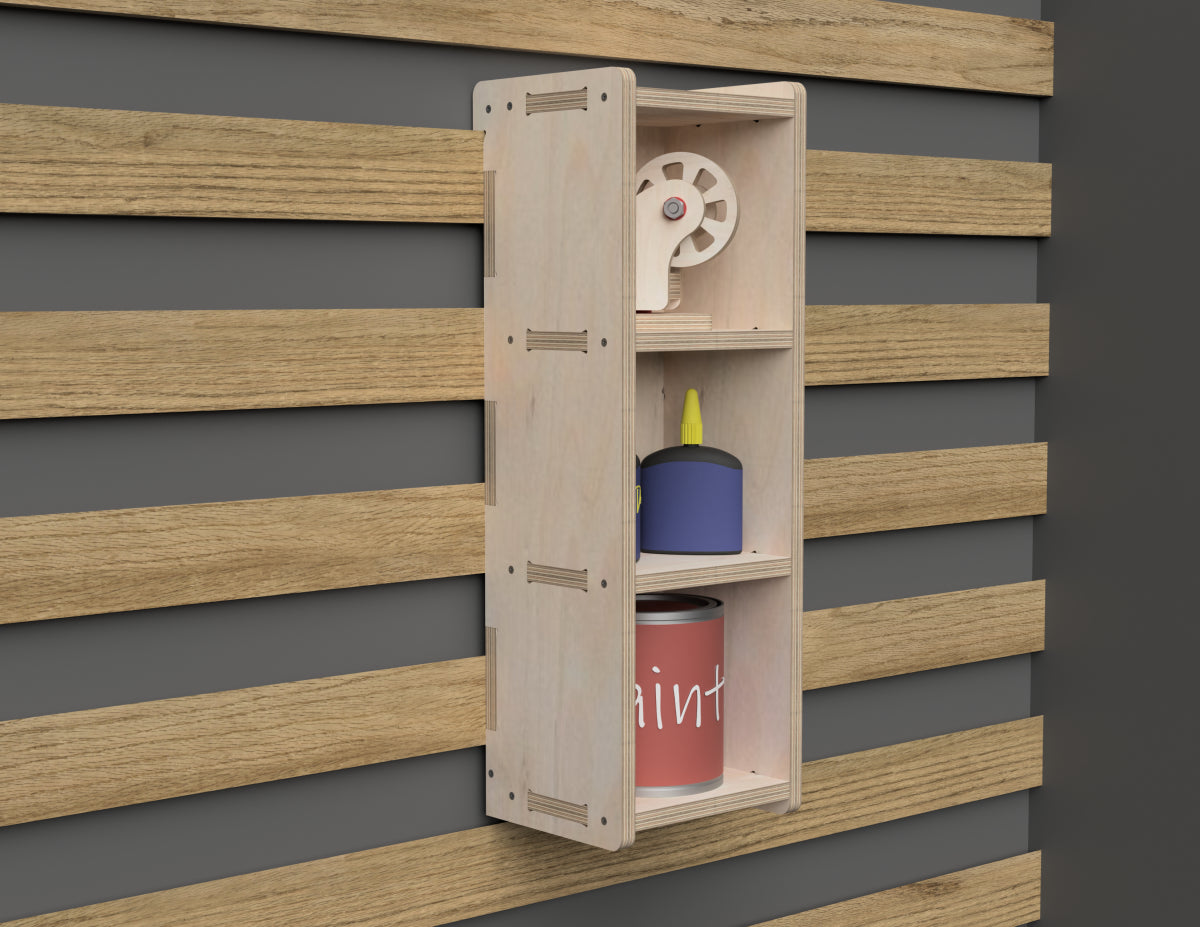

Transform your workshop with our versatile Narrow Shelves - French Cleat Attachment DXF Files. Designed for DIY enthusiasts and professionals alike, these CNC files make it easy to craft custom storage solutions for French cleat walls.

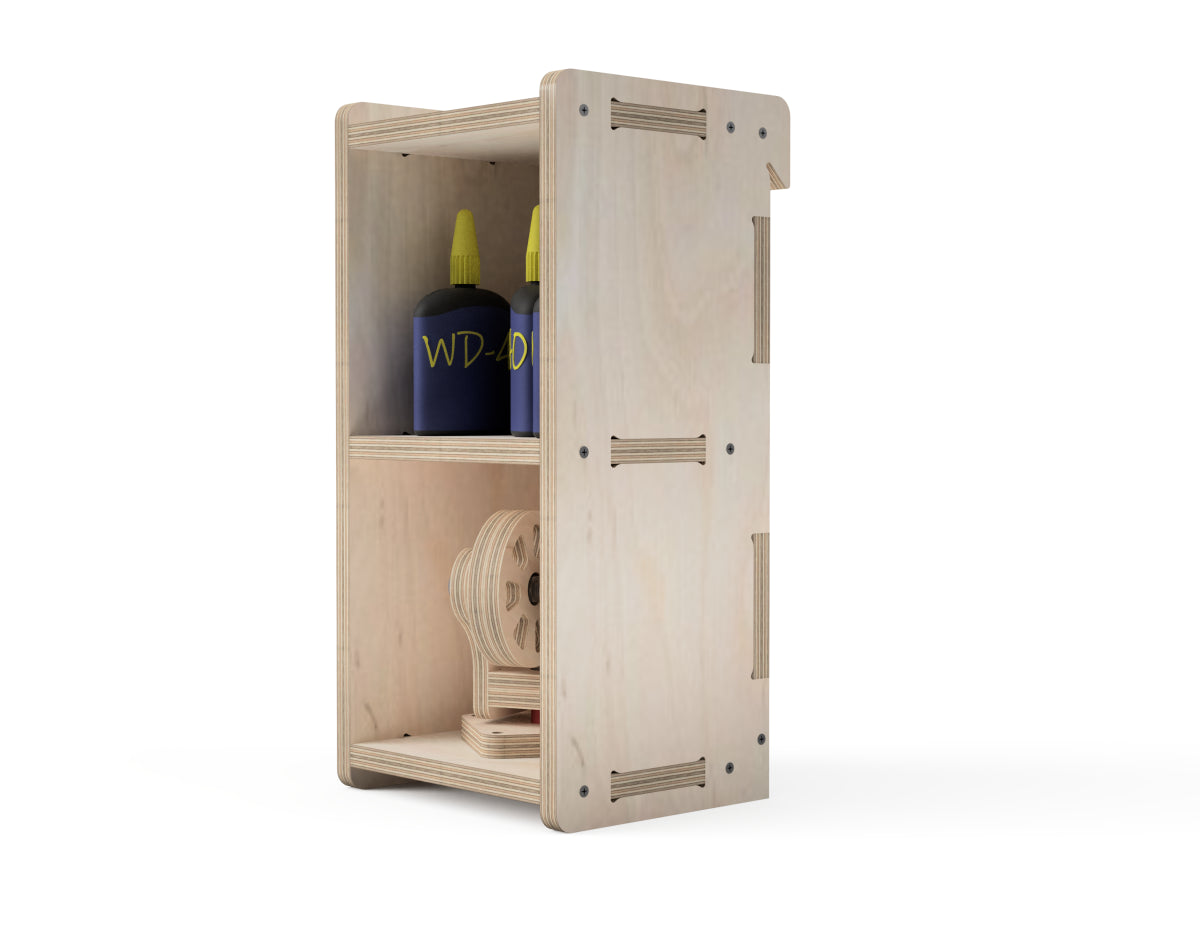

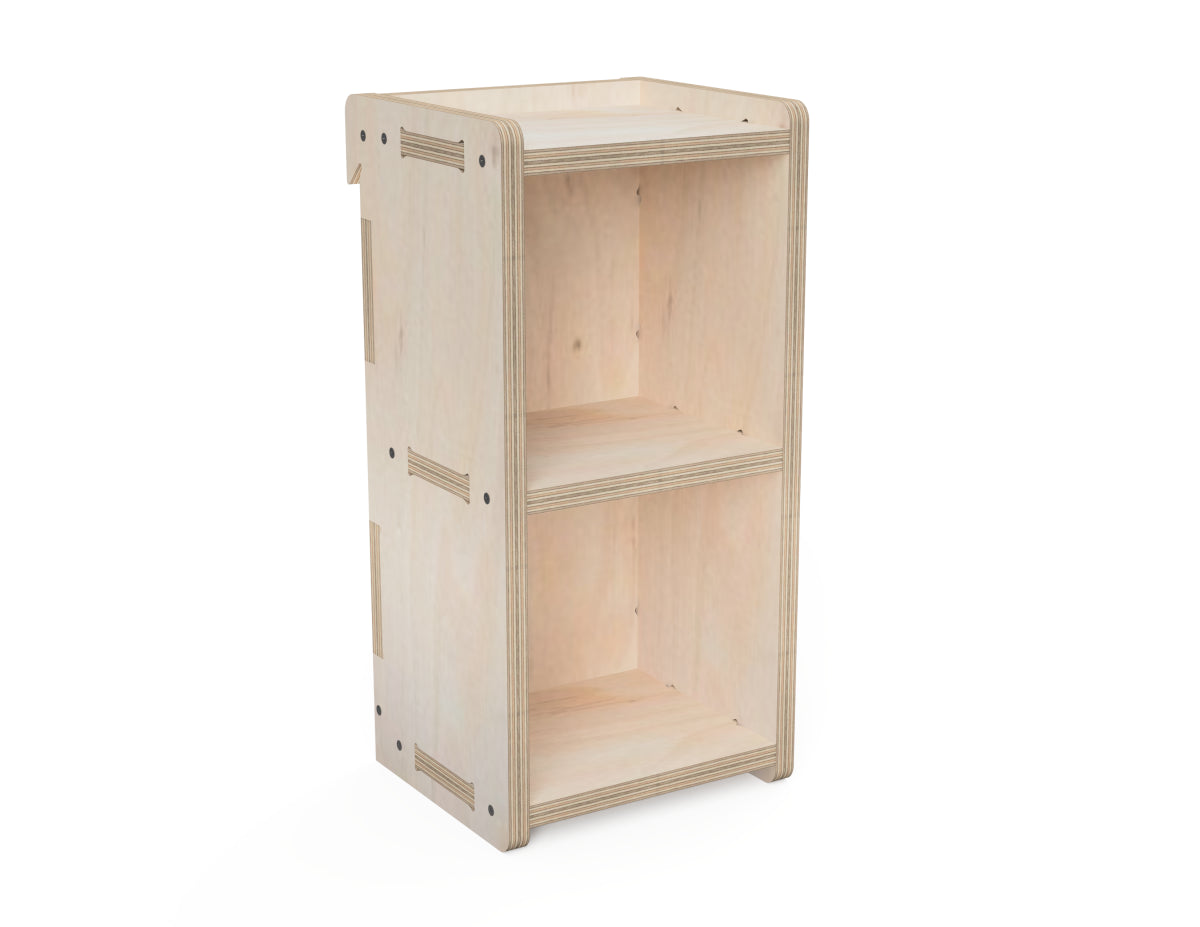

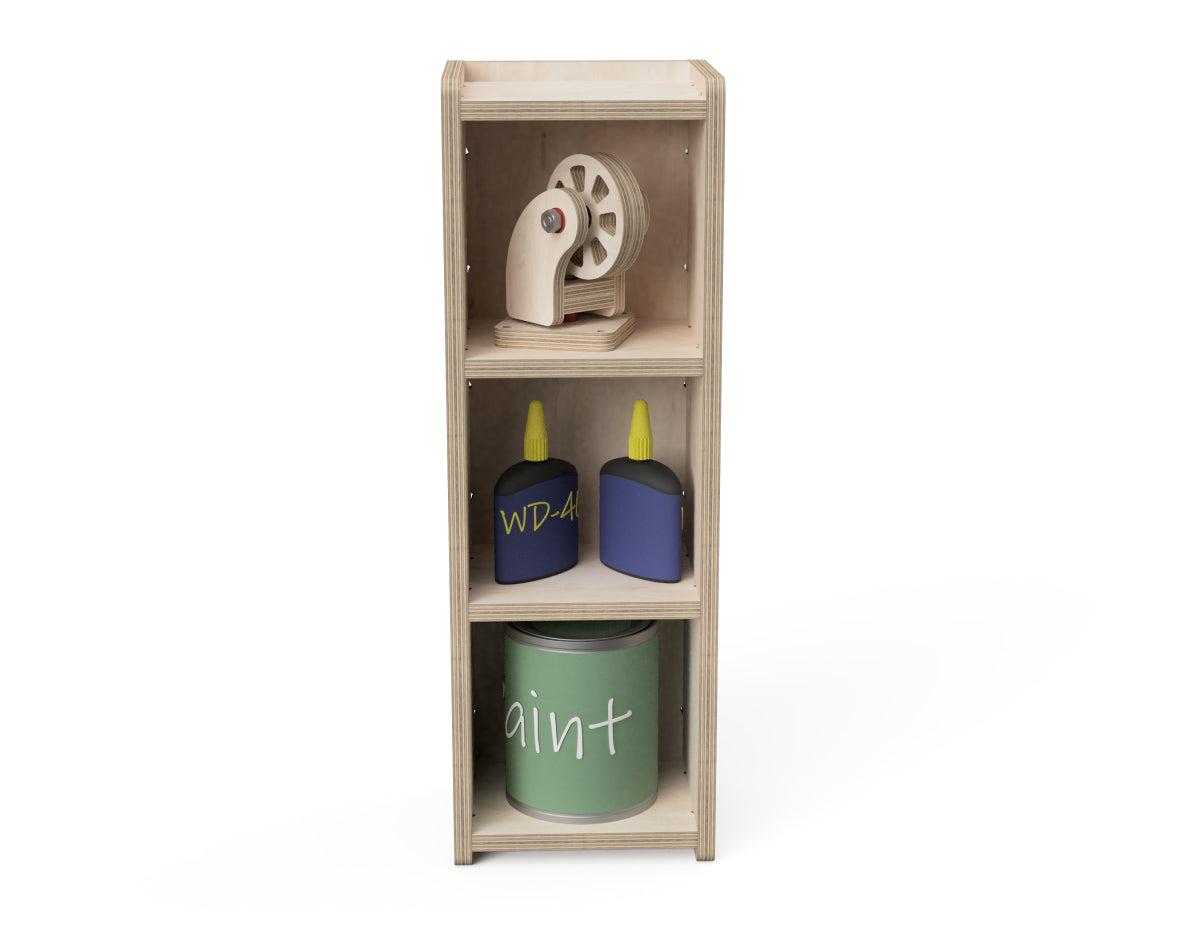

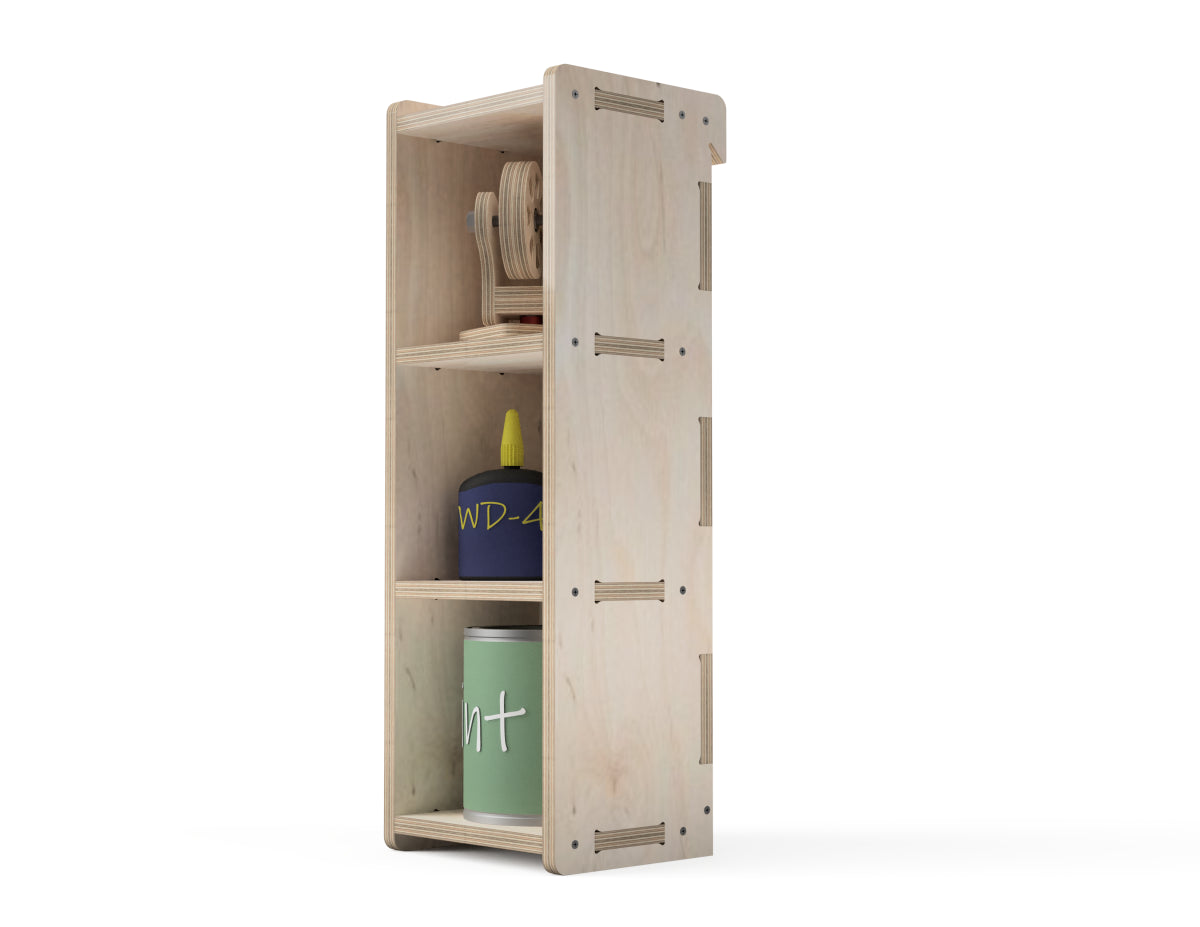

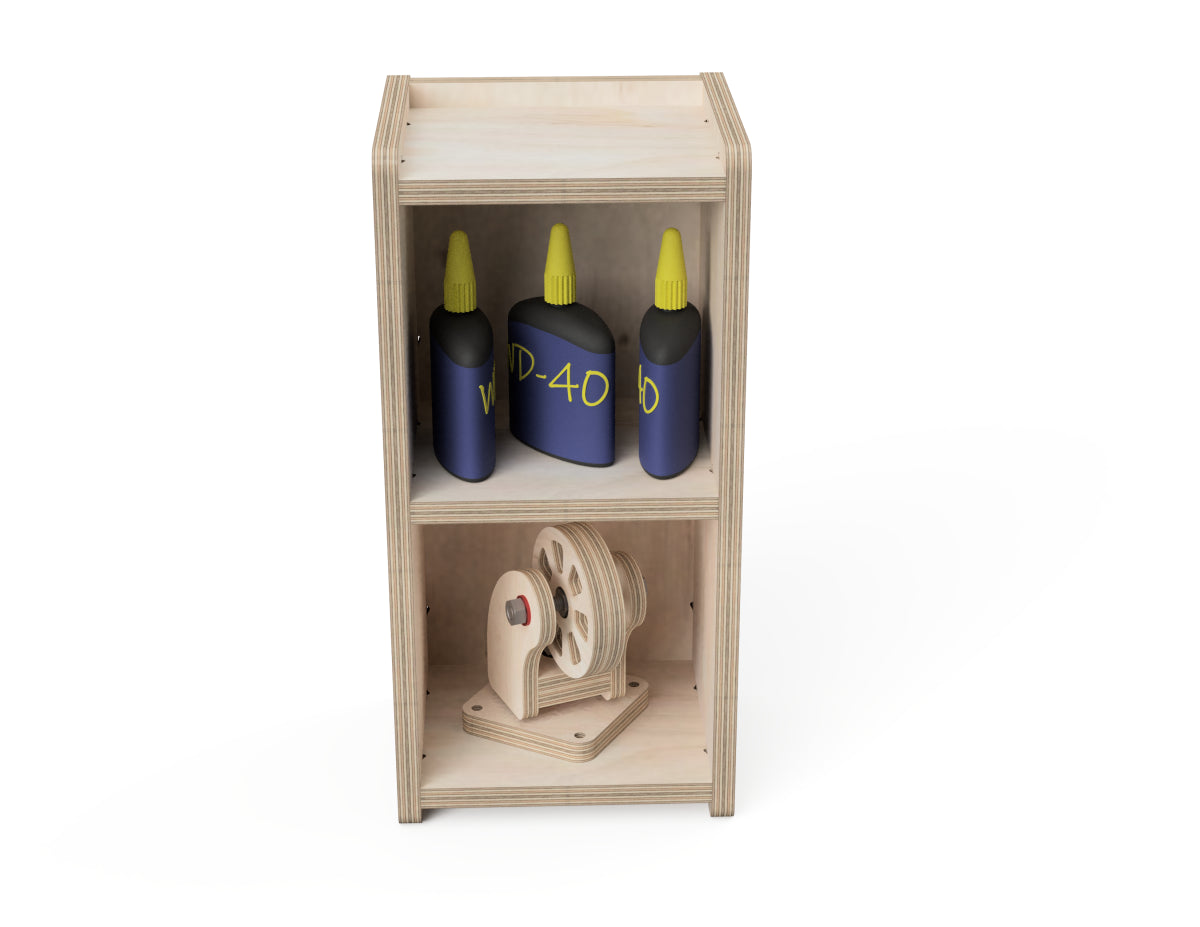

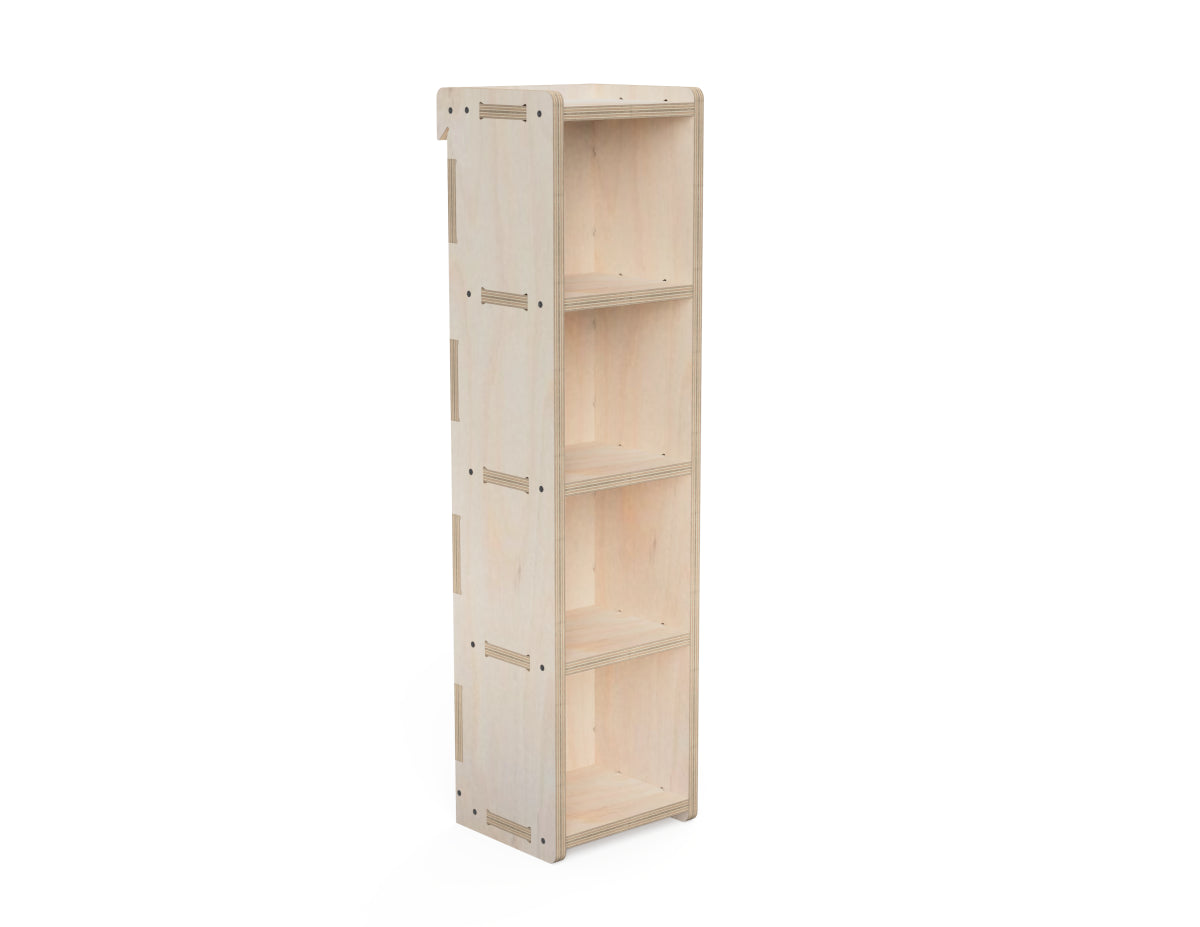

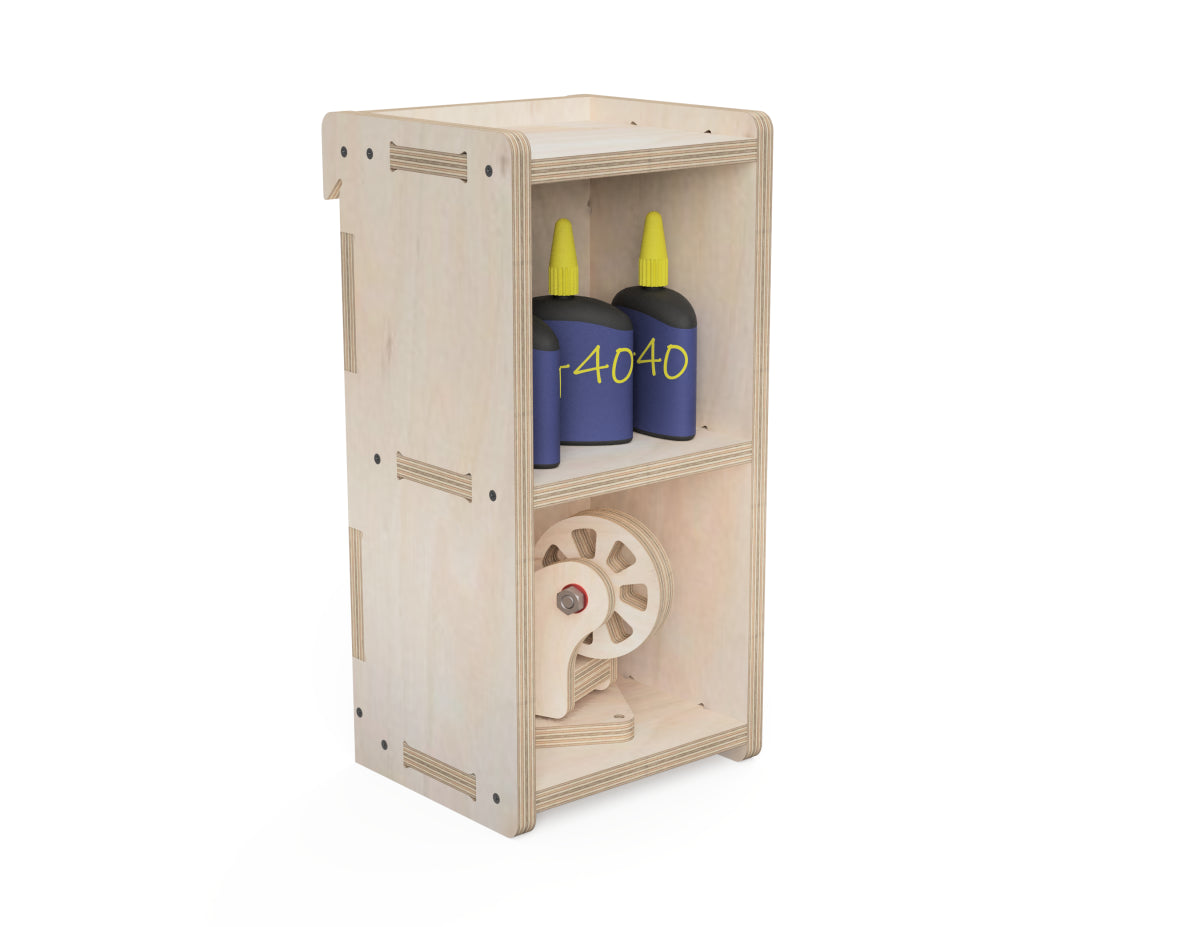

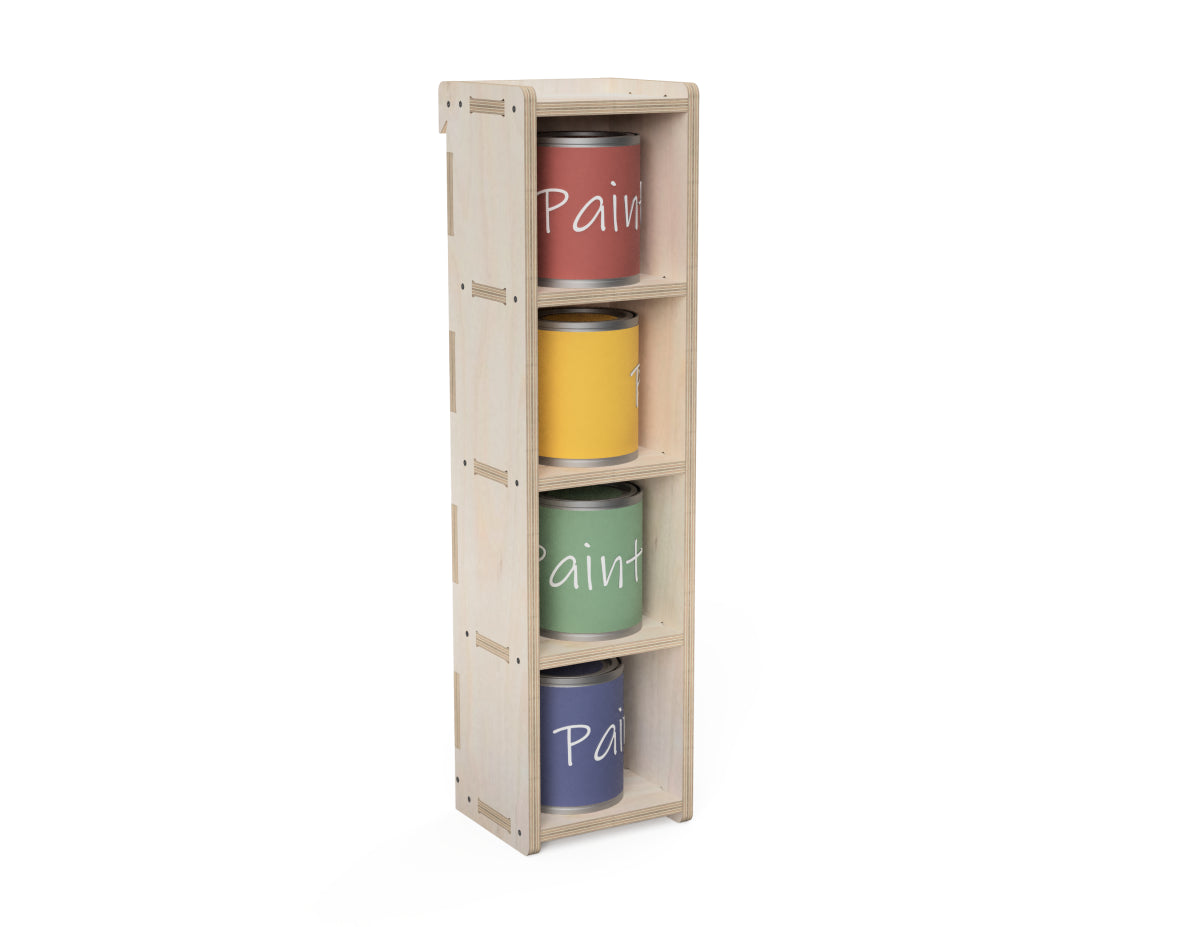

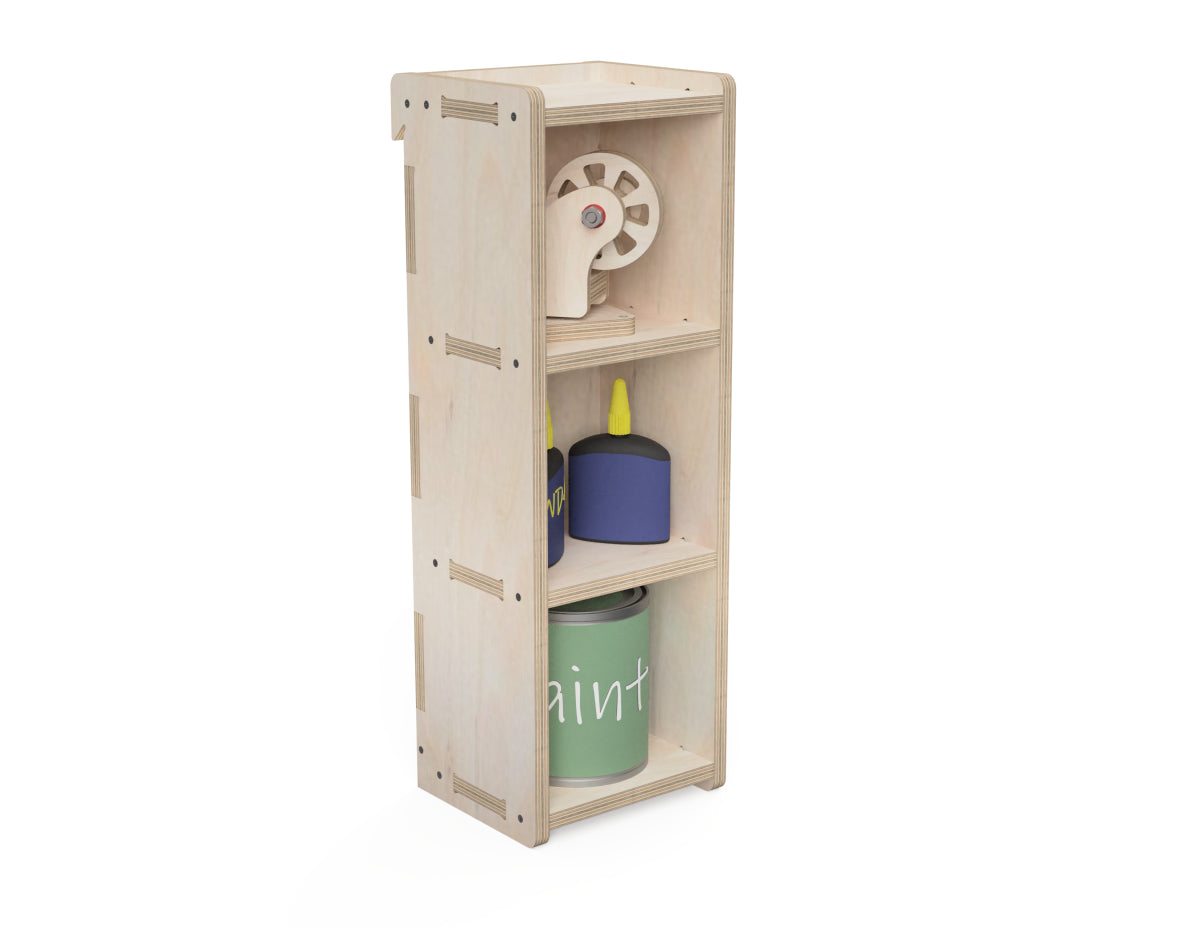

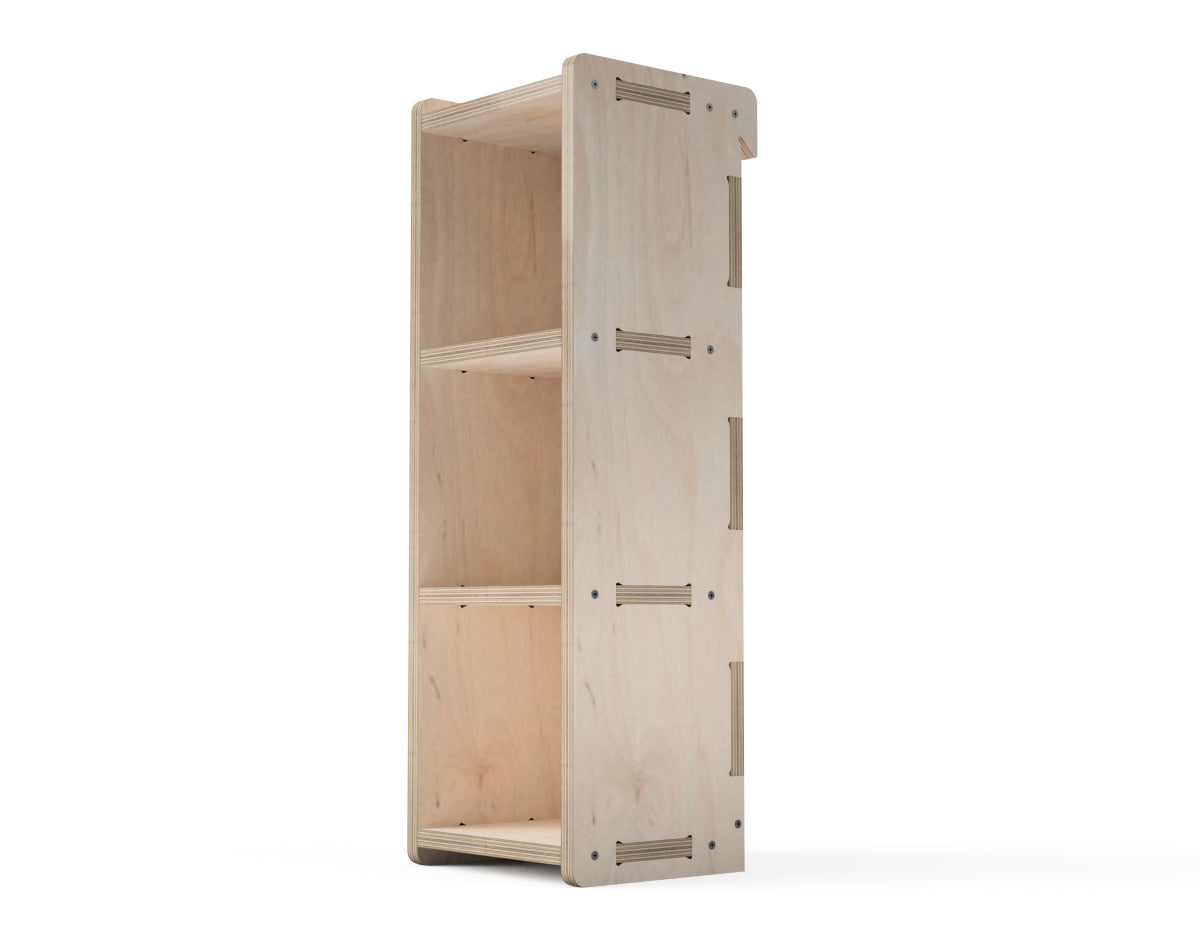

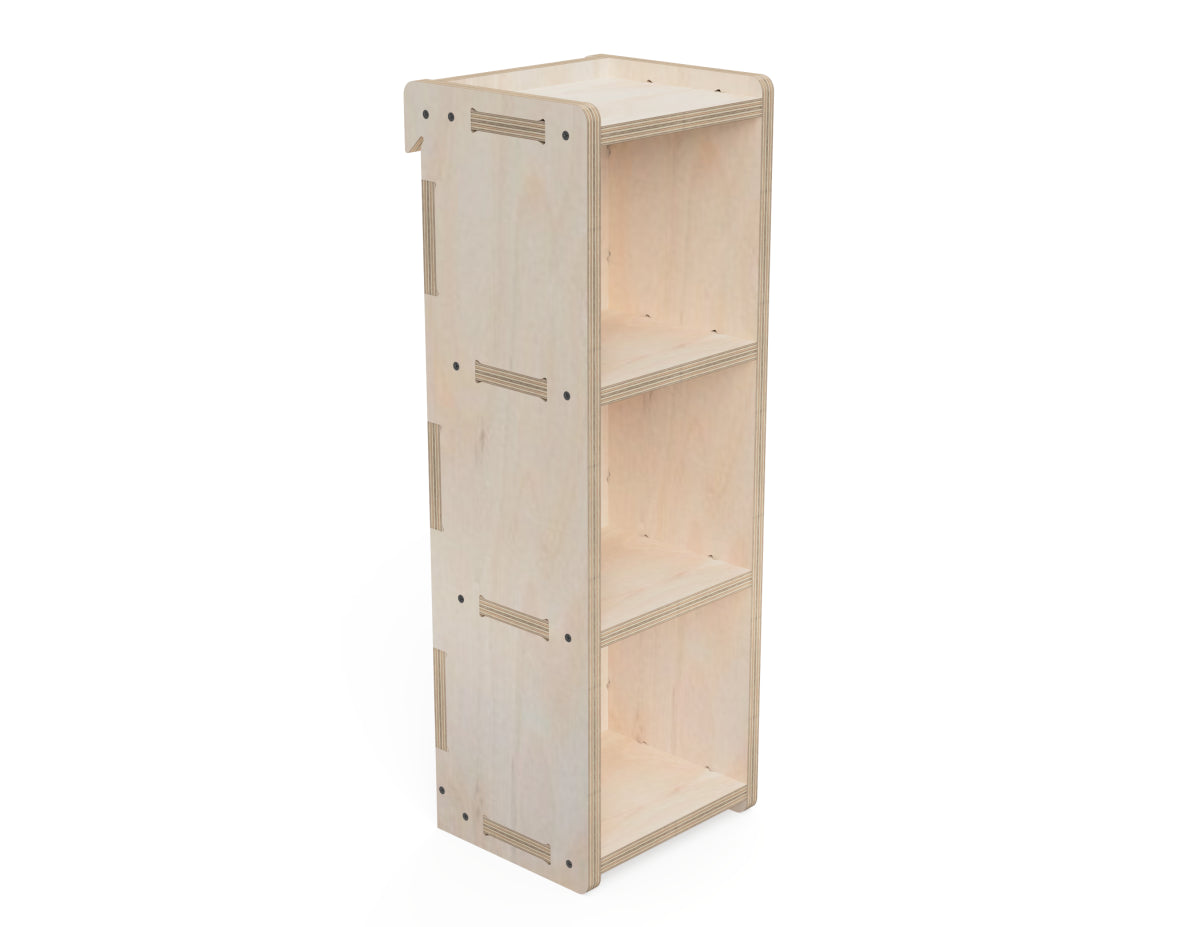

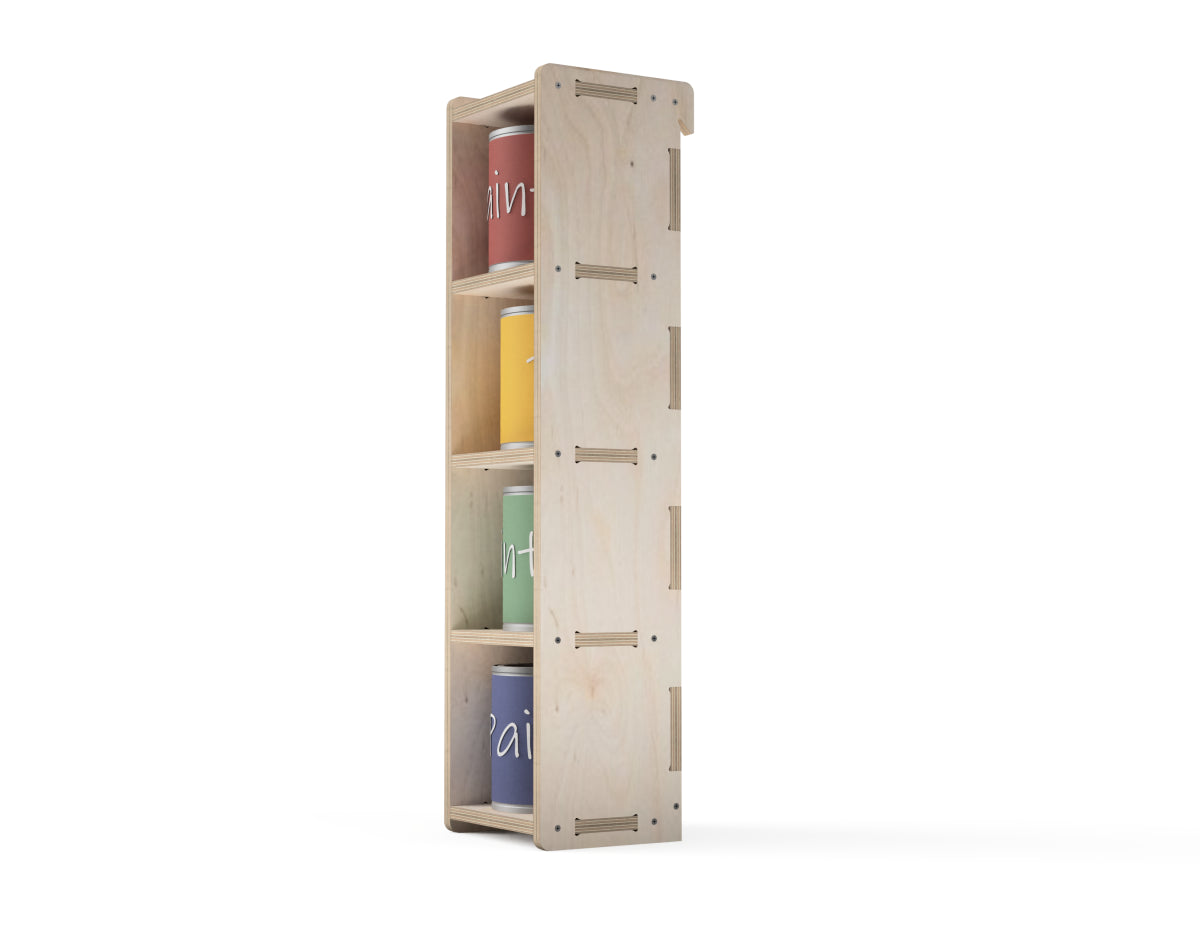

The set includes plans for three shelf configurations: a 2-level, a 3-level, and a 4-section unit, perfect for organizing smaller tools and items with quick access.
Ideal for walls with a cleat thickness of at least 12 mm, these files offer a practical and space-efficient storage solution for any workshop.
Download today and streamline your workspace with precision-crafted shelves.
Supported CNC sizes
Supported CNC sizes
The project can be made on a
600 x 900 mm (2 x 3 ft) CNC
router and bigger.
Max single piece size
Max single piece size
The biggest component is
690
x
175
mm (27.17
x
6.89
inches).
So if it can fit on your CNC router, you can build this project
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
Minimum
| Width | Length | Height |
|---|---|---|
| 175 mm | 135 mm | 365 mm |
| 6⅞ inch | 5⅜ inch | 14⅜ inch |
Maximum
| Width | Length | Height |
|---|---|---|
| 175 mm | 135 mm | 690 mm |
| 6⅞ inch | 5⅜ inch | 27⅛ inch |
Required materials
Required materials
For a 600 x 900 mm (2 x 3 ft)
For a 600 x 900 mm (2 x 3 ft)
- 1 sheet of 900 x 600 x 12 mm (36 x 24 x 1/2 inches) plywood
- 1 sheet of 250 x 200 x 12 mm (10 x 8 x 1/2 inches) plywood
- 3 mm (1/8 inch) router bit
- 20 wood screws (optional)
For a 820 x 1220 mm (2.6 x 4 ft) CNC and bigger
For a 820 x 1220 mm (2.6 x 4 ft) CNC and bigger
- 1 sheet of 800 x 750 x 12 mm (32 x 30 x 1/2 inches) plywood
- 3 mm (1/8 inch) router bit
- 20 wood screws (optional)
Approximate CNC time
Approximate CNC time
10 minutes
Assembling time
Assembling time
10 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
