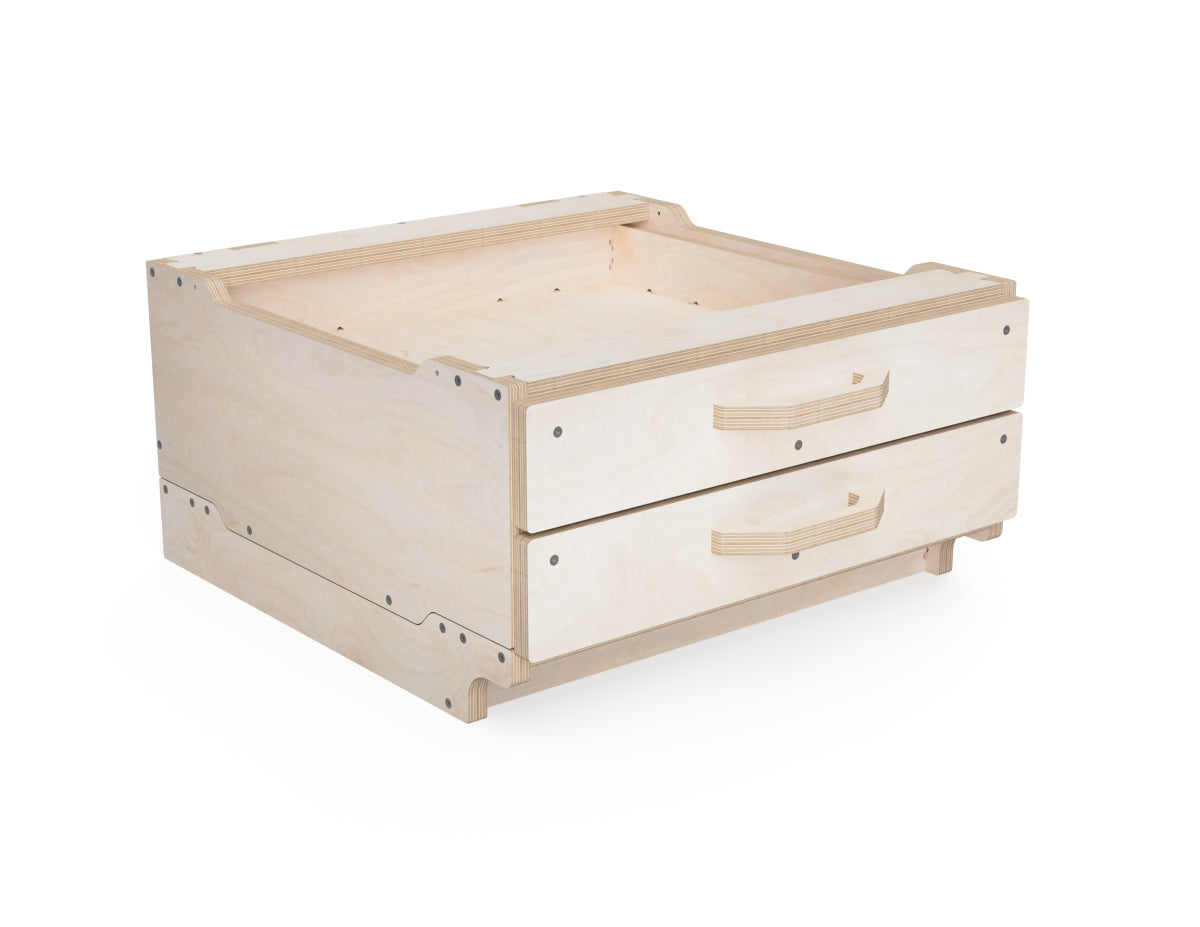

  • Stackable modular cabinet unit in 1/4 height configuration.

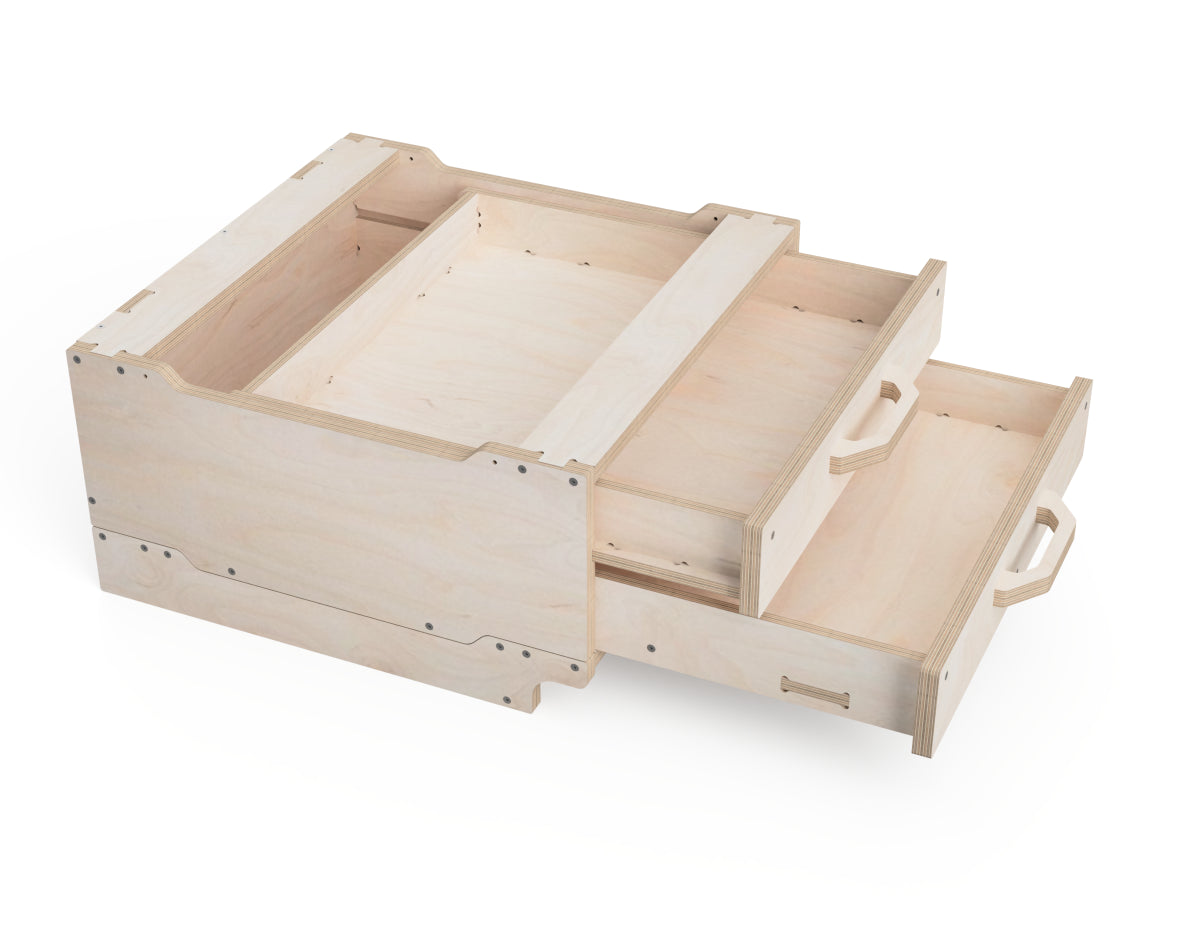

  • CNC-cut workshop cabinet module showing two drawer compartments

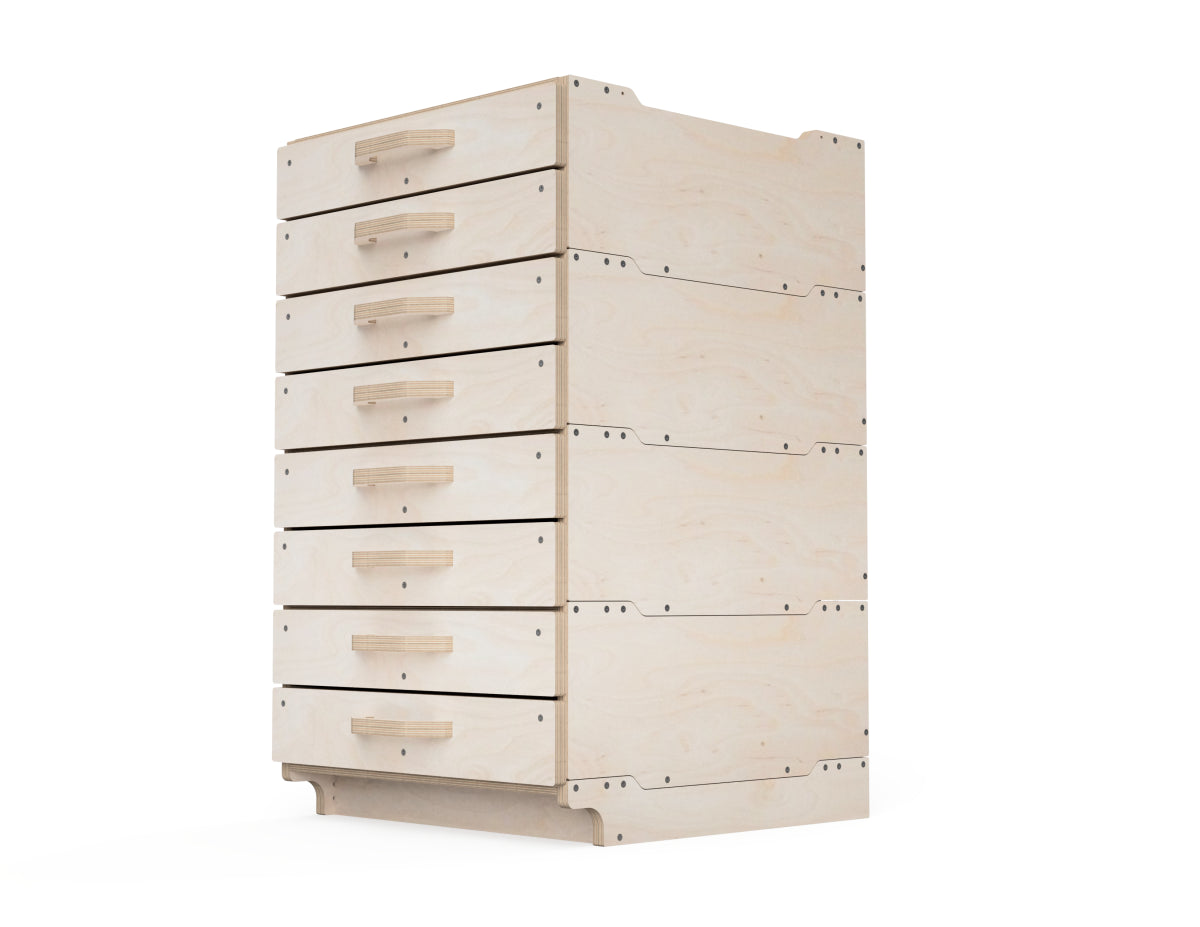

  • Modular cabinet system showing how multiple units can be stacked.

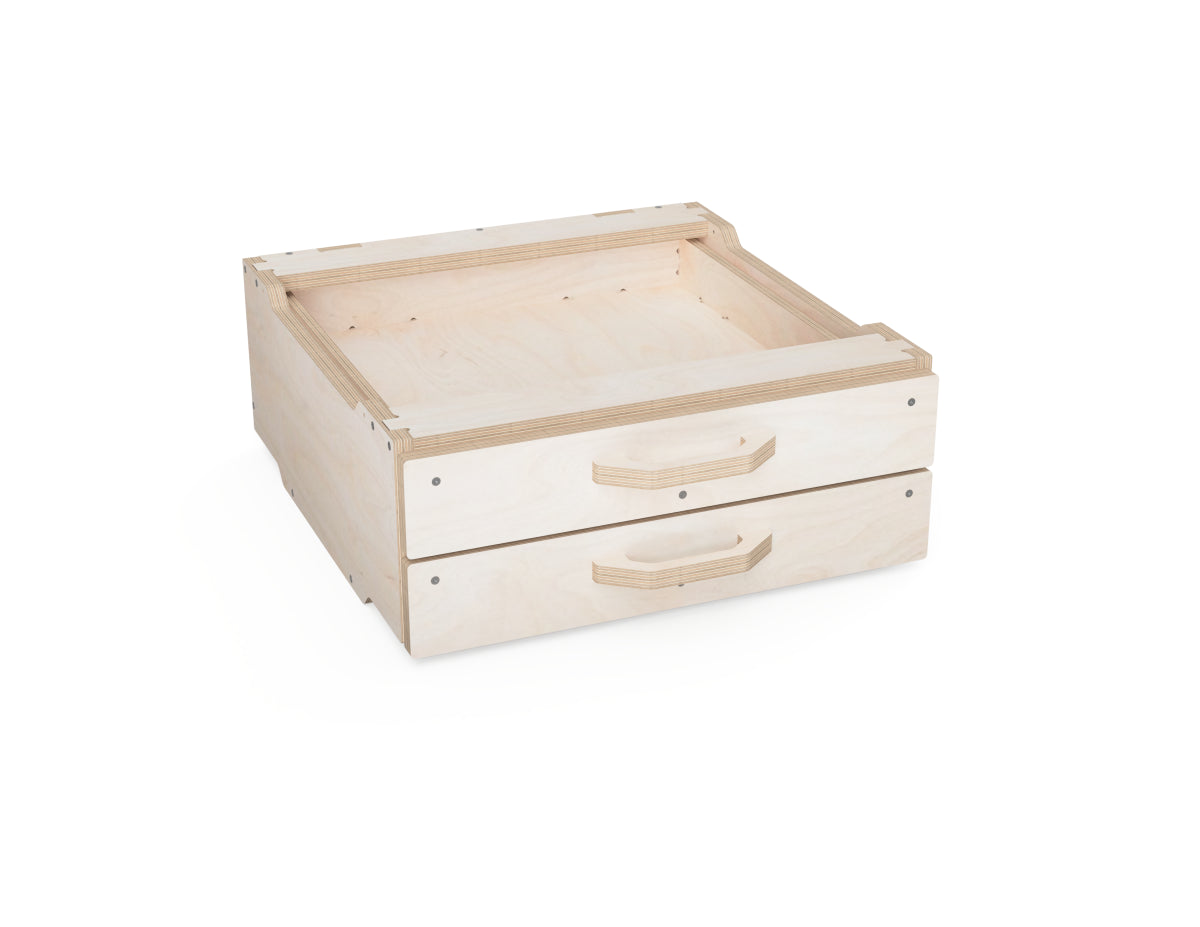

  • Assembled 550 mm small cabinet module with two drawers.

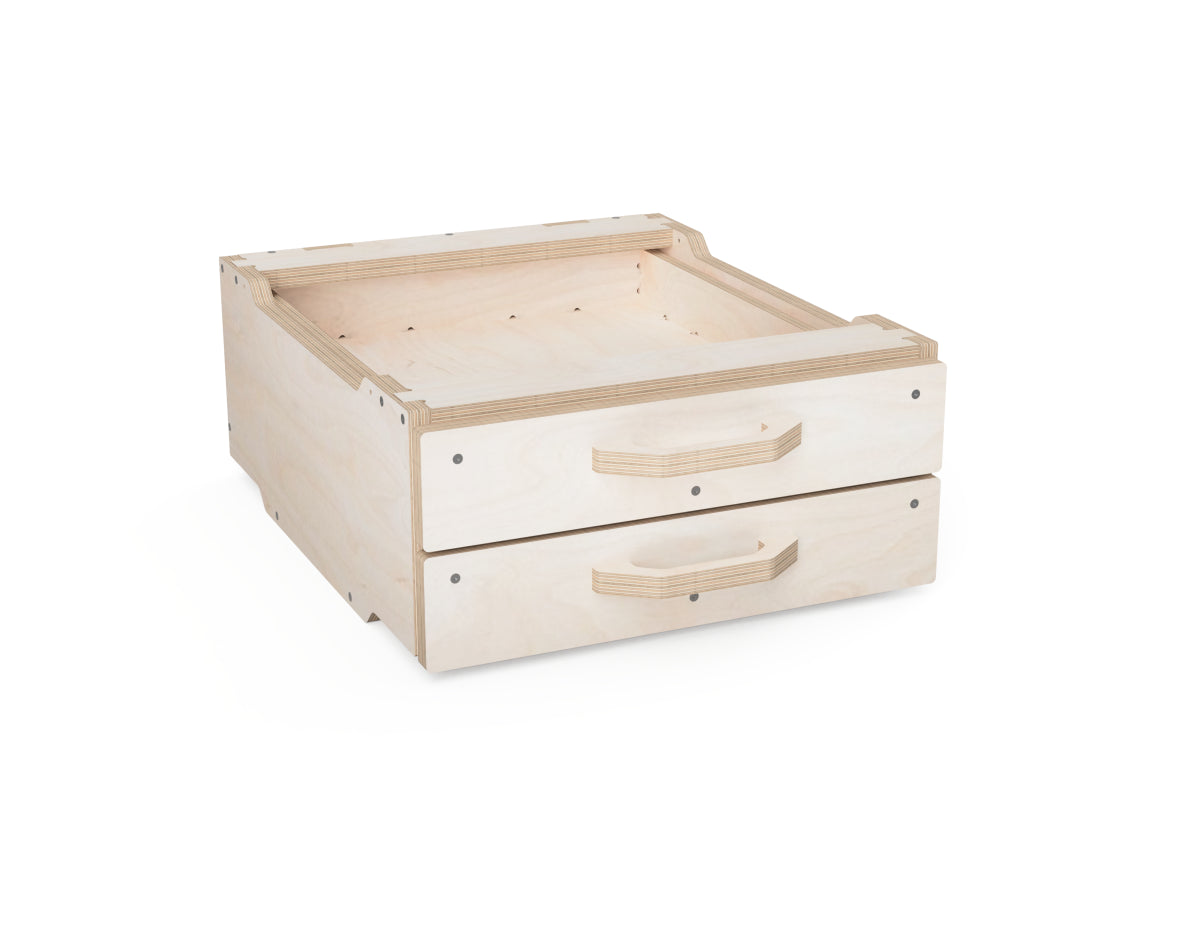

  • Assembled 475 mm small cabinet module with two drawers.

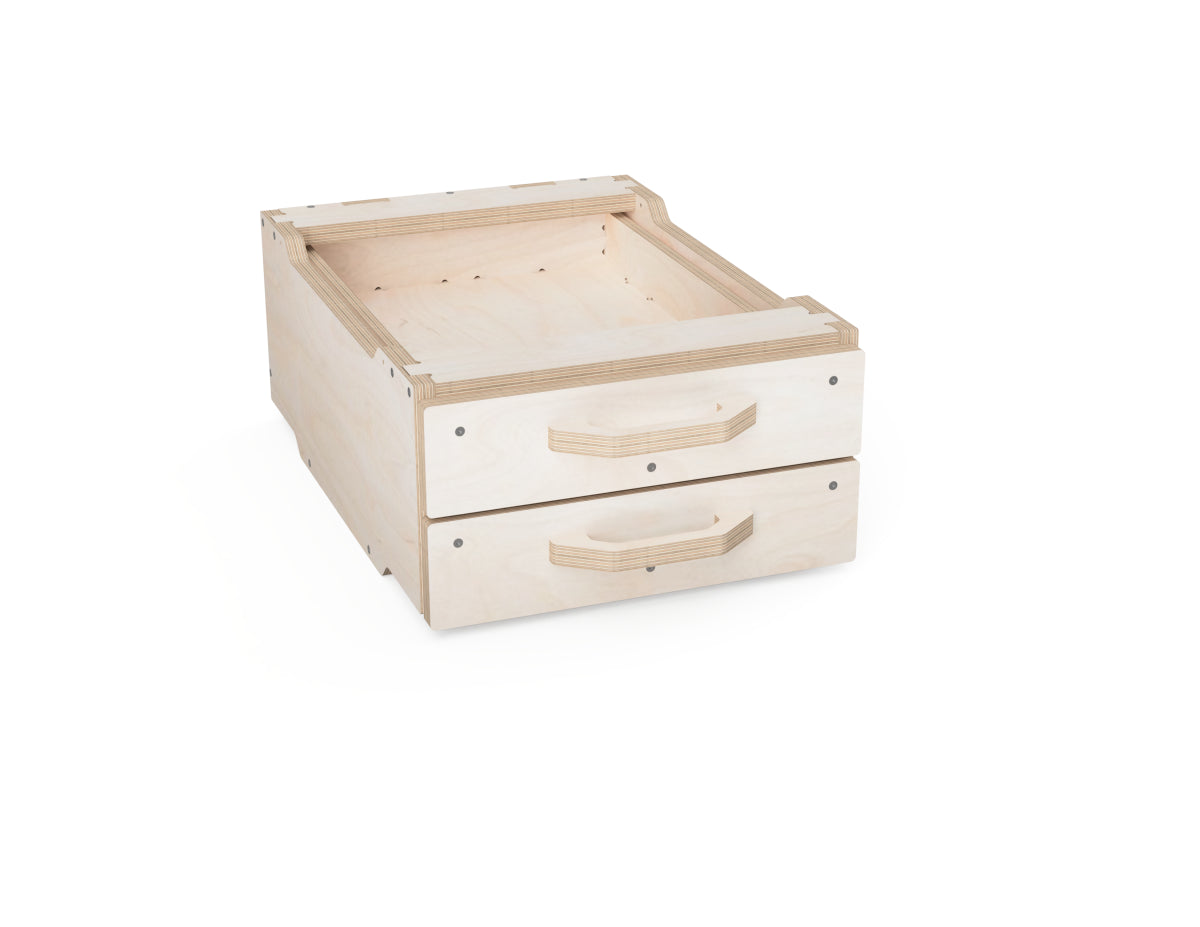

  • Assembled 400 mm small cabinet module with two drawers.
1 9

Modular Workshop Cabinet - Small with 2 Drawers - DXF Files

Modular Workshop Cabinet - Small with 2 Drawers - DXF Files

$3.25 USD
$6.45 USD $3.25 USD
Sale Sold out
Taxes included.

Build a fully customizable workshop storage system with this Modular Workshop Cabinet – Small with 2 Drawers. Designed for CNC routers, these downloadable DXF files let you cut and assemble your own cabinet modules with ease.

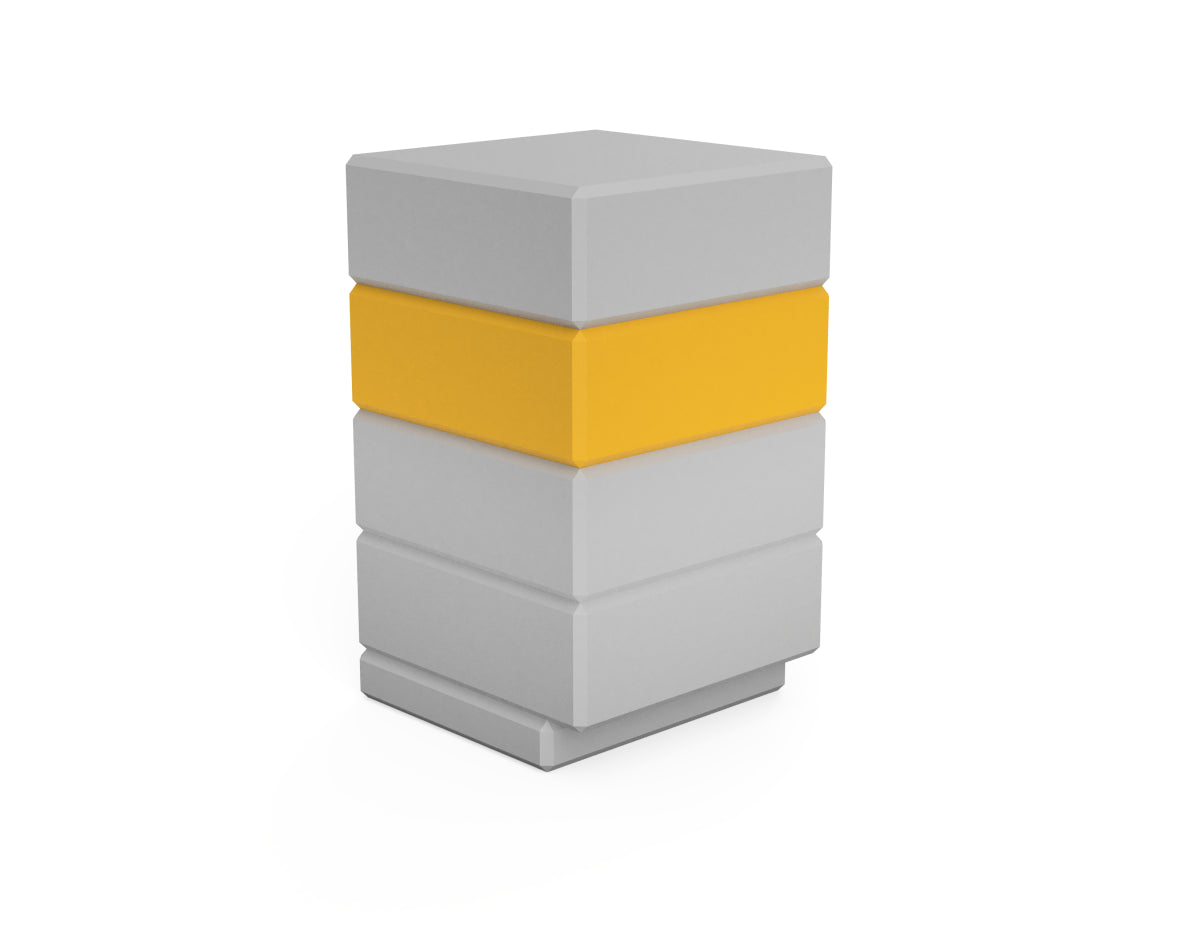

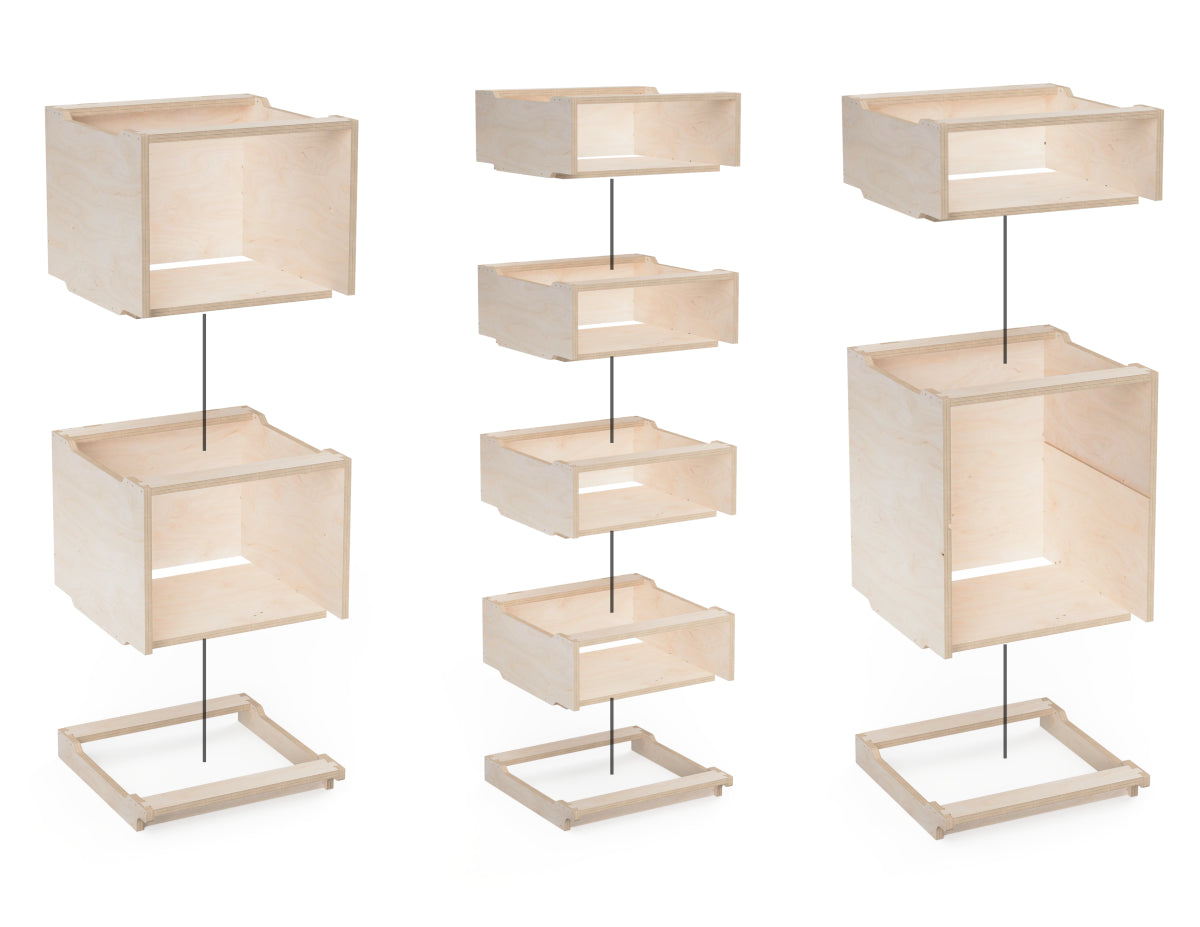

This module is 1/4 the height of a standard 900 mm cabinet, making it perfect for stacking, mixing, and creating a setup that fits your workflow. It includes two built-in drawers engineered to slide smoothly without requiring drawer slides, keeping the build simple and cost-effective.



Choose from three widths - 550 mm, 475 mm, and 400 mm - to match your space and the rest of your modular system. Whether you’re organizing tools, hardware, or accessories, this CNC-friendly cabinet module helps you keep your workshop clean, efficient, and scalable.



Perfect for DIY woodworkers, CNC enthusiasts, and makers building a professional-looking workshop storage system.

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Max single piece size

The biggest component is 550 x 550 mm (21.65 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
400 mm 550 mm 225 mm
15¾ inch 21⅝ inch 8⅞ inch

Maximum

Width Length Height
550 mm 550 mm 225 mm
21⅝ inch 21⅝ inch 8⅞ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 2 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 2 sheets of 600 x 900 x 12 mm (24 x 36 x 1/2 inches) plywood
- a sheet of 550 x 250 x 12 mm (22 x 11 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 45 pieces
- 6 mm (1/4 inch) router bit
For a 900 x 1220 mm (3 x 4 ft) CNC and bigger
- a sheet of 700 x 1220 x 18 mm (28 x 48 x 3/4 inches) plywood
- a sheet of 900 x 1220 x 12 mm (36 x 48 x 1/2 inches) plywood
- a sheet of 550 x 250 x 12 mm (22 x 11 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 45 pieces
- 6 mm (1/4 inch) router bit

Approximate CNC time

30 minutes

Assembling time

15 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
