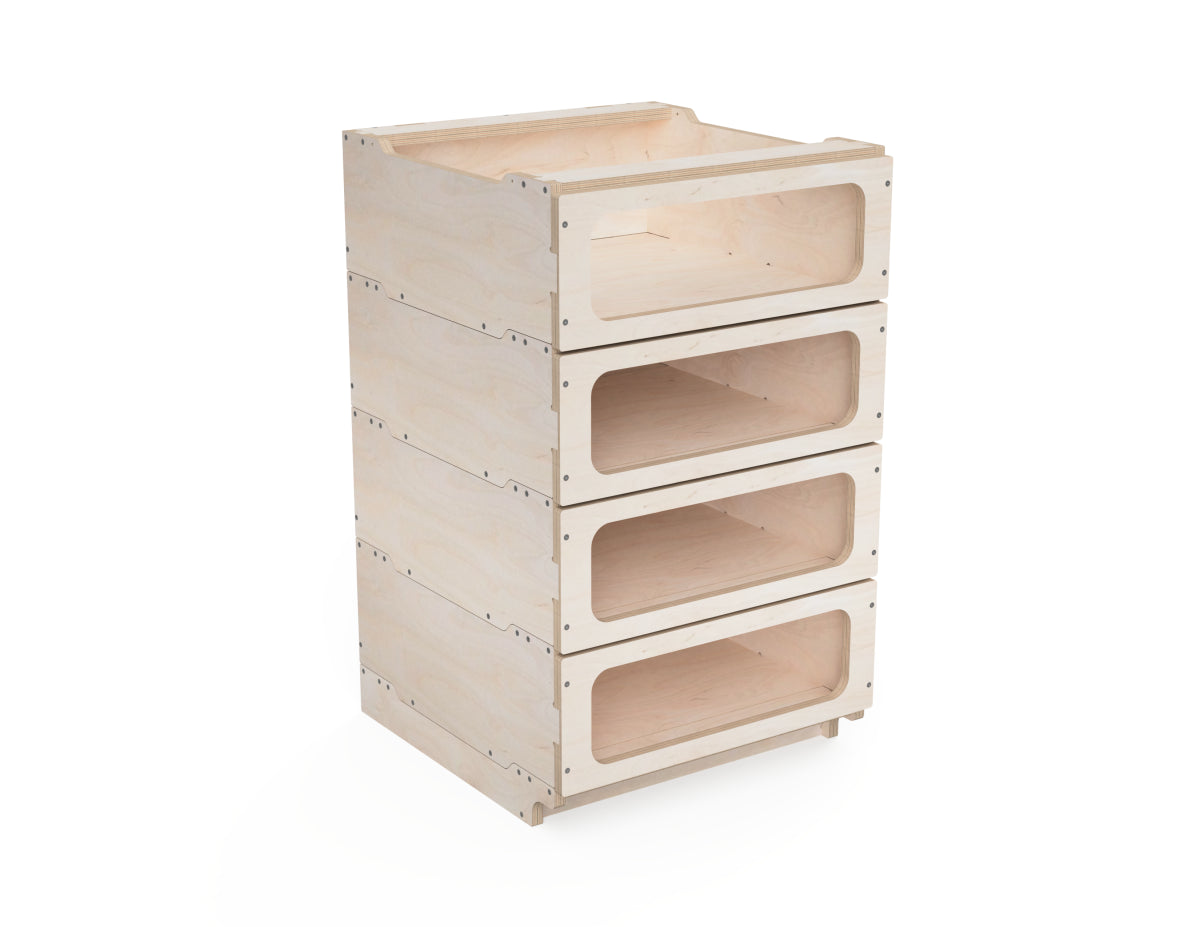

• CNC-cut small open shelf cabinet module stacked with other units
  • Modular workshop cabinet small open shelf module render
  • Perspective render of plywood workshop shelf module
  • Front view of 1/4-height modular workshop cabinet shelf
  • 550 mm wide workshop shelf module render
  • 475 mm wide modular open shelf cabinet render
  • 400 mm compact open shelf module for workshop storage
  • CNC router-ready DXF design for small open workshop shelf
1 10

Modular Workshop Cabinet - Small Open Shelf - DXF Files

Modular Workshop Cabinet - Small Open Shelf - DXF Files

$2.95 USD
$5.95 USD $2.95 USD
Sale Sold out
Taxes included.

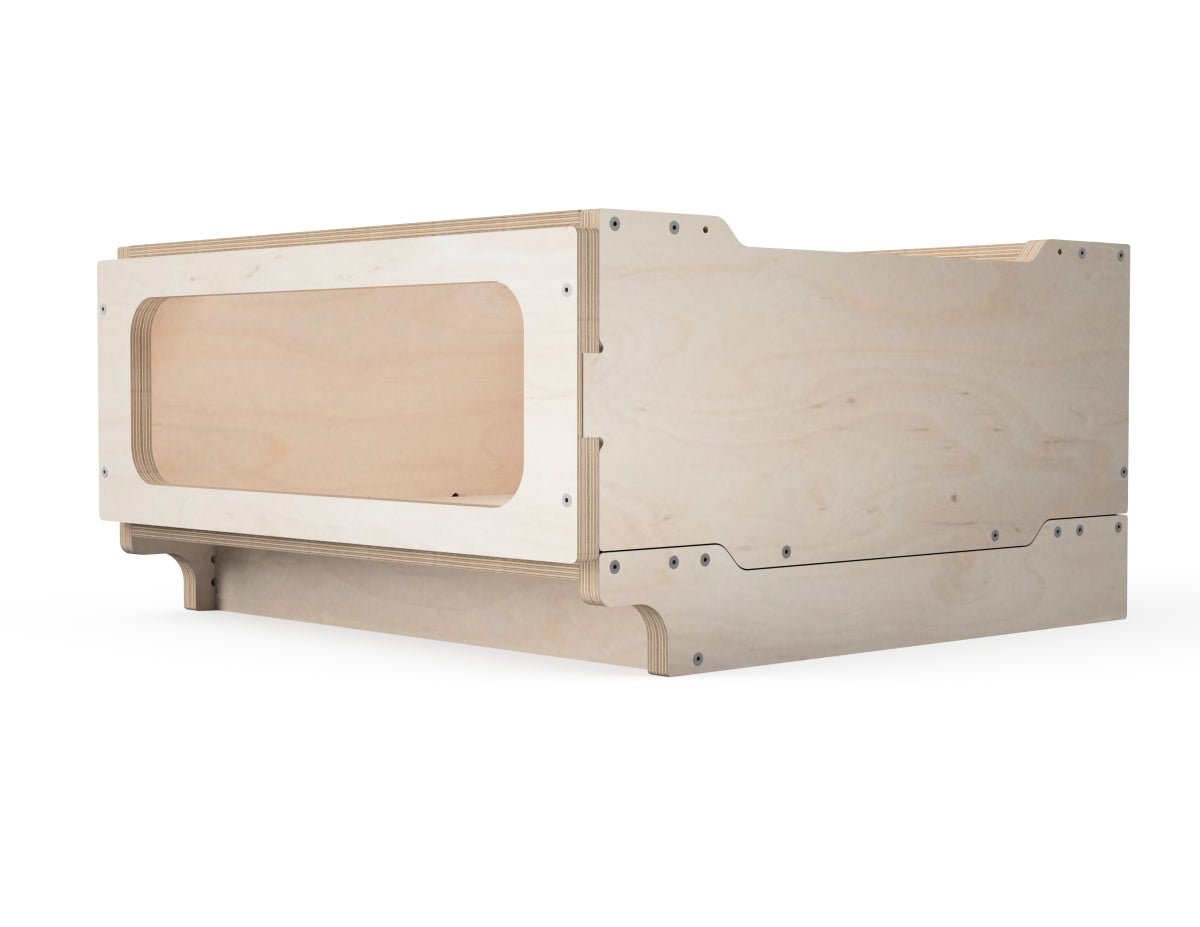

Upgrade your workshop storage with this Modular Workshop Cabinet – Small Open Shelf (DXF Files).

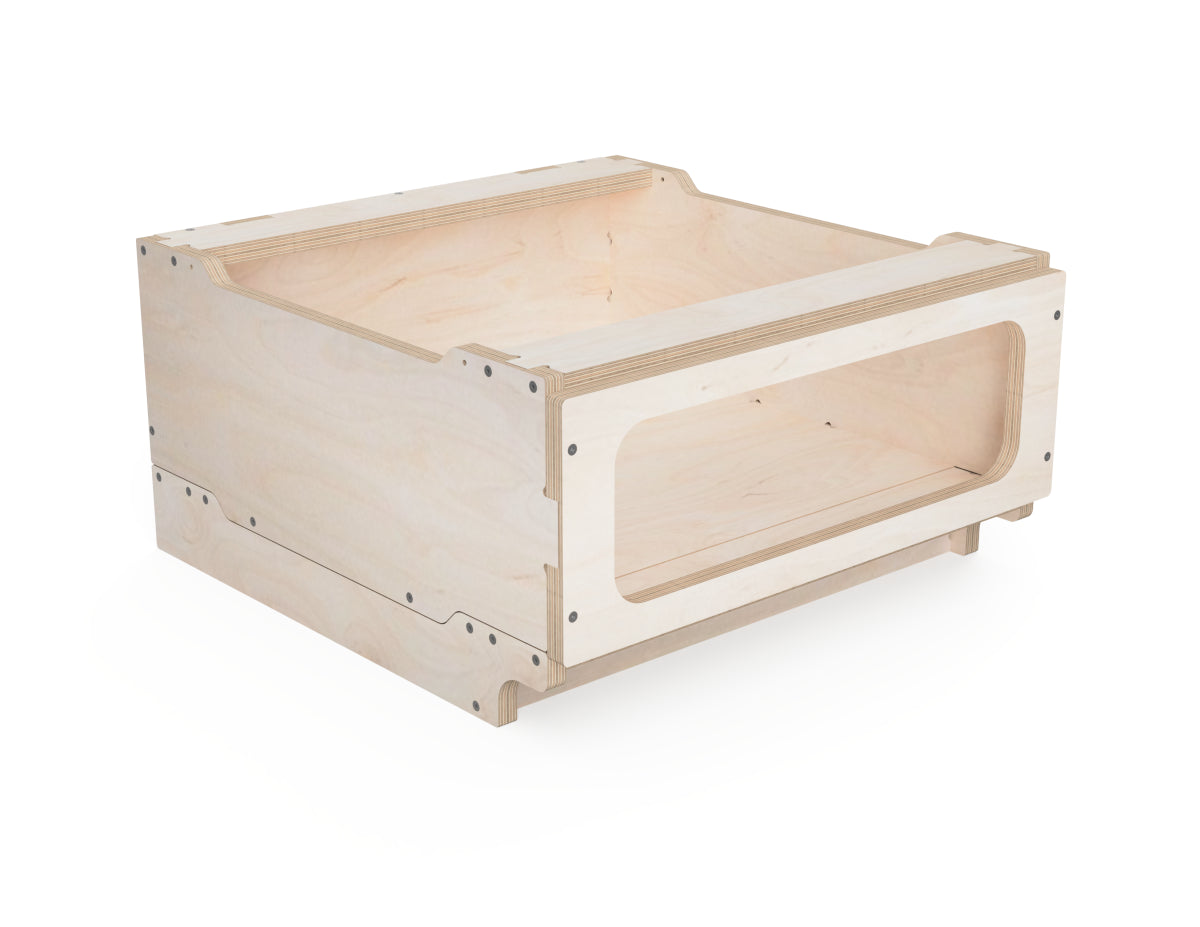

Designed for CNC routers, this project lets you easily create a custom storage system that fits your workspace. The modular design allows you to build individual cabinet sections and stack or arrange them any way you like.

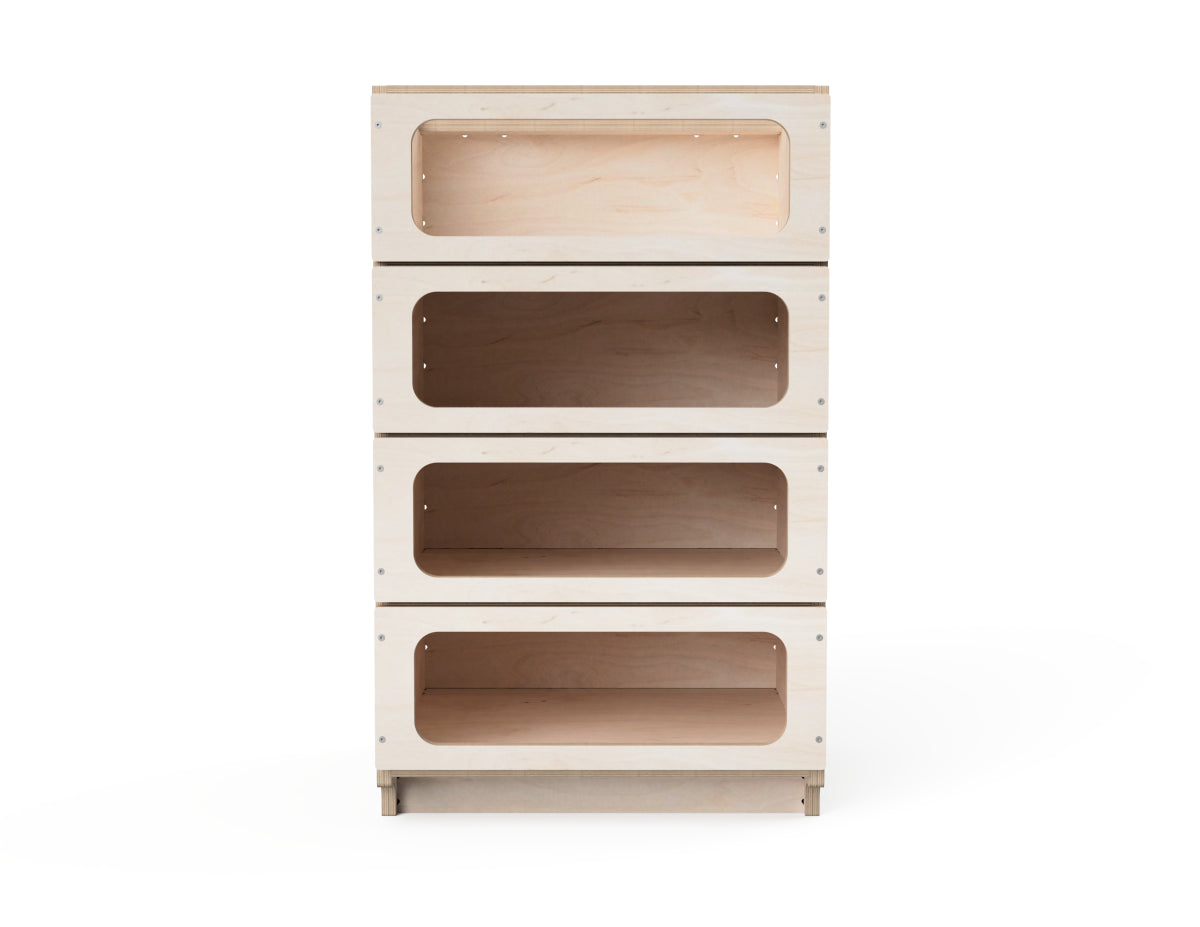

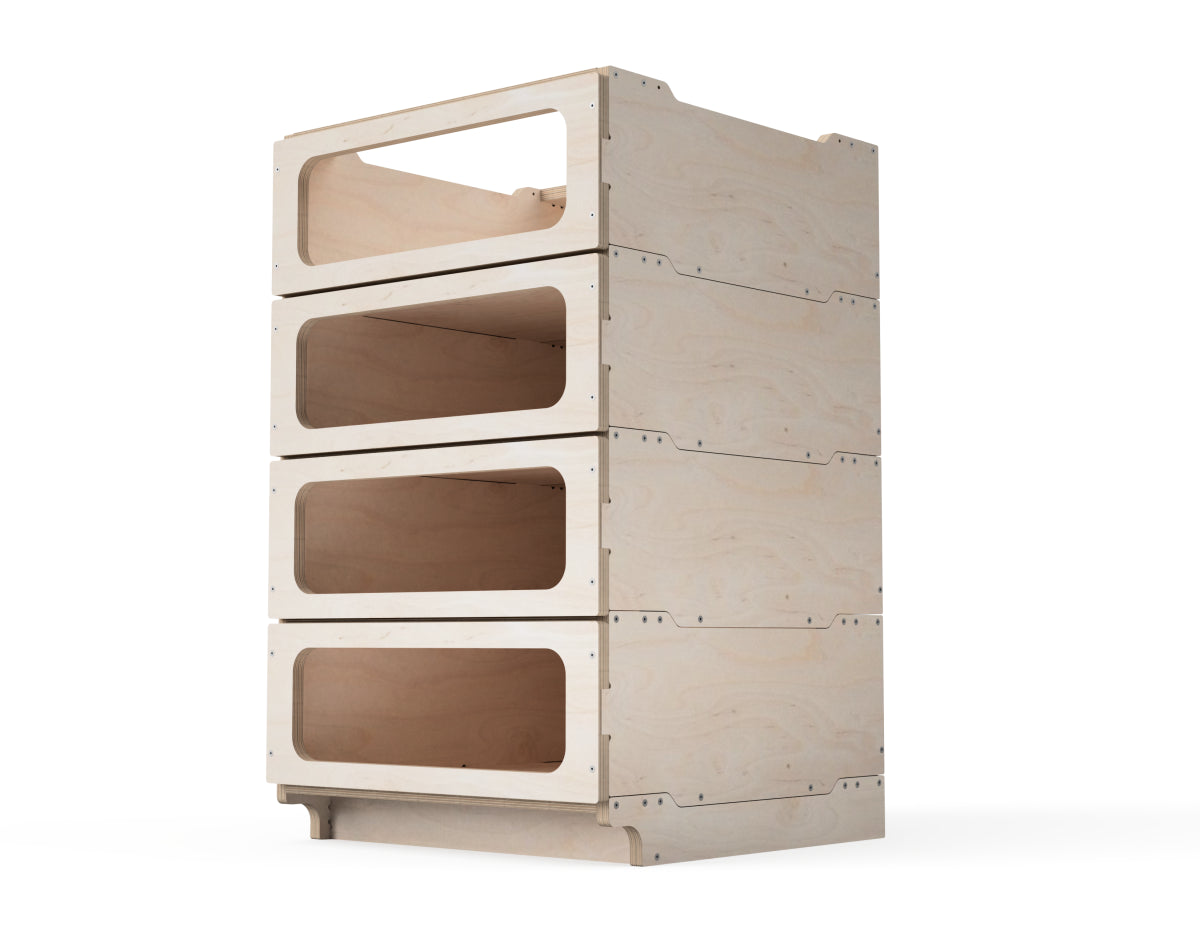

This 1/4-height module (for a 900 mm standard cabinet) features an open front for quick access to tools, hardware, and supplies. A small integrated front edge keeps items securely in place, even when pulling things in and out.

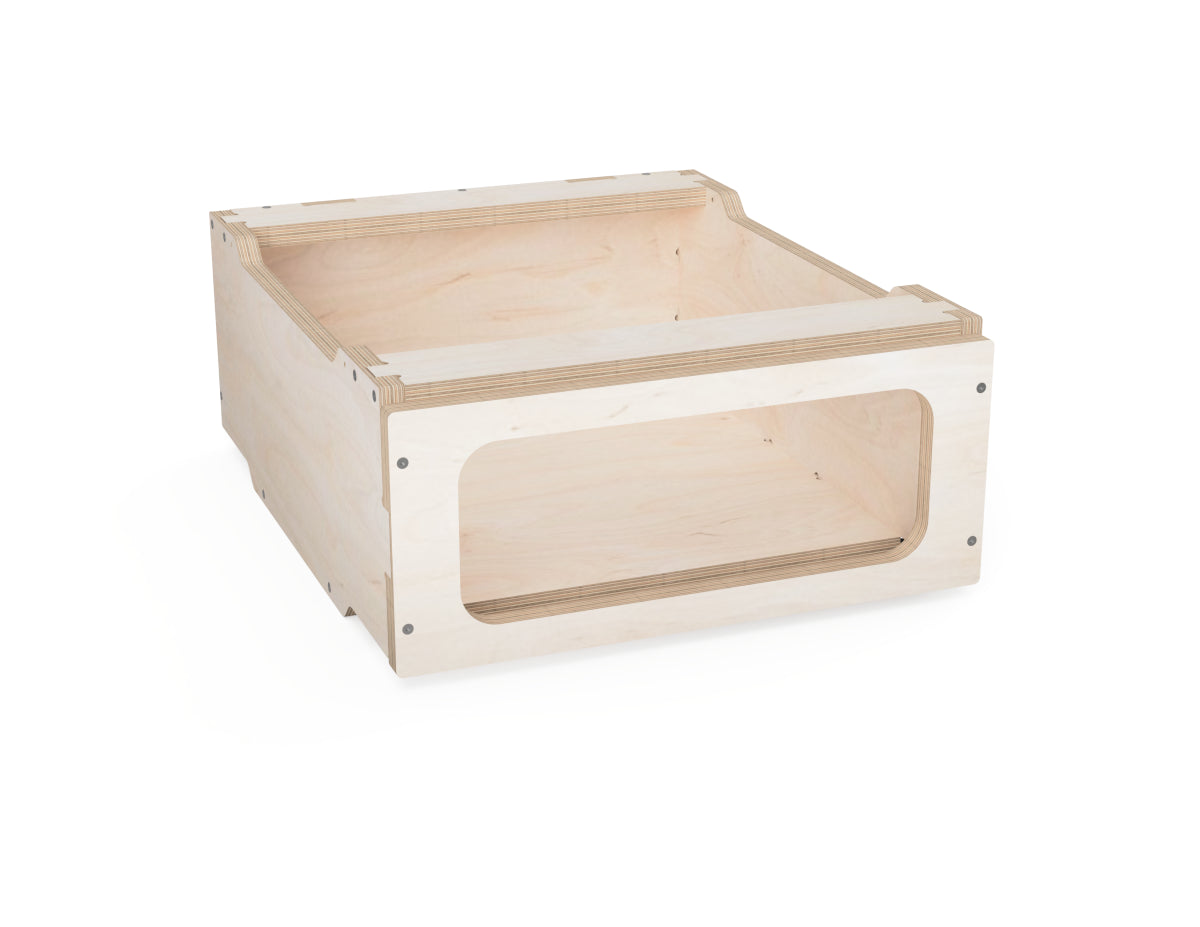

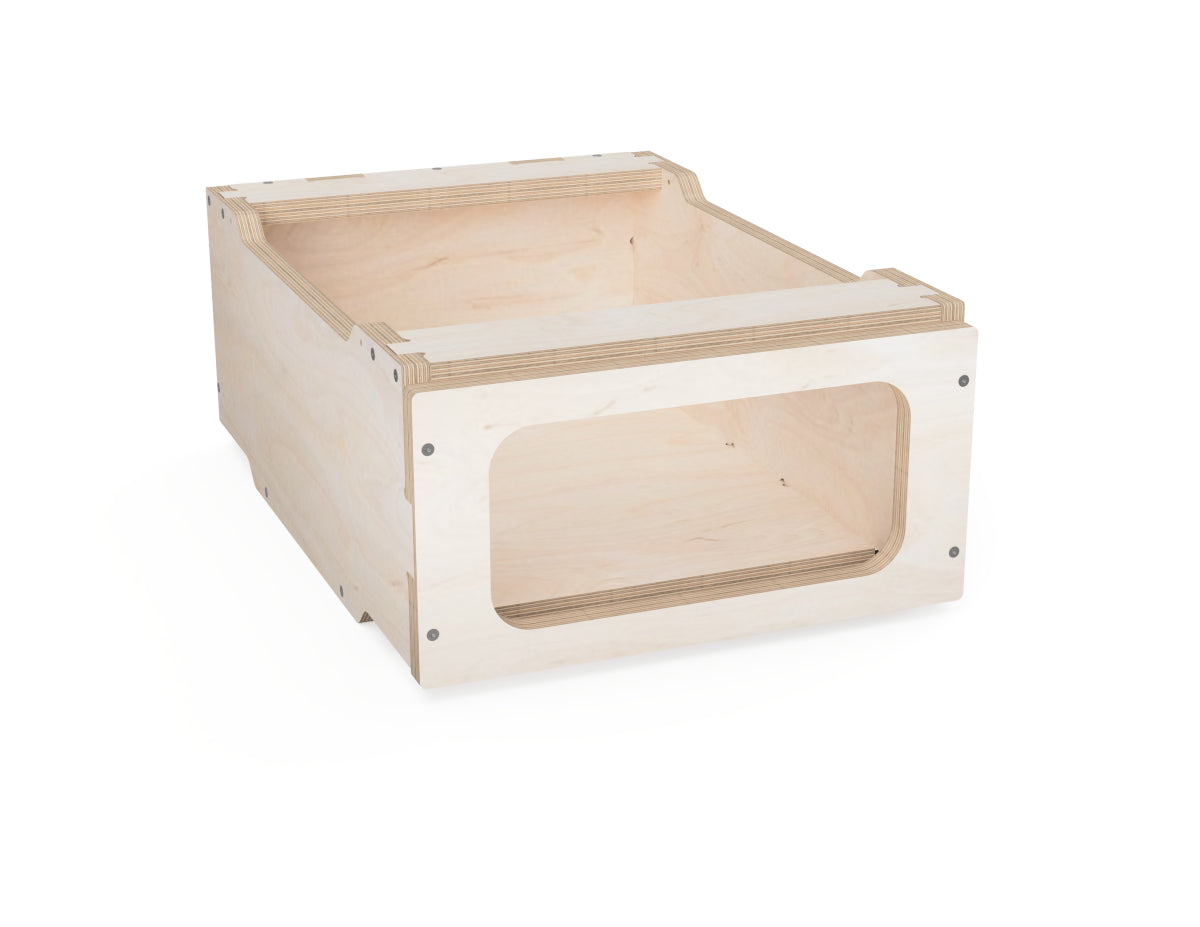

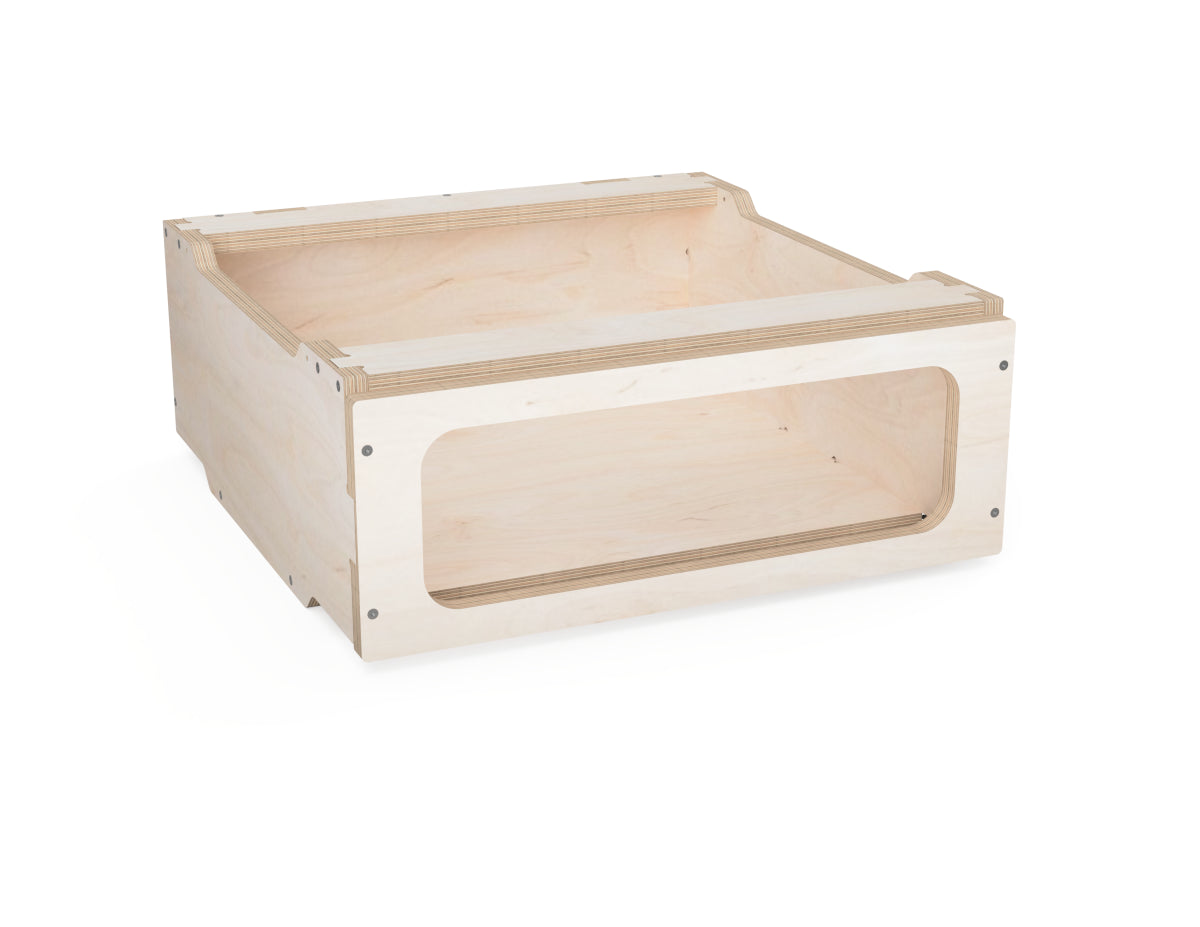

The DXF set includes three width options - 550 mm, 475 mm, and 400 mm, giving you maximum flexibility to design the perfect workshop setup.



Perfect for woodworkers, makers, and CNC enthusiasts who want efficient, customizable, and professional-looking workshop storage.

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Max single piece size

The biggest component is 550 x 550 mm (21.65 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
400 mm 550 mm 225 mm
15¾ inch 21⅝ inch 8⅞ inch

Maximum

Width Length Height
550 mm 550 mm 225 mm
21⅝ inch 21⅝ inch 8⅞ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 2 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 1 sheet of 600 x 300 x 12 mm (24 x 12 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 25 pieces
- 6 mm (1/4 inch) router bit
For a 900 x 1220 mm (3 x 4 ft) CNC and bigger
- a sheet of 700 x 1220 x 18 mm (28 x 48 x 3/4 inches) plywood
- 1 sheet of 600 x 300 x 12 mm (24 x 12 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 25 pieces
- 6 mm (1/4 inch) router bit

Approximate CNC time

15 minutes

Assembling time

15 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
