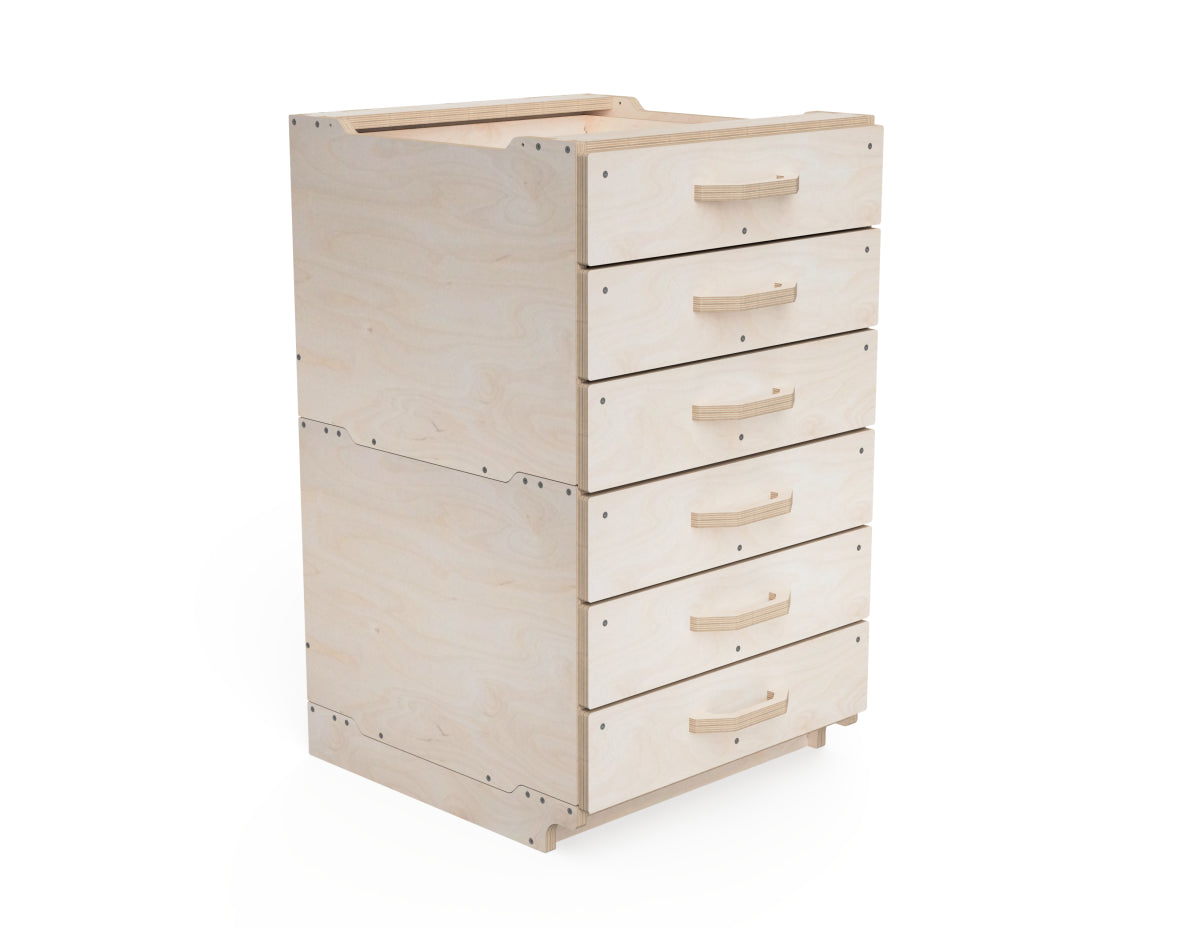

• Modular workshop cabinet medium module with 3 drawers DXF design render
  • CNC router cabinet project medium size 3 drawers stackable module

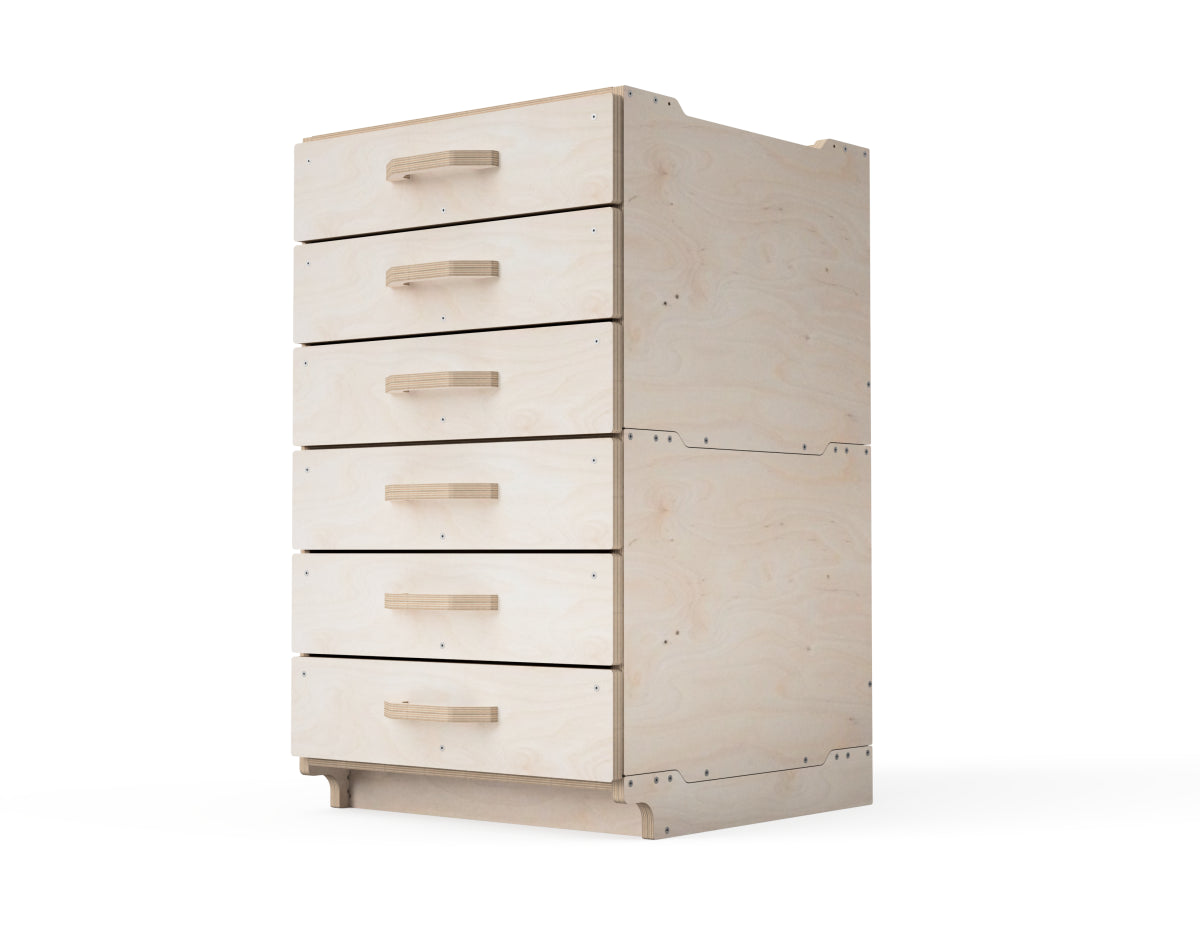

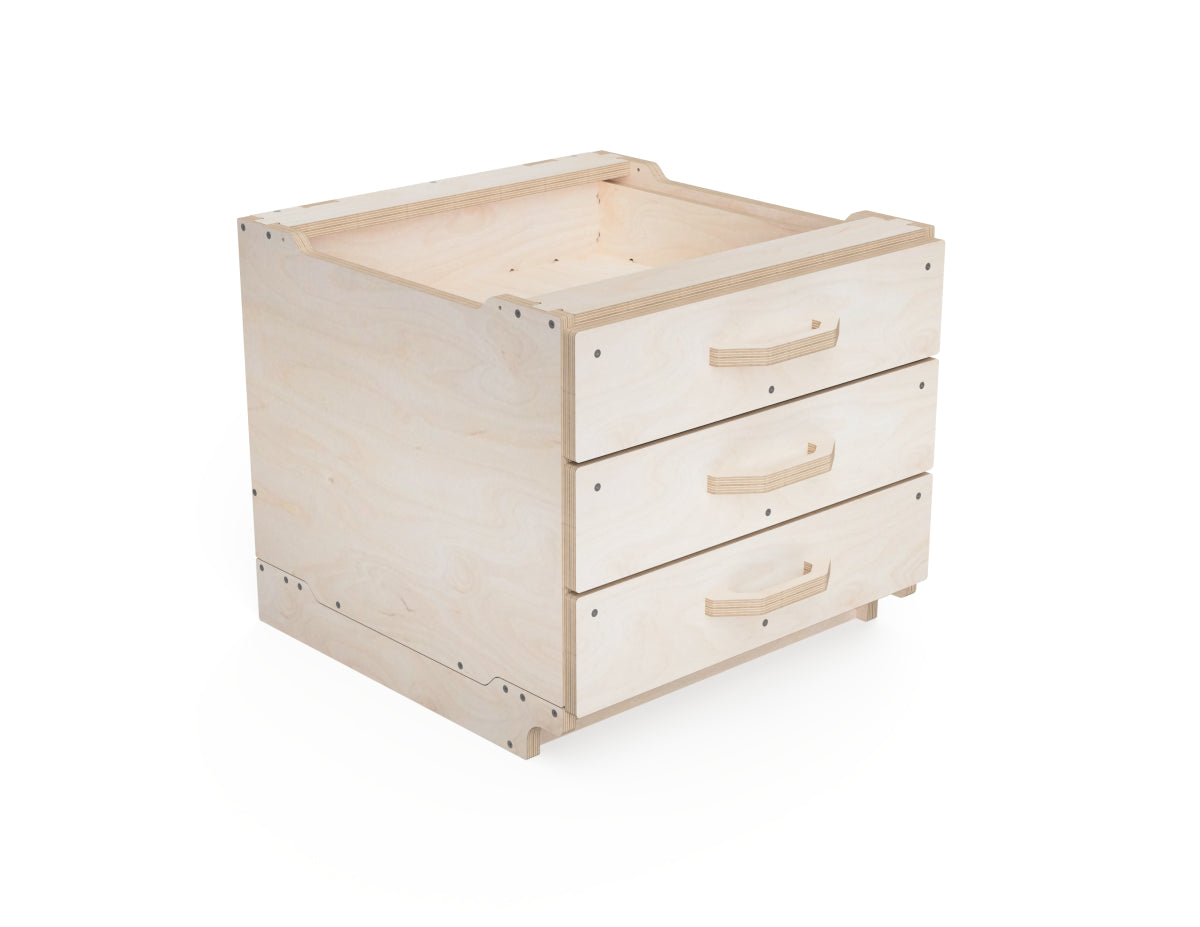

  • Side view of modular workshop cabinet with 3 built-in drawers

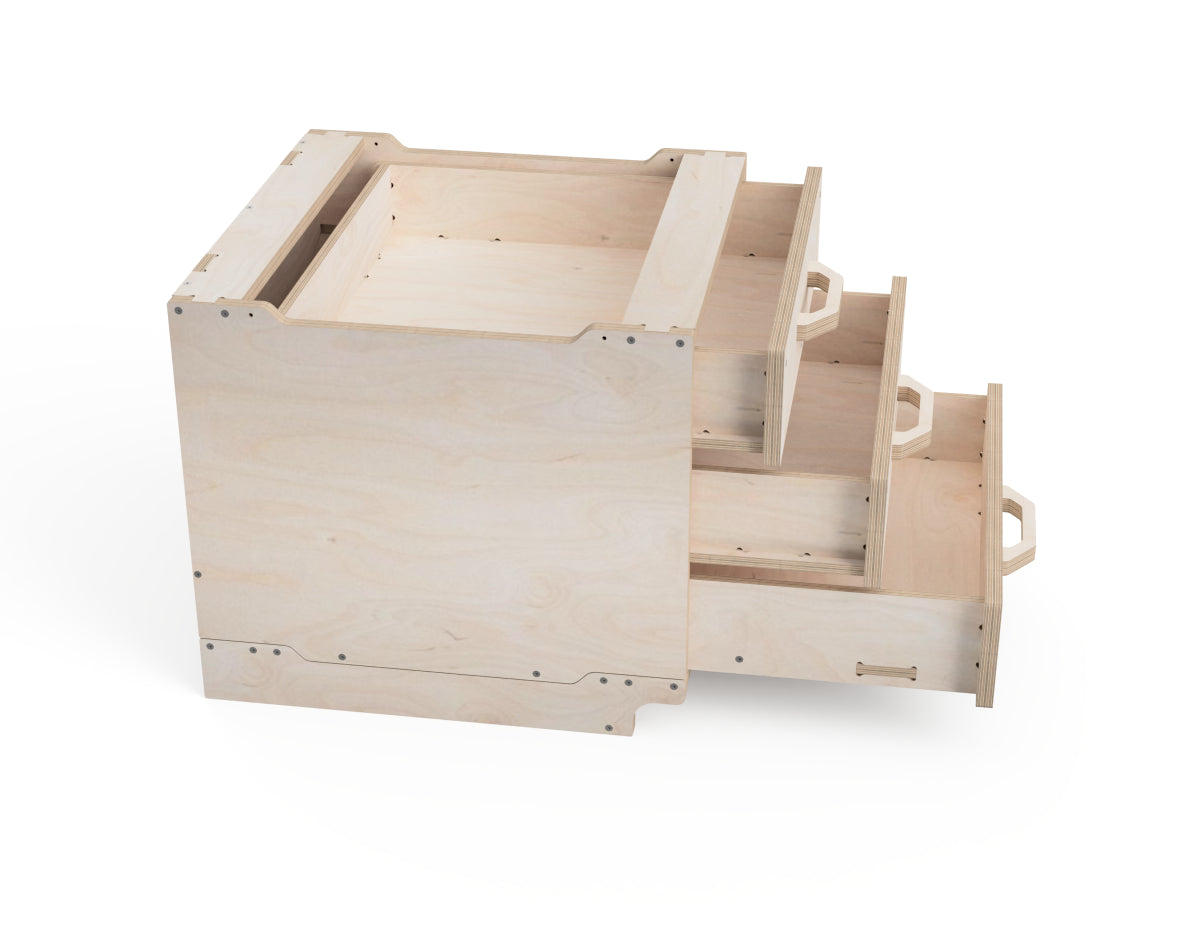

  • Drawer detail of modular cabinet showing no-slide design

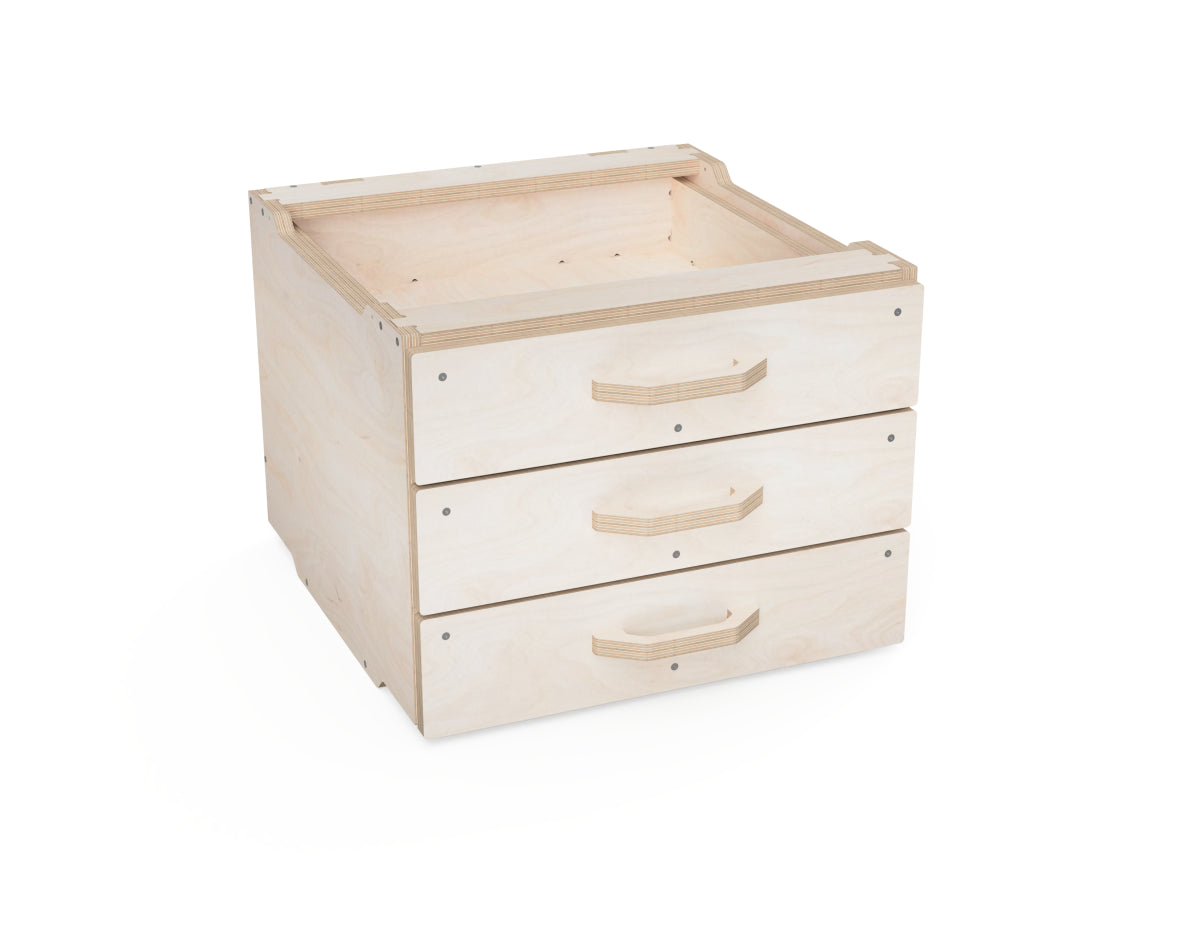

  • 550 mm width modular cabinet module with 3 drawers for workshop

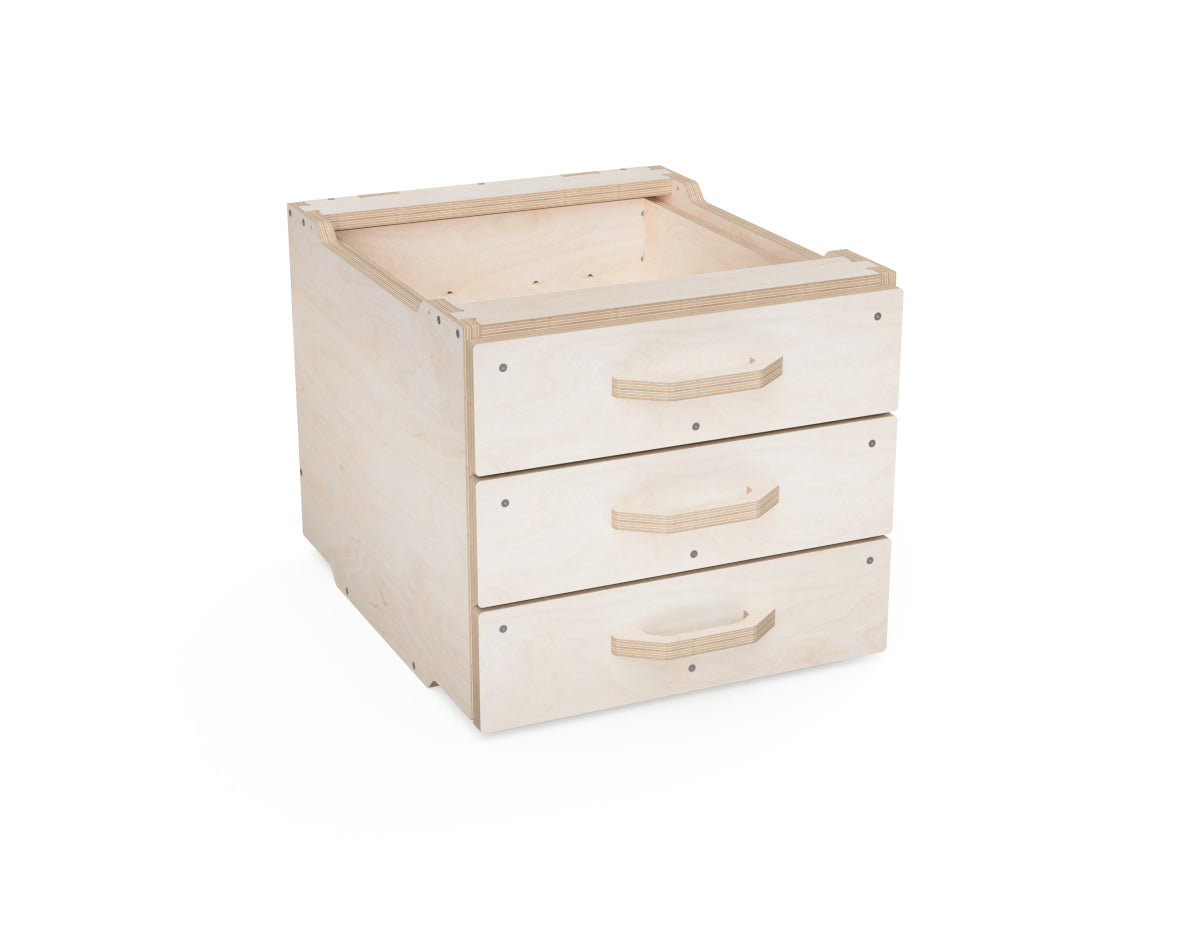

  • 475 mm width DIY cabinet module showing built-in drawers

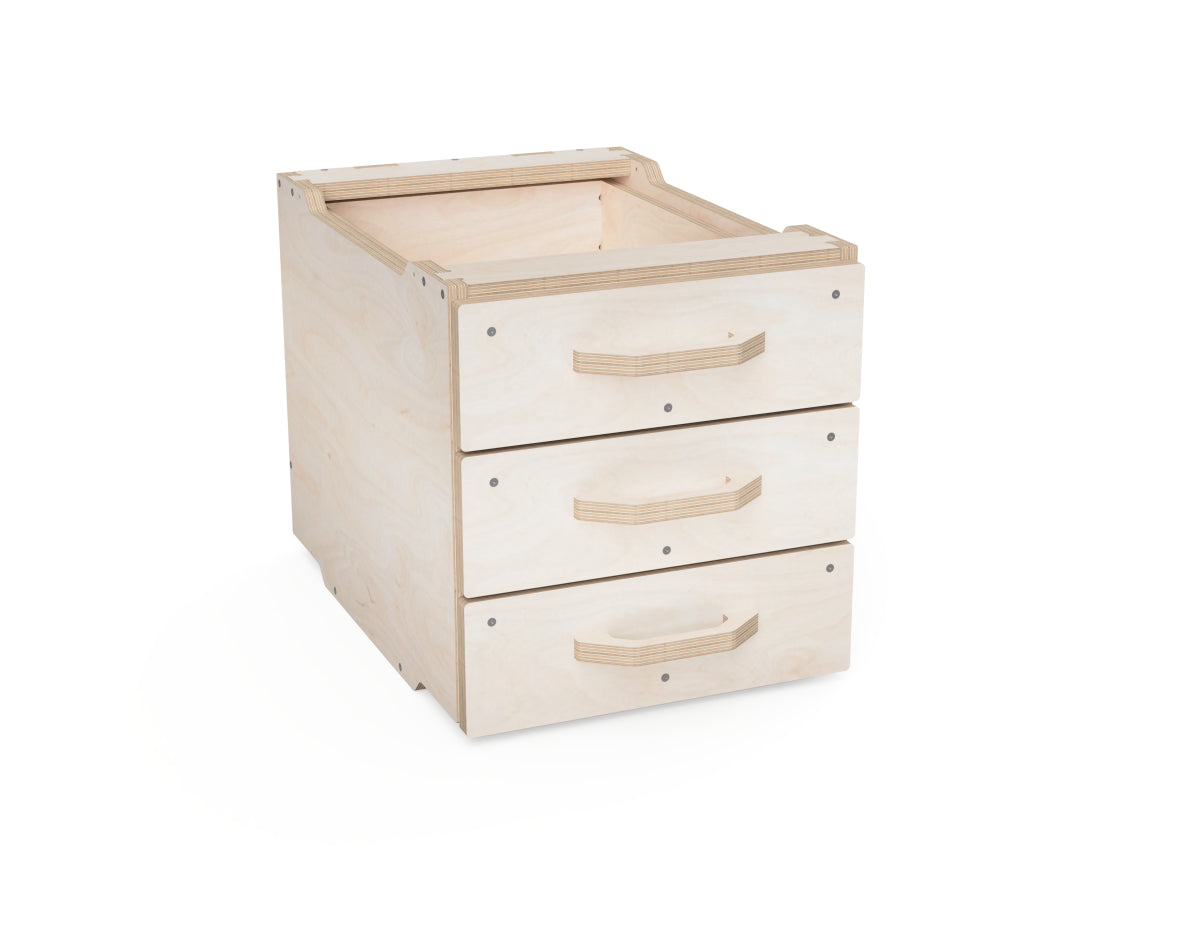

  • 400 mm wide modular workshop cabinet render showing drawer assembly
  • DIY CNC project cabinet medium module with open drawers render
  • Drawer detail of modular cabinet showing no-slide design
  • Side view of modular workshop cabinet with 3 built-in drawers
1 12

Modular Workshop Cabinet - Medium with 3 Drawers - DXF Files

Modular Workshop Cabinet - Medium with 3 Drawers - DXF Files

$3.95 USD
$7.95 USD $3.95 USD
Sale Sold out
Taxes included.

Create your own modular workshop storage with this Medium Cabinet Module. Designed for CNC routers, this DIY cabinet lets you build a flexible setup tailored to your space.

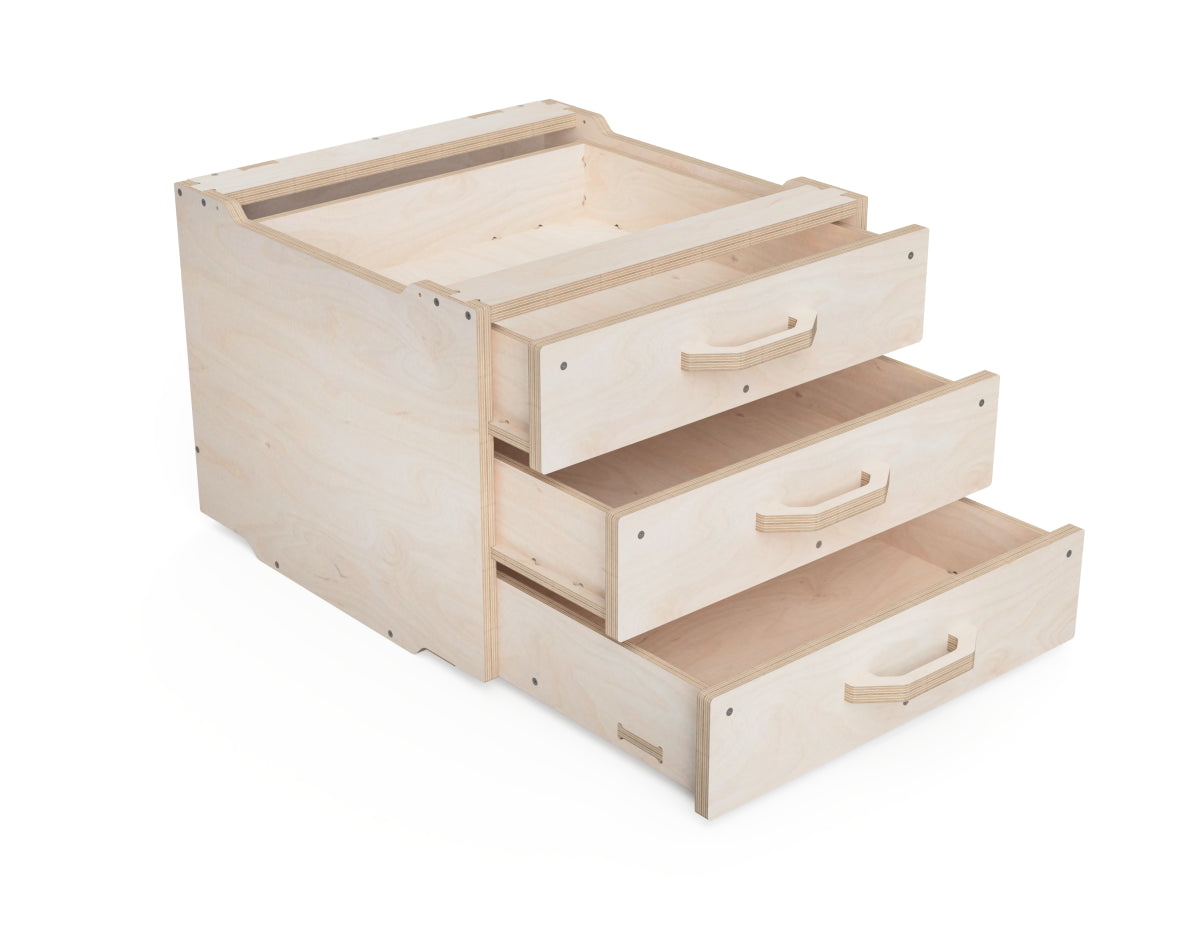

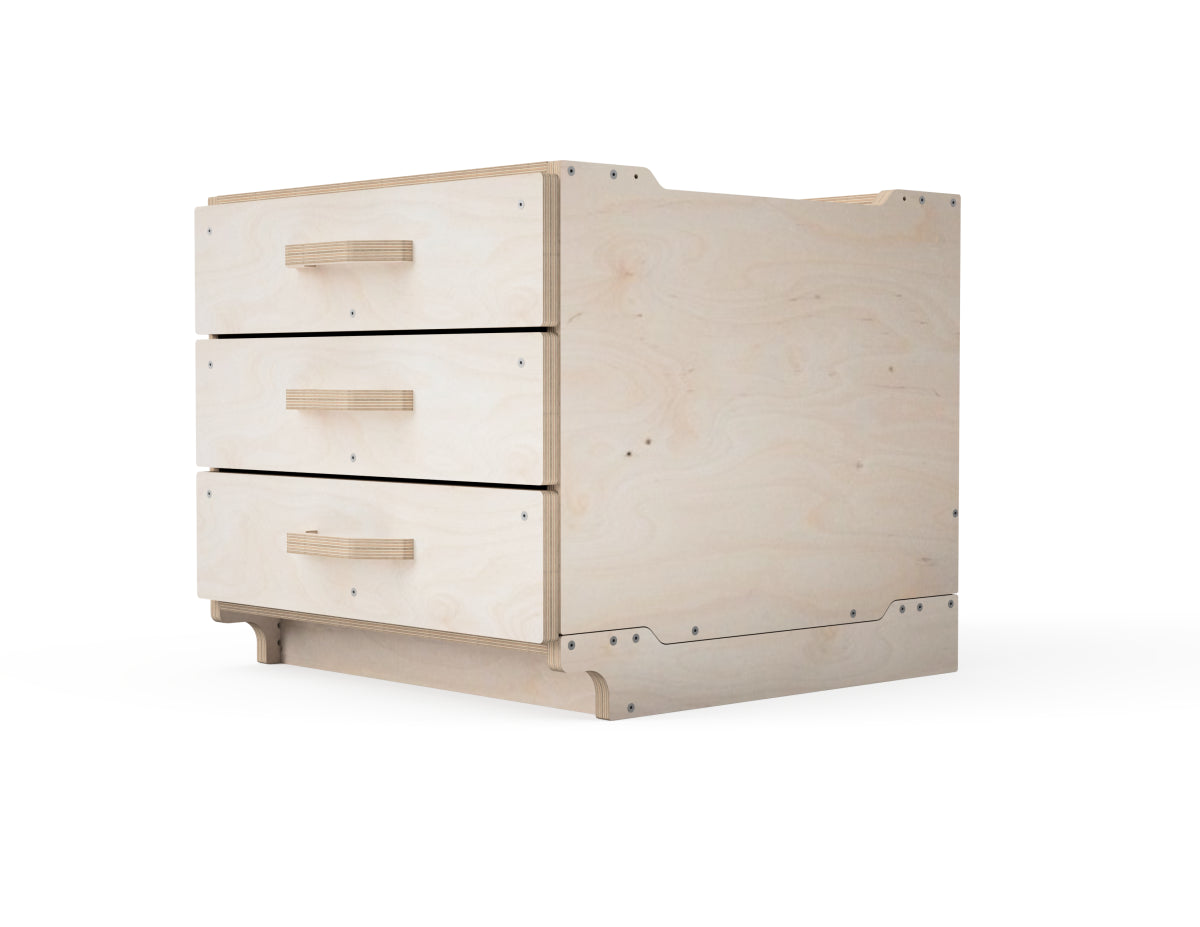

Each module features 3 built-in drawers that require no slides, making assembly quick and easy.

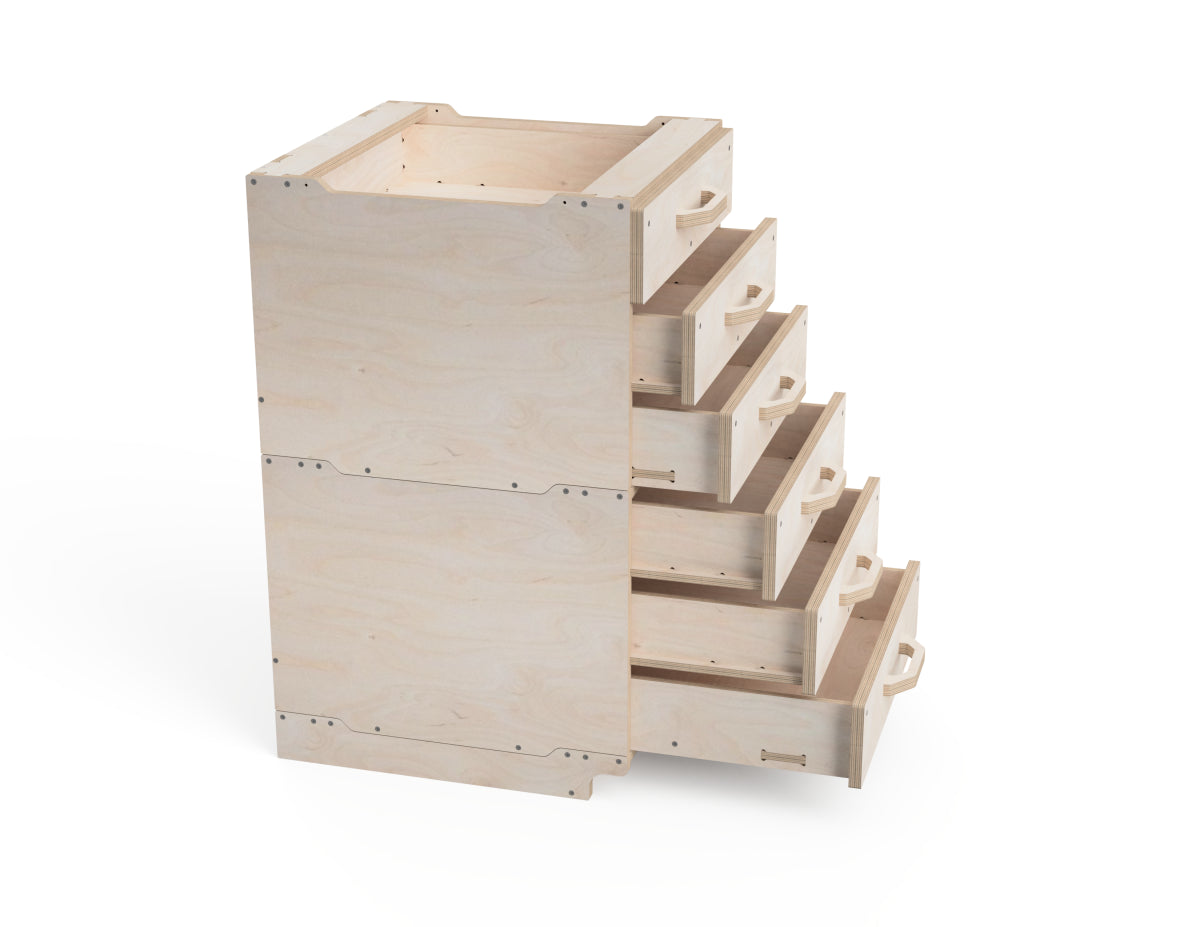

Stack multiple modules or mix widths - 550 mm, 475 mm, and 400 mm - to customize your workshop layout.



This 2/4-size cabinet module fits perfectly with standard 900 mm tall cabinets, offering practical storage and a professional look for your workshop.



Key Features:

- Modular design for stacking and customizing

- Three built-in drawers, no slides needed

- Three width options: 550 mm, 475 mm, 400 mm

- Compatible with standard 900 mm tall cabinets

- CNC router DXF files included for easy fabrication

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Max single piece size

The biggest component is 550 x 550 mm (21.65 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
400 mm 550 mm 430 mm
15¾ inch 21⅝ inch 16⅞ inch

Maximum

Width Length Height
550 mm 550 mm 430 mm
21⅝ inch 21⅝ inch 16⅞ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 2 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 1 sheet of 300 x 600 x 18 mm (12 x 24 x 3/4 inches) plywood
- 4 sheets of 600 x 900 x 12 mm (24 x 36 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 60 pieces
- 6 mm (1/4 inch) router bit
For a 900 x 1220 mm (3 x 4 ft) CNC
- 1 sheet of 900 x 1220 x 18 mm (36 x 48 x 3/4 inches) plywood
- 1 sheet of 150 x 600 x 18 mm (6 x 18 x 3/4 inches) plywood
- 2 sheets of 830 x 1220 x 12 mm (34 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 60 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 1220 mm (4 x 4 ft) CNC
- a sheet of 1000 x 1220 x 18 mm (40 x 48 x 3/4 inches) plywood
- 1 sheet of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 1 sheet of 600 x 600 x 12 mm (24 x 24 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 60 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 2440 mm (4 x 8 ft) CNC
- a sheet of 1000 x 1220 x 18 mm (40 x 48 x 3/4 inches) plywood
- 1 sheet of 820 x 2440 x 12 mm (33 x 96 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 60 pieces
- 6 mm (1/4 inch) router bit

Approximate CNC time

25 minutes

Assembling time

20 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
