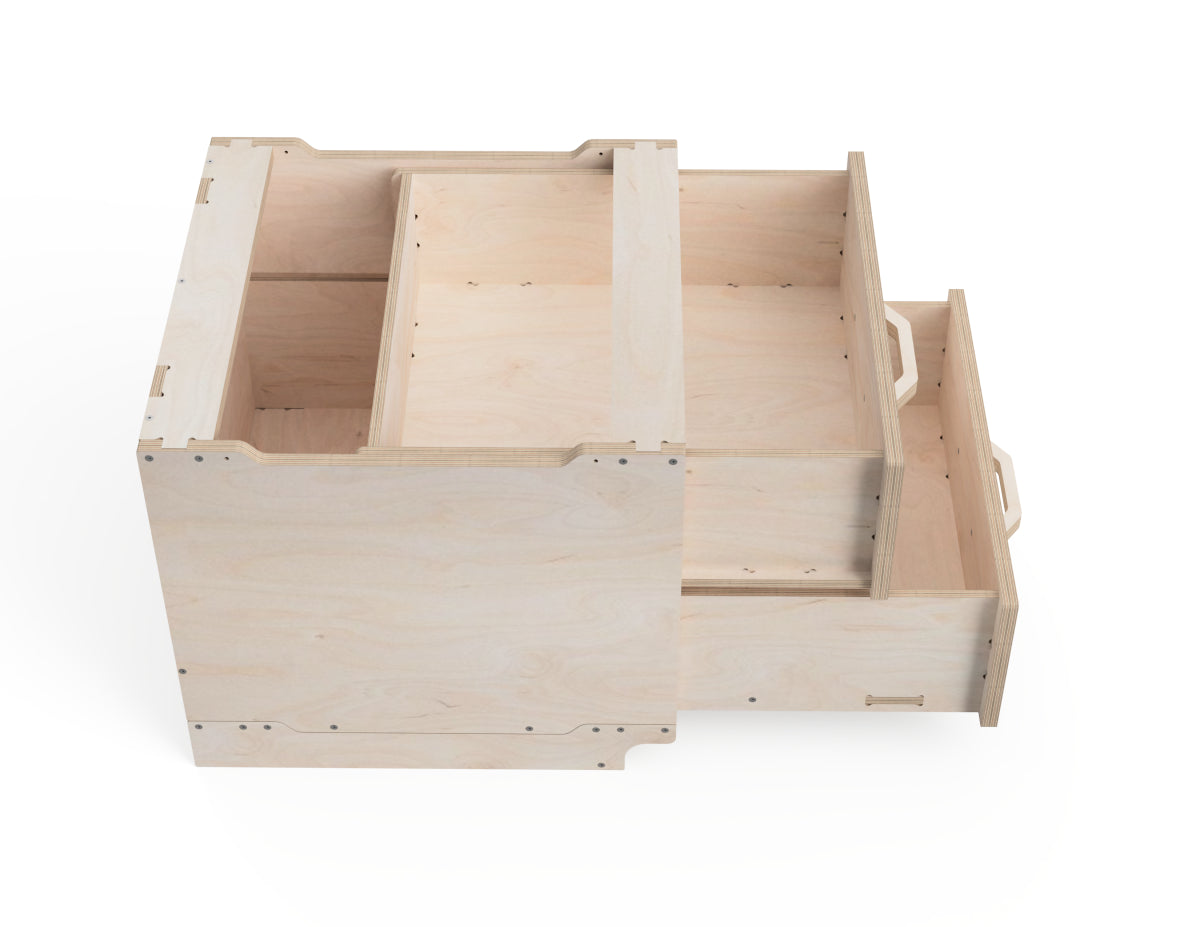

  • Cabinet module with drawers open, showing storage space

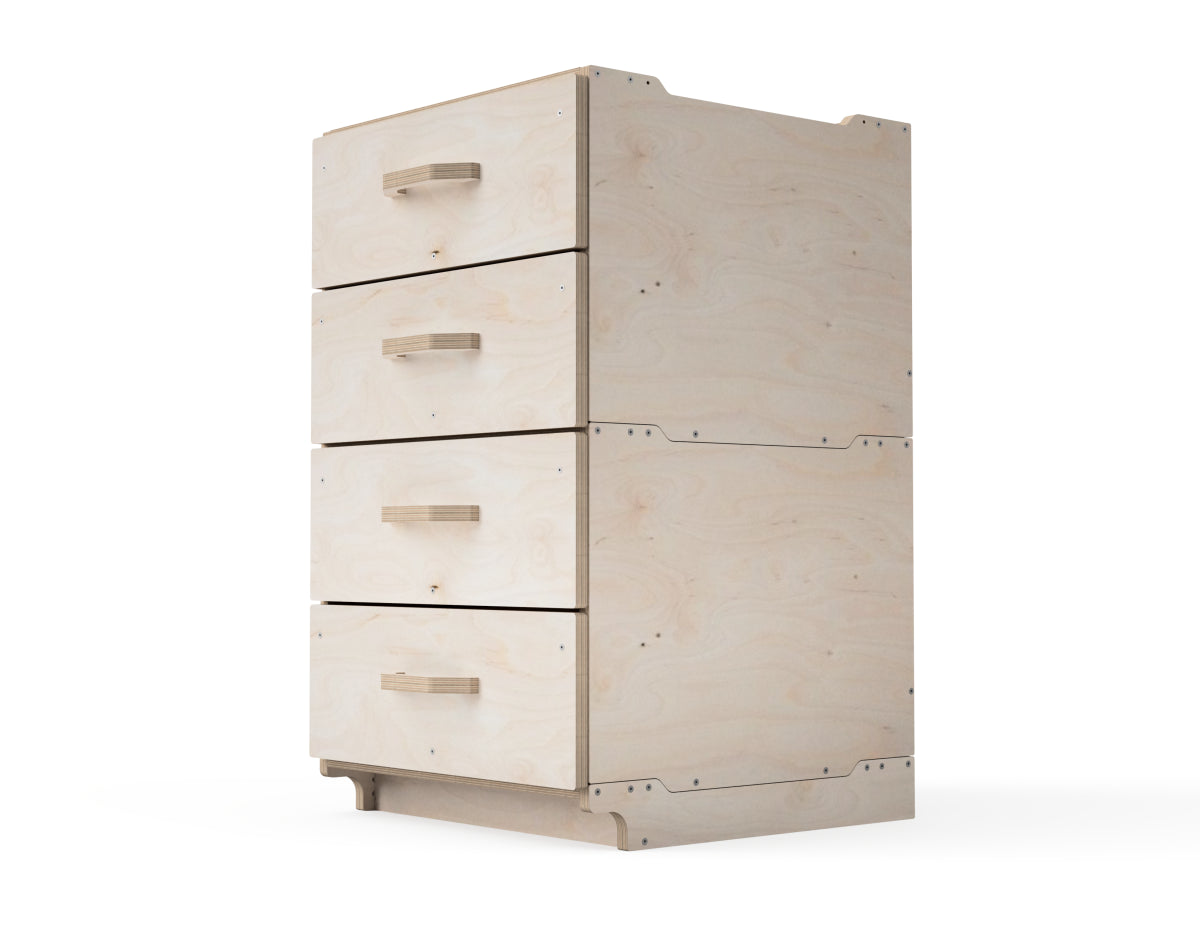

  • DIY CNC workshop cabinet project render in modern style
  • Cabinet module with drawers open, showing storage space

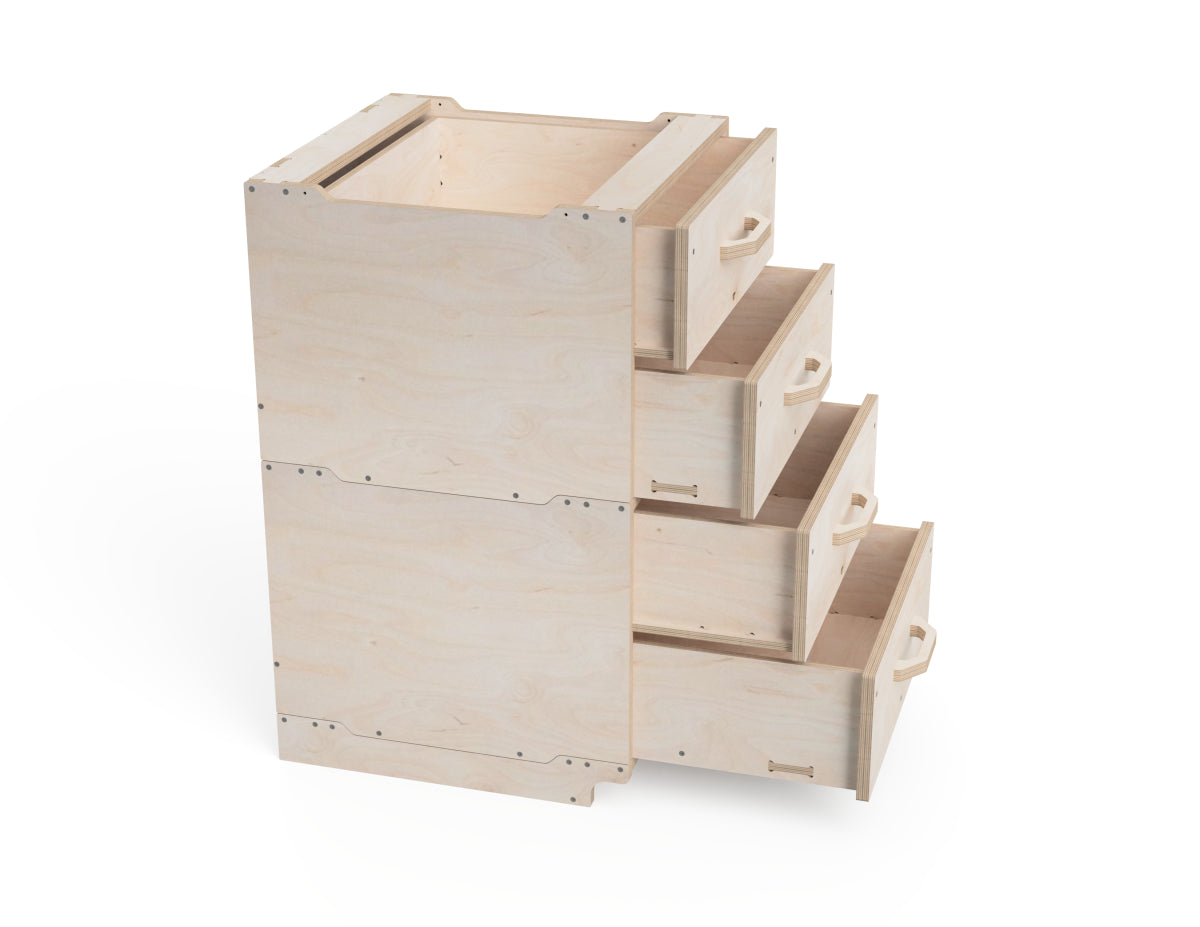

  • Medium workshop cabinet showing modular design flexibility
  • 550 mm wide cabinet module render for CNC project
  • 475 mm wide modular cabinet DXF file example
  • 400 mm width cabinet module for compact workshop spaces
  • Customizable stackable workshop storage modules
1 11

Modular Workshop Cabinet - Medium with 2 Drawers - DXF Files

Modular Workshop Cabinet - Medium with 2 Drawers - DXF Files

$3.45 USD
$6.95 USD $3.45 USD
Sale Sold out
Taxes included.

Create a custom workshop storage solution with our Modular Workshop Cabinet - Medium with 2 Drawers.

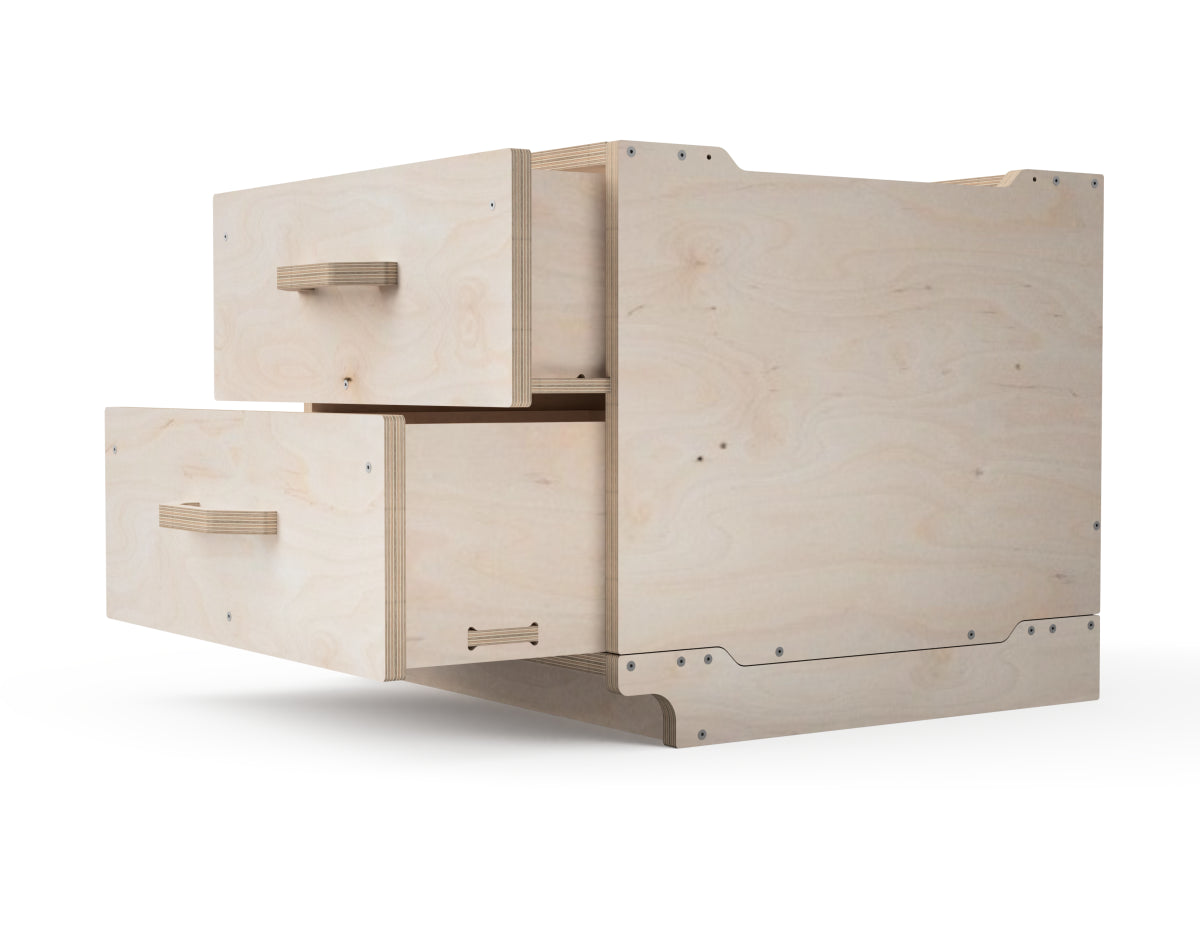

These CNC-ready DXF files let you build a modular cabinet system that fits perfectly into any workshop setup. This medium module is half the height of a standard 900 mm cabinet and features two built-in drawers that require no drawer slides.

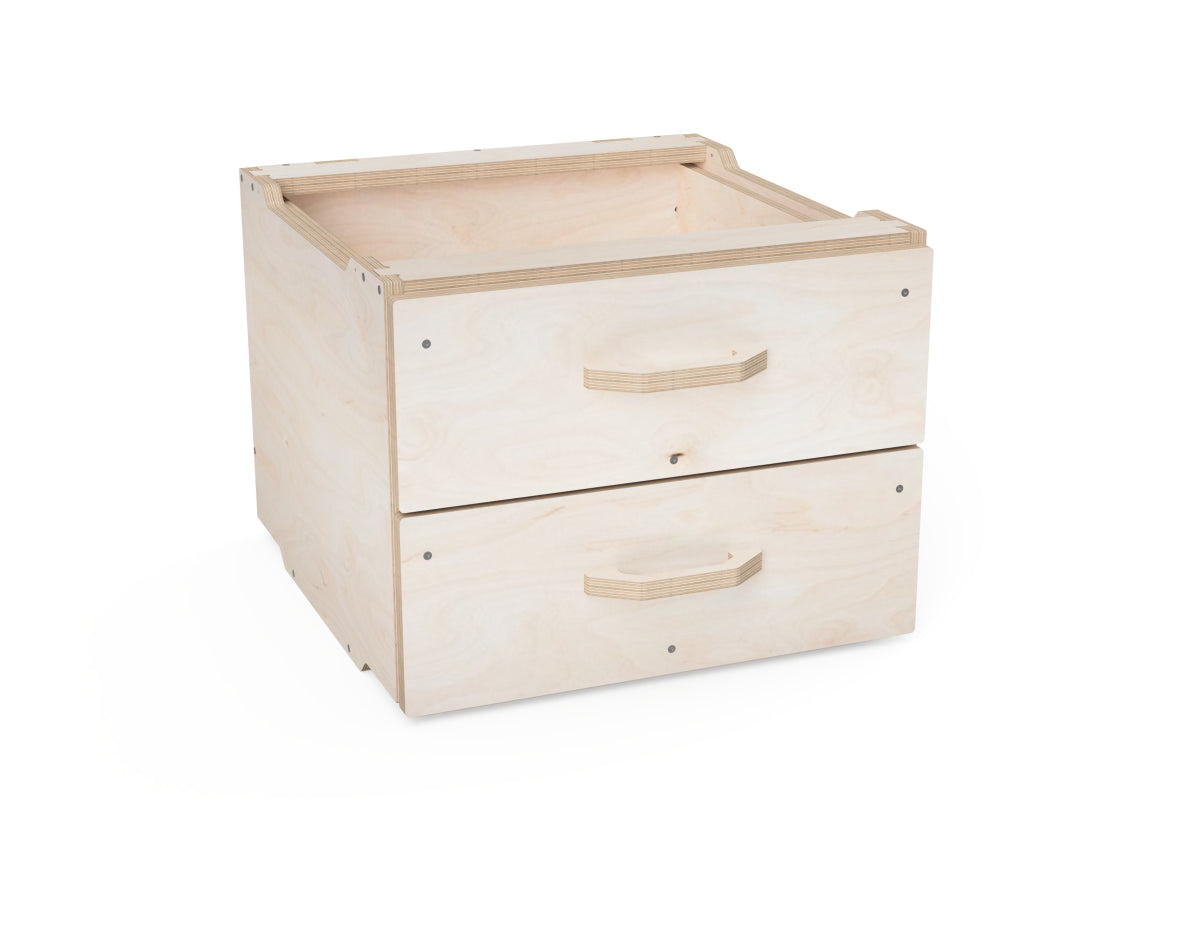

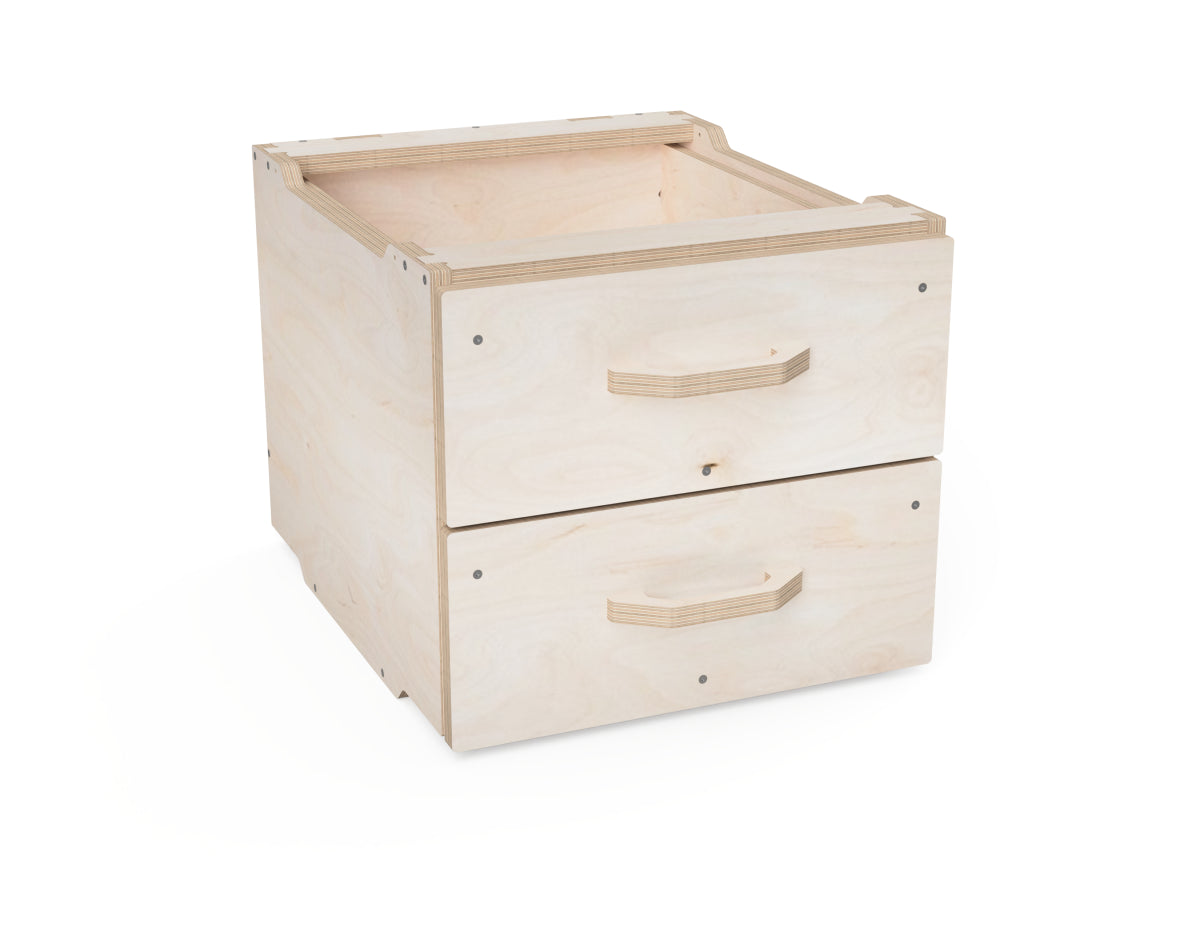

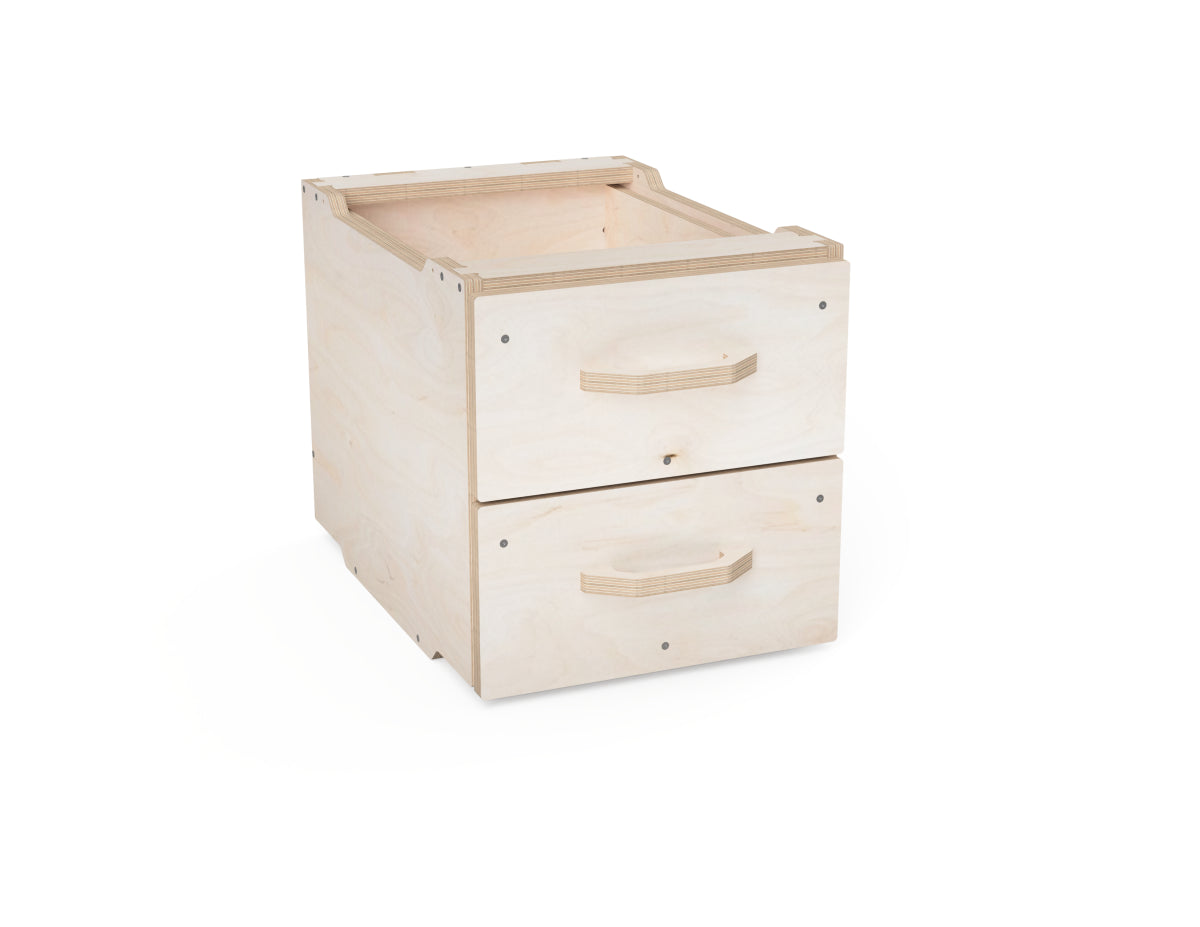

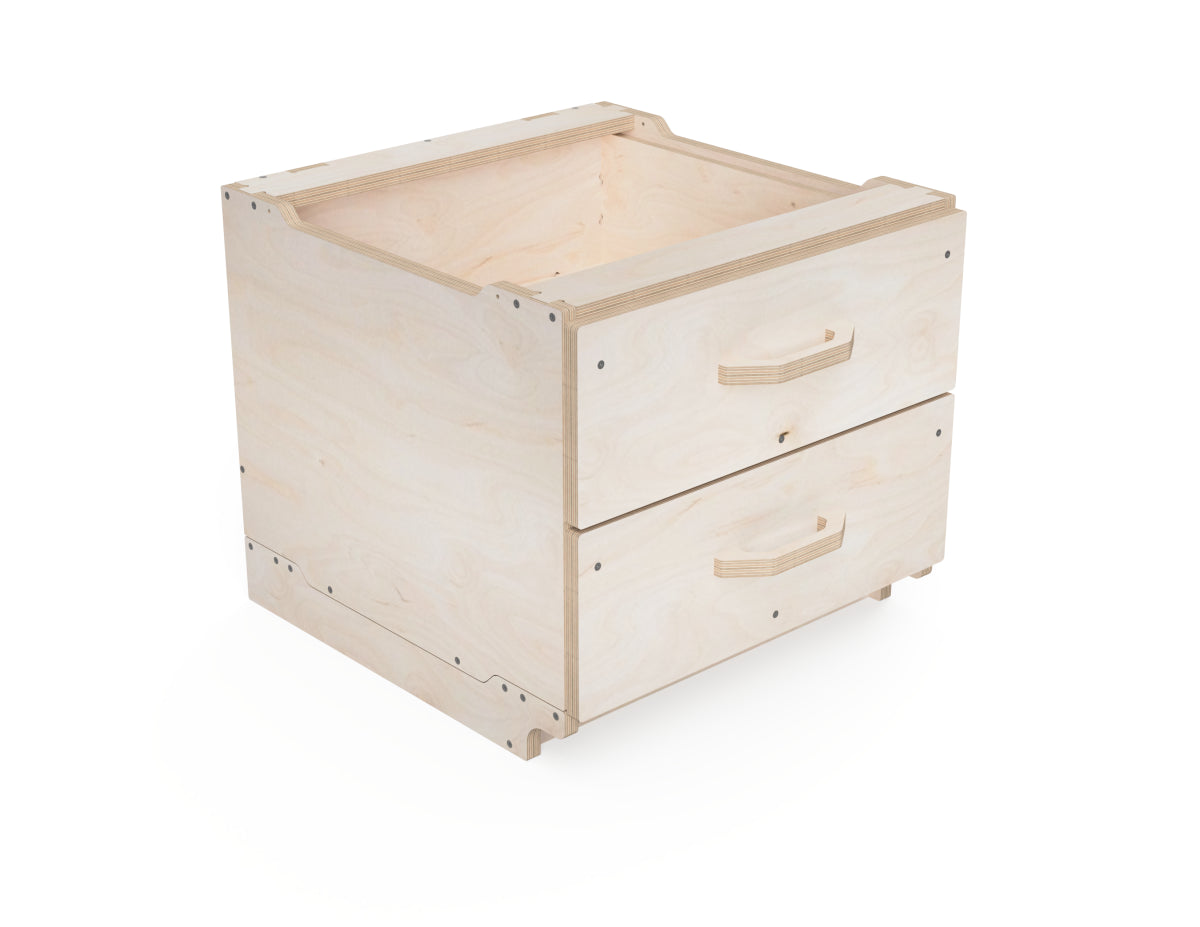

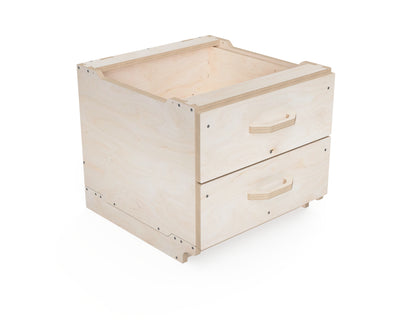

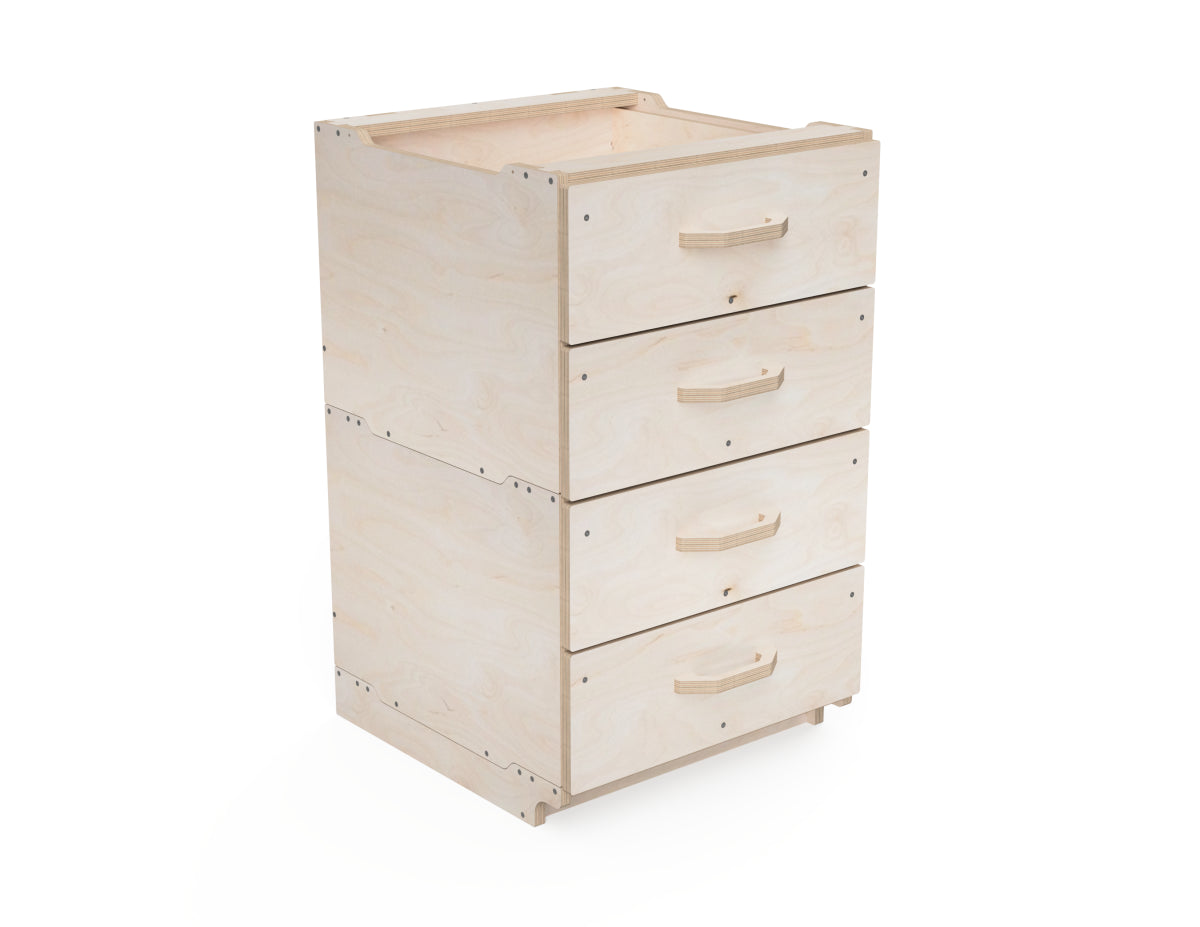

Stack multiple modules and combine different widths - 550 mm, 475 mm, or 400 mm - to customize your storage.



Ideal for tool storage, parts, and workspace organization. CNC-friendly, easy to assemble, and perfect for hobbyists and DIY enthusiasts.

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Max single piece size

The biggest component is 550 x 550 mm (21.65 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
400 mm 550 mm 430 mm
15¾ inch 21⅝ inch 16⅞ inch

Maximum

Width Length Height
550 mm 550 mm 430 mm
21⅝ inch 21⅝ inch 16⅞ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 2 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 1 sheet of 300 x 600 x 18 mm (12 x 24 x 3/4 inches) plywood
- 3 sheets of 600 x 900 x 12 mm (24 x 36 x 1/2 inches) plywood
- 1 sheet of 250 x 600 x 12 mm (10 x 24 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 45 pieces
- 6 mm (1/4 inch) router bit
For a 900 x 1220 mm (3 x 4 ft) CNC
- 1 sheet of 775 x 1220 x 18 mm (30 x 48 x 3/4 inches) plywood
- 1 sheet of 450 x 600 x 18 mm (24 x 18 x 3/4 inches) plywood
- 2 sheets of 800 x 1220 x 12 mm (32 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 45 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 1220 mm (4 x 4 ft) CNC
- a sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 1 sheet of 250 x 600 x 12 mm (10 x 24 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 45 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 2440 mm (4 x 8 ft) CNC
- a sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 800 x 2440 x 12 mm (32 x 96 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 45 pieces
- 6 mm (1/4 inch) router bit

Approximate CNC time

25 minutes

Assembling time

20 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
