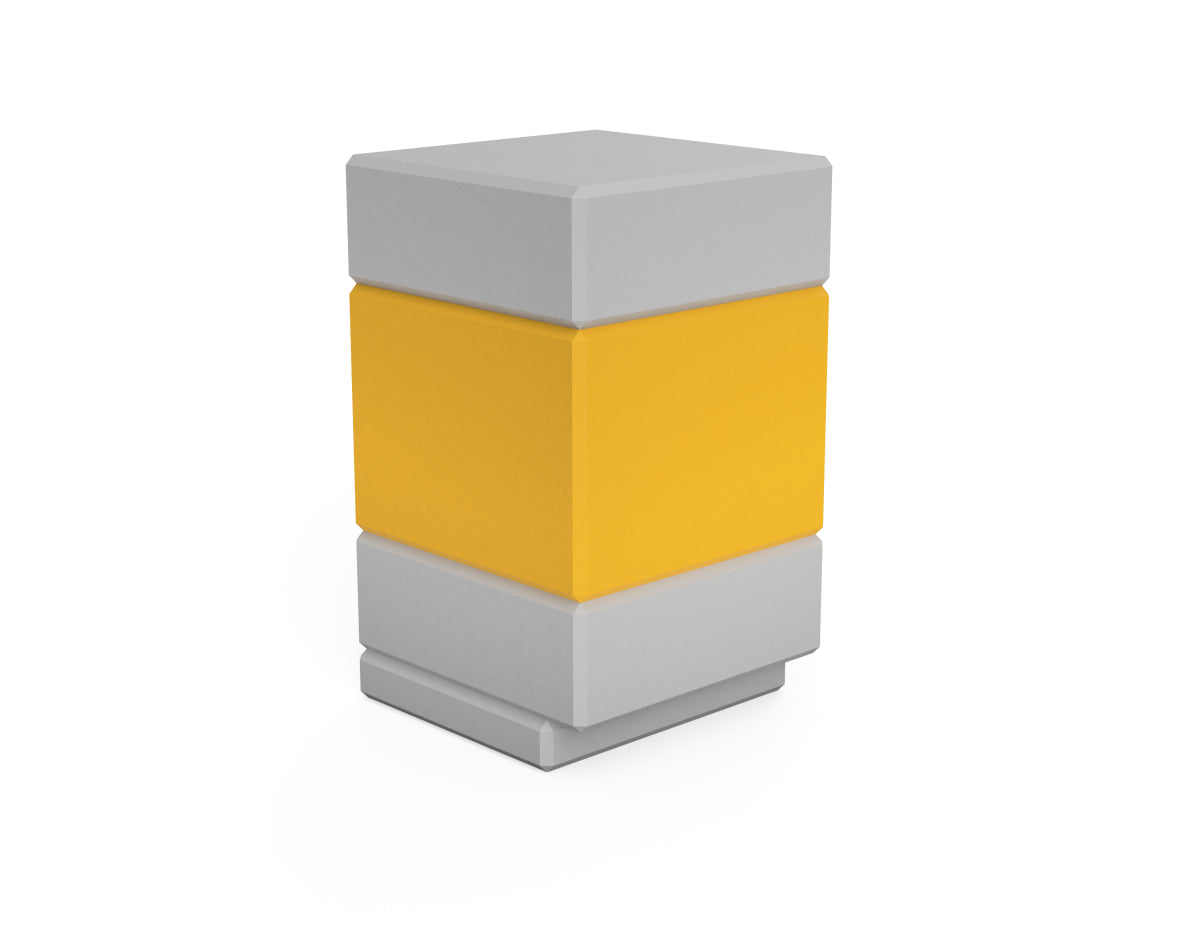

• Medium cabinet module stacked with other modules

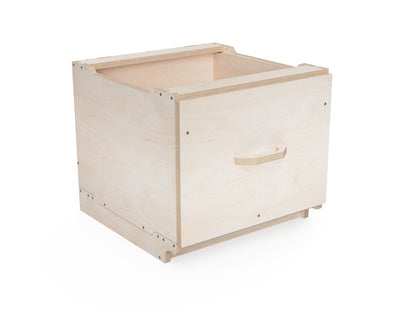

  • Modular Workshop Cabinet Medium with 1 drawer CNC design render

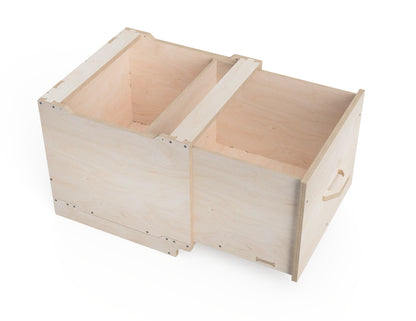

  • Close-up of built-in drawer in modular workshop cabinet

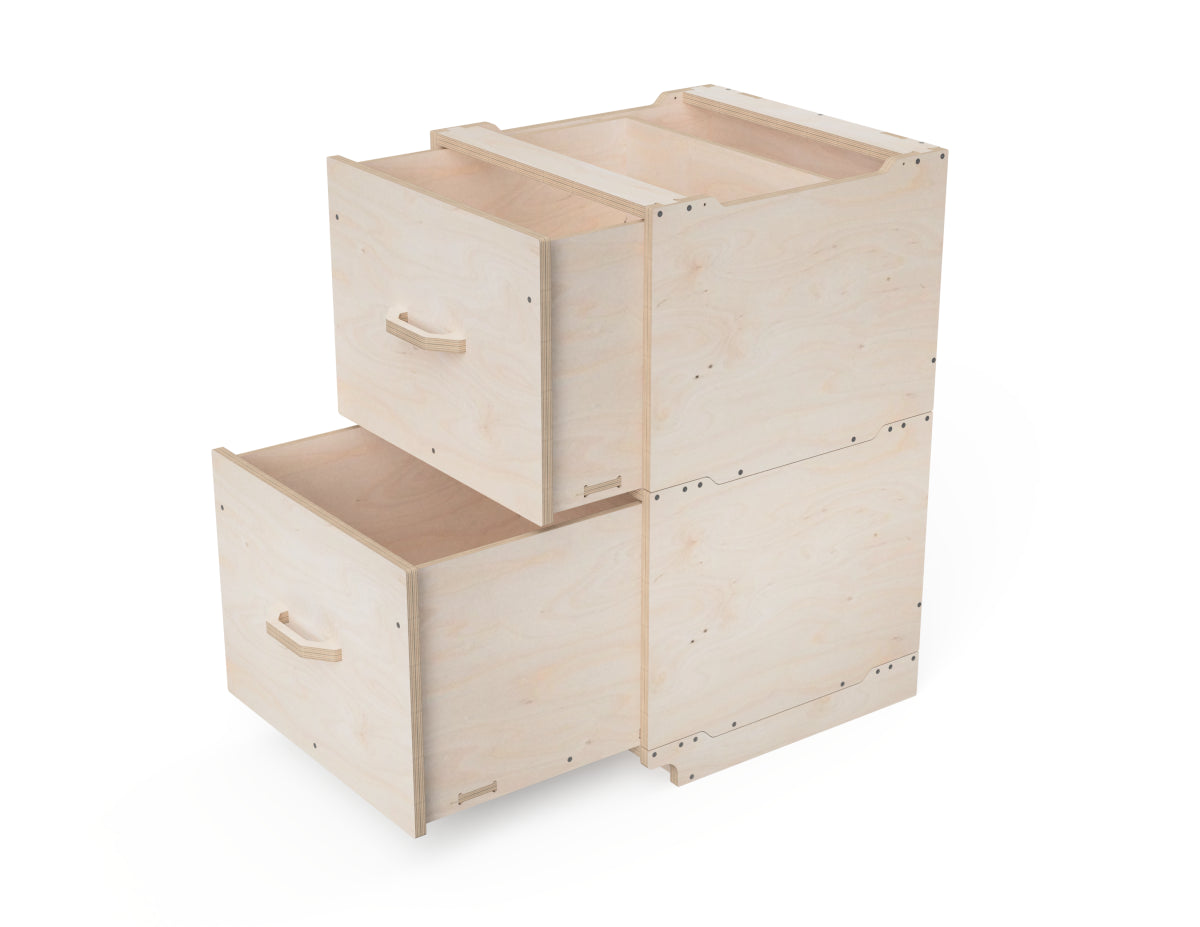

  • Modular cabinet drawer assembly without drawer slides

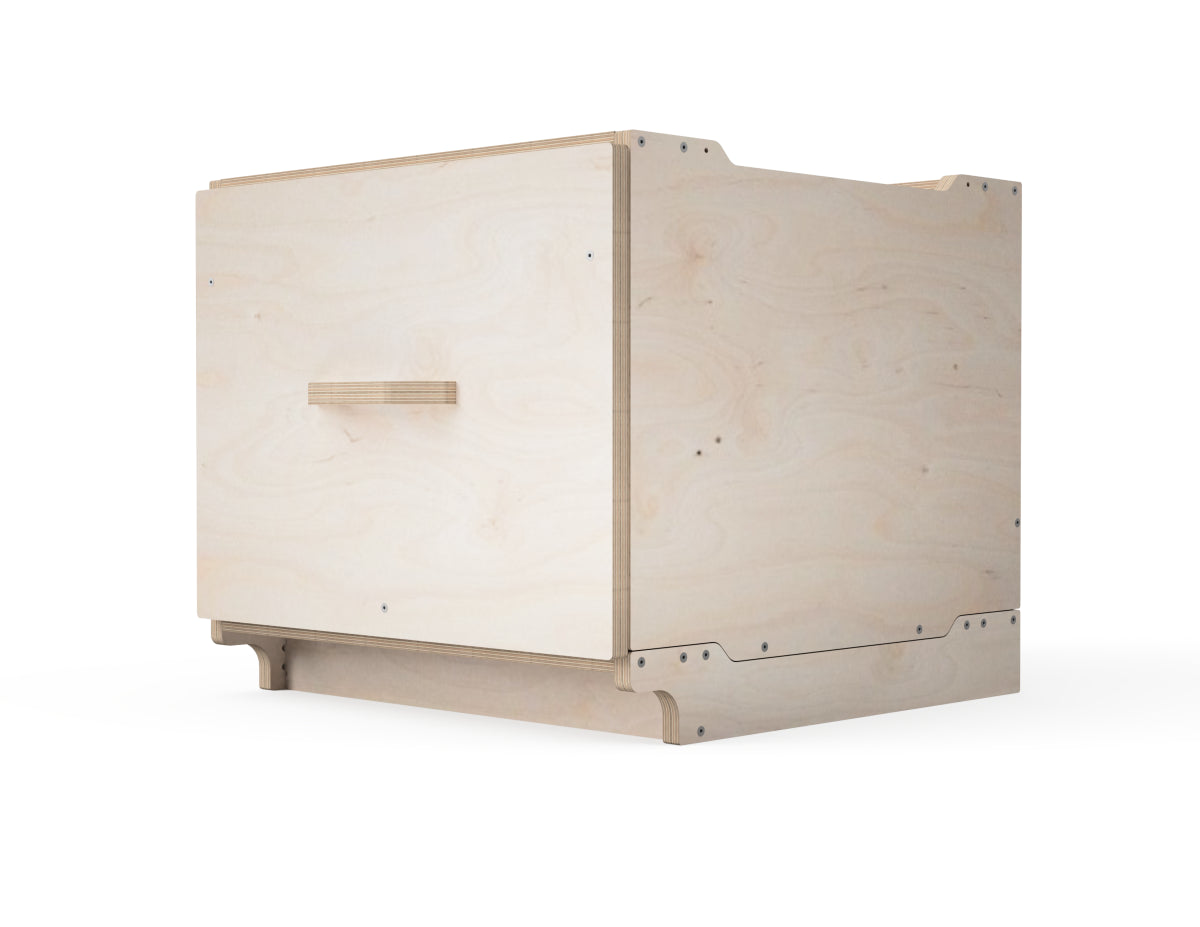

  • CNC-ready DXF file render for modular workshop cabinet

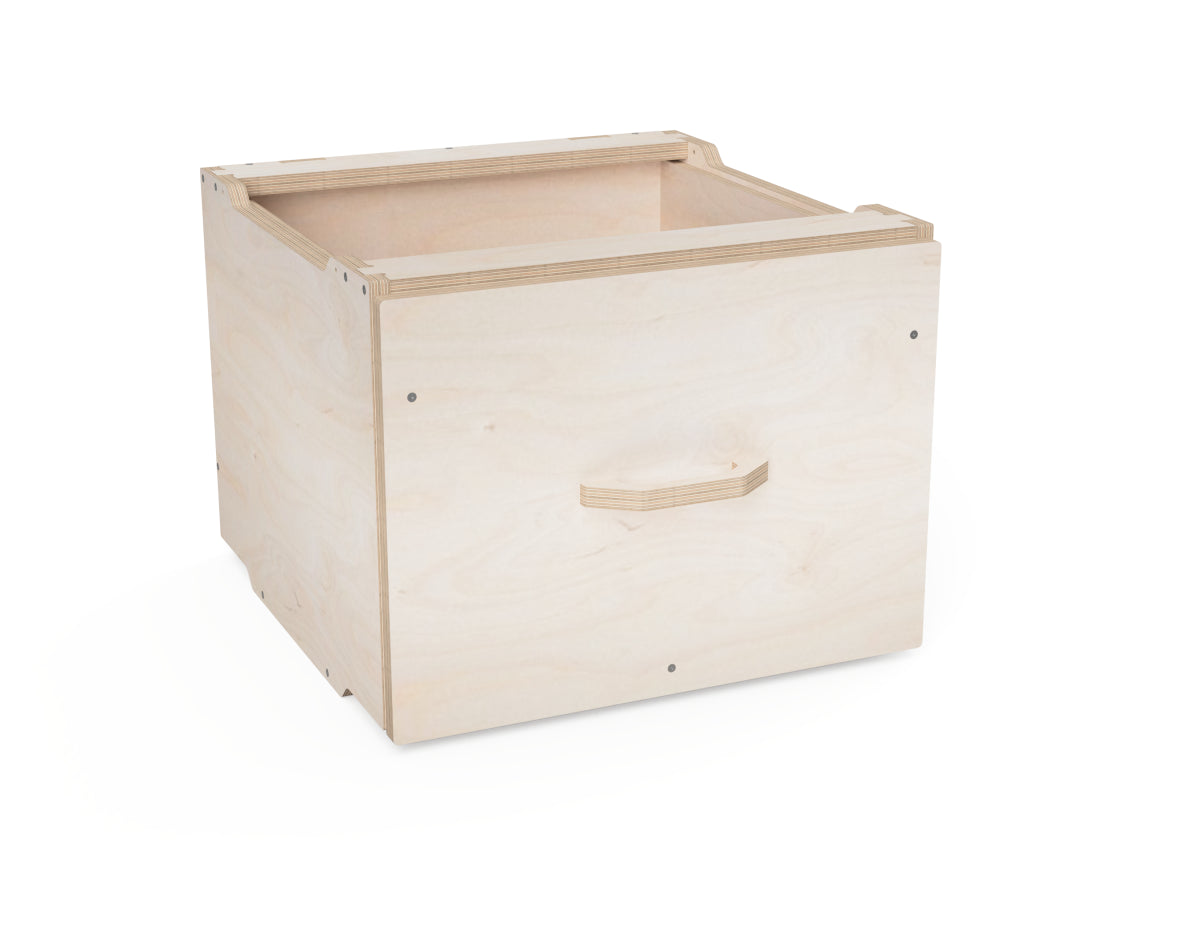

  • Modular cabinet module 550 mm width CNC render

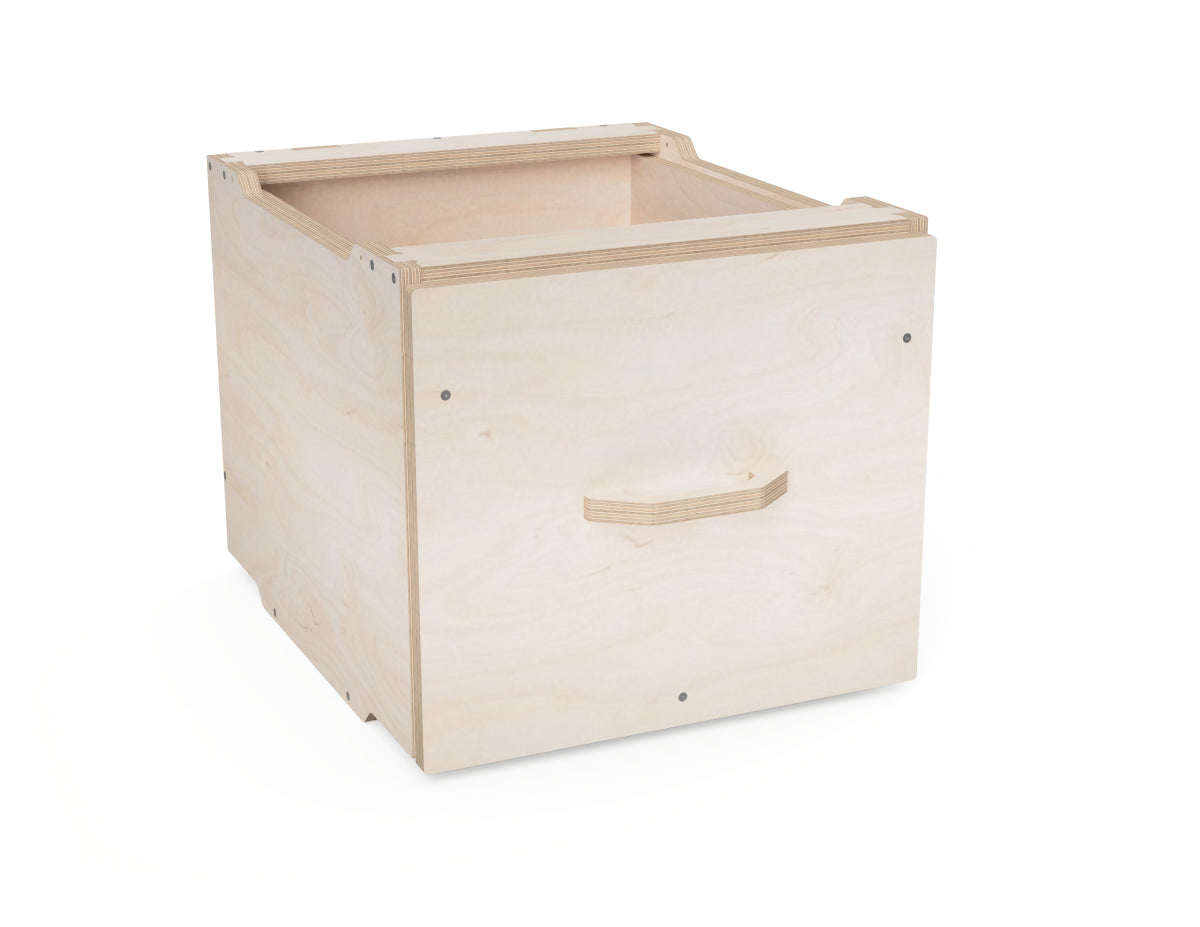

  • Modular cabinet module 475 mm width with drawer open

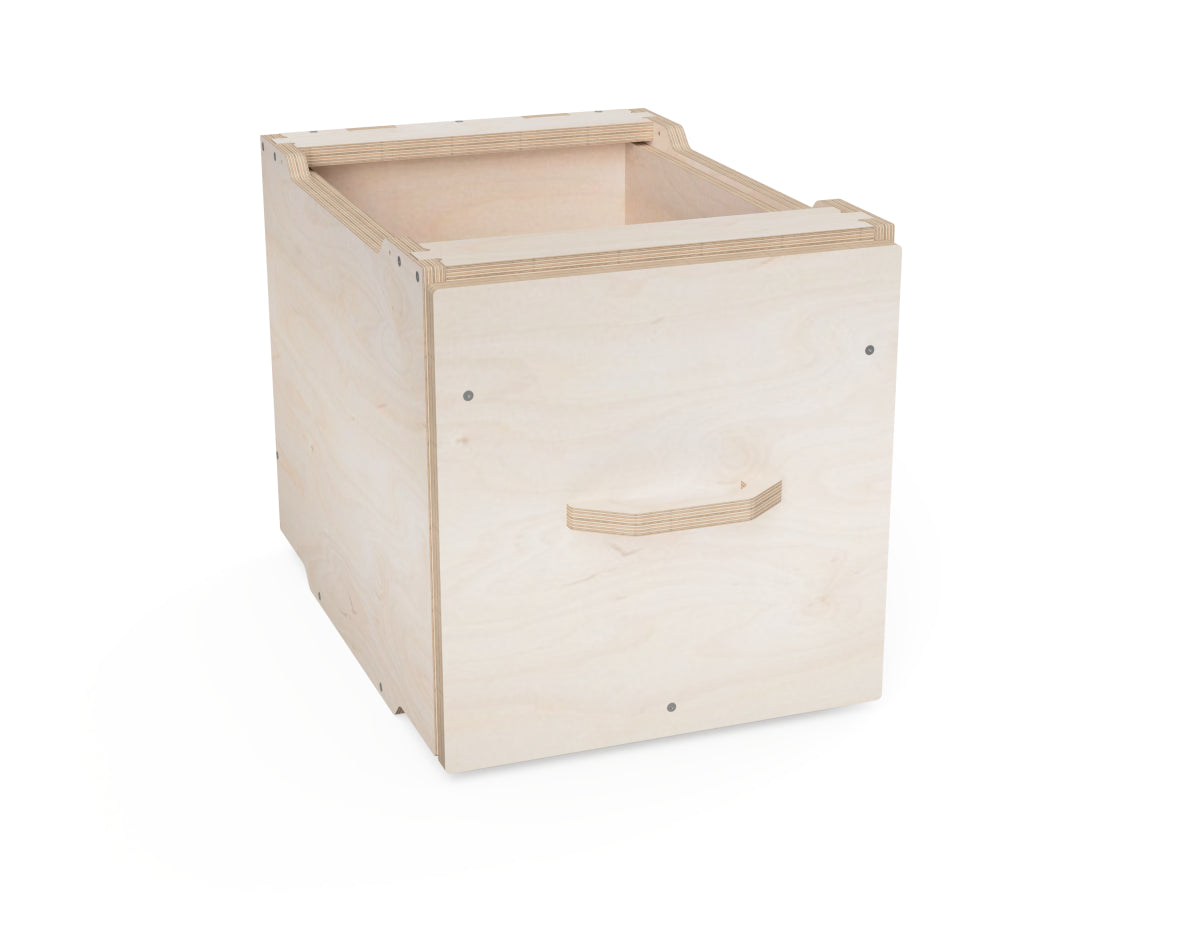

  • Medium workshop cabinet module 400 mm width side view
  • Perspective view of multiple stacked medium cabinet modules
1 11

Modular Workshop Cabinet - Medium with 1 Drawer - DXF Files

Modular Workshop Cabinet - Medium with 1 Drawer - DXF Files

$3.45 USD
$6.95 USD $3.45 USD
Sale Sold out
Taxes included.

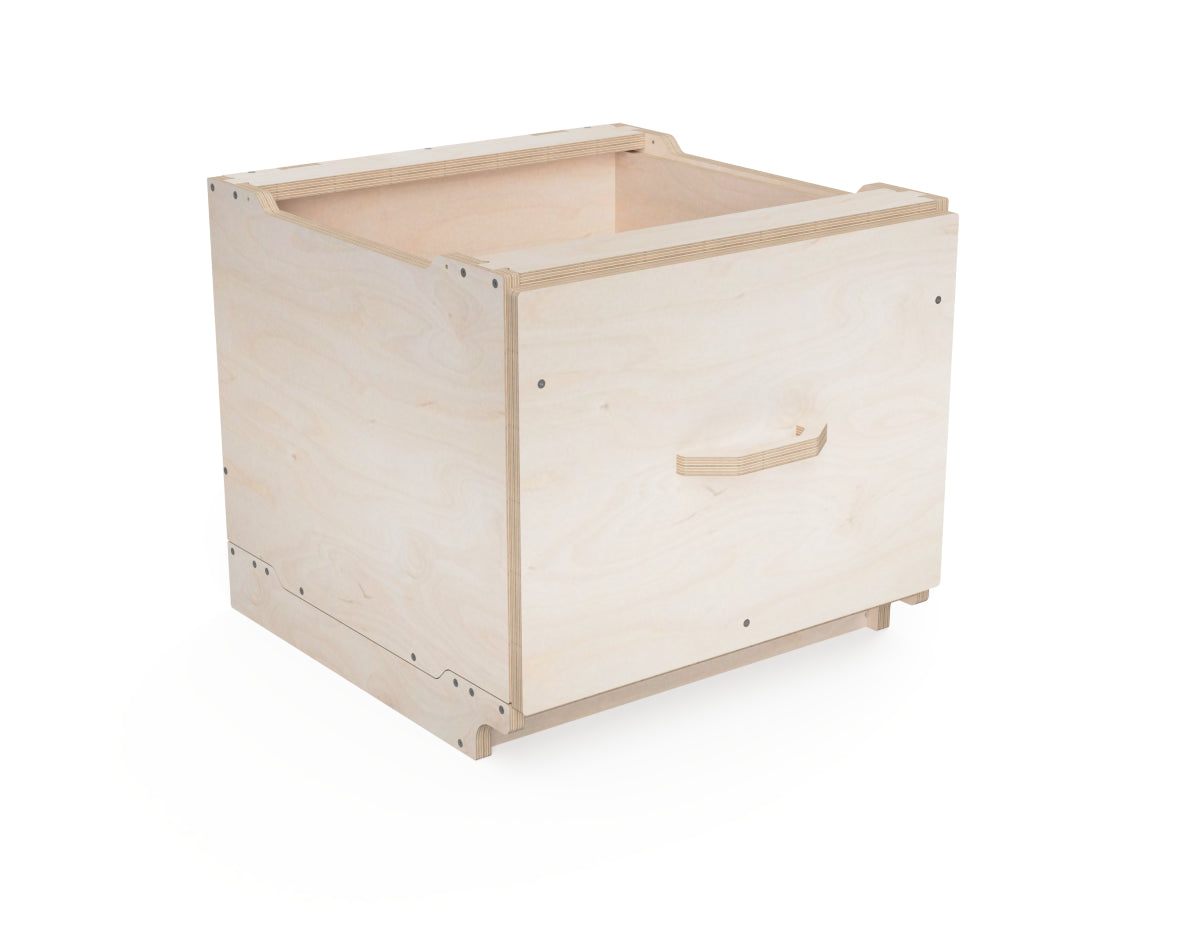

Create a custom workshop setup with the Modular Workshop Cabinet - Medium with 1 Drawer.



These DXF files allow anyone with a CNC router to build a modular cabinet system tailored to their space.



This medium-sized module is 2/4 the height of a standard 900 mm cabinet and includes a functional drawer that requires no drawer slides.

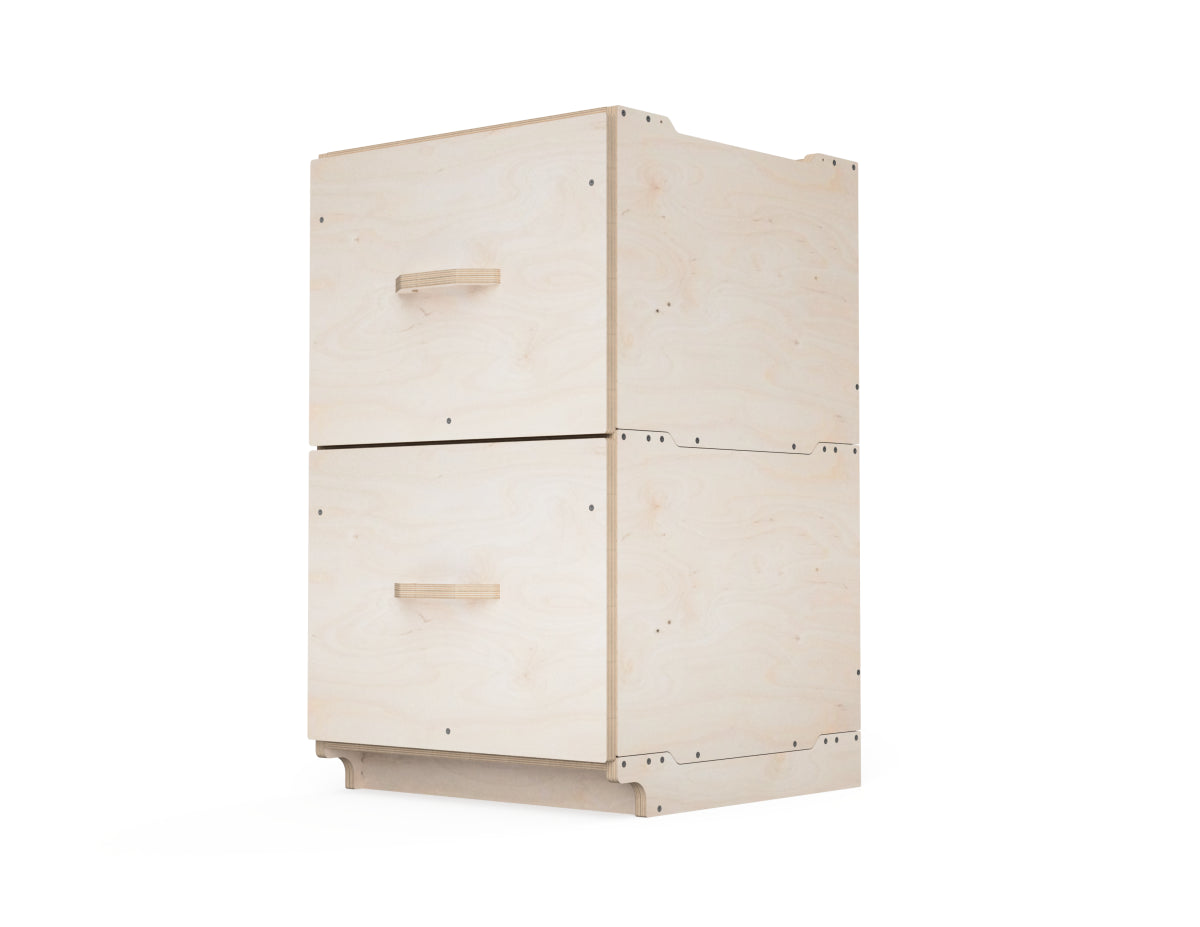

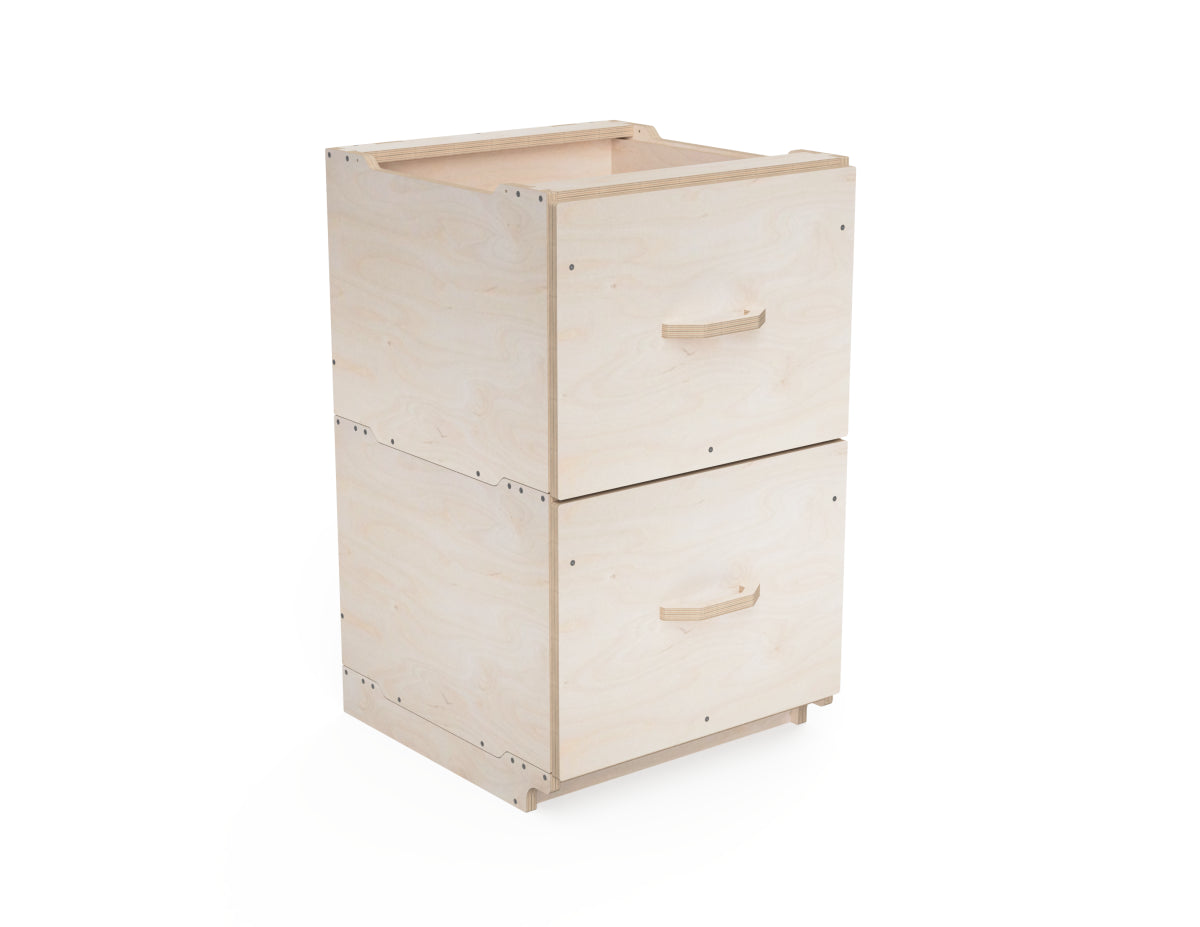

Stack multiple modules in any configuration to maximize storage and efficiency.



Choose from three widths: 550 mm, 475 mm, or 400 mm to fit your workspace perfectly. Ideal for tool storage, workshop organization, and CNC DIY enthusiasts.



Key Features:

- CNC-ready DXF files for easy cutting

- Modular design for flexible stacking and arrangement

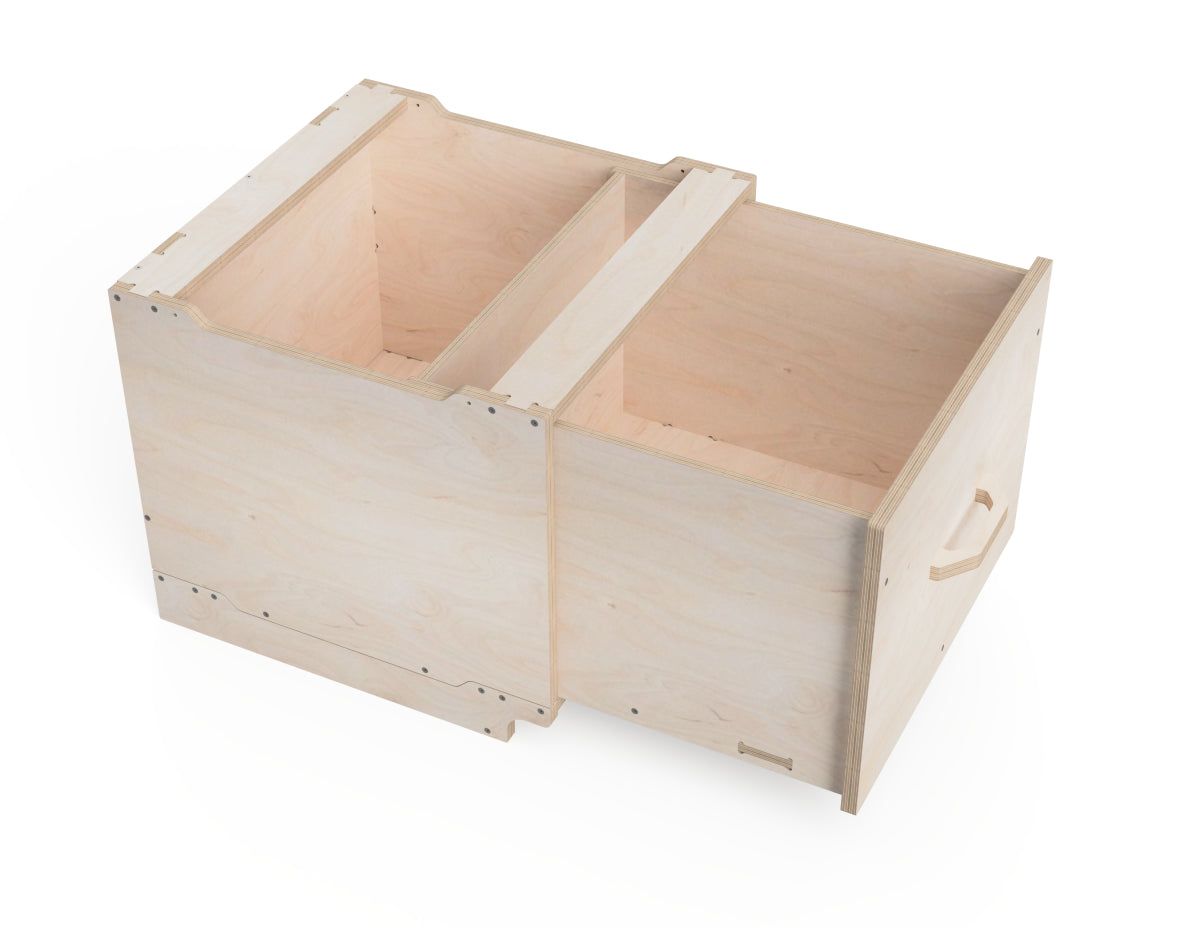

- Built-in drawer with no slides required

- Three width options: 550 mm, 475 mm, 400 mm

- Perfect for workshop organization and tool storage

Supported CNC sizes

The project can be made on a 600 x 600 mm (2 x 2 ft) CNC router and bigger.

Max single piece size

The biggest component is 550 x 550 mm (21.65 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
400 mm 550 mm 430 mm
15¾ inch 21⅝ inch 16⅞ inch

Maximum

Width Length Height
550 mm 550 mm 430 mm
21⅝ inch 21⅝ inch 16⅞ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 2 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 1 sheet of 300 x 600 x 18 mm (12 x 24 x 3/4 inches) plywood
- 3 sheets of 600 x 900 x 12 mm (24 x 36 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 35 pieces
- 6 mm (1/4 inch) router bit
For a 900 x 1220 mm (3 x 4 ft) CNC
- 2 sheets of 600 x 1220 x 18 mm (24 x 48 x 3/4 inches) plywood
- 2 sheets of 600 x 1220 x 12 mm (24 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 35 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 1220 mm (4 x 4 ft) CNC
- a sheet of 1000 x 1220 x 18 mm (40 x 48 x 3/4 inches) plywood
- 1 sheet of 1100 x 1220 x 12 mm (44 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 35 pieces
- 6 mm (1/4 inch) router bit

Approximate CNC time

20 minutes

Assembling time

15 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
