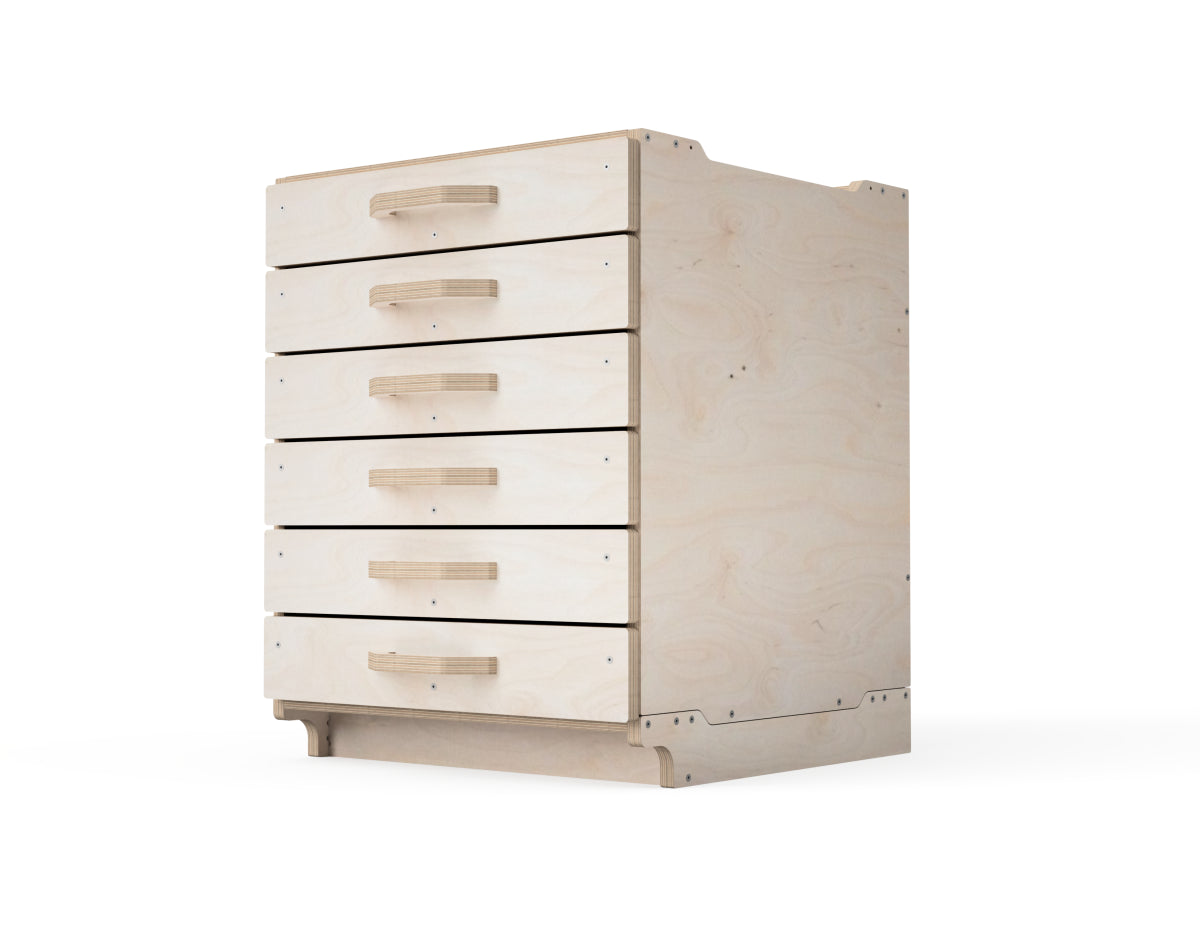

  • Close-up of modular cabinet drawer design, CNC DXF file
1 10

Modular Workshop Cabinet - Large with 6 Drawers - DXF Files

Modular Workshop Cabinet - Large with 6 Drawers - DXF Files

$4.95 USD
$9.95 USD $4.95 USD
Sale Sold out
Taxes included.

Create a customizable, modular workshop cabinet with ease using our DXF files.



This large module features 6 built-in drawers - no drawer slides needed - and stacks seamlessly with other sections.



At 3/4 the height of a standard cabinet (900 mm), it comes in three widths: 550 mm, 475 mm, and 400 mm.



Perfect for CNC router projects, this design lets you build a flexible, efficient storage solution for your workshop tools and supplies.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Max single piece size

The biggest component is 615 x 550 mm (24.21 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
400 mm 550 mm 615 mm
15¾ inch 21⅝ inch 24¼ inch

Maximum

Width Length Height
550 mm 550 mm 615 mm
21⅝ inch 21⅝ inch 24¼ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 3 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 7 sheets of 600 x 900 x 12 mm (24 x 36 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 100 pieces
- 6 mm (1/4 inch) router bit
For a 900 x 1220 mm (3 x 4 ft) CNC
- 1 sheet of 900 x 1220 x 18 mm (36 x 48 x 3/4 inches) plywood
- 1 sheet of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 2 sheets of 900 x 1220 x 12 mm (36 x 48 x 1/2 inches) plywood
- 2 sheets of 600 x 1220 x 12 mm (24 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 100 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 1220 mm (3 x 4 ft) CNC
- a sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 2 sheets of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 1 sheet of 600 x 600 x 12 mm (24 x 24 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 100 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 2440 mm (3 x 4 ft) CNC
- a sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 1220 x 2440 x 12 mm (48 x 96 x 1/2 inches) plywood
- 1 sheet of 250 x 600 x 12 mm (10 x 24 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 100 pieces
- 6 mm (1/4 inch) router bit

Approximate CNC time

45 minutes

Assembling time

30 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
View full details
