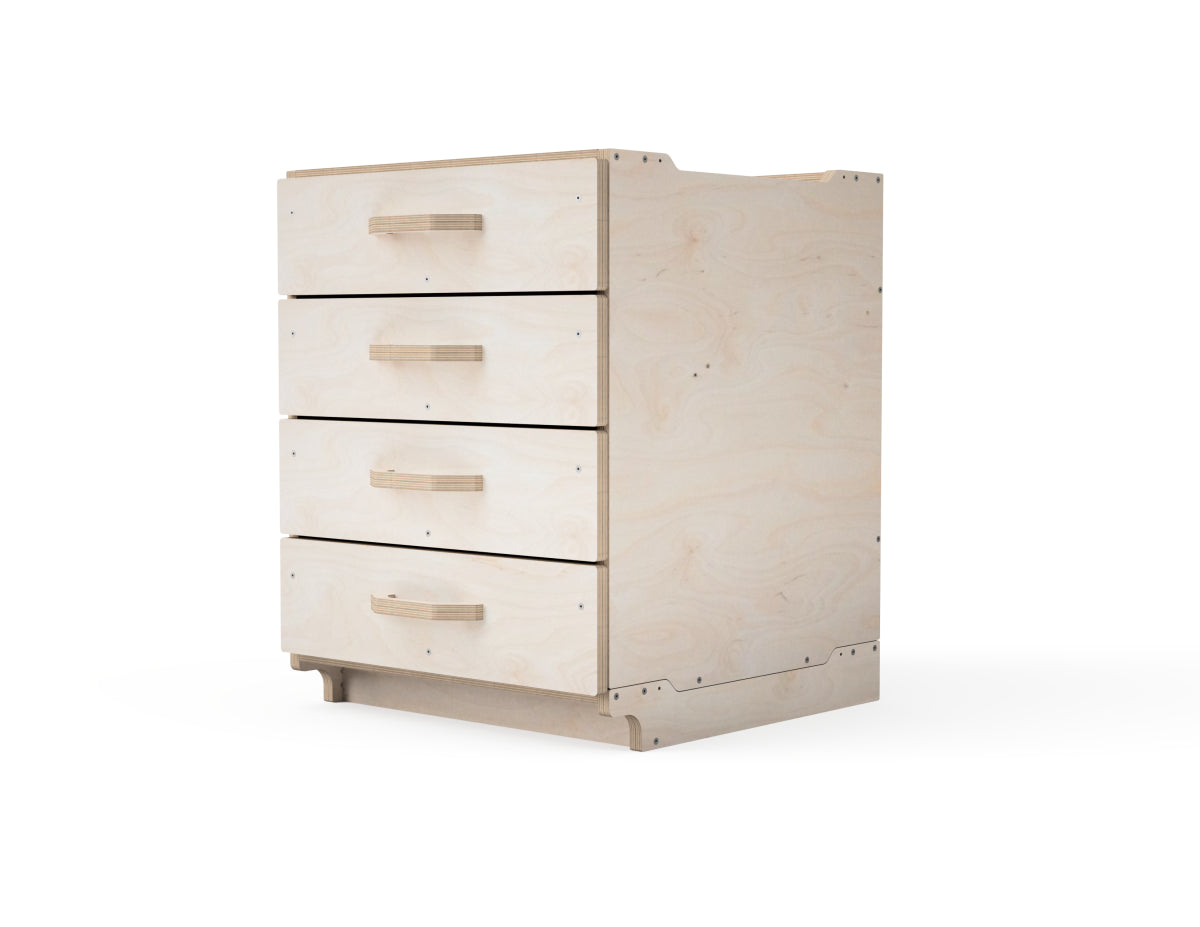

• 3D render of Modular Workshop Cabinet with 4 drawers, CNC DXF design
  • Side view of ¾-size CNC workshop cabinet with four drawers
  • Modular cabinet modules arranged for flexible workshop storage
  • Perspective render of DIY CNC plywood cabinet with 4 drawers
  • Render showing stackable feature of modular workshop cabinet
  • Front view of modular workshop cabinet emphasizing drawer design
  • Render showing 550 mm width modular workshop cabinet section
  • Render showing 475 mm width modular workshop cabinet section
1 10

Modular Workshop Cabinet - Large with 4 Drawers - DXF Files

Modular Workshop Cabinet - Large with 4 Drawers - DXF Files

$4.45 USD
$8.95 USD $4.45 USD
Sale Sold out
Taxes included.

Create a flexible, custom workshop setup with the Modular Workshop Cabinet - Large with 4 Drawers.



Designed for CNC routers, this ¾-size cabinet module (900 mm height) features four built-in drawers - no slides required.



Its modular design lets you stack sections and mix widths (550 mm, 475 mm, 400 mm) to perfectly fit your workspace.



Ideal for organizing tools, hardware, and materials while maximizing workshop efficiency. Perfect for DIYers, makers, and CNC enthusiasts.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Max single piece size

The biggest component is 615 x 550 mm (24.21 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
400 mm 550 mm 615 mm
15¾ inch 21⅝ inch 24¼ inch

Maximum

Width Length Height
550 mm 550 mm 615 mm
21⅝ inch 21⅝ inch 24¼ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 3 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 7 sheets of 600 x 900 x 12 mm (24 x 36 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 100 pieces
- 6 mm (1/4 inch) router bit
For a 900 x 1220 mm (3 x 4 ft) CNC
- 1 sheet of 900 x 1220 x 18 mm (36 x 48 x 3/4 inches) plywood
- 1 sheet of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 2 sheets of 900 x 1220 x 12 mm (36 x 48 x 1/2 inches) plywood
- 2 sheets of 600 x 1220 x 12 mm (24 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 100 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 1220 mm (3 x 4 ft) CNC
- a sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 2 sheets of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 1 sheet of 600 x 600 x 12 mm (24 x 24 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 100 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 2440 mm (3 x 4 ft) CNC
- a sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 1220 x 2440 x 12 mm (48 x 96 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 100 pieces
- 6 mm (1/4 inch) router bit

Approximate CNC time

40 minutes

Assembling time

25 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
