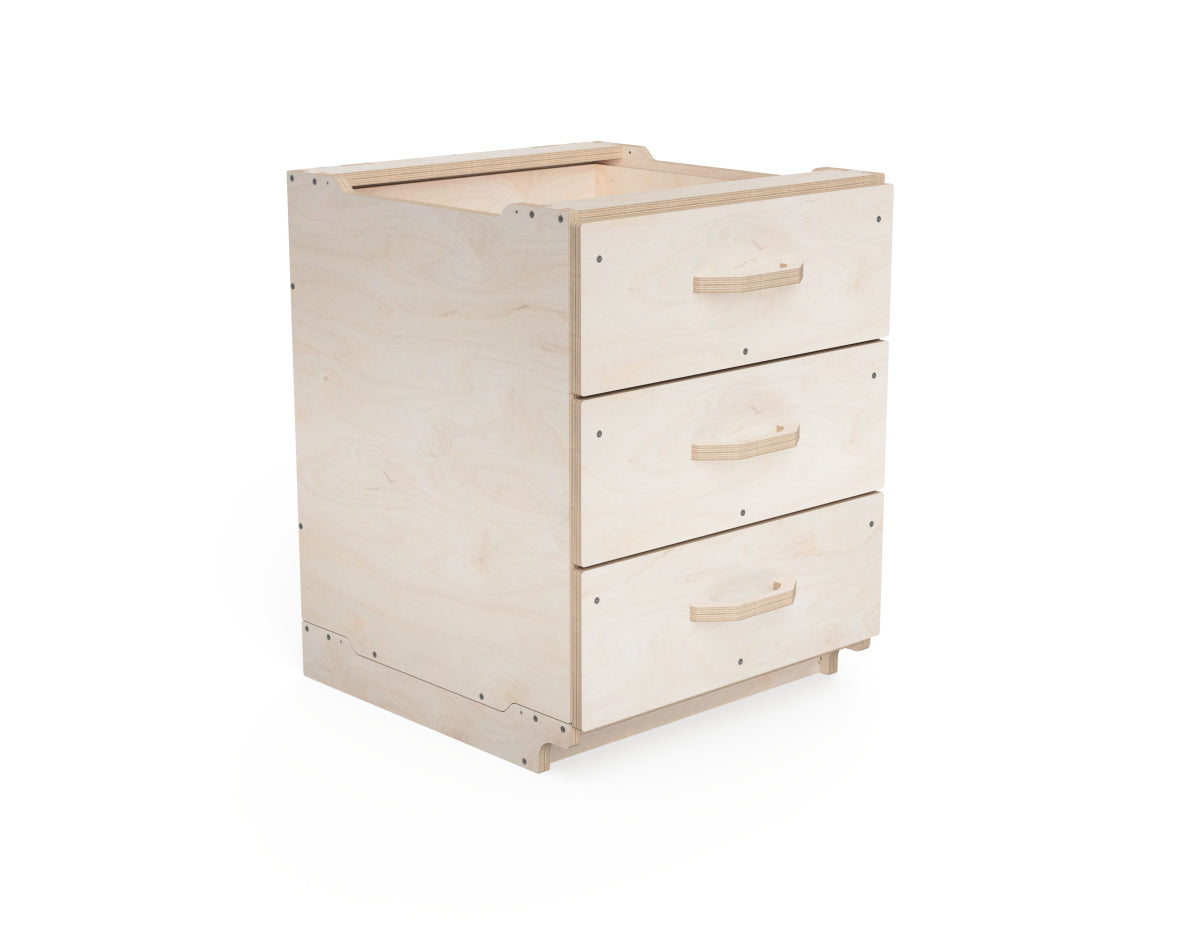

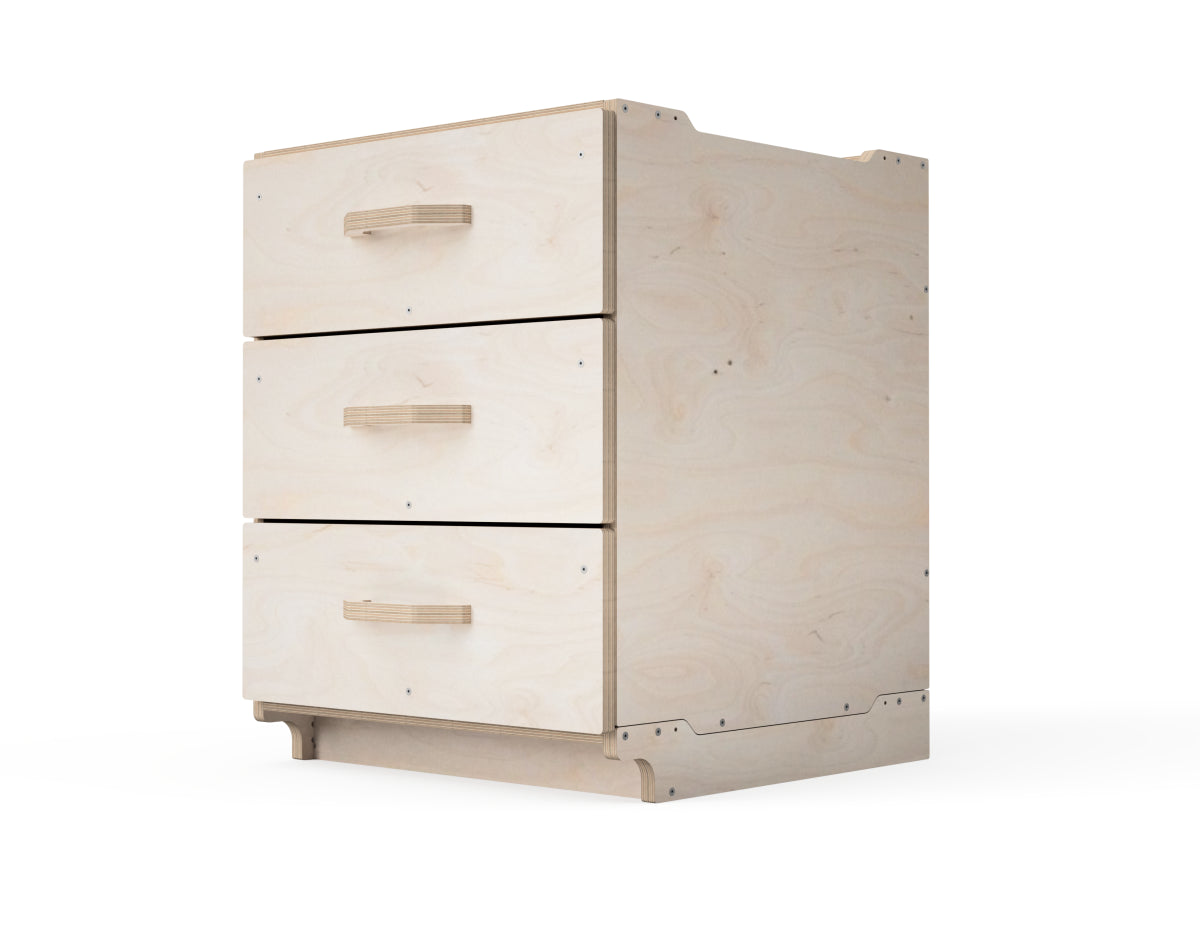

Build your perfect workshop setup with the Modular Workshop Cabinet - Large with 3 Drawers DXF files.

Designed for CNC routers, this modular cabinet lets you create stackable sections tailored to your space.

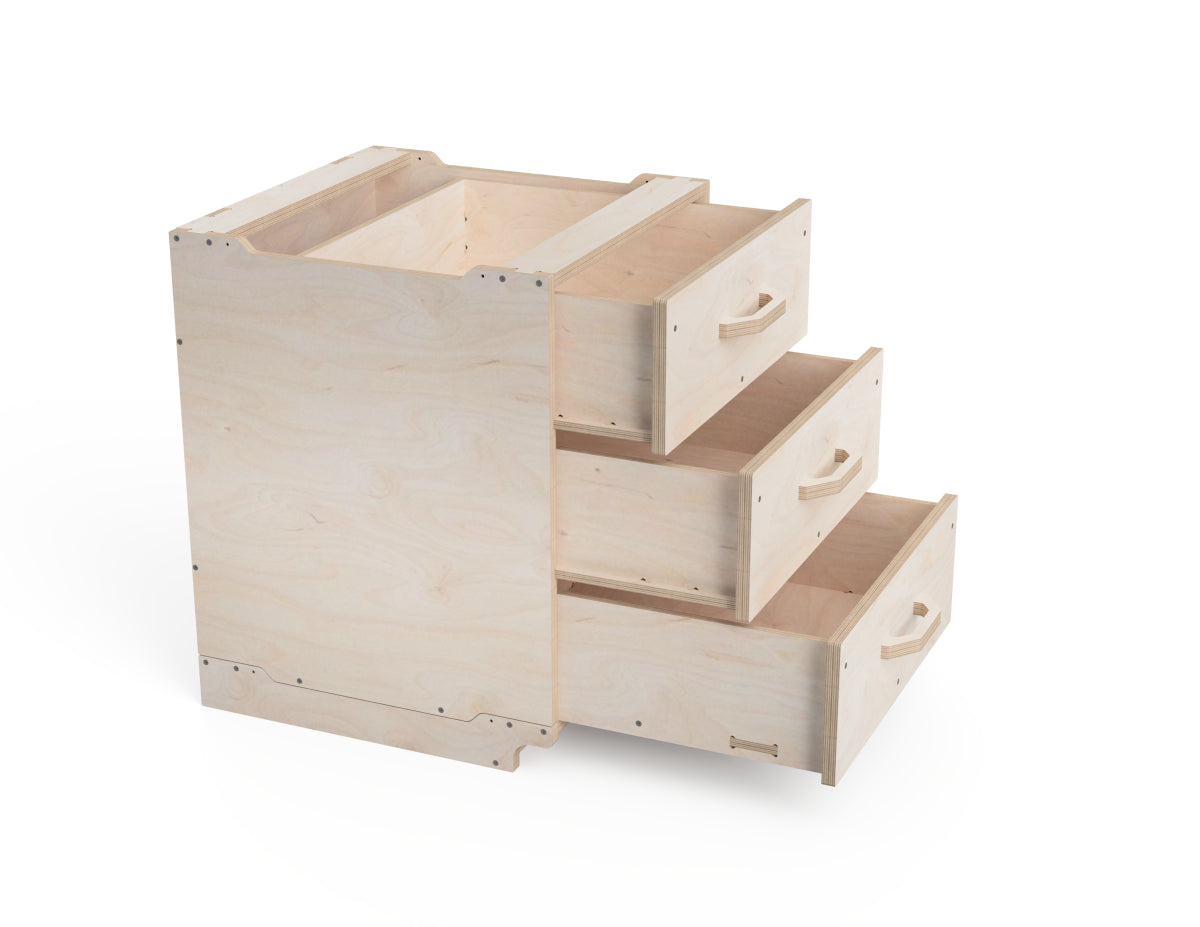

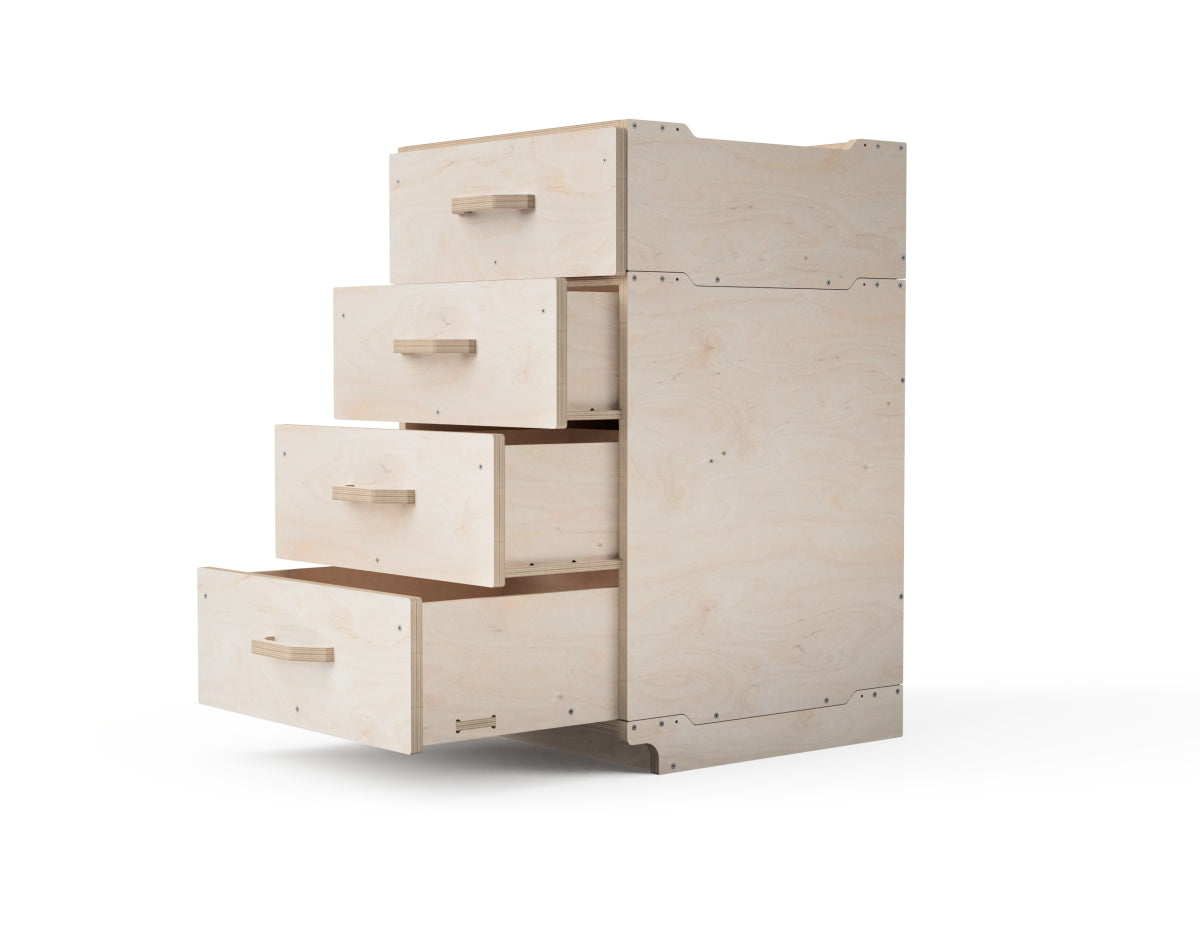

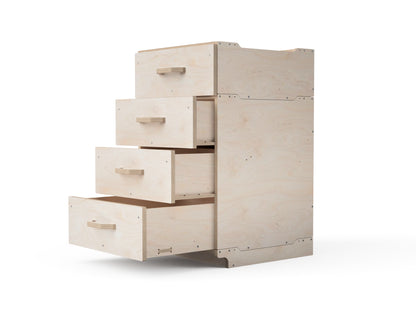

Each module is 3/4 the height of a standard cabinet (900 mm) and includes three built-in drawers that require no slides.

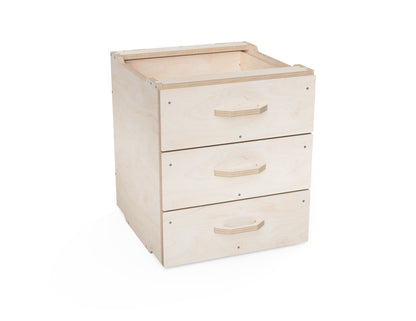

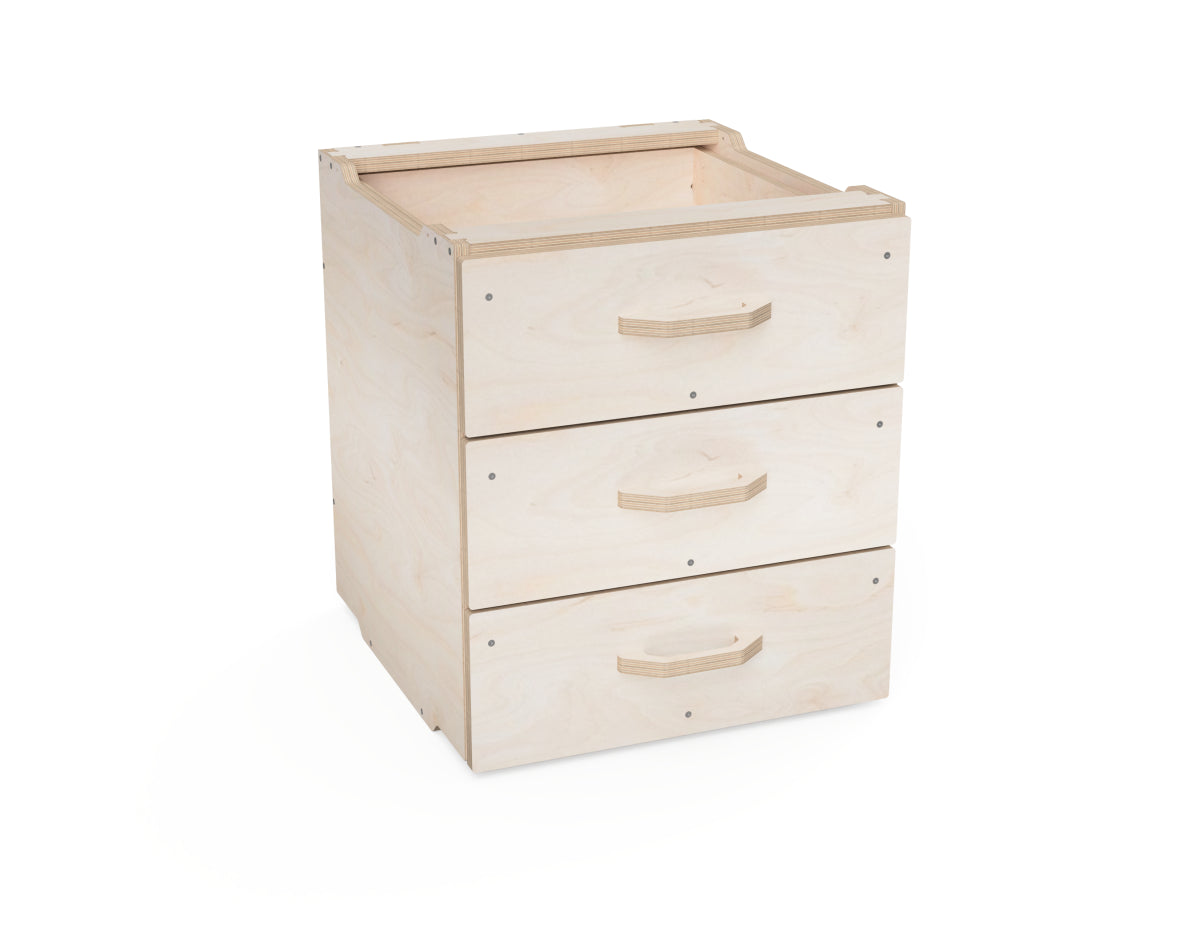

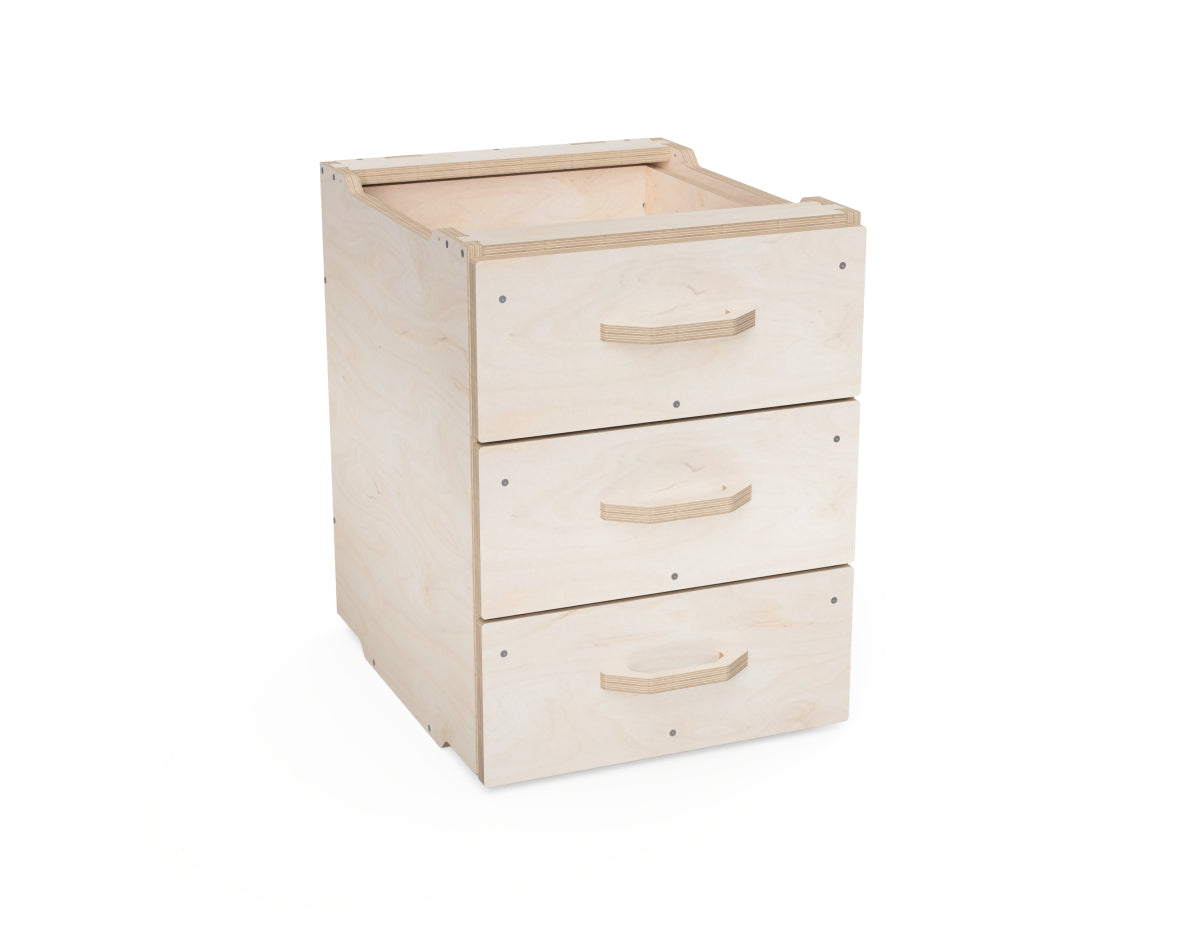

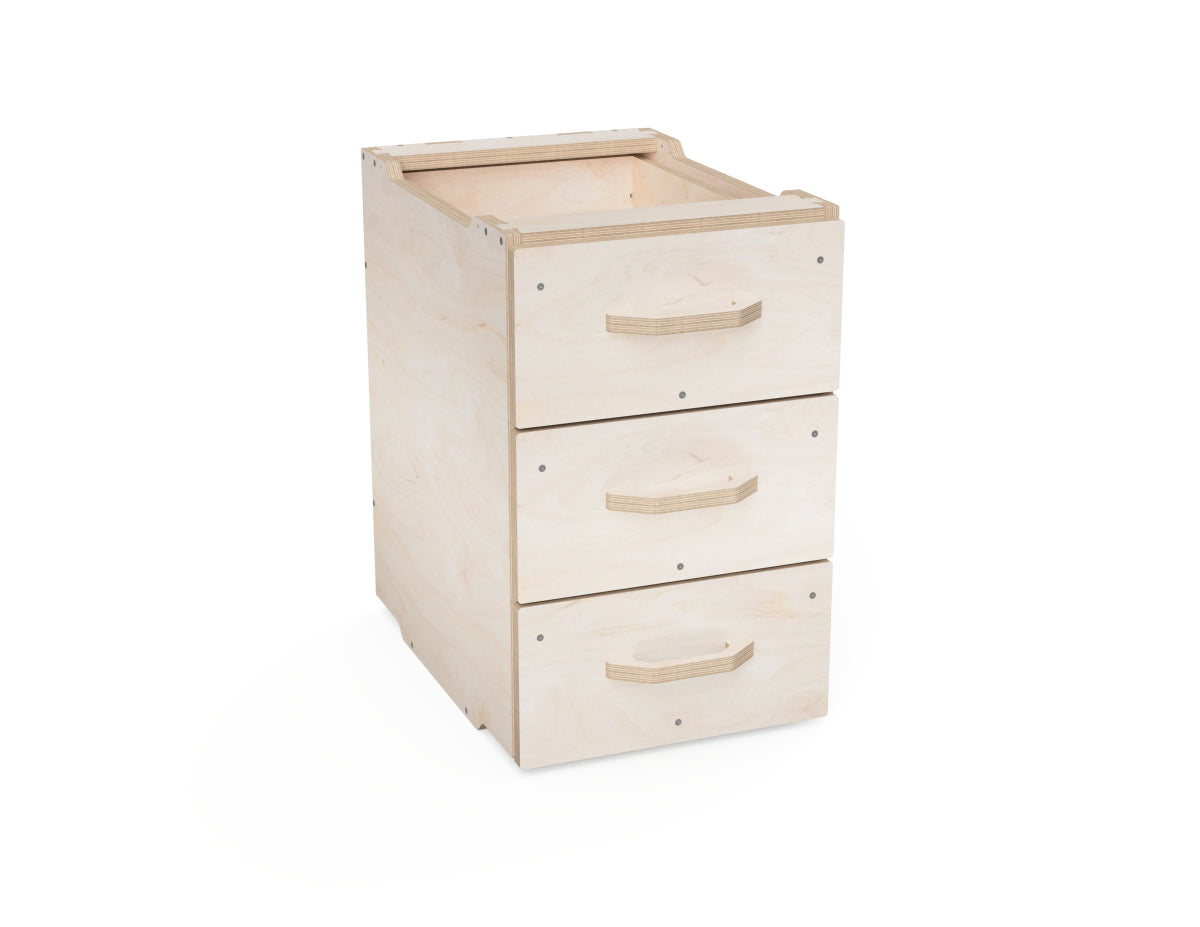

Choose from three widths - 550 mm, 475 mm, or 400 mm - to customize your storage.

Ideal for organizing tools, supplies, and small parts efficiently while keeping your workspace tidy. Perfect for DIY enthusiasts and makers looking for flexible, professional-grade workshop storage.

Key Features:

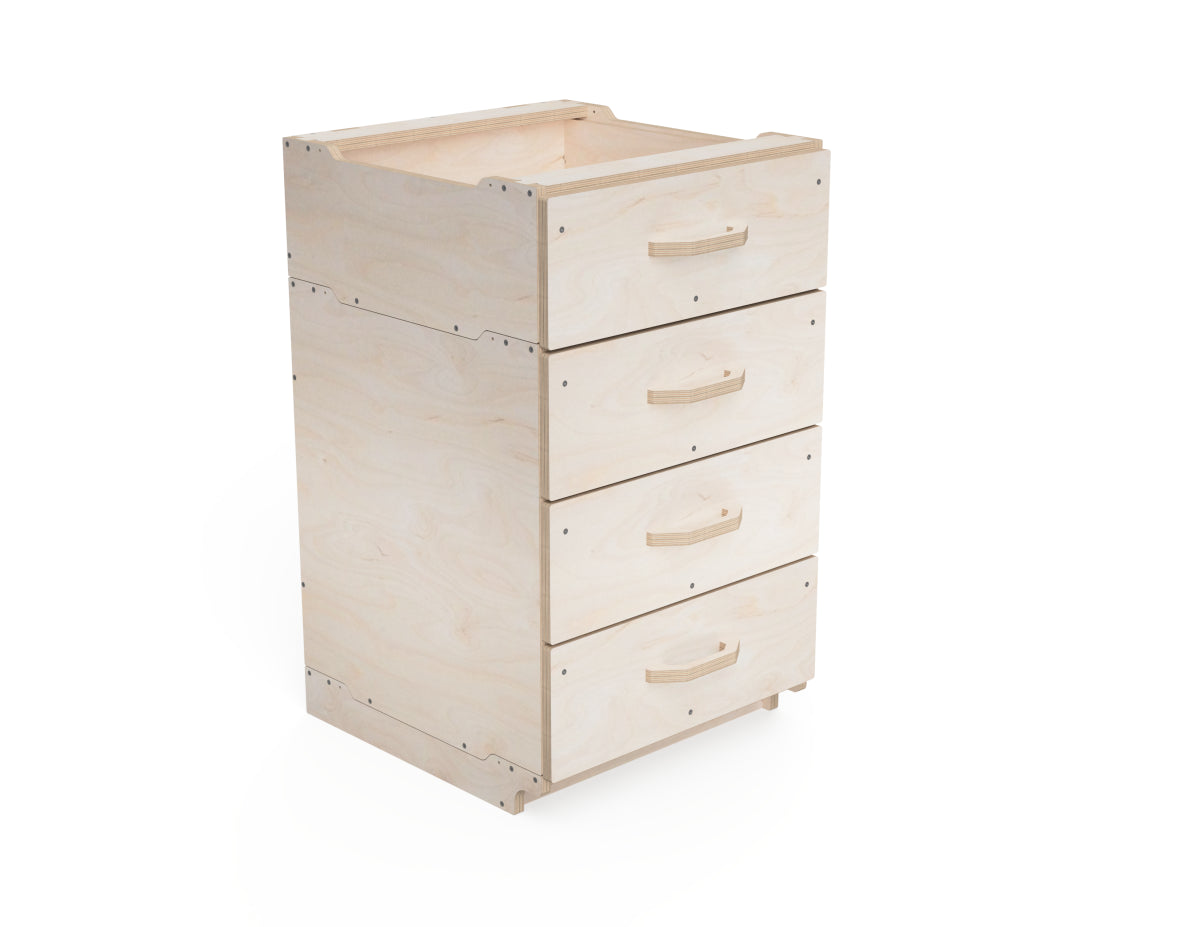

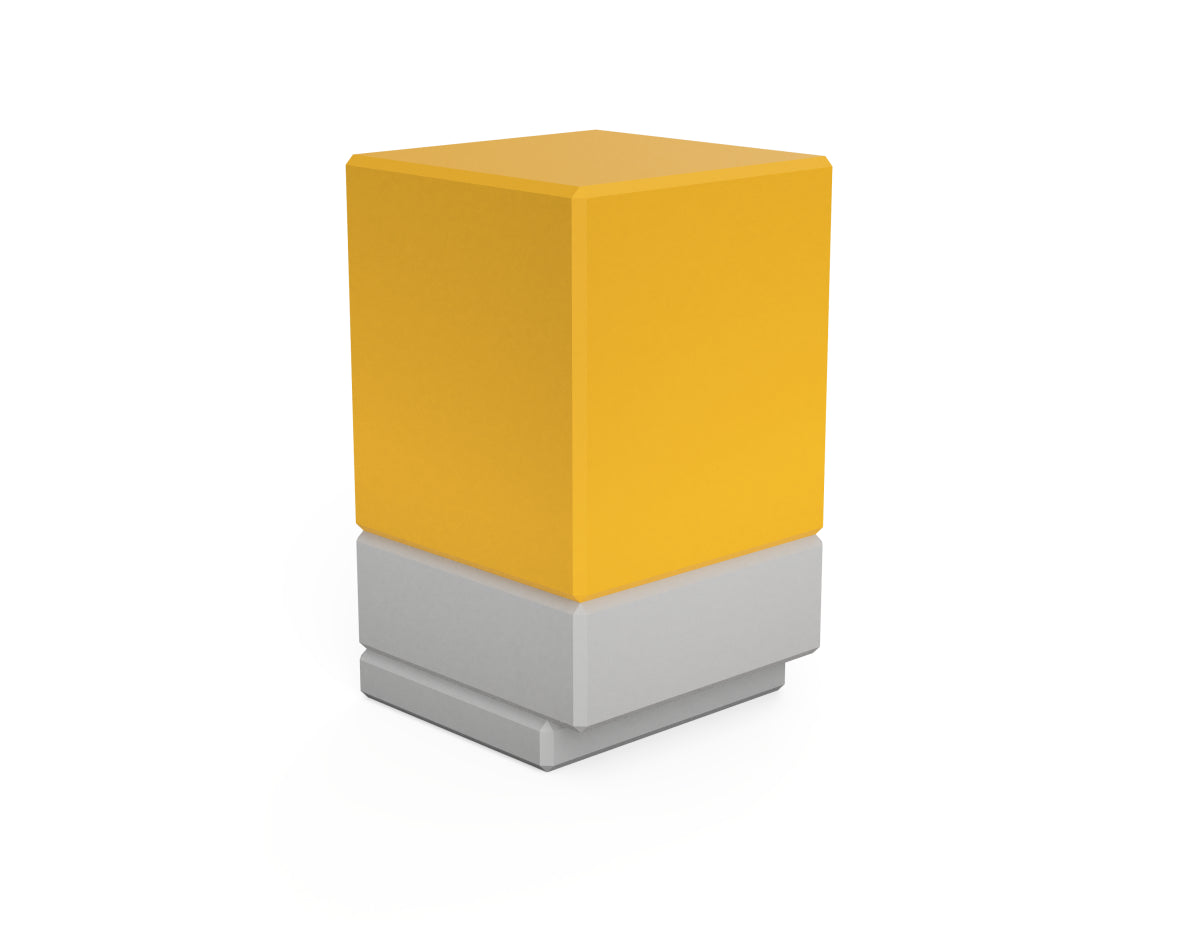

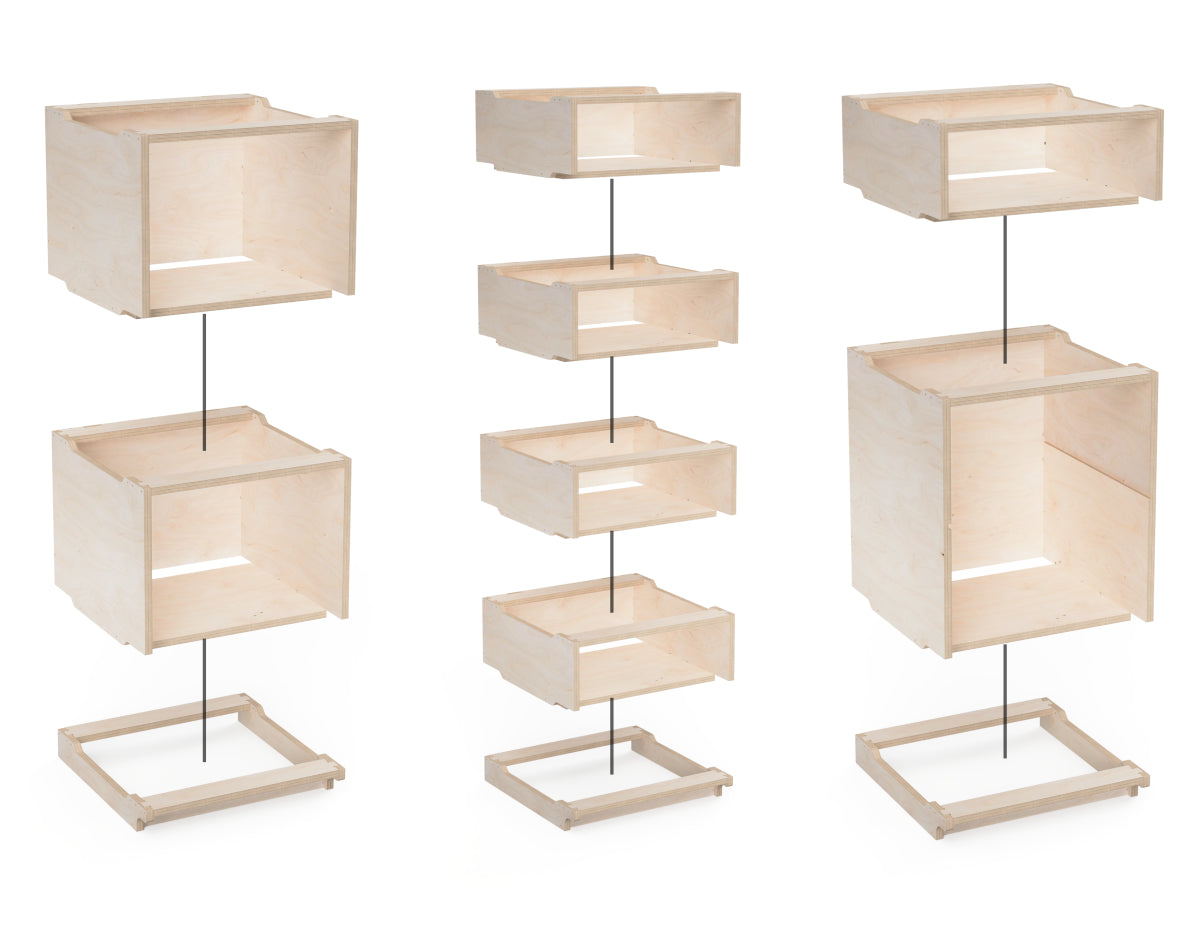

- Modular design: stack sections to suit your workspace

- 3 built-in drawers, no slides needed

- Three width options: 550 mm, 475 mm, 400 mm

- Designed for CNC routers: easy to cut and assemble

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Max single piece size

The biggest component is 615 x 550 mm (24.21 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Minimum

Width	Length	Height
400 mm	550 mm	615 mm
15¾ inch	21⅝ inch	24¼ inch

Maximum

Width	Length	Height
550 mm	550 mm	615 mm
21⅝ inch	21⅝ inch	24¼ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 3 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 5 sheets of 600 x 900 x 12 mm (24 x 36 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 75 pieces
- 6 mm (1/4 inch) router bit
For a 900 x 1220 mm (3 x 4 ft) CNC
- 1 sheet of 900 x 1220 x 18 mm (36 x 48 x 3/4 inches) plywood
- 1 sheet of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 3 sheets of 900 x 1220 x 12 mm (36 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 75 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 1220 mm (3 x 4 ft) CNC
- a sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 2 sheets of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 75 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 2440 mm (3 x 4 ft) CNC
- a sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 1220 x 2440 x 12 mm (48 x 96 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 75 pieces
- 6 mm (1/4 inch) router bit
