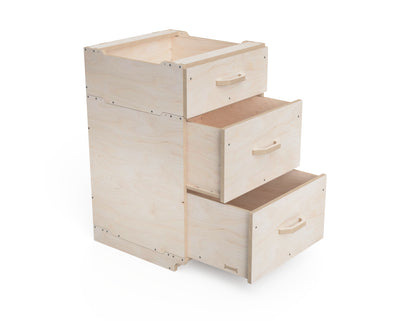

  • Cabinet module with drawers opened – CNC project example
  • DIY makerspace storage – CNC modular cabinet project

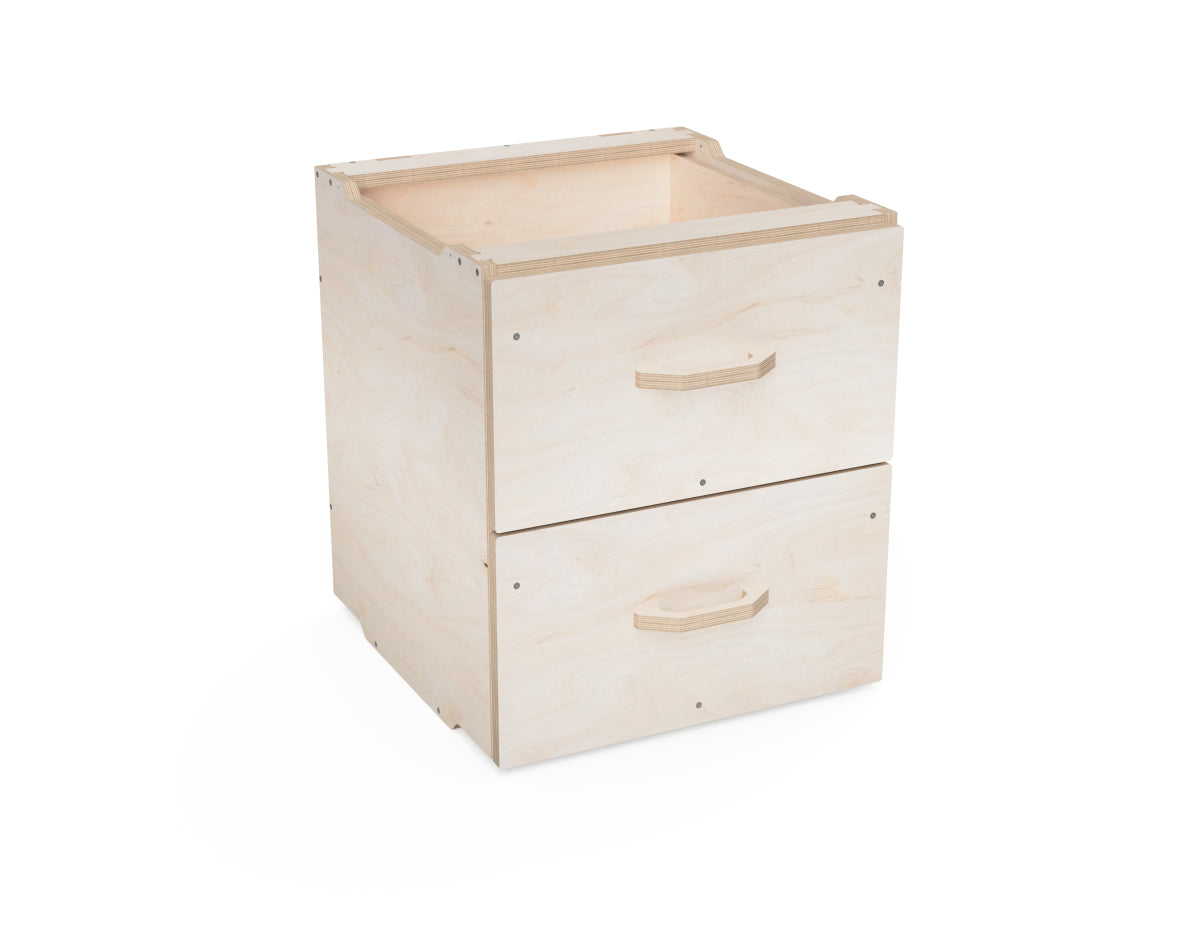

  • CNC router-ready workshop cabinet design – 550 mm width module

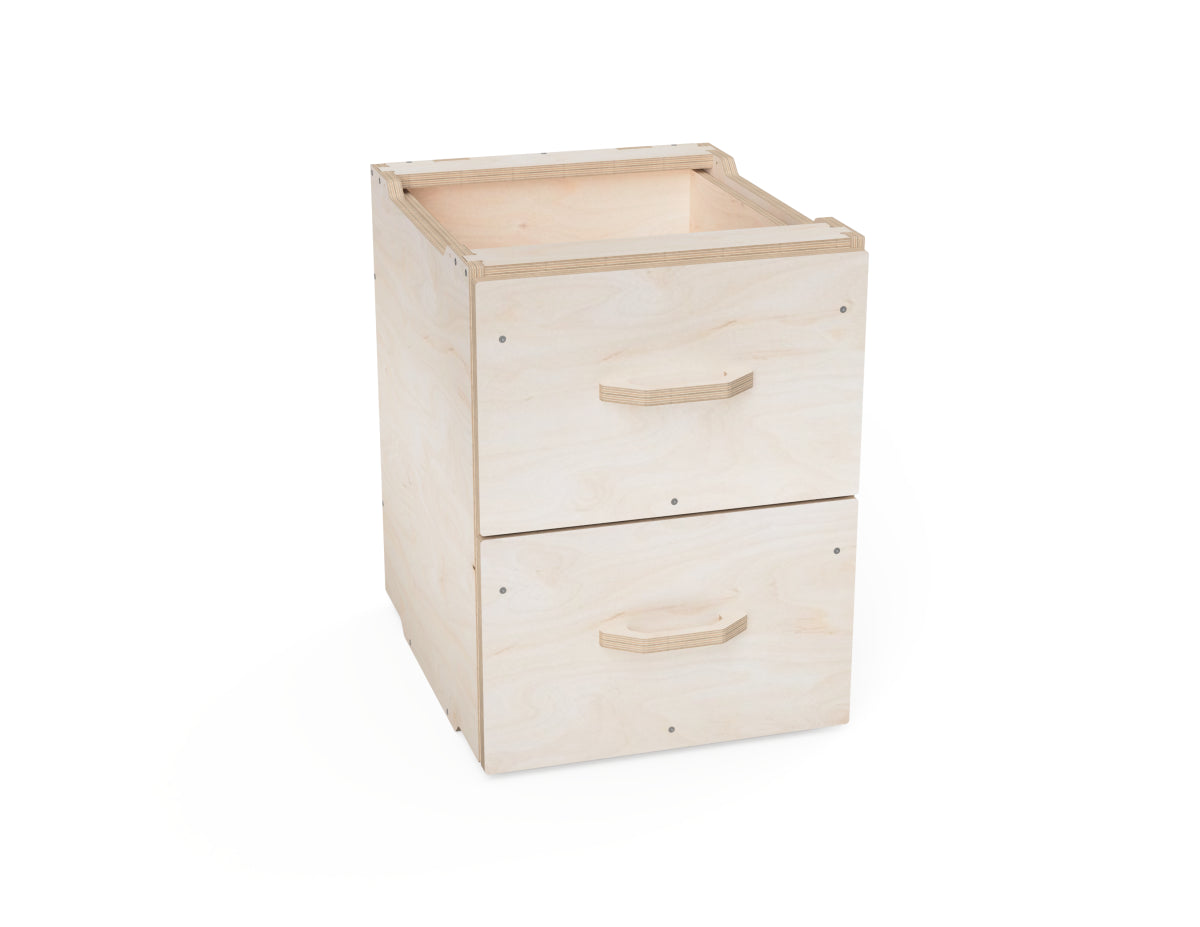

  • Stackable modular cabinet section – 475 mm width, 2 drawers
  • DIY CNC cabinet module – 400 mm width option
  • Large 3/4 size workshop cabinet DXF with built-in drawers
  • 2-drawer DIY cabinet module without drawer slides
1 11

Modular Workshop Cabinet - Large with 2 Drawers - DXF Files

Modular Workshop Cabinet - Large with 2 Drawers - DXF Files

$4.25 USD
$8.45 USD $4.25 USD
Sale Sold out
Taxes included.

Create a custom workshop setup with the Modular Workshop Cabinet - Large with 2 Drawers DXF files.



Designed for CNC routers, this modular cabinet lets you build stackable sections for maximum flexibility.

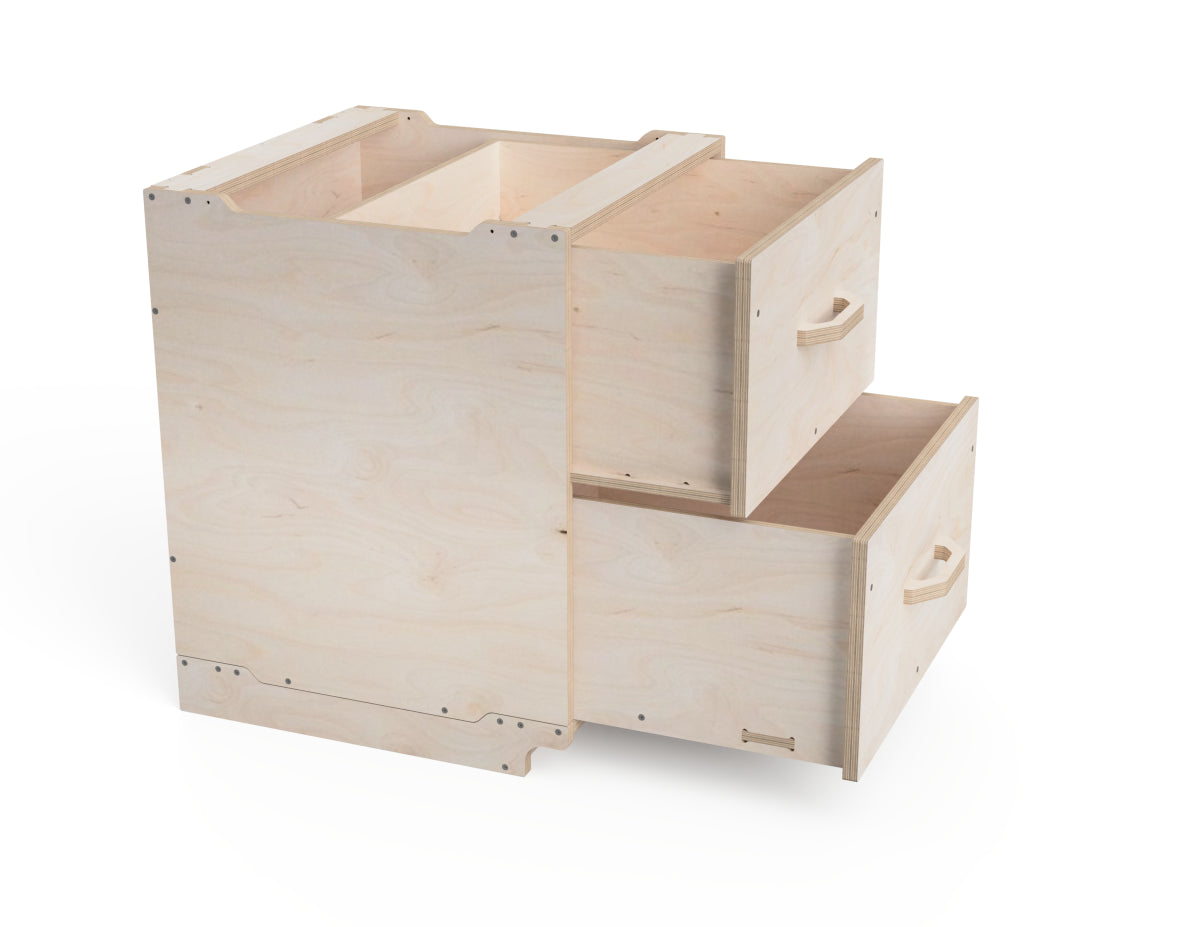

This module is 3/4 the height of a standard cabinet (900 mm) and includes two built-in drawers that require no drawer slides.

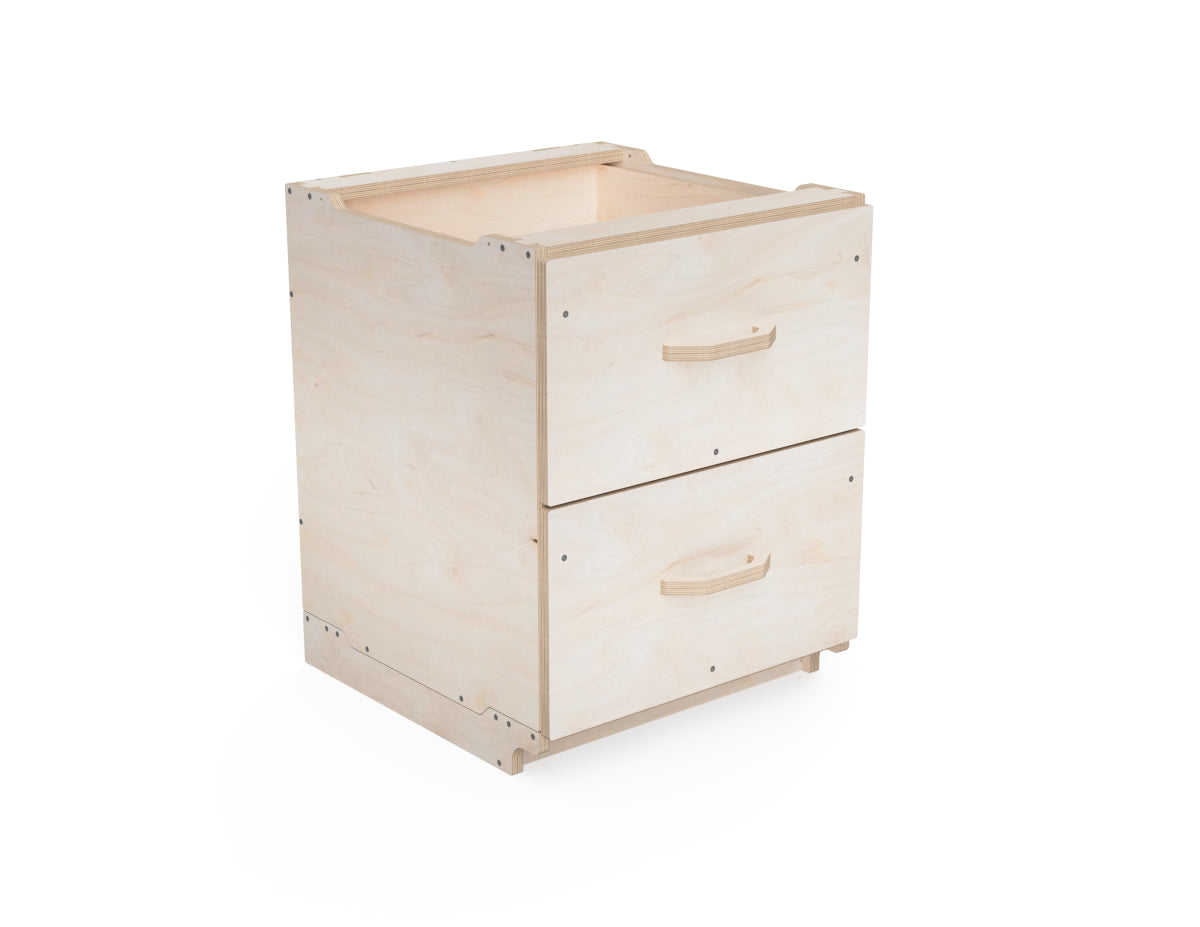

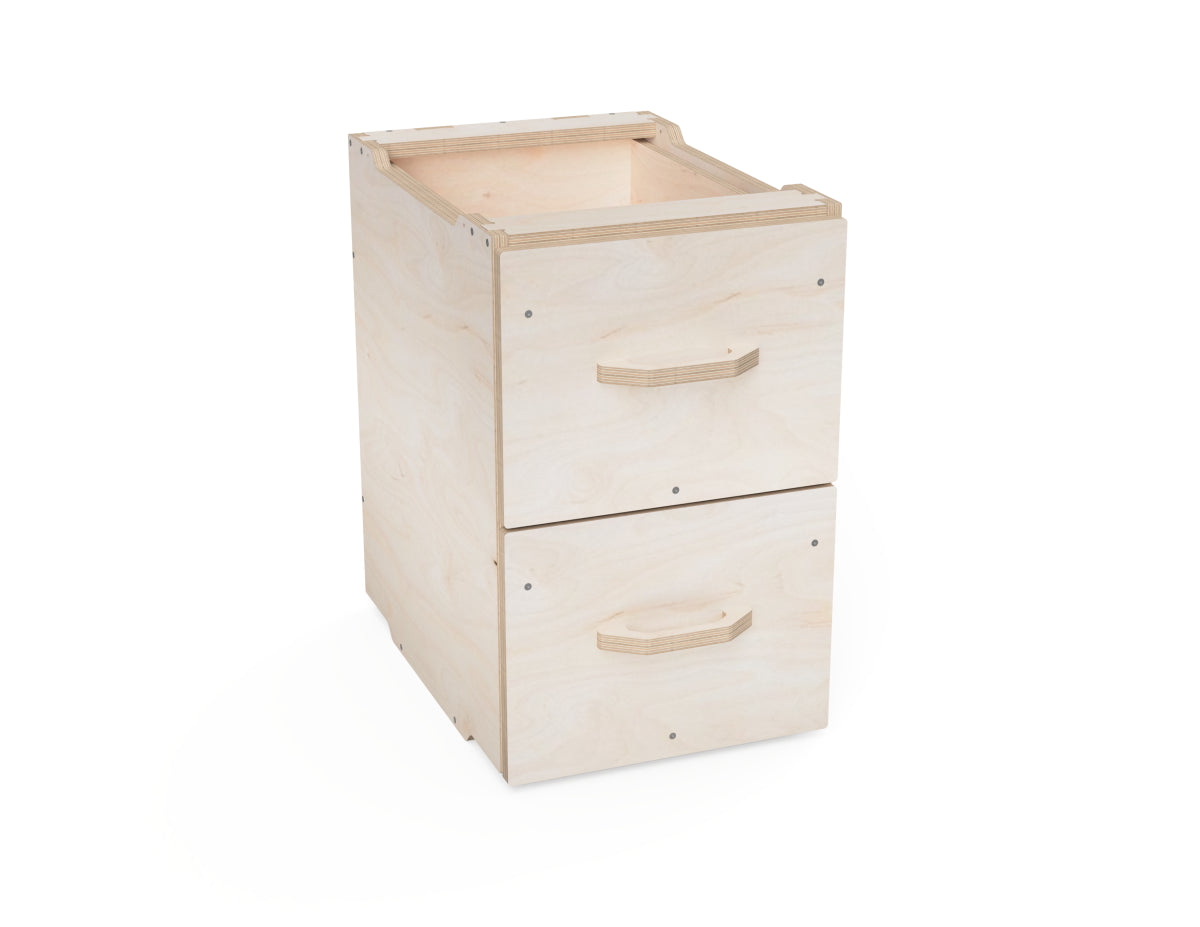

Available in three widths (550 mm, 475 mm, 400 mm), it’s perfect for a personalized and organized workshop.



Ideal for DIYers and makers seeking functional, space-saving storage solutions.

Supported CNC sizes

The project can be made on a 600 x 900 mm (2 x 3 ft) CNC router and bigger.

Max single piece size

The biggest component is 615 x 550 mm (24.21 x 21.65 inches).
So if it can fit on your CNC router, you can build this project

Dimensions


Minimum

Width Length Height
400 mm 550 mm 615 mm
15¾ inch 21⅝ inch 24¼ inch

Maximum

Width Length Height
550 mm 550 mm 615 mm
21⅝ inch 21⅝ inch 24¼ inch

Required materials

For a 600 x 900 mm (2 x 3 ft) CNC
- 3 sheets of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 5 sheets of 600 x 900 x 12 mm (24 x 36 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 75 pieces
- 6 mm (1/4 inch) router bit
For a 900 x 1220 mm (3 x 4 ft) CNC
- 1 sheet of 900 x 1220 x 18 mm (36 x 48 x 3/4 inches) plywood
- 1 sheet of 600 x 900 x 18 mm (24 x 36 x 3/4 inches) plywood
- 3 sheets of 900 x 1220 x 12 mm (36 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 75 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 1220 mm (3 x 4 ft) CNC
- a sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 2 sheets of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 75 pieces
- 6 mm (1/4 inch) router bit
For a 1220 x 2440 mm (3 x 4 ft) CNC
- a sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 1220 x 2440 x 12 mm (48 x 96 x 1/2 inches) plywood
- 35 mm (1-1/2 inches) wood screws - 75 pieces
- 6 mm (1/4 inch) router bit

Approximate CNC time

30 minutes

Assembling time

25 minutes
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
