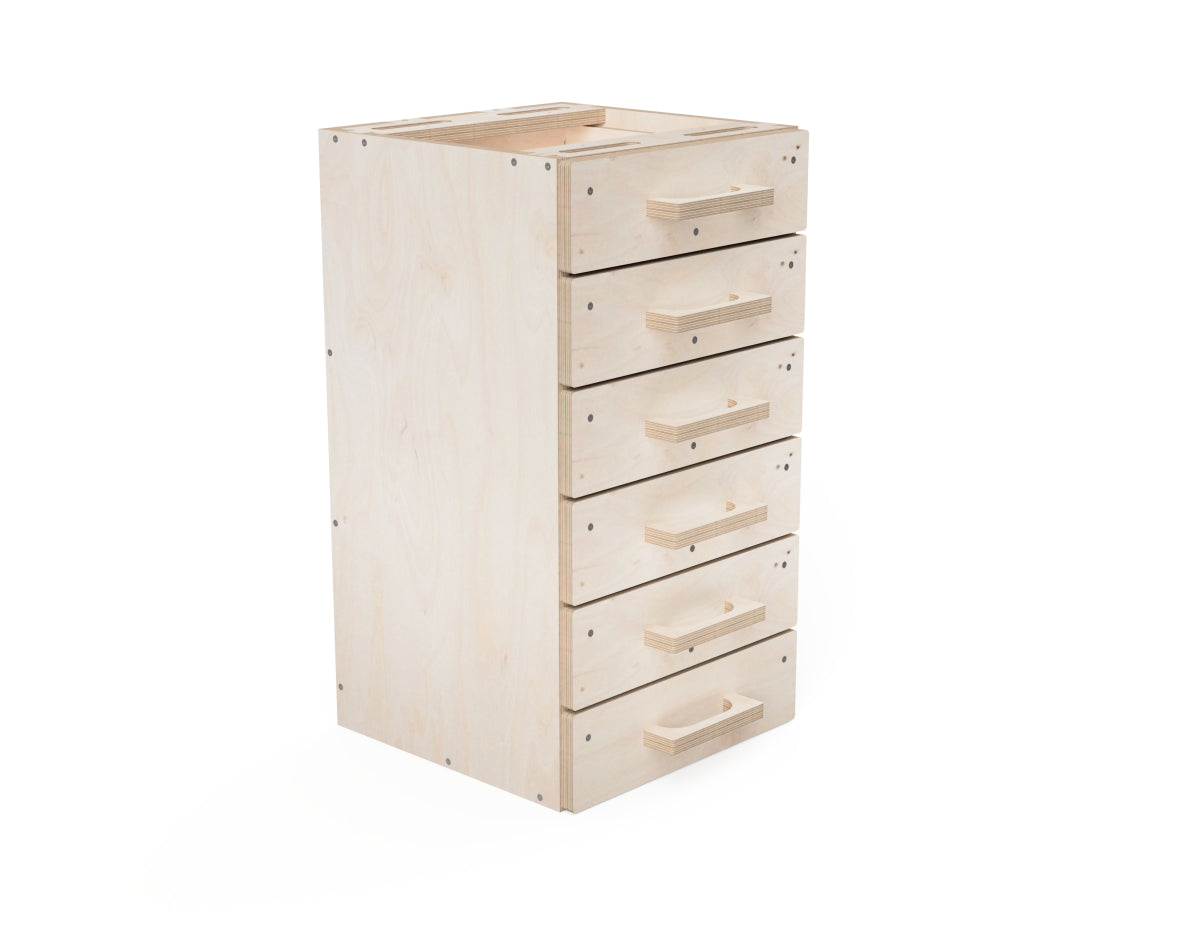

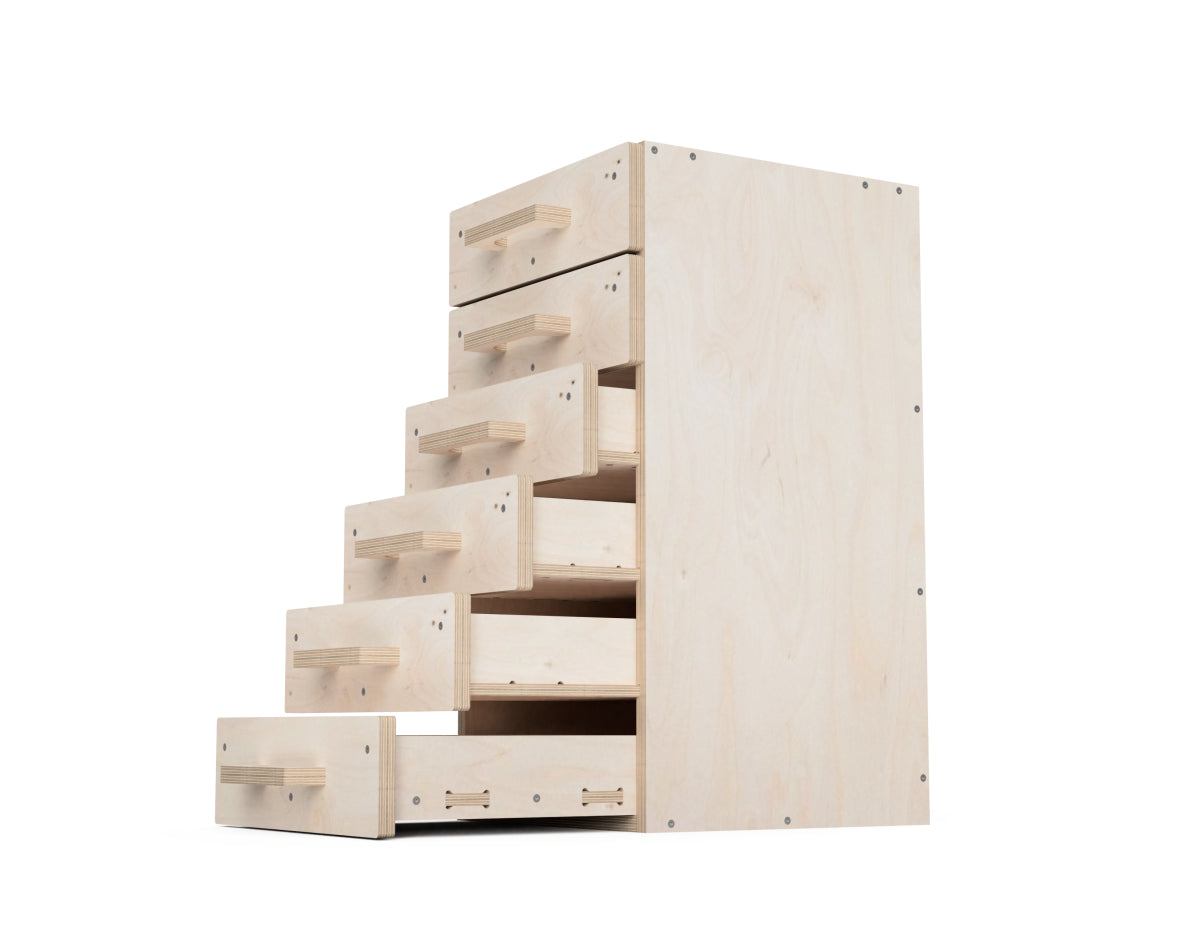

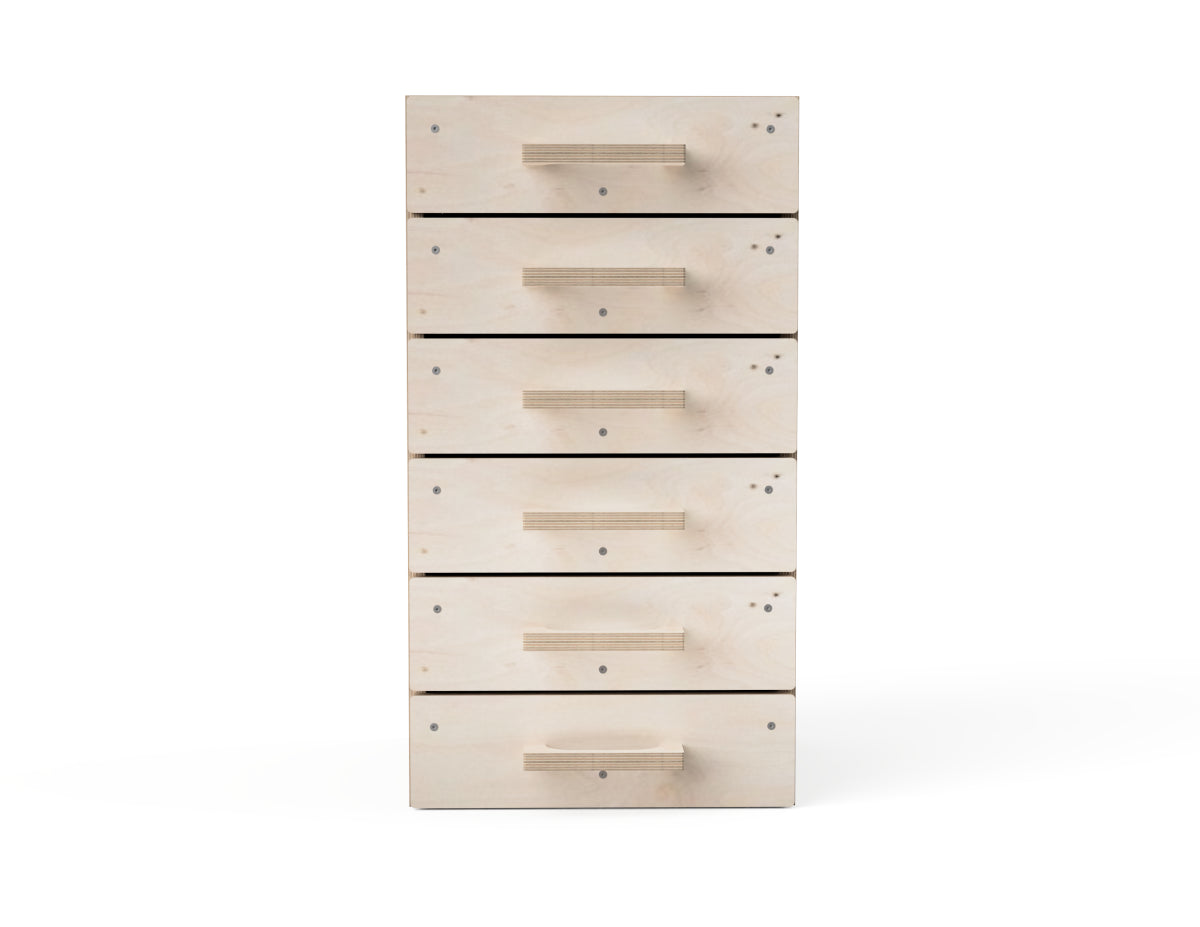

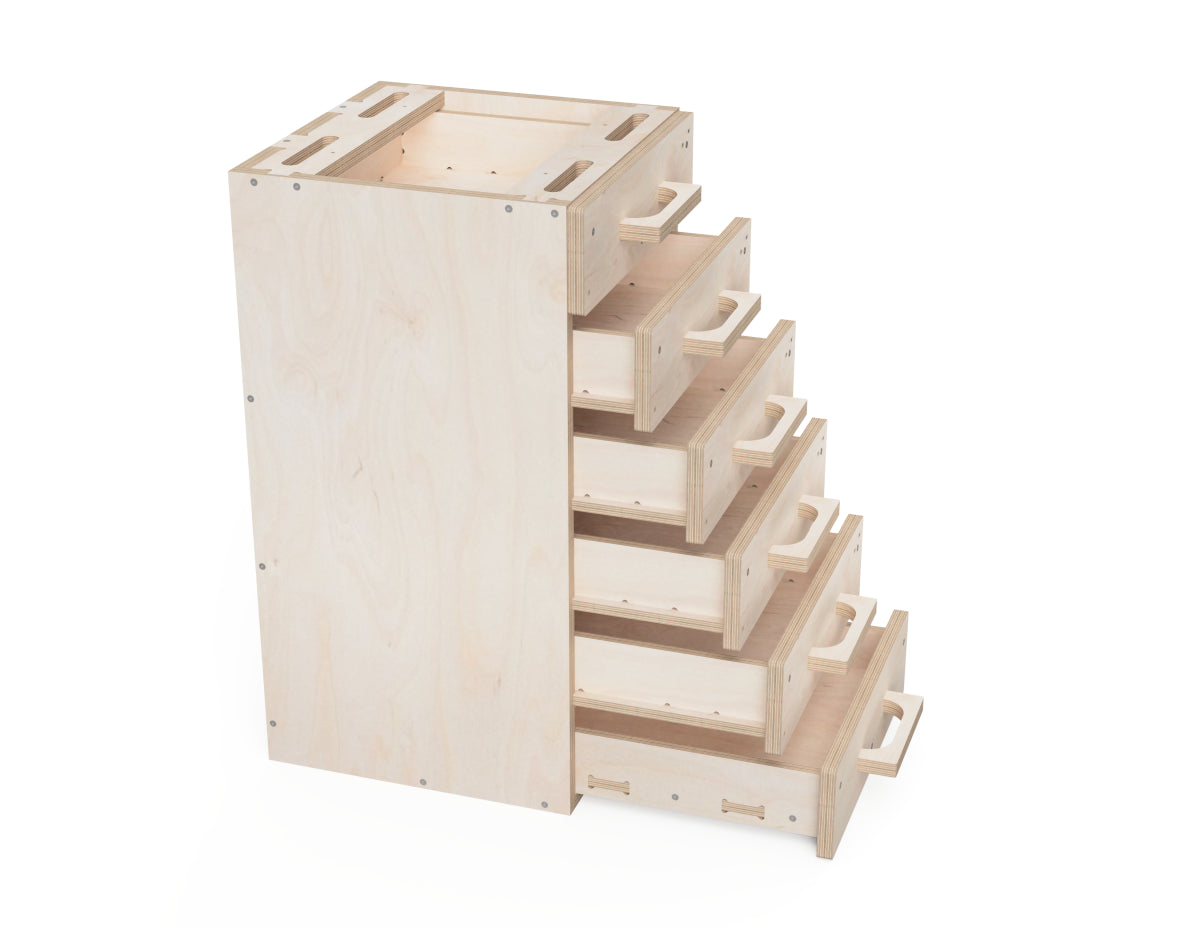

Create a versatile six-drawer cabinet for your modular workbench with these DXF files.

Store tools, materials, or jigs neatly, with built-in drawer slides to save on hardware costs.

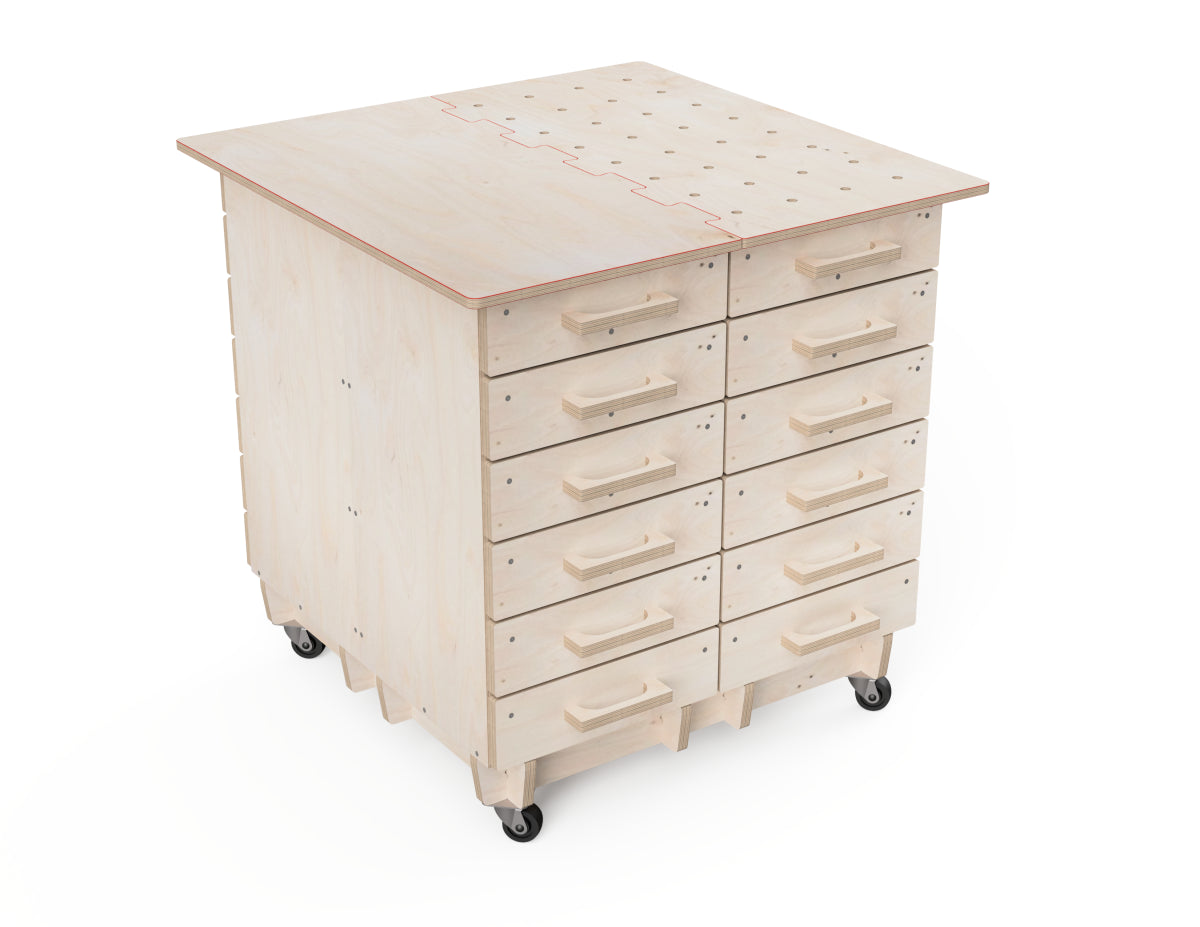

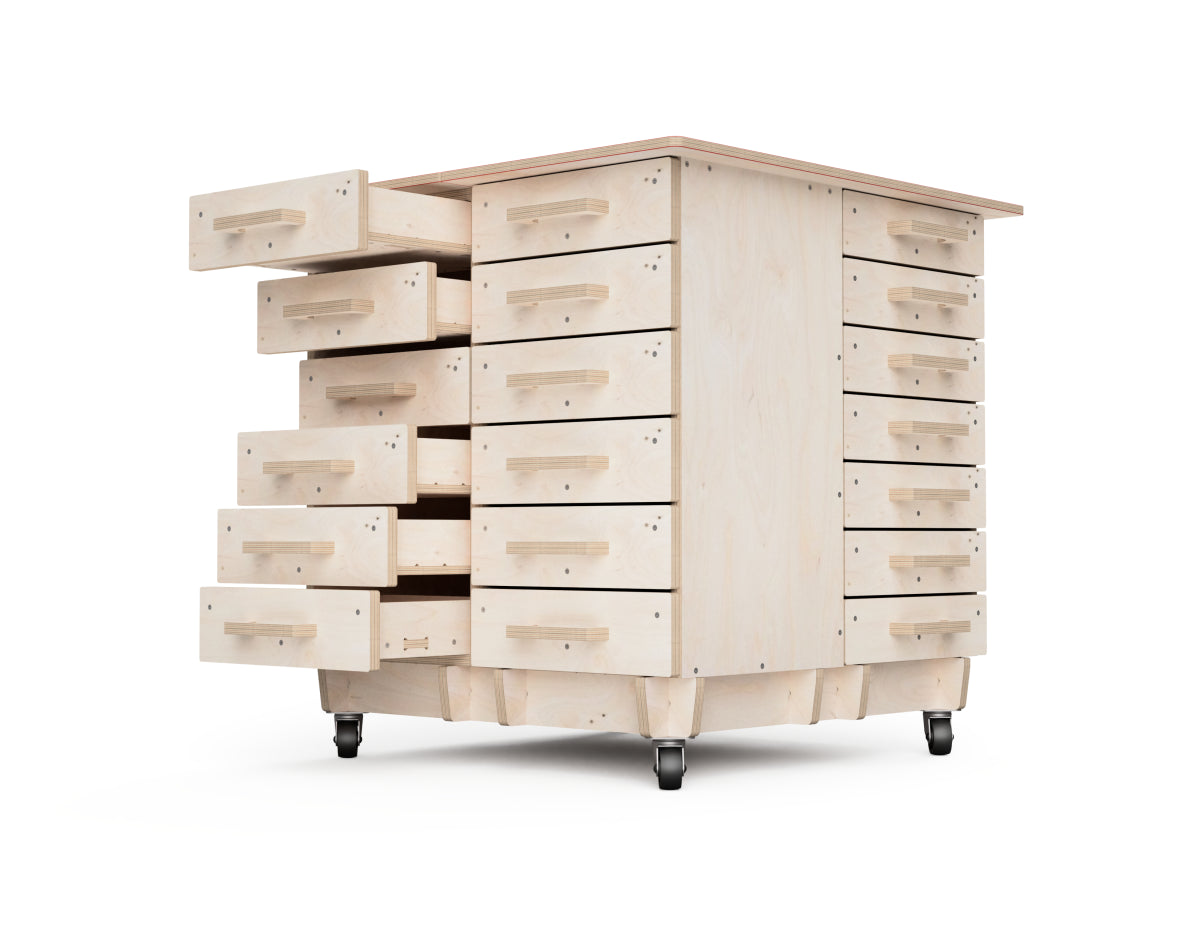

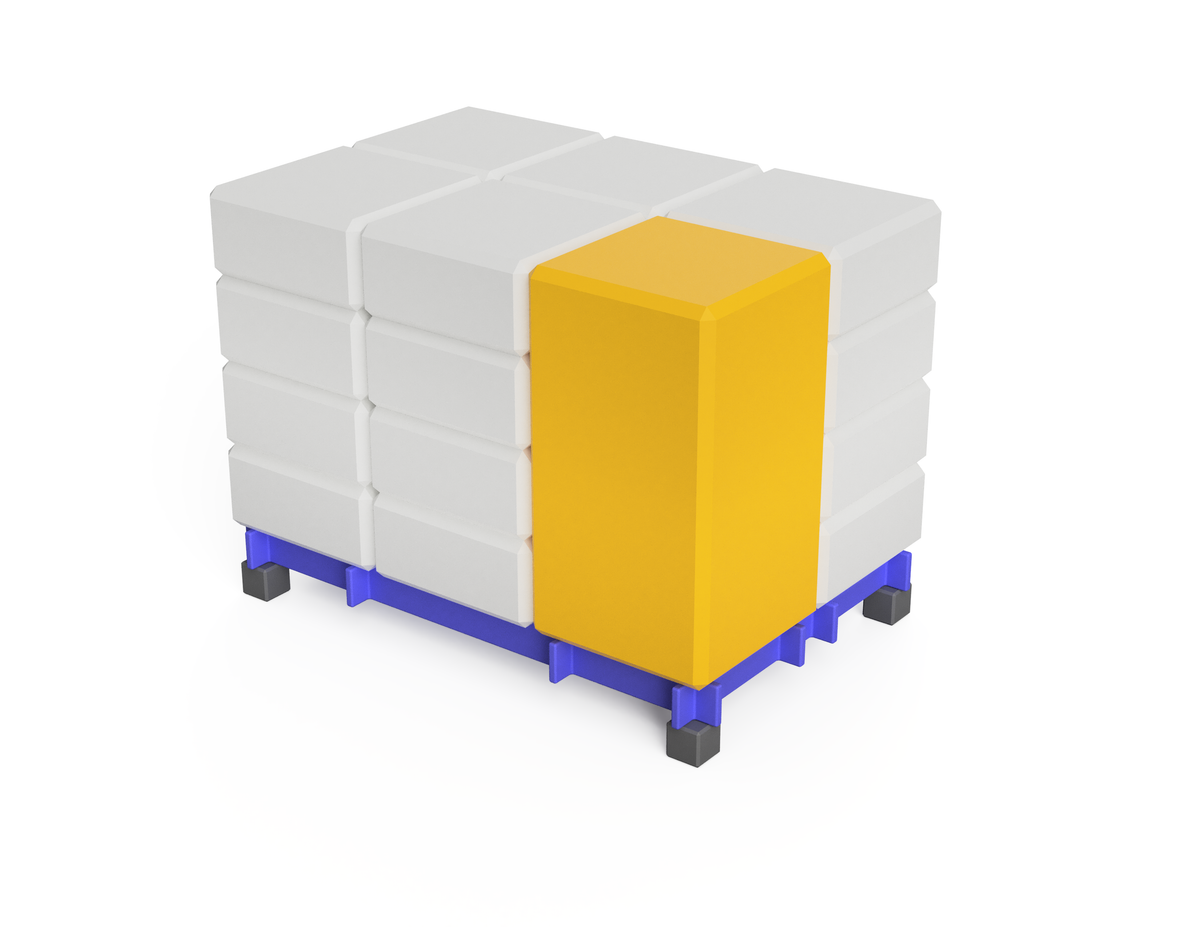

Takes up one module on your base frame, with included work surface panel files for a complete setup.

Perfect for CNC woodworking enthusiasts looking to expand their workspace efficiently.

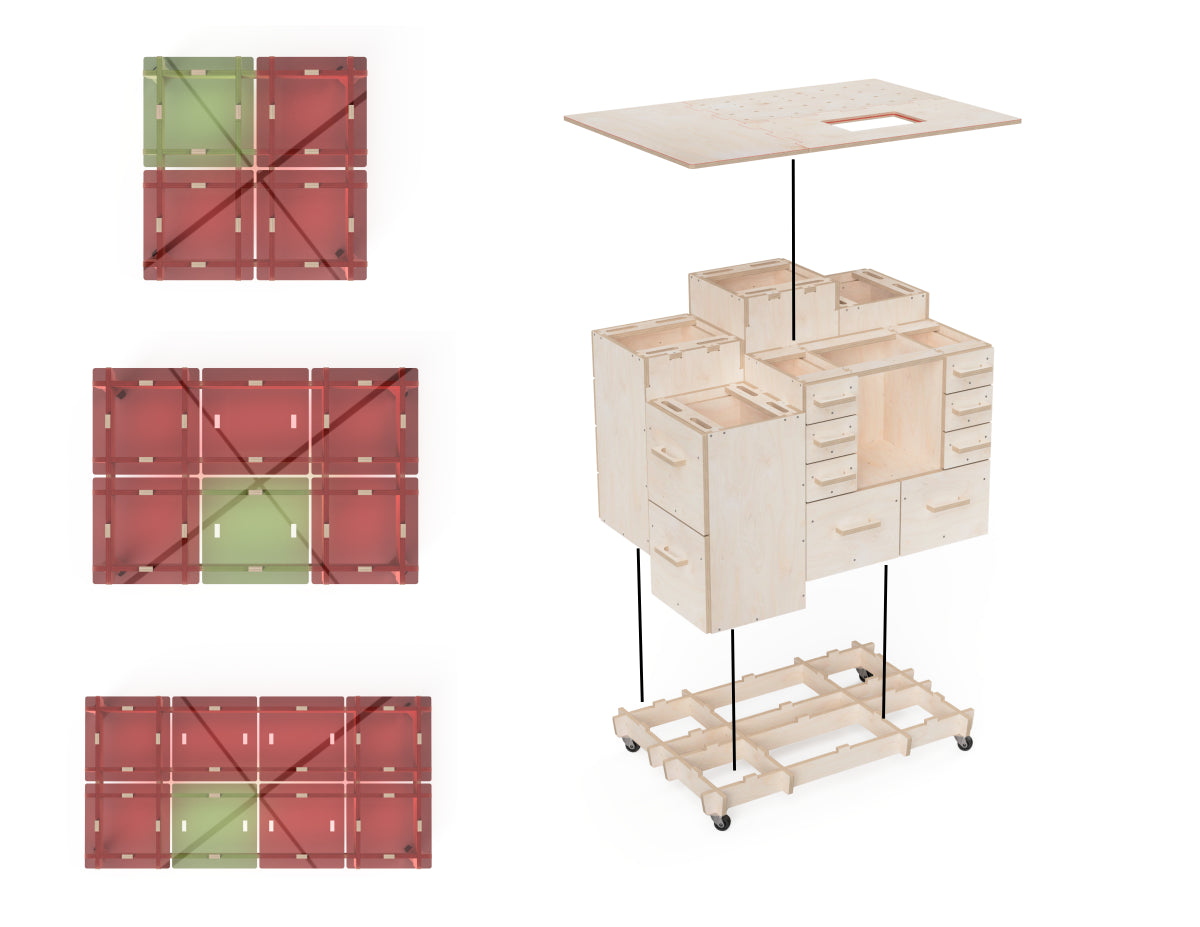

Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
≈ 35 × 35 × 35 in

Medium Workbench Setup
Dimensions: 900 × 1300 × 900 mm (W × L × H)
≈ 35 × 51 × 35 in

Large Workbench Setup
Dimensions: 900 × 1700 × 900 mm (W × L × H)
≈ 35 × 67 × 35 in

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 730 x 400 mm (28.74 x 15.75 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width	Length	Height
400 mm	400 mm	730 mm
15¾ inch	15¾ inch	28¾ inch

Required materials

For a 820 x 1220 (2.6 x 4 ft) CNC
- 1 sheet of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 700 x 1220 x 18 mm (28 x 48 x 3/4 inches) plywood
- 1 sheet of 520 x 1220 x 12 mm (21 x 48 x 1/2 inches) plywood
- 1 sheet of 820 x 1220 x 12 mm (32 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 125 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 450 x 300 x 18 mm (18 x 12 x 3/4 inches) plywood
- 1 sheet of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 1 sheet of 250 x 1220 x 12 mm (10 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 125 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 2440 x 820 x 18 mm (96 x 32 x 3/4 inches) plywood
- 1 sheet of 2440 x 700 x 12 mm (96 x 28 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 125 pieces
