Modular Workbench Attachment - Simple Cabinet DXF Files

Name: Modular Workbench Attachment - Simple Cabinet DXF Files
Brand: Aribabox
Price: 3.25 USD
Availability: InStock

$3.25 USD

~~$6.45 USD~~ $3.25 USD

Sale Sold out

Taxes included.

Create a practical storage solution for your modular workbench with these DXF files.

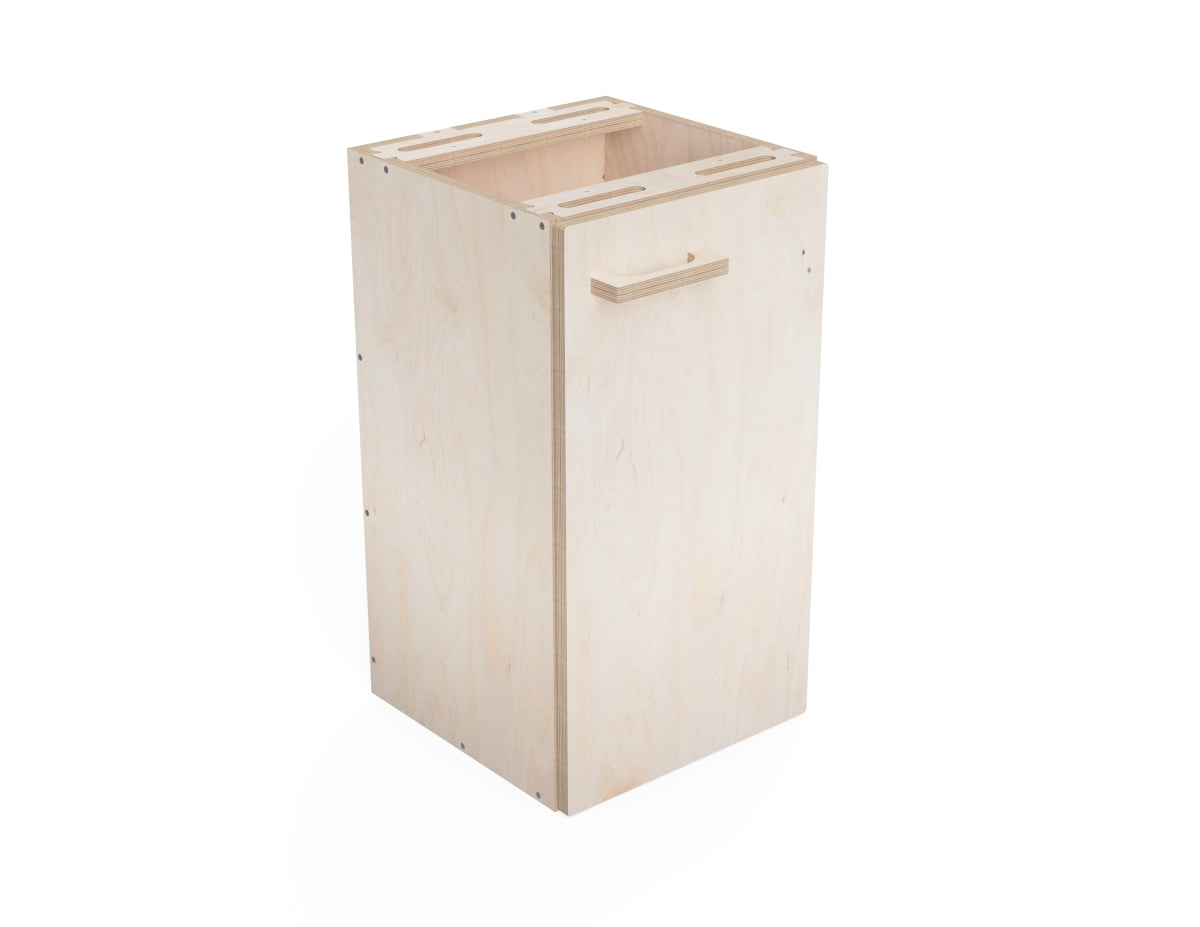

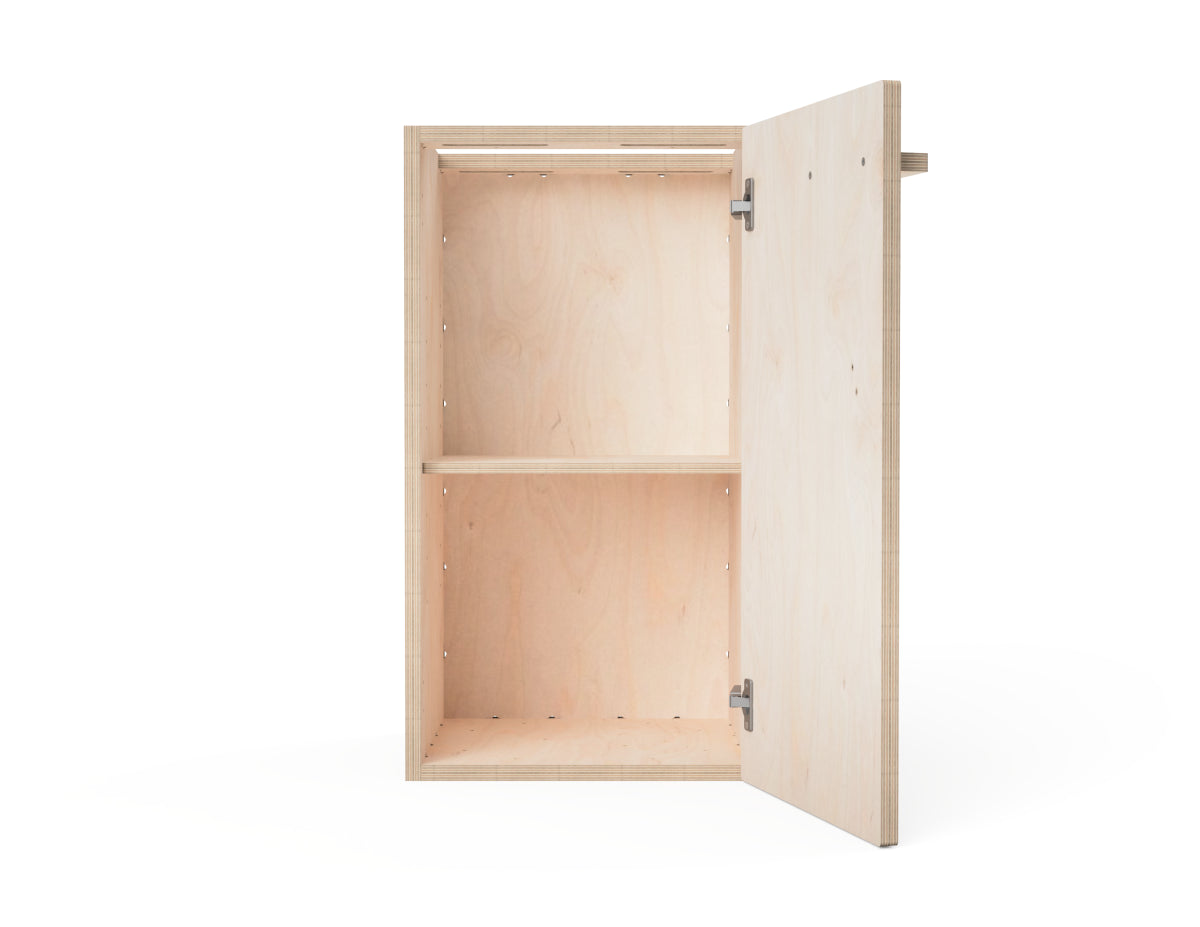

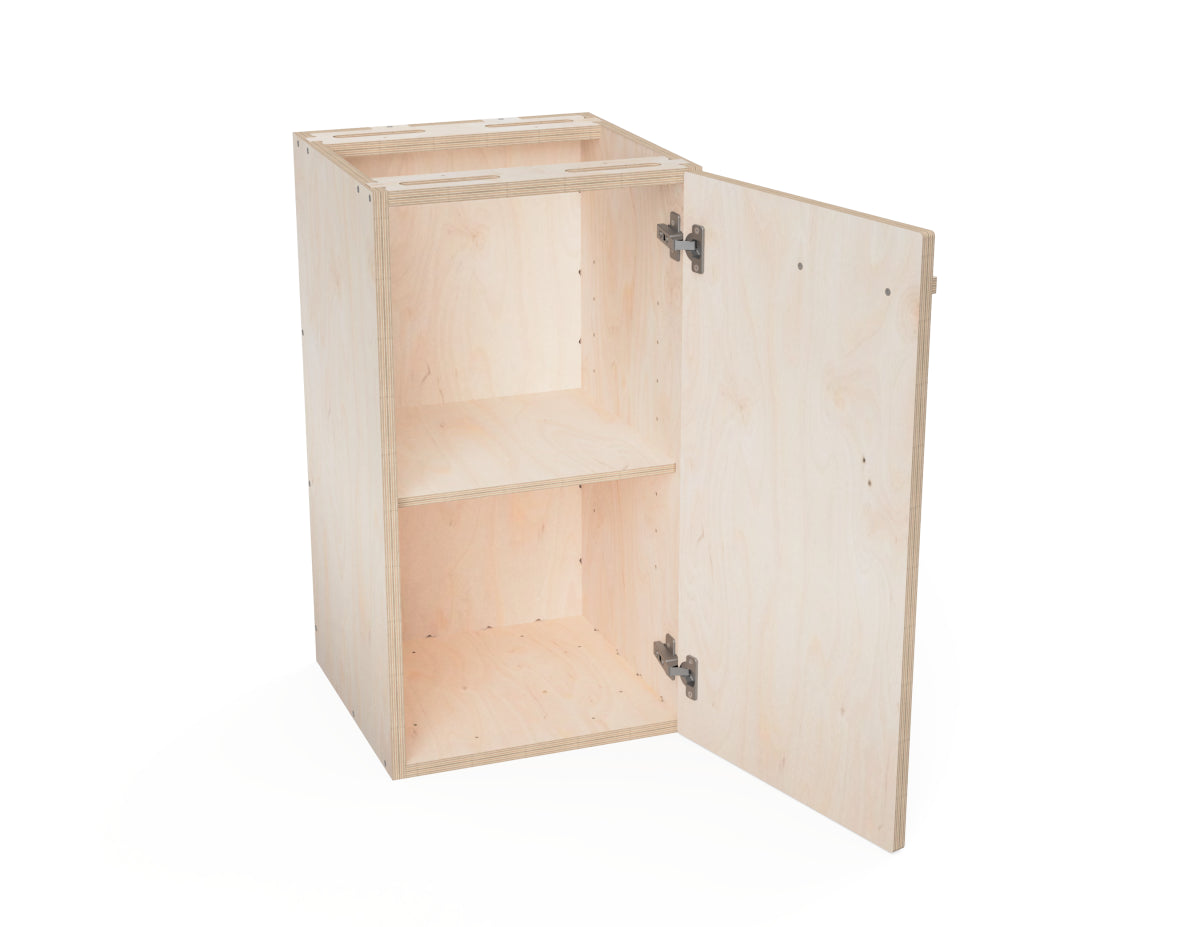

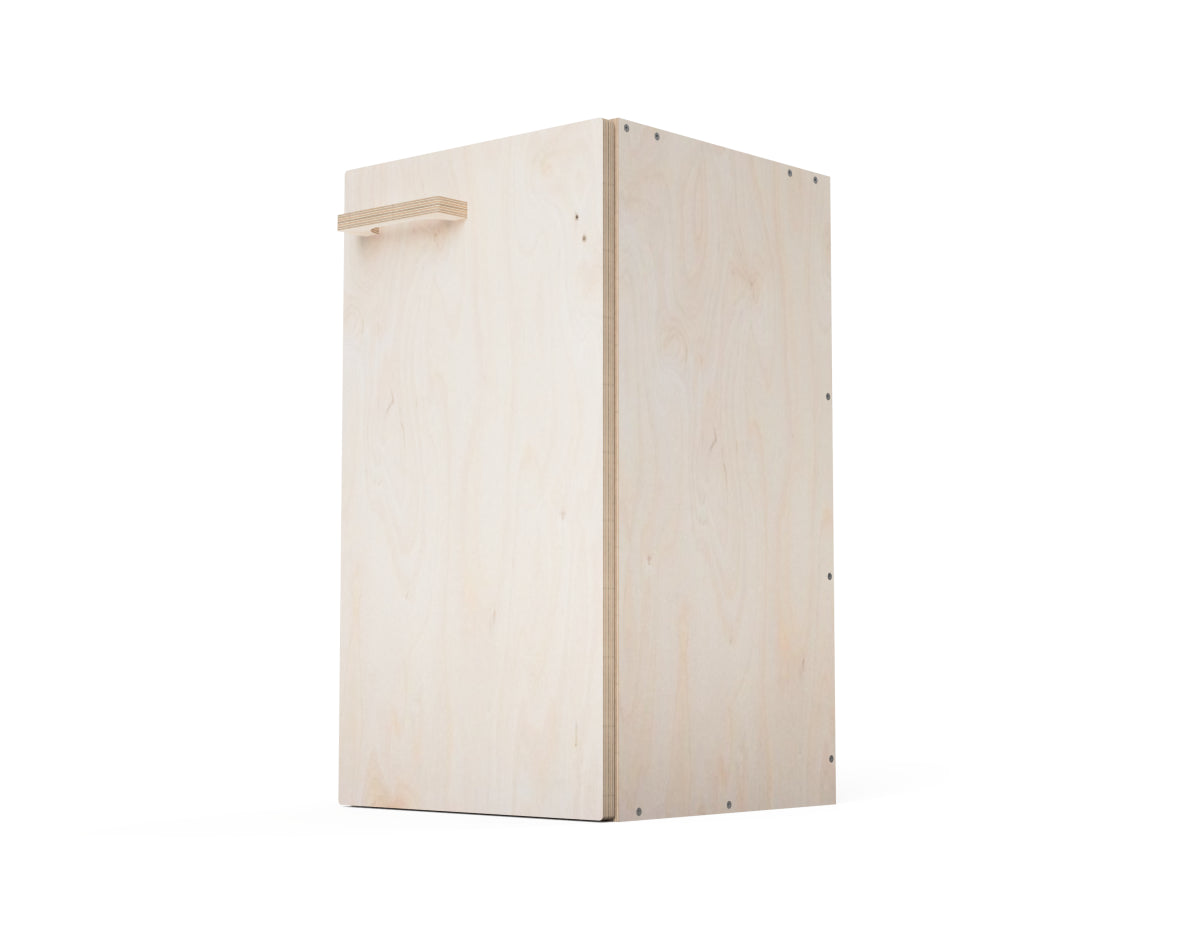

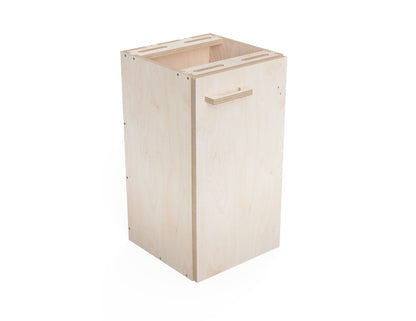

The simple cabinet features one large door and internal shelves, perfect for storing tools, workpieces, or jigs.

Designed to occupy a single module on the base frame, it also includes files for the work surface panels, making setup quick and easy.

Ideal for CNC woodworking enthusiasts looking to customize their workspace.

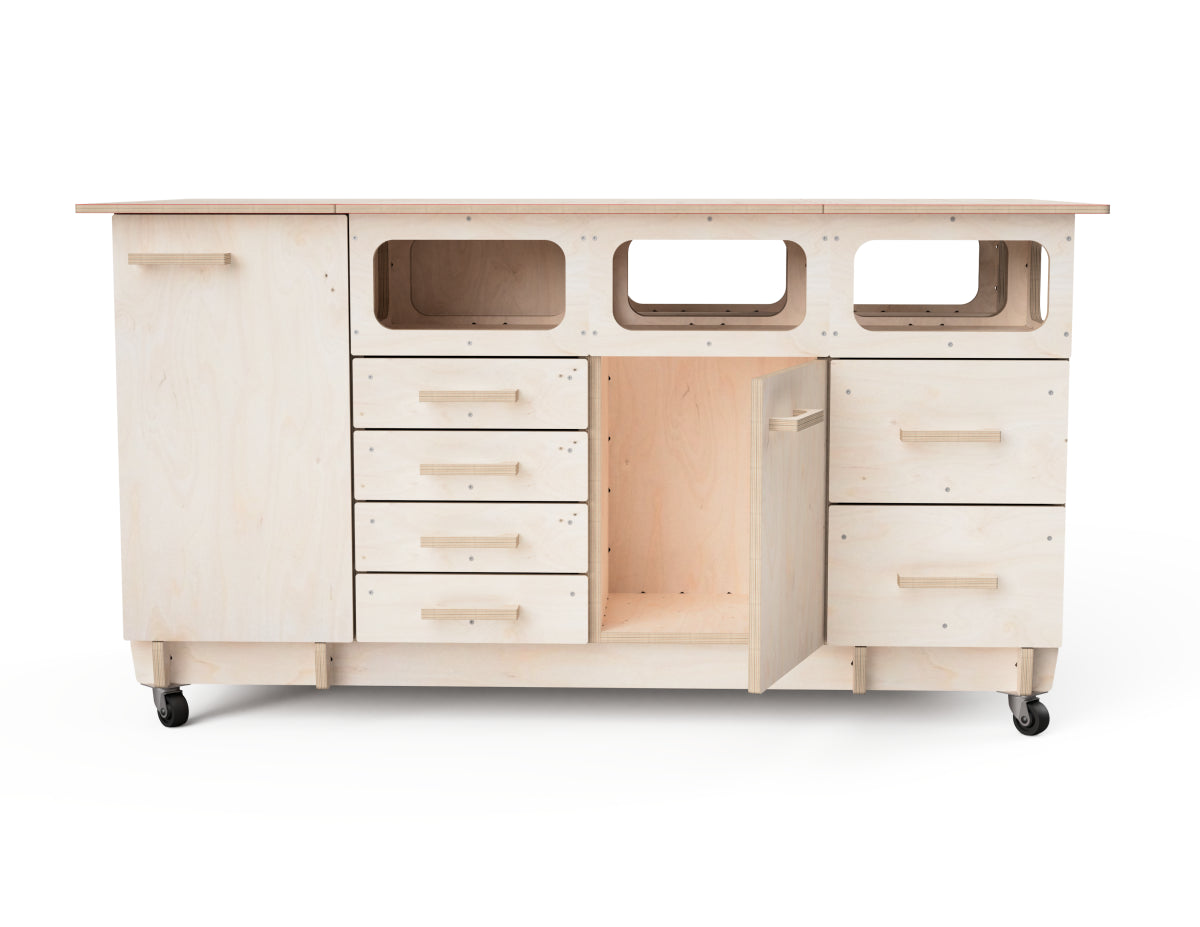

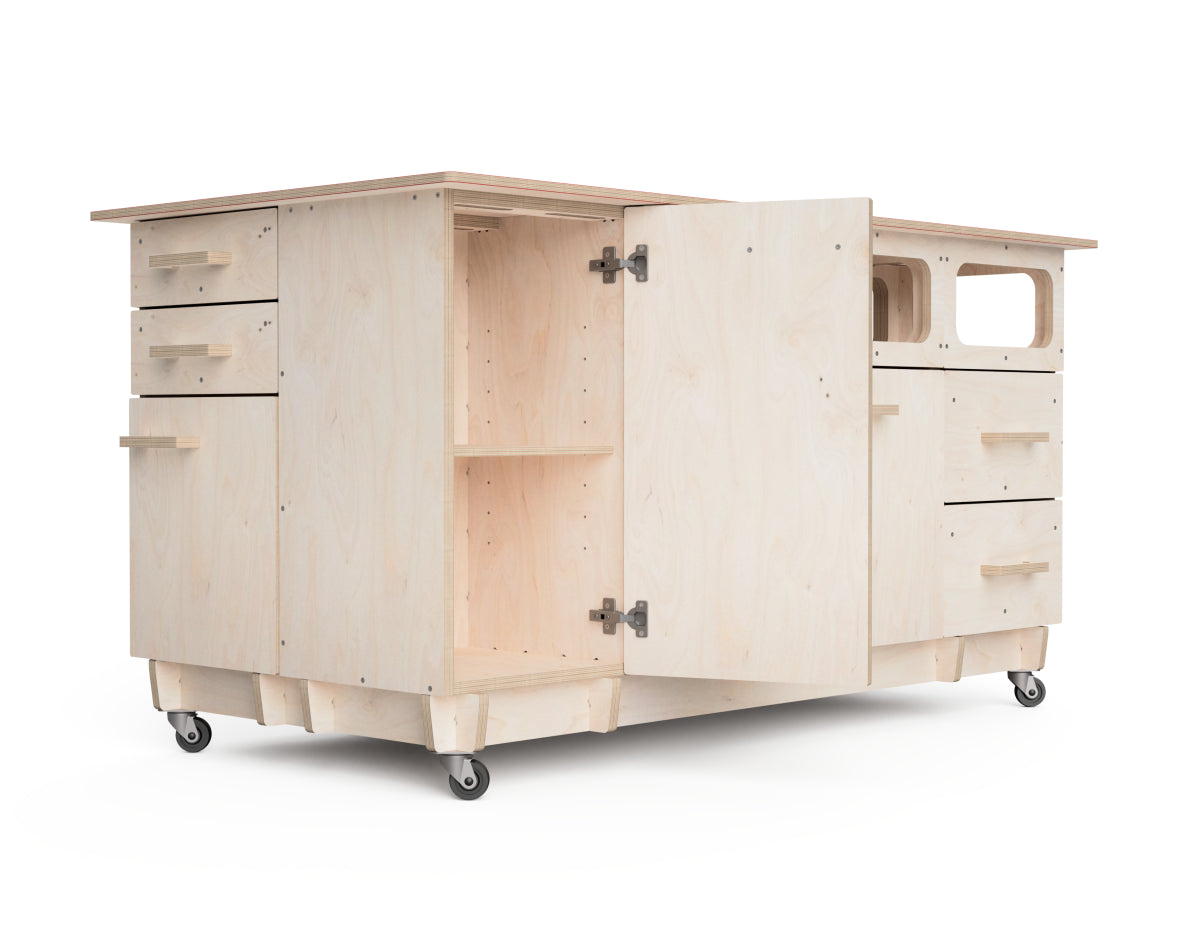

Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
≈ 35 × 35 × 35 in

Medium Workbench Setup
Dimensions: 900 × 1300 × 900 mm (W × L × H)
≈ 35 × 51 × 35 in

Large Workbench Setup
Dimensions: 900 × 1700 × 900 mm (W × L × H)
≈ 35 × 67 × 35 in

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 400 x 730 mm (15.75 x 28.74 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width	Length	Height
400 mm	400 mm	730 mm
15¾ inch	15¾ inch	28¾ inch

Required materials

For a 820 x 1220 (2.6 x 4 ft) CNC
- 1 sheet of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 700 x 1220 x 18 mm (28 x 48 x 3/4 inches) plywood
- 1 sheet of 800 x 400 x 12 mm (31 x 16 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 60 pieces
- 15 mm (5/16 inches) wood screws - 8 pieces
- cabinet door hinges - 2 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 450 x 300 x 18 mm (18 x 12 x 3/4 inches) plywood
- 1 sheet of 800 x 400 x 12 mm (31 x 16 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 60 pieces
- 15 mm (5/16 inches) wood screws - 8 pieces
- cabinet door hinges - 2 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 2440 x 820 x 18 mm (96 x 32 x 3/4 inches) plywood
- 1 sheet of 800 x 400 x 12 mm (31 x 16 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 60 pieces
- 15 mm (5/16 inches) wood screws - 8 pieces
- cabinet door hinges - 2 pieces
