Modular Workbench Attachment - Seven Drawer Cabinet DXF Files

Modular Workbench Attachment - Seven Drawer Cabinet DXF Files

$4.95 USD
$9.95 USD $4.95 USD
Sale Sold out
Taxes included.

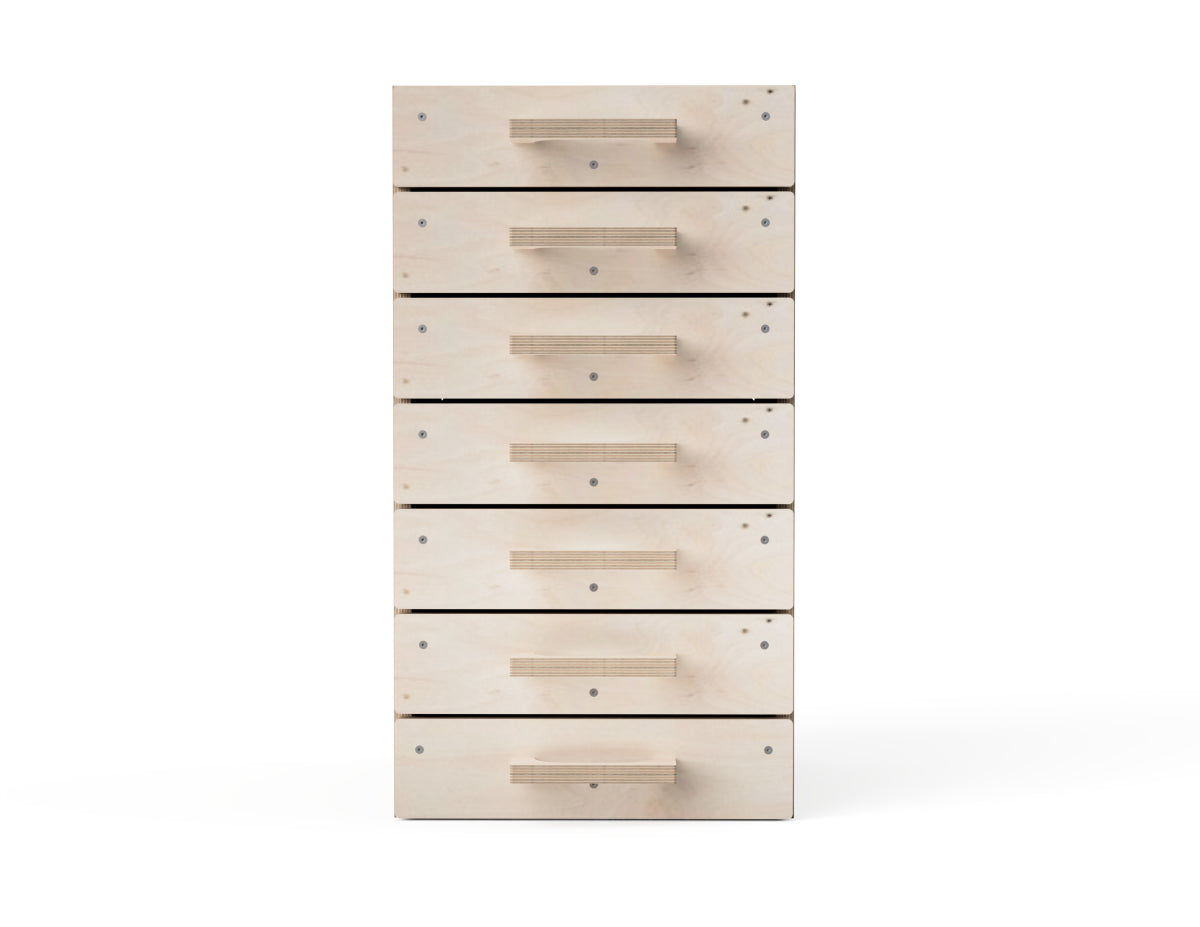

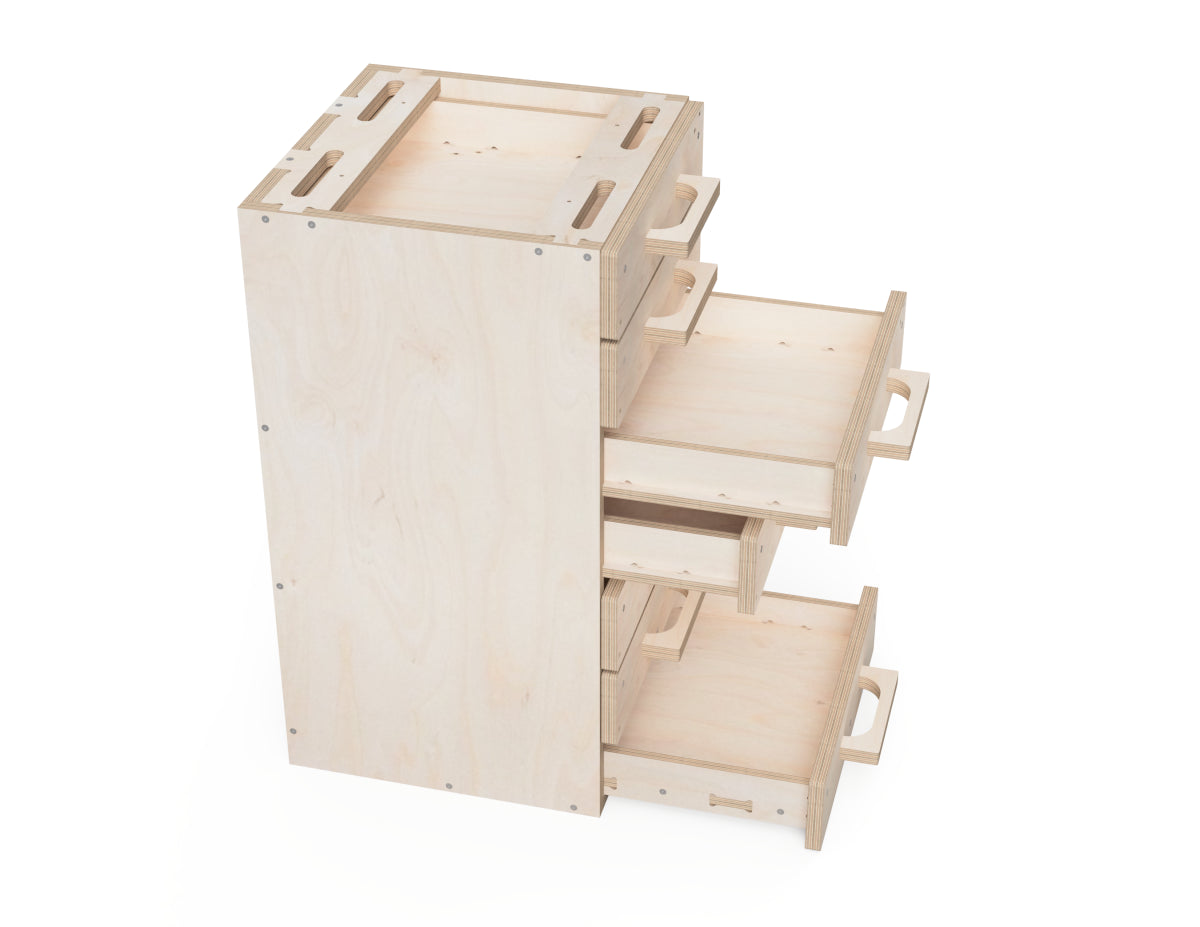

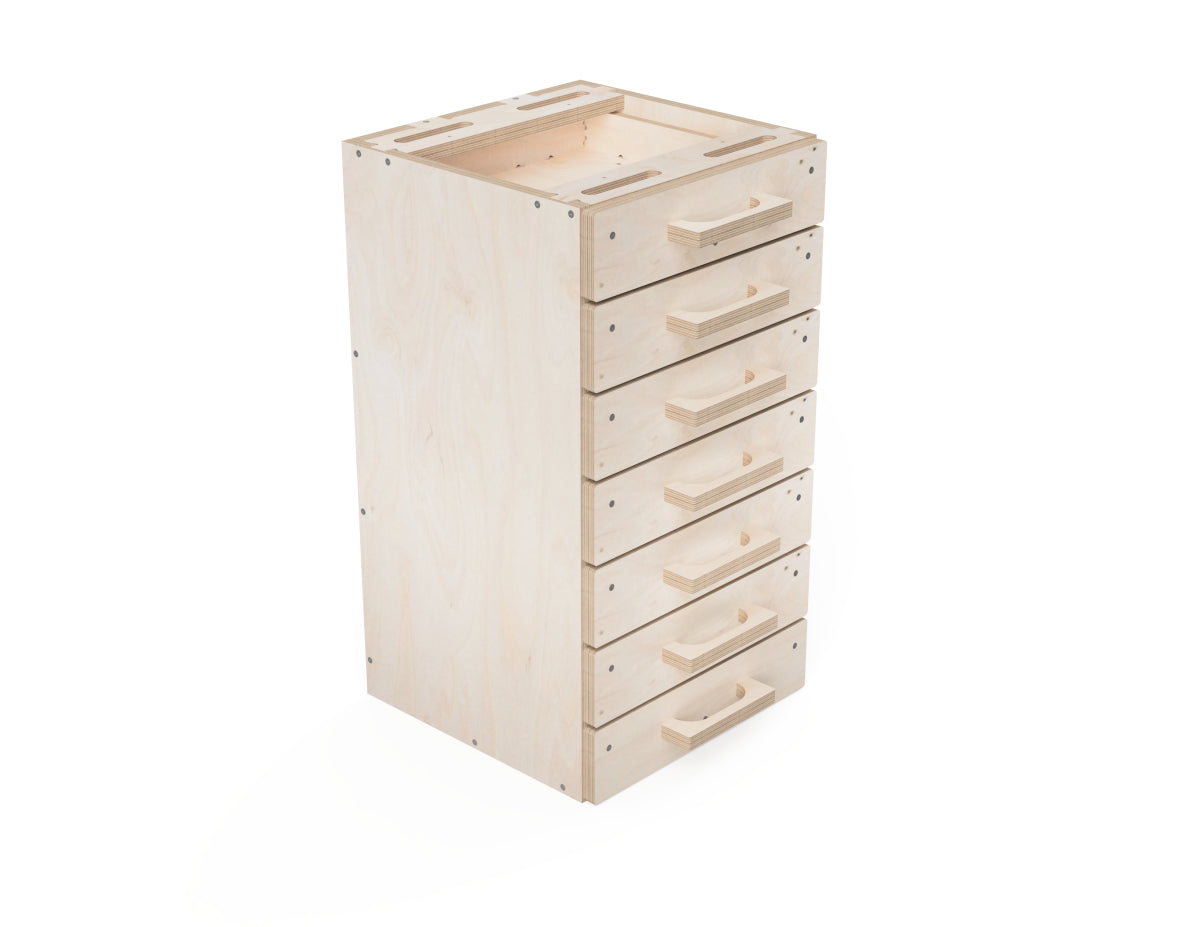

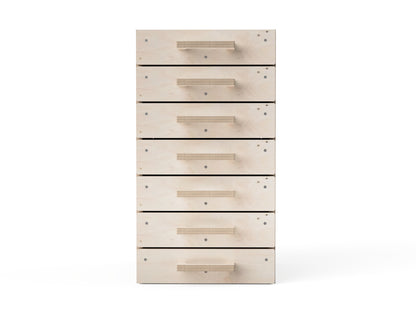

Create a versatile seven-drawer cabinet for your modular workbench with these DXF files.



The cabinet fits one module of your base frame and provides spacious storage for tools, jigs, and materials.

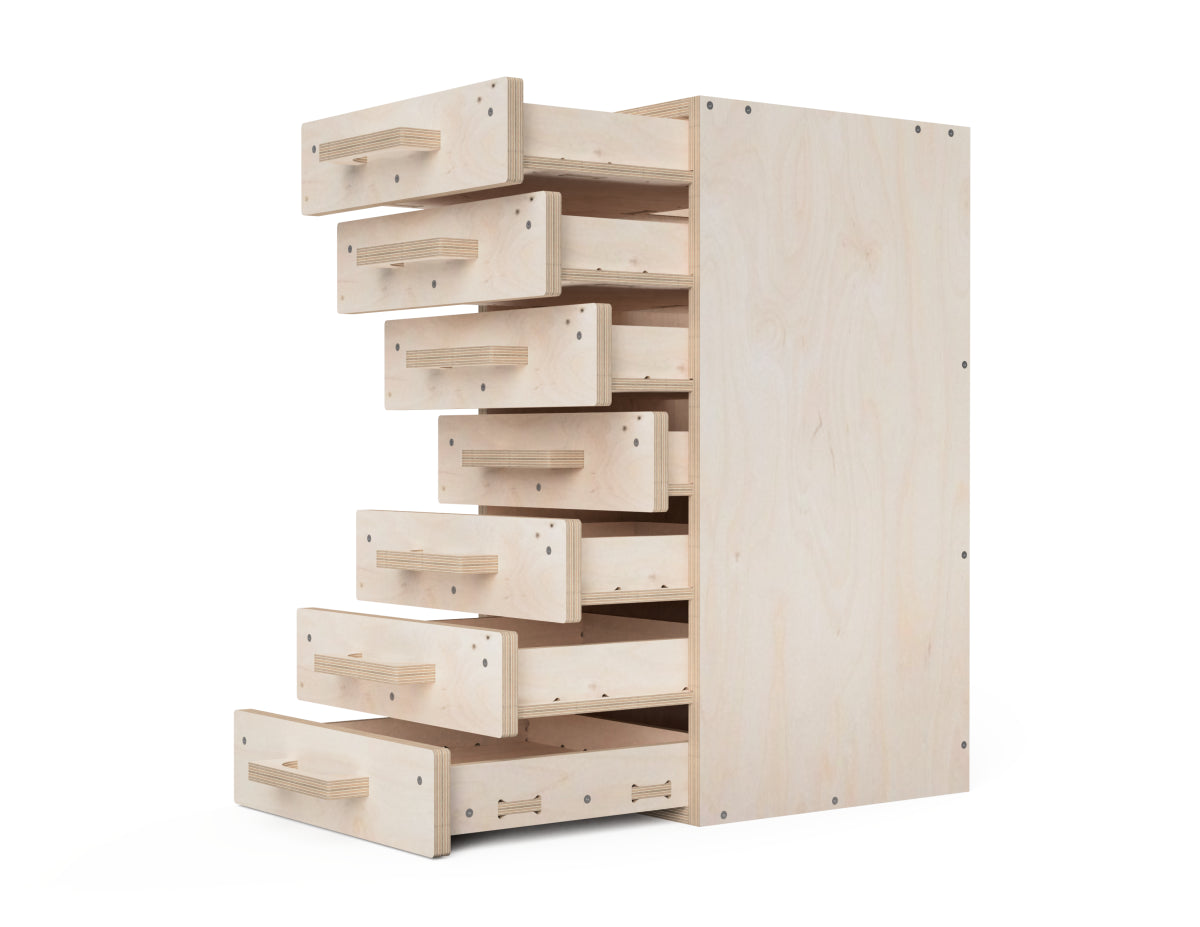

Built-in drawer slides make assembly easy and save costs, while included work surface panel files complete your setup.



Perfect for CNC woodworking enthusiasts looking to organize their workspace efficiently.



Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
≈ 35 × 35 × 35 in

Medium Workbench Setup
Dimensions: 900 × 1300 × 900 mm (W × L × H)
≈ 35 × 51 × 35 in

Large Workbench Setup
Dimensions: 900 × 1700 × 900 mm (W × L × H)
≈ 35 × 67 × 35 in

Supported CNC sizes

The project can be made on a 800 x 1200 mm (2.6 x 4 ft) CNC router and bigger.

Max single piece size

The biggest component is 400 x 730 mm (15.75 x 28.74 inches).
So if it can fit on your CNC router, you can build this project

Dimensions

Width Length Height
400 mm 400 mm 730 mm
15¾ inch 15¾ inch 28¾ inch

Required materials

For a 820 x 1220 (2.6 x 4 ft) CNC
- 1 sheet of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 1 sheet of 700 x 1220 x 18 mm (28 x 48 x 3/4 inches) plywood
- 1 sheet of 520 x 1220 x 12 mm (21 x 48 x 1/2 inches) plywood
- 2 sheets of 820 x 1220 x 12 mm (32 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 140 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 1 sheet of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 1 sheet of 450 x 300 x 18 mm (18 x 12 x 3/4 inches) plywood
- 1 sheet of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 1 sheet of 850 x 410 x 12 mm (34 x 17 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 140 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 2440 x 820 x 18 mm (96 x 32 x 3/4 inches) plywood
- 1 sheet of 2440 x 800 x 12 mm (96 x 32 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inches) wood screws - 140 pieces

Approximate CNC time

1 hour

Assembling time

1 hour
The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox!
View full details
