Upgrade your modular workbench with this CNC-ready router table attachment.

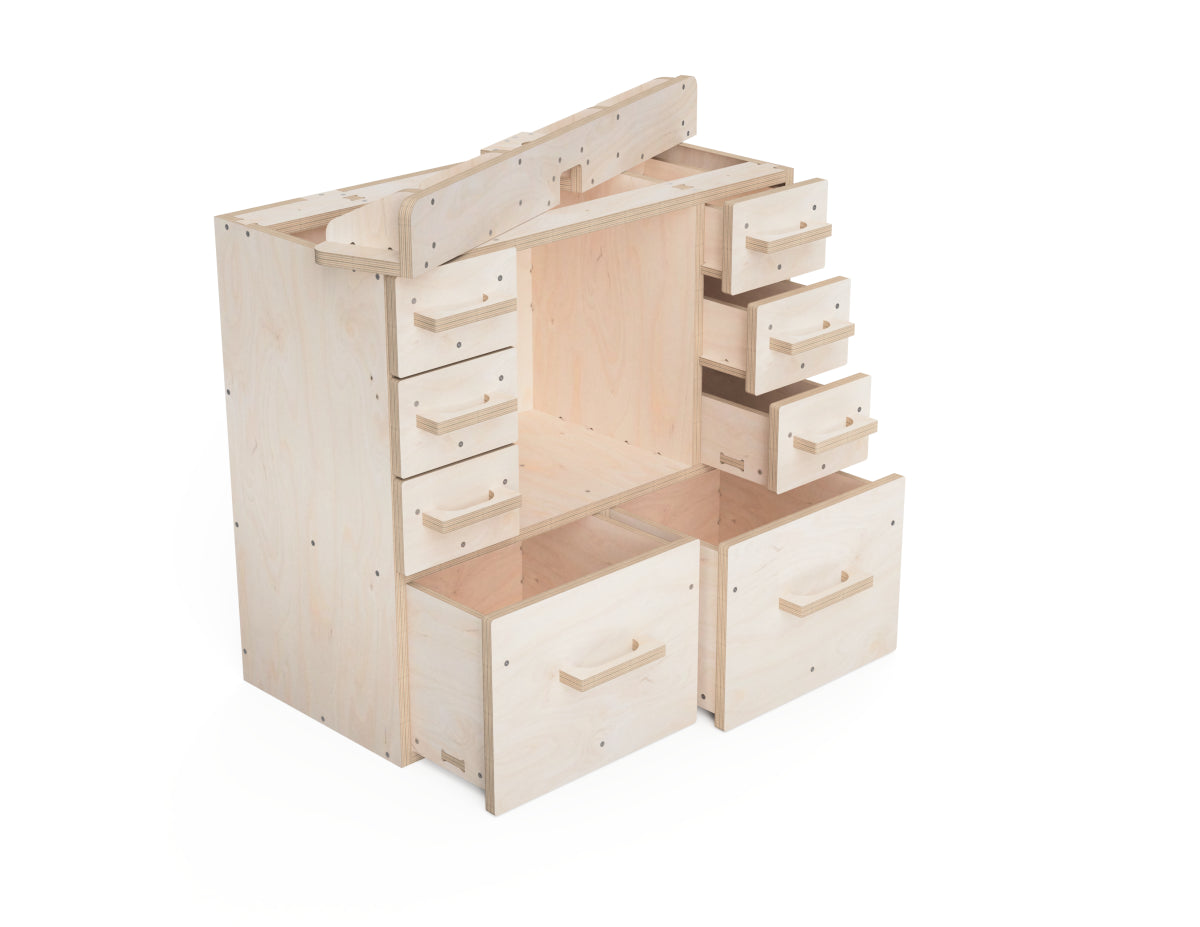

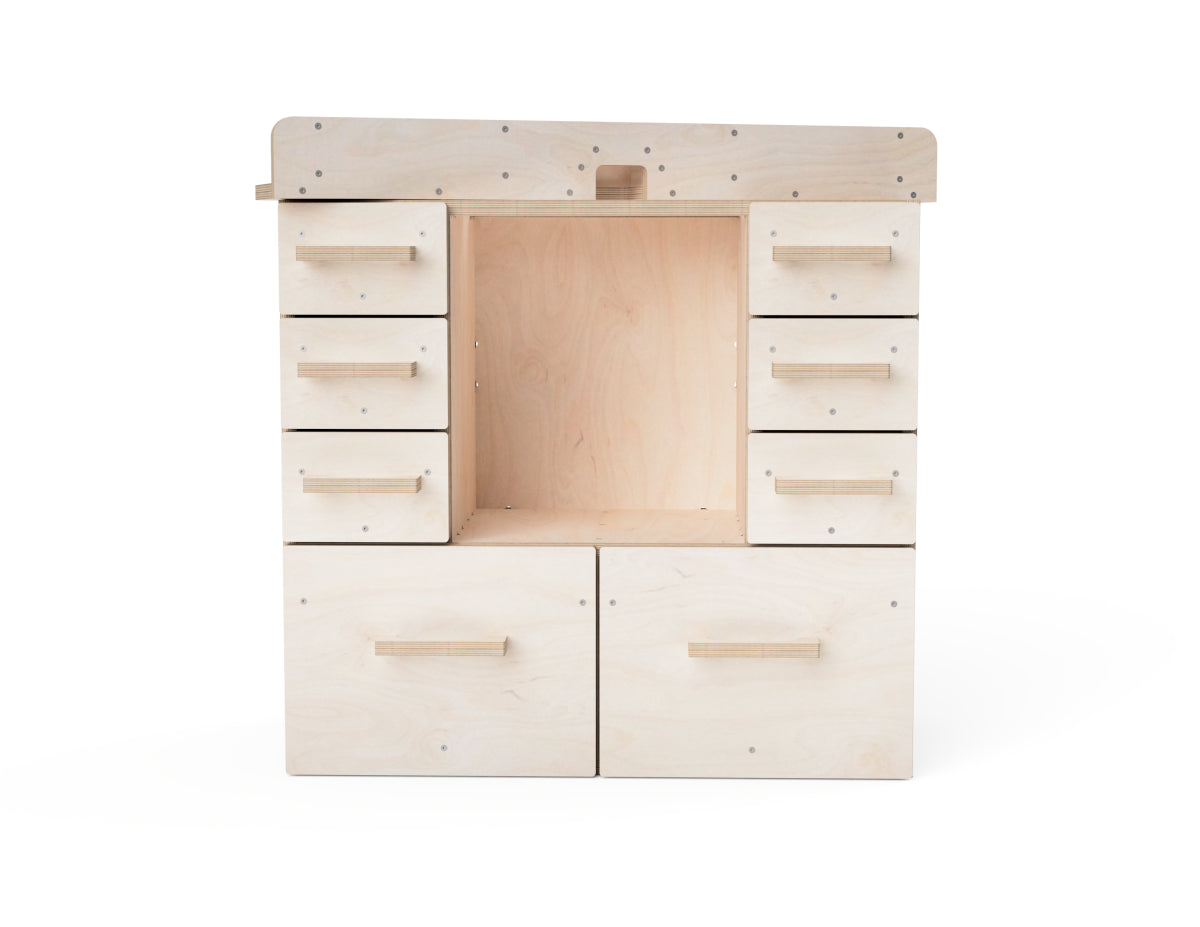

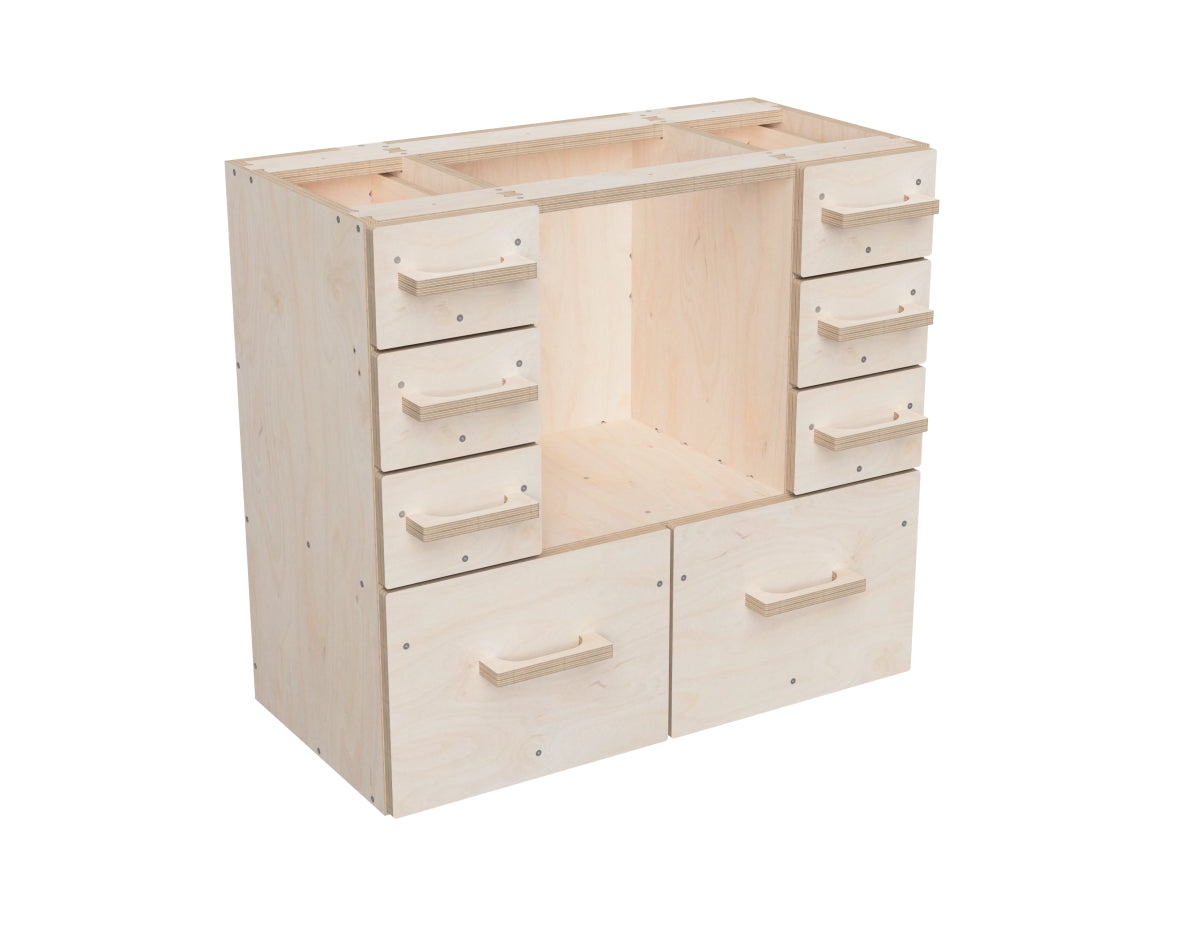

Features a sturdy cabinet with 2 large drawers for workpieces, 6 small drawers for bits, adjustable router fence, and multiple worksurface layouts for S, M, and L setups.

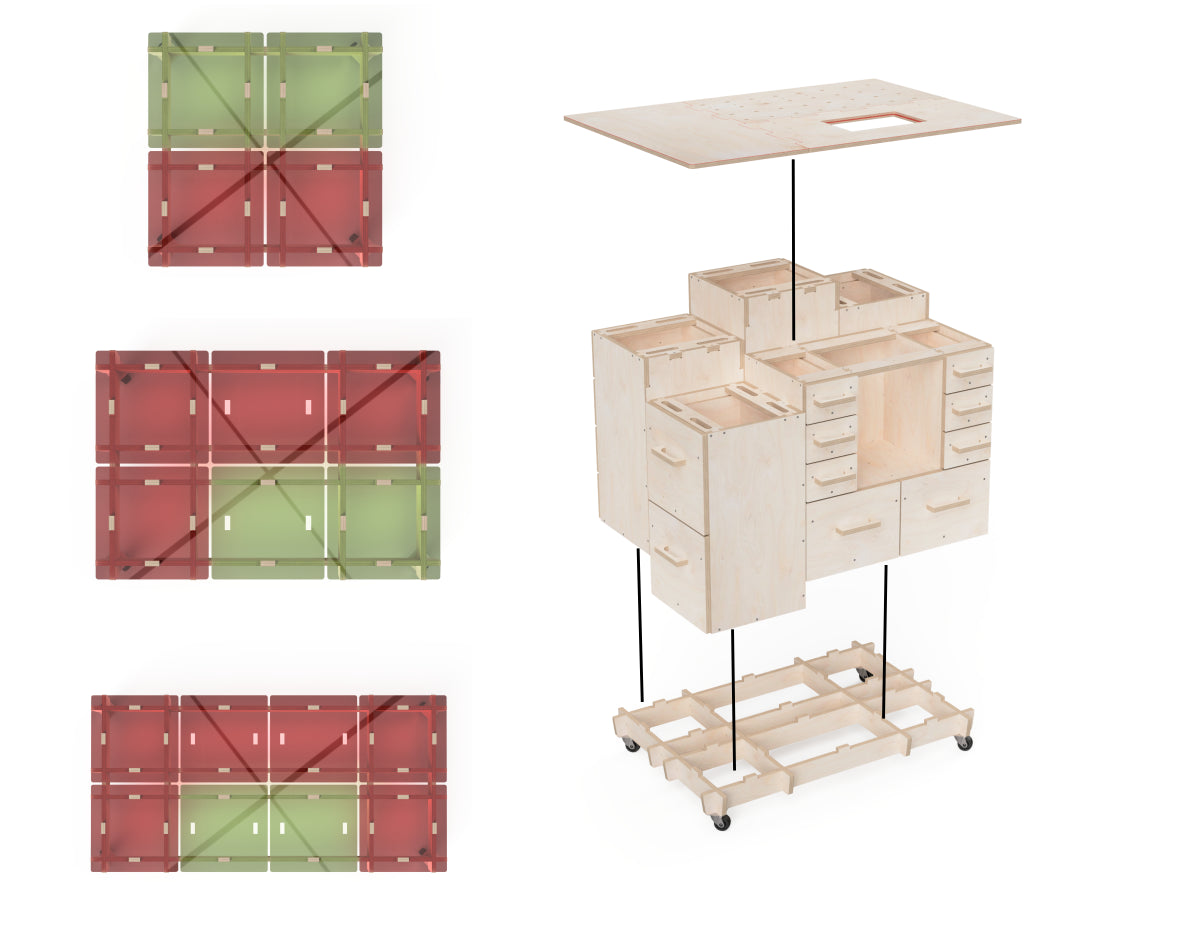

Built-in drawer slides save cost and assembly time. Takes up two modules and includes work surface panel files.
Perfect for CNC woodworking enthusiasts looking for a versatile, space-efficient solution.

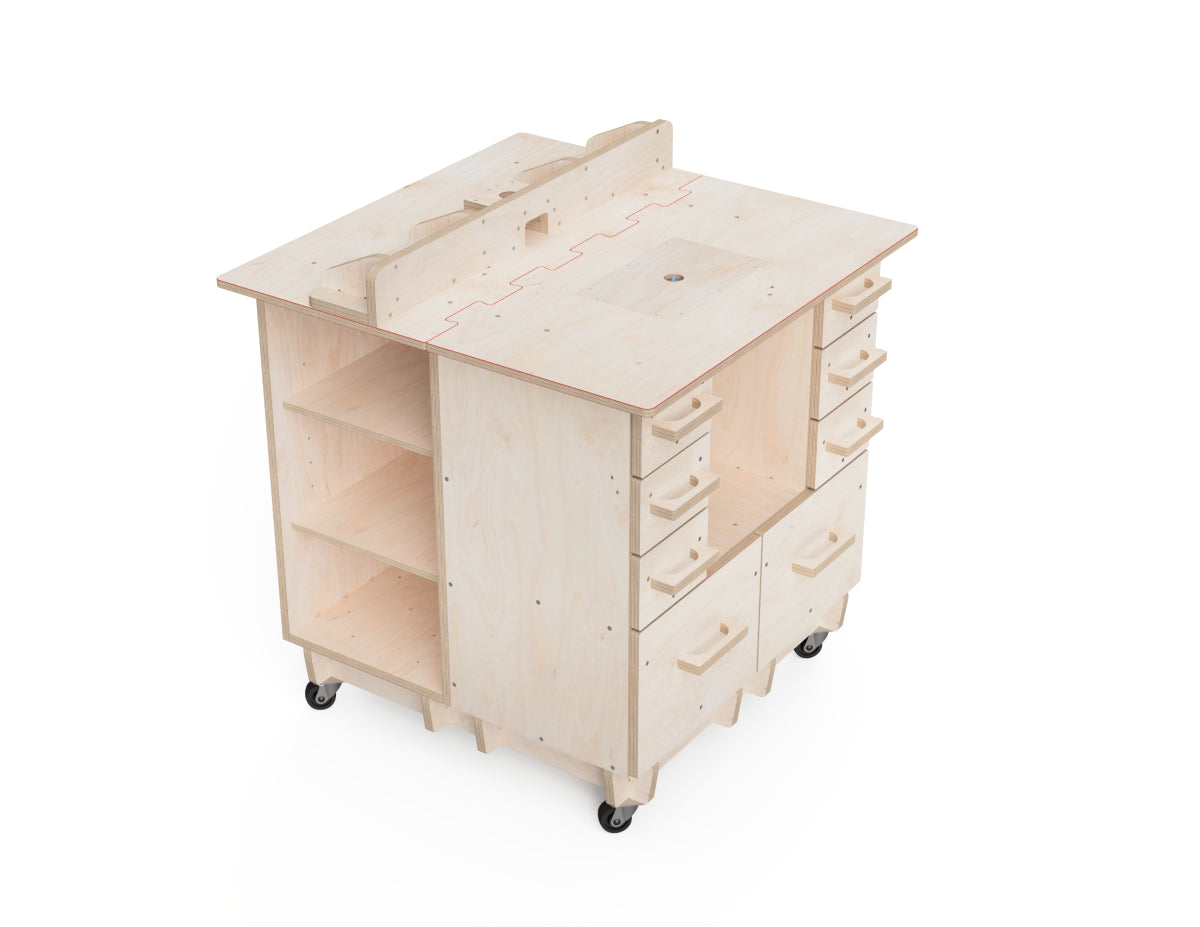

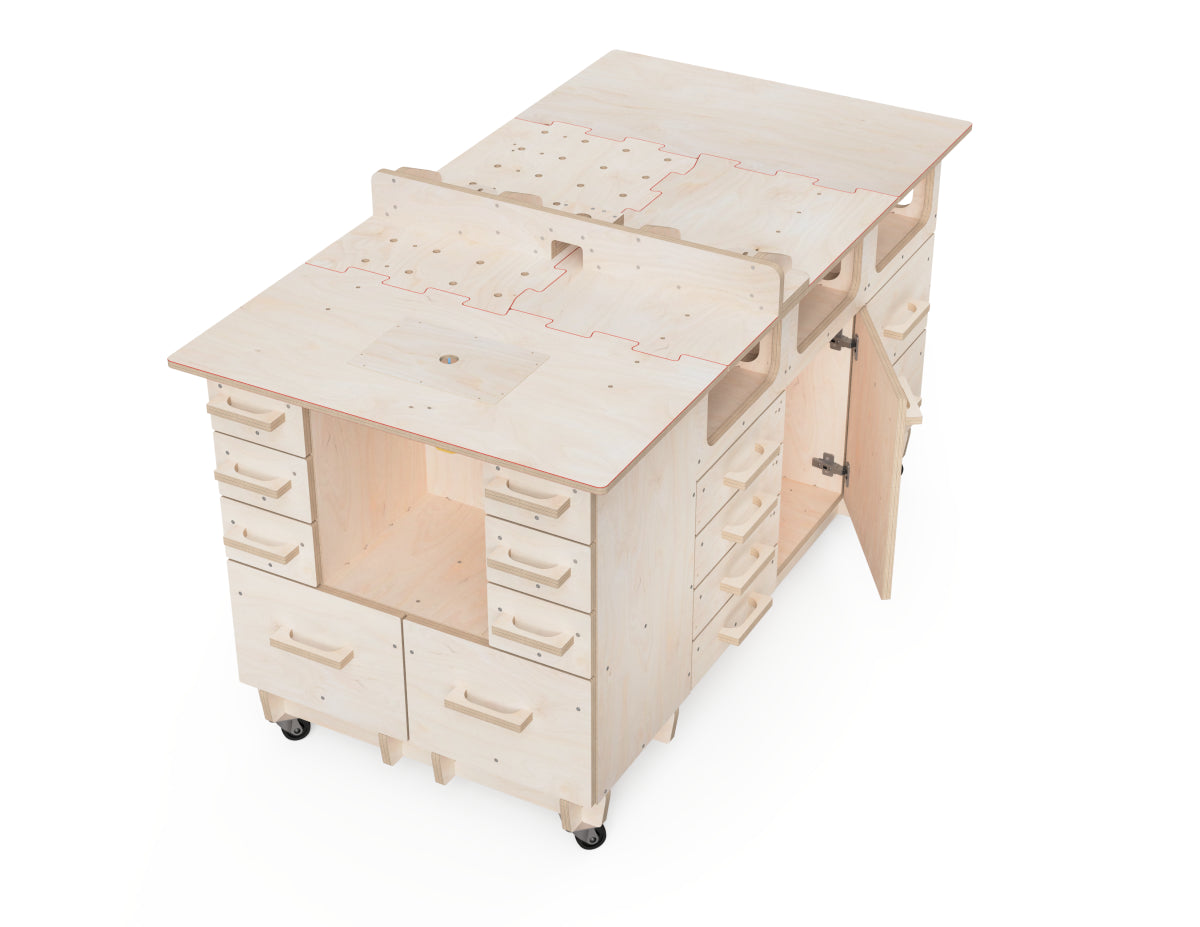

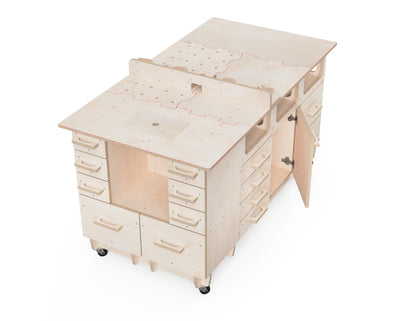

Small Workbench Setup
Dimensions: 900 × 900 × 900 mm (W × L × H)
≈ 35 × 35 × 35 in

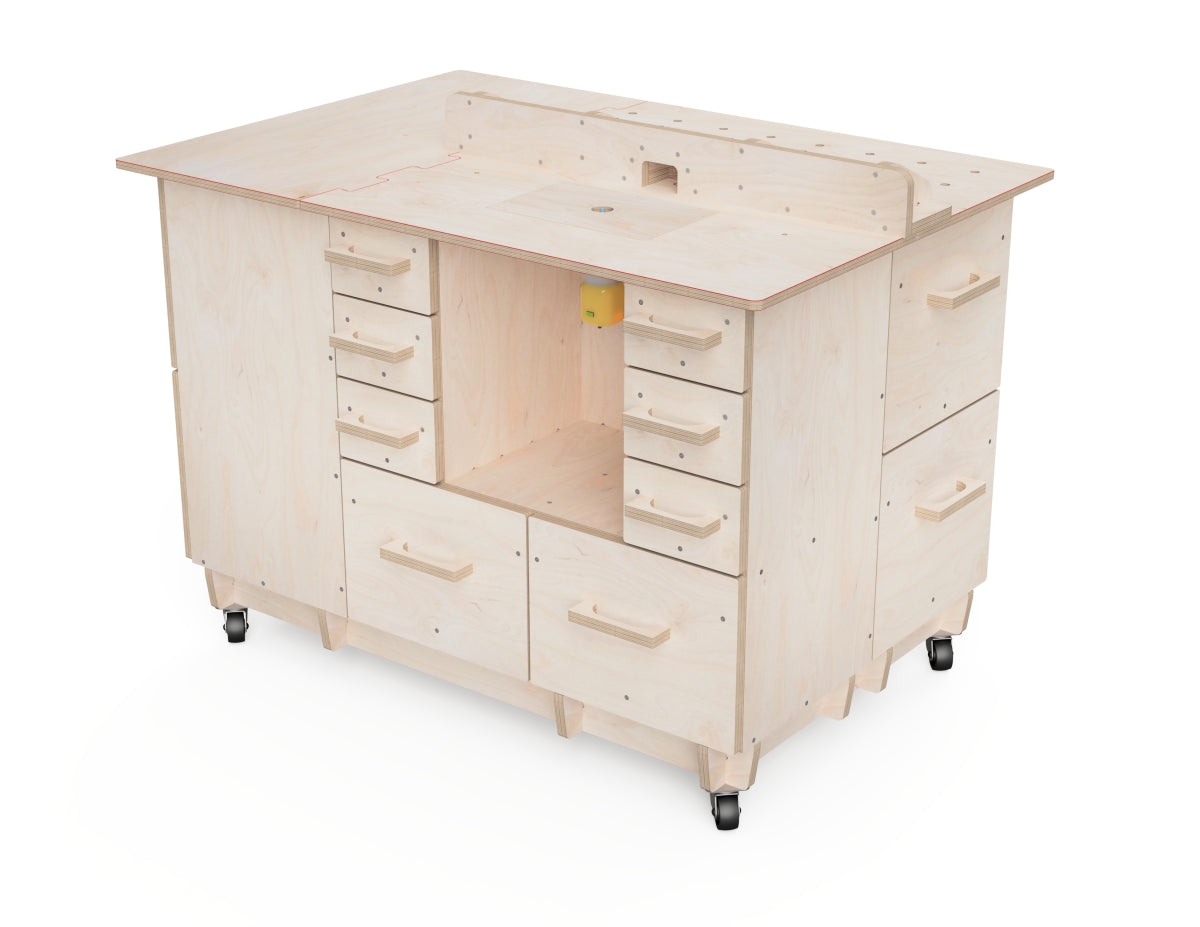

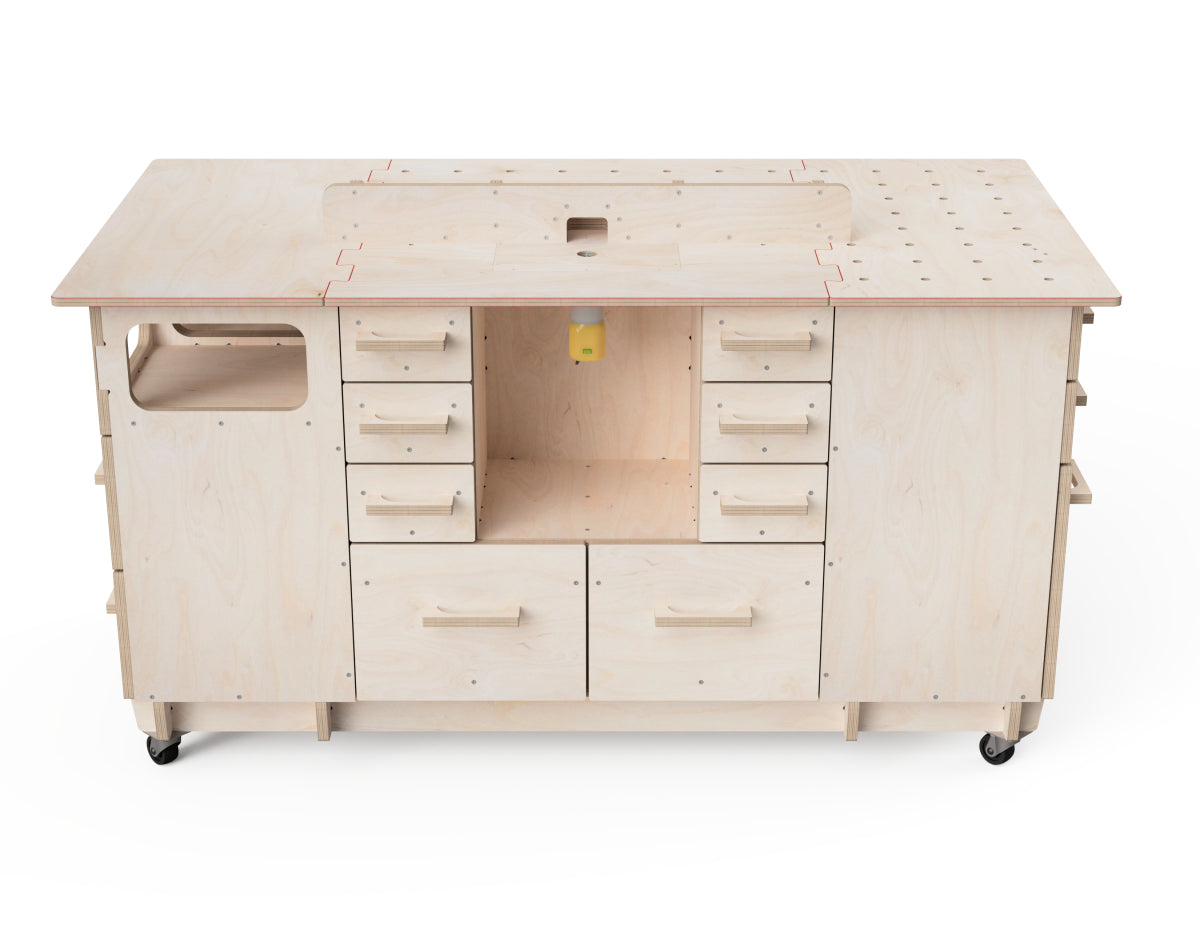

Medium Workbench Setup
Dimensions: 900 × 1300 × 900 mm (W × L × H)
≈ 35 × 51 × 35 in

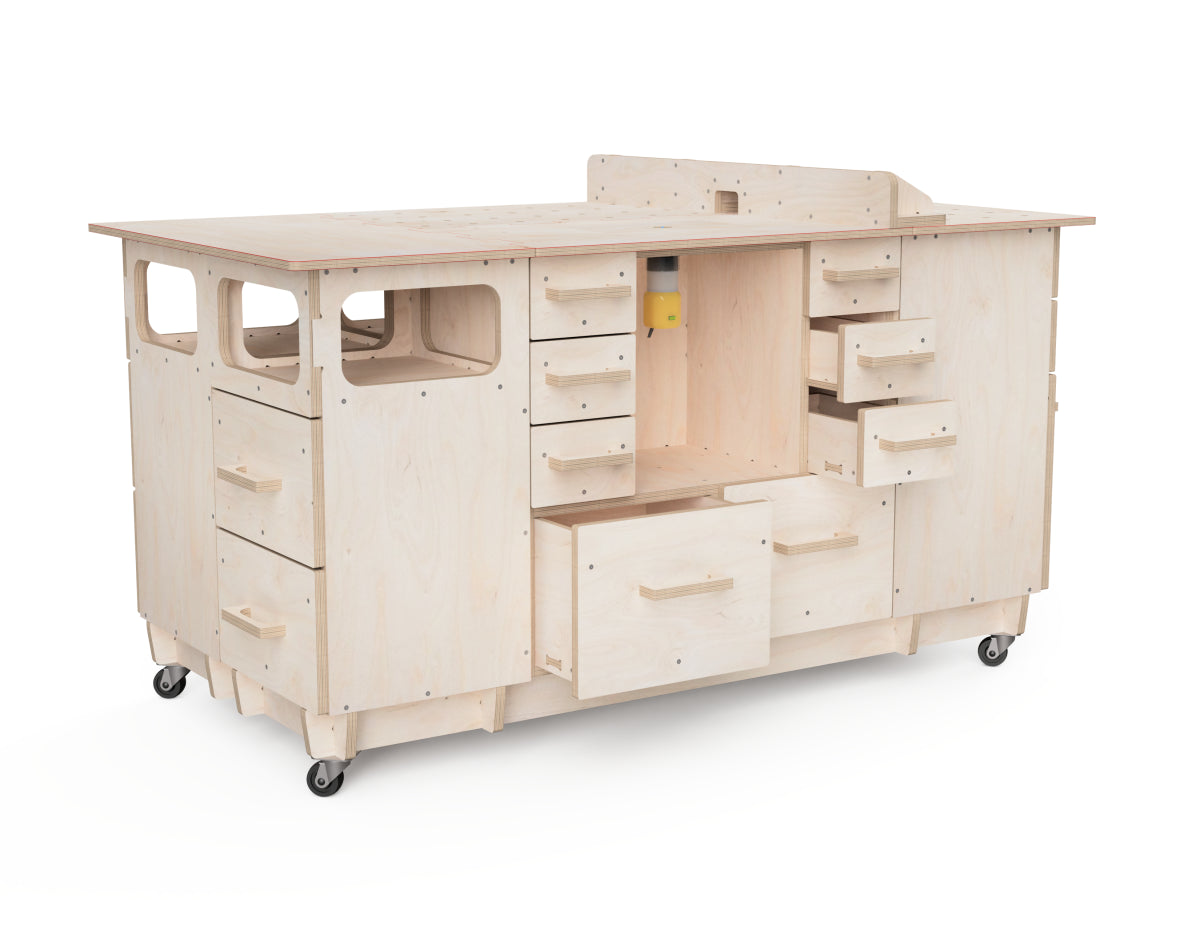

Large Workbench Setup
Dimensions: 900 × 1700 × 900 mm (W × L × H)
≈ 35 × 67 × 35 in
Supported CNC sizes
Supported CNC sizes
Max single piece size
Max single piece size
So if it can fit on your CNC router, you can build this project
Dimensions
Dimensions
| Width | Length | Height |
|---|---|---|
| 400 mm | 800 mm | 730 mm |
| 15¾ inch | 31½ inch | 28¾ inch |
Required materials
Required materials
For a 820 x 1220 mm (2.6 x 4 ft) CNC
- 3 sheets of 820 x 1220 x 18 mm (32 x 48 x 3/4 inches) plywood
- 2 sheets of 500 x 950 x 18 mm (20 x 38 x 3/4 inches) plywood
- 2 sheets of 820 x 1220 x 12 mm (32 x 48 x 1/2 inches) plywood
- 1 sheet of 300 x 800 mm x 12 mm (12 x 31 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 150 pieces
- M8 x 55 mm screws - 2 pieces
- M8 Tee nuts - 10 - 20 pieces
For a 1220 x 1220 mm (4 x 4 ft) CNC
- 2 sheets of 1220 x 1220 x 18 mm (48 x 48 x 3/4 inches) plywood
- 2 sheets of 500 x 950 x 18 mm (20 x 38 x 3/4 inches) plywood
- 1 sheet of 1220 x 1220 x 12 mm (48 x 48 x 1/2 inches) plywood
- 1 sheet of 650 x 1220 x 12 mm (26 x 48 x 1/2 inches) plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 150 pieces
- M8 x 55 mm screws - 2 pieces
- M8 Tee nuts - 10 - 20 pieces
For a 1220 x 2440 mm (4 x 8 ft) CNC
- 1 sheet of 1220 x 2440 x 18 mm (48 x 96 x 3/4 inches plywood
- 2 sheets of 500 x 950 x 18 mm (20 x 38 x 3/4 inches) plywood
- 1 sheet of 1220 x 2440 x 12 mm (48 x 96 x 1/2 inches plywood
- 6 mm (1/4 inch) router bit
- 30 mm (1-1/4 inch) wood screws - 150 pieces
- M8 x 55 mm screws - 2 pieces
- M8 Tee nuts - 10 - 20 pieces
